FORD RANGER 1996 2.G Owners Manual

Electronic Sound Systems
131
*
[AS29315(ALL)01/95]
n
Setting the station MEMORY PRESET buttons
*
[AS29320(ALL)01/95]
Your radio is equipped with 6 station memory buttons.
These buttons can be used to select up to 6 preset AM
stations and 12 FM stations (6 in FM1 and 6 in FM2)
*
[AS29325(ALL)10/95]
Follow the easy steps below to set these buttons to the desired
frequencies:
*
[AS29330(ALL)10/95]1.
Select a band, then select a frequency.
*
[AS29340(ALL)10/95]2.
Press one of the memory preset buttons and hold the button
until the sound returns. That station is now held in memory
on that button.
*
[AS29345(ALL)10/95]3.
Follow the two steps above for each station memory preset
button you want to set.
*
[AS29350(ALL)01/95]
n
Using the AUTOSET feature
*
[AS29355(ALL)01/95]
With AUTOSET, you can continually set strong stations into
your memory buttons without losing your originally set
stations.
*
[AS29360(ALL)01/95]
Press the ªAUTOSETº button once. Your radio will set the
first six strong stations of the band you are in (AM, FM1, or
FM2) into the memory buttons. The display will show
ªAUTOº, then run through the frequencies setting the
memory buttons.
*
[AS29365(ALL)10/95]
NOTE: If there are fewer than five strong stations in the
frequency band, the remaining unfilled buttons will
store the last strong station detected on the band.
*
[AS29370(ALL)01/95]
When all stations are filled, the radio will begin playing the
station stored in memory button 1.
*
[AS29375(ALL)01/95]
To deactivate the Auto Memory Store mode and return to
manually-set memory button stations, press the ªAUTOSETº
button. Display will show ªAUTOº then ªOFFº.
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

132
*
[AS29380(ALL)01/95]
Adjusting the tone balance of your radio
*
[AS29385(ALL)10/95]
n
Increasing or decreasing bass response
*
[AS29390(ALL)03/95]
Press the top (
c) of the ªBASSº button to increase bass;
press the bottom (
d) of the ªBASSº button to decrease bass.
*
[AS29395(ALL)10/95]
n
Increasing or decreasing treble response
*
[AS29405(ALL)03/95]
Press the top (
c) of the ªTREBLEº button to increase treble;
press the bottom (
d) of the treble button to decrease treble.
*
[AS29410(ALL)10/95]
n
Adjusting speaker balance
*
[AS29415(ALL)03/95]
Balance control allows you to adjust the sound distribution
between the right and left speakers. Press the top (
c) of the
ªBALº button to shift the sound to the right speakers, and
press the bottom (
d) of the ªBALº button to shift the sound
to the left speakers.
*
[AS29420(ALL)10/95]
n
Adjusting speaker fader
*
[AS29425(ALL)03/95]
Fade control allows you to adjust the sound distribution
between the front and rear speakers. Press the top (
c)of
the ªFADEº button to shift the sound to the front speakers,
and press the bottom (
d) of the ªFADEº button to shift the
sound to the back speakers.
*
[AS29430(ALL)10/95]
NOTE: Illuminated bars in the display show relative levels of
bass and treble, and positions of speaker balance and
fader functions (left to right, front to rear).
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

Electronic Sound Systems
133
%*
[AS29435(ALL)08/95]
Using the Controls of Your Cassette Tape Player
*
[AS29440(ALL)08/95]
NOTE: Radio power must be on to use the cassette tape
player.
*
[AS29445(ALL)08/95]
How to insert a tape
*
[AS29450(ALL)04/95]
Your cassette tape player is equipped with power loading. Once
you insert a tape and push slightly (with theopen edge to the
right), the loading mechanism draws the tape the rest of the
way in and play will begin after a momentary tape tightening
process. Display indicates ªTAPEº while tape is playing.
*
[AS29455(ALL)06/95]
NOTE: A cassette tape can be loaded with the ignition on
whether or not the radio power is on. However, with
radio power off, the cassette tape is loaded and stored.
*
[AS29465(ALL)08/95]
How to locate a desired track on the tape
*
[AS29470(ALL)08/95]
There are four ways to quickly locate a desired selection on the
tape. You can use the fast forward, rewind, ªSEEKº or ªSCANº
function. Following are brief descriptions of each.
*
[AS29475(ALL)09/95]
n
Fast forwarding the tape
*
[AS29480(ALL)01/95]
To fast forward the tape, press the ªFFº button. The radio
will begin playing until fast forward is manually stopped (by
pushing the ªTAPEº button) or the end of the tape is
reached.
*
[AS29485(ALL)01/95]
At the end of the tape, the direction automatically reverses
and plays the other side of the tape.
*
[AS29490(ALL)08/95]
n
Rewinding the tape
*
[AS29495(ALL)01/95]
To rewind the tape, press the ªREWº button. The radio will
begin playing until rewind is manually stopped (by pushing
the ªTAPEº button) or the beginning of the tape is reached.
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

134
*
[AS29505(ALL)08/95]
n
Using the ªSEEKº function with your cassette tape player
*
[AS29510(ALL)08/95]
While in the tape mode, push the right (
a) side of the
ªSEEKº button to seek forward to the next selection on the
tape. Push the left (
b) side to seek the previous tape
selection.
*
[AS29515(ALL)08/95]
n
Using the ªSCANº function with your cassette tape player
*
[AS29520(ALL)01/95]
Press the ªSCANº button to begin the forward scan mode on
the tape currently playing, stopping on each tape selection
for approximately an eight-second sampling (display
indicates ªSCº).
*
[AS29525(ALL)01/95]
To stop the scan mode on the presently sampled tape
selection, press ªSCANº a second time.
*
[AS29530(ALL)08/95]
n
How to change the side of the tape being played
*
[AS29535(ALL)01/95]
The alternate side of the tape can be selected by pressing the
ªSIDE 1-2º button.
*
[AS29540(ALL)08/95]
How to eject the tape
*
[AS29545(ALL)01/95]
To stop the tape and eject the cassette, press the ªEJº button.
The radio will resume playing if the radio power is on. The
tape cartridge can be ejected with radio power (and/or ignition)
on or off.
[AS29550(ALL)06/95]
How to switch from tape to AM/FM mode
*
[AS29555(ALL)01/95]
Press the ªAM/FMº button to stop the tape player and resume
radio play.
*
[AS29560(ALL)08/95]
Using the DolbyHB noise reduction feature
*
[AS29565(ALL)08/95]
NOTE: Noise reduction system manufactured under license
from Dolby Labs Licensing Corporation. ªDolbyº and
double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
*
[AS29570(ALL)04/95]
Push thekbutton to activate Dolby B Noise Reduction. Push
again to deactivate.
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

Electronic Sound Systems
135
*
[AS29650(ALL)08/95]
Tips on Caring for the Cassette Player and Tapes
*
[AS29655(ALL)08/95]
In order to keep your cassette tape player performing the way it
was meant to, read and follow these simple precautions:
*
[AS29660(ALL)08/95]
n
Using a Ford Cassette Cleaning Cartridge to clean the tape
player head after 10-12 hours of play will help maintain the
best playback sound and proper tape operation.
*
[AS29665(ALL)08/95]
n
Only cassettes that are 90 minutes long or less should be
used. Tapes longer than 90 minutes are thinner and subject
to breakage or may jam the tape player mechanism.
*
[AS29670(ALL)08/95]
n
Protect cassettes from exposure to direct sunlight, high
humidity and extreme heat or cold. If they are exposed to
extreme conditions, allow them to reach a moderate
temperature before playing.
*
[AS29675(ALL)08/95]
n
If a tape is loose inside the cassette, tighten it before playing
by putting your finger or a pencil into one of the holes and
turning the hub until the tape is tight.
*
[AS29680(ALL)08/95]
n
Loose labels on cassette tapes can become lodged in the
mechanism. Remove any loose label material before inserting
cassette.
*
[AS29685(ALL)08/95]
n
Do not leave a tape in the cassette tape player. High heat in
the vehicle can cause the cassette to warp.
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

136
%*
[AS29690(ALL)08/95]
Clock Operation
*
[AS29695(ALL)08/95]
How to view the clock mode
[AS29705(ALL)09/94]
Press the ªCLKº button to display time. The time will continue
to be displayed until a radio or tape function is chosen. After
approximately 10 seconds, the time will again appear in the
display. To display radio or tape information only, press the
ªCLKº button a second time.
[AS29710(ALL)09/95]
NOTE: With the ignition off, the clock will display for
approximately 5 seconds once the ªCLKº button is
depressed and released.
*
[AS29715(ALL)08/95]
How to set the clock
*
[AS29720(ALL)08/95]1.
Turn the radio on.
[AS29725(ALL)04/95]2.
Press and hold the ªCLKº button, press the right (
a) side of
the ªSEEKº button to increase hours. Press the left (
b) side
of the button to decrease hours. Press the right (
a) side of
the ªTUNEº button to increase minutes. Press the left (
b)
side of the button to decrease minutes.
*
[AS29730(ALL)09/95]
NOTE: The clock displays 12-hour time with no AM/PM
indications.
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

Electronic Sound Systems
137
[AS29735(ALL)09/94]
Ford 6-CD Changer (If equipped)
[AS29745(R )03/95]
The Ford Ranger (Regular Cab) 6-CD Changer is mounted
behind the driver's seat. The Ford Ranger (SuperCab) 6-CD
Changer is mounted on the floor near the center of the rear cab
wall. Both changers are controlled with buttons on the Audio
System.
[AS29750(ALL)10/94]
Unit Loading Instructions
[AS29755(ALL)06/95]1.
Open Compact Disc Changer unit by sliding door rearward
(Figure 1).
[AS29760(ALL)09/94]
10-1/2 pica
art:0060686-A
Figure 1
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

138

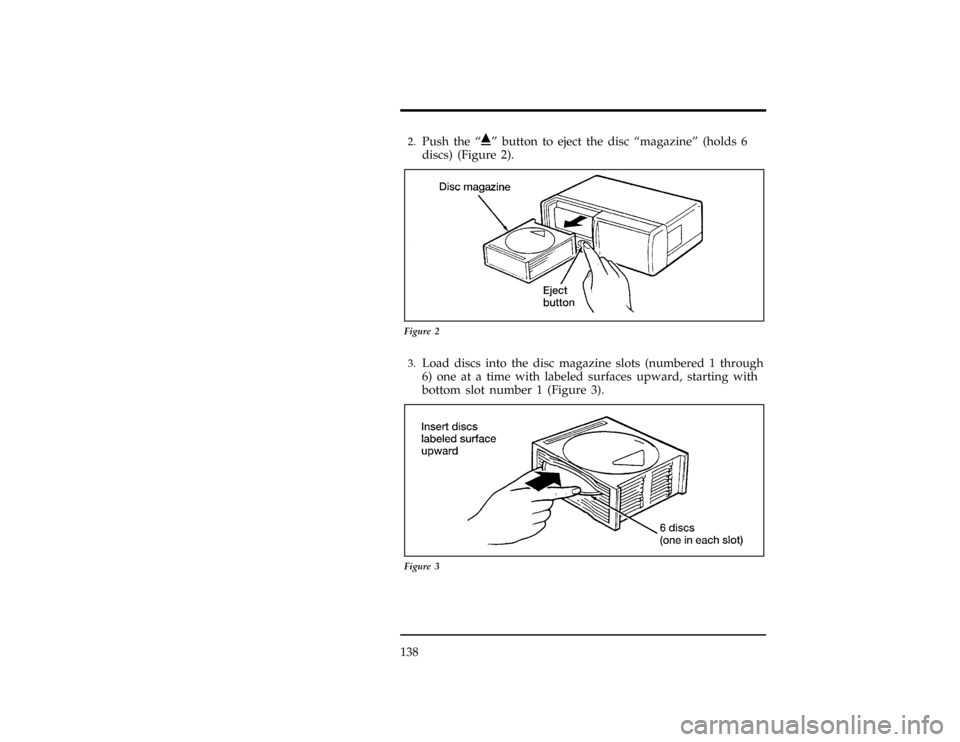

[AS29765(ALL)03/95]2.
Push the ªiº button to eject the disc ªmagazineº (holds 6
discs) (Figure 2).
[AS29770(ALL)10/94]
10-1/2 pica
art:0060687-A
Figure 2
*
[AS29775(ALL)04/94]3.
Load discs into the disc magazine slots (numbered 1 through
6) one at a time with labeled surfaces upward, starting with
bottom slot number 1 (Figure 3).
[AS29780(ALL)09/94]
10-1/2 pica
art:0060688-A
Figure 3
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

Electronic Sound Systems
139

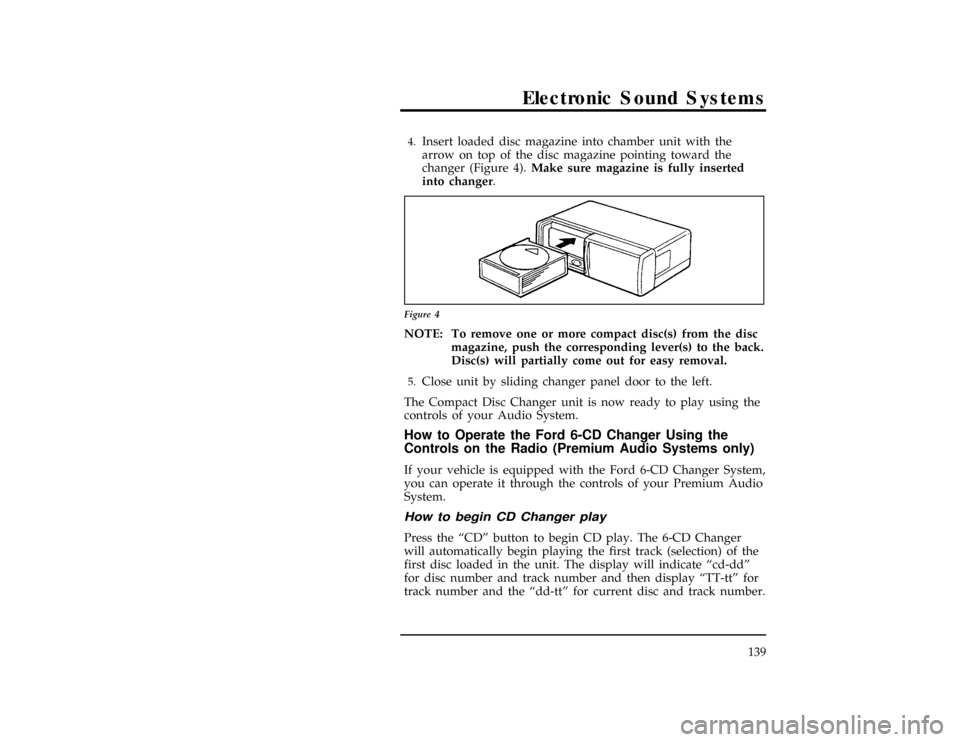

[AS29785(ALL)08/91]4.
Insert loaded disc magazine into chamber unit with the
arrow on top of the disc magazine pointing toward the
changer (Figure 4).Make sure magazine is fully inserted
into changer.
[AS29790(ALL)09/94]
7-1/2 pica art:0060689-A
Figure 4
*
[AS29795(ALL)09/95]
NOTE: To remove one or more compact disc(s) from the disc
magazine, push the corresponding lever(s) to the back.
Disc(s) will partially come out for easy removal.
*
[AS29805(ALL)01/95]5.
Close unit by sliding changer panel door to the left.
[AS29810(ALL)10/94]
The Compact Disc Changer unit is now ready to play using the
controls of your Audio System.
[AS29815(R )09/94]
How to Operate the Ford 6-CD Changer Using the
Controls on the Radio (Premium Audio Systems only)
[AS29820(R )09/94]
If your vehicle is equipped with the Ford 6-CD Changer System,
you can operate it through the controls of your Premium Audio
System.
*
[AS29822(ALL)02/95]
How to begin CD Changer play
[AS29825(ALL)03/95]
Press the ªCDº button to begin CD play. The 6-CD Changer
will automatically begin playing the first track (selection) of the
first disc loaded in the unit. The display will indicate ªcd-ddº
for disc number and track number and then display ªTT-ttº for
track number and the ªdd-ttº for current disc and track number.
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

140
*
[AS29830(ALL)01/95]
If the CD Changer is empty, ªNOº and ªDISCº will flash in the
display and radio play will continue.
*
[AS29835(ALL)02/95]
How to change the disc being played
[AS29840(ALL)10/94]
When in the CD mode, you can change discs by pressing the
right side (
a) of the ªTUNE DISCº button (to select the next
discs) or the left side (
b) of the ªTUNE DISCSº button (to
select previous discs). Play will begin on the first track of the
selected disc.
[AS29845(ALL)10/94]
If either side of the button is pressed and held, the CD Changer
will continue fast-forwarding or reversing through the discs in
the disc magazine. During these functions, the display will
indicate the disc number.
*
[AS29850(ALL)10/95]
How to change the track being played
[AS29855(ALL)04/94]
There are two ways to change the track being played. You can
use the ªSEEKº or ªSCANº buttons.
[AS29860(ALL)04/94]
n
Using the ªSEEKº function with your CD-Changer
[AS29865(ALL)10/94]
Press the right (
a) side of the ªSEEKº button to seek
forward to the next track of the current disc. After the last
track has been completed, the CD player automatically
changes to the next disc.
[AS29870(ALL)04/94]
Press the left (
b) side of the ªSEEKº button to seek to the
previous track on the current disc.
[AS29875(ALL)04/94]
n
Using the SCAN function with your CD Changer
[AS29880(ALL)10/94]
Press the ªSCANº button to move forward to the next track.
Approximately an eight-second sampling of the track will be
played before moving to the next track. The display will
indicate the disc and track number (dd-tt). At the end of the
disc, the CD Changer automatically changes to the next disc.
[AS29885(ALL)04/94]
To end the scan mode, press the ªSCANº button a second
time.
File:09unasr.ex
Update:Wed May 1 13:49:43 1996
