FORD RANGER 1997 2.G Owners Manual

150
WARNING
To preven telectrica lshock ,do no tus eyou rheate rwith

Starting
151
*WARNING

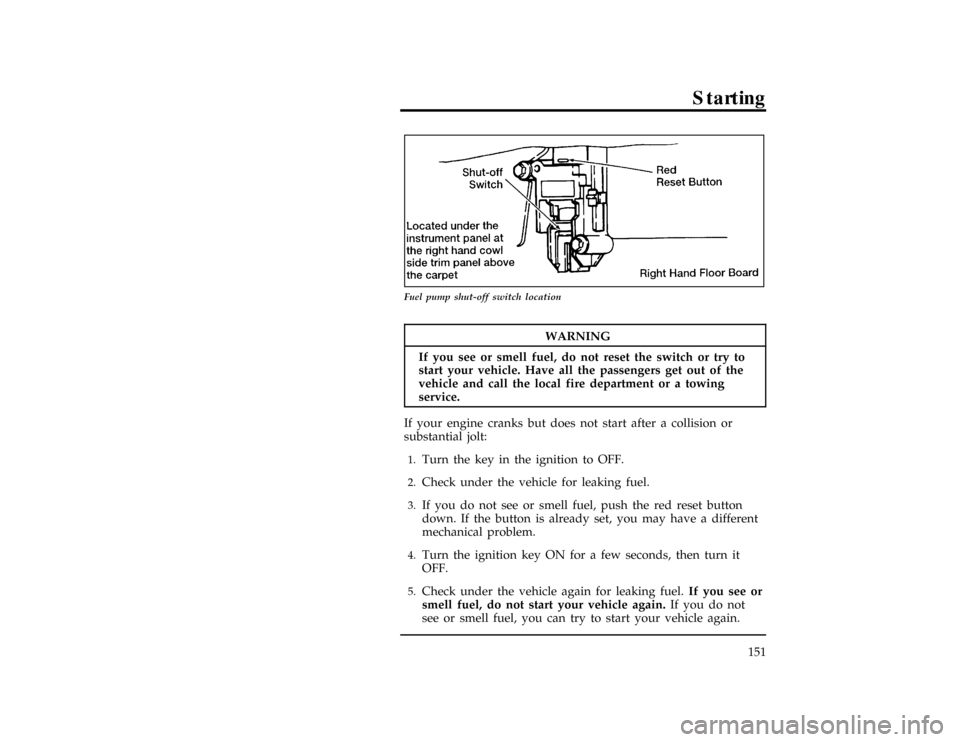

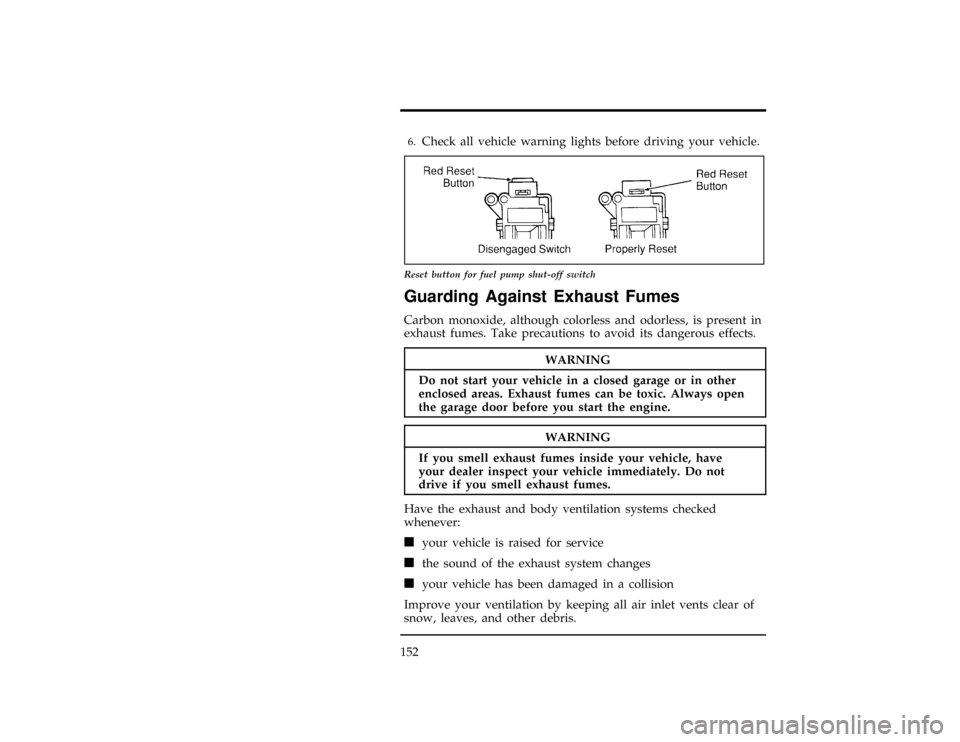

If yo useeor smel lfuel ,do no trese tth eswitc hor try to

152
*
WARNING
Do no tstar tyou rvehicl ein aclose dgarag eor in other
WARNING
If yo usmel lexhaus tfume sinsid eyou rvehicle ,have

Starting
153
*
[TO10400(R)01/96]
If the engine is idling while you are stopped in an open area
for long periods of time, open the windows at least one inch
(2.5 cm). Also, adjust the heating or air conditioning system to
bring in outside air.
[TO10650(R)01/96]
n
HEATING Ð Set fan speed to medium or high, the function
control knob on any position except OFF and the
temperature control knob on any desired position.
[TO10700(R)01/96]
n
AIR CONDITIONING Ð Set fan speed to medium or high
with the function control knob on any position (except OFF
or MAX A/C) and the temperature control knob at a
comfortable level.
*
[TO13076(R)03/96]
Removing the Key From the Ignition
*
[TO13100(R)03/96]
Procedures for removing your key from the ignition will vary,
depending on the type of gearshift your vehicle has. Gearshift
levers may be mounted on the steering column or on the floor
or console.
[TO13117(R)01/96]
If you have a manual transmission, you have a key release lever
which allows you to remove your key from the ignition. The
key release lever is on the upper right of the steering column,
just above the key lock cylinder.
*
[TO13300(R)03/96]
If your vehicle's gearshift lever is mounted on the
column:
*
[TO13400(R)03/96]1.
Put the gearshift in P (Park).
*
[TO13500(R)03/96]2.
Set the parking brake fully before removing your foot from
the service brake. (This will avoid ªbindingº or ªloadingº the
park gear if you park on a grade.)
*
[TO13600(R)03/96]3.
Turn the ignition key to LOCK.
*
[TO13700(R)03/96]4.
Remove the key.
File:08untor.ex
Update:Thu Mar 20 08:53:27 1997

154
WARNING
Alwaysse tth eparkin gbrak efull yan dmak esur ethat
WARNING
Do no tleav echildren ,unreliabl eadults ,or pets

155
Driving
%*
[GF00100(R)05/96]
Brakes
*
[GF00200(R)01/96]
Front Disc Brakes
*
[GF00210(R)01/96]
The front disc brakes are self-adjusting. They do not require
service other than periodic inspection for pad wear.
*
[GF00270(R)03/96]
Rear Drum Brakes
*
[GF00274(R)03/96]
The rear drum brakes are self-adjusting. Automatic adjustment
occurs when the brakes are applied while ªbacking up.º If
normal operation does not include much backing, adjust the
brakes when they seem ªlow,º using the procedure underIf
Brakes Do Not Grip Well or Pedal is ªLowºin this chapter.
*
[GF00300(R)01/96]
Hydraulic Power Brakes
[GF00310(R)01/96]
The hydraulic brake system is made up of two independent
hydraulic circuits. One hydraulic circuit supplies fluid to the
front disc brakes and the other hydraulic circuit supplies fluid
to the rear drum or disc brakes. These two circuits are supplied
by a common hydraulic brake fluid reservoir, with a fluid level
sensor.
[GF01010( ALL)03/97]
Occasional brake noise is normal and does not indicate a
performance concern with the vehicle's brake system. In normal
operation, automotive brake systems may emit occasional or
intermittent squeal or groan noises when the brakes are applied.
Such noises are usually heard during the first few brake
applications in the morning; however, they may be heard at any
time while braking and can be aggravated by environmental
conditions such as cold, heat, moisture, road dust, salt or mud.
If a ªmetal-to-metalº or ªcontinuous grindingº sound is present
while braking, the brake linings may be worn-out and should be
inspected by a qualified service technician.
*
[GF00312(R)01/96]
The brake light in the instrument cluster will light for low brake
fluid in the common brake fluid reservoir.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

156
WARNING
An increas ein peda ltrave lwil lresul tin reduce dbraking
WARNING
If th eanti-loc kbrak esyste mwarnin gligh tremain son or

Driving
157
WARNING
TheAnti-loc ksyste mdoe sNO Tassis tth evehicl ein

158
WARNING
TheAnti-loc ksyste mdoe sNO Tdecreas eth etime

Driving
159
WARNING
Modificationsto thesuspensio nsprin grate sand/or
