Instrument Cluster
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

Instrumentation
9
[IS02600(R)05/96]
33-1/2 pica art:0090107-E

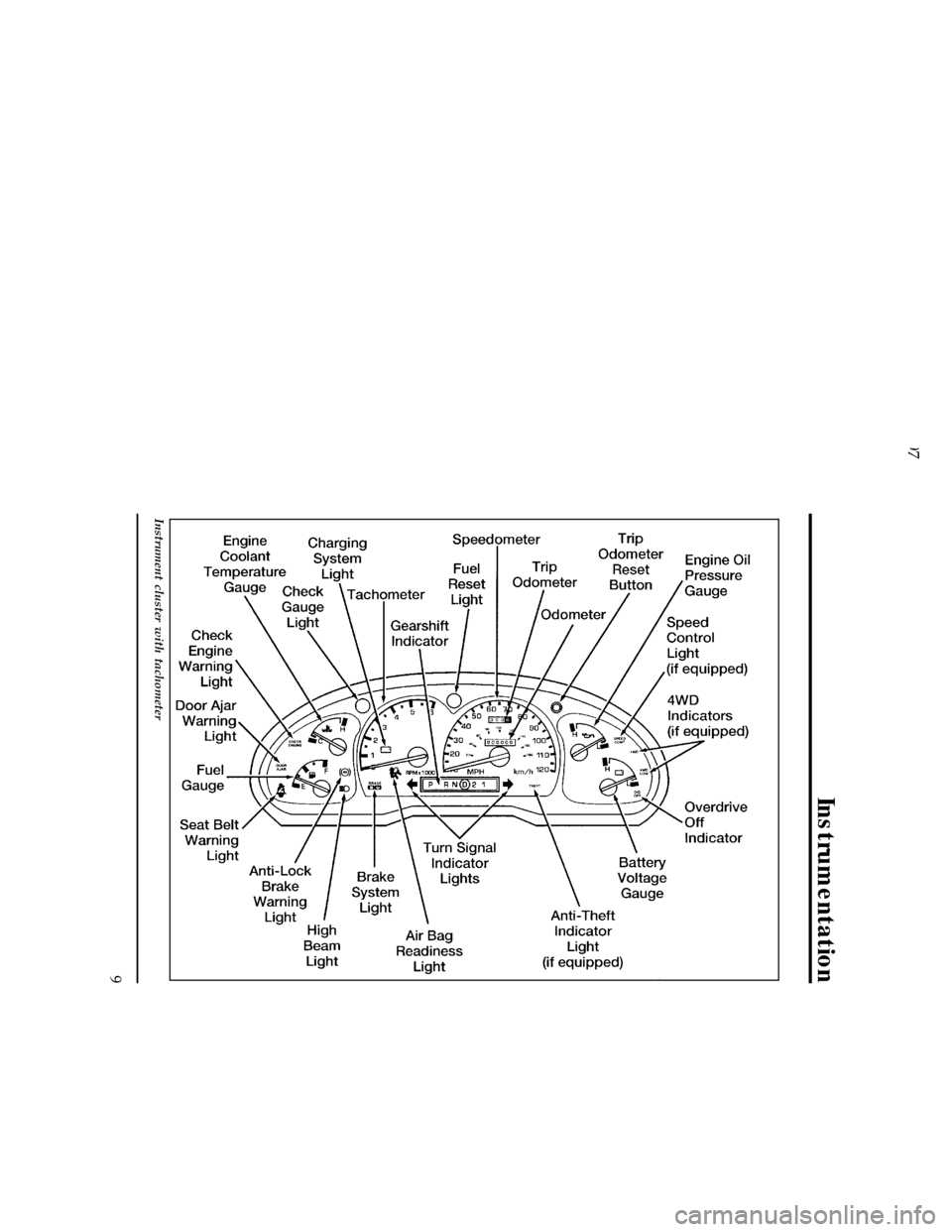

Instrument cluster with tachometer
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

10
%*
[IS03000(R)01/96]
The Mechanical Cluster
*
[IS03100(R)01/96]
The following warning lights and gauges are on the mechanical
cluster. All of the warning lights and gauges alert you to
possible problems with your vehicle. Some of the lights listed
are optional. The following sections detail what each of these
indicators means.
%*
[IS03200(R)01/96]
Brake System Warning Light
*
[IS03300(R)03/96]
The warning light for the brakes can show two things Ð that
the parking brake is not fully released, or that the brake fluid
level is low in the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by your dealer or a
qualified service technician.
*
[IS03400(R)03/96]
This light illuminates when you turn the ignition key to START
to verify that the indicator bulb is working. If the light stays on
or illuminates after you have released the parking brake fully,
have the hydraulic brake system serviced.
*
[IS03500(R)03/96]
RWARNING
The BRAKE light indicates that the brakes may not be
working properly. Have the brakes checked immediately.
[IS03600(R)01/96]
6 pica art:0021145-A
Brake warning light symbols
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

Instrumentation
11
*
[IS03800(R)01/96]
Anti-lock Brake Warning Light
[IS03925(R)01/96]
To check the ABS brake warning light, turn the ignition key to
ON. The ABS brake warning light should glow momentarily.
[IS03985(R)01/96]
NOTE: If the ABS brake warning light does not glow
momentarily, have your vehicle's electrical system
checked immediately. If the light begins to flash in a
repeatable flash sequence, check the anti-lock system
continuous power fuse and brakelamps for proper
operation.
[IS04050(R)01/96]
6 pica art:0021146-A
Anti-lock warning light symbol
*
[IS04100(R)03/96]
RWARNING
If the anti-lock brake system warning light remains on or
comes on while driving, have the braking system checked
by a qualified service technician as soon as possible.
*
[IS04110(R)03/96]
NOTE: If a fault occurs in the anti-lock system, and the brake
warning light is not lit, the anti-lock system is
disabled but normal brake function remains
operational.
%*
[IS04150(R)03/96]
Safety Belt Warning Light and Chime
[IS04301(R)04/96]
The safety belt warning light/chime reminds you to fasten your
safety belt. One of the following will take place:
[IS04325(R)05/96]
n
If the safety belt is not buckled before the key is turned to
the ON position, the light comes on for one to two minutes
and the chime sounds for 4 to 8 seconds.
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

12
*
[IS04351(R)03/96]
n
If the safety belt is buckled while the light is on and the
chime is sounding, both the light and chime turn off.
[IS04355(R)01/96]
n
If safety belt is buckled before the key is turned to the ON
position, both the light and the chime will not turn on.
[IS04400(R)01/96]
6 pica art:0021148-B
Safety belt warning light symbol
%*
[IS04420(R)03/96]
Air Bag Readiness Light
[IS04430(R)01/96]
This light illuminates for approximately six seconds when the
ignition key is turned to the ON position to verify that the
indicator bulb is working and the air bag system is operating
normally.
[IS04435(R)01/96]
RWARNING
A problem with the air bag system is indicated by one or
more of the following: the readiness light will either
flash or stay lit, or it will not light, or a group of five
beeps will be heard.
*
[IS04437(R)05/96]
RWARNING
If any of these things happen, even intermittently, have
the air bag system serviced at your Ford or
Lincoln-Mercury dealer immediately.
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

Instrumentation
13
[IS04440(R)01/96]
7-1/2 pica art:0021268-A
Air bag readiness light symbol
[IS04443(R)05/96]
Passenger Air Bag OFF Light (If equipped)
[IS04444(R)01/96]
The passenger air bag OFF light is located in the lower center of
the instrument panel next to the passenger air bag defeat
switch. This yellow indicator light illuminates whenever the
passenger air bag is turned off and the ignition is on. The
passenger air bag should be turned off only when a rear-facing
infant seat is installed in the front passenger seat.
[IS04450(R)01/96]
Door Ajar Warning Light (If equipped)
*
[IS04460(R)01/96]
If the ignition switch is in the ON position and any door or the
liftgate is not completely closed, the light will illuminate.
[IS04480(R)01/96]
7-1/2 pica art:0021269-A
Door ajar warning light symbol
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

14
%*
[IS04500(R)03/96]
Check Engine Warning Light
[IS04600(R)05/96]
This light illuminates when the engine's Emission Control
System requires service. It will also illuminate when the ignition
key is in the ON position and the engine is off.
[IS05300(R)01/96]
6 pica art:0021149-A
Check engine warning light symbol
% [IS05835(R)05/96]
Transmission Control Indicator Light (TCIL)
[IS05850(R)05/96]
The TCIL tells you that the Transmission Control Switch (TCS)
on the gearshift lever has been pushed. When the light
illuminates, the transmission does not shift into
j(Overdrive).
Depressing the TCS on the shifter once more returns the vehicle
to
j(Overdrive). The transmission will be in
j(Overdrive)
when the vehicle is started even if the O/D OFF mode was
selected when the vehicle was last shut off.
[IS05855(R)05/96]
NOTE: If the TCIL does not come on when the TCS is
depressed or if the TCIL flashes when you are driving
a malfunction has been detected. Have your vehicle
serviced at the first opportunity. If this condition
persists, damage could occur to the transmission.
[IS05865(R)05/96]
6 pica art:0021226-B
Transmission control indicator light (if equipped)
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

Instrumentation
15
%*
[IS05900(R)01/96]
Charging System Light
*
[IS06000(R)04/96]
This light indicates that your battery is not being charged and
that you need to have the electrical system checked.
[IS06100(R)01/96]
6 pica art:0021150-B
Charging system light symbol
*
[IS06200(R)03/96]
This light illuminates every time you turn the ignition to the
ON or START position (engine off). The light should go off
when the engine starts and the alternator begins to charge.
*
[IS06300(R)03/96]
If the light stays on or illuminates when the engine is running,
have the electrical system checked as soon as possible.
[IS06700(R)01/96]
Check Gage Light (If equipped)
[IS06800(R)04/96]
This light will come on when the key is in the ON position and
the:
[IS06900(R)01/96]
n
engine coolant temperature is high
[IS07000(R)01/96]
n
engine oil pressure is low
[IS07100(R)01/96]
n
fuel level is near empty
[IS07200(R)01/96]
This light serves as a notice that a system needs your attention
and to check the engine coolant temperature gauge, the engine
oil pressure gauge, and the fuel level gauge.
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

16
[IS07300(R)01/96]
Please seeEngine Coolant Temperature Gauge,Engine Oil Pressure
Gauge,orFuel Gaugein this chapter for more information.
[IS07400(R)01/96]
6 pica art:0021250-B
Check gage light
[IS07500(R)01/96]
Fuel Reset Light (If Equipped)
[IS07600(R)01/96]
Your vehicle may have a fuel reset light. The fuel reset light
will come on when you turn the ignition key to ON and the
fuel pump shut-off switch has been triggered. Refer toFuel
pump shut-off switchin the Index to find additional information.
[IS07700(R)01/96]
6 pica art:0021372-A
Fuel reset light
[IS07710(R)05/96]
Speed Control Light (If equipped)
[IS07720(R)05/96]
The SPEED CONT light will illuminate in the instrument cluster
when the speed control system is engaged. The light will turn
off when the brake pedal is pressed or if the speed control is
shut off.
[IS07730(R)05/96]
This display does not indicate any problems with the speed
control, but is simply a convenient way of knowing when speed
control is activated.
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

Instrumentation
17
[IS07735(R)05/96]
6 pica art:0090108-A
Speed control light
[IS07740(R)05/96]
Anti-Theft Light (If equipped)
[IS07750(R)05/96]
The THEFT light flashes on and off when the ignition switch is
OFF and any door is opened. As soon as you lock the doors,
the light illuminates steadily. Within 30 seconds of closing all
the doors, the light flashes intermittently (every 2 seconds). This
indicates that the anti-theft system is armed. Refer toAnti-Theft
Systemin the Index for additional information.
[IS07760(R)05/96]
6 pica art:0021151-B
Anti-theft indicator light
