The Compact Disc Changer unit is now ready to play using the
controls of your Audio System.
[AS29815(R)05/96]
How to Operate the Ford 6-CD Changer Using the
Controls on the Radio
[AS29820(R)09/94]
If your vehicle is equipped with the Ford 6-CD Changer System,
you can operate it through the controls of your Premium Audio
System.
*
[AS29822(R)02/95]
How to begin CD Changer play
[AS29825(R)03/95]
Press the ªCDº button to begin CD play. The 6-CD Changer
will automatically begin playing the first track (selection) of the
first disc loaded in the unit. The display will indicate ªcd-ddº
for disc number and track number and then display ªTT-ttº for
track number and the ªdd-ttº for current disc and track number.
[AS29830(R)05/96]
If the CD Changer is empty, ªNO CDº will flash in the display
and radio play will continue.
*
[AS29835(R)02/95]
How to change the disc being played
[AS29840(R)10/94]
When in the CD mode, you can change discs by pressing the
right side (
a) of the ªTUNE DISCº button (to select the next
discs) or the left side (
b) of the ªTUNE DISCSº button (to
select previous discs). Play will begin on the first track of the
selected disc.
[AS29845(R)10/94]
If either side of the button is pressed and held, the CD Changer
will continue fast-forwarding or reversing through the discs in
the disc magazine. During these functions, the display will
indicate the disc number.
File:04unasr.ex
Update:Thu Mar 20 08:49:21 1997

Electronic Sound Systems
39
*
[AS29850(R)10/95]
How to change the track being played
[AS29855(R)04/94]
There are two ways to change the track being played. You can
use the ªSEEKº or ªSCANº buttons.
[AS29860(R)04/94]
n
Using the ªSEEKº function with your CD-Changer
[AS29865(R)10/94]
Press the right (
a) side of the ªSEEKº button to seek
forward to the next track of the current disc. After the last
track has been completed, the CD player automatically
changes to the next disc.
[AS29870(R)04/94]
Press the left (
b) side of the ªSEEKº button to seek to the
previous track on the current disc.
[AS29875(R)04/94]
n
Using the SCAN function with your CD Changer
[AS29880(R)10/94]
Press the ªSCANº button to move forward to the next track.
Approximately an eight-second sampling of the track will be
played before moving to the next track. The display will
indicate the disc and track number (dd-tt). At the end of the
disc, the CD Changer automatically changes to the next disc.
[AS29885(R)04/94]
To end the scan mode, press the ªSCANº button a second
time.
*
[AS29905(R)04/95]
Operating the CD Compression feature
[AS29910(R)04/94]
Because of the wide dynamic range of Ford's 6-CD Changer
System, soft passages may be difficult to hear under certain
driving conditions while maintaining a reasonable volume level
in the louder passages. The compression feature will bring these
soft and loud passages closer together for a more consistent
listening level.
*
[AS29915(R)01/95]
To turn the compression on, press the ªCOMPRESSº/#5 button.
When the compression feature is activated, the display will
indicate ªCº.
File:04unasr.ex
Update:Thu Mar 20 08:49:21 1997

40
*
[AS29916(R)02/95]
Operating the Shuffle feature
*
[AS29917(R)01/95]
While in the CD mode, pressing the ªSHUFFLEº/#6 button will
randomly select a track from the disc currently being played.
The display will indicate ªSHFº followed by the disc and track
number (dd-tt).
*
[AS29918(R)01/95]
The CD Changer will continue to randomly select tracks for
play until the shuffle feature is turned off by pressing the
ªSHUFFLEº button a second time.
*
[AS29919(R)02/95]
HowtostopCDplay
*
[AS29920(R)01/95]
While in the CD mode, press the ªAM/FMº button to stop CD
play and resume radio play. Also, loading a cassette into the
cassette deck will stop CD play and begin cassette play.
*
[AS29935(R)02/95]
CD Error Messages
*
[AS29936(R)01/95]
Your system is equipped to diagnose certain problems you may
experience. The error codes are:
*
[AS29937(R)01/95]
ÐCD E1Ð Mechanism error.
*
[AS29938(R)01/95]
ÐCD E2Ð Focus error.
*
[AS29939(R)01/95]
ÐBAD CDÐ Disc unreadable.
*
[AS29940(R)05/96]
ÐTOO HOTÐ Mechanism over167ÊFarenheit (75ÊC), allow
to cool before playing.
*
[AS29941(R)01/95]
ÐNO CDÐ Empty slot or magazine.
*
[AS29942(R)05/96]
ÐNO DJÐ CD Changer not connected, not communicating, or
not equipped.
File:04unasr.ex
Update:Thu Mar 20 08:49:21 1997

Electronic Sound Systems
41
*
[AS29943(R)01/95]
Common Operating Conditions of the CD Player
*
[AS29944(R)04/96]
The following information is designed to help you recognize
typical situations that could be mistakenly interpreted as
mechanical malfunctions of the disc player.
*
[AS29945(R)04/96]
n
A disc is already loaded.
*
[AS29946(R)04/96]
n
The disc is inserted with the label surface downward.
*
[AS29947(R)04/96]
n
The disc is dusty or defective.
*
[AS29948(R)08/95]
n
The player's internal temperature is above140ÊF (60ÊC).
Allow the player to cool off before operating.
*
[AS29949(R)08/95]
n
Different manufacturers of compact discs may produce discs
with different dimensions or tolerances, some of which may
not be within industry standards or in accordance with the
CD format. Because of this, a new disc that is free of dust
and scratches could be defective and may not play on your
Ford Compact Disc Player.
*
[AS29950(R)04/96]
If play does not begin after the CD button is pushed:
*
[AS29951(R)04/96]
n
The radio is not on.
[AS29952(R)10/94]
n
The discs are inserted improperly in the magazine or the CD
magazine is not inserted.
*
[AS29953(R)04/96]
n
Moisture may have condensed on the lenses within the unit.
If this occurs, remove the disc and wait approximately an
hour until the moisture evaporates.
*
[AS29954(R)04/96]
If the sound skips:
*
[AS29955(R)04/96]
n
Badly scratched discs or extremely rough roads will cause
the sound to skip. Skipping will not damage the disc player
or scratch the discs.
File:04unasr.ex
Update:Thu Mar 20 08:49:21 1997

42
*
[AS29956(R)03/96]
How to take care of and clean the CD Changer and
discs
*
[AS29957(R)03/96]
To ensure the continued performance of your CD Changer,
carefully read the following precautions:
*
[AS29958(R)01/95]
n
Always handle a disc by the edge. Never touch the playing
surface.
[AS29959(R)06/95]
n
Before playing, inspect all discs for any contamination. If
needed, clean discs with an approved disc cleaner, such as
the Discwasher Compact Disc Cleaner or the Allsop 3
Compact Disc Cleaner, by wiping from the center out to the
edges. Do not use a circular motion to clean.
*
[AS29960(R)04/96]
n
Do not clean discs with solvents such as benzine, thinner,
commercially available cleaners or antistatic spray intended
for analog records.
*
[AS29961(R)01/95]
n
Do not expose the discs to direct sunlight or heat sources for
an extended period of time.
*
[AS29962(R)01/95]
n
Do not insert more than one disc into each disc slot of the
disc magazine. Doing so may damage the discs, disc
magazine or the disc changer.
*
[AS29963(R)01/95]
n
Do not insert anything other than discs into the disc
magazine.
*
[AS29964(R)05/95]
RWARNING
The laser beam used in the compact disc player is
harmful to the eyes. Do not attempt to disassemble the
case.
File:04unasr.ex
Update:Thu Mar 20 08:49:21 1997

Electronic Sound Systems
43
[AS29965(R)09/94]
33-1/2 pica
art:0060684-A

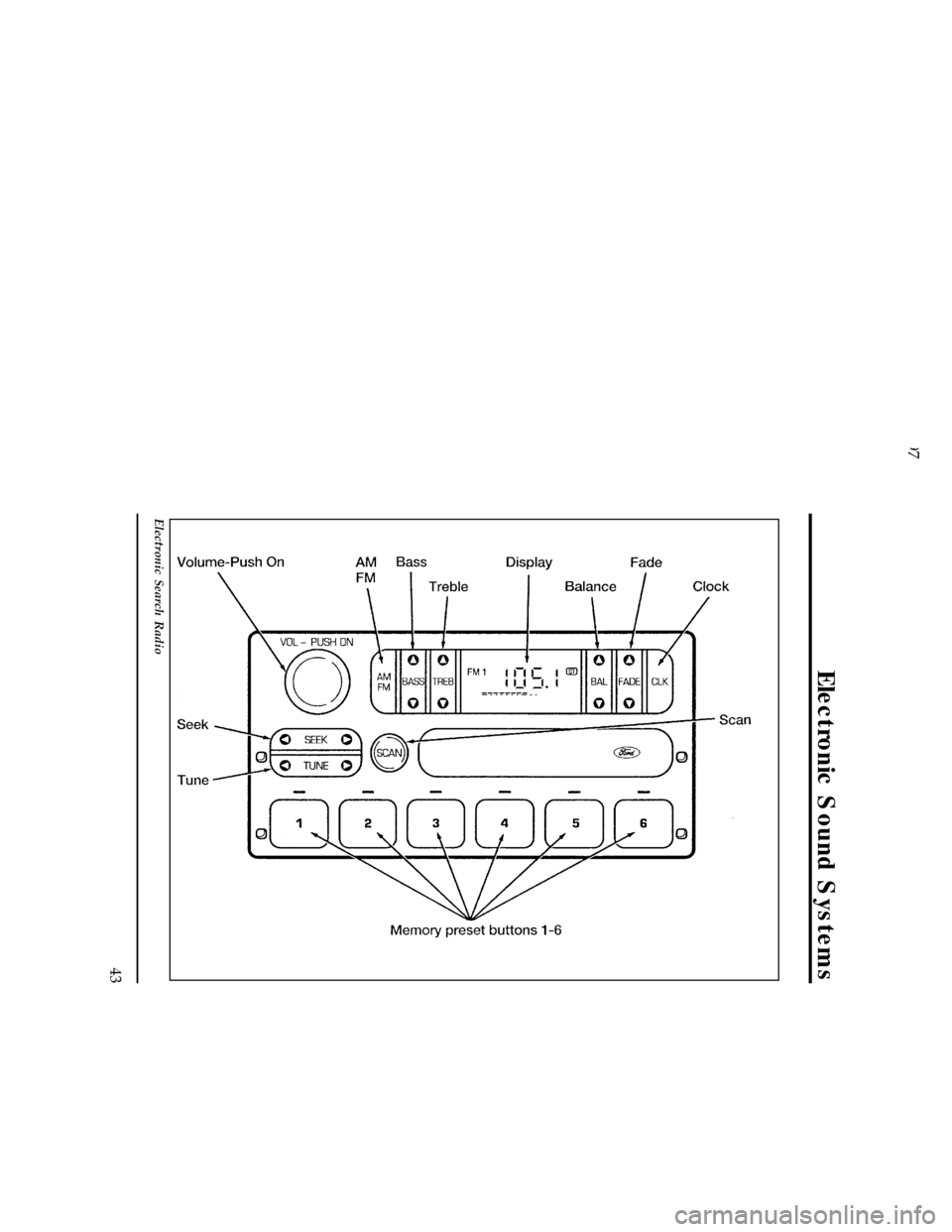

Electronic Search Radio
File:04unasr.ex
Update:Thu Mar 20 08:49:21 1997

44
[AS29966(R)05/96]
33-1/2 pica
art:0090218-B

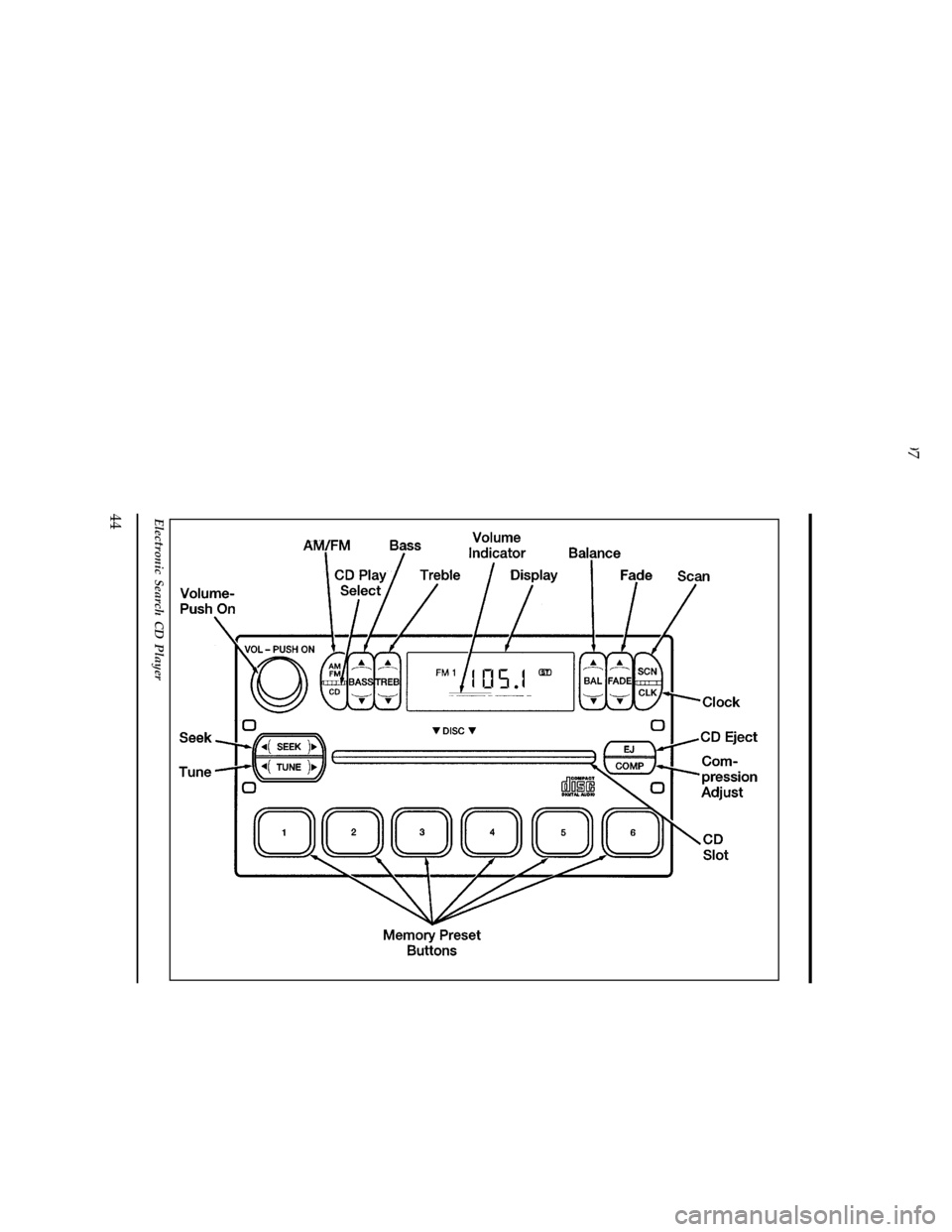

Electronic Search CD Player
File:04unasr.ex
Update:Thu Mar 20 08:49:21 1997

Electronic Sound Systems
45
[AS29967(R)05/96]
33-1/2 pica
art:0060685-B

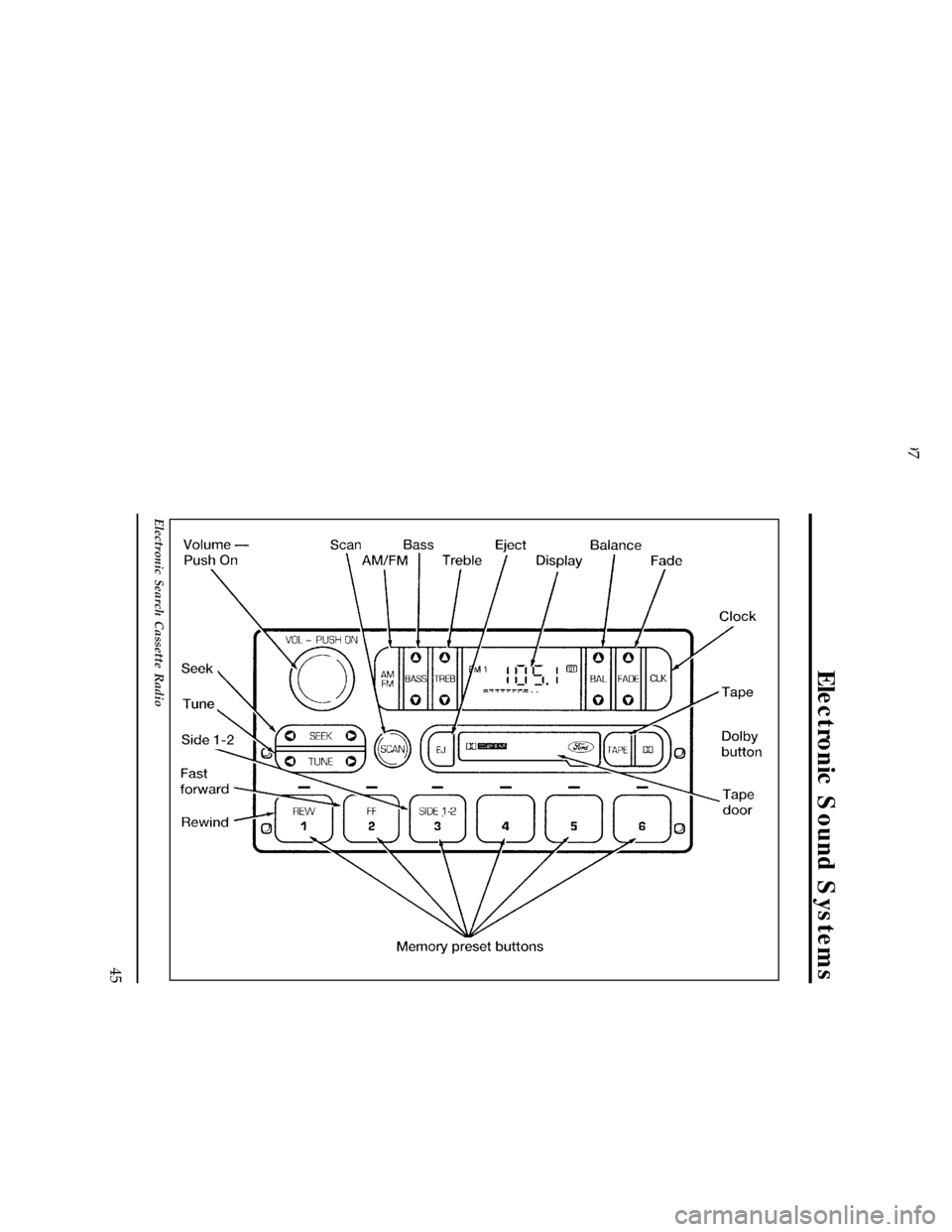

Electronic Search Cassette Radio
File:04unasr.ex
Update:Thu Mar 20 08:49:21 1997

46
[AS29969(R)05/96]
Electronic Search, Search Cassette Radio,
and Search Single Disc CD Radio
*
[AS29970(R)03/96]
Using the Controls on Your New Radio
*
[AS29972(R)03/96]
How to turn the radio on and off
*
[AS29973(R)03/96]
Press the ªVOL/PUSH ONº knob to turn the radio on. Press
again to turn it off.
*
[AS29975(R)03/96]
How to adjust the volume
[AS29980(R)06/95]
Turn the ªVOL/PUSH ONº knob clockwise to increase the
volume and counterclockwise to decrease the volume. Bars
illuminate in the display to show relative volume level.
*
[AS29985(R)02/96]
NOTE: If the volume level is set above a certain listening
level when the ignition switch is turned off, when the
ignition switch is turned back on, the volume will
come back to a ªnominalº listening level. However, if
the radio power is turned off, the volume will remain
in the position it was set at when radio power was
switched off.
*
[AS29990(R)03/96]
Selecting the AM or FM frequency band
[AS29995(R)10/94]
Push the ªAMº/FMª button to select the desired frequency
band or to stop/store cassette tape (when in cassette mode).
These functions are used with the station memory buttons
described underHow to tune radio stations.
%*
[AS30000(R)03/96]
How to tune radio stations
[AS30005(R)04/95]
There are four ways for you to tune in a particular station. You
can manually locate the station using the ºTUNEª button,
ºSEEKª button, ºSCANª button, or select the station by using
the memory buttons, which you can set to any desired
frequency. These four methods are described below.
