FORD RANGER 2001 2.G Owners Manual

Fluid Ford Part
NameApplication Capacity
Power steering
fluidMotorcraft
MERCONtAT FAll Fill to range on
dipstick or
reservoir
Transmission
fluid
1Motorcraft
MERCONtAT F5-speed manual 2.65L (2.8
quarts)3
Motorcraft
MERCONtVATF4x2 vehicles with
automatic and
2.3L I4 engine9.4L (9.9 quarts)2
4x2 vehicles with
automatic and
3.0L or 4.0L
engines9.5L (10.0
quarts)2
4x4 vehicles with
automatic and
3.0L or 4.0L9.8L (10.3
quarts)2
Engine coolant4Motorcraft
Premium Engine
Coolant
(green-colored)
orMotorcraft
Premium Gold
Engine Coolant
(yellow-colored)2.3 L I4 engine
with manual
transmission10.0L (10.5
quarts)
2.3L I4 engine
with automatic
transmission9.7L (10.2
quarts)
3.0L V6 engine
with manual
transmission14.3L (15.1
quarts)
3.0L V6 engine
with automatic
transmission14.0L (14.8
quarts)
4.0L V6 engine
with manual
transmission13.0L (13.7
quarts)
4.0L V6 engine
with automatic
transmission12.5L (13.2
quarts)
Capacities and specifications
241

Fluid Ford Part
NameApplication Capacity
Fuel tank N/A Regular cab
(Short wheel
base)62.4L (16.5
gallons)
Regular cab
(Long wheel
base)75.7L (20.0
gallons)
SuperCab 73.8L (19.5
gallons)
Transfer case
FluidMotorcraft
MERCONtAT F4x4 Vehicles 1.2L (1.25
quarts)
Front axle
lubricantMotorcraft SAE
80W-90 Premium
Rear Axle
Lubricant4x4 Vehicles 1.7L (3.6 pints)
Rear axle
lubricant
5Motorcraft SAE
80W-90 Premium
Rear Axle
LubricantAll 2.4-2.5L (5.0-5.3
pints)
Windshield
washer fluidUltra-Clear
Windshield
Washer
ConcentrateAll 2.6L (2.75
quarts)
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONtand MERCONtV are not interchangeable. DO NOT
mix MERCONtand MERCONtV. Refer to the scheduled maintenance
guide to determine the correct service interval.
2Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick's normal operating range.
3Service refill capacity for the manual transmission is determined by
filling the transmission to the bottom of the filler hole with the vehicle
on a level surface.
Capacities and specifications
242

4Add the coolant type originally equipped in your vehicle.
5Traction-Lok axles use 2.2±2.4L (4.75±5.0 pints) of rear axle lubricant.
Add 118 ml (4 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118±A for complete refill
of Traction-Lok axles.
Service refill capacities are determined by filling the rear axle 6 mm to
14 mm (1/4 inch to 9/16 inch) below the bottom of the filler hole.
LUBRICANT SPECIFICATIONS
ItemFord part
name or
equivalentFord part
numberFord
specification
Front axle
(4X4)Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Rear axleMotorcraft SAE
80W-90
Premium Rear
Axle Lubricant
1
XY-80W90-QL WSP-M2C197-A
Brake fluid and
clutch fluid (if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidC6AZ-19542-AB ESA-M6C25-A
and DOT 3
Door weather
stripsSilicone
LubricantF7AZ-19G208-BA ESR-M13P4-A
Engine coolant Motorcraft
Premium Engine
Coolant
(green-colored)VC-4±A (US) or
CXC-10
(Canada)ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7±A WSS-M97B51-A1
Capacities and specifications
243

ItemFord part
name or
equivalentFord part
numberFord
specification
Engine oil2.3L and 3.0L
engines
Motorcraft SAE
5W-20 Super
Premium Motor
OilXO-5W20-QSP WSS-M2C153-H
and API
Certification
Mark
4.0L engines
Motorcraft SAE
5W-30 Super
Premium Motor
OilXO-5W30-QSP WSS-M2C153-G
and API
Certification
Mark
Hinges, door
checks, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseDOAZ-19584-AA
or
F5AZ-19G209-AAESB-M1C93-B or
ESB-M1C159-A
Transmission/
steering/parking
brake linkages
and pivots,
brake and
clutch pedal
shaft, clutch
pilot bearing
and. input shaft
spline (manual
transmission)Motorcraft
Premium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Power steering
fluid, transfer
case fluid (4X4)
and
transmission
fluid (manual)Motorcraft
MERCONtAT FXT-2-QDX MERCONt
Automatic
transmission
(5R44E and
5R55E)Motorcraft
MERCONtV
AT F
2
XT-5-QM MERCONtV
Capacities and specifications
244

ItemFord part
name or
equivalentFord part
numberFord
specification
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
1Add 118 ml (4 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118±A for complete refill
of Traction-Lok axles.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONtand MERCONtV are not interchangeable. DO NOT
mix MERCONtand MERCONtV. Refer to your scheduled maintenance
guide to determine the correct service interval.
ENGINE DATA
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap1.04-1.19 mm
(0.041-0.047
inch)1.07-1.1 7mm
(0.042-0.046
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition system EDIS EDIS EDIS
Compression
ratio9.7:19.14:1 9.0:1
Capacities and specifications
245

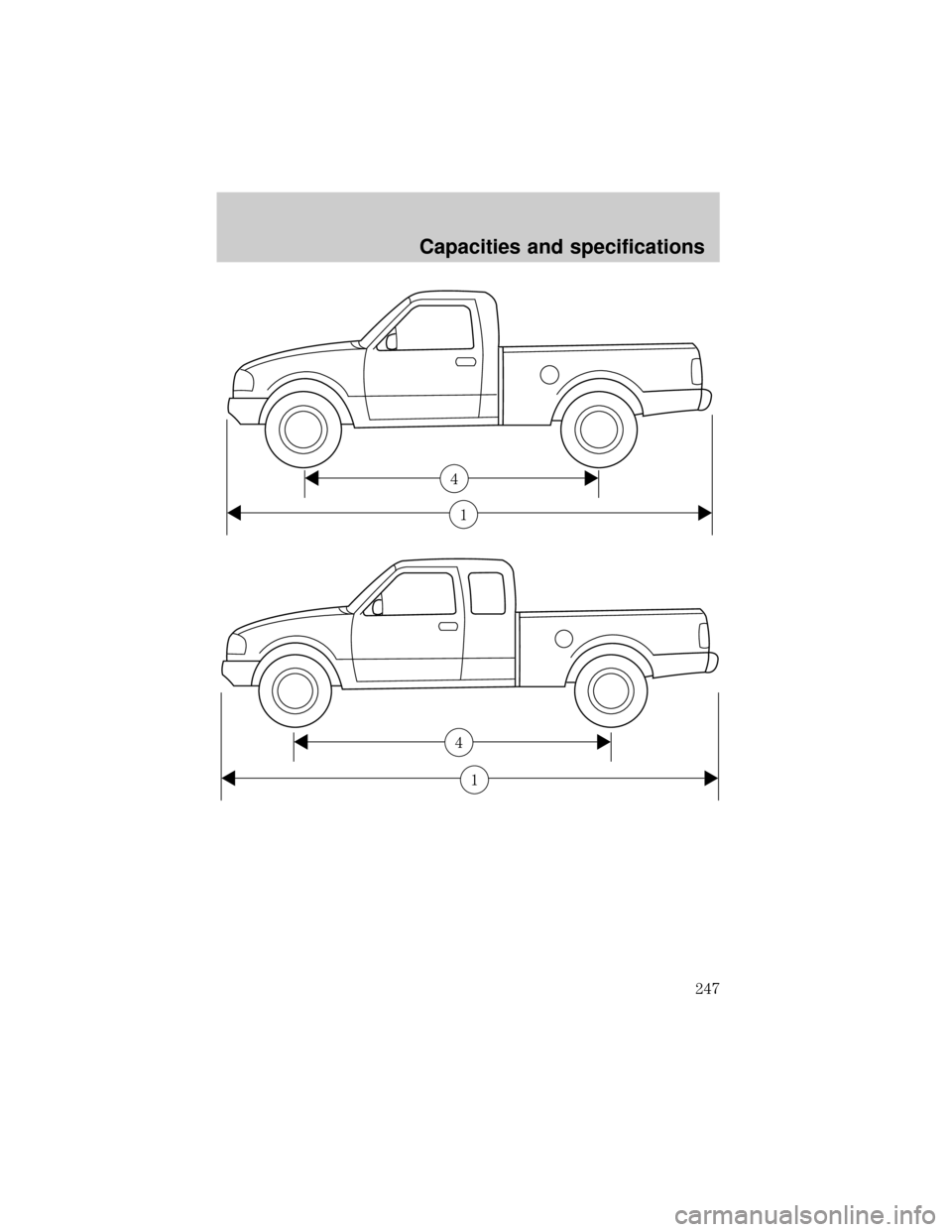

VEHICLE DIMENSIONS
Vehicle
dimensionsRegular Cab
Short Wheel
Base (SWB) mm
(in)Regular Cab
Long Wheel
Base (LWB)
mm (in)Supercab mm
(in)
(1) Overall
length4 763 (187.5) 5 093 (200.5) 5 153 (202.9)
(2) Overall
width1 785 (70.3) 1 785 (70.3) 1 785 (70.3)
(3) Overall
height 4x2/4x41 575 (62.0) /
1 655 (65.2)1 586 (62.4) /
1 655 (65.2)1 585 (62.4) /
1 684 (66.3)
(4) Wheelbase 2 831 (111.4) 2 983 (117.4) 3 192 (125.7)
(5) Track -
Front1 486 (58.5) 1 486 (58.5) 1 485 (58.5)
(5) Track -
Rear1 455 (57.3) 1 455 (57.3) 1 455 (57.3)
2
5
3
Capacities and specifications
246

1
4
1
4
Capacities and specifications
247

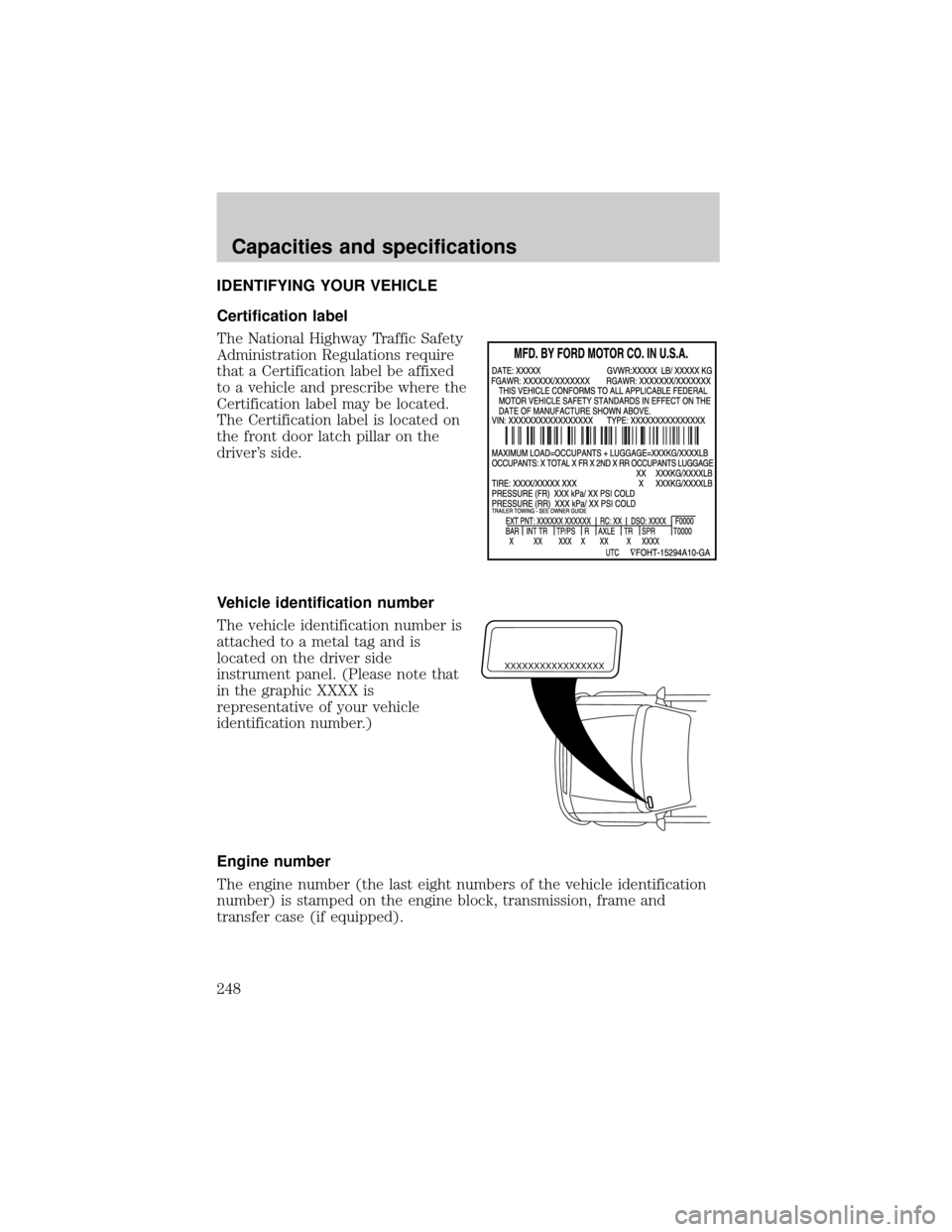

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver's side.
Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
Capacities and specifications
248
