4.CLK:To set the clock press and
hold the CLK control for the
following functions:
•To set the hour, press SEEK
/control to decrease or increase
to the hours.
•To set the minutes, press TUNE DIR
/to decrease or increase
the minutes.
Release CLK to save the clock settings. Press CLK again to return the
display to radio mode.
5.EJ (Eject):Press to stop and
eject a disc. If a disc is ejected and
not removed, the player will
automatically reload the disc and return to radio mode.
6.COMP (Compression):In CD
and MP3 mode, press to adjust the
soft and loud sounds together for a
more consistent listening level. The compression icon (c) will illuminate
in the display.
7.Shuffle:Press to engage random
play on the CD or MP3 disc. SHF
then ON will briefly appear in the
display. Press SEEK to select another random track on the disc. Press
shuffle again to disable.
8.Repeat:Press to repeat the
current track.
9.CD
(Fast forward): Press
and hold until the desired selection
point is reached. This function is
not enabled in MP3 mode.
10.
CD(Rewind): Press and
hold until the desired selection
point is reached. This function is
not enabled in MP3 mode.
11.MP3 directory:Allows you to
listen to songs in MP3 flat file mode
and MP3 directory mode.
Entertainment Systems
24

19.AM/FM:Press to select a
frequency band in radio mode.
20.Bass:Press
/to
decrease/increase the bass output.
21.Treble:Press
/to
decrease/increase the treble output.
MP3 FUNCTIONS
Your audio system is equipped with MP3 capability which allows you to
listen to songs in MP3 flat file mode and MP3 directory mode.
To engage MP3 flat file mode, insert an MP3 disc. If an MP3 disc is
already present in the player, press the CD control. The MP3 icon will
display while the player is in MP3 mode.
While in MP3 flat file mode, press
the MP3 DIR control to enter into
MP3 directory mode. The MP3 icon
and the DIR icon will display while
the player is in directory mode.
Your MACHMP3 player is also equipped with an anti-shock buffer for
MP3 discs.
MP3 FILE DIRECTORY STRUCTURE
The MACHMP3 music system recognizes MP3 disc file and directory
(folder) structure as follows:
•There are two different modes for MP3 disc playback: MP3 flat file
mode (default) and MP3 directory mode.
•MP3 flat file mode ignores any directory structure present on the MP3
disc. The player sequentially numbers each MP3 track on the disc
(denoted by the .mp3 file extension) from T001 to T255.
•MP3 directory mode represents a directory structure consisting of one
level of directories (folders). The CD player sequentially numbers all
Entertainment Systems
26

16.EJ (Eject):Press to eject a CD.
RADIO FREQUENCIES
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM - 530, 540–1700, 1710 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz
RADIO RECEPTION FACTORS
There are three factors that can effect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
CASSETTE/PLAYER CARE
Do:
•Use only cassettes that are 90 minutes long or less.
•Tighten very loose tapes by inserting a finger or pencil into the hole
and turning the hub.
•Remove loose labels before inserting tapes.
•Allow tapes which have been subjected to extreme heat, humidity or
cold to reach a moderate temperature before playing.
•Clean the cassette player head with a cassette cleaning cartridge after
10–12 hours of play to maintain good sound/operation.
Don’t:
•Expose tapes to direct sunlight, extreme humidity, heat or cold.
•Leave tapes in the cassette player for a long time when not being
played.
Entertainment Systems
36

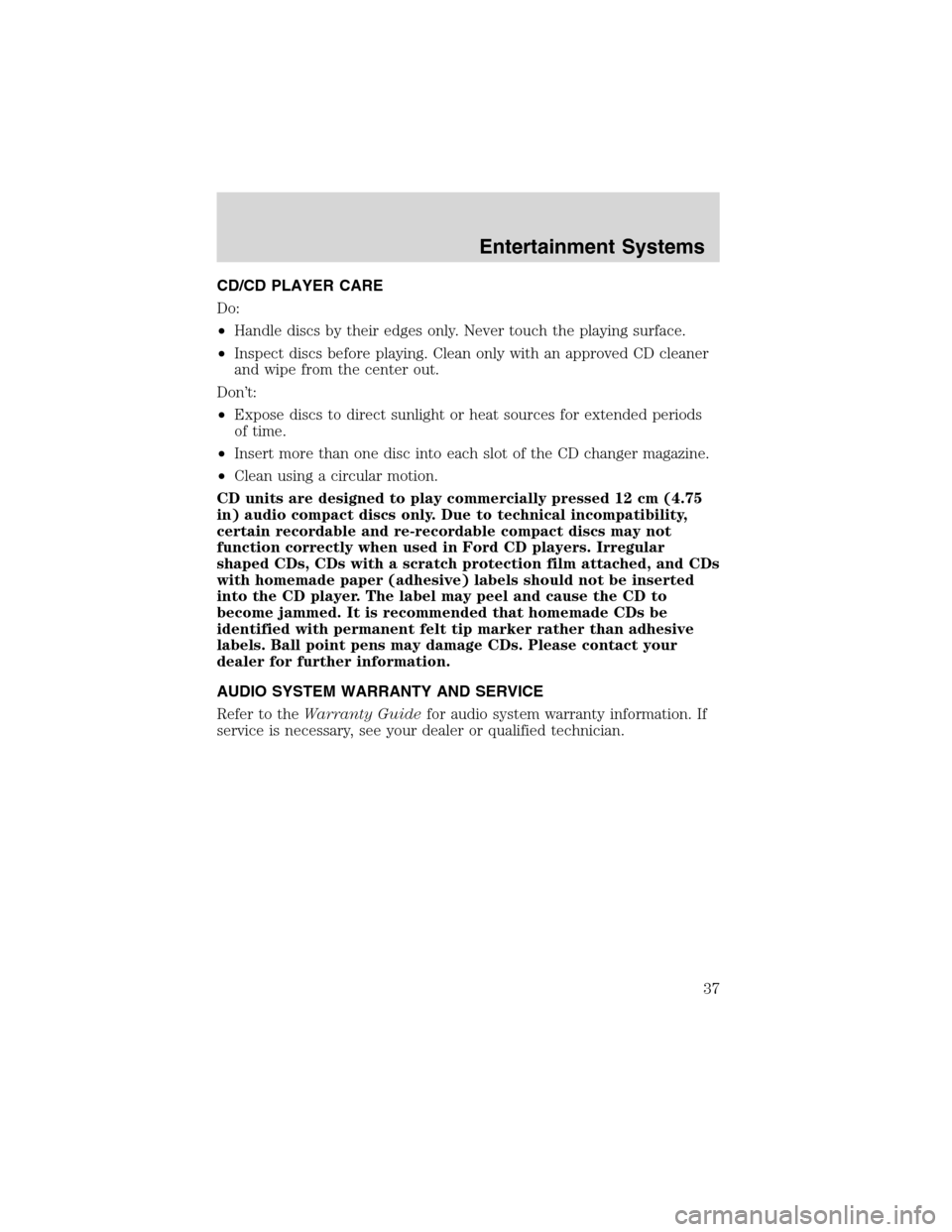

CD/CD PLAYER CARE
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Insert more than one disc into each slot of the CD changer magazine.
•Clean using a circular motion.
CD units are designed to play commercially pressed 12 cm (4.75
in) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Irregular
shaped CDs, CDs with a scratch protection film attached, and CDs
with homemade paper (adhesive) labels should not be inserted
into the CD player. The label may peel and cause the CD to
become jammed. It is recommended that homemade CDs be
identified with permanent felt tip marker rather than adhesive
labels. Ball point pens may damage CDs. Please contact your
dealer for further information.
AUDIO SYSTEM WARRANTY AND SERVICE
Refer to theWarranty Guidefor audio system warranty information. If
service is necessary, see your dealer or qualified technician.
Entertainment Systems
37

A
Air bag supplemental restraint
system ..........................................85
and child safety seats ..............87
description ................................85
disposal ......................................90
driver air bag ............................88
indicator light ...........................89
operation ...................................88
passenger air bag .....................88
passenger deactivation
switch ........................................90
Air cleaner filter .......................229
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................200
Anti-lock brake system
(see Brakes) ..............................113
Audio system
(see Radio) ....16–17, 20, 23, 29, 33
Automatic transmission ............115
driving an automatic
overdrive .................................116
fluid, adding ............................219
fluid, checking ........................219
fluid, refill capacities ..............229
fluid, specification ..................236
Auxiliary power point .................51
Axle
lubricant
specifications ..................233, 236
refill capacities ........................229
traction lok ..............................114
B
Battery .......................................198
acid, treating
emergencies ............................198jumping a disabled
battery .....................................165
maintenance-free ....................198
replacement,
specifications ..........................229
servicing ..................................198
Bed extender ..............................57
BeltMinder ...................................80
Brakes ........................................112
anti-lock ...................................113
anti-lock brake system (ABS)
warning light ...........................113
fluid, checking and adding ....218
fluid, refill capacities ..............229
fluid, specifications .........233, 236
lubricant
specifications ..................233, 236
parking ....................................113
shift interlock ..........................115
Bulbs ............................................44
C
Calculating load ........................134
Capacities for refilling fluids ....229
Cargo area shade ........................57
Cargo net .....................................57
Cassette tape player .............17, 20
CD-single premium ...16, 23, 29, 33
Cell phone use ............................56
Certification Label ....................238
Changing a tire .........................158
Child safety restraints ................95
child safety belts ......................95
Child safety seats ........................98
attaching with tether
straps .......................................102
Index
243
