dimensions FORD RANGER 2003 2.G Owners Manual

ENGINE DATA
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap1.04-1.19 mm
(0.041-0.047
inch)1.07-1.1 7mm
(0.042-0.046
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition system EDIS EDIS EDIS
Compression
ratio9.7:19.7:1 9.0:1
VEHICLE DIMENSIONS
Vehicle
dimensionsRegular Cab
Short Wheel
Base (SWB) mm
(in)Regular Cab
Long Wheel
Base (LWB)
mm (in)Supercab mm
(in)
(1) Overall
length4 763 (187.5) 5 093 (200.5) 5 153 (202.9)
(2) Overall
width1 785 (70.3) 1 785 (70.3) 1 785 (70.3)
(3) Overall
height 4x2/4x41 593.5 (62.7) /
1 655 (65.2)1 596 (62.8) /
1 655 (65.2)1 599 (62.9) /
1 657 (65.2)
(4) Wheelbase 2 831 (111.4) 2 983 (117.4) 3 192 (125.7)
(5) Track -
Front1 486 (58.5) 1 486 (58.5) 1 485 (58.5)
(5) Track -
Rear1 455 (57.3) 1 455 (57.3) 1 455 (57.3)
Maintenance and Specifications
236

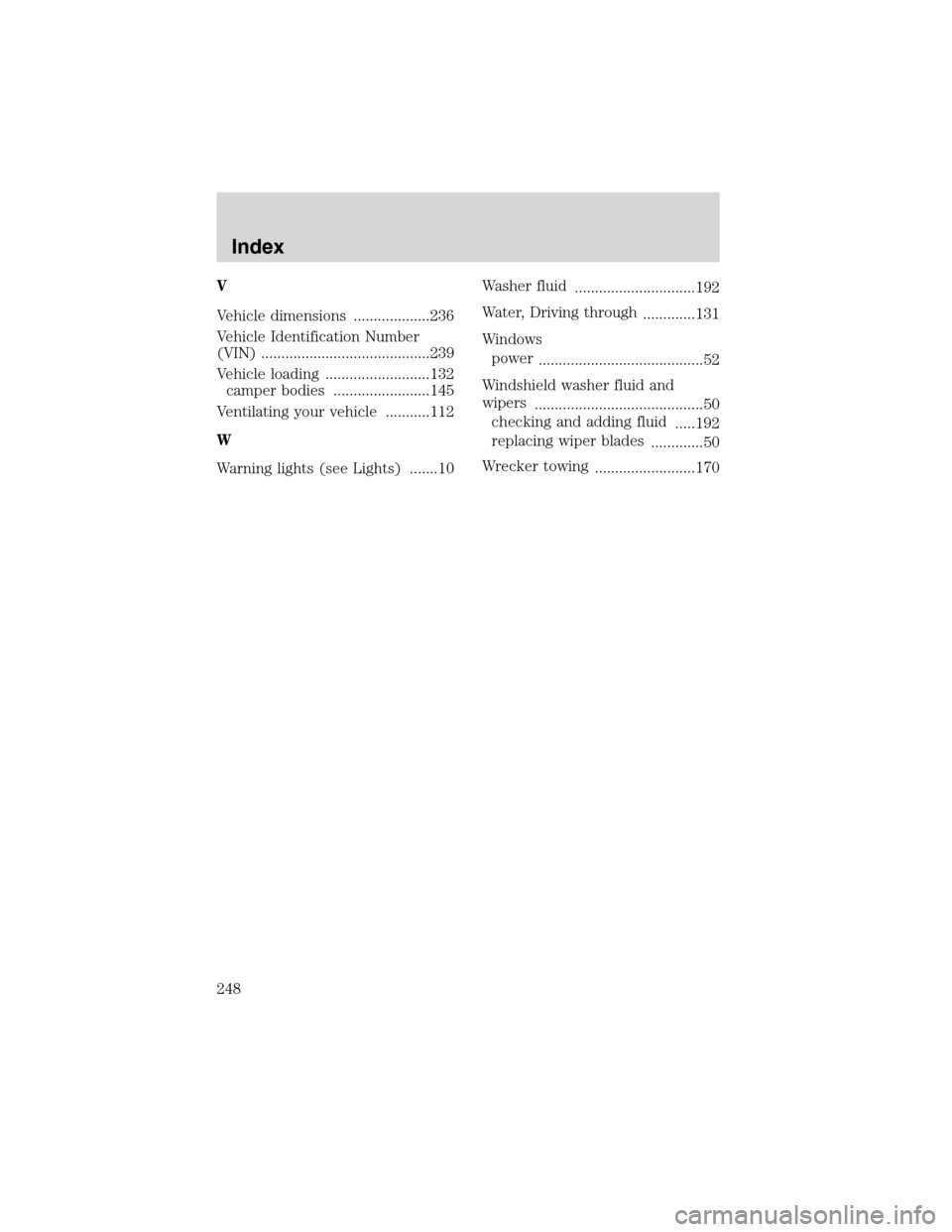

V
Vehicle dimensions ...................236
Vehicle Identification Number
(VIN) ..........................................239
Vehicle loading ..........................132
camper bodies ........................145
Ventilating your vehicle ...........112
W
Warning lights (see Lights) .......10Washer fluid
..............................192
Water, Driving through
.............131
Windows
power
.........................................52
Windshield washer fluid and
wipers
..........................................50
checking and adding fluid
.....192
replacing wiper blades
.............50
Wrecker towing
.........................170
Index
248
