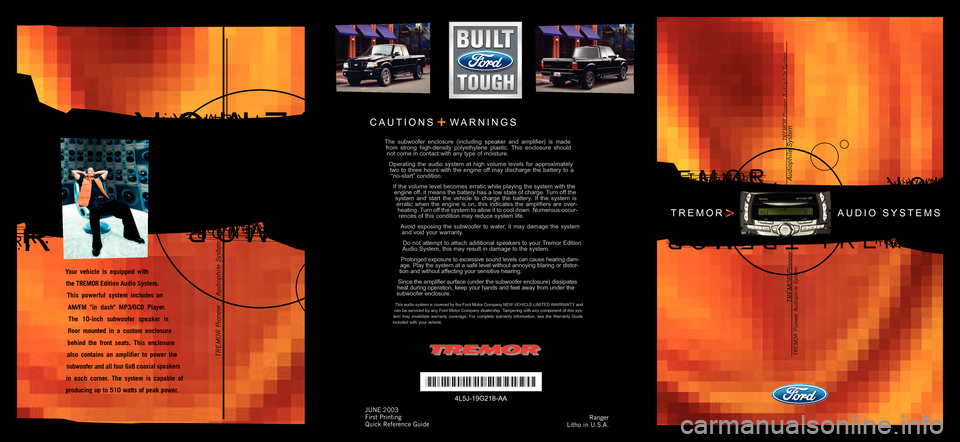

FORD RANGER 2004 2.G Audio Guide

TREMOR.TREMOR.TREMOR.TREMOR.
TREMOR.TREMOR.TREMOR.T
R
E
M
O
R
.
TREMOR.EMORTREMOR.TREMOR.
TREMOR.TREMORTREMOR.TREMOR.
TREMOR
TREMOR Pioneer Audiophile SystemTREMOR Pioneer Audiophile System
AUDIO SYSTEMS
OR.OROR.R.
TREMOR.TREMORTREMOR.TREMOR.
Your vehicle is equipped with
the TREMOR Edition Audio System.
This powerful system includes an
AM/FM "in dash" MP3/6CD Player.
The 10-inch subwoofer speaker is
floor mounted in a custom enclosure
behind the front seats. This enclosure
also contains an amplifier to power the
subwoofer and all four 6x8 coaxial speakers
in each corner. The system is capable of
producing up to 510 watts of peak power.
TREMOR Pioneer Audiophile System TREMOR Pioneer Audiophile System
The subwoofer enclosure (including speaker and amplifier) is made
from strong high-density polyethylene plastic. This enclosure should
not come in contact with any type of moisture.
Operating the audio system at high volume levels for approximately
two to three hours with the engine off may discharge the battery to a
“no-start” condition.
If the volume level becomes erratic while playing the system with the
engine off, it means the battery has a low state of charge. Turn off the
system and start the vehicle to charge the battery. If the system is
erratic when the engine is on, this indicates the amplifiers are over-
heating. Turn off the system to allow it to cool down. Numerous occur-
rences of this condition may reduce system life.
Avoid exposing the subwoofer to water, it may damage the system
and void your warranty.
Do not attempt to attach additional speakers to your Tremor Edition
Audio System, this may result in damage to the system.
Prolonged exposure to excessive sound levels can cause hearing dam-
age.Play the system at a safe level without annoying blaring or distor-
tion and without affecting your sensitive hearing.
Since the amplifier surface (under the subwoofer enclosure) dissipates
heat during operation, keep your hands and feet away from under the
subwoofer enclosure.
This audio system is covered by the Ford Motor Company NEW VEHICLE LIMITED WARRANTY and
can be serviced by any Ford Motor Company dealership. Tampering with any component of this sys-
tem may invalidate warranty coverage. For complete warranty information, see the Warranty Guide
included with your vehicle.
CAUTIONS WARNINGS
TREMOR.TREMORTREMOR.TREMOR.
4L5J-19G218-AA
*F4L5J19G218AA*
JUNE 2003
First Printing
Quick Reference GuideRanger
Litho in U.S.A.

TREMOR.TREMORTREMOR.T
R
E
M
O
R
.
TREMOR.TREMORTREMOR.TREMOR.
TREMOR.TREMORTREMOR.TREMOR.OPERATING INSTRUCTIONS
TREMOR.TREMORTREMOR.T
R
E
M
O
R
.TREMOR.TREMORTREMOR.T
R
E
M
O
R
.REMOR.MOREMOR.E
M
O
R
.
TREMOR.TREMORTREMOR.T
R
E
M
O
R
.
EMOR.OREMOR.M
O
R
.
TREMOR.TREMORTREMOR.T
R
E
M
O
R
.
01
02
03
04
05
06 07 08 09 10 11 12 13 14
LO A D– To load a CD / MP3 disc to a specific slot, press LOAD and select slot by
pressing desired preset button. Press and hold to autoload up to six discs.
AM / FM– Press to choose frequency band
SEEK– In radio, CD and MP3 flat file mode, press SEEK to access previous / next
station or track.
MEMORY PRESETS– Press and hold desired button until sound returns to set a
station to a memory preset button.
MUTE– Press to mute system.
REW– Press to manually reverse CD track.
FAST FORW A R D(FF) – Press to manually advance a CD track.
REPEAT– Press to repeat current CD / MP3 track.
SCAN– In radio, CD, MP3 flat file mode, press for a sampling of stations or tracks.
Press again to stop.
ON / OFF / VOLUME– Press to turn system ON / OFF. Turn to adjust volume.
MENU– Press to toggle through the following modes:
A utoset- Allows you to set the strongest radio stations. Press MENU to
access and TUNE to set.
Bass- Press TUNE to adjust Bass levels.
Treble(TREB) - Press TUNE to adjust Treble levels.
Balance(BAL) - Press TUNE to adjust audio between right and left speakers.
FA D E- Press TUNE to adjust audio between front and rear speakers.
F la t File / Dir e c t o r y Mode- In MP3 mode choose between these two modes.
T ra ck Num / Music Name / File Name- Press TUNE to choose each view
COMPRESSION(COMP) – In CD / MP3 modes, press to make loud and soft
passages achieve a more consistent listening level.
SHUFFLE(SHUF) – Press to play MP3s or CD tracks in random order.
TEXT– In MP3 music name / file name mode press to view the next 12 char-
acters of the MP3 track and directory.
TUNE– In radio mode, press to manually go up or down the radio frequency,
or to access another CD. Also use in menu mode to select various settings.
CLOCK(CLK) – Press CLK until SELECTHOUR / SELECT MINUTE is
displayed. Press TUNE to adjust hours and minutes.
CD– Press to enter CD mode. If a CD is already in the system, it will begin
playing.
EJECT(EJ) – To eject a CD, press EJ and select the correct slot number by
pressing the Memory Preset buttons. Press and hold to eject all loaded CDs.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
15 16 17 18
