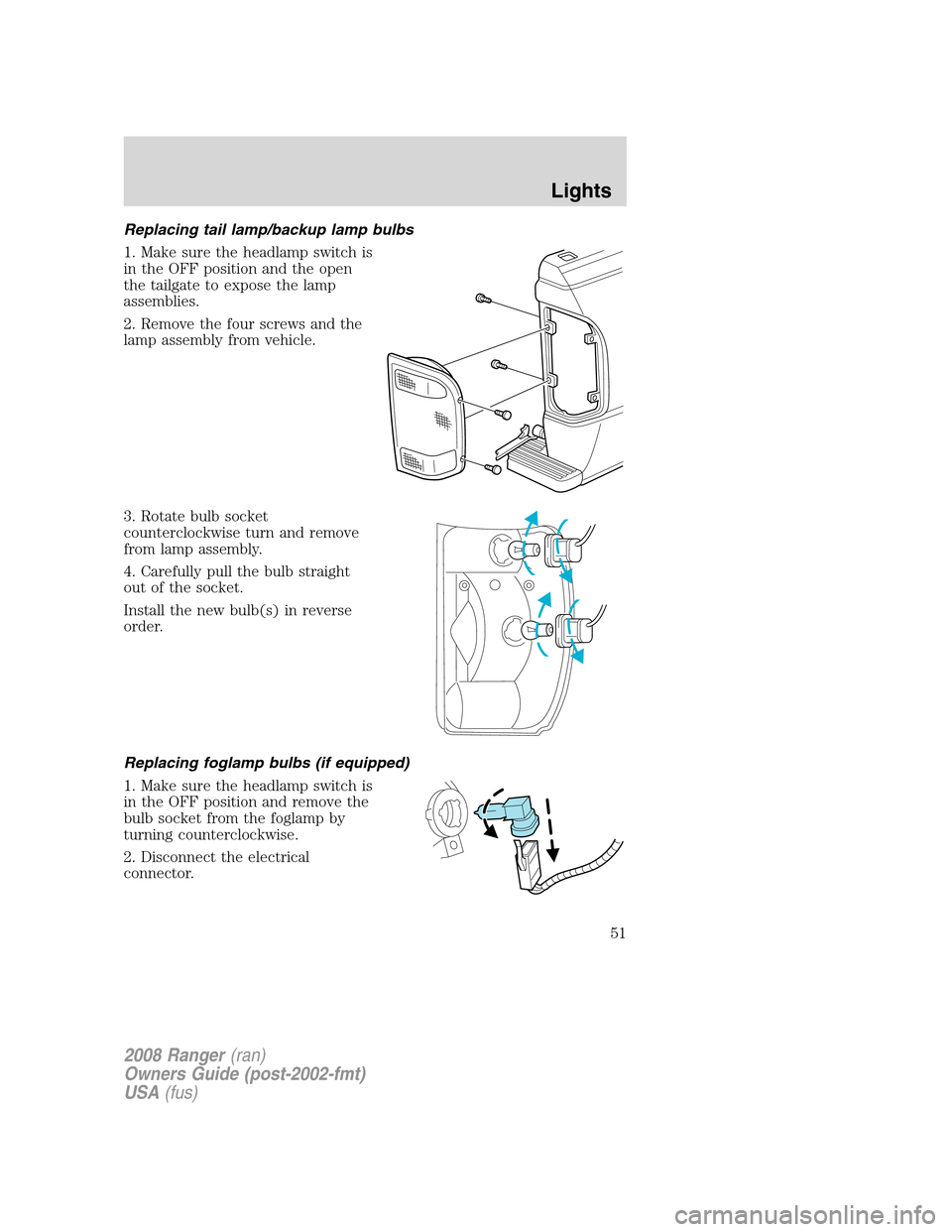

Replacing tail lamp/backup lamp bulbs
1. Make sure the headlamp switch is
in the OFF position and the open
the tailgate to expose the lamp
assemblies.
2. Remove the four screws and the
lamp assembly from vehicle.
3. Rotate bulb socket
counterclockwise turn and remove
from lamp assembly.
4. Carefully pull the bulb straight
out of the socket.
Install the new bulb(s) in reverse
order.
Replacing foglamp bulbs (if equipped)
1. Make sure the headlamp switch is
in the OFF position and remove the
bulb socket from the foglamp by
turning counterclockwise.
2. Disconnect the electrical
connector.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
51

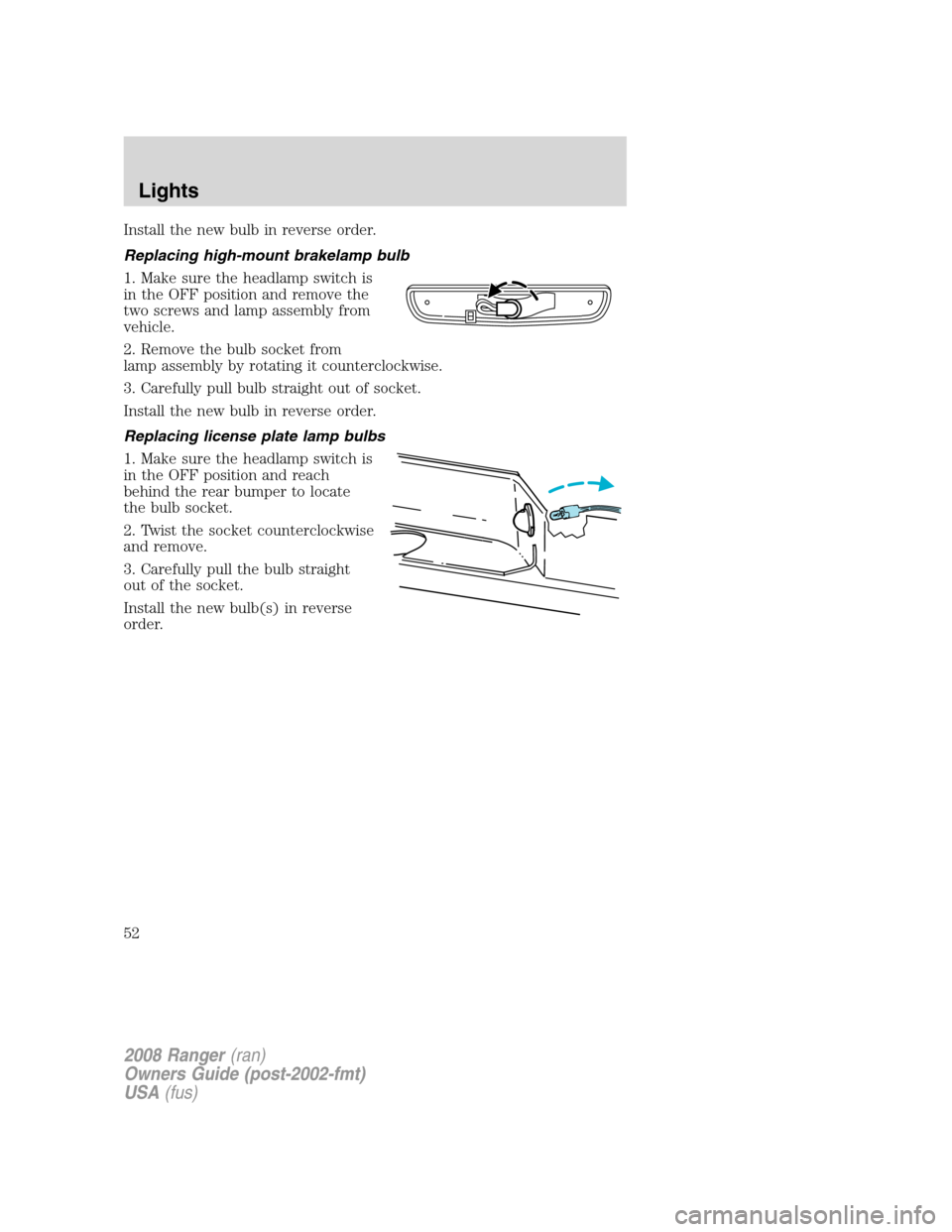

Install the new bulb in reverse order.
Replacing high-mount brakelamp bulb
1. Make sure the headlamp switch is
in the OFF position and remove the
two screws and lamp assembly from
vehicle.
2. Remove the bulb socket from
lamp assembly by rotating it counterclockwise.
3. Carefully pull bulb straight out of socket.
Install the new bulb in reverse order.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position and reach
behind the rear bumper to locate
the bulb socket.
2. Twist the socket counterclockwise
and remove.
3. Carefully pull the bulb straight
out of the socket.
Install the new bulb(s) in reverse
order.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
52

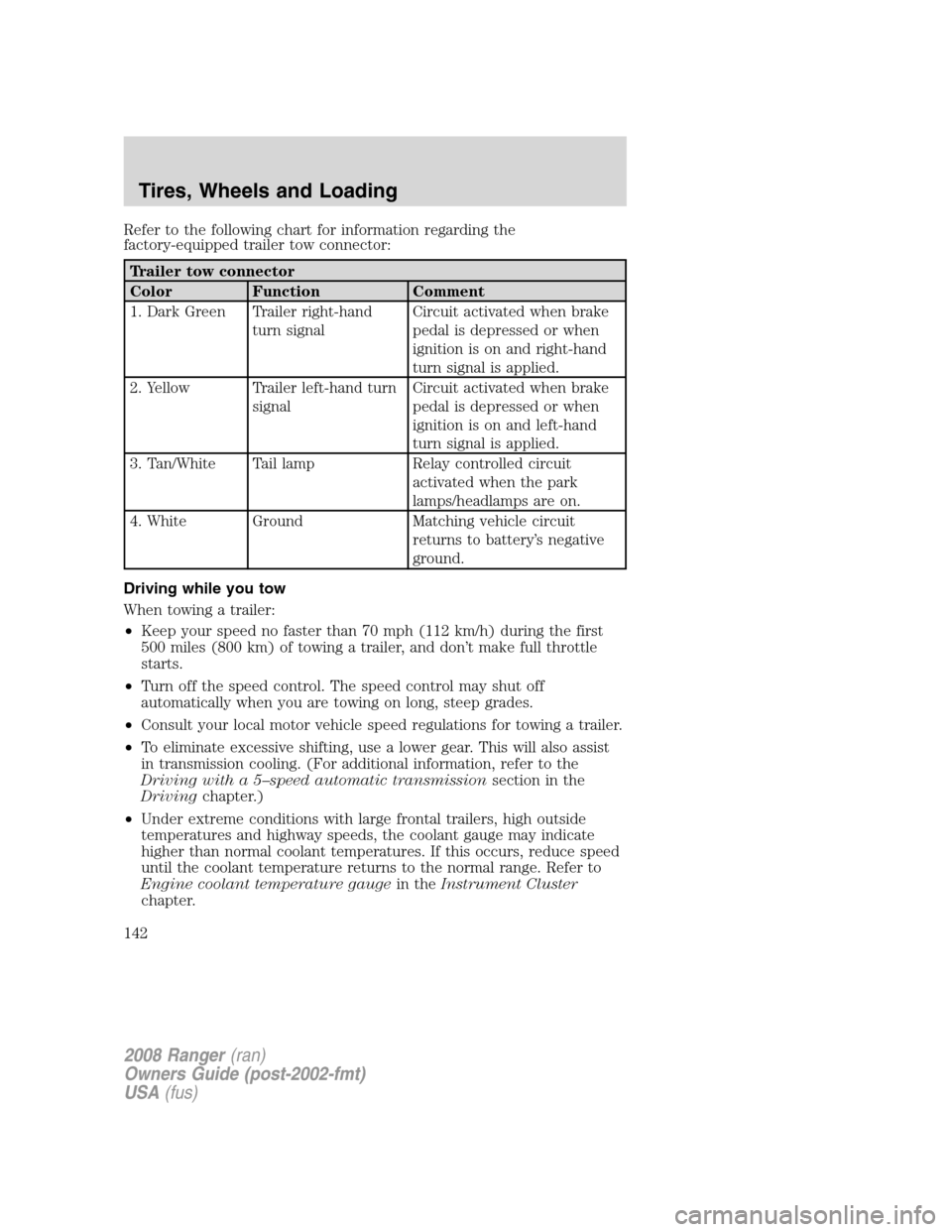

Refer to the following chart for information regarding the
factory-equipped trailer tow connector:
Trailer tow connector
Color Function Comment
1. Dark Green Trailer right-hand
turn signalCircuit activated when brake
pedal is depressed or when
ignition is on and right-hand
turn signal is applied.
2. Yellow Trailer left-hand turn
signalCircuit activated when brake
pedal is depressed or when
ignition is on and left-hand
turn signal is applied.
3. Tan/White Tail lamp Relay controlled circuit
activated when the park
lamps/headlamps are on.
4. White Ground Matching vehicle circuit
returns to battery’s negative
ground.
Driving while you tow
When towing a trailer:
•Keep your speed no faster than 70 mph (112 km/h) during the first
500 miles (800 km) of towing a trailer, and don’t make full throttle
starts.
•Turn off the speed control. The speed control may shut off
automatically when you are towing on long, steep grades.
•Consult your local motor vehicle speed regulations for towing a trailer.
•To eliminate excessive shifting, use a lower gear. This will also assist
in transmission cooling. (For additional information, refer to the
Driving with a 5–speed automatic transmissionsection in the
Drivingchapter.)
•Under extreme conditions with large frontal trailers, high outside
temperatures and highway speeds, the coolant gauge may indicate
higher than normal coolant temperatures. If this occurs, reduce speed
until the coolant temperature returns to the normal range. Refer to
Engine coolant temperature gaugein theInstrument Cluster
chapter.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Tires, Wheels and Loading
142

When starting a fuel-injected engine, don’t press the accelerator before
or during starting. Only use the accelerator when you have difficulty
starting the engine. For more information on starting the vehicle, refer to
Starting the enginein this chapter.
Extended idling at high engine speeds can produce very high
temperatures in the engine and exhaust system, creating the risk
of fire or other damage.
Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. SeeGuarding against exhaust fumesin
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
147

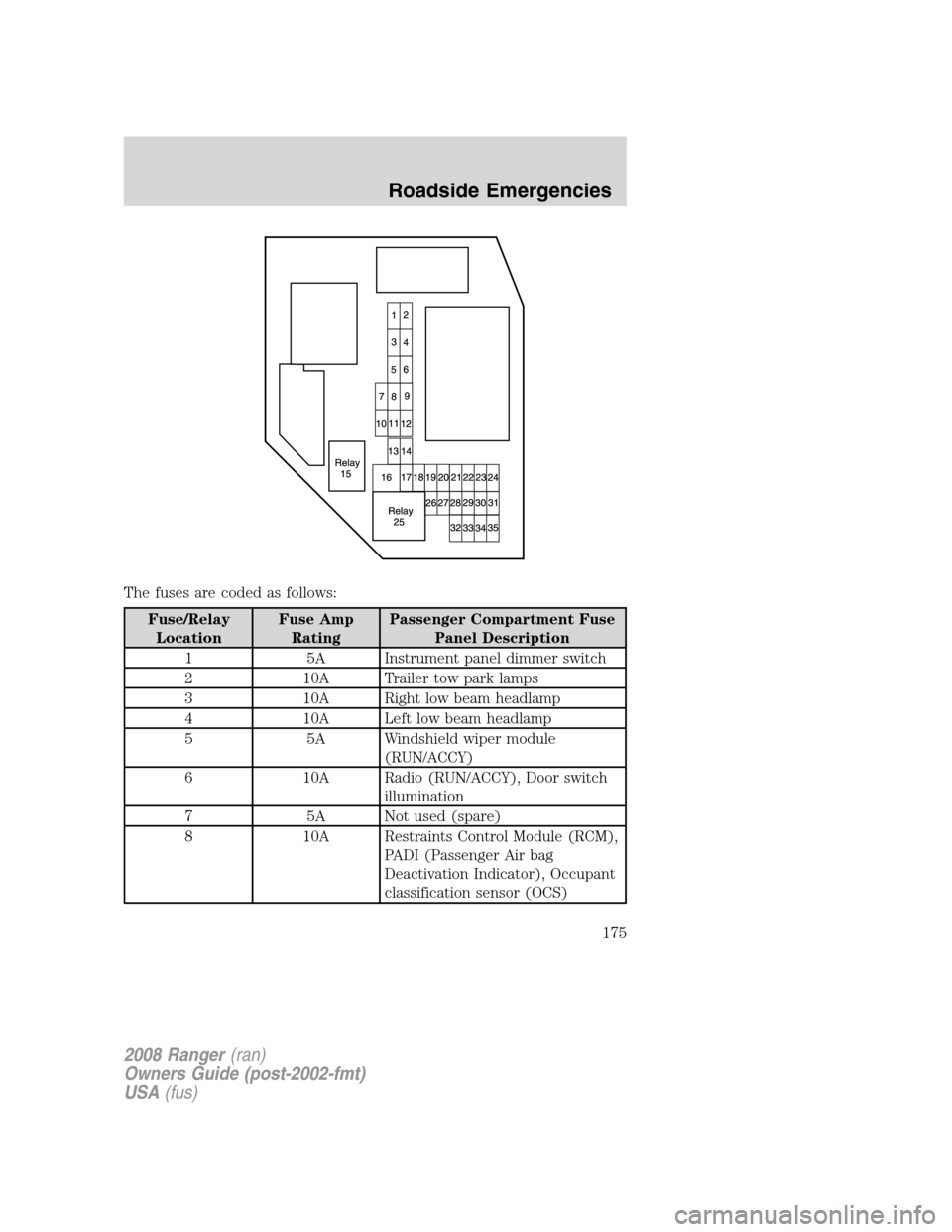

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 5A Instrument panel dimmer switch
2 10A Trailer tow park lamps
3 10A Right low beam headlamp
4 10A Left low beam headlamp
5 5A Windshield wiper module
(RUN/ACCY)
6 10A Radio (RUN/ACCY), Door switch
illumination
7 5A Not used (spare)
8 10A Restraints Control Module (RCM),
PADI (Passenger Air bag
Deactivation Indicator), Occupant
classification sensor (OCS)
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
175

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
9 5A Cluster air bag indicator
10 10A Cluster (RUN/START), 4x4
module (RUN/START)
11 10A Smart Junction Box (SJB) (Logic
power)
12 15A Audiophile subwoofer amplifier,
Satellite radio
13 15A Horn, Interior lamps
14 15A High beam headlamp, High beam
indicator (cluster)
15 — Not used
16 30A cartridge
fusePower windows
17 15A Turn signals/Hazards
18 — Not used
19 20A Center High-Mounted Stop Lamp
(CHMSL)/Stop lamps
20 10A Anti-lock Brake System (ABS)
module, Speed control module,
Back-up lamps, Overdrive cancel
switch, Electronic flasher
(turn/hazard)
21 5A Starter relay coil
22 5A Radio (START)
23 30A Headlamps (low and high beam)
24 20A Radio battery feed (B+)
25 — Accessory relay (power windows)
26 2A Redundant cruise switch
27 10A Climate control blower relay/blend
doors
28 15A 4x4 module battery feed (B+)
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
176

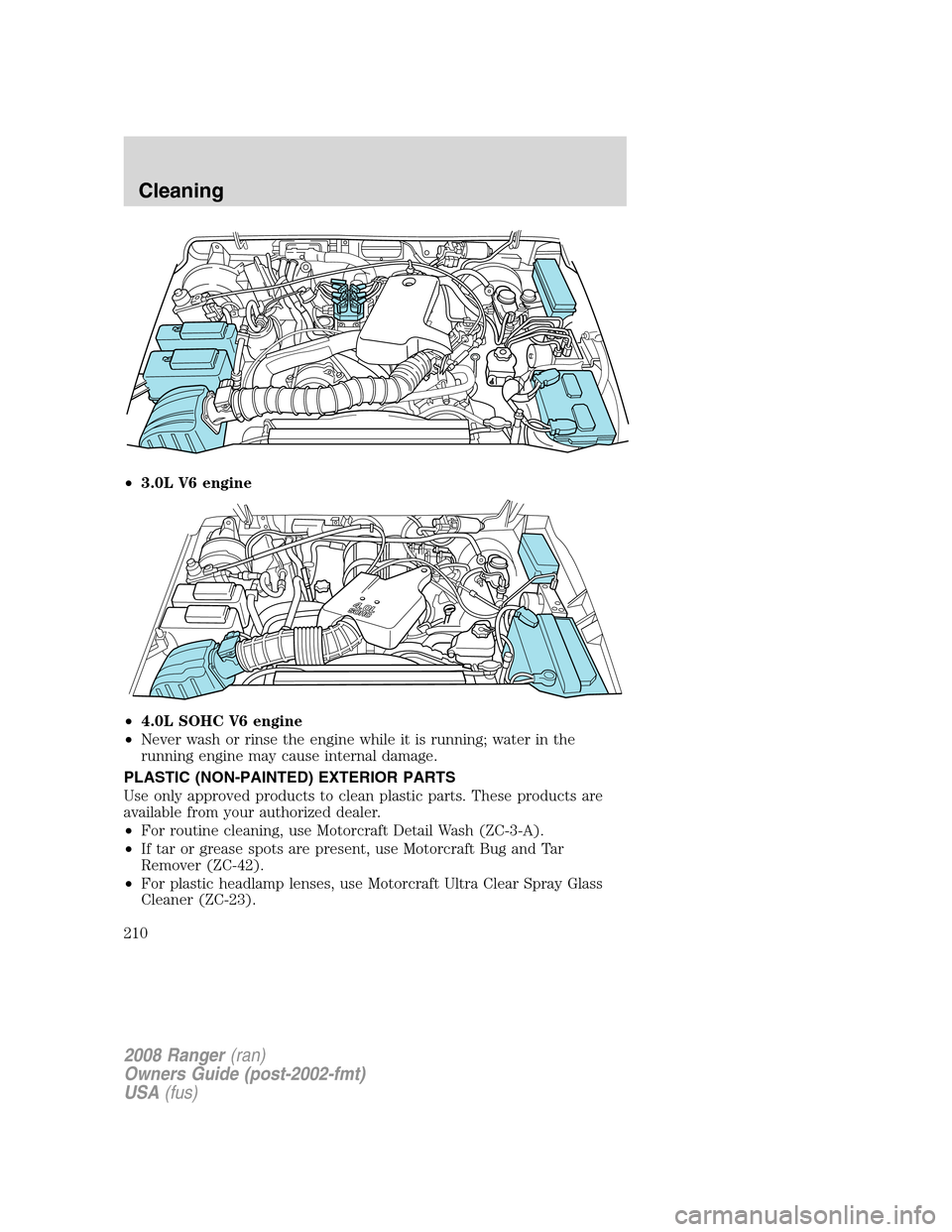

•3.0L V6 engine
•4.0L SOHC V6 engine
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3-A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
210

electronic shift ........................162
indicator light .........................162
preparing to drive your
vehicle .....................................155
Fuel ............................................235
calculating fuel economy .......240
cap ...........................................237
capacity ...................................254
choosing the right fuel ...........238
comparisons with EPA fuel
economy estimates .................243
detergent in fuel .....................238
filling your vehicle with
fuel ...........................235, 237, 240
filter, specifications ........234, 253
fuel pump shut-off switch .....172
improving fuel economy ........240
octane rating ...................239, 259
quality ......................................239
running out of fuel .................239
safety information relating to
automotive fuels .....................235
Fuel pump shut-off switch .......172
Fuses ..................................173–174
G
Gas cap (see Fuel cap) ............237
Gas mileage
(see Fuel economy) .................240
Gauges .........................................16
H
Hazard flashers .........................172
Headlamps ...................................43
aiming ........................................45
bulb specifications ....................47
daytime running lights .............44
flash to pass ..............................44high beam .................................43
replacing bulbs .........................49
turning on and off ....................43
Heating
heating and air conditioning
system .................................40–41
Hood ..........................................216
I
Ignition ...............................146, 259
Infant seats (see Safety seats) ..98
Inspection/maintenance (I/M)
testing ........................................245
Instrument panel
cleaning ...................................211
cluster ........................................12
lighting up panel and
interior .......................................44
J
Jack ............................................183
positioning .......................183, 189
storage .....................183, 186–187
Jump-starting your vehicle ......192
K
Keys .......................................61, 66
positions of the ignition .........146
L
Lamps
bulb replacement
specifications chart ..................47
daytime running light ...............44
fog lamps ...................................43
headlamps .................................43
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
267

headlamps, flash to pass ..........44
instrument panel, dimming .....44
interior lamps .....................47–48
replacing bulbs .........................49
Lane change indicator
(see Turn signal) ........................47
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........153
Load limits .................................127
Loading instructions .................133
Locks
doors ..........................................61
Lubricant specifications ...........254
Lug nuts ....................................192
Lumbar support, seats ...............70
M
Manual transmission .................159
fluid capacities ........................254
lubricant specifications ..........254
reverse .....................................160
Mirrors .........................................56
fold away ...................................57
side view mirrors
(power) ...............................56–57
Motorcraft parts ........213, 234, 253
O
Octane rating ............................239
Oil (see Engine oil) ..................221
P
Parking brake ............................153
Parts (see Motorcraft parts) ....253Passenger Occupant
Classification Sensor ...................73
Power distribution box
(see Fuses) ...............................177
Power door locks ........................61
Power mirrors .......................56–57
Power point .................................54
Power steering ..........................154
fluid, checking and adding ....246
fluid, refill capacity ................254
fluid, specifications .................254
Power Windows ...........................55
Preparing to drive your
vehicle ........................................155
R
Radio ................................19, 21, 27
Relays ........................................173
Remote entry system ...........61–62
illuminated entry ......................65
locking/unlocking doors ...........62
panic alarm ...............................62
replacing the batteries .............63
Roadside assistance ..................170
S
Safety Belt Maintenance ............80
Safety belts
(see Safety restraints) ...71, 75–79
Safety defects, reporting ..205–206
Safety restraints ..............71, 75–79
Belt-Minder.............................82
extension assembly ..................80
for adults .............................76–78
for children .........................93–94
lap belt ......................................76
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
268
