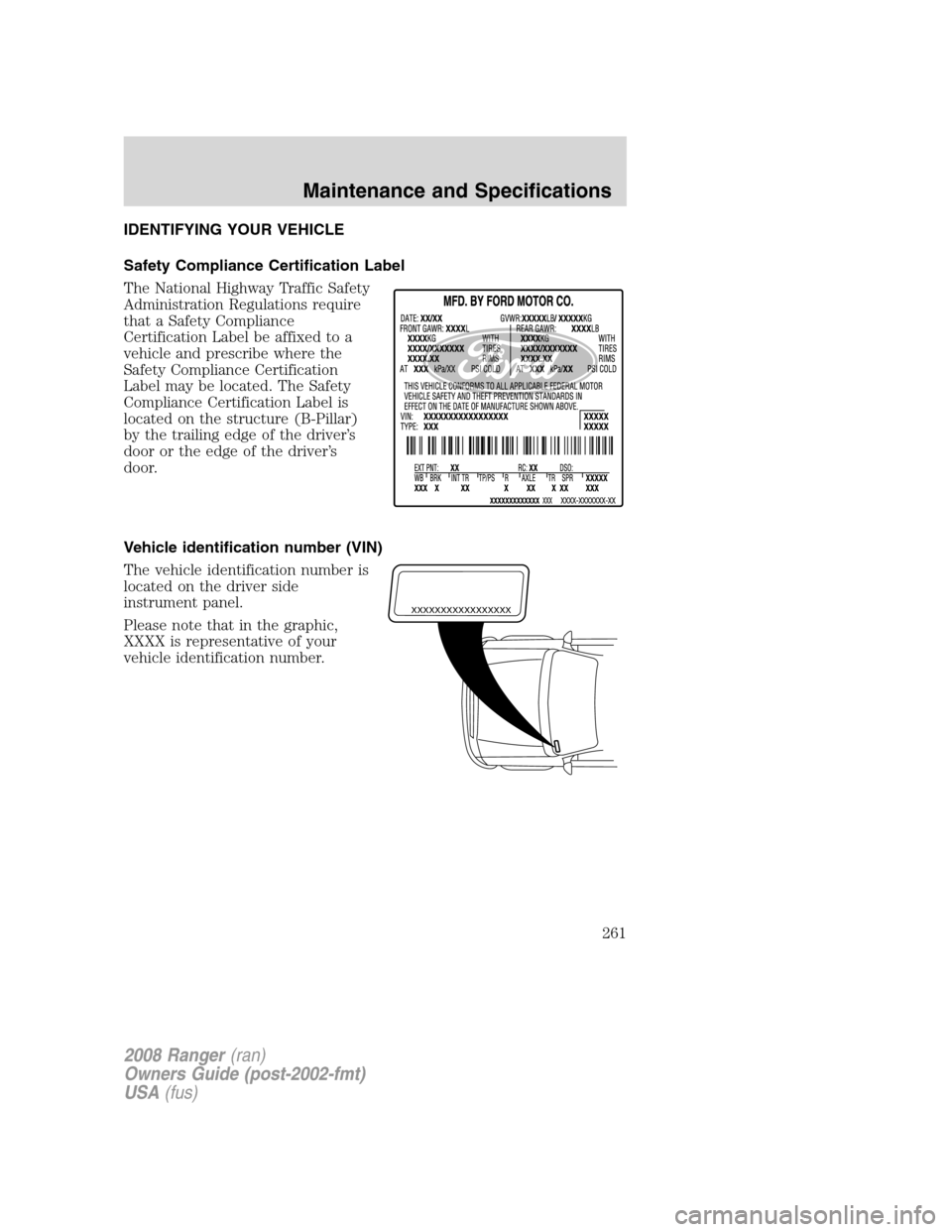

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
261

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic (5R44E/5R55E) D
Five-speed manual (HD) J
Five-speed manual (R1) R
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
262

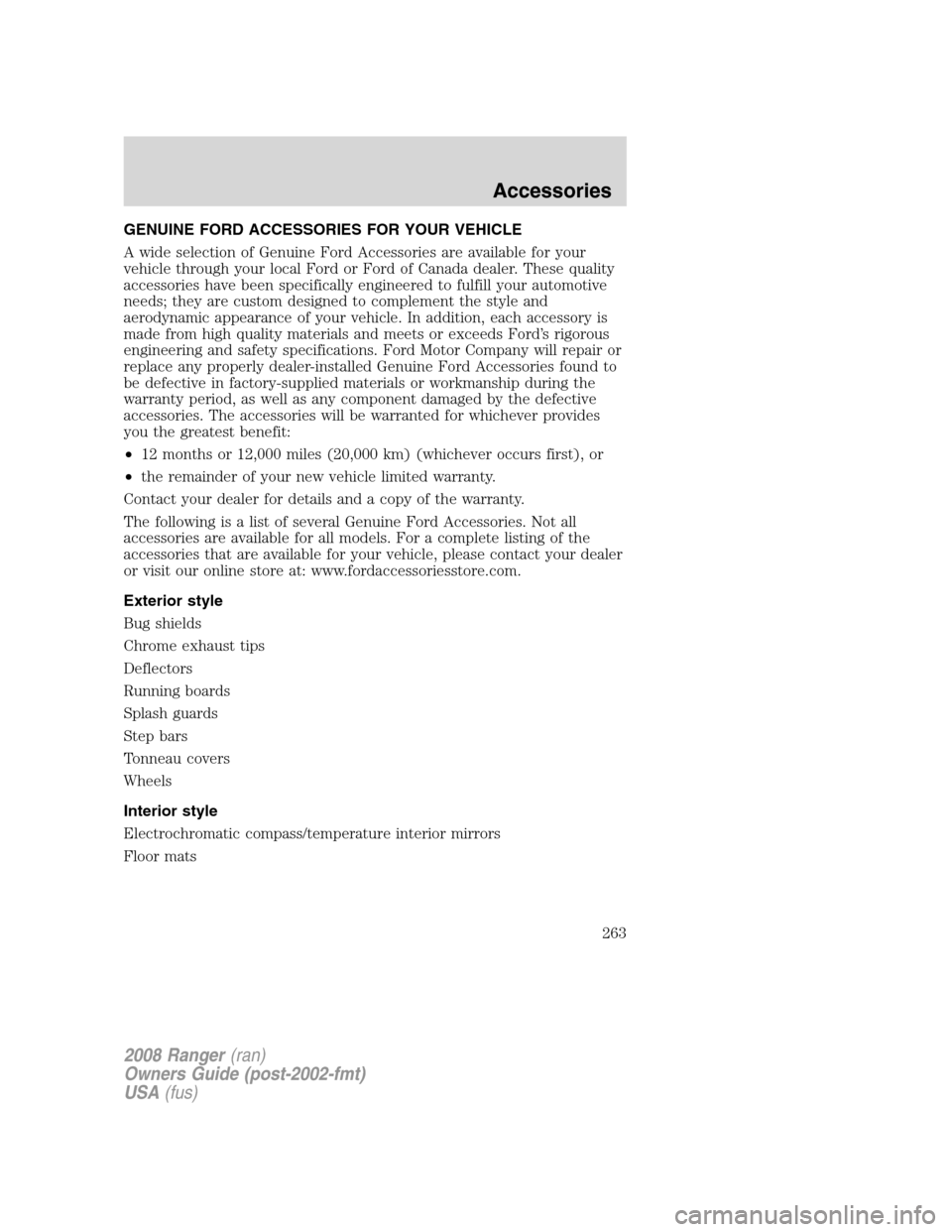

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Running boards
Splash guards
Step bars
Tonneau covers
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
263

Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Trailer hitches, wiring harnesses and accessories
TripTunes™ Advanced portable audio connection
Peace of mind
Mobile-Ease™ hands-free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
264

A
ABS (see Brakes) .....................152
Air cleaner filter ...............251, 253
Airbag supplemental restraint
system ..........................................86
and child safety seats ..............88
description ................................86
disposal ......................................90
driver airbag ........................86, 89
indicator light ...........................90
operation .............................86, 89
passenger airbag .................86, 89
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................229
Anti-lock brake system
(see Brakes) ..............................152
Anti-theft system ........................65
Audio system
(see Radio) ......................19, 21, 27
Automatic transmission ............155
driving an automatic
overdrive .................................157
fluid, refill capacities ..............254
fluid, specification ..................254
Auxiliary input jack (Line in) ....33
Auxiliary power point .................54
Axle
lubricant specifications ..........254
refill capacities ........................254
traction lok ..............................155
B
Battery .......................................227
acid, treating emergencies .....227
jumping a disabled battery ....192maintenance-free ....................227
replacement, specifications ...253
servicing ..................................227
Belt-Minder...............................82
Booster seats ...............................94
Brakes ........................................151
anti-lock ...................................152
anti-lock brake system (ABS)
warning light ...........................153
fluid, checking and adding ....248
fluid, refill capacities ..............254
fluid, specifications .................254
lubricant specifications ..........254
parking ....................................153
shift interlock ..........................155
Bulbs ............................................47
C
Capacities for refilling fluids ....254
Cargo cage ...................................59
Cell phone use ..............................8
Changing a tire .........................183
Child safety restraints ................94
child safety belts ......................94
Child safety seats ........................98
attaching with tether straps ..101
in front seat ..............................99
in rear seat ................................99
Child safety seats - booster
seats .............................................94
Cleaning your vehicle
engine compartment ..............209
instrument panel ....................211
interior .....................................212
plastic parts ............................210
safety belts ..............................212
washing ....................................207
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
265

waxing .....................................208
wheels ......................................208
wiper blades ............................211
Clock adjust
AM/FM Stereo ...........................20
AM/FM stereo CD .....................22
Premium AM/FM stereo
CD6/MP3 ...................................28
Clutch
fluid ..........................................248
operation while driving ..........159
recommended shift speeds ....160
Console ........................................54
Coolant
checking and adding ..............229
refill capacities ................233, 254
specifications ..........................254
Cruise control
(see Speed control) ....................57
Customer Assistance ................170
Ford Extended Service
Plan ..........................................203
Getting assistance outside the
U.S. and Canada .....................204
Getting roadside assistance ...170
Getting the service you
need .........................................199
Ordering additional owner’s
literature .................................205
Utilizing the
Mediation/Arbitration
Program ...................................203
D
Daytime running lamps
(see Lamps) ................................44
Dipstick
engine oil .................................221Driveline universal joint and
slip yoke ....................................251
Driving under special
conditions ..................161, 164, 167
sand .........................................166
snow and ice ...........................168
through water .................166, 169
E
Emergencies, roadside
jump-starting ..........................192
Emergency Flashers .................172
Emission control system ..........243
Engine ........................................259
cleaning ...................................209
coolant .....................................229
idle speed control ...................227
lubrication specifications .......254
refill capacities ........................254
service points ..................217–219
starting after a collision .........172
Engine block heater .................150
Engine oil ..................................221
checking and adding ..............221
dipstick ....................................221
filter, specifications ........225, 253
recommendations ...................225
refill capacities ........................254
specifications ..........................254
Event data recording ....................7
Exhaust fumes ..........................149
F
Fluid capacities .........................254
Foglamps .....................................43
Four-Wheel Drive vehicles .......161
driving off road .......................163
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
266

electronic shift ........................162
indicator light .........................162
preparing to drive your
vehicle .....................................155
Fuel ............................................235
calculating fuel economy .......240
cap ...........................................237
capacity ...................................254
choosing the right fuel ...........238
comparisons with EPA fuel
economy estimates .................243
detergent in fuel .....................238
filling your vehicle with
fuel ...........................235, 237, 240
filter, specifications ........234, 253
fuel pump shut-off switch .....172
improving fuel economy ........240
octane rating ...................239, 259
quality ......................................239
running out of fuel .................239
safety information relating to
automotive fuels .....................235
Fuel pump shut-off switch .......172
Fuses ..................................173–174
G
Gas cap (see Fuel cap) ............237
Gas mileage
(see Fuel economy) .................240
Gauges .........................................16
H
Hazard flashers .........................172
Headlamps ...................................43
aiming ........................................45
bulb specifications ....................47
daytime running lights .............44
flash to pass ..............................44high beam .................................43
replacing bulbs .........................49
turning on and off ....................43
Heating
heating and air conditioning
system .................................40–41
Hood ..........................................216
I
Ignition ...............................146, 259
Infant seats (see Safety seats) ..98
Inspection/maintenance (I/M)
testing ........................................245
Instrument panel
cleaning ...................................211
cluster ........................................12
lighting up panel and
interior .......................................44
J
Jack ............................................183
positioning .......................183, 189
storage .....................183, 186–187
Jump-starting your vehicle ......192
K
Keys .......................................61, 66
positions of the ignition .........146
L
Lamps
bulb replacement
specifications chart ..................47
daytime running light ...............44
fog lamps ...................................43
headlamps .................................43
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
267

headlamps, flash to pass ..........44
instrument panel, dimming .....44
interior lamps .....................47–48
replacing bulbs .........................49
Lane change indicator
(see Turn signal) ........................47
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........153
Load limits .................................127
Loading instructions .................133
Locks
doors ..........................................61
Lubricant specifications ...........254
Lug nuts ....................................192
Lumbar support, seats ...............70
M
Manual transmission .................159
fluid capacities ........................254
lubricant specifications ..........254
reverse .....................................160
Mirrors .........................................56
fold away ...................................57
side view mirrors
(power) ...............................56–57
Motorcraft parts ........213, 234, 253
O
Octane rating ............................239
Oil (see Engine oil) ..................221
P
Parking brake ............................153
Parts (see Motorcraft parts) ....253Passenger Occupant
Classification Sensor ...................73
Power distribution box
(see Fuses) ...............................177
Power door locks ........................61
Power mirrors .......................56–57
Power point .................................54
Power steering ..........................154
fluid, checking and adding ....246
fluid, refill capacity ................254
fluid, specifications .................254
Power Windows ...........................55
Preparing to drive your
vehicle ........................................155
R
Radio ................................19, 21, 27
Relays ........................................173
Remote entry system ...........61–62
illuminated entry ......................65
locking/unlocking doors ...........62
panic alarm ...............................62
replacing the batteries .............63
Roadside assistance ..................170
S
Safety Belt Maintenance ............80
Safety belts
(see Safety restraints) ...71, 75–79
Safety defects, reporting ..205–206
Safety restraints ..............71, 75–79
Belt-Minder.............................82
extension assembly ..................80
for adults .............................76–78
for children .........................93–94
lap belt ......................................76
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
268

Occupant Classification
Sensor ........................................73
safety belt maintenance ...........80
warning light and chime ..........81
Safety seats for children ............98
Safety Compliance
Certification Label ....................261
Satellite Radio Information ........36
Seats ............................................68
child safety seats ......................98
SecuriLock passive anti-theft
system ..........................................65
Servicing your vehicle ..............215
Setting the clock
AM/FM stereo ...........................20
AM/FM stereo CD .....................22
Premium AM/FM stereo
CD6/MP3 ...................................28
Snowplowing .................................8
Spark plugs,
specifications .....................253, 259
Special notice
ambulance conversions ..............8
utility-type vehicles ....................7
Specification chart,
lubricants ...................................254
Speed control ..............................57
Starting your
vehicle ........................146–147, 149
jump starting ..........................192
Steering wheel
tilting .........................................54
T
Tilt steering wheel ......................54Tire Pressure Monitoring
System (TPMS)
Roadside Emergencies ...........183
Tires, Wheels and Loading ....122
Tires ...........................107–109, 183
alignment ................................116
care ..........................................112
changing ..........................183, 189
checking the pressure ............112
inflating ...................................110
label .........................................121
replacing ..................................113
rotating
....................................116
safety practices
.......................115
sidewall information
...............117
snow tires and chains
............126
spare tire
.................................184
terminology
.............................109
tire grades
...............................108
treadwear
........................108, 112
Towing
.......................................133
recreational towing
.................144
trailer towing
..........................133
wrecker
....................................198
Traction-lok rear axle
...............155
Transfer case
fluid checking
.........................251
Transmission
automatic operation
...............155
brake-shift interlock (BSI)
....155
fluid, checking and adding
(manual)
.................................250
fluid, refill capacities
..............254
lubricant specifications
..........254
manual operation
....................159
Turn signal
..................................47
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
269

V
Vehicle Identification Number
(VIN) ..........................................261
Vehicle loading ..........................127
camper bodies ........................145
Ventilating your vehicle ...........149
W
Warning lights (see Lights) .......12Washer fluid ..............................220
Water, Driving through .............169
Windows
power
.........................................55
Windshield washer fluid and
wipers
..........................................53
checking and adding fluid
.....220
replacing wiper blades
...........221
Wrecker towing
.........................198
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
270
