FORD RANGER 2009 2.G Owner's Manual

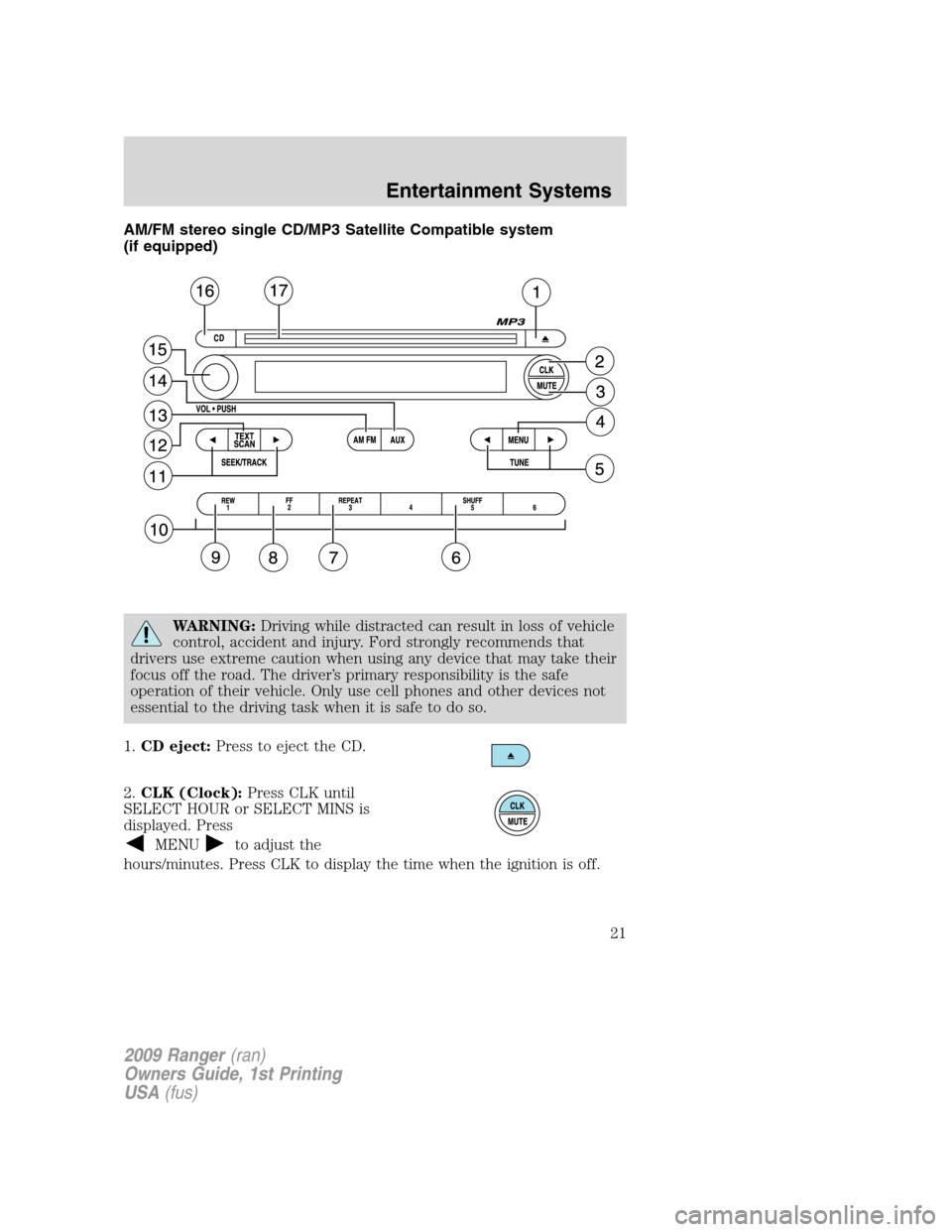

AM/FM stereo single CD/MP3 Satellite Compatible system
(if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
1.CD eject:Press to eject the CD.
2.CLK (Clock):Press CLK until
SELECT HOUR or SELECT MINS is
displayed. Press
MENUto adjust the
hours/minutes. Press CLK to display the time when the ignition is off.
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
21

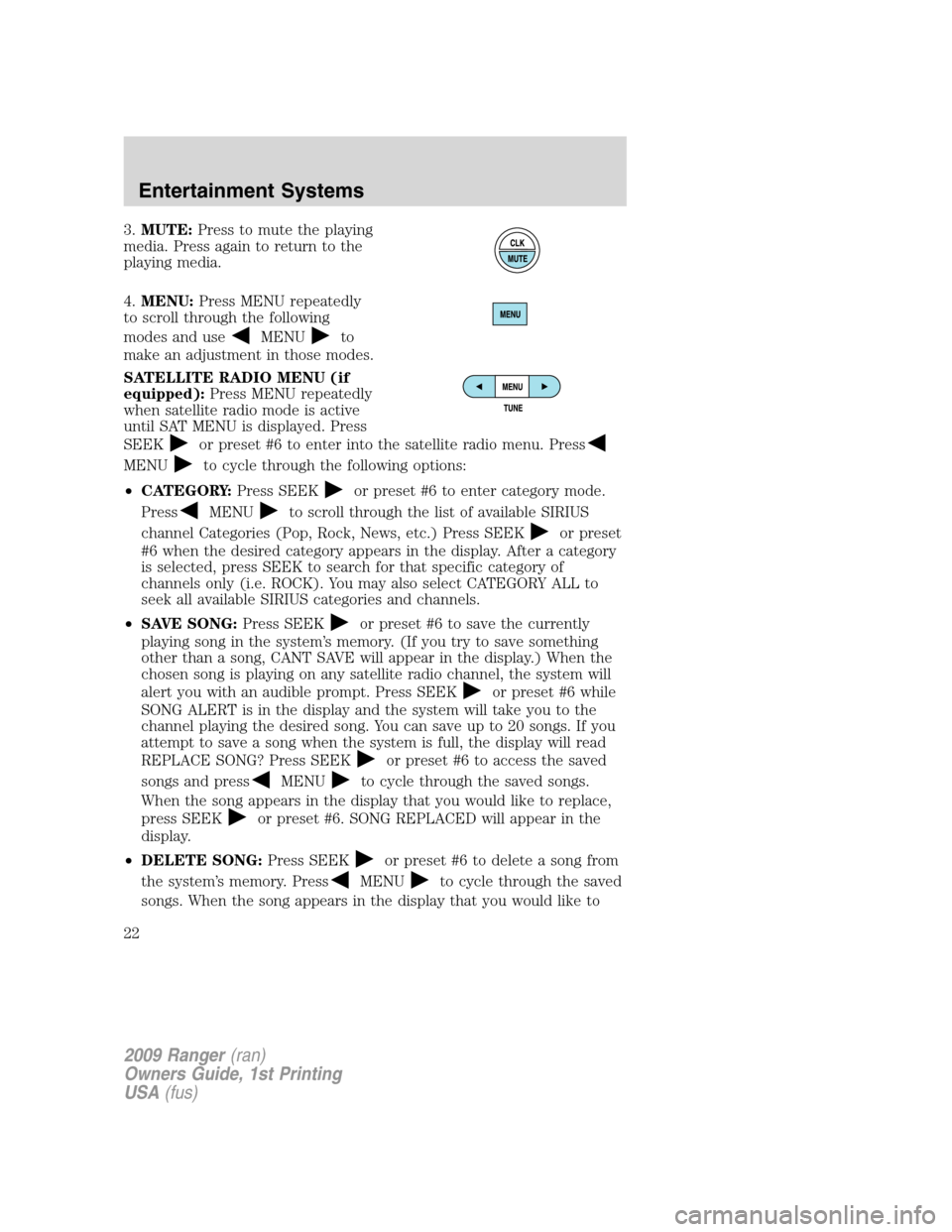

3.MUTE:Press to mute the playing
media. Press again to return to the
playing media.
4.MENU:Press MENU repeatedly
to scroll through the following
modes and use
MENUto
make an adjustment in those modes.
SATELLITE RADIO MENU (if
equipped):Press MENU repeatedly
when satellite radio mode is active
until SAT MENU is displayed. Press
SEEK
or preset #6 to enter into the satellite radio menu. Press
MENUto cycle through the following options:
•CATEGORY:Press SEEK
or preset #6 to enter category mode.
Press
MENUto scroll through the list of available SIRIUS
channel Categories (Pop, Rock, News, etc.) Press SEEK
or preset
#6 when the desired category appears in the display. After a category
is selected, press SEEK to search for that specific category of
channels only (i.e. ROCK). You may also select CATEGORY ALL to
seek all available SIRIUS categories and channels.
•SAVE SONG:Press SEEK
or preset #6 to save the currently
playing song in the system’s memory. (If you try to save something
other than a song, CANT SAVE will appear in the display.) When the
chosen song is playing on any satellite radio channel, the system will
alert you with an audible prompt. Press SEEK
or preset #6 while
SONG ALERT is in the display and the system will take you to the
channel playing the desired song. You can save up to 20 songs. If you
attempt to save a song when the system is full, the display will read
REPLACE SONG? Press SEEK
or preset #6 to access the saved
songs and press
MENUto cycle through the saved songs.
When the song appears in the display that you would like to replace,
press SEEK
or preset #6. SONG REPLACED will appear in the
display.
•DELETE SONG:Press SEEK
or preset #6 to delete a song from
the system’s memory. Press
MENUto cycle through the saved
songs. When the song appears in the display that you would like to
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
22

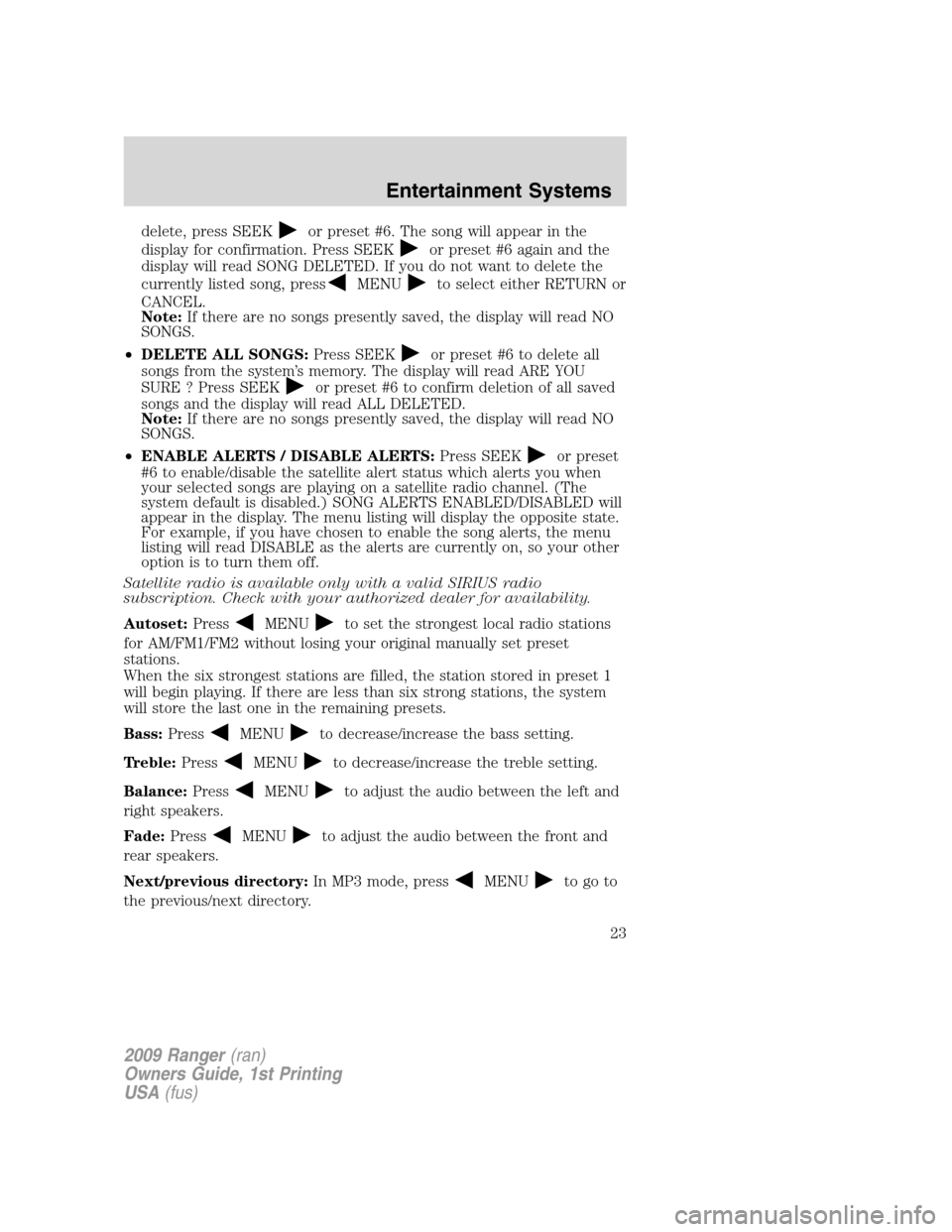

delete, press SEEKor preset #6. The song will appear in the
display for confirmation. Press SEEK
or preset #6 again and the
display will read SONG DELETED. If you do not want to delete the
currently listed song, press
MENUto select either RETURN or
CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.

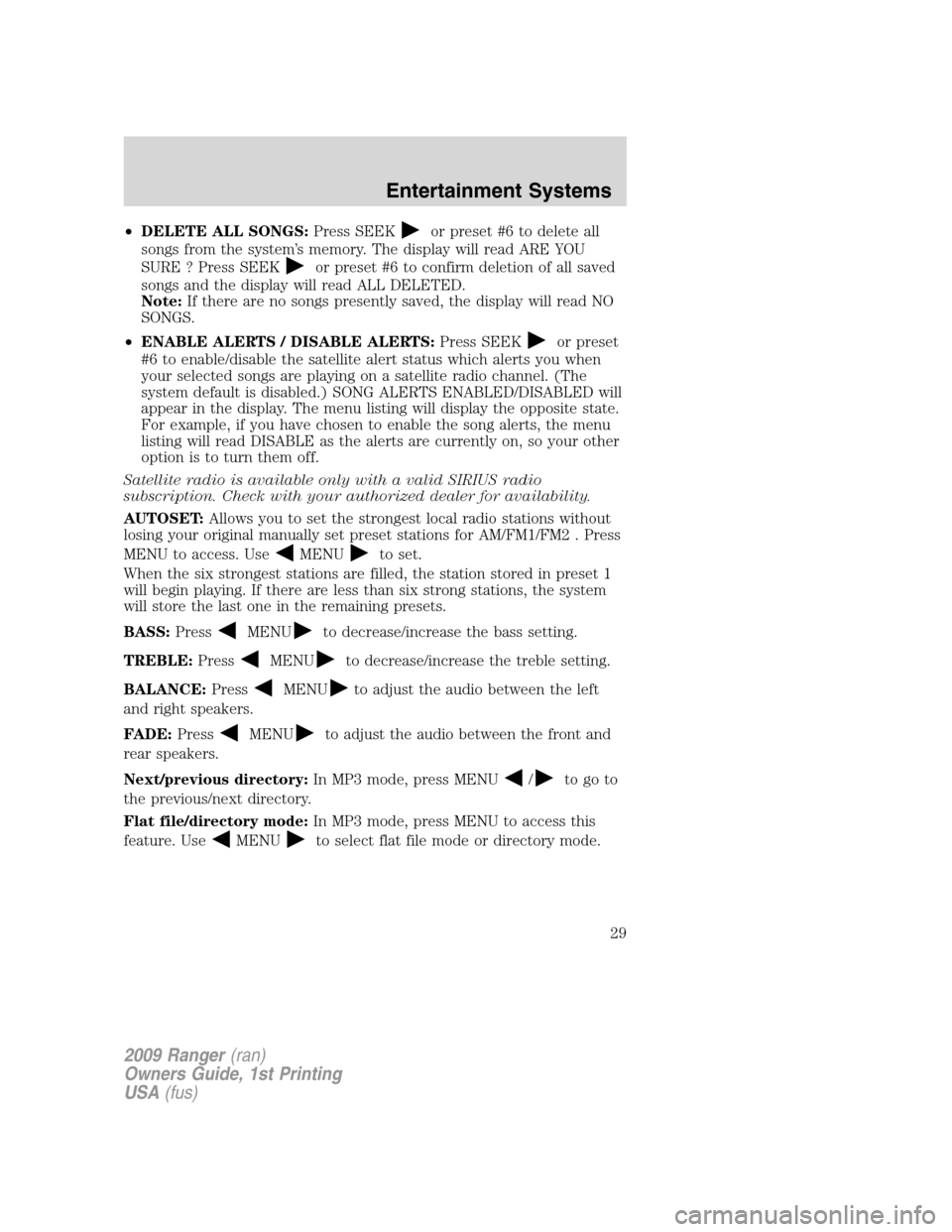

•DELETE ALL SONGS:Press SEEK
or preset #6 to delete all
songs from the system’s memory. The display will read ARE YOU
SURE ? Press SEEK
or preset #6 to confirm deletion of all saved
songs and the display will read ALL DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•ENABLE ALERTS / DISABLE ALERTS:Press SEEK
or preset
#6 to enable/disable the satellite alert status which alerts you when
your selected songs are playing on a satellite radio channel. (The
system default is disabled.) SONG ALERTS ENABLED/DISABLED will
appear in the display. The menu listing will display the opposite state.
For example, if you have chosen to enable the song alerts, the menu
listing will read DISABLE as the alerts are currently on, so your other
optionistoturnthemoff.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
Autoset:Press
MENUto set the strongest local radio stations
for AM/FM1/FM2 without losing your original manually set preset
stations.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass:Press
MENUto decrease/increase the bass setting.
Treble:Press
MENUto decrease/increase the treble setting.
Balance:Press
MENUto adjust the audio between the left and
right speakers.
Fade:Press
MENUto adjust the audio between the front and
rear speakers.
Next/previous directory:In MP3 mode, press
MENUto go to
the previous/next directory.
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
23

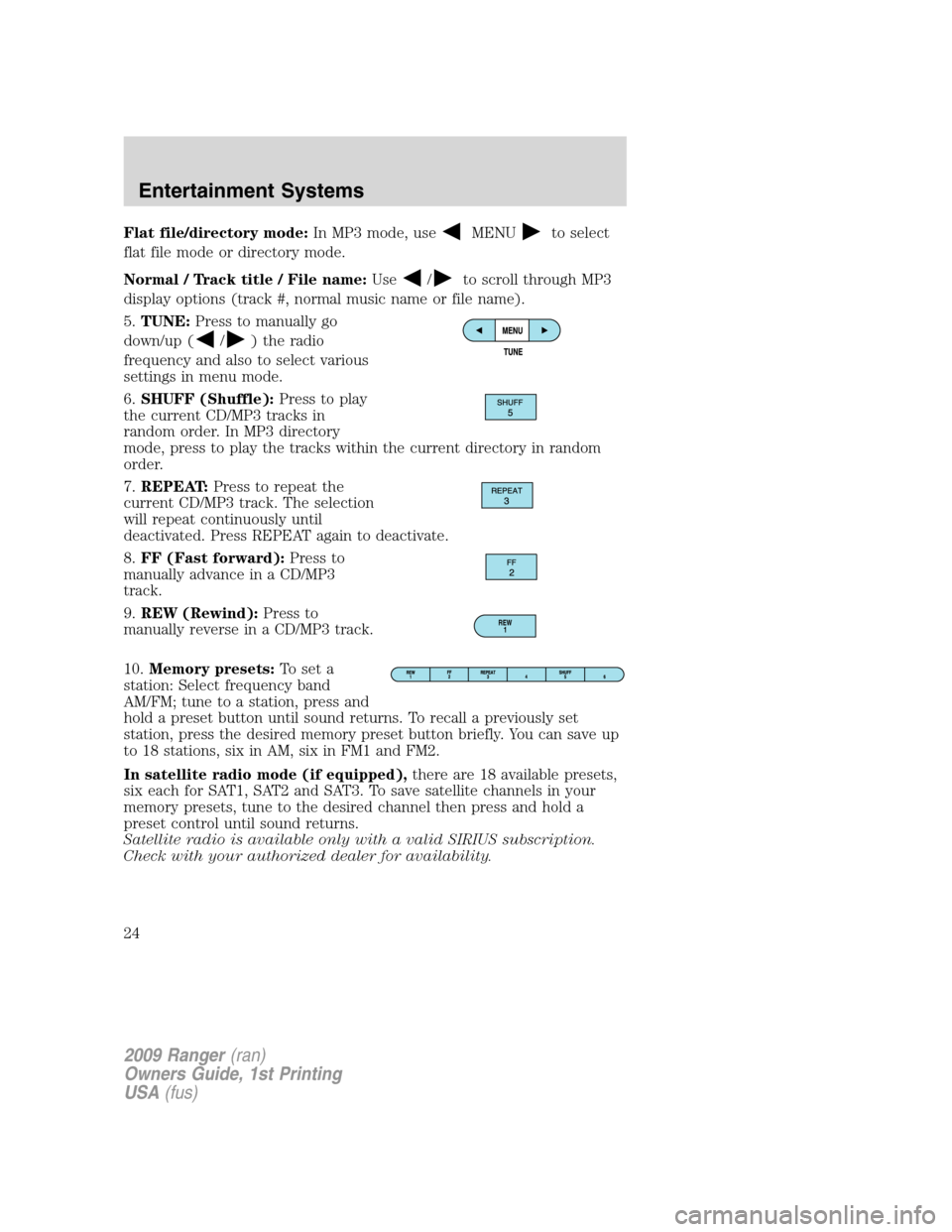

Flat file/directory mode:In MP3 mode, useMENUto select
flat file mode or directory mode.
Normal / Track title / File name:Use
/to scroll through MP3
display options (track #, normal music name or file name).
5.TUNE:Press to manually go
down/up (
/) the radio
frequency and also to select various
settings in menu mode.
6.SHUFF (Shuffle):Press to play
the current CD/MP3 tracks in
random order. In MP3 directory
mode, press to play the tracks within the current directory in random
order.
7.REPEAT:Press to repeat the
current CD/MP3 track. The selection
will repeat continuously until
deactivated. Press REPEAT again to deactivate.
8.FF (Fast forward):Press to
manually advance in a CD/MP3
track.
9.REW (Rewind):Press to
manually reverse in a CD/MP3 track.
10.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns. To recall a previously set
station, press the desired memory preset button briefly. You can save up
to 18 stations, six in AM, six in FM1 and FM2.
In satellite radio mode (if equipped),there are 18 available presets,
six each for SAT1, SAT2 and SAT3. To save satellite channels in your
memory presets, tune to the desired channel then press and hold a
preset control until sound returns.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
REW
1
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
24

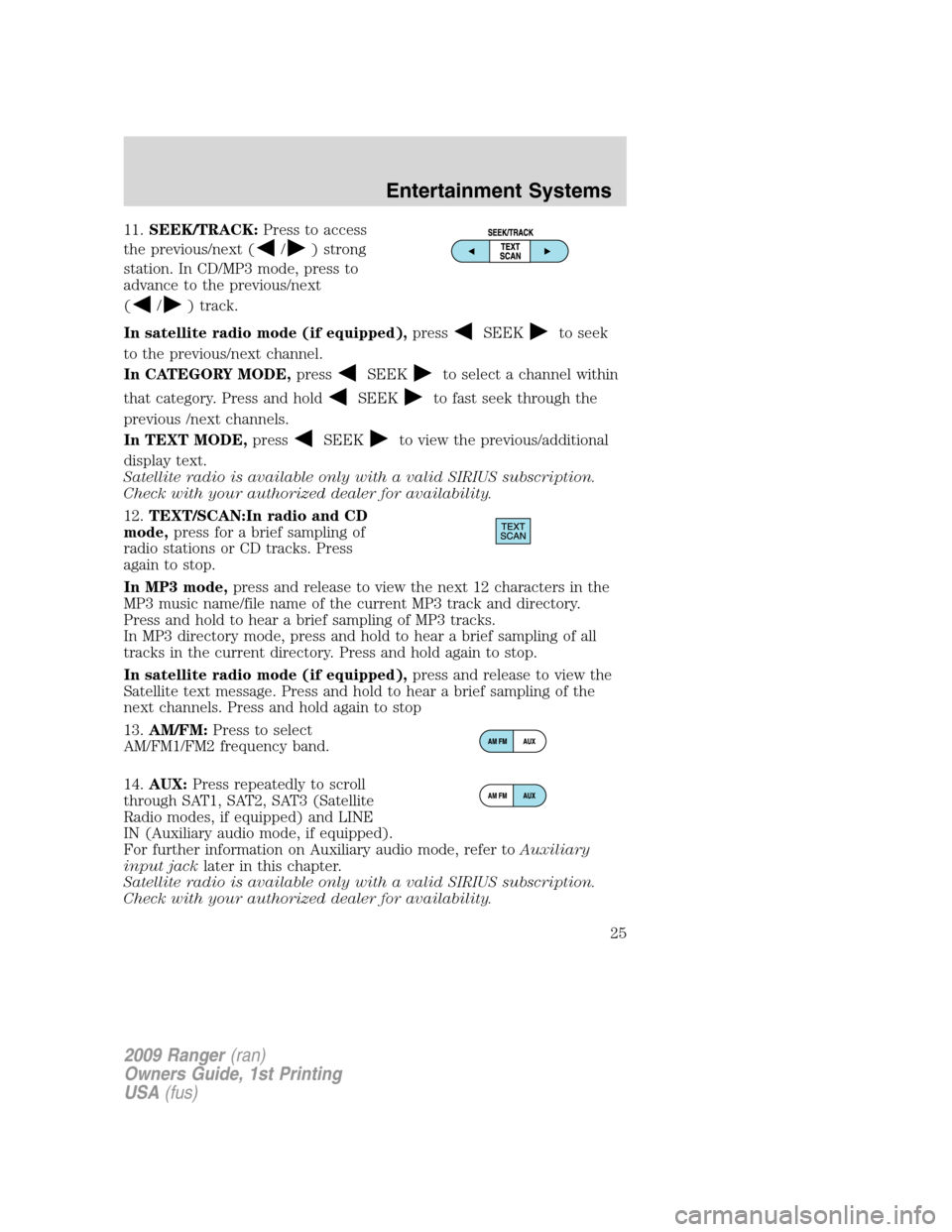

11.SEEK/TRACK:Press to access
the previous/next (
/) strong
station. In CD/MP3 mode, press to
advance to the previous/next
(
/) track.
In satellite radio mode (if equipped),press
SEEKto seek
to the previous/next channel.
In CATEGORY MODE,press
SEEKto select a channel within
that category. Press and hold
SEEKto fast seek through the
previous /next channels.
In TEXT MODE,press
SEEKto view the previous/additional
display text.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
12.TEXT/SCAN:In radio and CD
mode,press for a brief sampling of
radio stations or CD tracks. Press
again to stop.
In MP3 mode,press and release to view the next 12 characters in the
MP3 music name/file name of the current MP3 track and directory.
Press and hold to hear a brief sampling of MP3 tracks.
In MP3 directory mode, press and hold to hear a brief sampling of all
tracks in the current directory. Press and hold again to stop.
In satellite radio mode (if equipped),press and release to view the
Satellite text message. Press and hold to hear a brief sampling of the
next channels. Press and hold again to stop
13.AM/FM:Press to select
AM/FM1/FM2 frequency band.
14.AUX:Press repeatedly to scroll
through SAT1, SAT2, SAT3 (Satellite
Radio modes, if equipped) and LINE
IN (Auxiliary audio mode, if equipped).
For further information on Auxiliary audio mode, refer toAuxiliary
input jacklater in this chapter.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
25

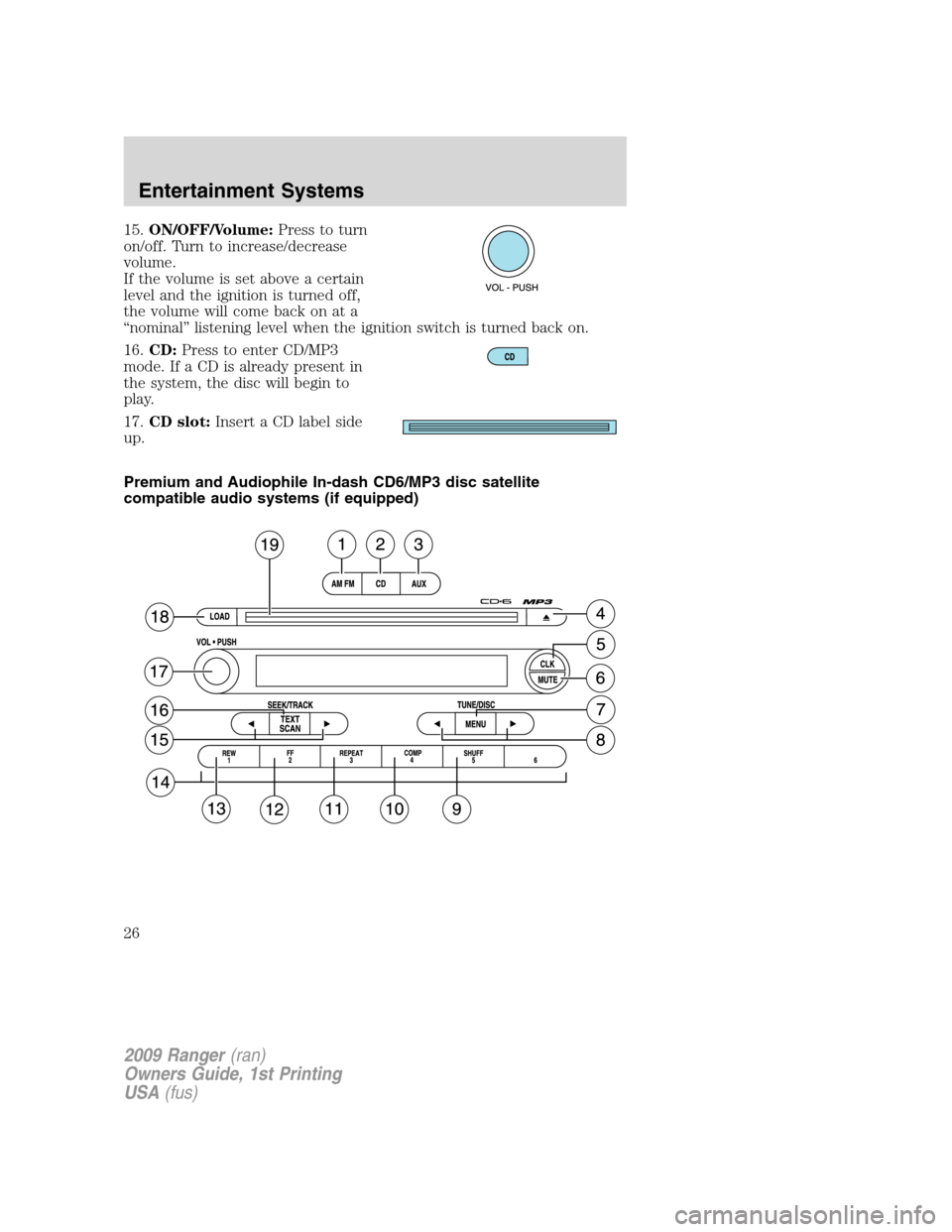

15.ON/OFF/Volume:Press to turn
on/off. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
16.CD:Press to enter CD/MP3
mode. If a CD is already present in
the system, the disc will begin to
play.
17.CD slot:Insert a CD label side
up.
Premium and Audiophile In-dash CD6/MP3 disc satellite
compatible audio systems (if equipped)
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
26

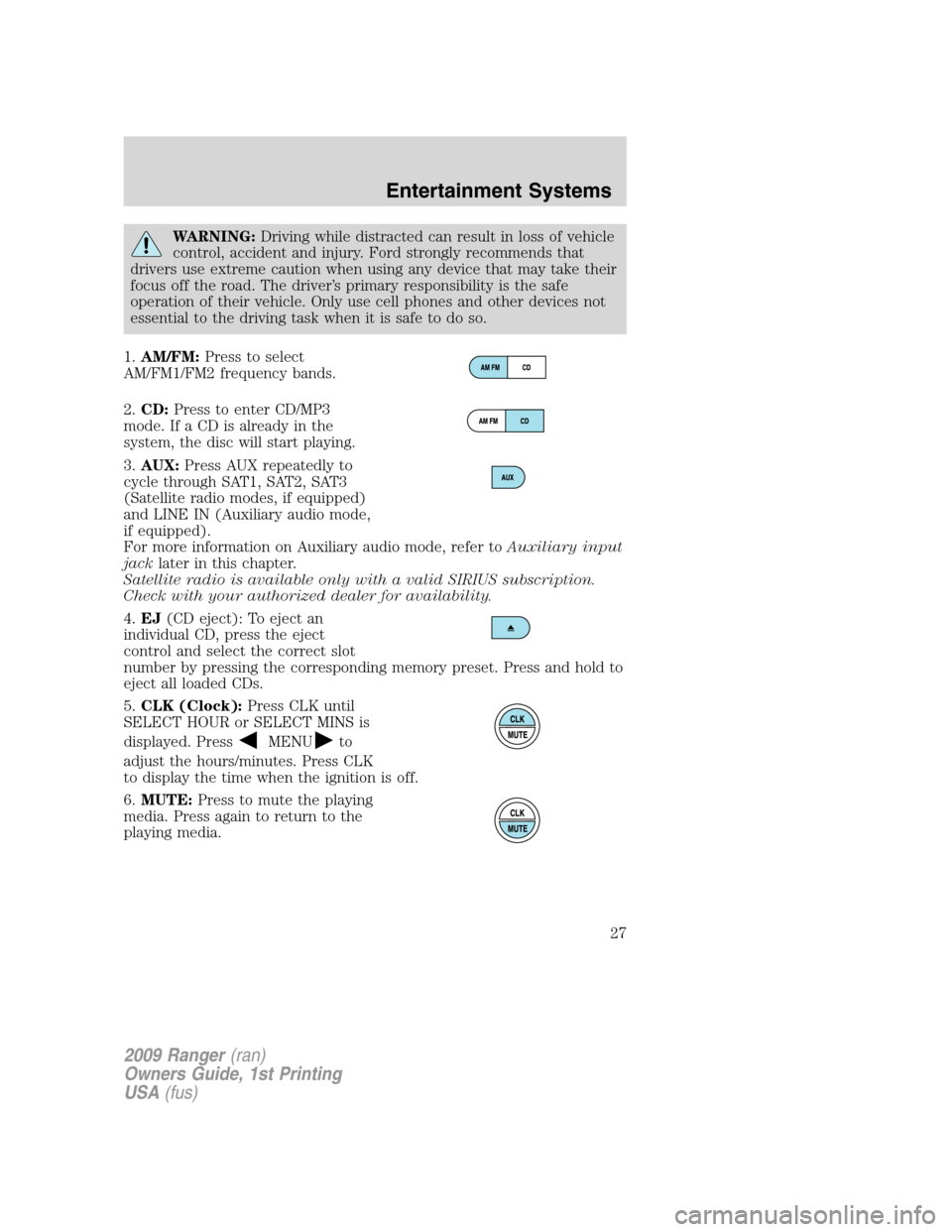

WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
1.AM/FM:Press to select
AM/FM1/FM2 frequency bands.
2.CD:Press to enter CD/MP3
mode. If a CD is already in the
system, the disc will start playing.
3.AUX:Press AUX repeatedly to
cycle through SAT1, SAT2, SAT3
(Satellite radio modes, if equipped)
and LINE IN (Auxiliary audio mode,
if equipped).
For more information on Auxiliary audio mode, refer toAuxiliary input
jacklater in this chapter.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
4.EJ(CD eject): To eject an
individual CD, press the eject
control and select the correct slot
number by pressing the corresponding memory preset. Press and hold to
eject all loaded CDs.
5.CLK (Clock):Press CLK until
SELECT HOUR or SELECT MINS is
displayed. Press
MENUto
adjust the hours/minutes. Press CLK
to display the time when the ignition is off.
6.MUTE:Press to mute the playing
media. Press again to return to the
playing media.
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
27

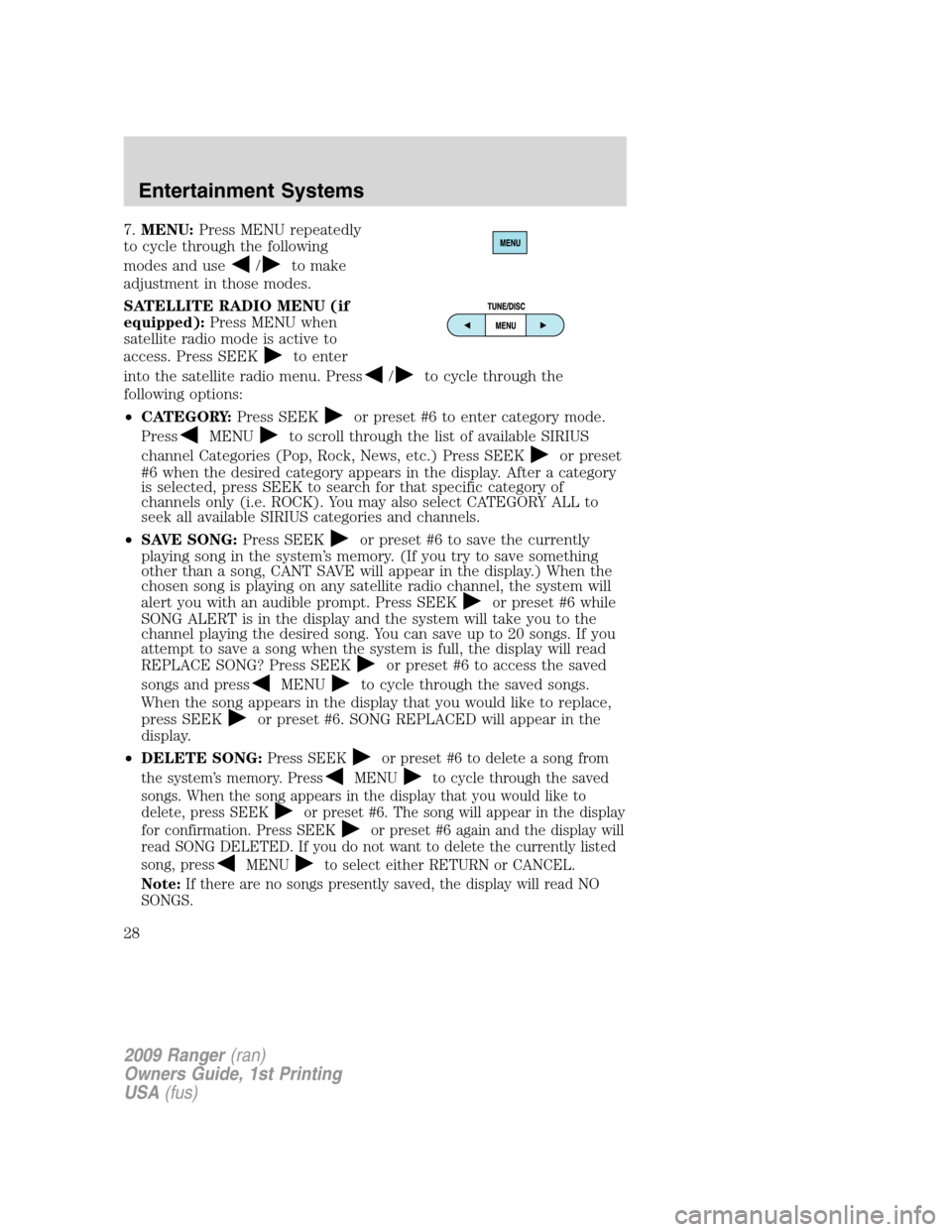

7.MENU:Press MENU repeatedly
to cycle through the following
modes and use
/to make
adjustment in those modes.
SATELLITE RADIO MENU (if
equipped):Press MENU when
satellite radio mode is active to
access. Press SEEK
to enter
into the satellite radio menu. Press
/to cycle through the
following options:
•CATEGORY:Press SEEK
or preset #6 to enter category mode.
Press
MENUto scroll through the list of available SIRIUS
channel Categories (Pop, Rock, News, etc.) Press SEEK
or preset
#6 when the desired category appears in the display. After a category
is selected, press SEEK to search for that specific category of
channels only (i.e. ROCK). You may also select CATEGORY ALL to
seek all available SIRIUS categories and channels.
•SAVE SONG:Press SEEK
or preset #6 to save the currently
playing song in the system’s memory. (If you try to save something
other than a song, CANT SAVE will appear in the display.) When the
chosen song is playing on any satellite radio channel, the system will
alert you with an audible prompt. Press SEEK
or preset #6 while
SONG ALERT is in the display and the system will take you to the
channel playing the desired song. You can save up to 20 songs. If you
attempt to save a song when the system is full, the display will read
REPLACE SONG? Press SEEK
or preset #6 to access the saved
songs and press
MENUto cycle through the saved songs.
When the song appears in the display that you would like to replace,
press SEEK
or preset #6. SONG REPLACED will appear in the
display.
•DELETE SONG:
Press SEEKor preset #6 to delete a song from
the system’s memory. Press
MENUto cycle through the saved
songs. When the song appears in the display that you would like to
delete, press SEEK
or preset #6. The song will appear in the display
for confirmation. Press SEEK
or preset #6 again and the display will
read SONG DELETED. If you do not want to delete the currently listed
song, press
MENUto select either RETURN or CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
28

•DELETE ALL SONGS:Press SEEKor preset #6 to delete all
songs from the system’s memory. The display will read ARE YOU
SURE ? Press SEEK
or preset #6 to confirm deletion of all saved
songs and the display will read ALL DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•ENABLE ALERTS / DISABLE ALERTS:Press SEEK
or preset
#6 to enable/disable the satellite alert status which alerts you when
your selected songs are playing on a satellite radio channel. (The
system default is disabled.) SONG ALERTS ENABLED/DISABLED will
appear in the display. The menu listing will display the opposite state.
For example, if you have chosen to enable the song alerts, the menu
listing will read DISABLE as the alerts are currently on, so your other
optionistoturnthemoff.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
AUTOSET:Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2 . Press
MENU to access. Use
MENUto set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
BASS:Press
MENUto decrease/increase the bass setting.
TREBLE:Press
MENUto decrease/increase the treble setting.
BALANCE:Press
MENUto adjust the audio between the left
and right speakers.
FADE:Press
MENUto adjust the audio between the front and
rear speakers.
Next/previous directory:In MP3 mode, press MENU
/to go to
the previous/next directory.
Flat file/directory mode:In MP3 mode, press MENU to access this
feature. Use
MENUto select flat file mode or directory mode.
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
29

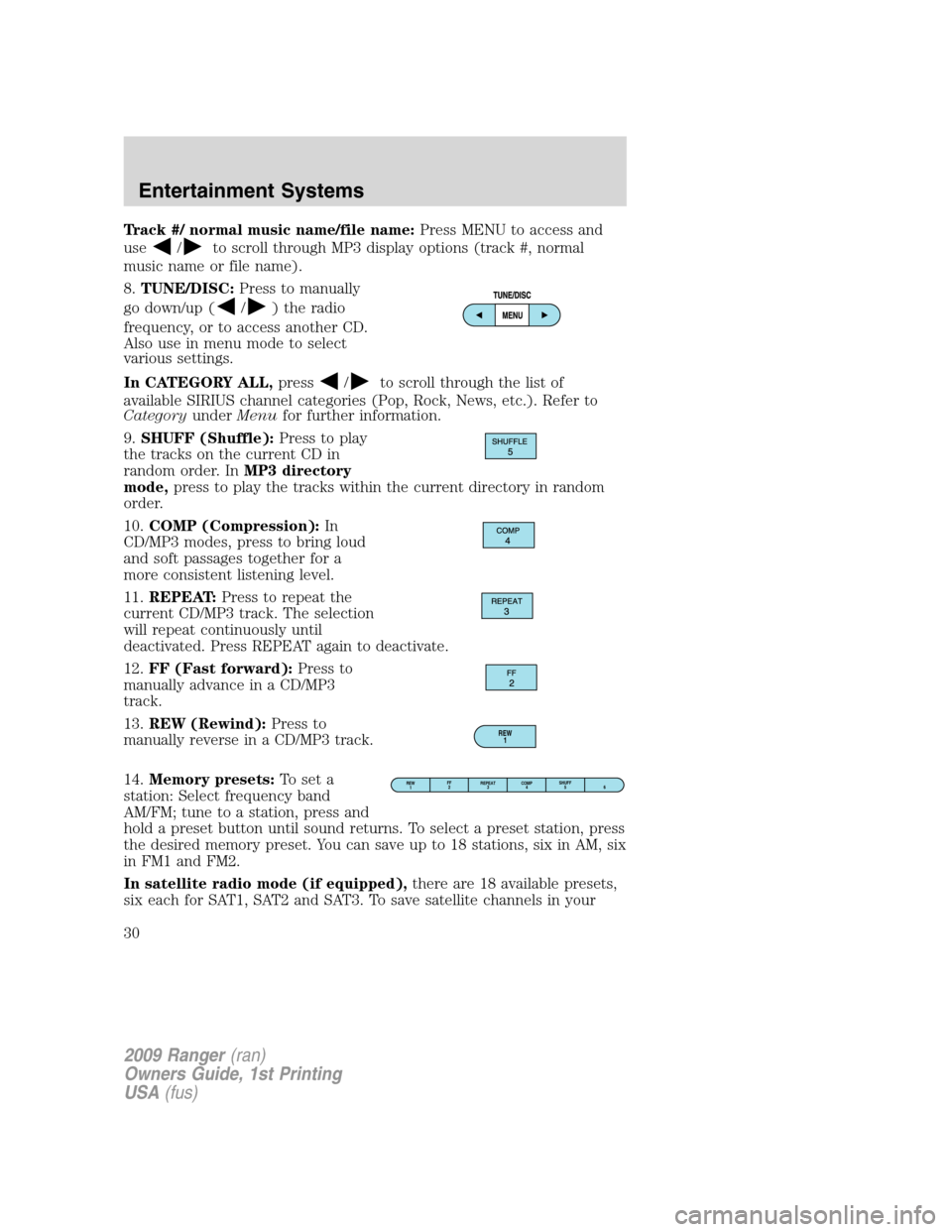

Track #/ normal music name/file name:Press MENU to access and
use
/to scroll through MP3 display options (track #, normal
music name or file name).
8.TUNE/DISC:Press to manually
go down/up (
/) the radio
frequency, or to access another CD.
Also use in menu mode to select
various settings.
In CATEGORY ALL,press
/to scroll through the list of
available SIRIUS channel categories (Pop, Rock, News, etc.). Refer to
CategoryunderMenufor further information.
9.SHUFF (Shuffle):Press to play
the tracks on the current CD in
random order. InMP3 directory
mode,press to play the tracks within the current directory in random
order.
10.COMP (Compression):In
CD/MP3 modes, press to bring loud
and soft passages together for a
more consistent listening level.
11.REPEAT:Press to repeat the
current CD/MP3 track. The selection
will repeat continuously until
deactivated. Press REPEAT again to deactivate.
12.FF (Fast forward):Press to
manually advance in a CD/MP3
track.
13.REW (Rewind):Press to
manually reverse in a CD/MP3 track.
14.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns. To select a preset station, press
the desired memory preset. You can save up to 18 stations, six in AM, six
in FM1 and FM2.
In satellite radio mode (if equipped),there are 18 available presets,
six each for SAT1, SAT2 and SAT3. To save satellite channels in your
REW
1
REW
1FF
2REPEAT
3SHUFF
5
6 COMP
4
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
30
