spark plugs replace FORD RANGER 2011 2.G Owners Manual

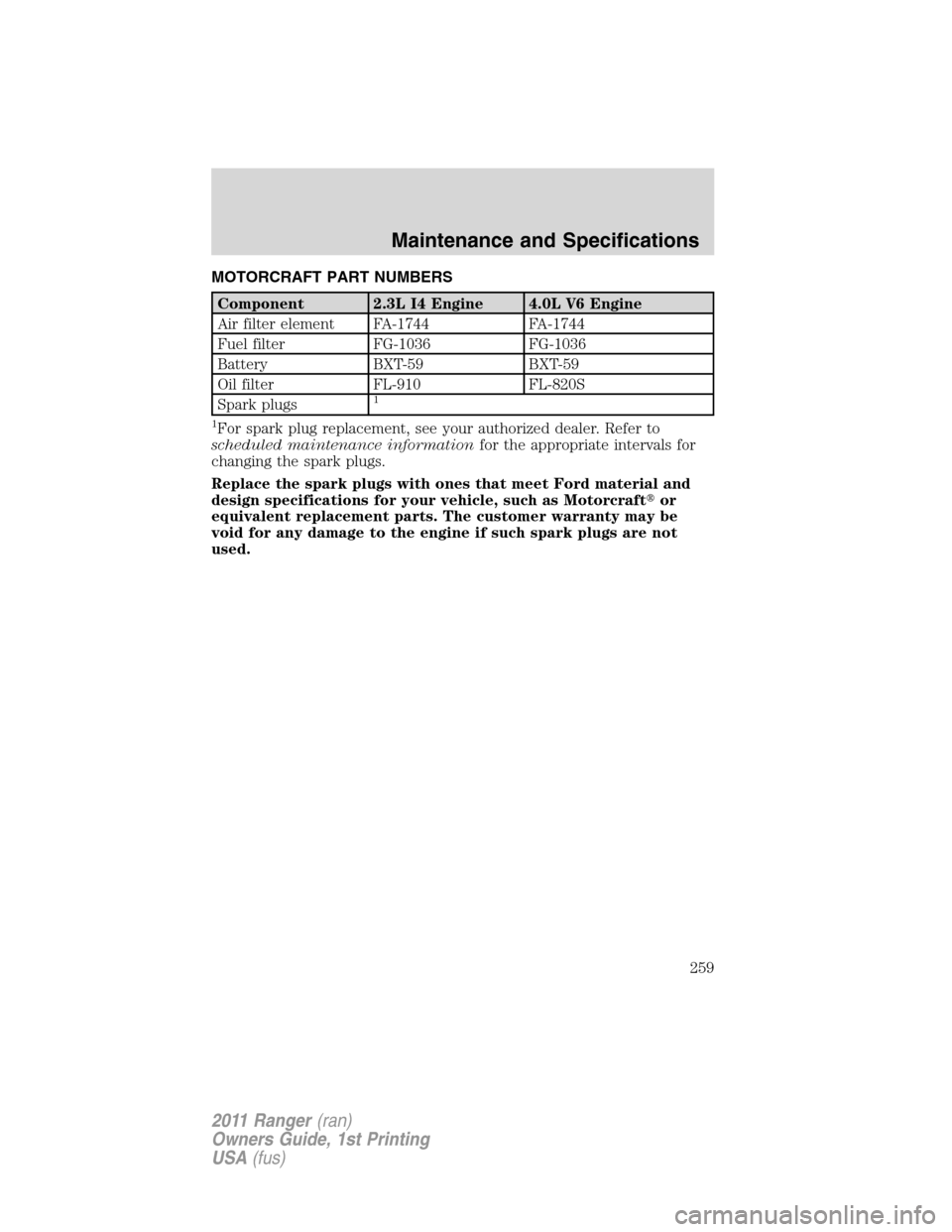

MOTORCRAFT PART NUMBERS
Component 2.3L I4 Engine 4.0L V6 Engine
Air filter element FA-1744 FA-1744
Fuel filter FG-1036 FG-1036
Battery BXT-59 BXT-59
Oil filter FL-910 FL-820S
Spark plugs
1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
259
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

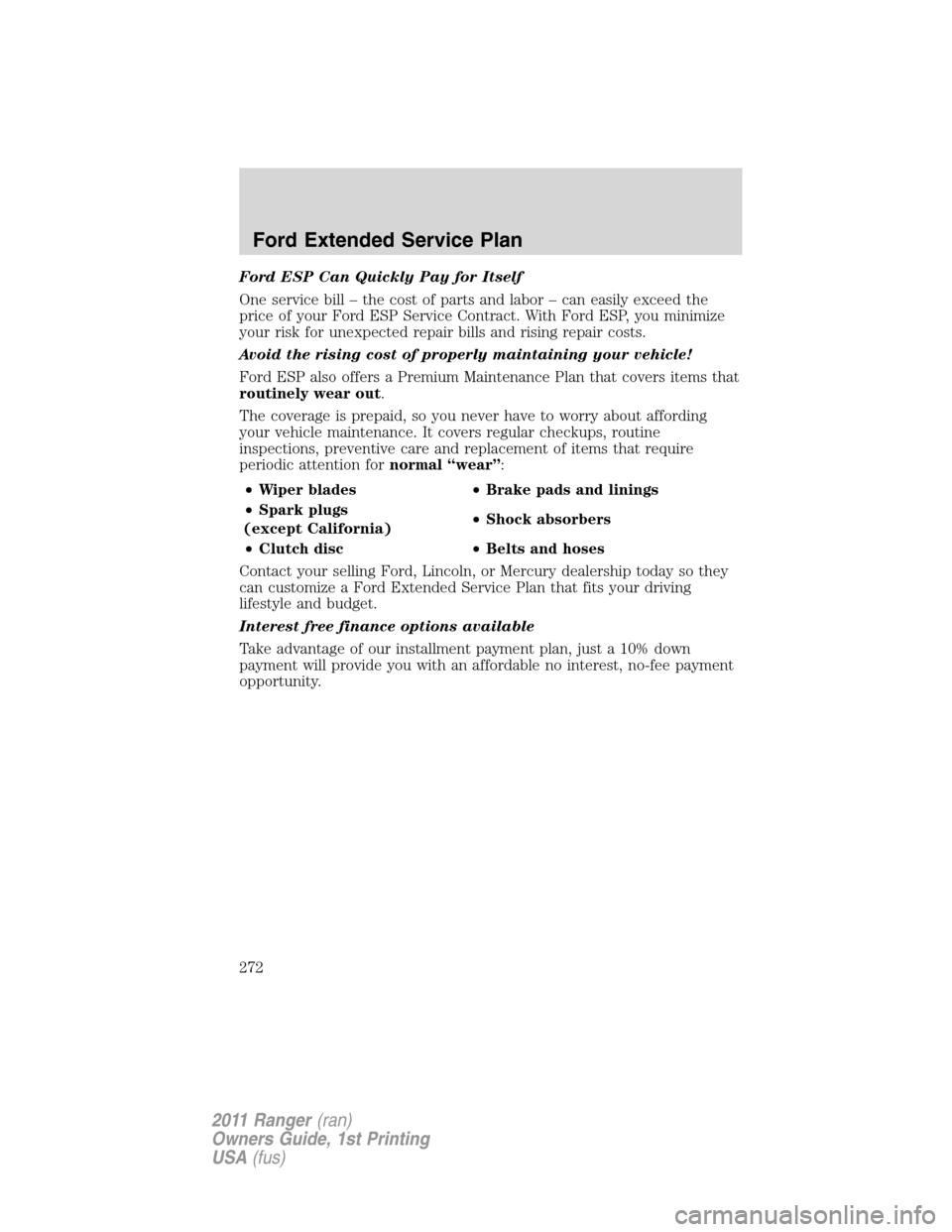

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs
(except California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford, Lincoln, or Mercury dealership today so they
can customize a Ford Extended Service Plan that fits your driving
lifestyle and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
272
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

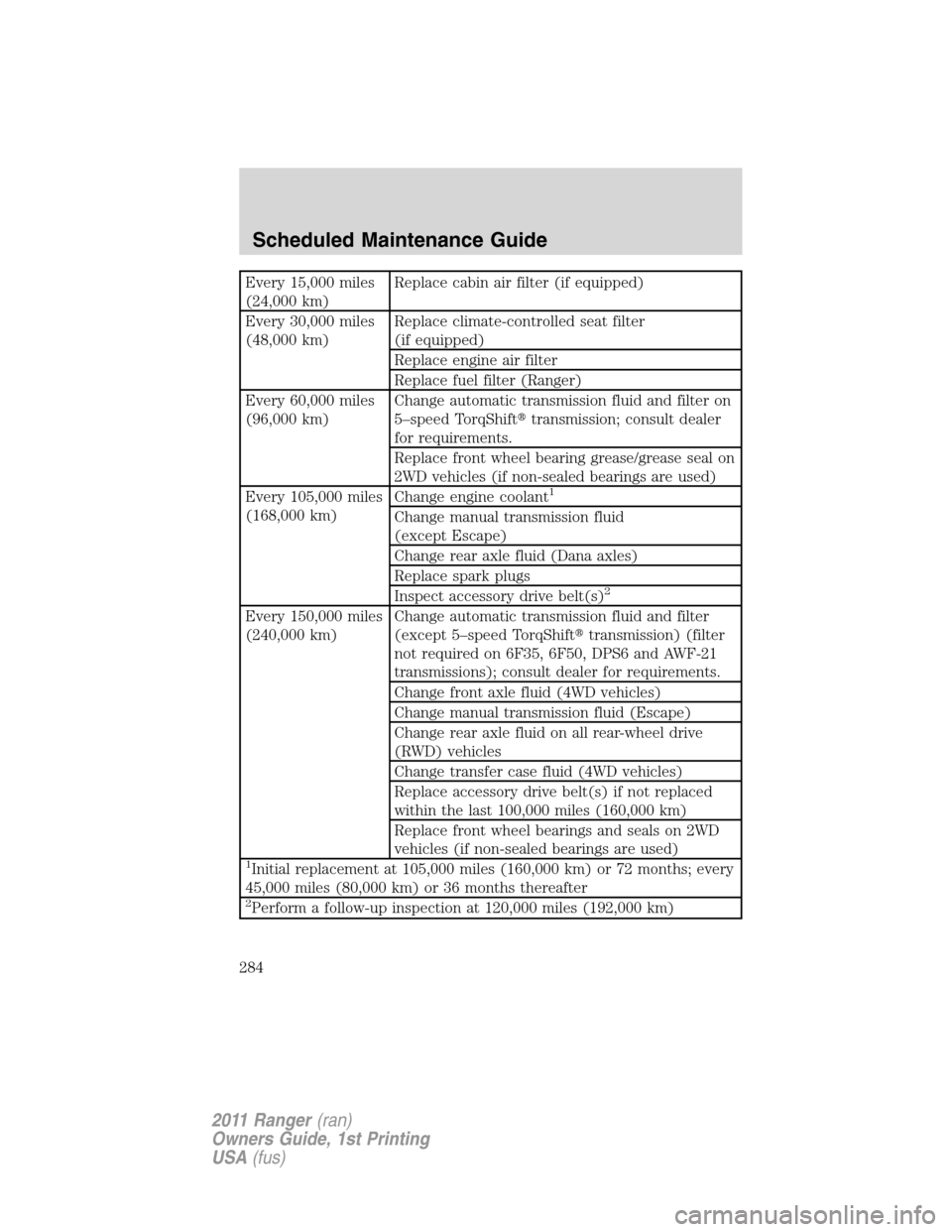

Every 15,000 miles
(24,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)Replace climate-controlled seat filter
(if equipped)
Replace engine air filter
Replace fuel filter (Ranger)
Every 60,000 miles
(96,000 km)Change automatic transmission fluid and filter on
5–speed TorqShifttransmission; consult dealer
for requirements.
Replace front wheel bearing grease/grease seal on
2WD vehicles (if non-sealed bearings are used)
Every 105,000 miles
(168,000 km)Change engine coolant
1
Change manual transmission fluid
(except Escape)
Change rear axle fluid (Dana axles)
Replace spark plugs
Inspect accessory drive belt(s)
2
Every 150,000 miles
(240,000 km)Change automatic transmission fluid and filter
(except 5–speed TorqShifttransmission) (filter
not required on 6F35, 6F50, DPS6 and AWF-21
transmissions); consult dealer for requirements.
Change front axle fluid (4WD vehicles)
Change manual transmission fluid (Escape)
Change rear axle fluid on all rear-wheel drive
(RWD) vehicles
Change transfer case fluid (4WD vehicles)
Replace accessory drive belt(s) if not replaced
within the last 100,000 miles (160,000 km)
Replace front wheel bearings and seals on 2WD
vehicles (if non-sealed bearings are used)
1Initial replacement at 105,000 miles (160,000 km) or 72 months; every
45,000 miles (80,000 km) or 36 months thereafter
2Perform a follow-up inspection at 120,000 miles (192,000 km)
Scheduled Maintenance Guide
284
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

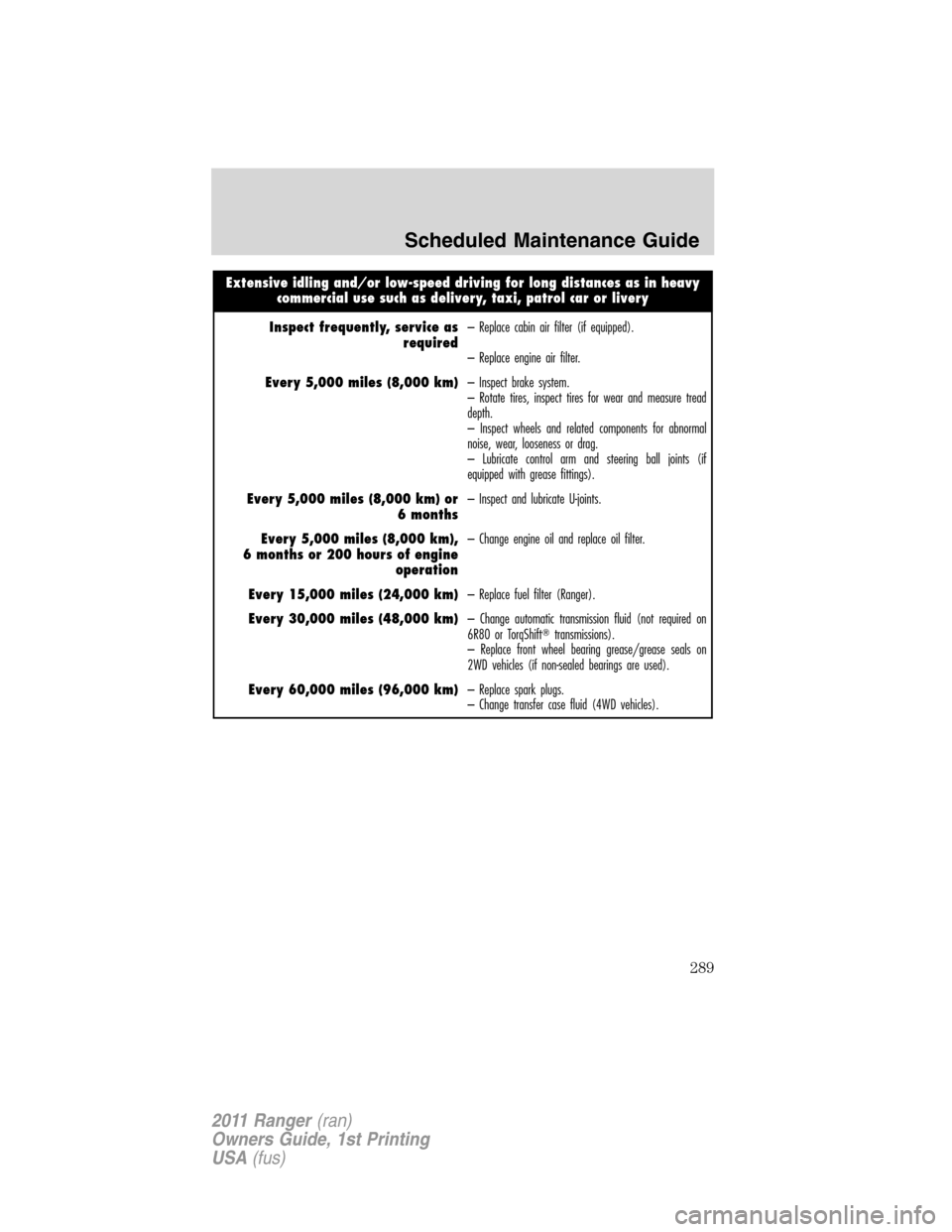

Extensive idling and/or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi, patrol car or livery
Inspect frequently, service as
required– Replace cabin air filter (if equipped).
– Replace engine air filter.
Every 5,000 miles (8,000 km)– Inspect brake system.
– Rotate tires, inspect tires for wear and measure tread
depth.
– Inspect wheels and related components for abnormal
noise, wear, looseness or drag.
– Lubricate control arm and steering ball joints (if
equipped with grease fittings).
Every 5,000 miles (8,000 km) or
6 months– Inspect and lubricate U-joints.
Every 5,000 miles (8,000 km),
6 months or 200 hours of engine
operation– Change engine oil and replace oil filter.
Every 15,000 miles (24,000 km)– Replace fuel filter (Ranger).
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (not required on
6R80 or TorqShifttransmissions).
– Replace front wheel bearing grease/grease seals on
2WD vehicles (if non-sealed bearings are used).
Every 60,000 miles (96,000 km)– Replace spark plugs.
– Change transfer case fluid (4WD vehicles).
Scheduled Maintenance Guide
289
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
