Page 9 of 470
Power Steering Fluid Check....................274
Fuel Filter........................................................274
Charging the 12V Battery..........................274
Changing the 12V Battery.........................275
Washer Fluid Check....................................277
Checking the Wiper Blades.....................277
Changing the Wiper Blades.....................277
Adjusting the Headlamps........................278
Removing a Headlamp.............................279
Changing a Bulb..........................................279
Vehicle Care
General Information..................................284
Cleaning Products......................................284
Cleaning the Exterior.................................285
Waxing............................................................286
Cleaning the Engine..................................286
Cleaning the Windows and Wiper Blades........................................................................287
Cleaning the Interior..................................287
Cleaning the Instrument Panel andInstrument Cluster Lens......................288
Cleaning Leather Seats............................288
Repairing Minor Paint Damage.............289
Cleaning the Wheels.................................289
Vehicle Storage...........................................289
Wheels and Tires
General Information..................................292
Tire Care.........................................................293
Using Snow Chains...................................308
Tire Pressure Monitoring System.........309
Changing a Road Wheel...........................313
Technical Specifications..........................324
Capacities and Specifications
Engine Specifications................................325
Motorcraft Parts..........................................326
Vehicle Identification Number...............327
Vehicle Certification Label......................328
Transmission Code Designation...........328
Capacities and Specifications...............329
Bulb Specification Chart..........................335
Connected Vehicle
What Is a Connected Vehicle..................337
Connected Vehicle Requirements........337
Connected Vehicle Limitations..............337
Connecting the Vehicle to a MobileNetwork......................................................337
Connecting the Vehicle to a Wi-FiNetwork - Vehicles With: SYNC 3......337
Connected Vehicle – Troubleshooting -Vehicles With: Modem.........................338
Connected Vehicle – Troubleshooting -Vehicles With: SYNC 3..........................339
Vehicle Wi-Fi Hotspot
Creating a Vehicle Wi-Fi Hotspot -Vehicles Without: SYNC.......................341
Creating a Vehicle Wi-Fi Hotspot -Vehicles With: SYNC 3...........................341
Changing the Vehicle Wi-Fi HotspotName or Password................................342
Audio System
General Information..................................343
Audio Unit - Vehicles Without: SYNC........................................................................343
Audio Unit - Vehicles With: SYNC........345
Audio Unit - Vehicles With: SYNC 3......347
Connecting a Bluetooth® Device -Vehicles With: AM/FM/USB/Bluetooth, Vehicles Without: SYNC........................................................................348
Radio...............................................................349
Satellite Radio.............................................349
Digital Radio..................................................351
Audio Input Jack..........................................353
USB Port........................................................354
5
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingTable of Contents
Page 174 of 470
“Tread Lightly” is an educational programdesigned to increase public awareness ofland-use regulations and responsibilitiesin our nation's wilderness areas. We jointhe U.S. Forest Service and the Bureau ofLand Management in encouraging you tohelp preserve our national forest and otherpublic and private lands by “treadinglightly.”
Driving on Hilly or Sloping Terrain
Although natural obstacles may make itnecessary to travel diagonally up or downa hill or steep incline, you should drivestraight up or straight down.
Note: Avoid turning on steep slopes or hills.A danger lies in losing traction, slippingsideways and possible vehicle roll over. Donot drive over the crest of a hill withoutseeing what conditions are on the other side.Do not drive in reverse over a hill without theaid of an observer. Whenever driving on ahill, determine beforehand the route youintend to use.
When climbing a steep slope or hill, startin a lower gear rather than downshifting toa lower gear from a higher gear once theascent has started. This reduces strain onthe engine and the possibility of stalling.
If your vehicle stalls, do not try to turnaround because this could cause vehicleroll over. It is better to reverse back to asafe location.
Apply just enough power to the wheels toclimb the hill. Too much power could causethe tires to slip, spin or lose traction,resulting in loss of vehicle control.
Descend a hill in the same gear you woulduse to climb up the hill to avoid excessivebrake application and brake overheating.Do not descend in neutral (N). Move thetransmission selector lever to a lower gear.When descending a steep hill, avoidsudden hard braking as you could losecontrol. Make sure the front wheels areturning so you can steer your vehicle.
If your vehicle has anti-lock brakes, steadilyapply the brakes. Do not pump the brakes.
Driving on Snow and Ice
WARNING: If you are driving inslippery conditions that require tirechains or cables, then it is critical thatyou drive cautiously. Keep speeds down,allow for longer stopping distances andavoid aggressive steering to reduce thechances of a loss of vehicle controlwhich can lead to serious injury or death.If the rear end of your vehicle slides whilecornering, steer in the direction of theslide until you regain control of yourvehicle.
Note:Excessive tire slippage can causetransmission damage
170
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFour-Wheel Drive (If Equipped)E143950 E143949

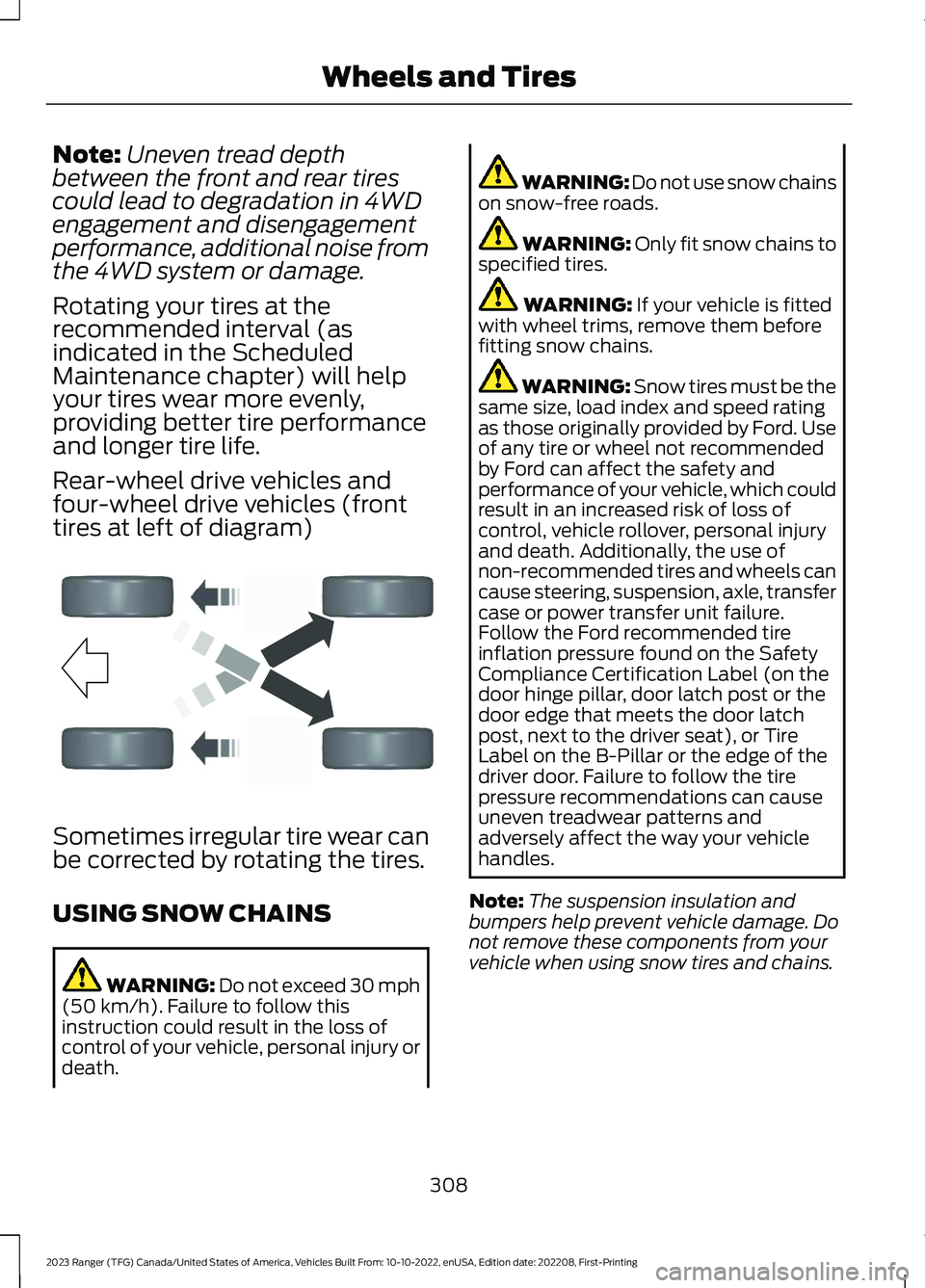

Page 312 of 470
Note:Uneven tread depthbetween the front and rear tirescould lead to degradation in 4WDengagement and disengagementperformance, additional noise fromthe 4WD system or damage.
Rotating your tires at therecommended interval (asindicated in the ScheduledMaintenance chapter) will helpyour tires wear more evenly,providing better tire performanceand longer tire life.
Rear-wheel drive vehicles andfour-wheel drive vehicles (fronttires at left of diagram)
Sometimes irregular tire wear canbe corrected by rotating the tires.
USING SNOW CHAINS
WARNING: Do not exceed 30 mph(50 km/h). Failure to follow thisinstruction could result in the loss ofcontrol of your vehicle, personal injury ordeath.
WARNING: Do not use snow chainson snow-free roads.
WARNING: Only fit snow chains tospecified tires.
WARNING: If your vehicle is fittedwith wheel trims, remove them beforefitting snow chains.
WARNING: Snow tires must be thesame size, load index and speed ratingas those originally provided by Ford. Useof any tire or wheel not recommendedby Ford can affect the safety andperformance of your vehicle, which couldresult in an increased risk of loss ofcontrol, vehicle rollover, personal injuryand death. Additionally, the use ofnon-recommended tires and wheels cancause steering, suspension, axle, transfercase or power transfer unit failure.Follow the Ford recommended tireinflation pressure found on the SafetyCompliance Certification Label (on thedoor hinge pillar, door latch post or thedoor edge that meets the door latchpost, next to the driver seat), or TireLabel on the B-Pillar or the edge of thedriver door. Failure to follow the tirepressure recommendations can causeuneven treadwear patterns andadversely affect the way your vehiclehandles.
Note:The suspension insulation andbumpers help prevent vehicle damage. Donot remove these components from yourvehicle when using snow tires and chains.
308
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingWheels and TiresE142548
Page 313 of 470
The tires on your vehicle have all-weathertreads to provide traction in rain and snow.However, in some climates, you may needto use snow tires and snow chains. If youneed to use snow chains, we recommendyou use steel wheels of the same size andspecifications, as snow chains may chipaluminum wheels.
Note:Only use snow chains on applicabletire sizes.
Only fit snow chains to the followingspecified tires:
•255/70 R16 111T.
•255/65 R17 110T.
•265/65 R17 112T.
•265/60 R18 110T.
•LT265/65 R17 109T.
•LT265/70 R17 112T.
Only use S-Class snow chains,0.6 in(15 mm) chain links.
Only use manual tensioning chains. Do notuse self-tensioning chains.
Only use snow chains in pairs on the rearaxle.
Note:The anti-lock brake system continuesto operate normally.
Follow these guidelines when using snowtires and chains:
•If possible, avoid fully loading yourvehicle.
•Install chains securely, verifying thatthe chains do not touch any wiring,brake lines, or fuel lines.
•Drive cautiously. If you hear the chainsrub or bang against your vehicle, stopand retighten the chains. If this doesnot work, remove the chains to preventdamage to your vehicle.
•Remove the tire chains when you nolonger need them. Do not use tirechains on dry roads.
If you have any questions regarding snowchains, please contact your authorizeddealer.
Vehicles with Stability Control
When stability control is on, your vehiclemay exhibit some unusual drivingcharacteristics. To reduce this, switchtraction control off. See Using TractionControl (page 178).
TIRE PRESSURE MONITORING
SYSTEM
WARNING: The tire pressuremonitoring system is not a substitute formanually checking tire pressures. Youshould periodically check tire pressuresusing a pressure gauge. Failure tocorrectly maintain tire pressures couldincrease the risk of tire failure, loss ofcontrol, vehicle rollover and personalinjury.
Note: You should only use tire sealants inroadside emergencies as they may causedamage to the tire pressure monitoringsystem sensor.
Note: If the tire pressure monitoring systemsensor becomes damaged, it may notfunction.
Each tire, including the spare (ifprovided), should be checkedmonthly when cold and inflatedto the inflation pressure recommended bythe vehicle manufacturer on the vehicleplacard or tire inflation pressure label. (Ifyour vehicle has tires of a different sizethan the size indicated on the vehicleplacard or tire inflation pressure label, youshould determine the proper tire inflationpressure for those tires).
309
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingWheels and TiresE139232

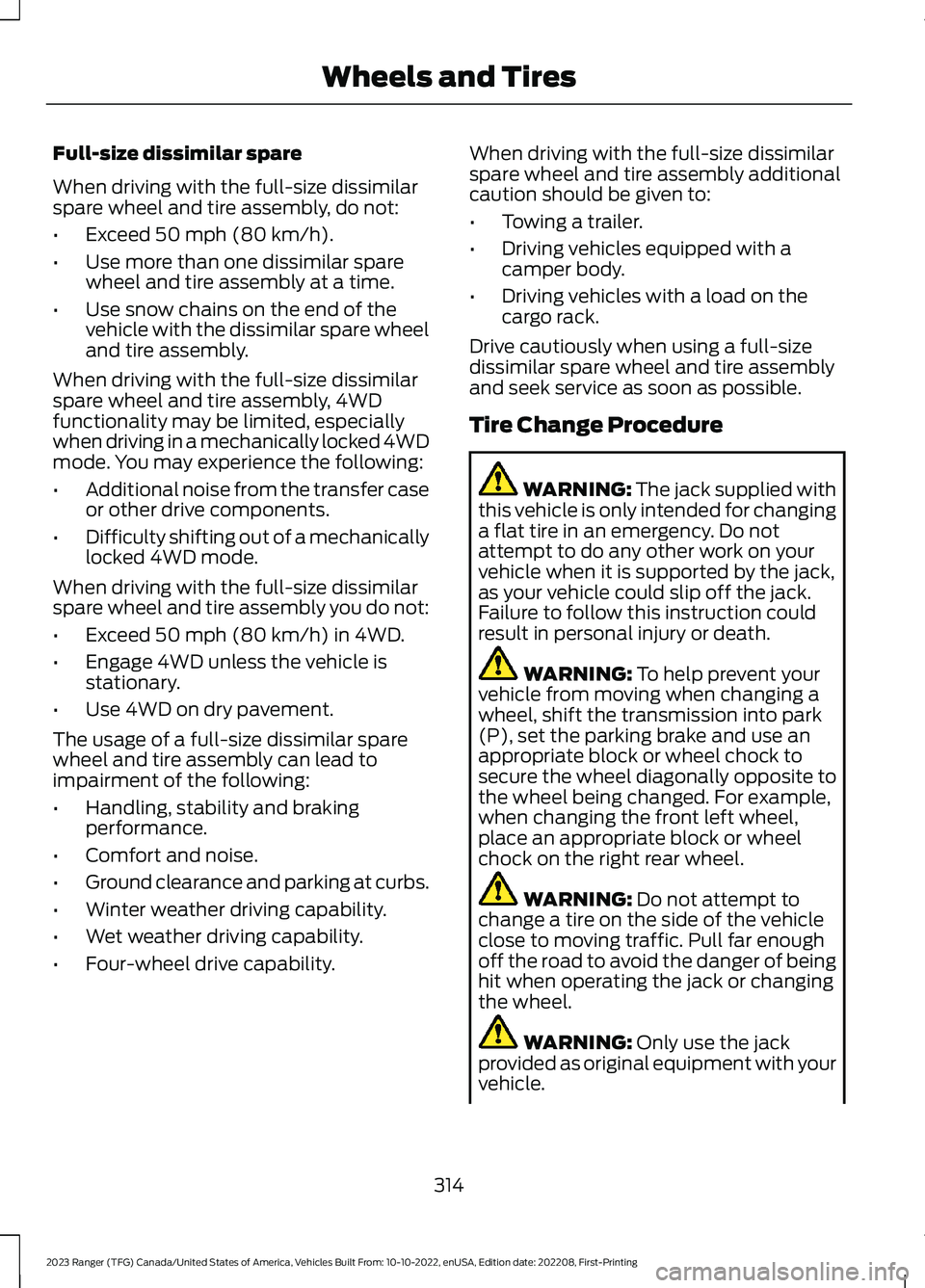

Page 318 of 470
Full-size dissimilar spare
When driving with the full-size dissimilarspare wheel and tire assembly, do not:
•Exceed 50 mph (80 km/h).
•Use more than one dissimilar sparewheel and tire assembly at a time.
•Use snow chains on the end of thevehicle with the dissimilar spare wheeland tire assembly.
When driving with the full-size dissimilarspare wheel and tire assembly, 4WDfunctionality may be limited, especiallywhen driving in a mechanically locked 4WDmode. You may experience the following:
•Additional noise from the transfer caseor other drive components.
•Difficulty shifting out of a mechanicallylocked 4WD mode.
When driving with the full-size dissimilarspare wheel and tire assembly you do not:
•Exceed 50 mph (80 km/h) in 4WD.
•Engage 4WD unless the vehicle isstationary.
•Use 4WD on dry pavement.
The usage of a full-size dissimilar sparewheel and tire assembly can lead toimpairment of the following:
•Handling, stability and brakingperformance.
•Comfort and noise.
•Ground clearance and parking at curbs.
•Winter weather driving capability.
•Wet weather driving capability.
•Four-wheel drive capability.
When driving with the full-size dissimilarspare wheel and tire assembly additionalcaution should be given to:
•Towing a trailer.
•Driving vehicles equipped with acamper body.
•Driving vehicles with a load on thecargo rack.
Drive cautiously when using a full-sizedissimilar spare wheel and tire assemblyand seek service as soon as possible.
Tire Change Procedure
WARNING: The jack supplied withthis vehicle is only intended for changinga flat tire in an emergency. Do notattempt to do any other work on yourvehicle when it is supported by the jack,as your vehicle could slip off the jack.Failure to follow this instruction couldresult in personal injury or death.
WARNING: To help prevent yourvehicle from moving when changing awheel, shift the transmission into park(P), set the parking brake and use anappropriate block or wheel chock tosecure the wheel diagonally opposite tothe wheel being changed. For example,when changing the front left wheel,place an appropriate block or wheelchock on the right rear wheel.
WARNING: Do not attempt tochange a tire on the side of the vehicleclose to moving traffic. Pull far enoughoff the road to avoid the danger of beinghit when operating the jack or changingthe wheel.
WARNING: Only use the jackprovided as original equipment with yourvehicle.
314
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingWheels and Tires
Page 469 of 470
Rear View CameraSee: Rear View Camera...................................188Recommended Towing Weights............225Refueling..........................................................153Remote Control...............................................52Remote Start..................................................123Removing a Headlamp..............................279Removing the Tailgate.................................68Repairing Minor Paint Damage..............289Replacement PartsRecommendation........................................10Replacing a Lost Key or RemoteControl............................................................58Reporting Safety Defects (CanadaOnly)..............................................................247Reporting Safety Defects (U.S.Only)..............................................................247Roadside Assistance..................................235Roadside Emergencies..............................235Running-InSee: Breaking-In..................................................231Running Out of Fuel......................................151
S
Safety Canopy™............................................46Safety Precautions......................................150Satellite Radio..............................................349Scheduled Maintenance...........................416Seatbelt Extensions......................................39Seatbelt Height Adjustment......................37Seatbelt Reminder.........................................37Seatbelts...........................................................34Principle of Operation........................................34Seats..................................................................124Security..............................................................70Service Data......................................................15Settings Data....................................................16Settings...........................................................393Setting the Trail Control Speed..............184Side Airbags.....................................................45Sitting in the Correct Position..................124Snow ChainsSee: Using Snow Chains.................................308Spare WheelSee: Changing a Road Wheel.........................313Special Notices................................................10
Special Operating Conditions ScheduledMaintenance...............................................422Speed ControlSee: Cruise Control.............................................192Stability Control............................................179Principle of Operation.......................................179Starter SwitchSee: Ignition Switch...........................................142Starting a Gasoline Engine........................143Starting and Stopping the Engine..........142General Information..........................................142Steering............................................................213Steering Wheel................................................72Storage Compartments............................140Sun Visors.........................................................88Supplementary Restraints System..........41Principle of Operation.........................................41Switching Rear Occupant Alert SystemOn and Off....................................................132Switching Trail Control On and Off.......184Symbols Glossary.............................................7SYNC™ 3.........................................................372General Information..........................................372SYNC™ 3 Troubleshooting......................395SYNC™ Applications andServices........................................................360SYNC™...........................................................356General Information.........................................356SYNC™ Troubleshooting.........................362
T
Tailgate Lock....................................................68Tailgate..............................................................68Technical SpecificationsSee: Capacities and Specifications............325Terrain Control...............................................182Principle of Operation.......................................182The Better Business Bureau (BBB) AutoLine Program (U.S. Only).......................244Tire Care..........................................................293Tire Pressure Monitoring System..........309TiresSee: Wheels and Tires.....................................292Towing a Trailer.............................................224Towing Points................................................239Towing the Vehicle on FourWheels..........................................................229
465
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingIndex
Page 470 of 470
Towing..............................................................224Traction Control.............................................178Principle of Operation.......................................178Trail Control Indicators...............................185Trail Control....................................................184Trail Control – Troubleshooting....................185Trail Control – Troubleshooting..............185Trail Control – InformationMessages..........................................................185Trailer Sway Control....................................225Transmission Code Designation............328Transmission...................................................161Transporting the Vehicle...........................238Type Approvals............................................456
U
Under Hood Overview...............................265Under Seat Storage......................................141Unique Driving Characteristics................148Universal Garage Door Opener...............134USB Port.........................................................354Using Adaptive Cruise Control................193Using a Slide-In Camper...........................223Using Cruise Control....................................192Using Four-Wheel Drive.............................165Using MyKey With Remote StartSystems..........................................................62Using Snow Chains....................................308Using Stability Control...............................180Using SYNC™ With Your MediaPlayer............................................................362Using SYNC™ With Your Phone............359Using Traction Control................................178Using Voice Recognition............................357Using Voice Recognition - VehiclesWithout: SYNC..........................................355Utilizing the Mediation/ArbitrationProgram (Canada Only)........................245
V
Vehicle Care...................................................284General Information.........................................284Vehicle Certification Label.......................328Vehicle Identification Number................327Vehicle Storage............................................289Vehicle Wi-Fi Hotspot.................................341
VentilationSee: Climate Control...........................................117VINSee: Vehicle Identification Number.............327Voice Control....................................................73
W
Warning Lamps and Indicators.................92Warranty Information................................426Washer Fluid Check.....................................277WashersSee: Cleaning the Exterior..............................285See: Wipers and Washers..................................75Waxing.............................................................286What Is 911 Assist...........................................50What Is a Connected Vehicle...................337What is the Rear Occupant AlertSystem...........................................................132What Is Trail Control...................................184Wheel NutsSee: Changing a Road Wheel.........................313Wheels and Tires.........................................292General Information.........................................292Technical Specifications.................................324Wi FiSee: Changing the Vehicle Wi-Fi HotspotName or Password.......................................342See: Connecting the Vehicle to a Wi-FiNetwork - Vehicles With: SYNC 3...........337See: Creating a Vehicle Wi-Fi Hotspot -Vehicles With: SYNC 3.................................341See: Creating a Vehicle Wi-Fi Hotspot -Vehicles Without: SYNC..............................341See: Vehicle Wi-Fi Hotspot.............................341Windows and Mirrors....................................83Windshield Washers......................................76Windshield Wipers.........................................75Wiper BladesSee: Checking the Wiper Blades...................277Wipers and Washers.....................................75
466
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingIndex
