FORD SUPER DUTY 1996 1.G Owners Manual

89
*
[IP16800(BEF )01/95]
The Interior and Exterior Lights
*
[IP16900( ALL)01/95]
Turning On the Exterior Lights
*
[IP17000( ALL)02/95]
To turn on your headlamps, parking lamps,
marker lamps, and tail lamps, use the headlamp
switch to the left of the steering column.
*
[IP17100( ALL)06/94]
1. Pull the headlamp control knob toward you
to the first position. Parking lamps, tail
lamps and marker lamps are now on.
*
[IP17200( ALL)06/94]
2. Pull the headlamp control knob toward you
to the outer position. Headlamps are now on
in addition to the above.
*
[IP17250(BEF )02/95]
3. Rotate the knob when it is in an on position
to brighten or dim the instrument panel
lamps. Rotate fully counterclockwise to
operate courtesy and cargo lamps.
*
[IP17260(B FM)10/92]
half page art:0020122-F

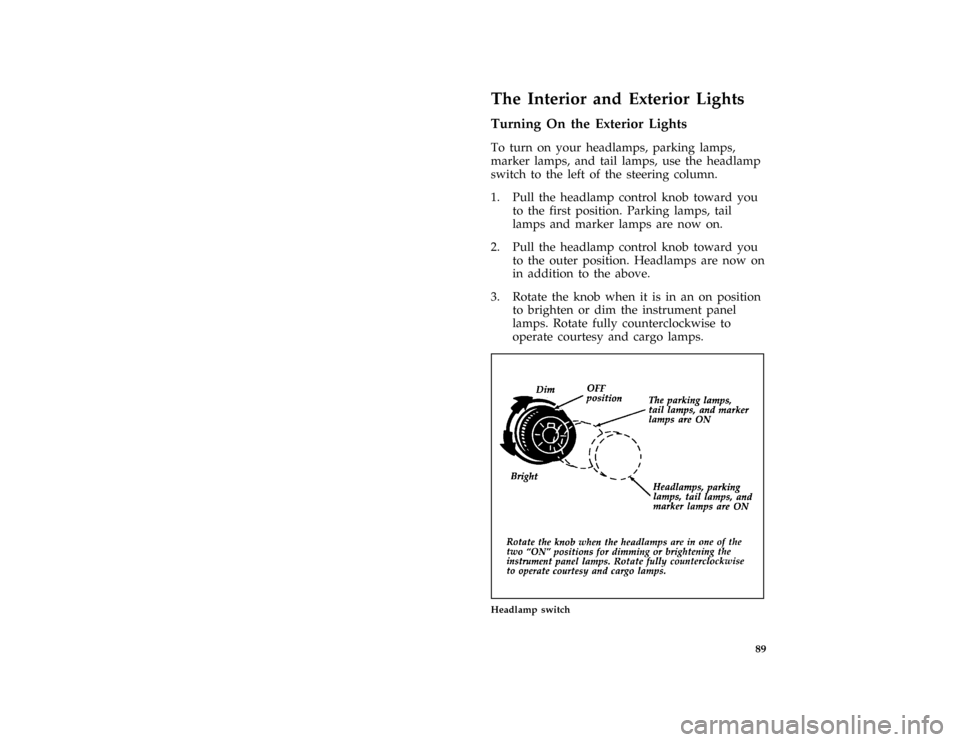

Headlamp switch
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

90 %
*
[IP17400(BEF )05/95]
Cleaning the Exterior Lamps
*
[IP17500(BEF )05/95]
Do not use dry paper towel, chemical solvents
or abrasive cleaners to clean the lamps, as these
may cause scratches or crack the lamps.
%*
[IP17715( F )04/95]
Fog Lamps (If equipped)
*
[IP17735( F )06/92]
The fog lamps rocker switch is located on the
instrument panel to the right of the steering
column.
*
[IP17755( F )06/92]
quarter page art:0020940-A

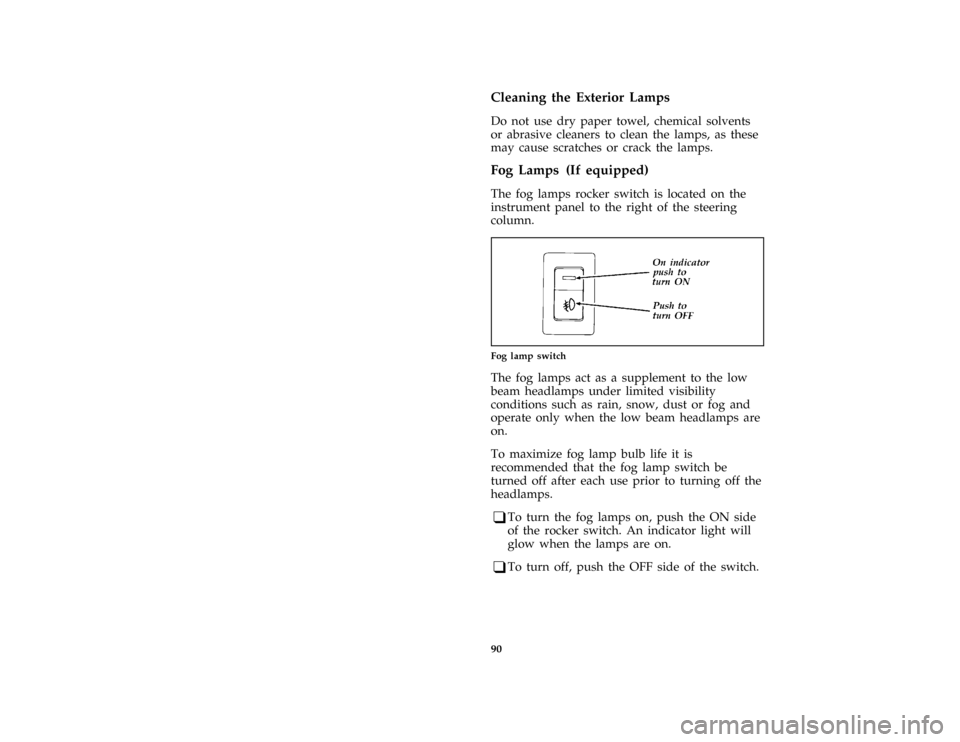

Fog lamp switch
*
[IP17760( F )02/93]
The fog lamps act as a supplement to the low
beam headlamps under limited visibility
conditions such as rain, snow, dust or fog and
operate only when the low beam headlamps are
on.
*
[IP17770( F )02/93]
To maximize fog lamp bulb life it is
recommended that the fog lamp switch be
turned off after each use prior to turning off the
headlamps.
*
[IP17780( F )06/94]
q
To turn the fog lamps on, push the ON side
of the rocker switch. An indicator light will
glow when the lamps are on.
*
[IP17790( F )06/94]
q
To turn off, push the OFF side of the switch.
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

91
*
[IP17815( ALL)01/95]
Daytime Running Light System
*
[IP17820( ALL)03/95]
(Canadian vehicles only)
*
[IP17830( ALL)03/95]
The Daytime Running Light (DRL) system turns
the high beam headlamps on, with a reduced
light output, when:
*
[IP17835( ALL)03/95]
q
The headlamp system is in the OFF position,
and
*
[IP17840( ALL)03/95]
q
The vehicle is running, and
*
[IP17850( ALL)01/95]
q
The vehicle has a fully released parking
brake.
*
[IP17875( ALL)01/95]
NOTE: You may notice that the lights flicker
when the vehicle is turned on or off.
This is a normal condition.
*
[IP17890(BEF )05/95]
RWARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
*
[IP17900(BEF )03/95]
Lighting Up the Instrument Panel and the
Interior of Your Vehicle
*
[IP18000(BEF )03/95]
The instrument panel lights can be turned on by
pulling the headlamp switch toward you to
either the first or outer position. You can
brighten or dim the instrument panel lights by
rotating the headlamp switch knob.
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

92 %
*
[IP18400(BEF )03/95]
Cargo, Courtesy and Dome Lamps
*
[IP19175(B F )05/90]
The interior/courtesy lamp is automatically
turned on when the driver or passenger door is
opened. Turning the headlamp switch fully
counterclockwise will operate the interior lamp
when the doors are closed.
*
[IP19185(B F )05/95]
quarter page art:0020695-A
Interior/Courtesy lamp
*
[IP19190(B F )05/95]
Combination Cargo and High-Mount
Brakelamp
*
[IP19200(B F )05/95]
The combination cargo/high-mount brakelamp is
located outside the vehicle, directly over the rear
window. Use the headlamp control switch to
turn on the cargo lamp and interior courtesy
lights.
[IP19250( F )05/95]
A high-mount brakelamp feed is provided in the
taillamp wiring, in the event an aftermarket cap
is installed on the vehicle obscuring the
cargo/high-mount brakelamp on the cab. The
feed is located at the left rear of the vehicle,
behind the bumper and is marked with a white
tag ªcenter high-mount stop lamp.º
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

93
*
[IP19350( F )09/93]
quarter page art:0020902-B

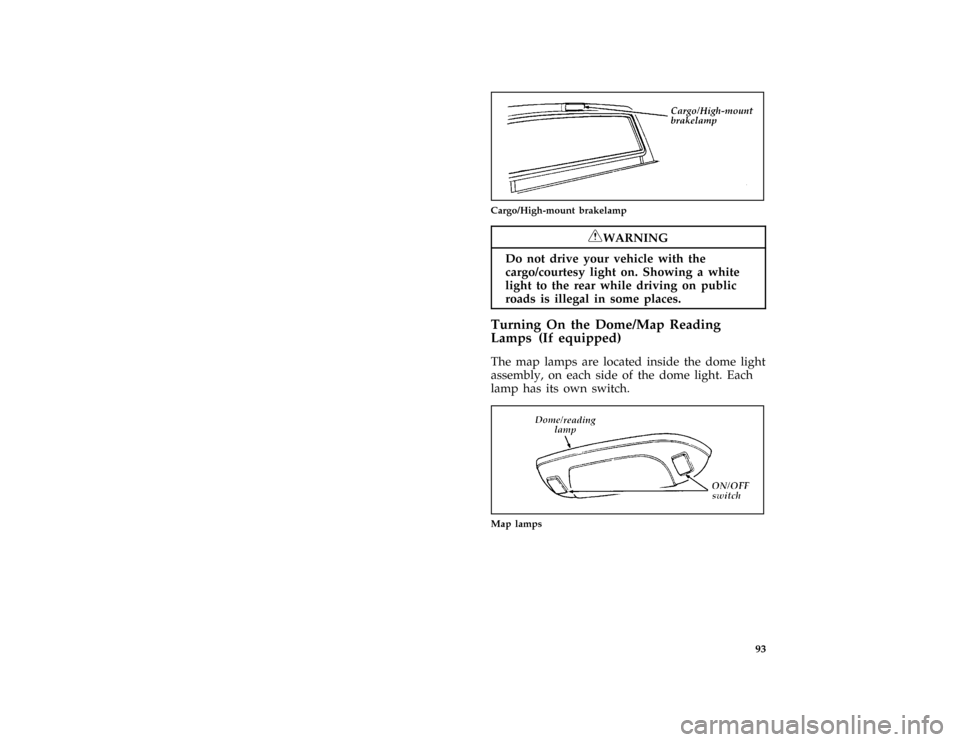

Cargo/High-mount brakelamp
*
[IP19400(B F )05/91]
RWARNING
Do not drive your vehicle with the
cargo/courtesy light on. Showing a white
light to the rear while driving on public
roads is illegal in some places.
*
[IP19705(B F )07/94]
Turning On the Dome/Map Reading
Lamps (If equipped)
*
[IP19805(B F )07/94]
The map lamps are located inside the dome light
assembly, on each side of the dome light. Each
lamp has its own switch.
*
[IP19900(B F )05/94]
quarter page art:0020127-B
Map lamps
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

94 %
*
[IP20060(BEF )04/95]
Cleaning the Instrument Panel Lens
*
[IP20070(BEF )04/95]
Clean the instrument panel lens with a soft cloth
and a glass cleaner, such as Ford Ultra-Clear
Spray Glass Cleaner, or equivalent. Do not use
paper towel or an abrasive cleaner to clean the
lens as these may cause scratches.
%*
[IP20075(BEF )04/95]
Cleaning the Interior Lamps
*
[IP20080(BEF )04/95]
Your interior dome lamps and map lamps are
plastic and should be cleaned with a mild
detergent diluted in water. Rinse them with clear
water.
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

95
Steering Column Controls
*
[SC00400( ALL)01/95]
The controls on the steering column and wheel
are designed to give you easy access to the
controls while you are driving.
*
[SC00500( ALL)01/95]
The Turn Signal Lever
*
[SC00600( ALL)01/95]
You can use the turn signal lever on the left side
of the steering column to:
*
[SC00700( ALL)03/95]
q
operate the turn signals and cornering lamps
*
[SC00800(BEF )01/95]
q
turn the high beams on/off
*
[SC00900(BEF )01/95]
q
flash the lights
*
[SC01000(BEF )01/95]
q
turn the windshield wipers and washer
on/off
*
[SC01100( ALL)01/95]
Turn Signals
*
[SC01200( ALL)03/95]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[SC01400( ALL)03/95]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

96
*
[SC01700( ALL)01/94]
one third page art:0020081-C
Turn signal lever and functions
*
[SC01800( ALL)11/89]
If the turn indicator light in the instrument
panel does not illuminate or remains on (doesn't
flash) when you signal a turn, the turn signaling
system is malfunctioning. Have this condition
corrected as soon as possible, but make sure that
you use the accepted hand signals in the
meantime.
*
[SC03200( ALL)03/95]
High Beams
*
[SC03300( ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[SC03400( ALL)03/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

97
*
[SC03800( ALL)03/95]
one third page art:0020074-B

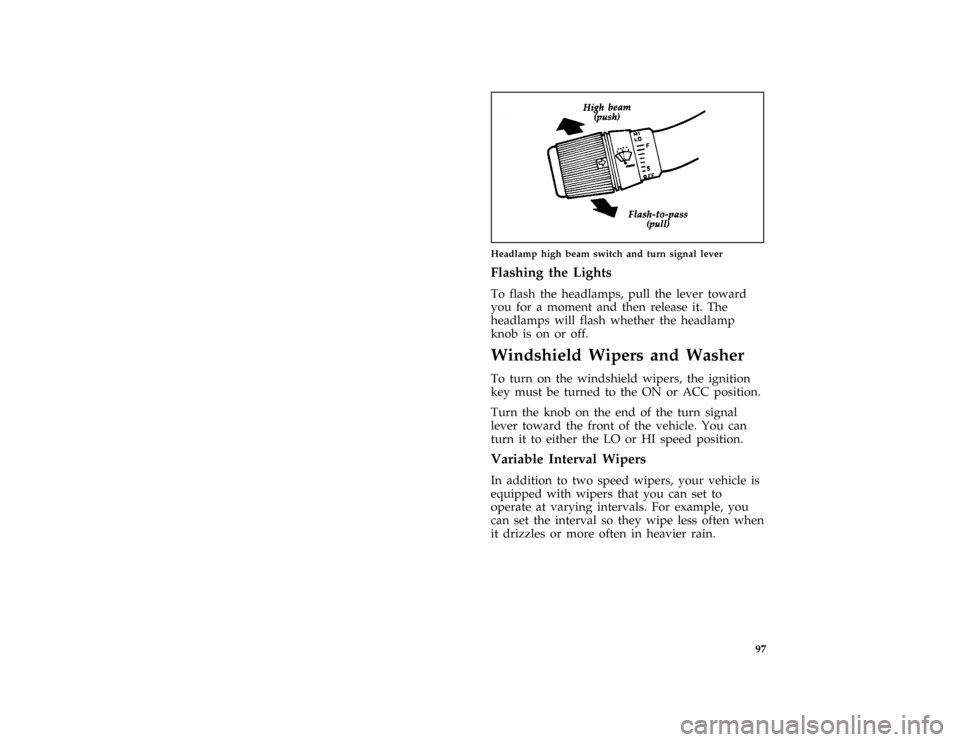

Headlamp high beam switch and turn signal lever
*
[SC04200( ALL)05/95]
Flashing the Lights
*
[SC04300( ALL)05/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is on or off.
*
[SC04400( ALL)03/95]
Windshield Wipers and Washer
*
[SC04500( ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
*
[SC04600( ALL)03/95]
Turn the knob on the end of the turn signal
lever toward the front of the vehicle. You can
turn it to either the LO or HI speed position.
*
[SC04700( ALL)03/95]
Variable Interval Wipers
*
[SC04800( ALL)03/95]
In addition to two speed wipers, your vehicle is
equipped with wipers that you can set to
operate at varying intervals. For example, you
can set the interval so they wipe less often when
it drizzles or more often in heavier rain.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

98
*
[SC04950( ALL)10/92]
one third page art:0020831-A

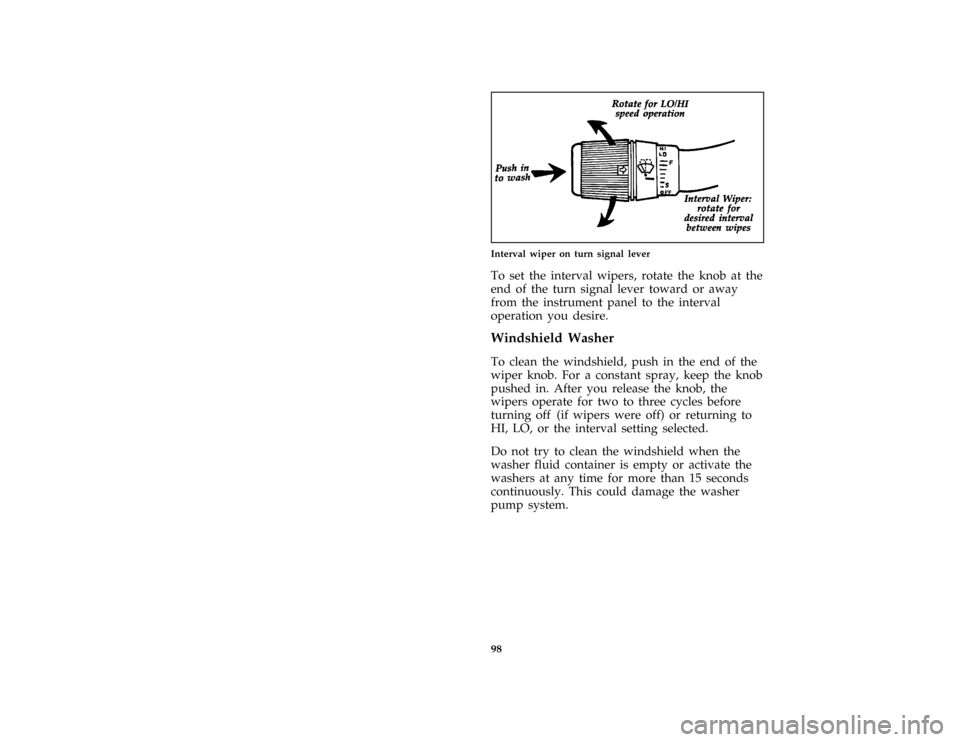

Interval wiper on turn signal lever
*
[SC05000( ALL)02/95]
To set the interval wipers, rotate the knob at the
end of the turn signal lever toward or away
from the instrument panel to the interval
operation you desire.
*
[SC05100( ALL)04/95]
Windshield Washer
*
[SC05200( ALL)03/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if wipers were off) or returning to
HI, LO, or the interval setting selected.
*
[SC05300( ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
