FORD SUPER DUTY 1996 1.G Owners Manual

270
*
[RE21000( F )12/91]

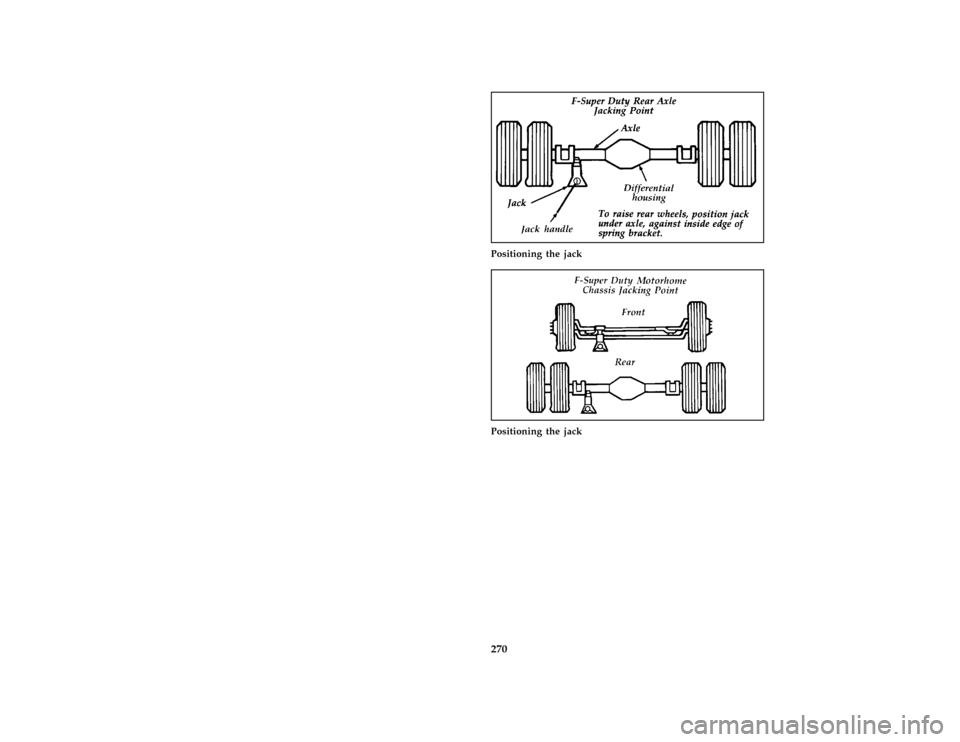

one third page art:0020308-B
Positioning the jack
*
[RE21100( FM)03/91]
one third page art:0020725-A
Positioning the jack
File:ltref.ex
Update:Thu May 9 15:24:41 1996

271
*
[RE21151(BEF )10/92]

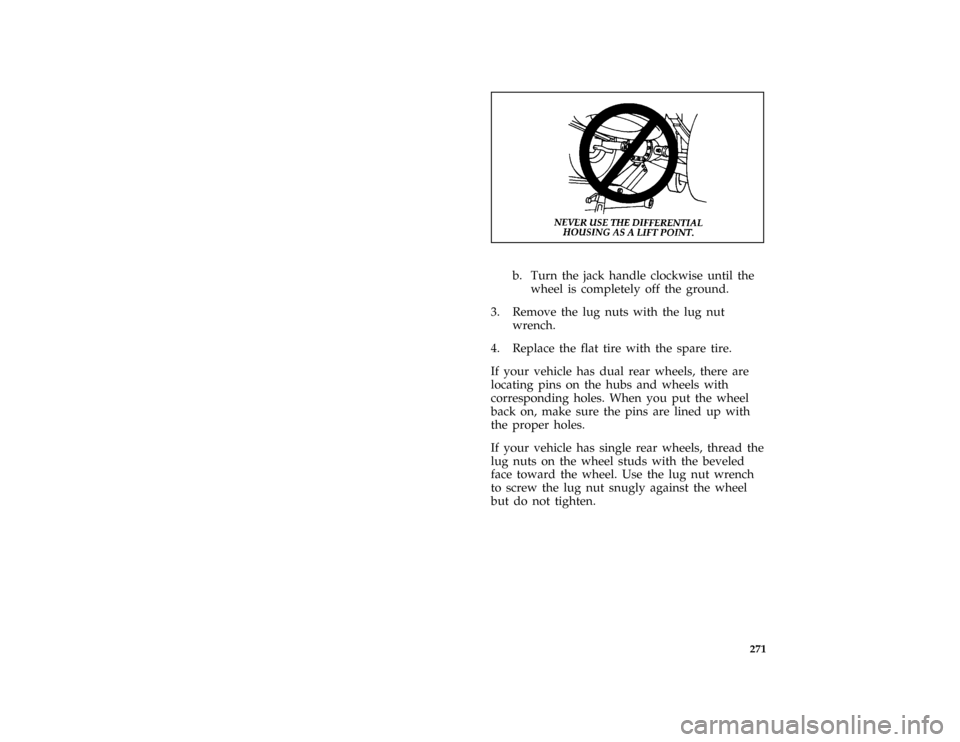

one third page art:0020939-B
*
[RE21200( F )08/91]
b. Turn the jack handle clockwise until the
wheel is completely off the ground.
*
[RE21400(BEF )01/95]
3. Remove the lug nuts with the lug nut
wrench.
*
[RE21500(BEF )01/95]
4. Replace the flat tire with the spare tire.
*
[RE21600( EFM)01/89]
If your vehicle has dual rear wheels, there are
locating pins on the hubs and wheels with
corresponding holes. When you put the wheel
back on, make sure the pins are lined up with
the proper holes.
[RE21800( EF )02/95]
If your vehicle has single rear wheels, thread the
lug nuts on the wheel studs with the beveled
face toward the wheel. Use the lug nut wrench
to screw the lug nut snugly against the wheel
but do not tighten.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

272
*
[RE21900( EF )01/89]
If your vehicle has dual rear wheels, thread the
two-element swiveling lug nut on the wheel
studs with the flange face toward the wheel. Use
the lug nut wrench to screw the lug nut snugly
against the wheel but do not tighten.
*
[RE22000( EF )05/90]
quarter page art:0020310-A
Single rear wheel nut
*
[RE22100( EFM)05/90]
quarter page art:0020311-A
Dual rear wheel nut
*
[RE22200(BEF )01/95]
5. Lower the vehicle by turning the jack handle
counterclockwise.
*
[RE22300(BEF )01/95]
6. Remove the jack and fully tighten the lug
nuts in the order shown in the following
illustration.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

273
*

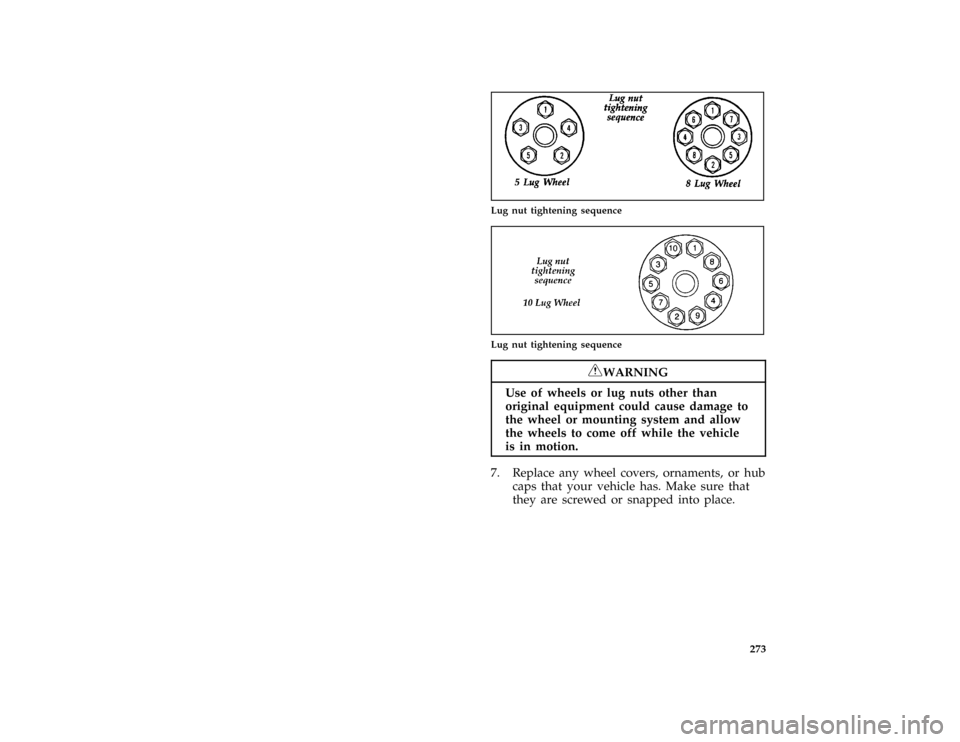

[RE22425( EF )05/90]
quarter page art:0020317-A
Lug nut tightening sequence
*
[RE22450( FM)03/94]
quarter page art:0020319-C
Lug nut tightening sequence
*
[RE23400(BEF )05/95]
RWARNING
Use of wheels or lug nuts other than
original equipment could cause damage to
the wheel or mounting system and allow
the wheels to come off while the vehicle
is in motion.
*
[RE23500(BEF )01/95]
7. Replace any wheel covers, ornaments, or hub
caps that your vehicle has. Make sure that
they are screwed or snapped into place.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

274 [RE23615(BEF )02/95]8. Put the tire, jack, and wrench away. (Make
sure jack is securely fastened so it doesn't
rattle when you drive.) The carrier is
designed to hold the temporary spare which
comes with your vehicle. The stowage of a
full size tire in the spare tire carrier may
damage the tire or the vehicle. The flat full
size tire should be stowed securely in the
vehicle until it can be repaired.
*
[RE23700(BEF )01/95]
9. Unblock the wheels.
*
[RE24100( EFM)06/93]
On vehicles equipped with dual rear wheels
retighten the wheel lug nuts to the specified
torque at 100 miles (160 km), and again at 500
miles (800 km) of new vehicle operation and at
the intervals specified in theMaintenance Schedule
and Recordbooklet.
*
[RE24200( ALL)10/89]
Also retighten to the specified torque at 500
miles (800 km) of operation after any wheel
change or any time the lug nuts are loosened.
*
[RE24301( ALL)05/95]
RWARNING
Failure to retighten wheel lug nuts at
mileages specified could allow wheels to
come off while the vehicle is in motion.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

275
*
[RE24390( F )02/89]

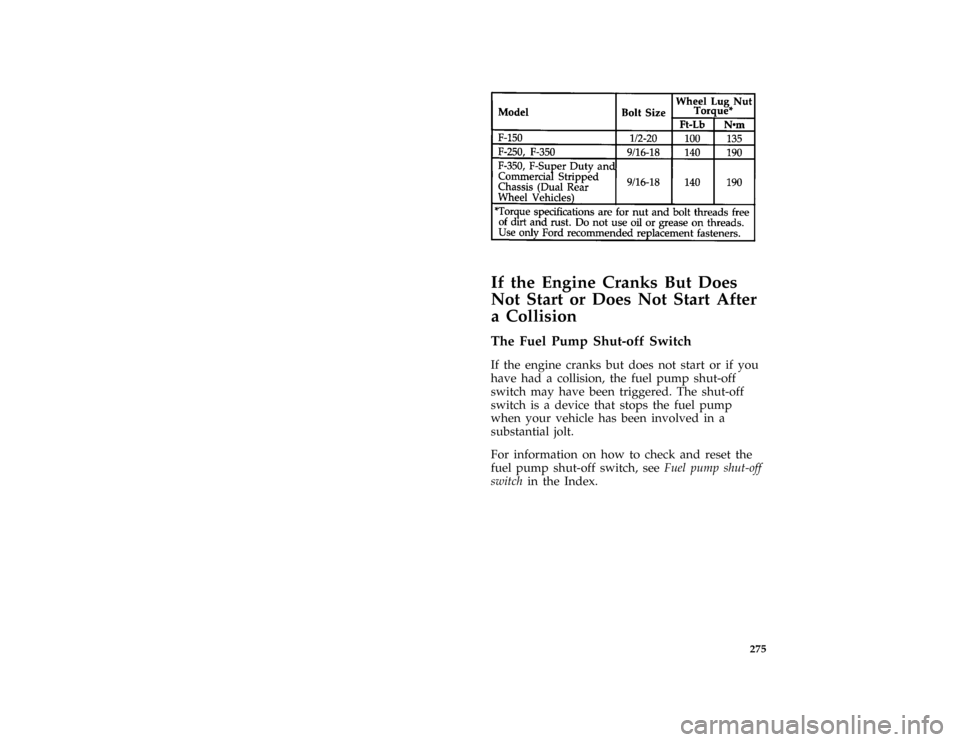

twelve pica chart:0020320-A
*
[RE24397(BEF )02/95]
If the Engine Cranks But Does
Not Start or Does Not Start After
a Collision
*
[RE24400(BEF )04/95]
The Fuel Pump Shut-off Switch
*
[RE24500(BEF )03/95]
If the engine cranks but does not start or if you
have had a collision, the fuel pump shut-off
switch may have been triggered. The shut-off
switch is a device that stops the fuel pump
when your vehicle has been involved in a
substantial jolt.
*
[RE24600(BEF )01/95]
For information on how to check and reset the
fuel pump shut-off switch, seeFuel pump shut-off
switchin the Index.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

276
*
[RE24700( ALL)05/95]
Towing Your Vehicle
[RE24885( F)]
If you need to have your vehicle towed, contact
a professional towing service or, if you are a
member, your roadside assistance center.

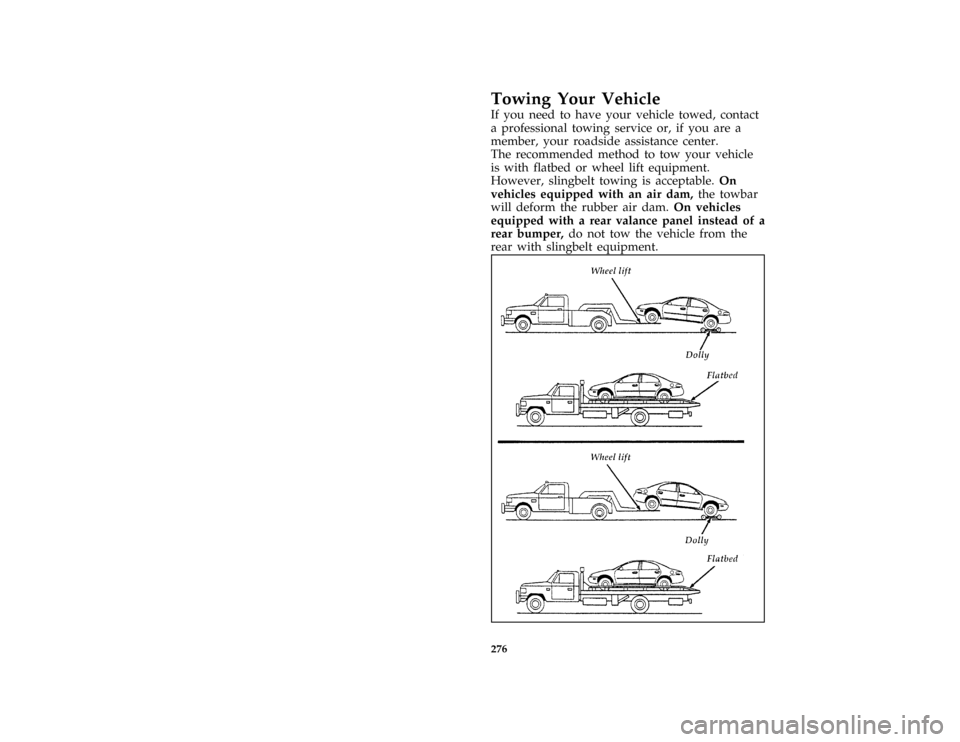

The recommended method to tow your vehicle
is with flatbed or wheel lift equipment.
However, slingbelt towing is acceptable.On
vehicles equipped with an air dam,the towbar
will deform the rubber air dam.On vehicles
equipped with a rear valance panel instead of a
rear bumper,do not tow the vehicle from the
rear with slingbelt equipment.
[RE24925(ALL )02/95]
half page art:0001463-AFile:ltref.ex
Update:Thu May 9 15:24:41 1996

277
*
[RE24950( ALL)]
When calling for a tow truck, tell the operator
what kind of vehicle you have. A towing
manual is available from Ford Motor Company
for all authorized tow truck operators. Have
your tow truck driver refer to this manual for
the proper hook-up and towing procedures for
your vehicle.
*
[RE26232( EFM)05/94]

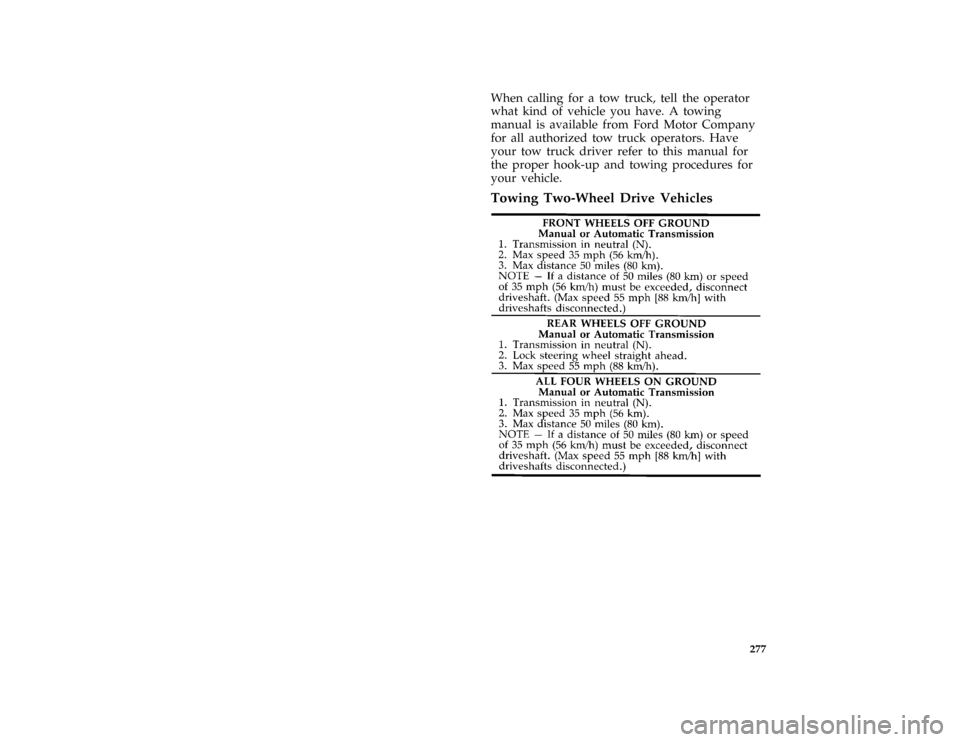

Towing Two-Wheel Drive Vehicles
*
[RE26234( EF )03/94]
twenty pica chart:0020321-D
File:ltref.ex
Update:Thu May 9 15:24:41 1996

278
*
[RE26300(B F )06/94]
Towing Four-Wheel Drive Vehicles With a
Lever-Operated Transfer Case
*
[RE26400(B F )06/94]
q
Place transmission gearshift (automatic or
manual) in N (Neutral).
*
[RE26425(B F )06/94]
q
Lock steering wheel straight ahead if vehicle
is to be towed with rear wheels off the
ground.
*
[RE26450(B F )12/89]
q
Set manual locking hubs in FREE position or
disengage the automatic locking hubs by
shifting the transfer case to 2H and drive the
vehicle in the opposite direction for a
minimum of 10 feet (3 meters) in a straight
line.
*
[RE26475(B F )06/94]
NOTE: Confirm by observation that the front
driveshaft is not rotating prior to
towing with the rear wheels off the
ground.
*
[RE26500(B F )06/94]
q
Place transfer case in N (Neutral).
*
[RE26615(B F )03/91]
NOTE: The transfer case neutral setting is
located between 4H and 4L. In order to
place the transfer case in neutral, first
place the lever in the 4H position, then
push down (toward the ground) on the
shift knob and at the same time pull
slightly rearward until the lever is
between the 4H and 4L position. With
the ignition in the on position, both
4x4 and LOW RANGE indicator lights
will be off when the transfer case is in
neutral. These lights will also be off
when the transfer case is in the 2H
position.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

279
*
[RE26650(B F )06/94]
There are no wrecker or recreational vehicle
towing restrictions on method or distance if the
above preparations are made.
*
[RE26700(B F )06/94]
q
Vehicle speed should not exceed 55 mph
(88 km/h). This applies with the front wheels
off the ground, the rear wheels off the
ground, or both front and rear wheels on the
ground.
*
[RE26800(B F )06/94]
Towing Four-Wheel Drive Vehicles With
Touch Drive Electric Shift Transfer Case
*
[RE26900(B F )06/94]
q
Place transmission gearshift (automatic or
manual) in N (Neutral).
*
[RE27000(B F )05/90]
q
Place transfer case in 2H.
*
[RE27050(B F )05/90]
NOTE: Both the4 x 4 and LOW RANGE
indicator lights in the instrument panel
will be off when the transfer case is in
2H.
*
[RE27200(B F )06/94]
q
Lock steering wheel straight ahead if vehicle
is to be towed with rear wheels off the
ground.
*
[RE27301(B F )06/94]
q
When towing your vehicle with the rear
wheels off the ground, the front axle
automatic locking hubs must first be
disengaged by shifting the transfer case to 2H
and moving the vehicle forward for a
minimum of 10 feet (3 meters) in a straight
line. Do not exceed a vehicle speed of
55 mph (88 km/h) while towing.
*
[RE27350(B F )06/94]
NOTE: Confirm by observation that the front
driveshaft is not rotating prior to
towing with the rear wheels off the
ground.
