FORD SUPER DUTY 2004 1.G Owners Manual

Dimension Body style
Regular
Cab
Chassis
Cab 4x2Regular
Cab
Chassis
Cab 4x4Crew Cab
Chassis
Cab 4x2Crew Cab
Chassis
Cab 4x4
(5) Overall
length5744 mm
(226.1 in)
a
6353 mm
(250.2 in)b
6964 mm
(274.2 in)c
7268 mm
(286.1 in)d
5744 mm
(226.1 in)a
6353 mm
(250.2 in)b
6964 mm
(274.2 in)c
7268 mm
(286.1 in)d
6644 mm
(261.6 in)e
7254 mm
(285.6 in)f
6644 mm
(261.6 in)e
7254 mm
(285.6 in)f
a
3576 mm (140.8 in) wheel baseb4186 mm (164.8 in) wheel basec4795 mm (188.8) wheel based5100 mm (200.8 in) wheel basee4475 mm (176.2 in) wheel basef5085 mm (200.2 in) wheel base
3
2
1
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
291

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
5
4
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
292

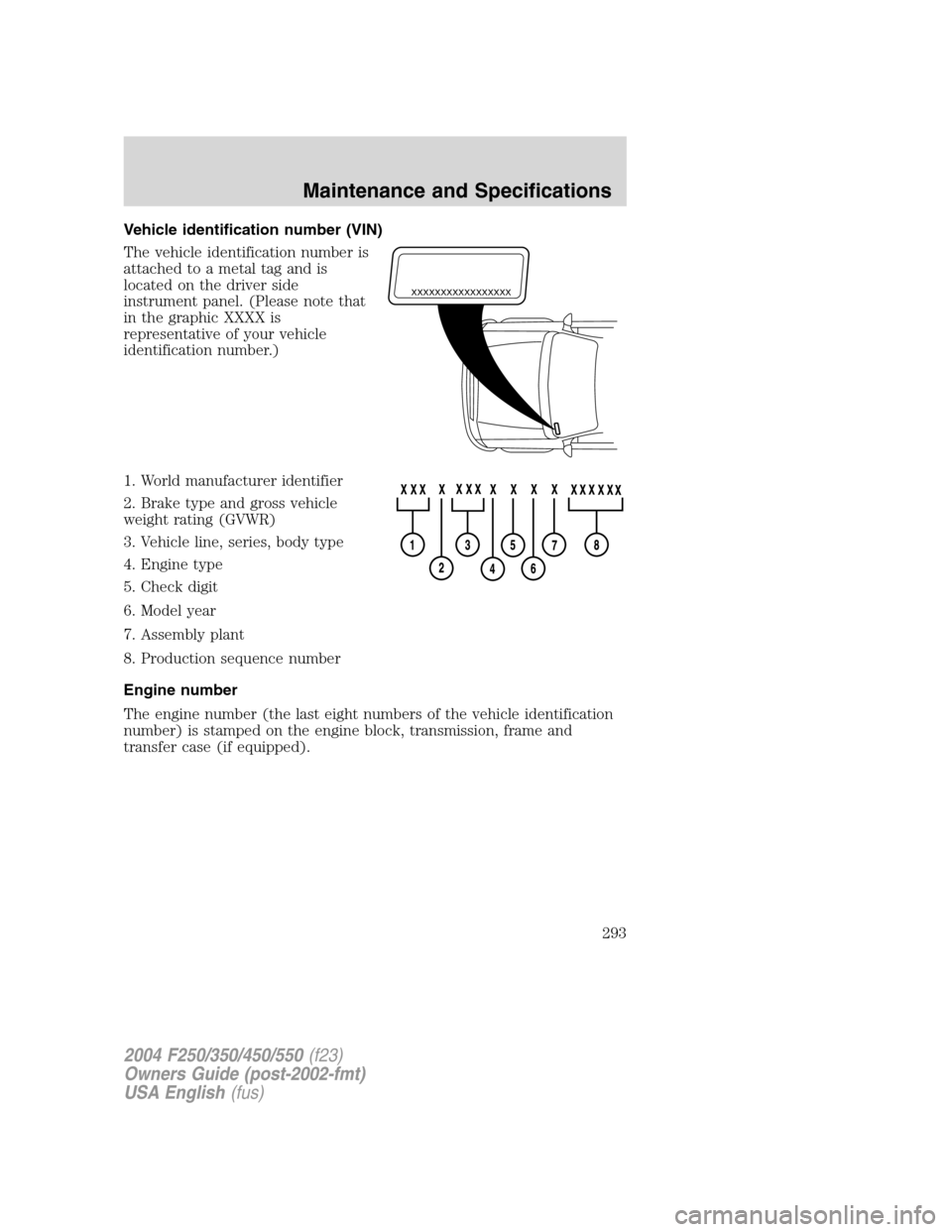

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
293

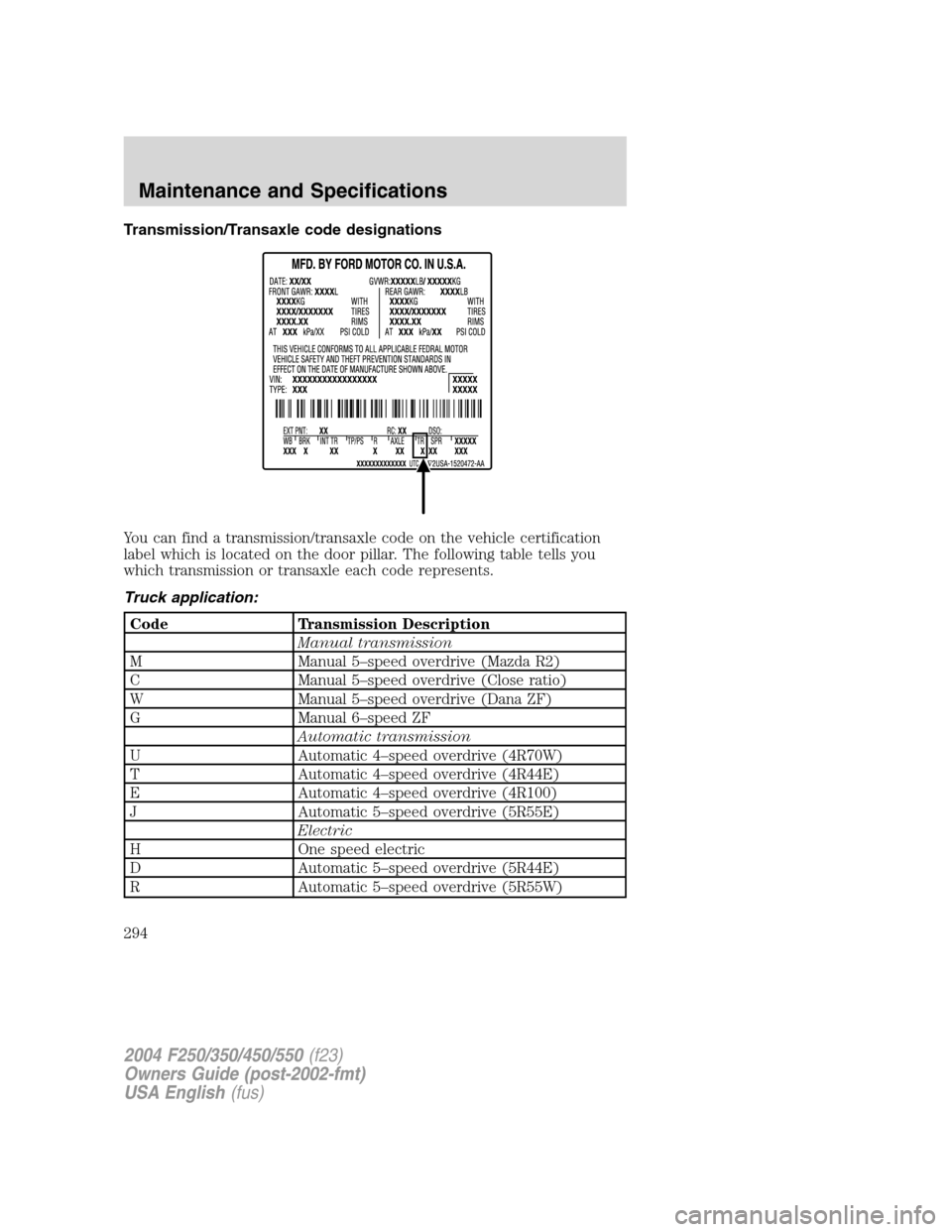

Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed overdrive (Mazda R2)
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
R Automatic 5–speed overdrive (5R55W)
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
294

Passenger car application:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic transaxle
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
295

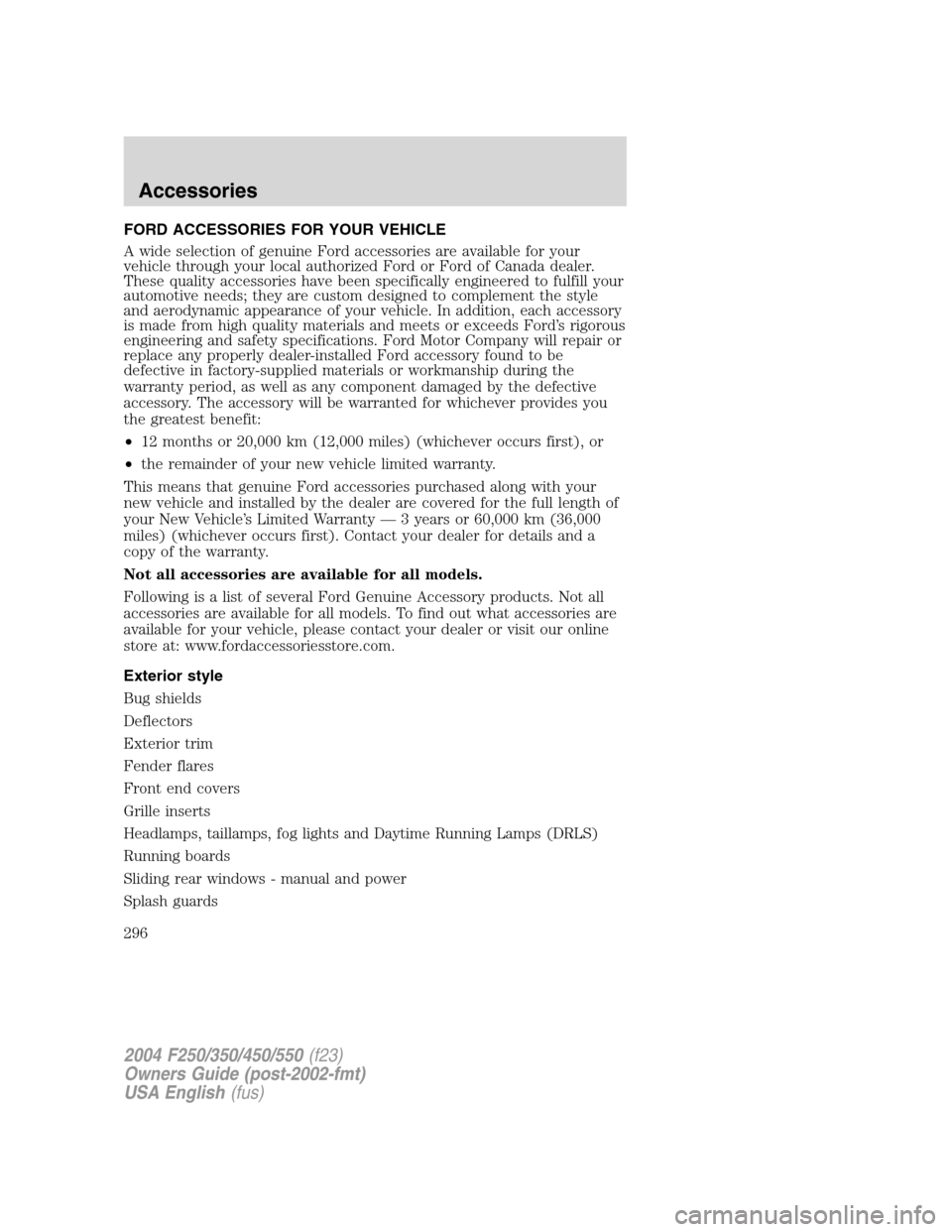

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford accessory found to be
defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Following is a list of several Ford Genuine Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim
Fender flares
Front end covers
Grille inserts
Headlamps, taillamps, fog lights and Daytime Running Lamps (DRLS)
Running boards
Sliding rear windows - manual and power
Splash guards
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
Accessories
296

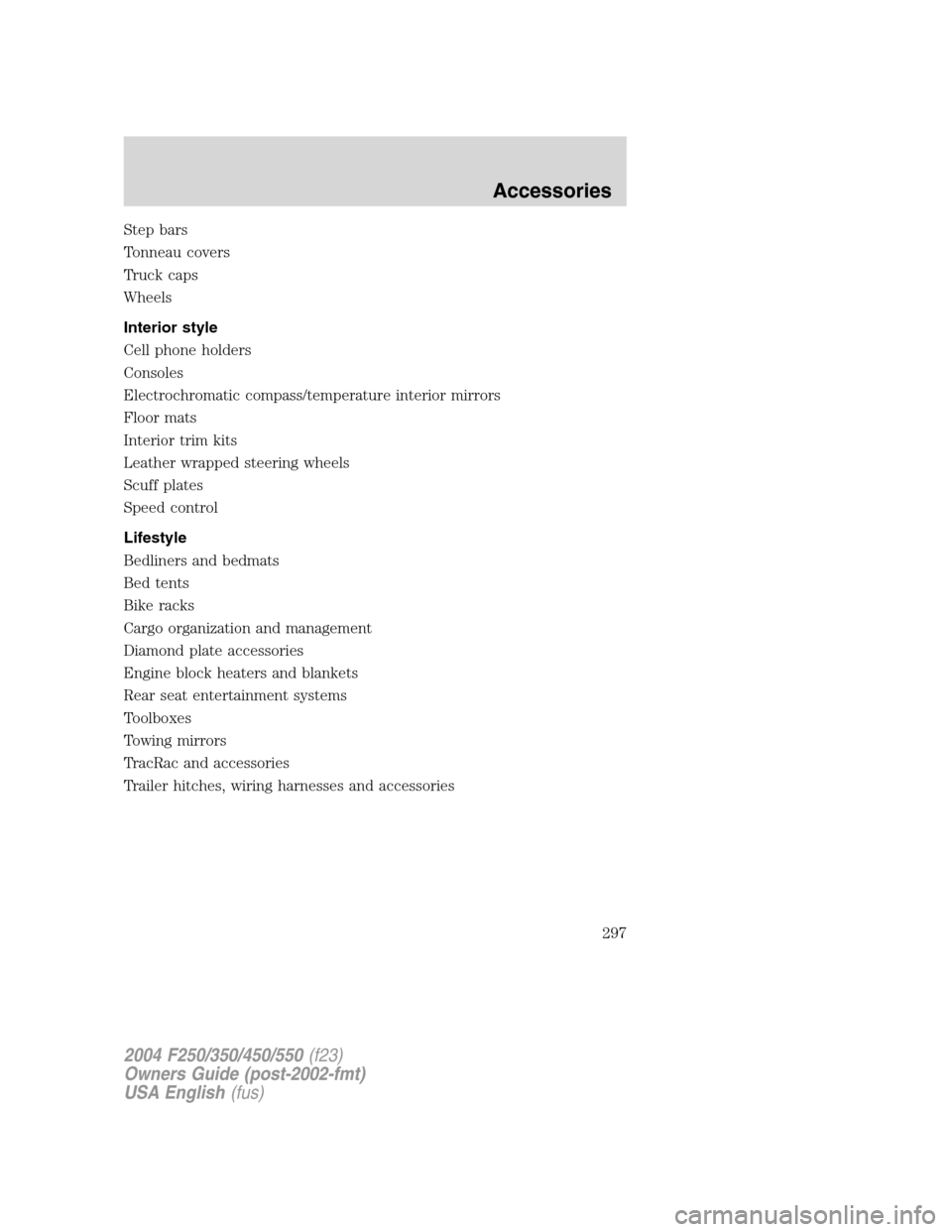

Step bars
Tonneau covers
Truck caps
Wheels
Interior style
Cell phone holders
Consoles
Electrochromatic compass/temperature interior mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bedliners and bedmats
Bed tents
Bike racks
Cargo organization and management
Diamond plate accessories
Engine block heaters and blankets
Rear seat entertainment systems
Toolboxes
Towing mirrors
TracRac and accessories
Trailer hitches, wiring harnesses and accessories
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
297

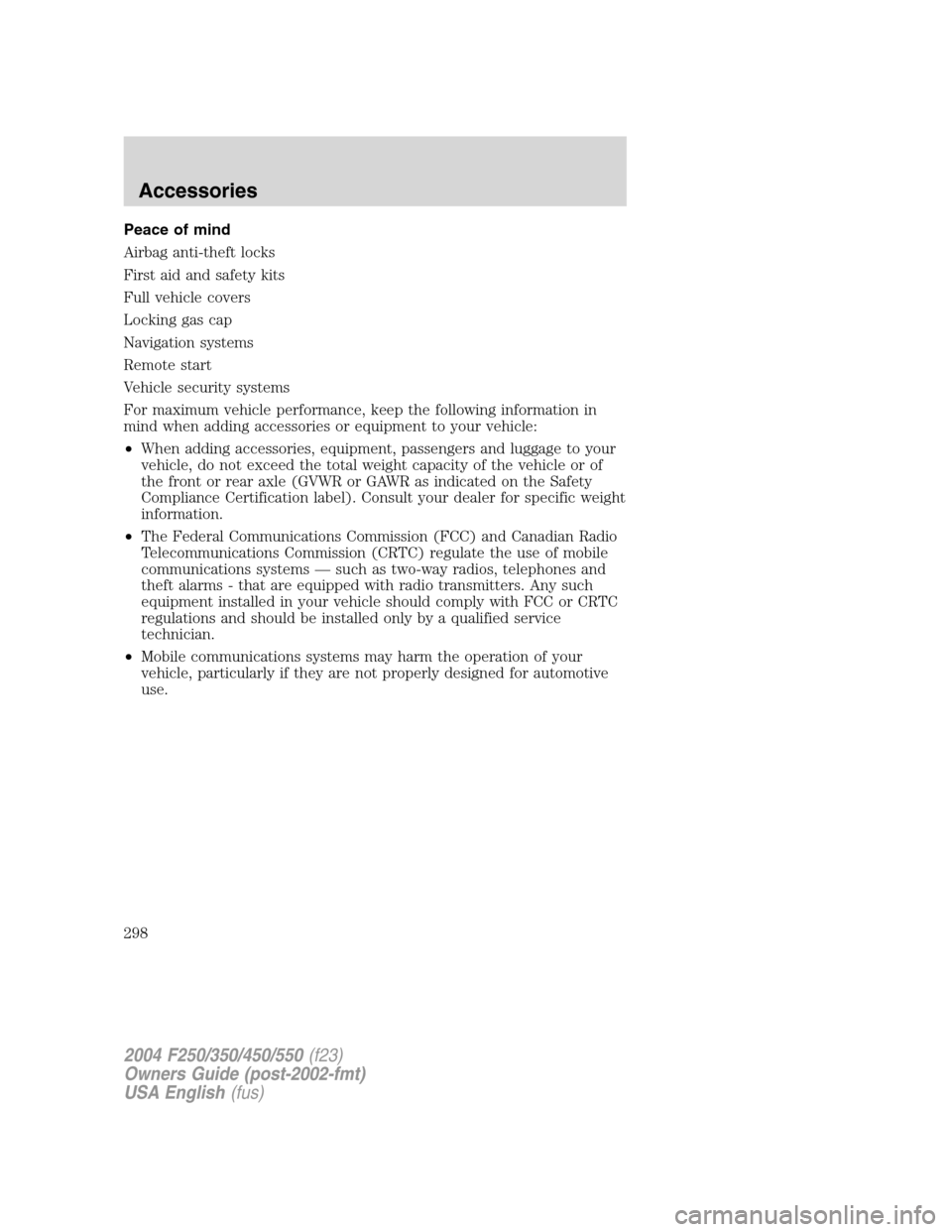

Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems—such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
298

A
Accessory delay ..........................56
Air bag supplemental restraint
system ........................................104
and child safety seats ............106
description ..............................104
disposal ....................................108
driver air bag ..........................106
indicator light .........................108
operation .................................106
passenger air bag ...................106
passenger deactivation
switch ......................................109
Air cleaner filter ...............263, 277
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................240
Anti-lock brake system
(see Brakes) ..............................129
Audio system
(see Radio) ..........19, 21, 23, 26, 30
Automatic transmission ............132
driving an automatic
overdrive .........................133, 135
fluid, adding ............................258
fluid, checking ........................258
fluid, refill capacities ..............278
fluid, specification ..................284
Auxiliary power point .................55
Axle
lubricant specifications ..281, 284
refill capacities ........................278
traction lok ..............................131
B
Battery .......................................238
acid, treating emergencies .....238jumping a disabled battery ....209
maintenance-free ....................238
replacement, specifications ...277
servicing ..................................238
BeltMinder ...................................99
Brakes ........................................128
anti-lock ...................................129
anti-lock brake system (ABS)
warning light ...........................129
fluid, checking and adding ....256
fluid, refill capacities ..............278
fluid, specifications .........281, 284
lubricant specifications ..281, 284
parking ....................................129
shift interlock ..........................132
Bulbs ............................................44
C
Calculating load ........................162
Capacities for refilling fluids ....278
Cassette tape player ...................30
CD changer .................................33
Cell phone use ............................67
Certification Label ....................292
Child safety restraints ..............113
child safety belts ....................113
Child safety seats ......................116
attaching with tether straps ..120
in front seat ............................118
in rear seat ..............................118
Cleaning your vehicle
engine compartment ..............226
instrument panel ....................228
interior .....................................228
interior trim ............................228
plastic parts ............................227
safety belts ..............................228
washing ....................................225
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
Index
299

waxing .....................................225
wheels ......................................226
wiper blades ............................227
Clock ............................................33
Clock adjust
AM/FM .................................21, 23
AM/FM Stereo ...........................23
AM/FM/CD ...........................26, 33
AM/FM/Tape/CD .......................30
Clutch
fluid ..........................................257
operation while driving ..........138
recommended shift speeds ....139
Compass, electronic ....................69
calibration .................................71
set zone adjustment .................70
Console ........................................67
overhead ....................................52
Coolant
checking and adding ..............240
refill capacities ................243, 278
specifications ..................281, 284
Cruise control
(see Speed control) ....................59
Customer Assistance ................191
Ford accessories for your
vehicle .....................................230
Ford Extended Service
Plan ..........................................218
Getting assistance outside the
U.S. and Canada .....................222
Getting roadside assistance ...191
Getting the service you
need .........................................216
Ordering additional owner’s
literature .................................223
The Dispute Settlement
Board .......................................218Utilizing the
Mediation/Arbitration
Program ...................................221
D
Daytime running lamps
(see Lamps) ................................41
Dipstick
automatic transmission
fluid ..........................................258
engine oil .................................235
Doors
lubricant specifications ..........281
Driveline universal joint and
slip yoke ....................................262
Driving under special
conditions ..................138, 151, 154
sand .........................................153
snow and ice ...........................155
through water .................153, 158
E
Emergencies, roadside
jump-starting ..........................209
Emergency Flashers .................192
Emission control system ..........253
Engine ........................................284
cleaning ...................................226
coolant .....................................240
diesel ...........................................7
fail-safe coolant ......................244
idle speed control ...................238
lubrication
specifications ..................281, 284
refill capacities ........................278
service points ..........................234
starting after a collision .........192
Engine block heater .................128
Engine oil ..................................235
checking and adding ..............235
dipstick ....................................235
filter, specifications ........237, 277
2004 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
300
