Page 281 of 312

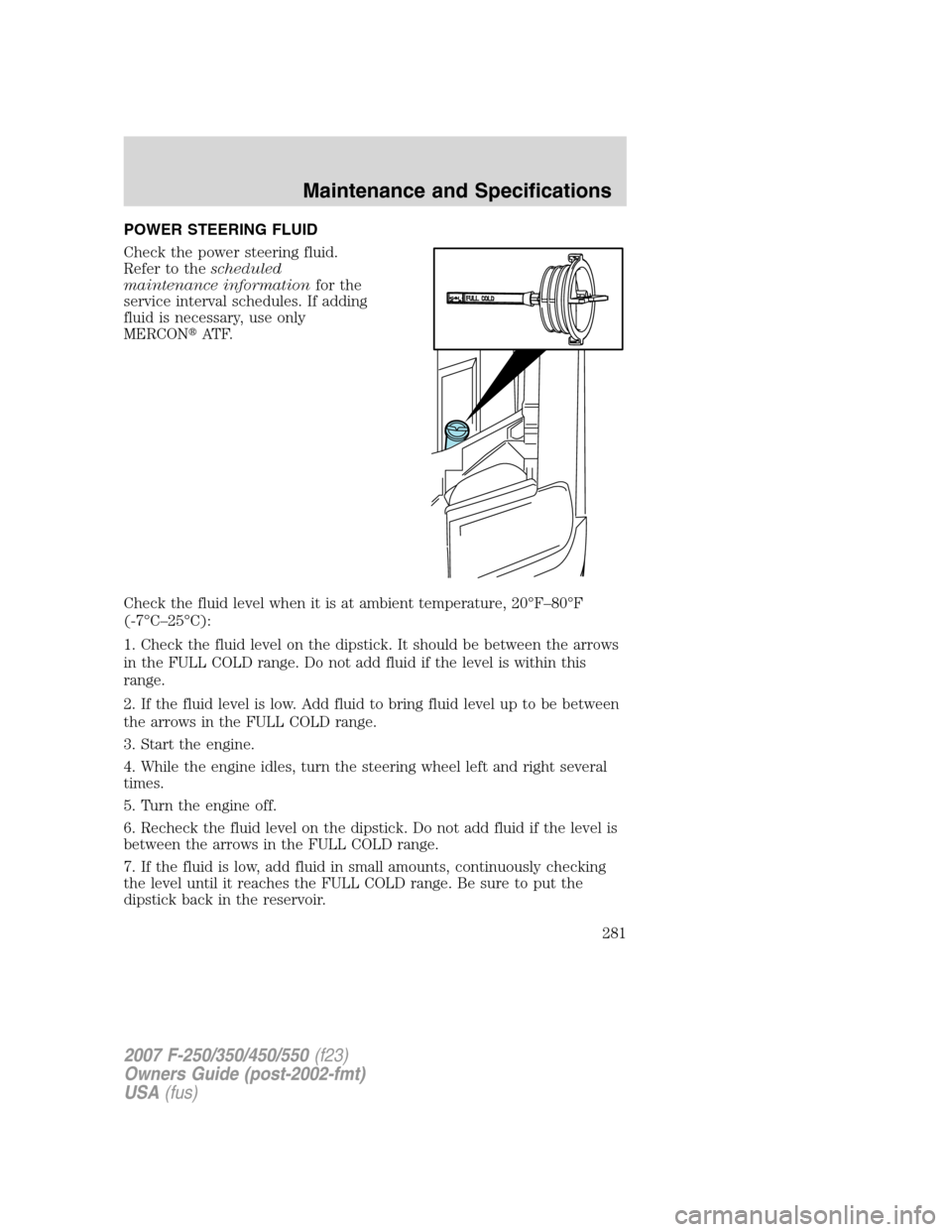

FORD SUPER DUTY 2007 1.G Owners Manual POWER STEERING FLUID
Check the power steering fluid.
Refer to thescheduled
maintenance informationfor the
service interval schedules. If adding
fluid is necessary, use only
MERCONAT F.
Check the flui

Page 282 of 312

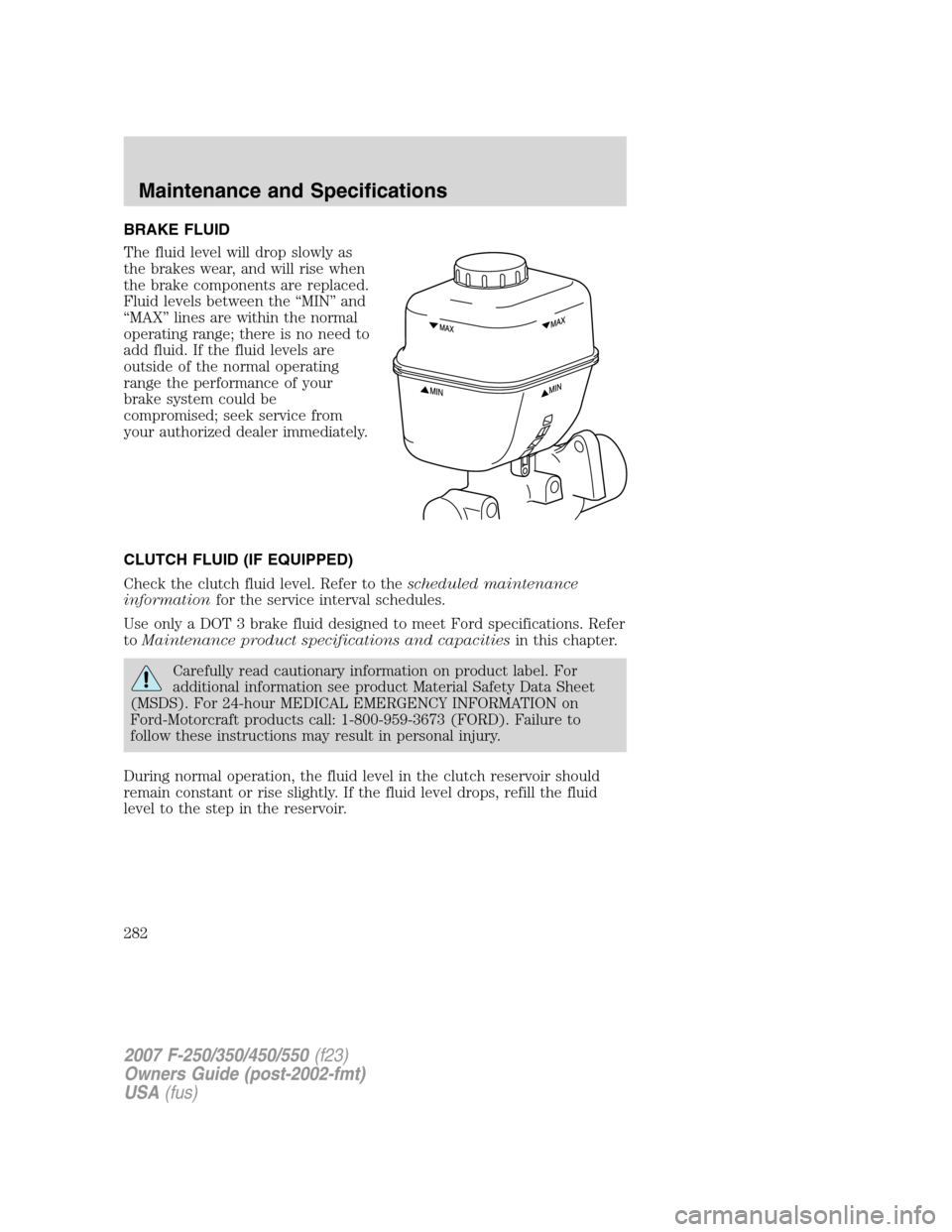

FORD SUPER DUTY 2007 1.G Owners Manual BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
oper

Page 283 of 312

FORD SUPER DUTY 2007 1.G Owners Manual 1. Clean the reservoir cap before
removal to prevent dirt and water
from entering the reservoir.
2. Remove cap and rubber
diaphragm from reservoir.
3. Add fluid until the level reaches
the step in the

Page 284 of 312

FORD SUPER DUTY 2007 1.G Owners Manual Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the ambient temperature is
above 50°F (10°C).
Correct fluid level
The transmission fluid should be ch

Page 285 of 312

FORD SUPER DUTY 2007 1.G Owners Manual If an overfill occurs, excess fluid
should be removed by a qualified
technician.
An overfill condition of
transmission fluid may cause shift and/or engagement concerns
and/or possible damage.
Do not u

Page 286 of 312

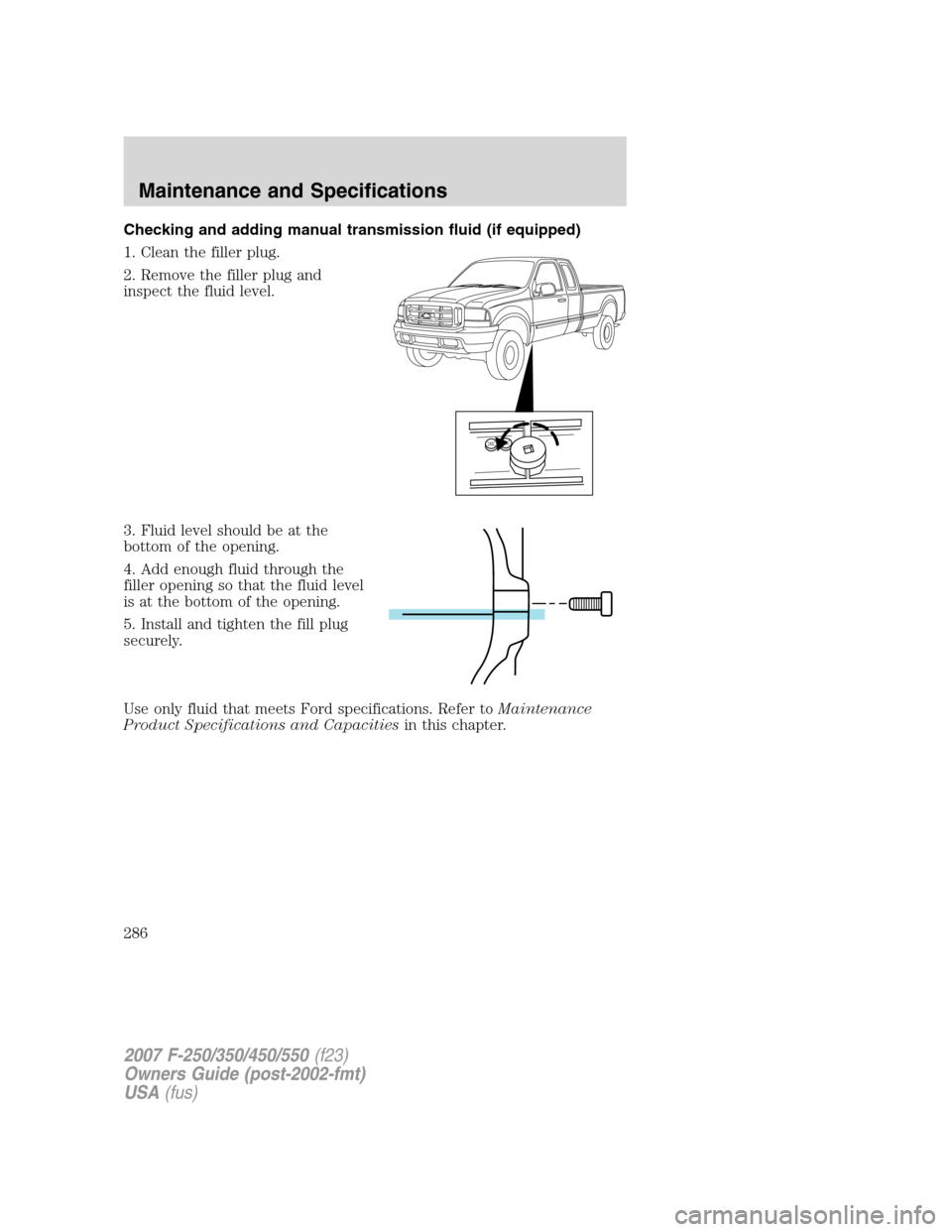

FORD SUPER DUTY 2007 1.G Owners Manual Checking and adding manual transmission fluid (if equipped)
1. Clean the filler plug.
2. Remove the filler plug and
inspect the fluid level.
3. Fluid level should be at the
bottom of the opening.
4. A

Page 287 of 312

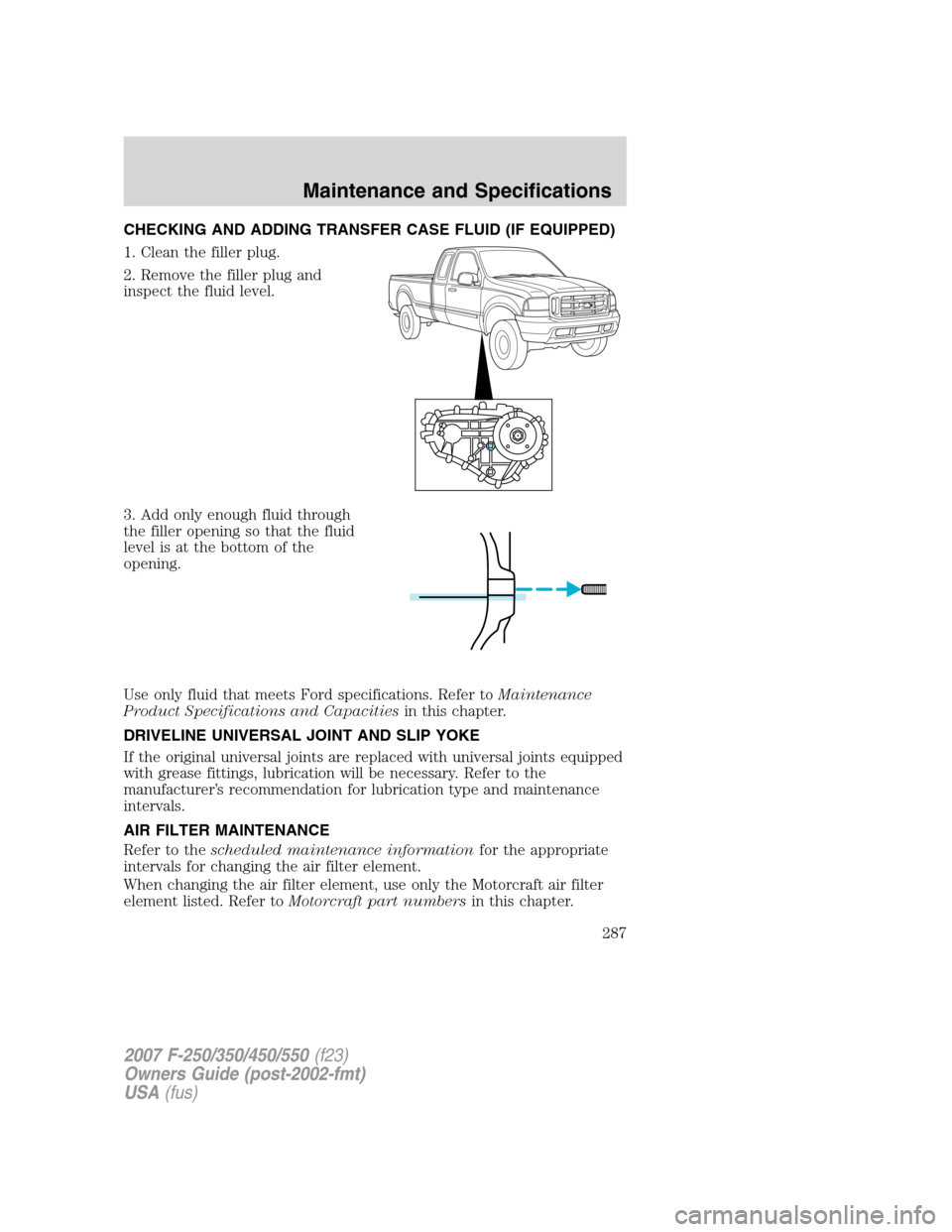

FORD SUPER DUTY 2007 1.G Owners Manual CHECKING AND ADDING TRANSFER CASE FLUID (IF EQUIPPED)
1. Clean the filler plug.
2. Remove the filler plug and
inspect the fluid level.
3. Add only enough fluid through
the filler opening so that the f

Page 288 of 312

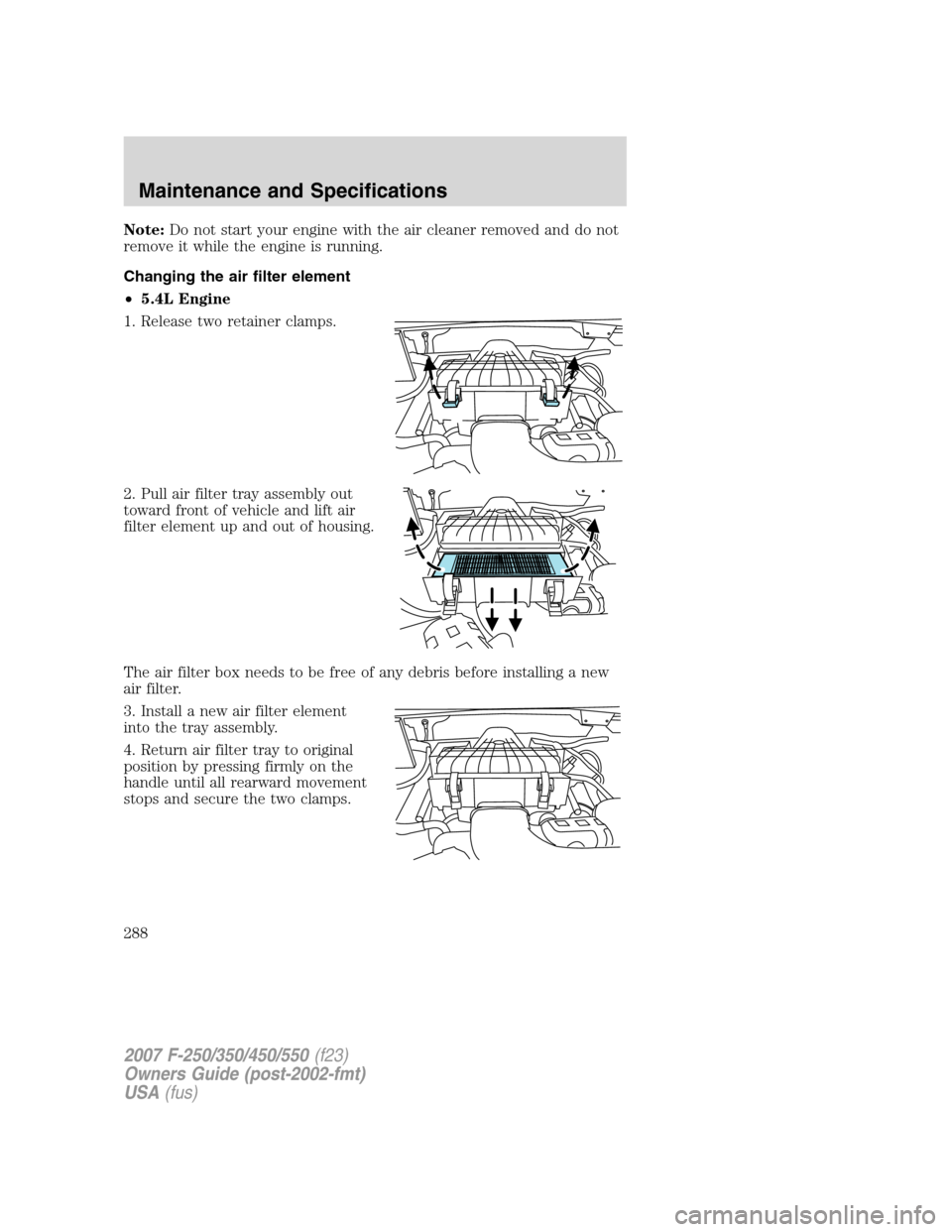

FORD SUPER DUTY 2007 1.G Owners Manual Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
Changing the air filter element
•5.4L Engine
1. Release two retainer clamps.
2. Pull air

Page 289 of 312

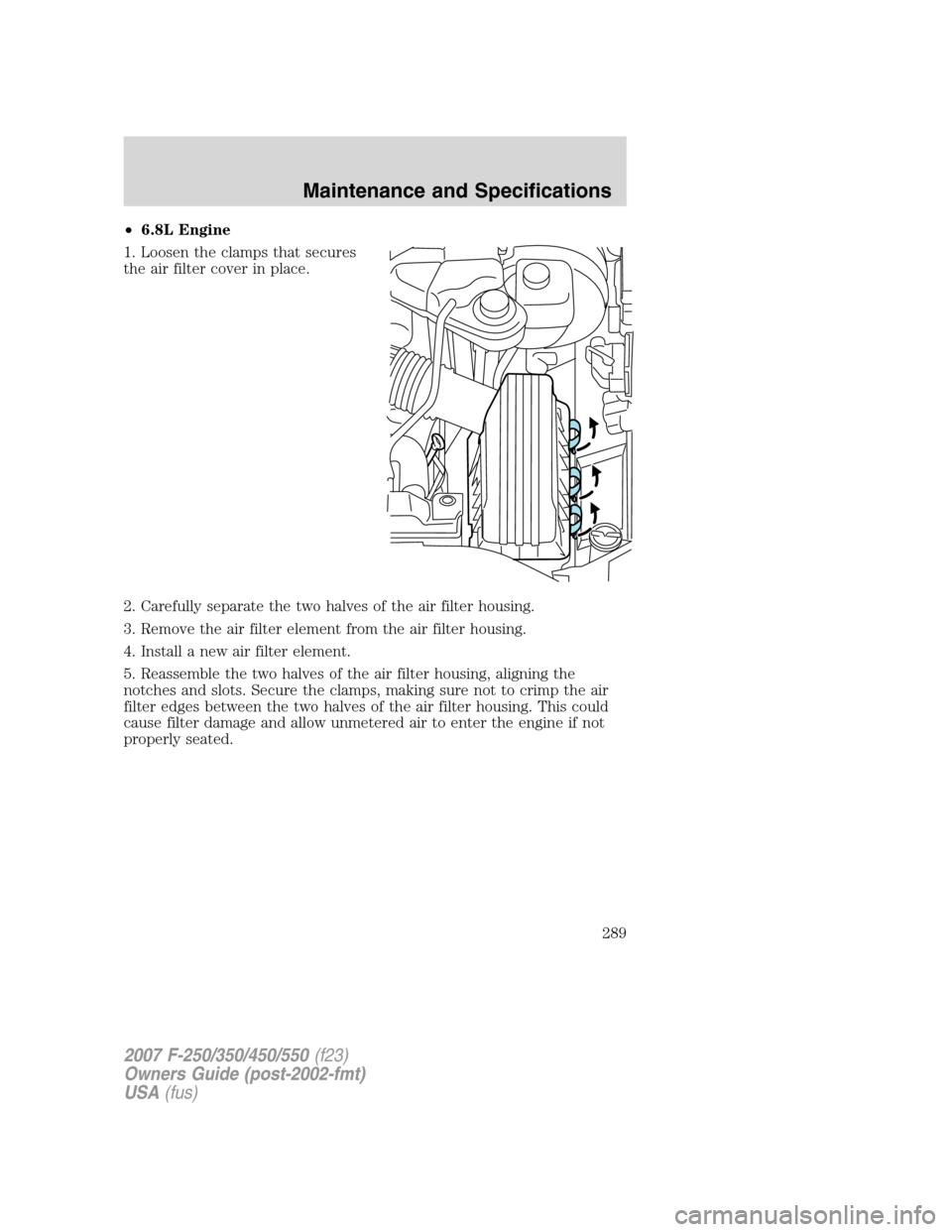

FORD SUPER DUTY 2007 1.G Owners Manual •6.8L Engine
1. Loosen the clamps that secures
the air filter cover in place.
2. Carefully separate the two halves of the air filter housing.
3. Remove the air filter element from the air filter hou

Page 290 of 312

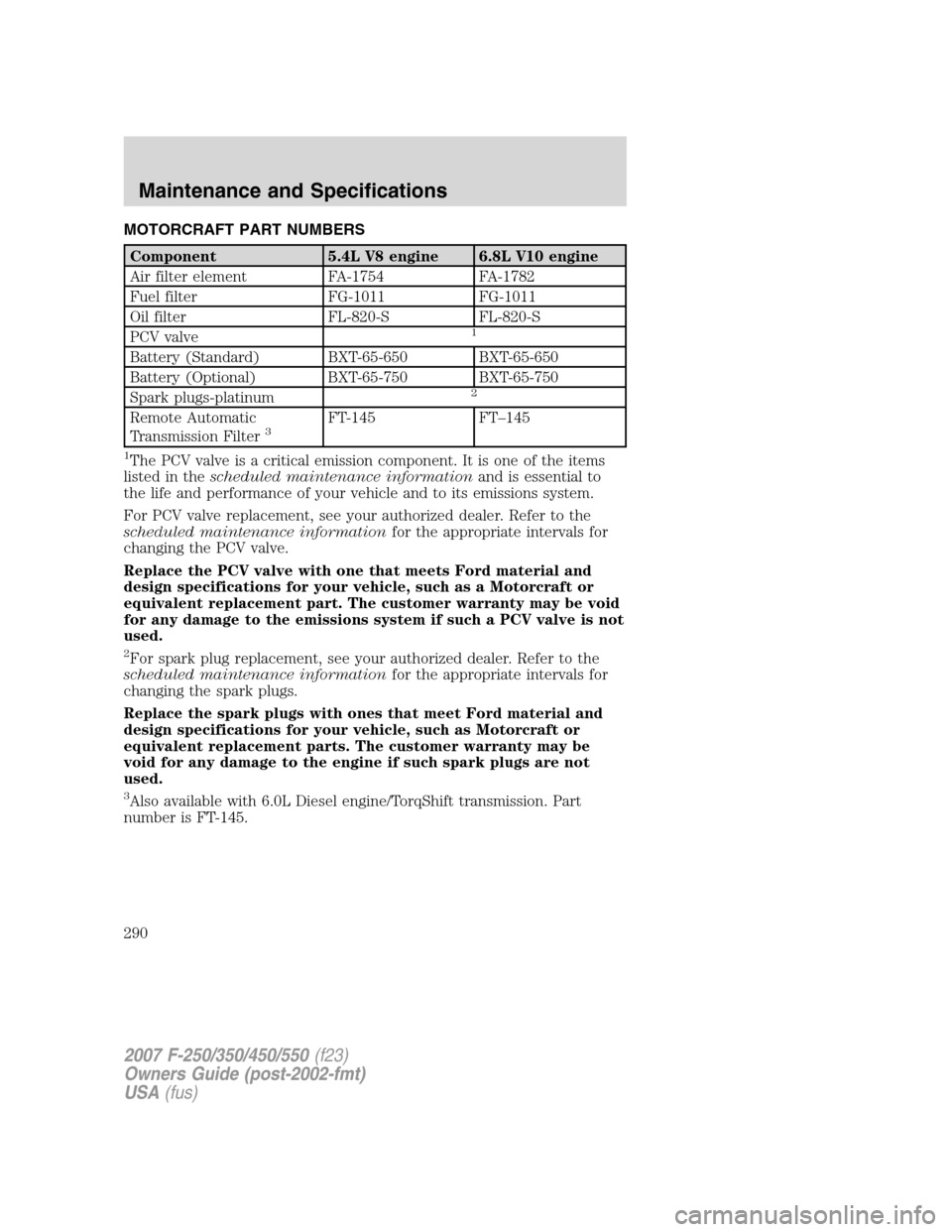

FORD SUPER DUTY 2007 1.G Owners Manual MOTORCRAFT PART NUMBERS
Component 5.4L V8 engine 6.8L V10 engine
Air filter element FA-1754 FA-1782
Fuel filter FG-1011 FG-1011
Oil filter FL-820-S FL-820-S
PCV valve
1
Battery (Standard) BXT-65-650 B
