Page 1 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual Introduction
2
Instrument Cluster
7
Driving
11
Roadside emergencies
19
Cleaning
25
Maintenance and Specifications
28
Scheduled Maintenance: General Information
55
Scheduled Maintenance: E-Series
62
Sc

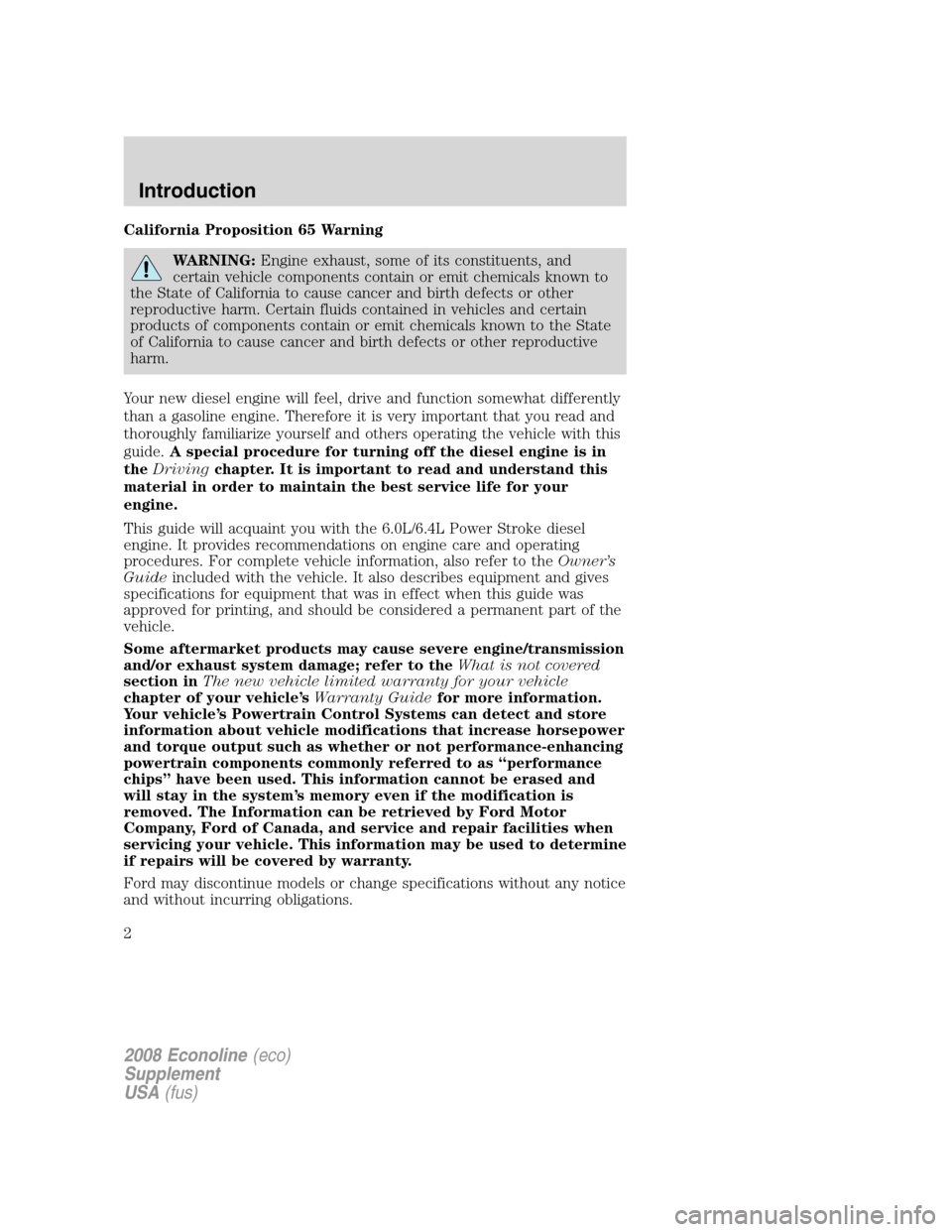

Page 2 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual California Proposition 65 Warning
WARNING:Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth

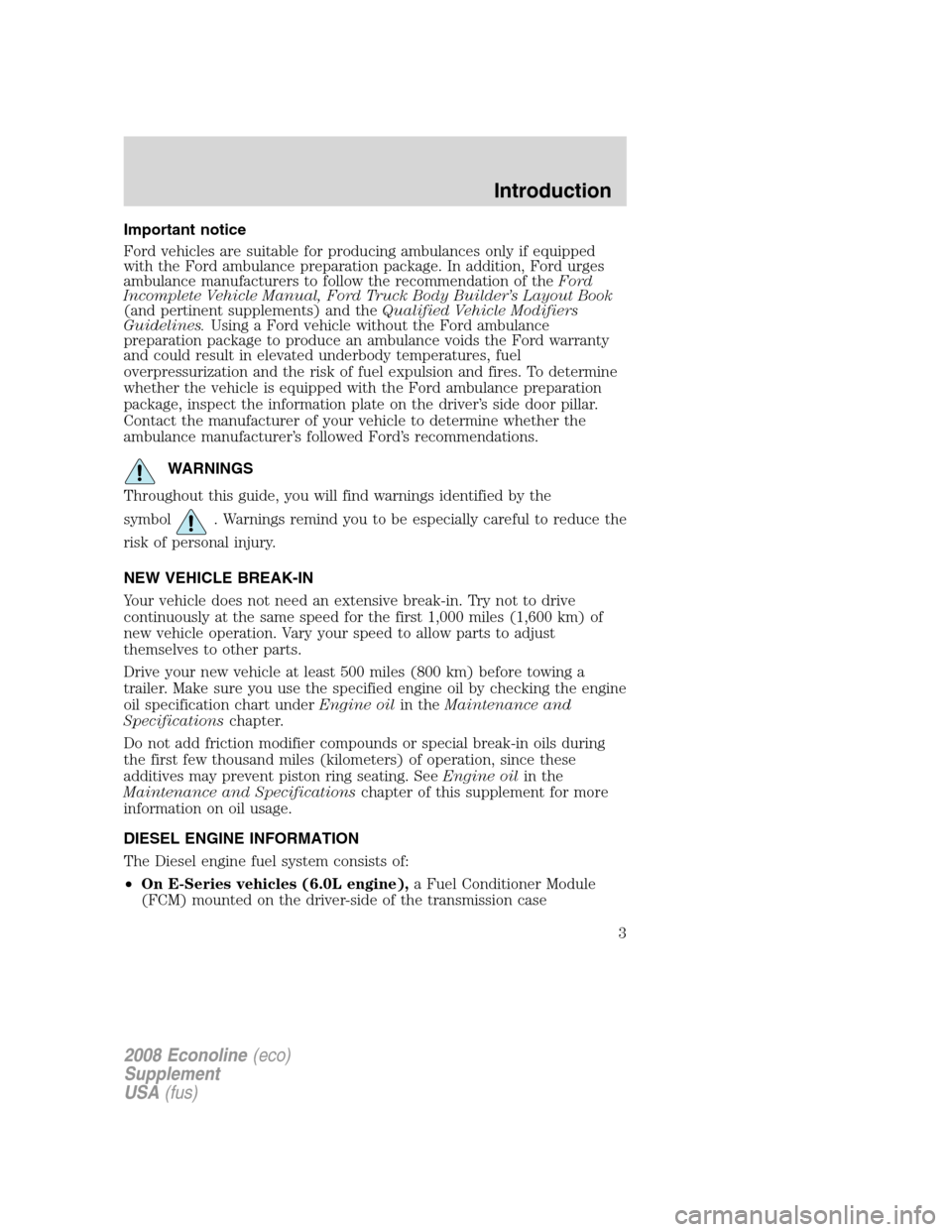

Page 3 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual Important notice
Ford vehicles are suitable for producing ambulances only if equipped
with the Ford ambulance preparation package. In addition, Ford urges
ambulance manufacturers to follow the recomme

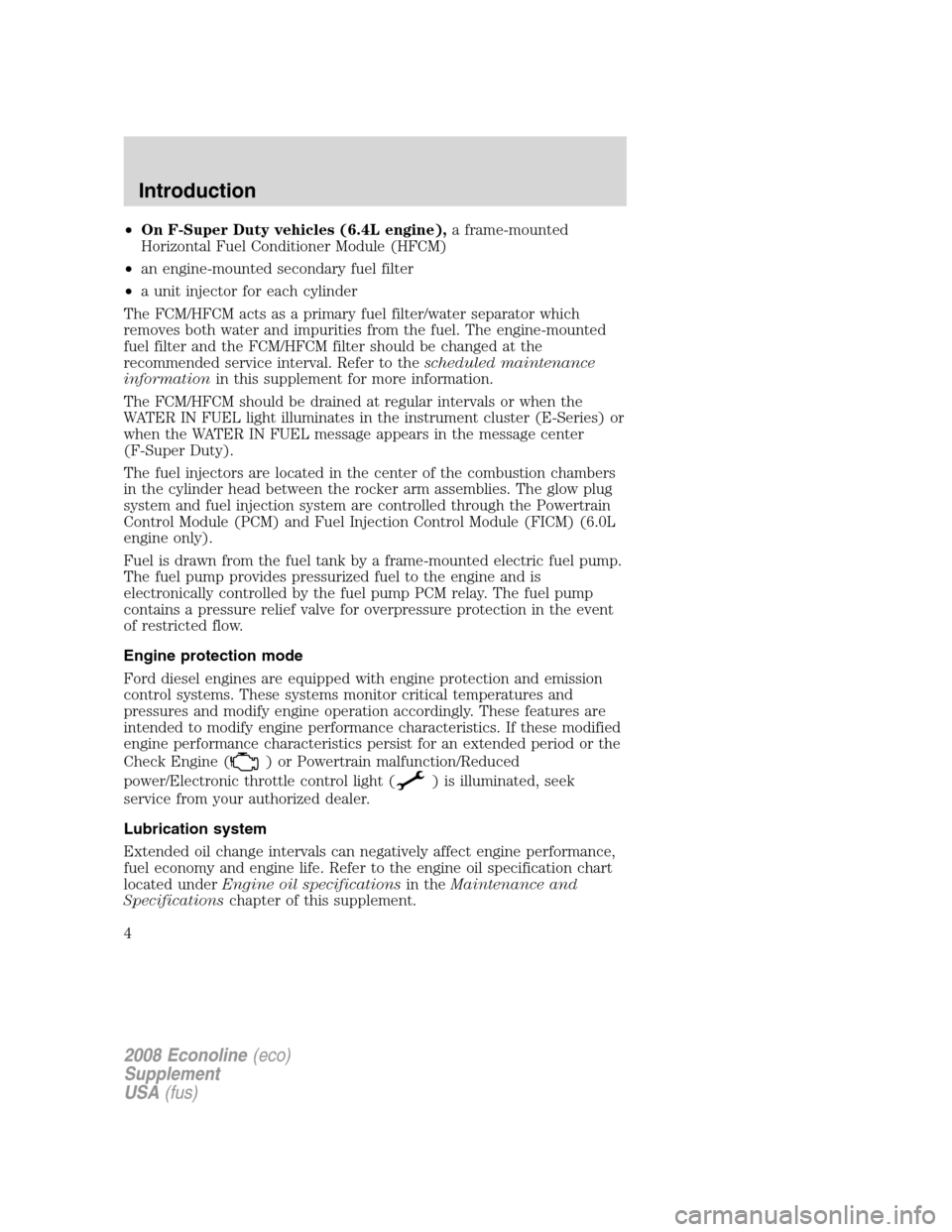

Page 4 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual •On F-Super Duty vehicles (6.4L engine),a frame-mounted
Horizontal Fuel Conditioner Module (HFCM)
•an engine-mounted secondary fuel filter
•a unit injector for each cylinder
The FCM/HFCM acts as

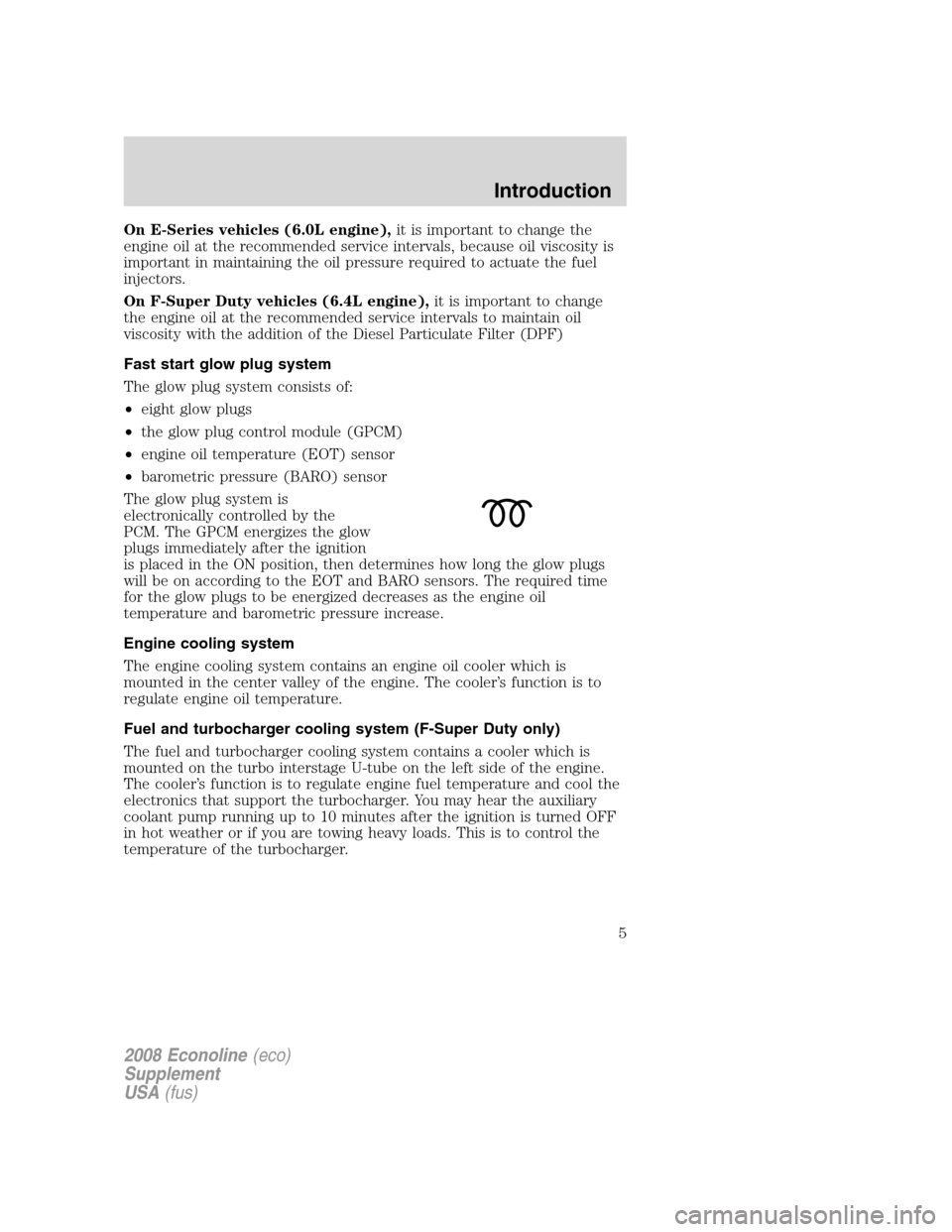

Page 5 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual On E-Series vehicles (6.0L engine),it is important to change the
engine oil at the recommended service intervals, because oil viscosity is
important in maintaining the oil pressure required to actuate

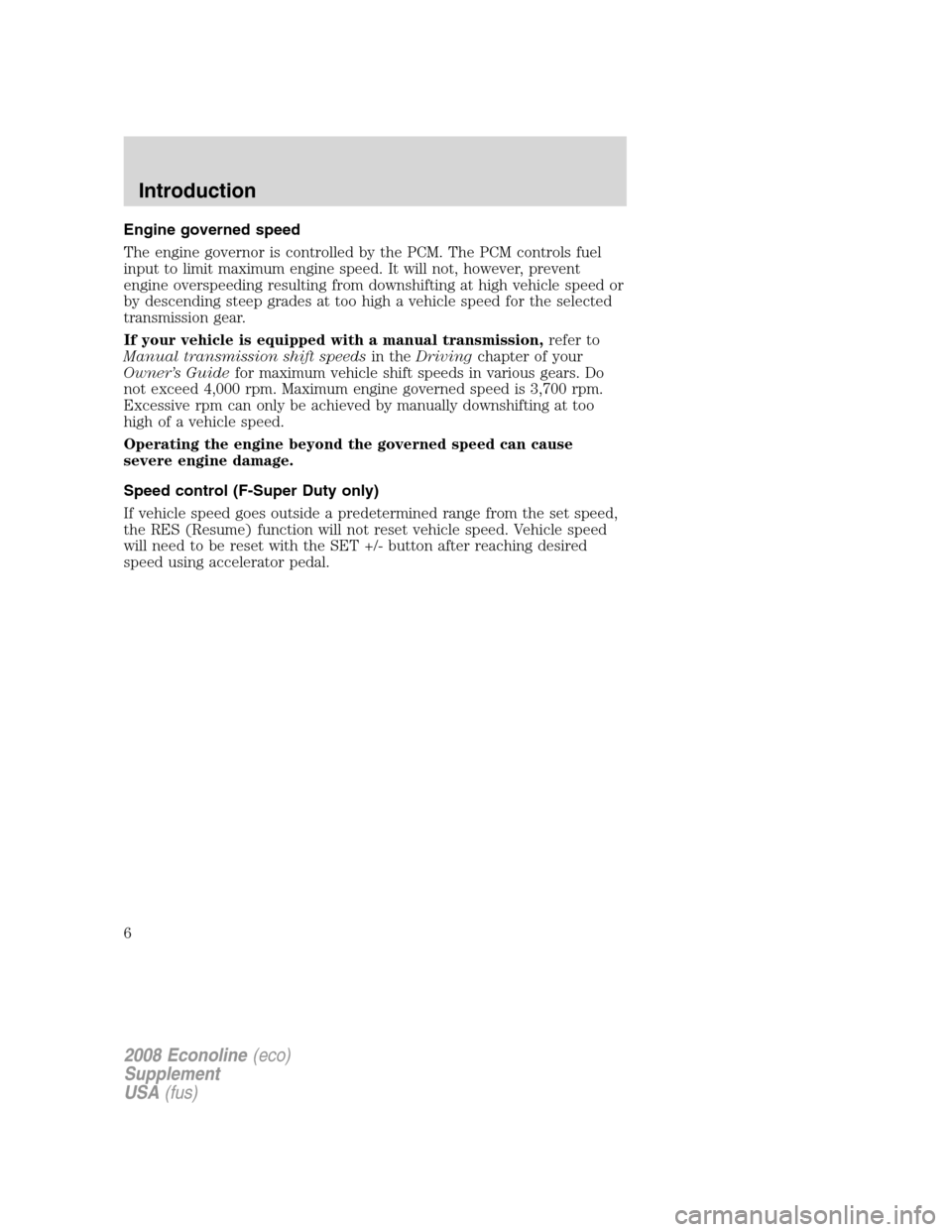

Page 6 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual Engine governed speed
The engine governor is controlled by the PCM. The PCM controls fuel
input to limit maximum engine speed. It will not, however, prevent
engine overspeeding resulting from downshif

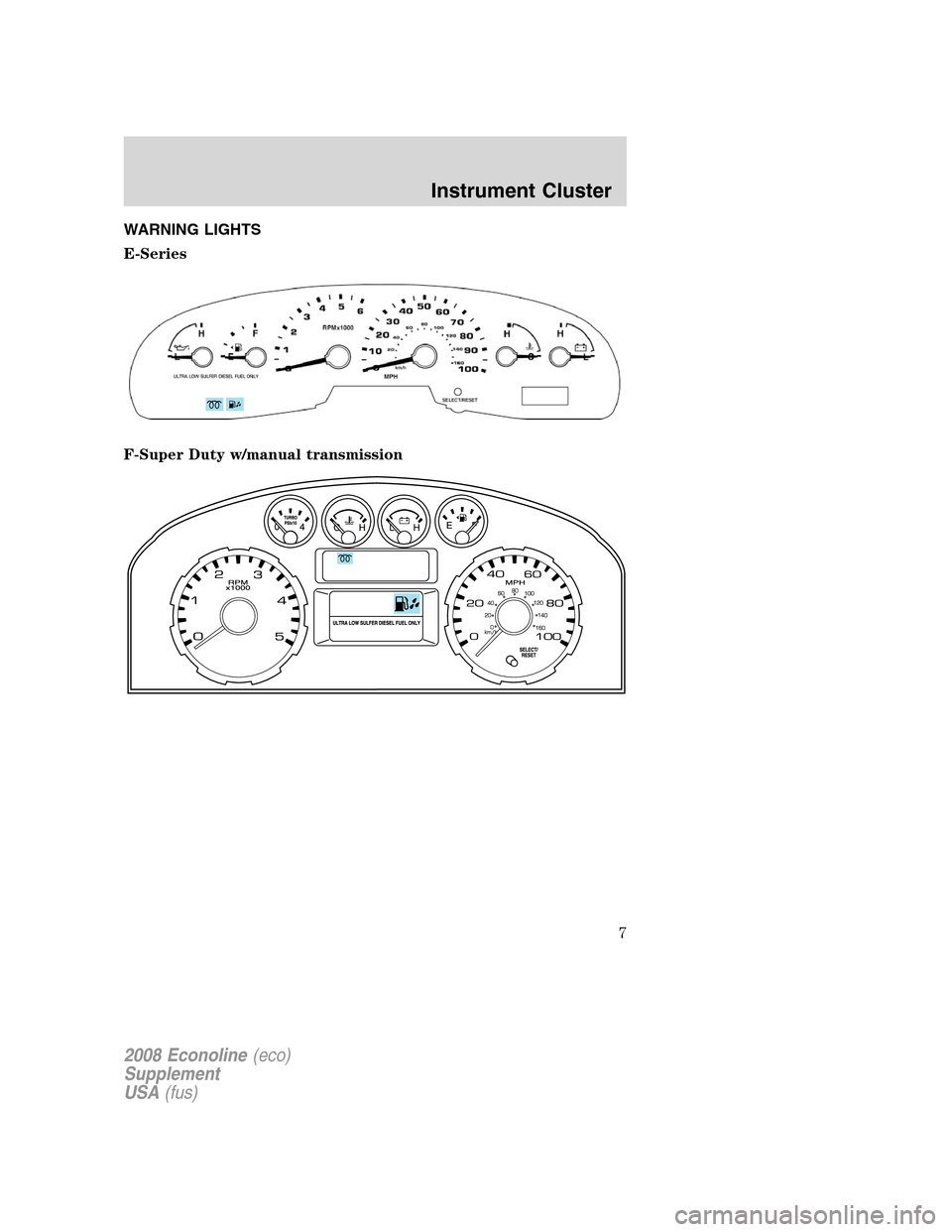

Page 7 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual WARNING LIGHTS
E-Series
F-Super Duty w/manual transmission
2008 Econoline(eco)
Supplement
USA(fus)
Instrument Cluster
7

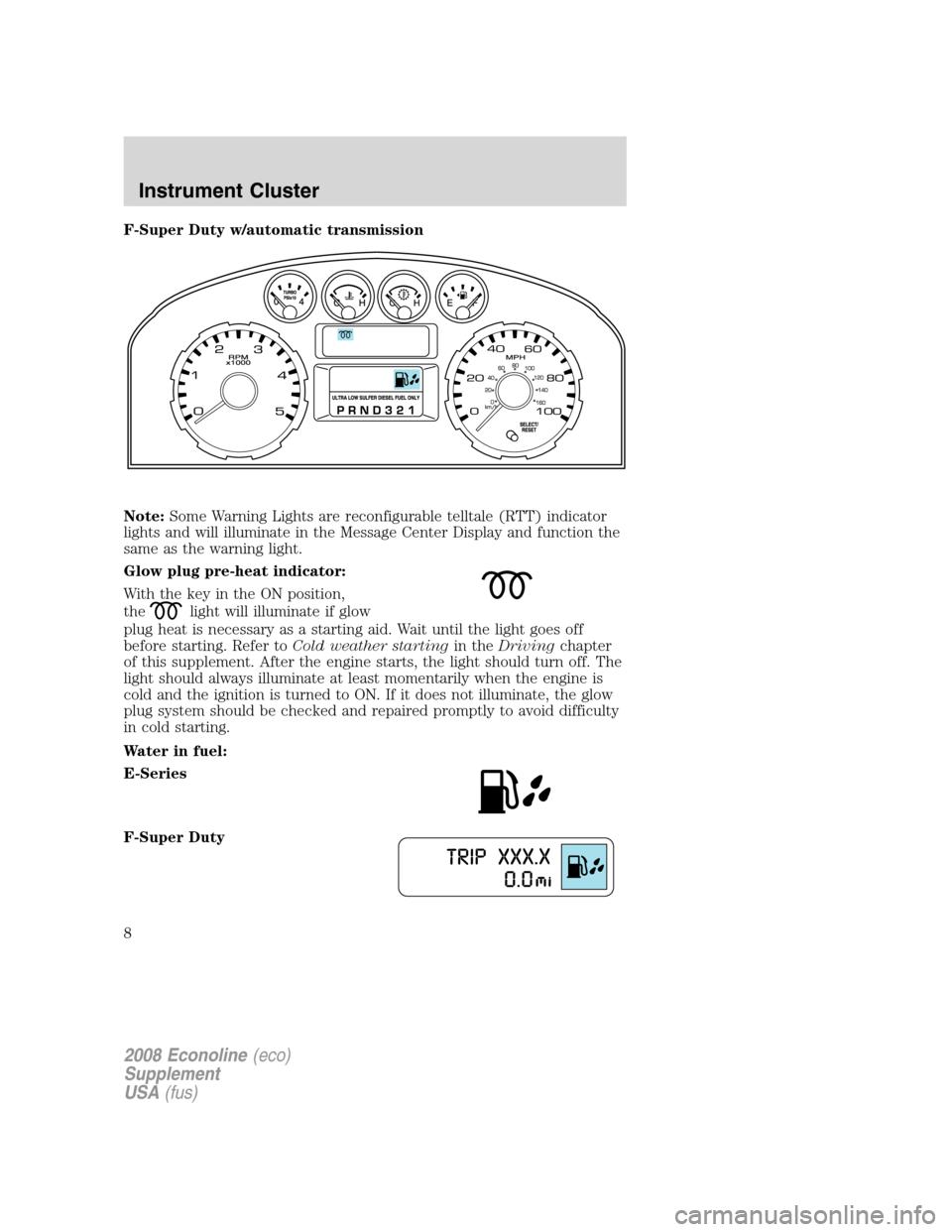

Page 8 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual F-Super Duty w/automatic transmission
Note:Some Warning Lights are reconfigurable telltale (RTT) indicator
lights and will illuminate in the Message Center Display and function the
same as the warning

Page 9 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual During refueling, it is possible for water-contaminated diesel fuel to be
pumped into your tank. Your vehicle’s fuel system is equipped with a fuel
filter/water separator to remove water from the fu

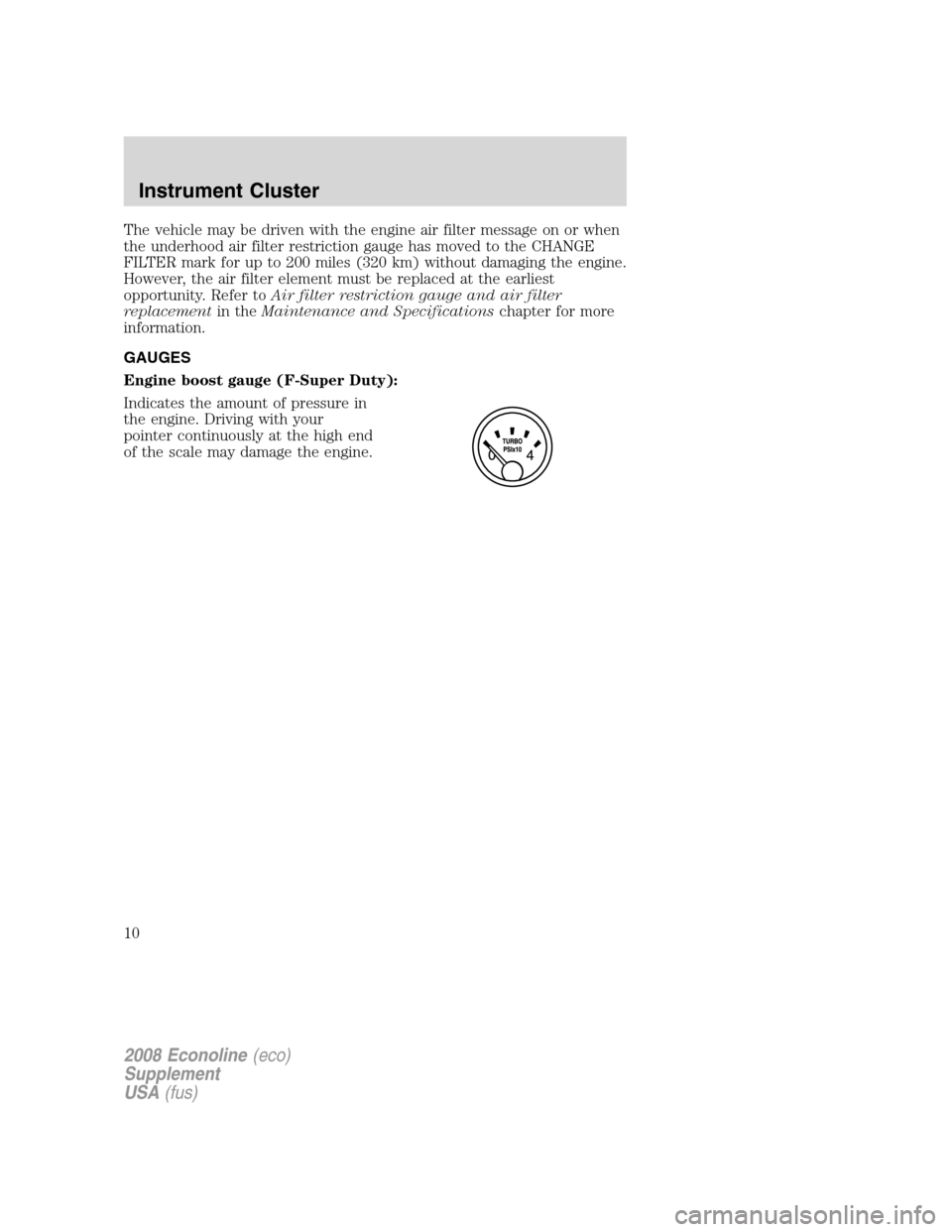

Page 10 of 96

FORD SUPER DUTY 2008 2.G Diesel Supplement Manual The vehicle may be driven with the engine air filter message on or when
the underhood air filter restriction gauge has moved to the CHANGE
FILTER mark for up to 200 miles (320 km) without damaging the
