FORD SUPER DUTY 2011 3.G Rear Seat Entertainment System Manual

21Playing an Audio CD
EN

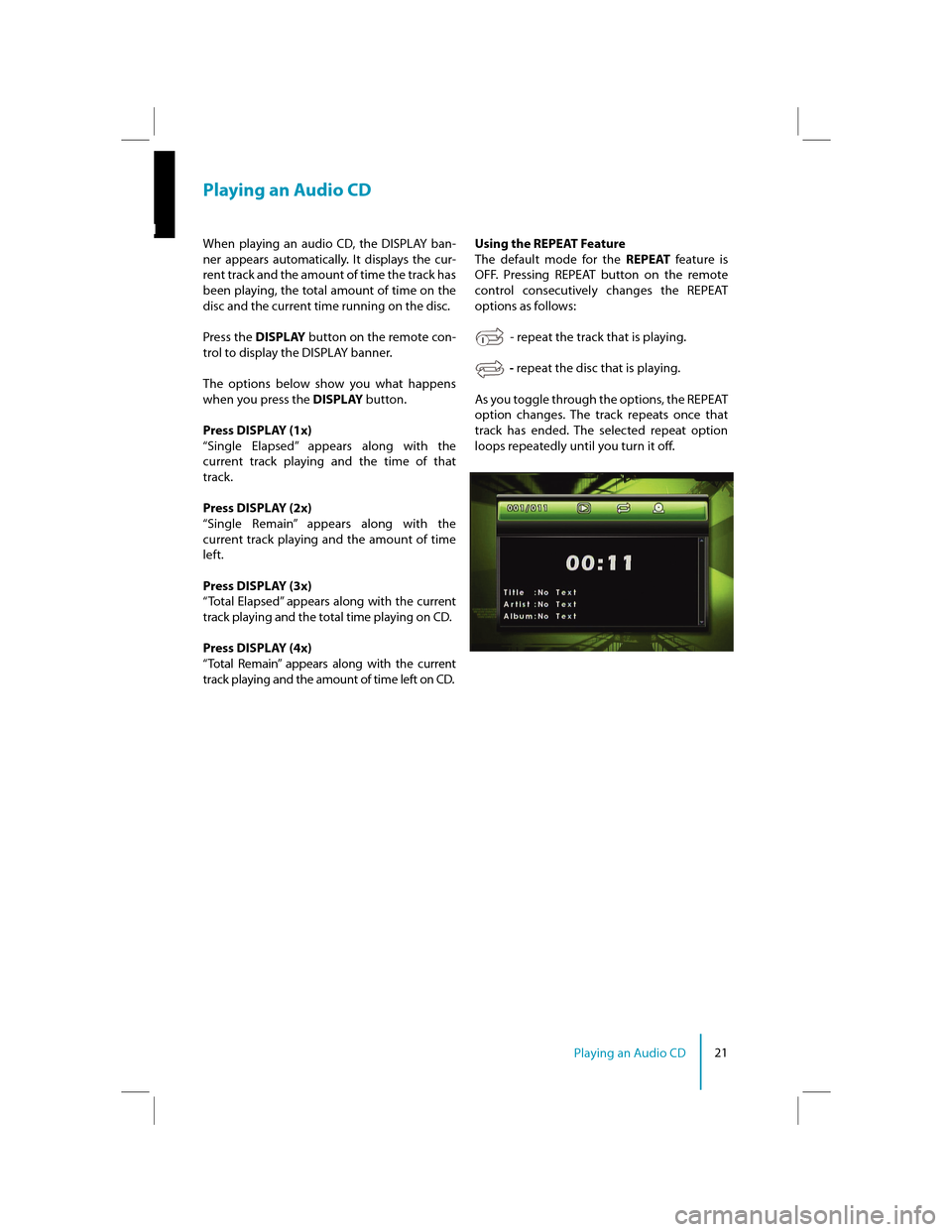

Playing an Audio CD
When playing an audio CD, the DISPLAY ban-
ner appears automatically. It displays the cur-
rent track and the amount of time the track has
been playing, the total amount of time on the
disc and the current time running on the disc.
Press the DISPLAY button on the remote con-
trol to display the DISPLAY banner.
The options below show you what happens
when you press the DISPLAY button.
Press DISPLAY (1x)
“Single Elapsed” appears along with the
current track playing and the time of that
track.
Press DISPLAY (2x)
“Single Remain” appears along with the
current track playing and the amount of time
left.
Press DISPLAY (3x)
“Total Elapsed” appears along with the current
track playing and the total time playing on CD.
Press DISPLAY (4x)
“Total Remain” appears along with the current
track playing and the amount of time left on CD. Using the REPEAT Feature
The default mode for the
REPEAT feature is
OFF. Pressing REPEAT button on the remote
control consecutively changes the REPEAT
options as follows:
- repeat the track that is playing.
- repeat the disc that is playing.
As you toggle through the options, the REPEAT
option changes. The track repeats once that
track has ended. The selected repeat option
loops repeatedly until you turn it of.

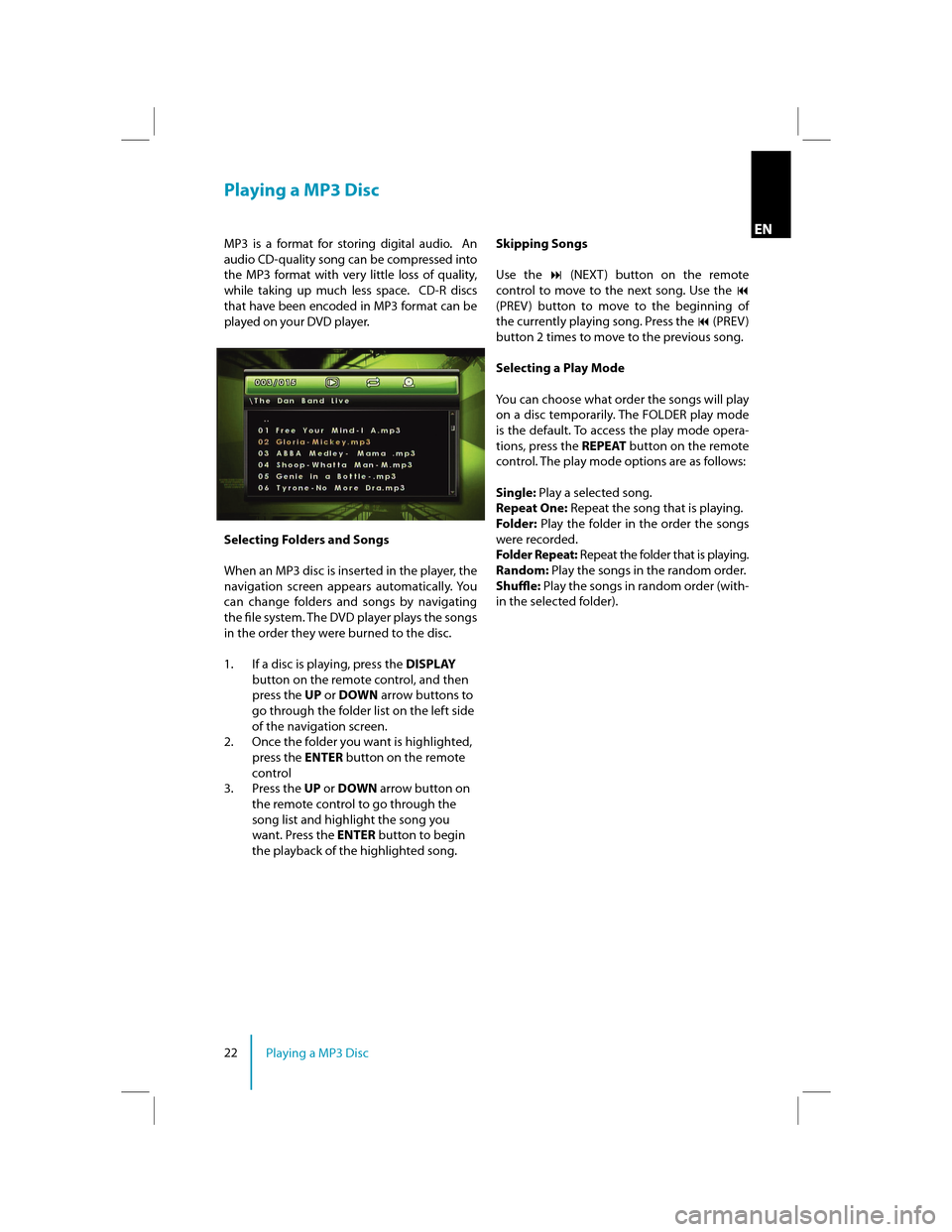

22Playing a MP3 Disc
EN
Playing a MP3 Disc
MP3 is a format for storing digital audio. An
audio CD-quality song can be compressed into
the MP3 format with very little loss of quality,
while taking up much less space. CD-R discs
that have been encoded in MP3 format can be
played on your DVD player.
Selecting Folders and Songs
When an MP3 disc is inserted in the player, the
navigation screen appears automatically. You
can change folders and songs by navigating
the fle system. The DVD player plays the songs
in the order they were burned to the disc.
1. If a disc is playing, press the DISPLAY
button on the remote control, and then
press the UP or DOWN arrow buttons to
go through the folder list on the left side
of the navigation screen.
2. Once the folder you want is highlighted,
press the ENTER button on the remote
control
3. Press the UP or DOWN arrow button on
the remote control to go through the
song list and highlight the song you
want. Press the ENTER button to begin
the playback of the highlighted song. Skipping Songs
Use the
(NEXT ) button on the remote
control to move to the next song. Use the
(PREV ) button to move to the beginning of
the currently playing song. Press the (PREV )
button 2 times to move to the previous song.
Selecting a Play Mode
You can choose what order the songs will play
on a disc temporarily. The FOLDER play mode
is the default. To access the play mode opera-
tions, press the REPEAT button on the remote
control. The play mode options are as follows:
Single: Play a selected song.
Repeat One: Repeat the song that is playing.
Folder: Play the folder in the order the songs
were recorded.
Folder Repeat: Repeat the folder that is playing.
Random: Play the songs in the random order.
Shufe: Play the songs in random order (with-
in the selected folder).

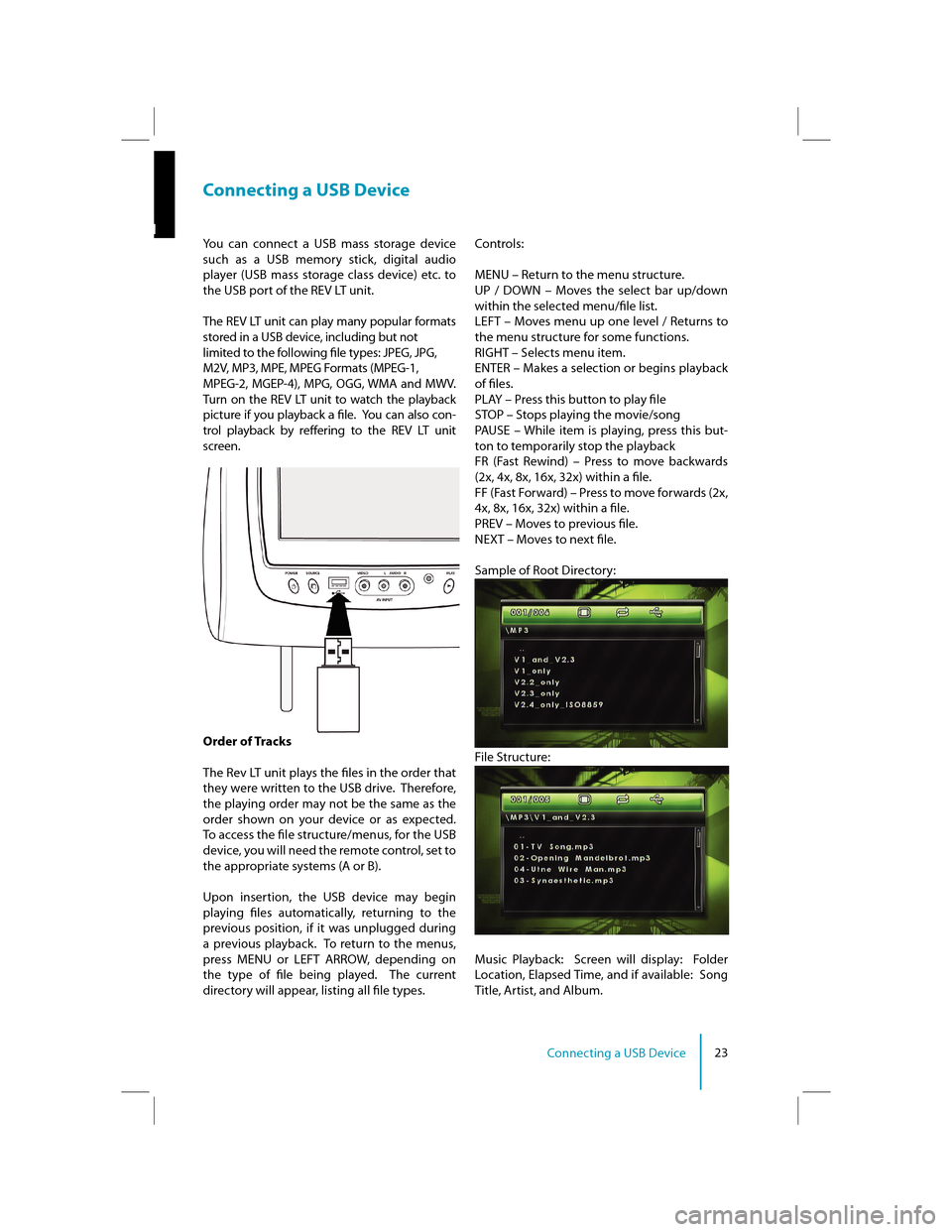

23Connecting a USB Device
You can connect a USB mass storage device
such as a USB memory stick, digital audio
player (USB mass storage class device) etc. to
the USB port of the REV LT unit.
The REV LT unit can play many popular formats
stored in a USB device, including but not
limited to the following fle types: JPEG, JPG,
M2V, MP3, MPE, MPEG Formats (MPEG-1,
MPEG-2, MGEP-4), MPG, OGG, WMA and MWV.
Turn on the REV LT unit to watch the playback
picture if you playback a fle. You can also con-
trol playback by refering to the REV LT unit
screen.
Order of Tracks
The Rev LT unit plays the fles in the order that
they were written to the USB drive. Therefore,
the playing order may not be the same as the
order shown on your device or as expected.
To access the fle structure/menus, for the USB
device, you will need the remote control, set to
the appropriate systems (A or B).
Upon insertion, the USB device may begin
playing fles automatically, returning to the
previous position, if it was unplugged during
a previous playback. To return to the menus,
press MENU or LEFT ARROW, depending on
the type of fle being played. The current
directory will appear, listing all fle types. Controls:
MENU – Return to the menu structure.
UP / DOWN – Moves the select bar up/down
within the selected menu/fle list.
LEFT – Moves menu up one level / Returns to
the menu structure for some functions.
RIGHT – Selects menu item.
ENTER – Makes a selection or begins playback
of fles.
PLAY – Press this button to play fle
STOP – Stops playing the movie/song
PAUSE – While item is playing, press this but-
ton to temporarily stop the playback
FR (Fast Rewind) – Press to move backwards
(2x, 4x, 8x, 16x, 32x) within a fle.
FF (Fast Forward) – Press to move forwards (2x,
4x, 8x, 16x, 32x) within a fle.
PREV – Moves to previous fle.
NEXT – Moves to next fle.
Sample of Root Directory:
File Structure:

Music Playback: Screen will display: Folder
Location, Elapsed Time, and if available: Song
Title, Artist, and Album.
EN
Connecting a USB Device

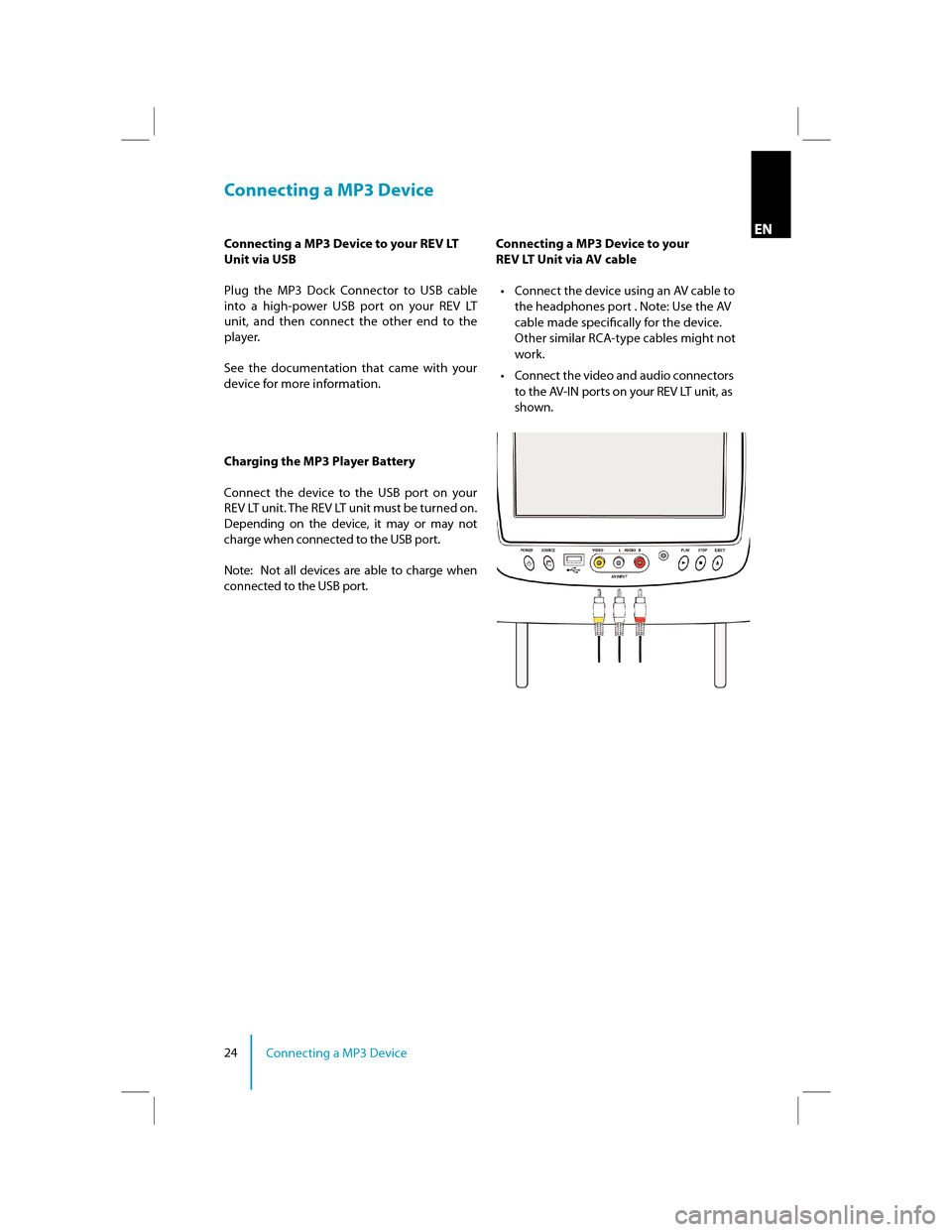

24Connecting a MP3 Device
Connecting a MP3 Device
Connecting a MP3 Device to your REV LT
Unit via USB
Plug the MP3 Dock Connector to USB cable
into a high-power USB port on your REV LT
unit, and then connect the other end to the
player.
See the documentation that came with your
device for more information.
Charging the MP3 Player Battery
Connect the device to the USB port on your
REV LT unit. The REV LT unit must be turned on.
Depending on the device, it may or may not
charge when connected to the USB port.
Note: Not all devices are able to charge when
connected to the USB port.
Connecting a MP3 Device to your
REV LT Unit via AV cable
t
Connect the device using an AV cable to
the headphones port . Note: Use the AV
cable made specifcally for the device.
Other similar RCA-type cables might not
work.
t
Connect the video and audio connectors
to the AV-IN ports on your REV LT unit, as
shown. EN

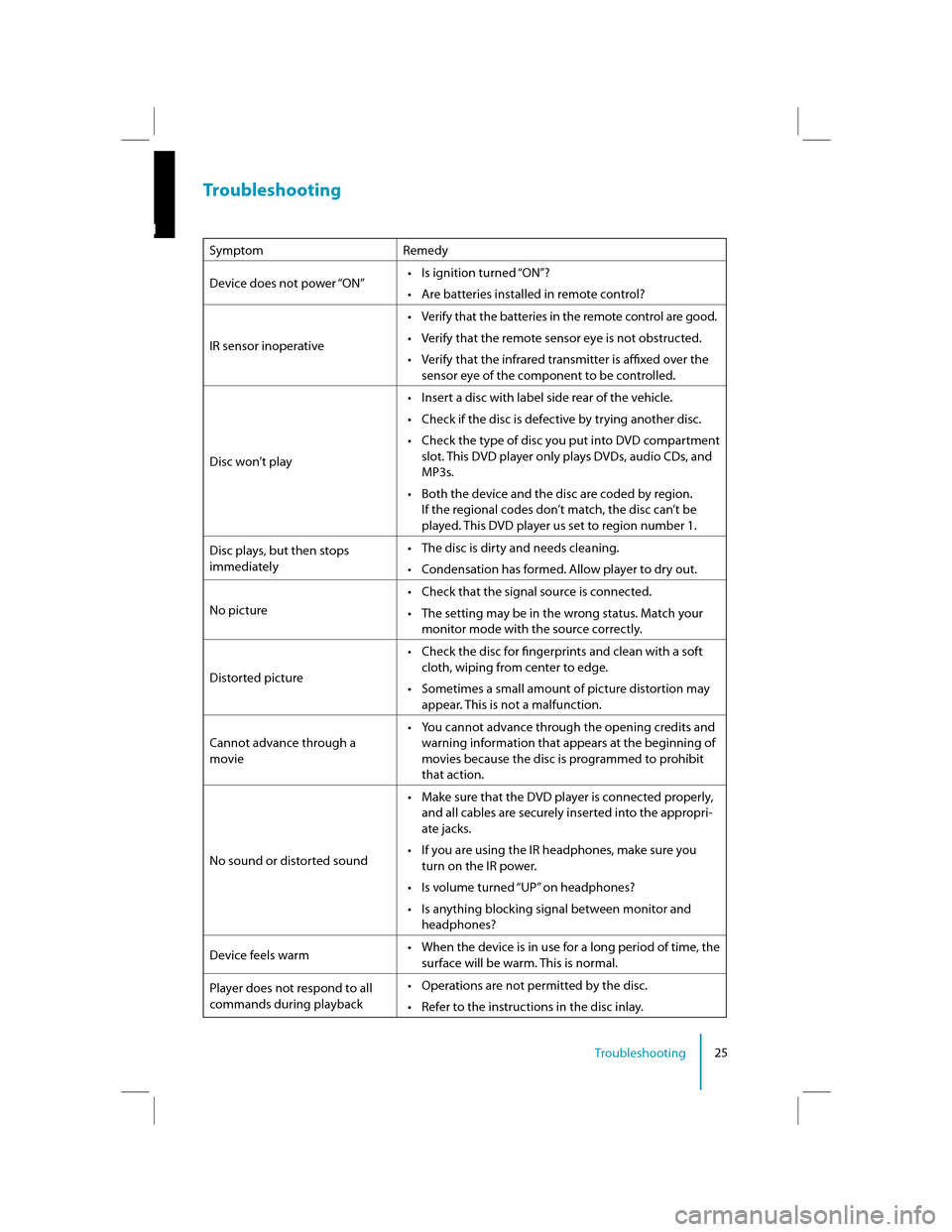

25Troubleshooting
EN
Troubleshooting
Symptom Remedy
Device does not power “ON”t

Is ignition turned “ON”?
t
Are batteries installed in remote control?
IR sensor inoperative t

Verify that the batteries in the remote control are good.
t
Verify that the remote sensor eye is not obstructed.
t
Verify that the infrared transmitter is afxed over the
sensor eye of the component to be controlled.
Disc won’t play t

Insert a disc with label side rear of the vehicle.
t
Check if the disc is defective by trying another disc.
t
Check the type of disc you put into DVD compartment
slot. This DVD player only plays DVDs, audio CDs, and
MP3s.
t
Both the device and the disc are coded by region.
If the regional codes don’t match, the disc can’t be
played. This DVD player us set to region number 1.
Disc plays, but then stops
immediately t

The disc is dirty and needs cleaning.
t
Condensation has formed. Allow player to dry out.
No picture t

Check that the signal source is connected.
t
The setting may be in the wrong status. Match your
monitor mode with the source correctly.
Distorted picture t

Check the disc for fngerprints and clean with a soft
cloth, wiping from center to edge.
t
Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
Cannot advance through a
movie t

You cannot advance through the opening credits and
warning information that appears at the beginning of
movies because the disc is programmed to prohibit
that action.
No sound or distorted sound t

Make sure that the DVD player is connected properly,
and all cables are securely inserted into the appropri-
ate jacks.
t
If you are using the IR headphones, make sure you
turn on the IR power.
t
Is volume turned “UP” on headphones?
t
Is anything blocking signal between monitor and
headphones?
Device feels warm t

When the device is in use for a long period of time, the
surface will be warm. This is normal.
Player does not respond to all
commands during playback t

Operations are not permitted by the disc.
t
Refer to the instructions in the disc inlay.

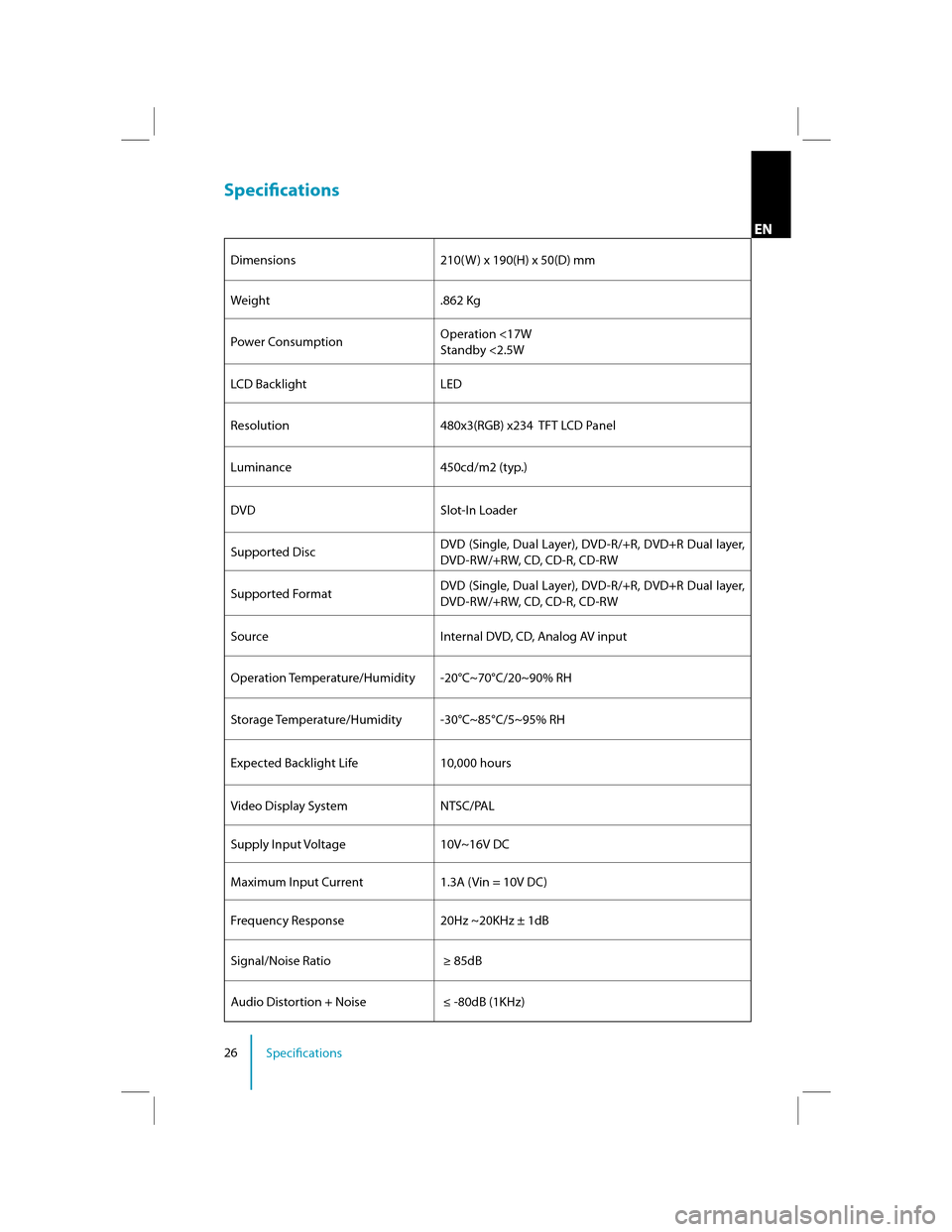

26Specifcations
EN
Specifcations
Dimensions 210(W ) x 190(H) x 50(D) mm
Weight .862 Kg
Power ConsumptionOperation <17W
Standby <2.5W
LCD Backlight LED
Resolution 480x3(RGB) x234 TFT LCD Panel
Luminance 450cd/m2 (typ.)
DVD Slot-In Loader
Supported Disc DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer,
DVD-RW/+RW, CD, CD-R, CD-RW
Supported Format DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer,
DVD-RW/+RW, CD, CD-R, CD-RW
Source Internal DVD, CD, Analog AV input
Operation Temperature/Humidity -20°C~70°C/20~90% RH
Storage Temperature/Humidity -30°C~85°C/5~95% RH
Expected Backlight Life 10,000 hours
Video Display System NTSC/PAL
Supply Input Voltage 10V~16V DC
Maximum Input Current 1.3A (Vin = 10V DC)
Frequency Response 20Hz ~20KHz ± 1dB
Signal/Noise Ratio 85dB
Audio Distortion + Noise -80dB (1KHz)

27
EN

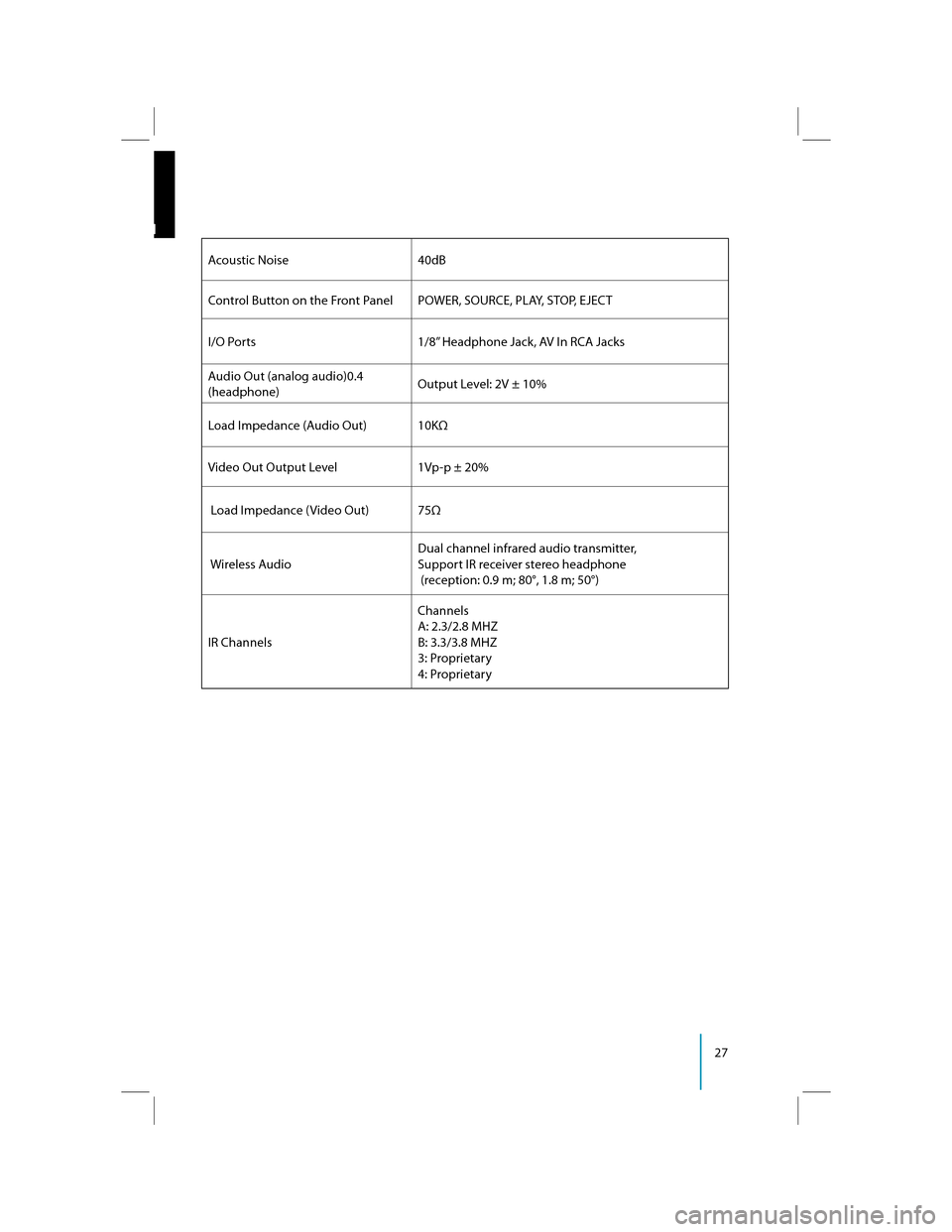

Acoustic Noise 40dB
Control Button on the Front Panel POWER, SOURCE, PLAY, STOP, EJECT
I/O Ports 1/8” Headphone Jack, AV In RCA Jacks
Audio Out (analog audio)0.4
(headphone)Output Level: 2V ± 10%
Load Impedance (Audio Out) 10K
Video Out Output Level 1Vp-p ± 20%
Load Impedance (Video Out) 75
Wireless Audio Dual channel infrared audio transmitter,
Support IR receiver stereo headphone
(reception: 0.9 m; 80°, 1.8 m; 50°)
IR Channels Channels
A: 2.3/2.8 MHZ
B: 3.3/3.8 MHZ
3: Proprietary
4: Proprietary

28Compliance Information
EN

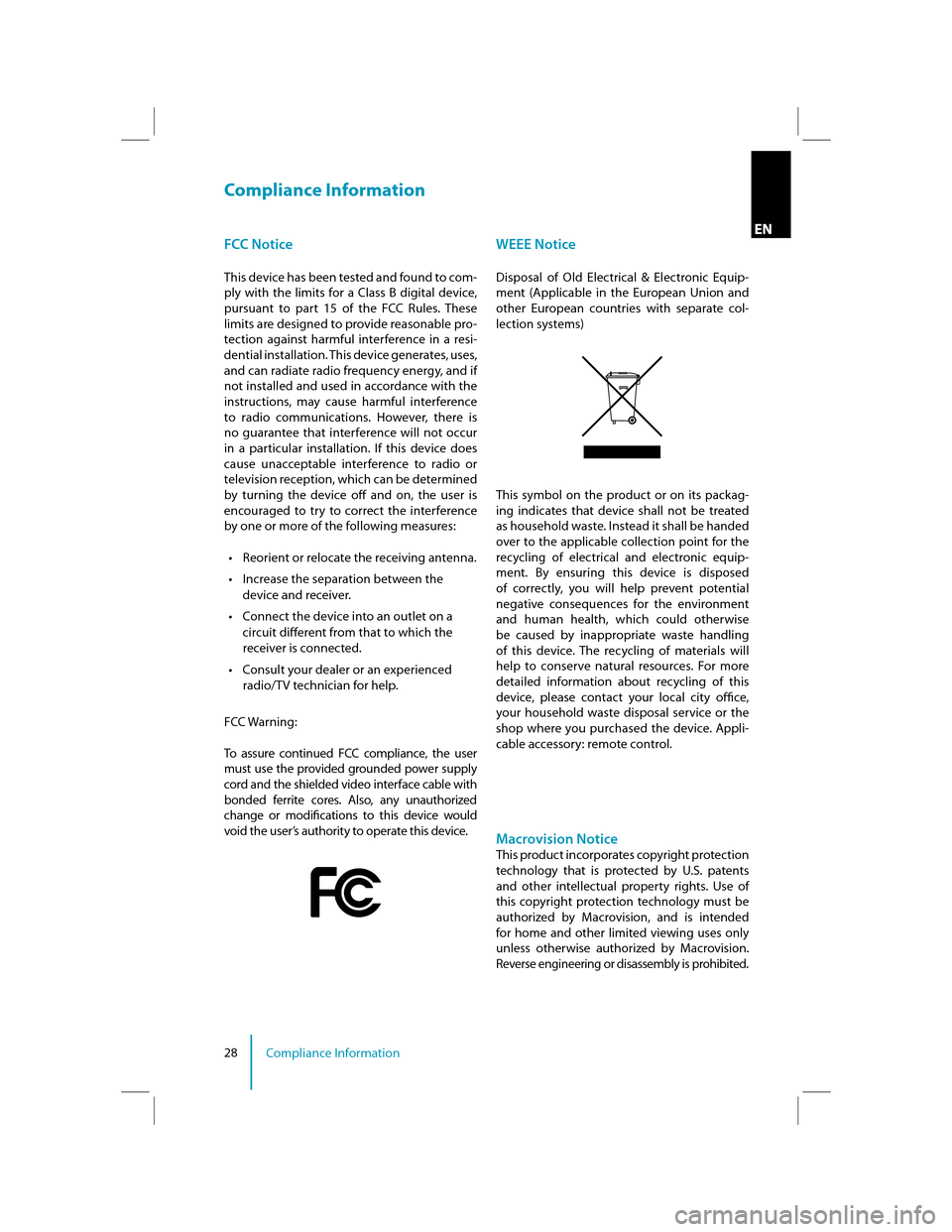

Compliance Information
FCC Notice
This device has been tested and found to com-
ply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable pro-
tection against harmful interference in a resi-
dential installation. This device generates, uses,
and can radiate radio frequency energy, and if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this device does
cause unacceptable interference to radio or
television reception, which can be determined
by turning the device of and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:t
Reorient or relocate the receiving antenna.
t
Increase the separation between the
device and receiver.
t
Connect the device into an outlet on a
circuit diferent from that to which the
receiver is connected.
t
Consult your dealer or an experienced
radio/TV technician for help.
FCC Warning:
To assure continued FCC compliance, the user
must use the provided grounded power supply
cord and the shielded video interface cable with
bonded ferrite cores. Also, any unauthorized
change or modifcations to this device would
void the user’s authority to operate this device.
WEEE Notice
Disposal of Old Electrical Electronic Equip-
ment (Applicable in the European Union and
other European countries with separate col-
lection systems)
This symbol on the product or on its packag-
ing indicates that device shall not be treated
as household waste. Instead it shall be handed
over to the applicable collection point for the
recycling of electrical and electronic equip-
ment. By ensuring this device is disposed
of correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this device. The recycling of materials will
help to conserve natural resources. For more
detailed information about recycling of this
device, please contact your local city ofce,
your household waste disposal service or the
shop where you purchased the device. Appli-
cable accessory: remote control.
Macrovision NoticeThis product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and is intended
for home and other limited viewing uses only
unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited.

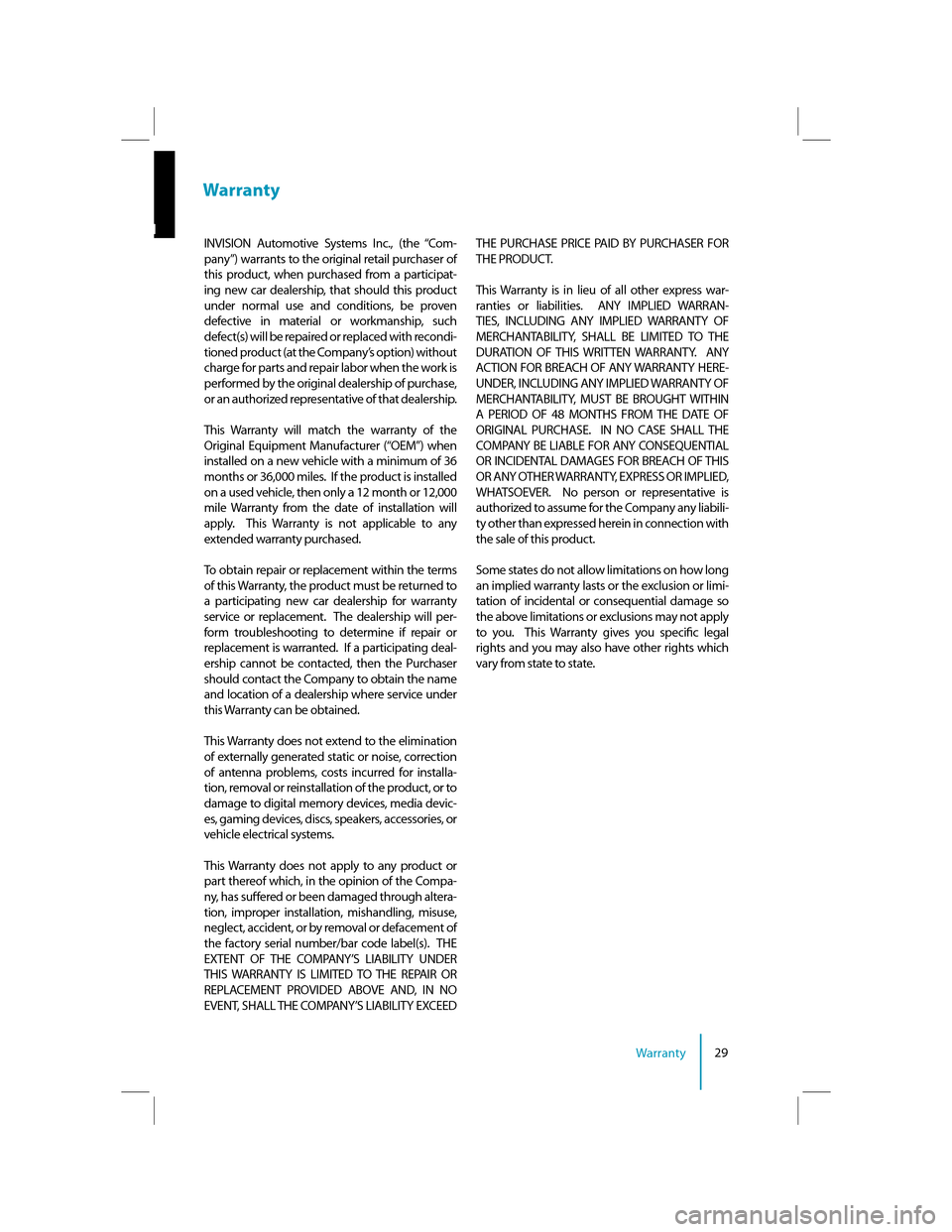

29Warranty
EN
Warranty
INVISION Automotive Systems Inc., (the “Com-
pany”) warrants to the original retail purchaser of
this product, when purchased from a participat-
ing new car dealership, that should this product
under normal use and conditions, be proven
defective in material or workmanship, such
defect(s) will be repaired or replaced with recondi-
tioned product (at the Company’s option) without
charge for parts and repair labor when the work is
performed by the original dealership of purchase,
or an authorized representative of that dealership.
This Warranty will match the warranty of the
Original Equipment Manufacturer (“OEM”) when
installed on a new vehicle with a minimum of 36
months or 36,000 miles. If the product is installe d
on a used vehicle, then only a 12 month or 12,000
mile Warranty from the date of installation will
apply. This Warranty is not applicable to any
extended warranty purchased.
To obtain repair or replacement within the terms
of this Warranty, the product must be returned to
a participating new car dealership for warranty
service or replacement. The dealership will per-
form troubleshooting to determine if repair or
replacement is warranted. If a participating deal-
ership cannot be contacted, then the Purchaser
should contact the Company to obtain the name
and location of a dealership where service under
this Warranty can be obtained.
This Warranty does not extend to the elimination
of externally generated static or noise, correction
of antenna problems, costs incurred for installa-
tion, removal or reinstallation of the product, or to
damage to digital memory devices, media devic-
es, gaming devices, discs, speakers, accessories, o r
vehicle electrical systems.
This Warranty does not apply to any product or
part thereof which, in the opinion of the Compa-
ny, has sufered or been damaged through altera-
tion, improper installation, mishandling, misuse,
neglect, accident, or by removal or defacement of
the factory serial number/bar code label(s). THE
EXTENT OF THE COMPANY’S LIABILITY UNDER
THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO
EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR
THE PRODUCT.
This Warranty is in lieu of all other express war-
ranties or liabilities. ANY IMPLIED WARRAN-
TIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY, SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY. ANY
ACTION FOR BREACH OF ANY WARRANTY HERE-
UNDER, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY, MUST BE BROUGHT WITHIN
A PERIOD OF 48 MONTHS FROM THE DATE OF
ORIGINAL PURCHASE. IN NO CASE SHALL THE
COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS
OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. No person or representative is
authorized to assume for the Company any liabili-
ty other than expressed herein in connection with
the sale of this product.
Some states do not allow limitations on how long
an implied warranty lasts or the exclusion or limi-
tation of incidental or consequential damage so
the above limitations or exclusions may not apply
to you. This Warranty gives you specifc legal
rights and you may also have other rights which
vary from state to state.

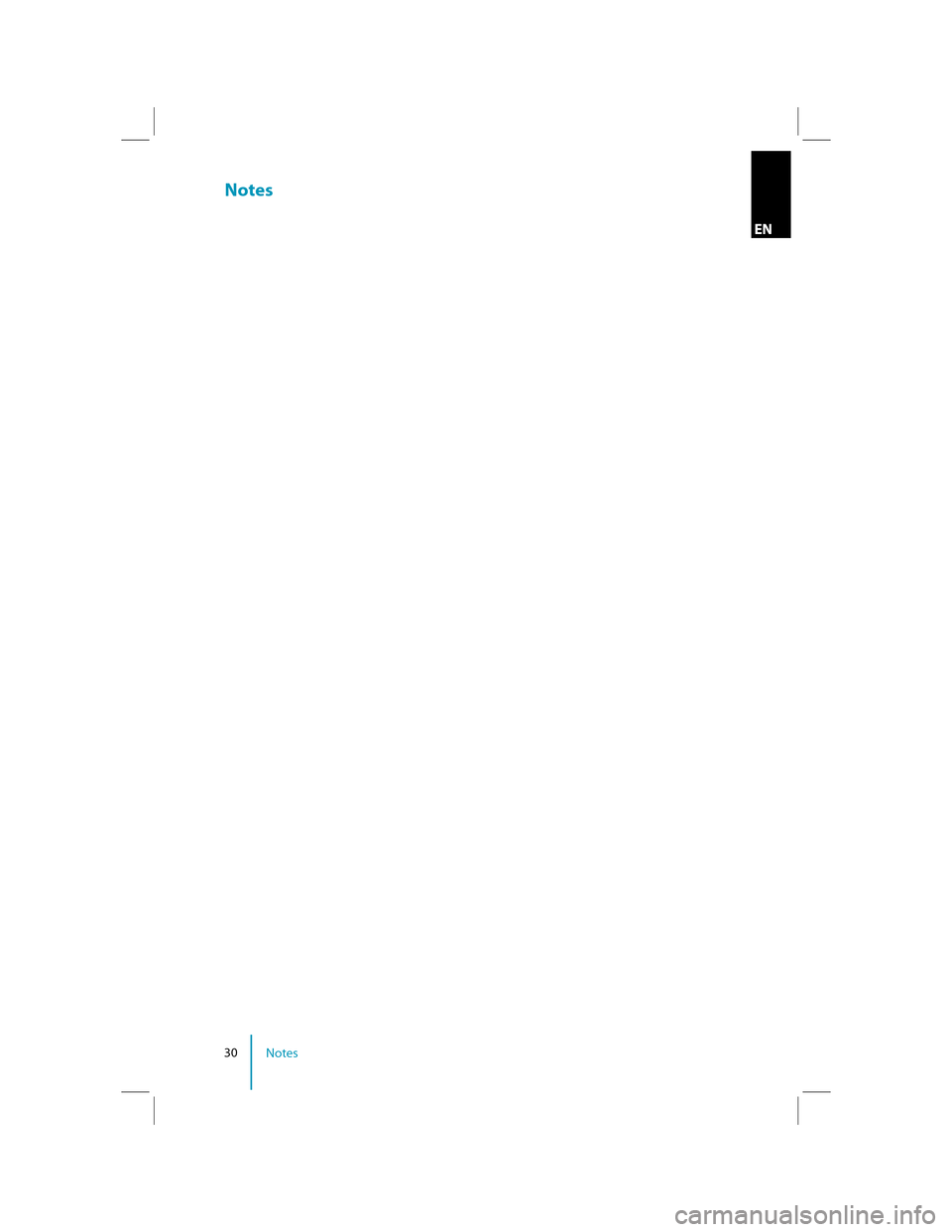

30Notes
EN
Notes
