ESP FORD SUPER DUTY 2012 3.G Navigation System Manual

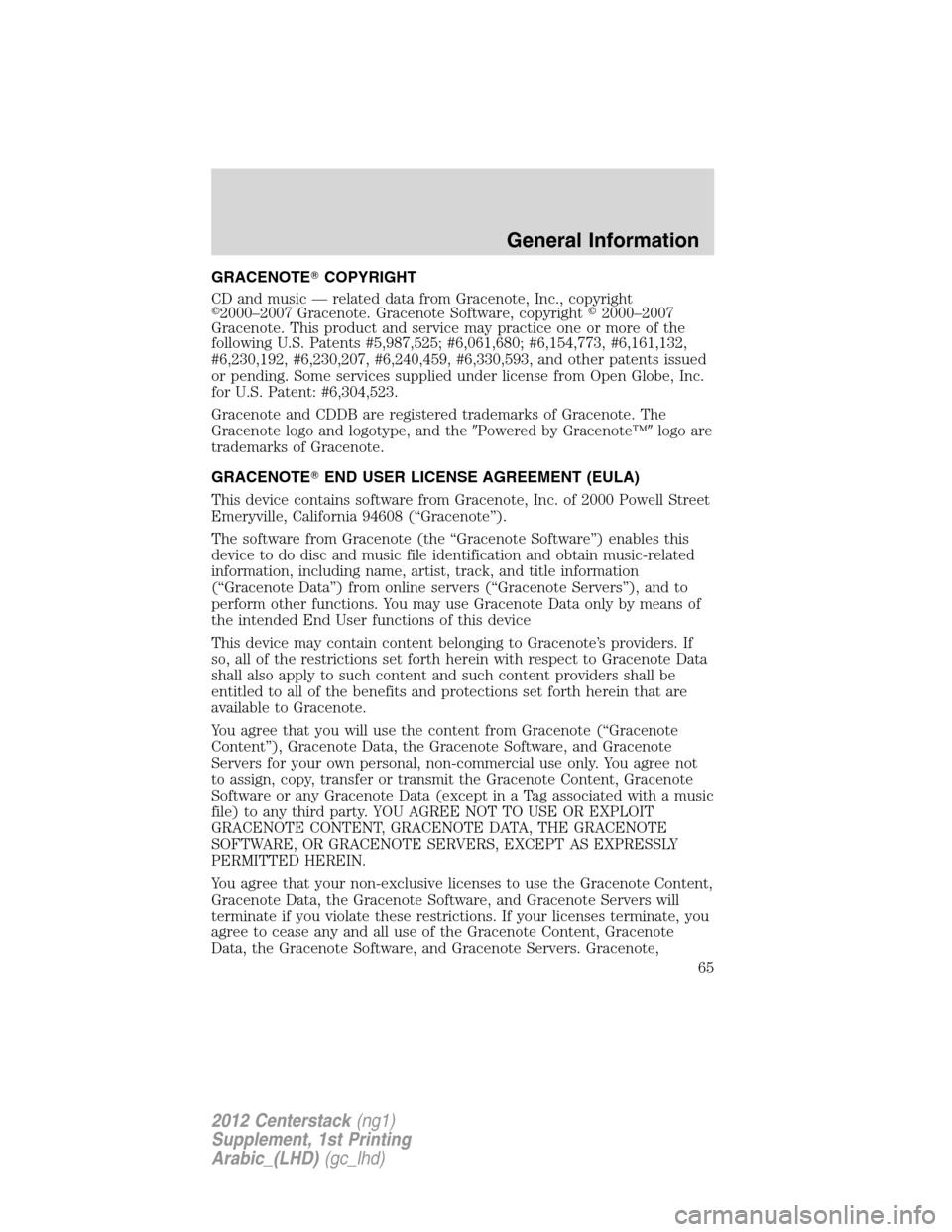

GRACENOTECOPYRIGHT
CD and music — related data from Gracenote, Inc., copyright
2000–2007 Gracenote. Gracenote Software, copyright2000–2007
Gracenote. This product and service may practice one or more of the
following U.S. Patents #5,987,525; #6,061,680; #6,154,773, #6,161,132,
#6,230,192, #6,230,207, #6,240,459, #6,330,593, and other patents issued
or pending. Some services supplied under license from Open Globe, Inc.
for U.S. Patent: #6,304,523.
Gracenote and CDDB are registered trademarks of Gracenote. The
Gracenote logo and logotype, and thePowered by Gracenote™logo are
trademarks of Gracenote.
GRACENOTEEND USER LICENSE AGREEMENT (EULA)
This device contains software from Gracenote, Inc. of 2000 Powell Street
Emeryville, California 94608 (“Gracenote”).
The software from Gracenote (the “Gracenote Software”) enables this
device to do disc and music file identification and obtain music-related
information, including name, artist, track, and title information
(“Gracenote Data”) from online servers (“Gracenote Servers”), and to
perform other functions. You may use Gracenote Data only by means of
the intended End User functions of this device
This device may contain content belonging to Gracenote’s providers. If
so, all of the restrictions set forth herein with respect to Gracenote Data
shall also apply to such content and such content providers shall be
entitled to all of the benefits and protections set forth herein that are
available to Gracenote.
You agree that you will use the content from Gracenote (“Gracenote
Content”), Gracenote Data, the Gracenote Software, and Gracenote
Servers for your own personal, non-commercial use only. You agree not
to assign, copy, transfer or transmit the Gracenote Content, Gracenote
Software or any Gracenote Data (except in a Tag associated with a music
file) to any third party. YOU AGREE NOT TO USE OR EXPLOIT
GRACENOTE CONTENT, GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY
PERMITTED HEREIN.
You agree that your non-exclusive licenses to use the Gracenote Content,
Gracenote Data, the Gracenote Software, and Gracenote Servers will
terminate if you violate these restrictions. If your licenses terminate, you
agree to cease any and all use of the Gracenote Content, Gracenote
Data, the Gracenote Software, and Gracenote Servers. Gracenote,
General Information
65
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

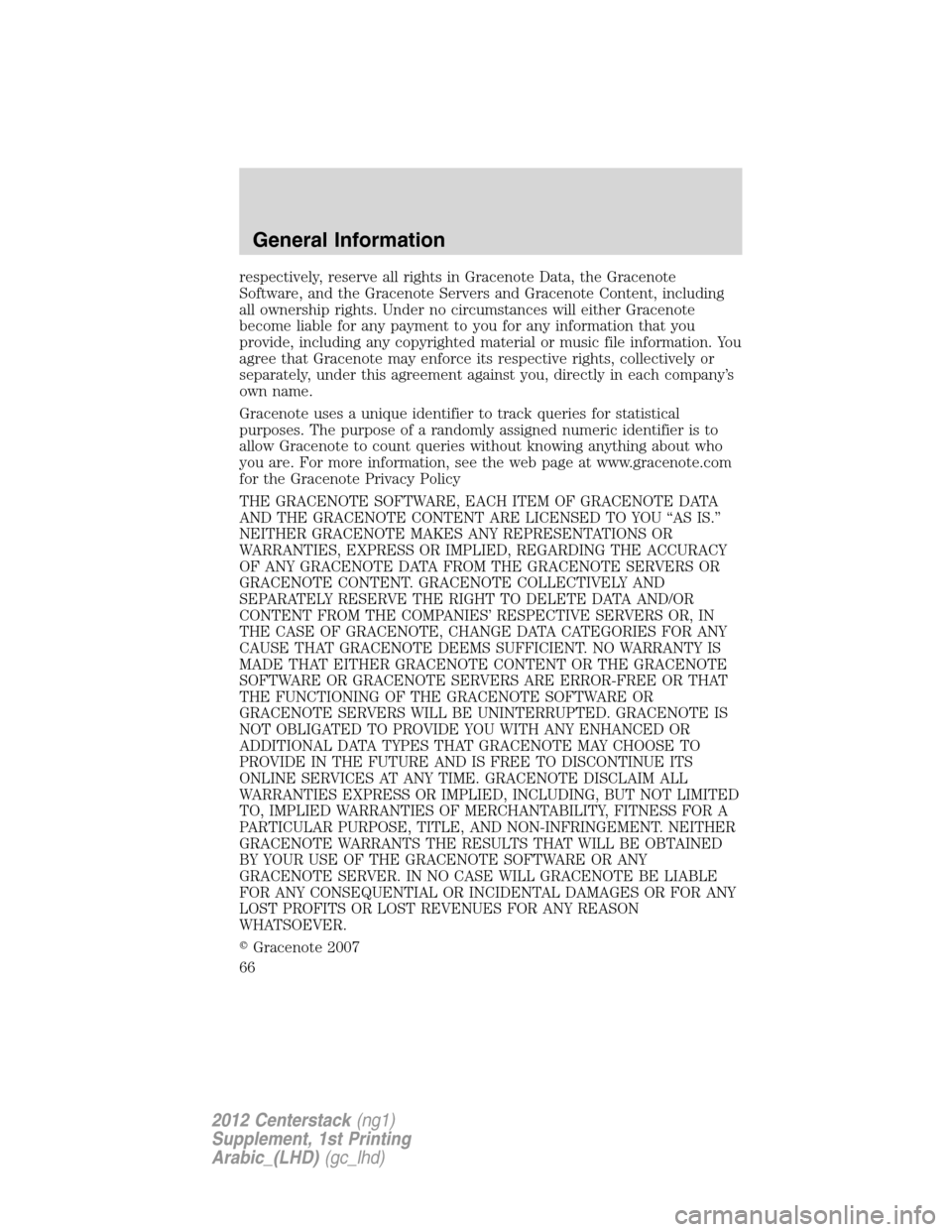

respectively, reserve all rights in Gracenote Data, the Gracenote
Software, and the Gracenote Servers and Gracenote Content, including
all ownership rights. Under no circumstances will either Gracenote
become liable for any payment to you for any information that you
provide, including any copyrighted material or music file information. You
agree that Gracenote may enforce its respective rights, collectively or
separately, under this agreement against you, directly in each company’s
own name.
Gracenote uses a unique identifier to track queries for statistical
purposes. The purpose of a randomly assigned numeric identifier is to
allow Gracenote to count queries without knowing anything about who
you are. For more information, see the web page at www.gracenote.com
for the Gracenote Privacy Policy
THE GRACENOTE SOFTWARE, EACH ITEM OF GRACENOTE DATA
AND THE GRACENOTE CONTENT ARE LICENSED TO YOU “AS IS.”
NEITHER GRACENOTE MAKES ANY REPRESENTATIONS OR
WARRANTIES, EXPRESS OR IMPLIED, REGARDING THE ACCURACY
OF ANY GRACENOTE DATA FROM THE GRACENOTE SERVERS OR
GRACENOTE CONTENT. GRACENOTE COLLECTIVELY AND
SEPARATELY RESERVE THE RIGHT TO DELETE DATA AND/OR
CONTENT FROM THE COMPANIES’ RESPECTIVE SERVERS OR, IN
THE CASE OF GRACENOTE, CHANGE DATA CATEGORIES FOR ANY
CAUSE THAT GRACENOTE DEEMS SUFFICIENT. NO WARRANTY IS
MADE THAT EITHER GRACENOTE CONTENT OR THE GRACENOTE
SOFTWARE OR GRACENOTE SERVERS ARE ERROR-FREE OR THAT
THE FUNCTIONING OF THE GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE UNINTERRUPTED. GRACENOTE IS
NOT OBLIGATED TO PROVIDE YOU WITH ANY ENHANCED OR
ADDITIONAL DATA TYPES THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE TO DISCONTINUE ITS
ONLINE SERVICES AT ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS THAT WILL BE OBTAINED
BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE
FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY
LOST PROFITS OR LOST REVENUES FOR ANY REASON
WHATSOEVER.
Gracenote 2007
General Information
66
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

PHONE DEPENDENT FEATURES
While SYNCsupports a variety of features, many are dependent upon
the functionality of your cell phone withBluetoothwireless technology.
At a minimum, most cellular phones withBluetoothwireless technology
support the following functions:
•Answering an incoming call
•Ending a call
•Using privacy mode
•Dial a number
•Redial
•Call waiting notification
•Caller ID
Other features, such as text messaging viaBluetooth,and automatic
phone book download are phone dependent features. To ensure that you
have a compatible cellular phone, refer to your phone’s user manual and
visit www.SyncMyRide.com or www.syncmaroute.ca.
QUICK START — HOW TO GET GOING
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Pairing your phone
Note:This is a speed dependent feature and will not work if your
vehicle is traveling at speeds greater than 3 mph (5 km/h).
The first thing you will need to do to get going is to pair your
Bluetoothenabled cellular phone with SYNC.
1. Press the PHONE hard button on the system.
SYNCphone features (if equipped)
69SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

Turning Bluetooth on/off
TurningBluetoothOFF will turn off access to all features to all SYNC
Bluetoothrelated features (i.e., text messaging, hands-free calling,
Bluetoothmedia streaming). Any incoming text or phone messages will
go into their respective missed folders.
To access:
1. Press the PHONE hard button.
2. Select the ‘Settings’ tab on the
touchscreen.
3. Select ‘Advanced’.
4. Select ‘Bluetooth On/Off’.
5. Select ‘On’ or ‘Off’.
SYNCphone features (if equipped)
78SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

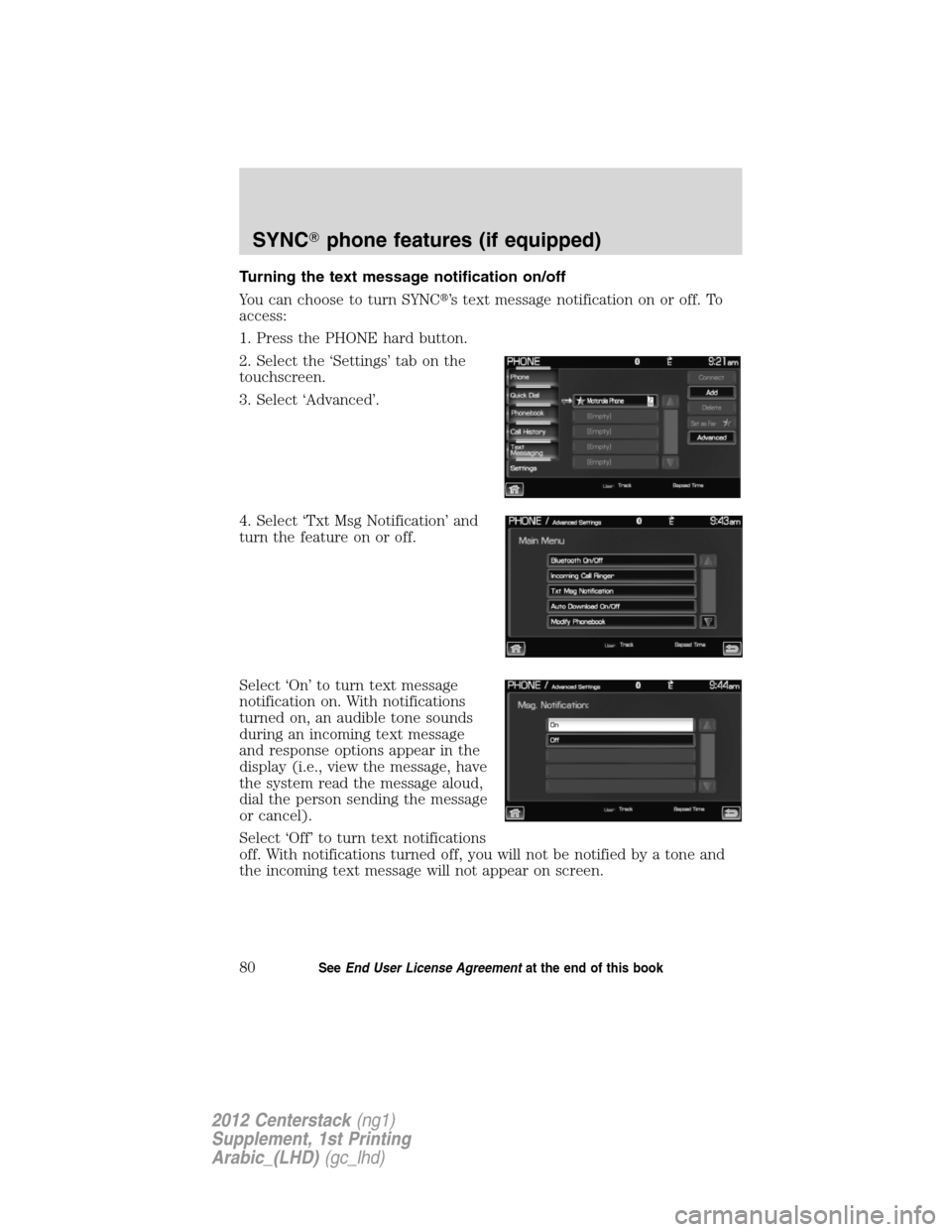

Turning the text message notification on/off
You can choose to turn SYNC’s text message notification on or off. To
access:
1. Press the PHONE hard button.
2. Select the ‘Settings’ tab on the
touchscreen.
3. Select ‘Advanced’.
4. Select ‘Txt Msg Notification’ and
turn the feature on or off.
Select ‘On’ to turn text message
notification on. With notifications
turned on, an audible tone sounds
during an incoming text message
and response options appear in the
display (i.e., view the message, have
the system read the message aloud,
dial the person sending the message
or cancel).
Select ‘Off’ to turn text notifications
off. With notifications turned off, you will not be notified by a tone and
the incoming text message will not appear on screen.
SYNCphone features (if equipped)
80SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

4. Scroll using/on the
touchscreen and select ‘System
Information’.
This screen will show you SYNC’s
system information.
TEXT MESSAGING
Note:Downloading and sending text messages viaBluetoothare phone
dependent features.
Note:Certain features in text messaging are speed dependent and
cannot be completed when the vehicle is traveling at speeds over 3 mph
(5 km/h).
SYNCnot only enables you to send and receive text messages via
Bluetooth, but SYNCwill read them to you aloud and also translate
many popularly used text messaging acronyms such as “lol”. SYNCalso
allows you to respond with a list of predefined messages.
To access:
1. Press the PHONE hard button.
SYNCphone features (if equipped)
87SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

•Ye s
•No
•Why?
•Thanks
•Where R you?
•I need more directions
•I love you
•Too funny
•Can’t wait to see you
•I’m stuck in traffic
5. Select the desired text message. In addition to your text, the message
will also contain a signature of : “This message was sent from myFord
or Lincolnvehicle.”
6. Press
Recipients. SYNCwill now allow you to choose to whom
you would like to send your text message.
Note:Only one recipient per text message is allowed.
7. Press ‘Phone Book’ to access your
phone book listings. Press
/
to cycle through the contacts. Press
the desired contact and press
Send.
Note:For quicker browsing, SYNCwill only make available the quick
sort buttons for the respective downloaded phone book contacts.
SYNCphone features (if equipped)
90SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

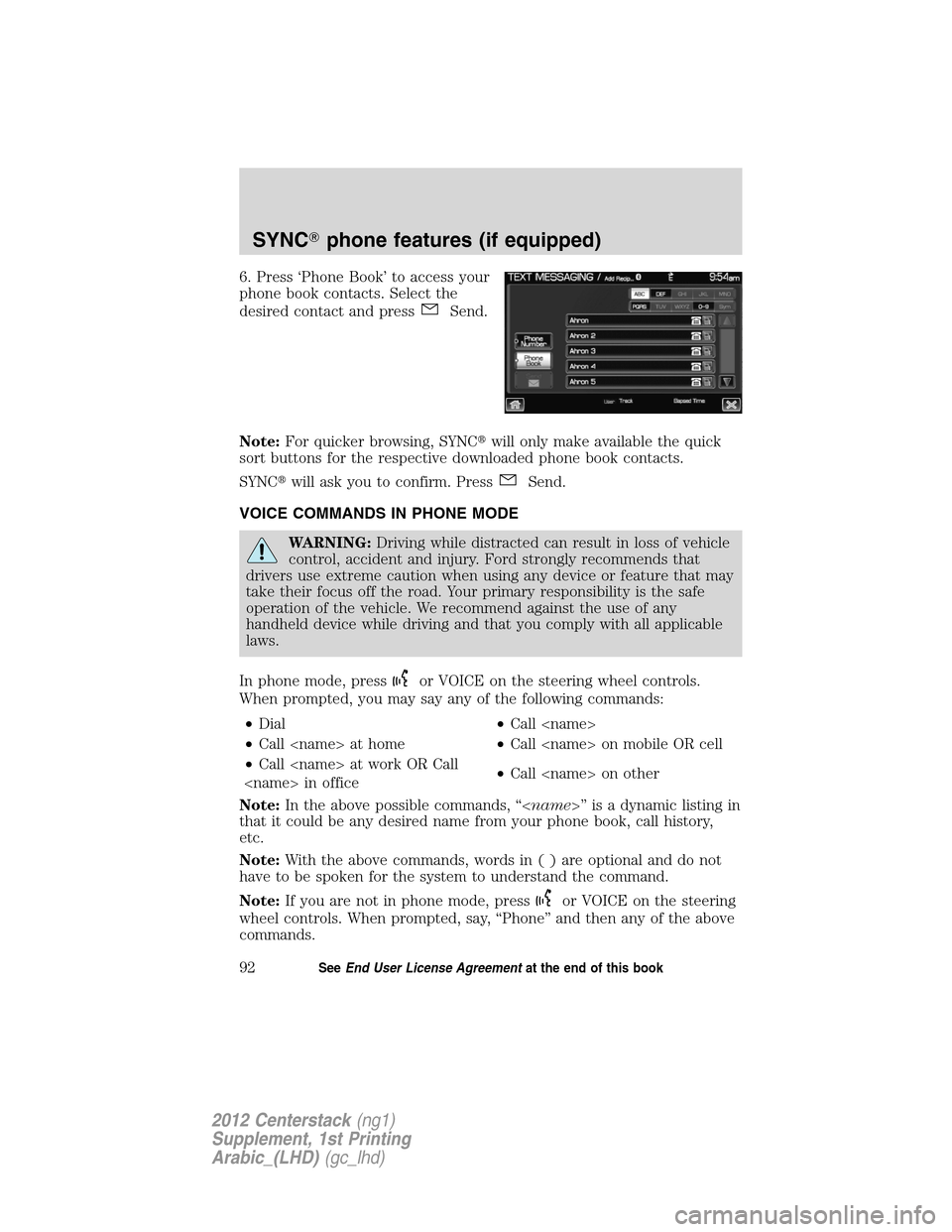

6. Press ‘Phone Book’ to access your
phone book contacts. Select the
desired contact and press
Send.
Note:For quicker browsing, SYNCwill only make available the quick
sort buttons for the respective downloaded phone book contacts.
SYNCwill ask you to confirm. Press
Send.
VOICE COMMANDS IN PHONE MODE
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
In phone mode, press
or VOICE on the steering wheel controls.
When prompted, you may say any of the following commands:
•Dial•Call
•Call at home•Call on mobile OR cell
•Call at work OR Call
in office•Call on other
Note:In the above possible commands, “” is a dynamic listing in
that it could be any desired name from your phone book, call history,
etc.
Note:With the above commands, words in()areoptional and do not
have to be spoken for the system to understand the command.
Note:If you are not in phone mode, press
or VOICE on the steering
wheel controls. When prompted, say, “Phone” and then any of the above
commands.
SYNCphone features (if equipped)
92SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

In phone mode, you can say “Dial” to access any of the following
commands:
• 0–9•Dial
•Delete (deletes one digit)•Clear (deletes all entered digits)
•Plus•Star
•Asterisk (*)•800 (eight hundred)
•700 (seven hundred)•900 (nine hundred)
•411 (four-one-one), 911
(nine-one-one), etc.•# / (pound, slash)
In phone mode, you may say these commands at any time:
•Phone•Voice settings
•Exit•Help
In voice settings mode, you may say:
•Phone candidate lists on•Phone candidate lists off
Phone candidate listsare a list of possible results from your voice
commands. These occur when SYNC has equal confidence of several
possible results from your voice command.
Clarification through candidate lists
Candidate lists are created when the system has several possible options
of similar level of confidence as a result of your request. The system will
submit back to you as many as five possibilities for your clarification.
This may happen either with your phone book and/or music selections.
Example #1:
You want to call John Doe at home, so you say, “Call John Doe at home”.
If the system has a similar confidence level for a few items, it may
respond with:
•(initial tone) “Say 1 after the tone to call John Doe at home. Say 2
after the tone to call Johnny Doe on mobile. Say 3 after the tone to
call Jane Doe at home.” (listen tone)
Example #2:
You want to listen to a certain artist, so you say, “Play Artist John”. If the
system has a similar confidence level for two possible options, it may
respond with:
•(initial tone) “Say 1 after the tone to play John Doe. Say 2 after the
tone to play Johnny Doe.” (listen tone)
SYNCphone features (if equipped)
93SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

VOICE COMMANDS WHEN USING THE USB PORT
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
When using the USB port, press
or VOICE on the steering wheel
controls. When prompted, say “User Device” and any of the following
commands:
•Play all•Play
•Pause•What’s playing?
•Similar music•Play next track
•Play previous track•Play next folder
2
•Shuffle on•Shuffle off
•Play previous folder2•Autoplay on
•Autoplay off•Repeat on
•Repeat off•Play album
•Play genre
1•Play playlist 1
•Play track 1•Play artist 1
•Voice settings
In voice settings mode, press
or VOICE on the steering wheel
controls. When prompted, you may say the following commands:
•Media candidate lists on•Media candidate lists off
1Voice commands are not available until indexing is complete.
2Voice commands only available in folder mode. For more information,
refer toExploring the USB device.
Note:In the above possible commands,“name”is a dynamic listing in
that it could be the name of any desired group, artist, etc.
Media candidate lists:These are a list of possible results from your
voice commands. These occur when SYNC has equal confidence of
several possible results from your voice command.
SYNCmedia features (if equipped)
106SeeEnd User License Agreementat the end of this book
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)
