Page 371 of 454

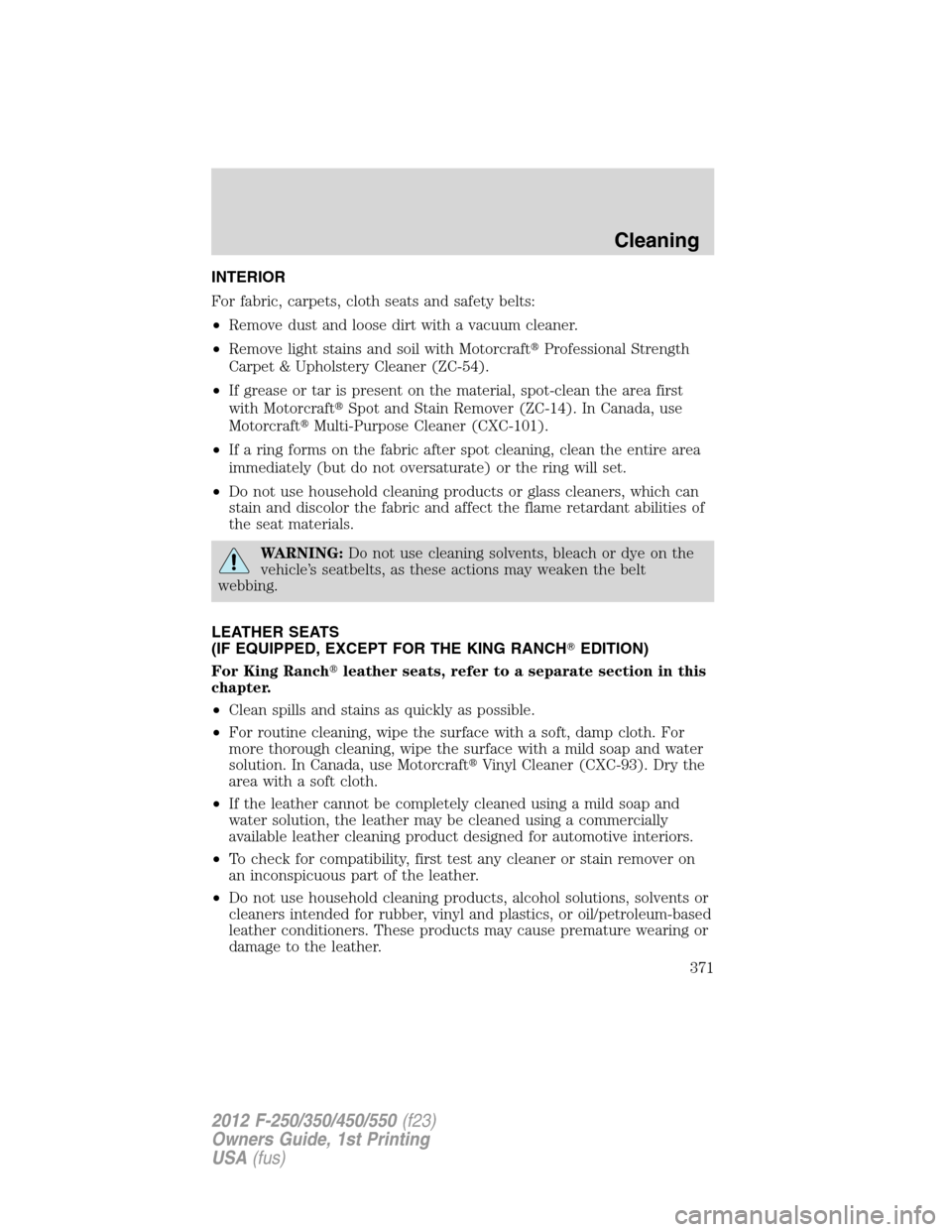

FORD SUPER DUTY 2012 3.G Owners Manual INTERIOR
For fabric, carpets, cloth seats and safety belts:
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with MotorcraftProfessional Strength
Carpet & Upholste

Page 372 of 454

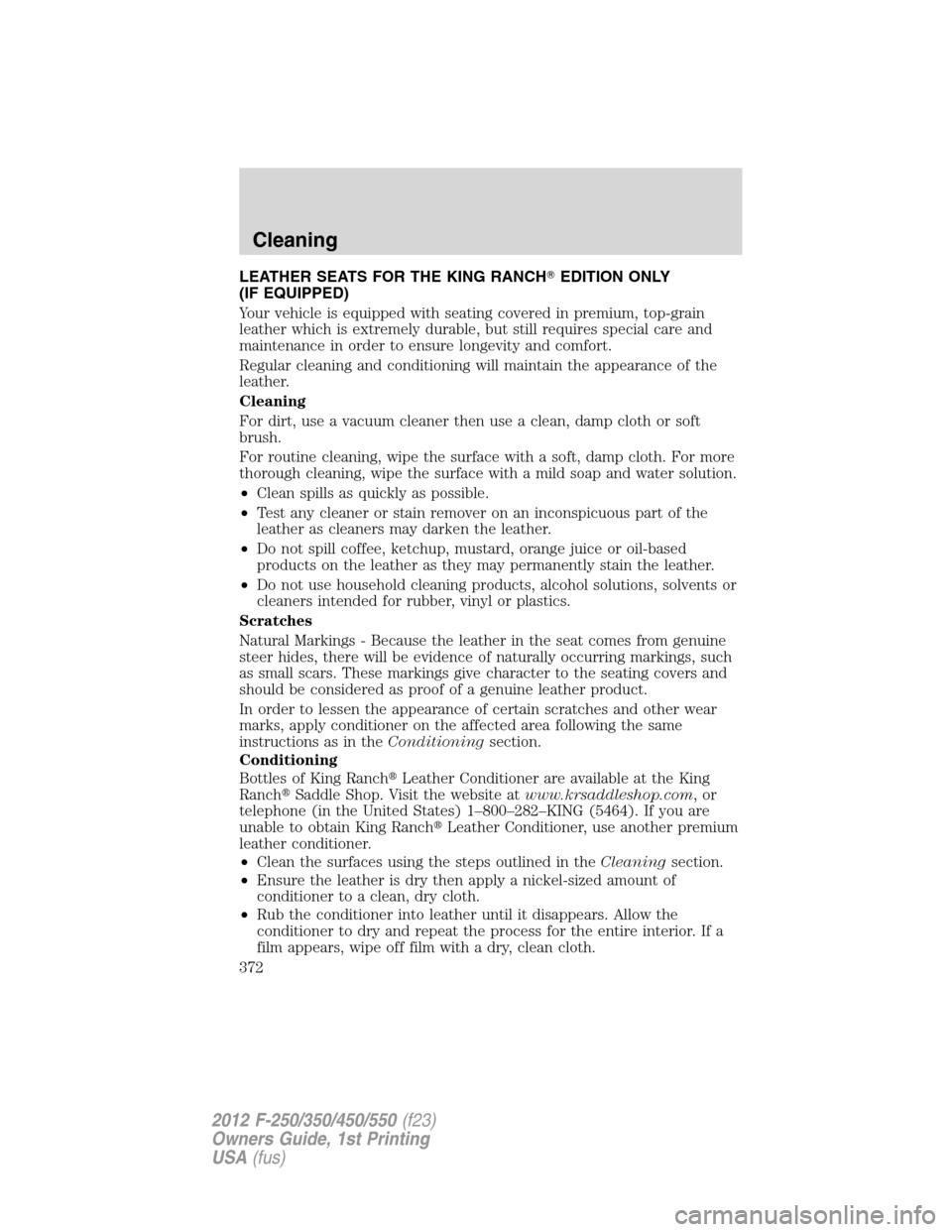

FORD SUPER DUTY 2012 3.G Owners Manual LEATHER SEATS FOR THE KING RANCHEDITION ONLY
(IF EQUIPPED)
Your vehicle is equipped with seating covered in premium, top-grain
leather which is extremely durable, but still requires special care and

Page 373 of 454

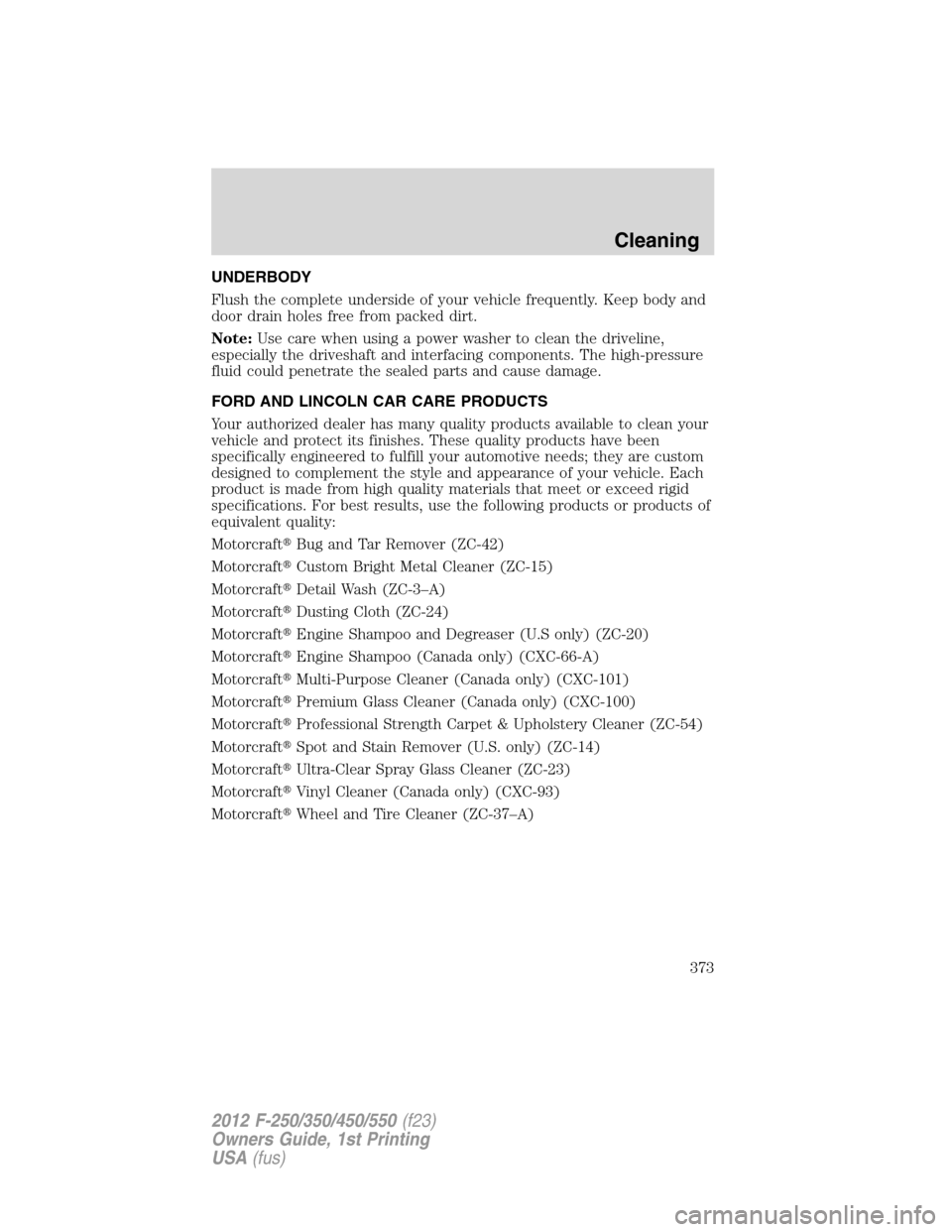

FORD SUPER DUTY 2012 3.G Owners Manual UNDERBODY
Flush the complete underside of your vehicle frequently. Keep body and
door drain holes free from packed dirt.
Note:Use care when using a power washer to clean the driveline,
especially the

Page 374 of 454

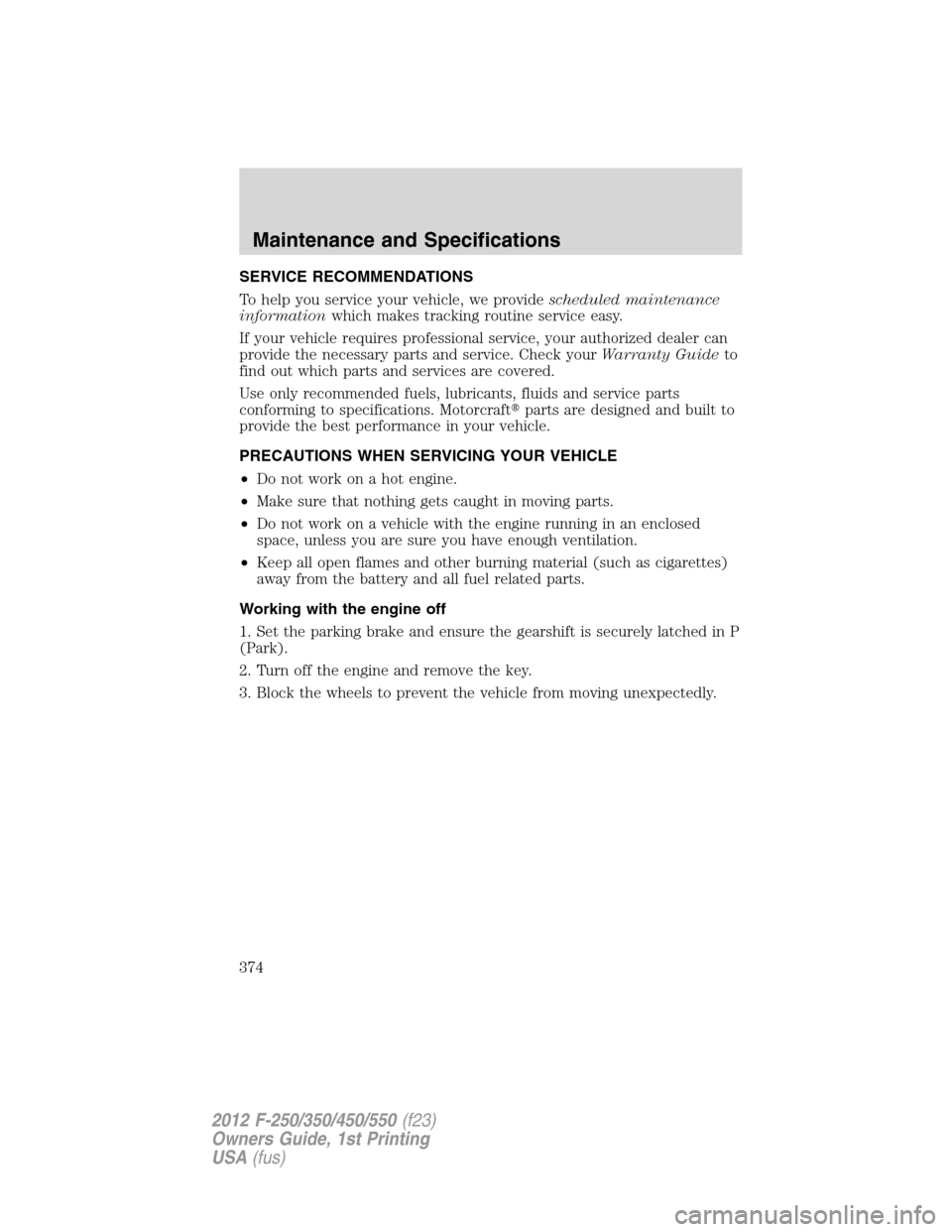

FORD SUPER DUTY 2012 3.G Owners Manual SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your auth

Page 375 of 454

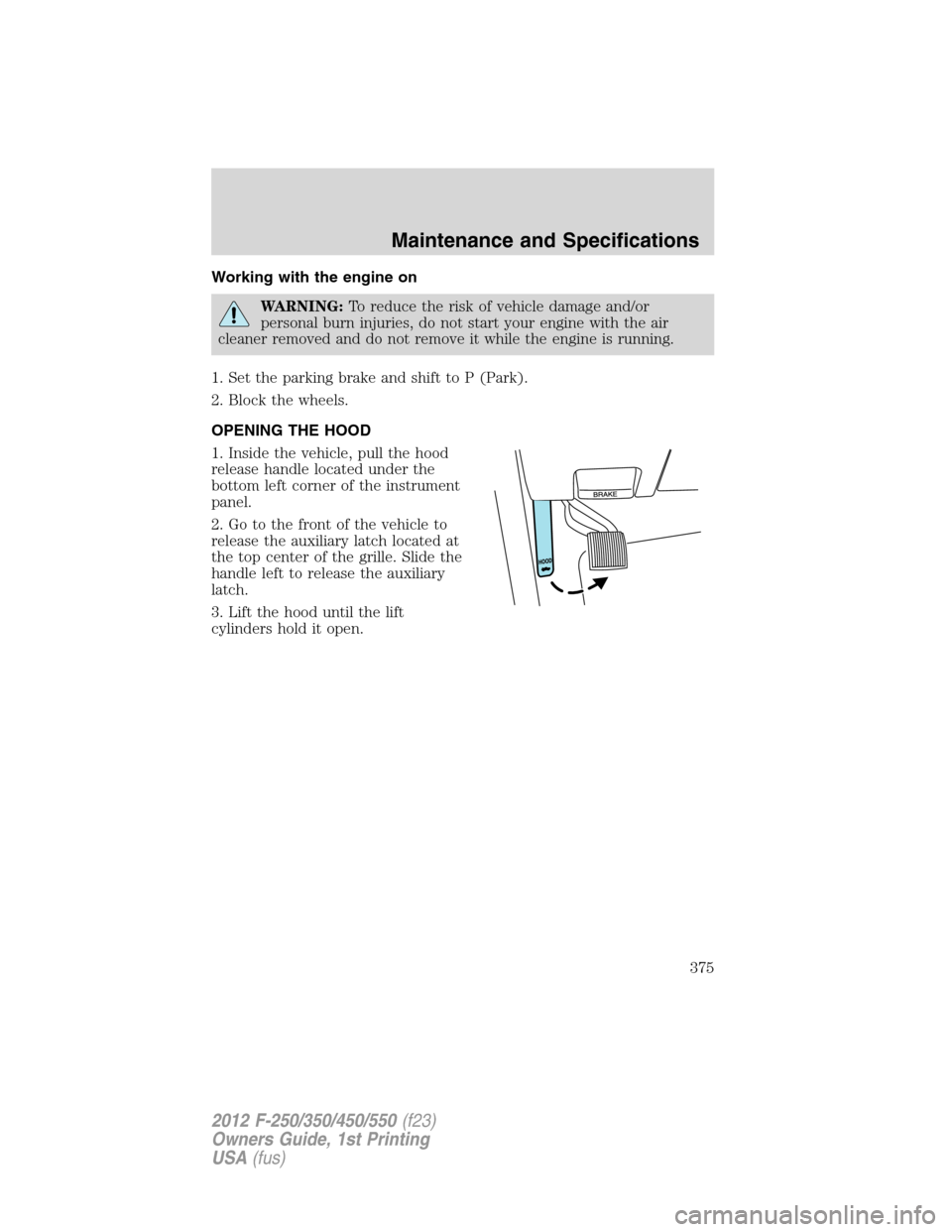

FORD SUPER DUTY 2012 3.G Owners Manual Working with the engine on
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries, do not start your engine with the air
cleaner removed and do not remove it while the engine is ru

Page 376 of 454

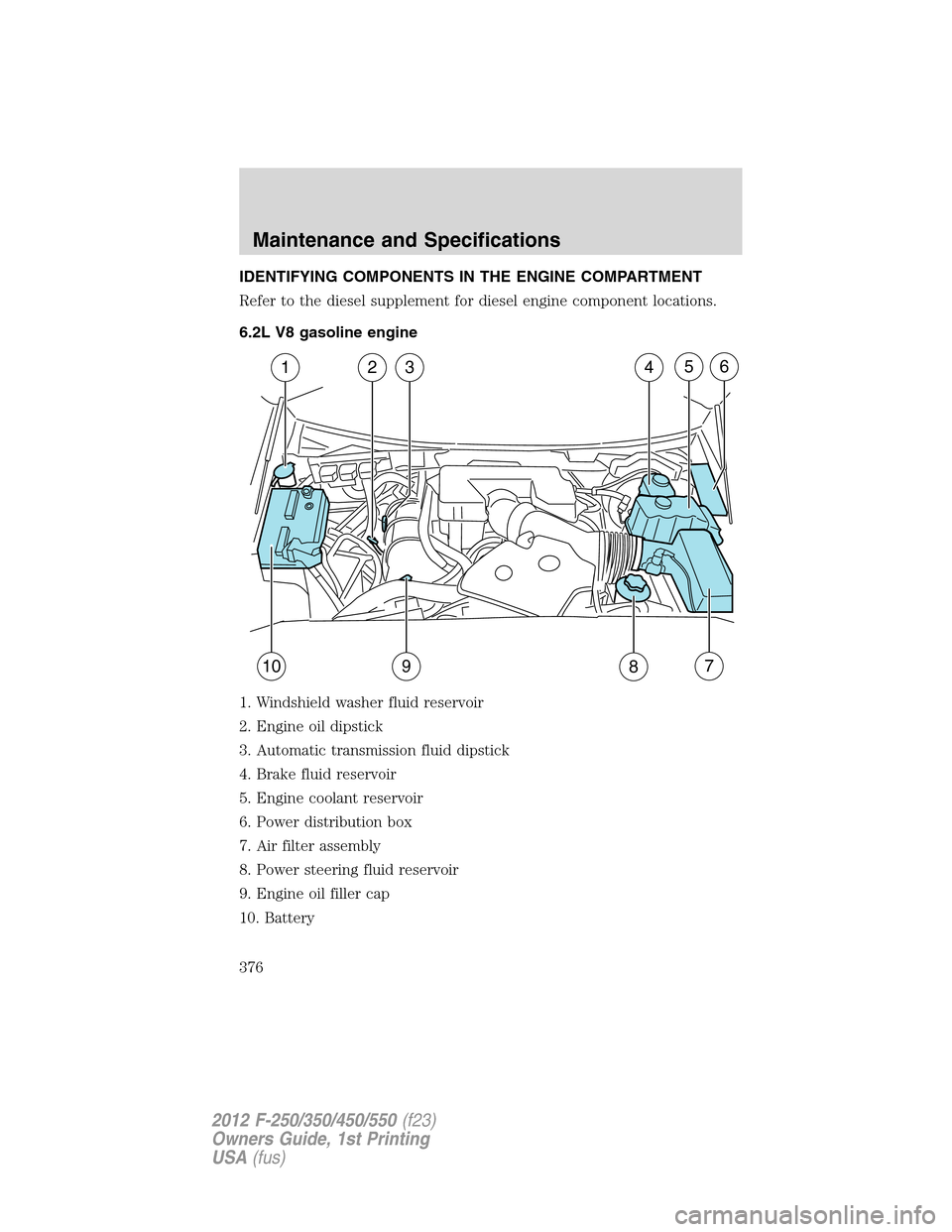

FORD SUPER DUTY 2012 3.G Owners Manual IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
Refer to the diesel supplement for diesel engine component locations.
6.2L V8 gasoline engine
1. Windshield washer fluid reservoir
2. Engine oil dipsti

Page 377 of 454

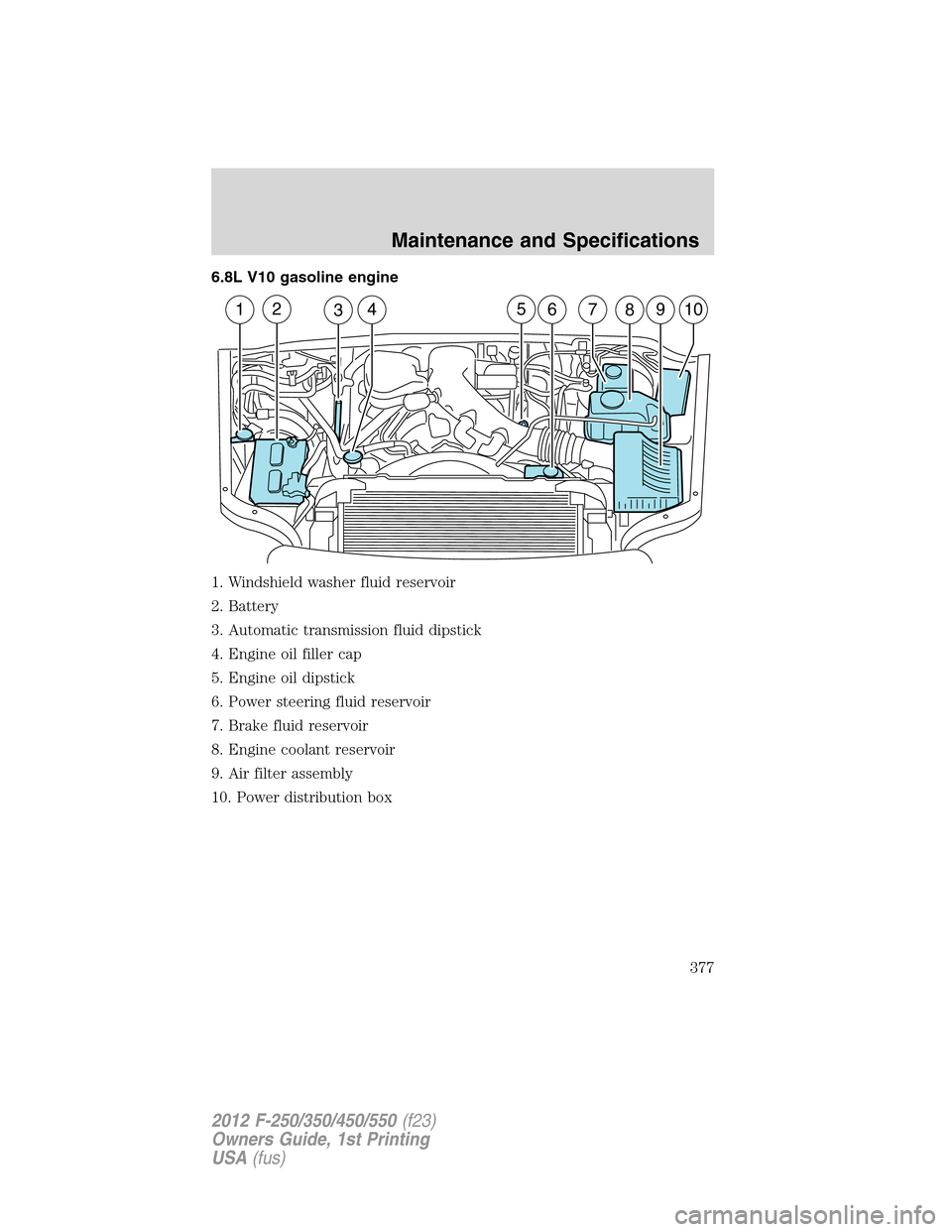

FORD SUPER DUTY 2012 3.G Owners Manual 6.8L V10 gasoline engine
1. Windshield washer fluid reservoir
2. Battery
3. Automatic transmission fluid dipstick
4. Engine oil filler cap
5. Engine oil dipstick
6. Power steering fluid reservoir
7. B

Page 378 of 454

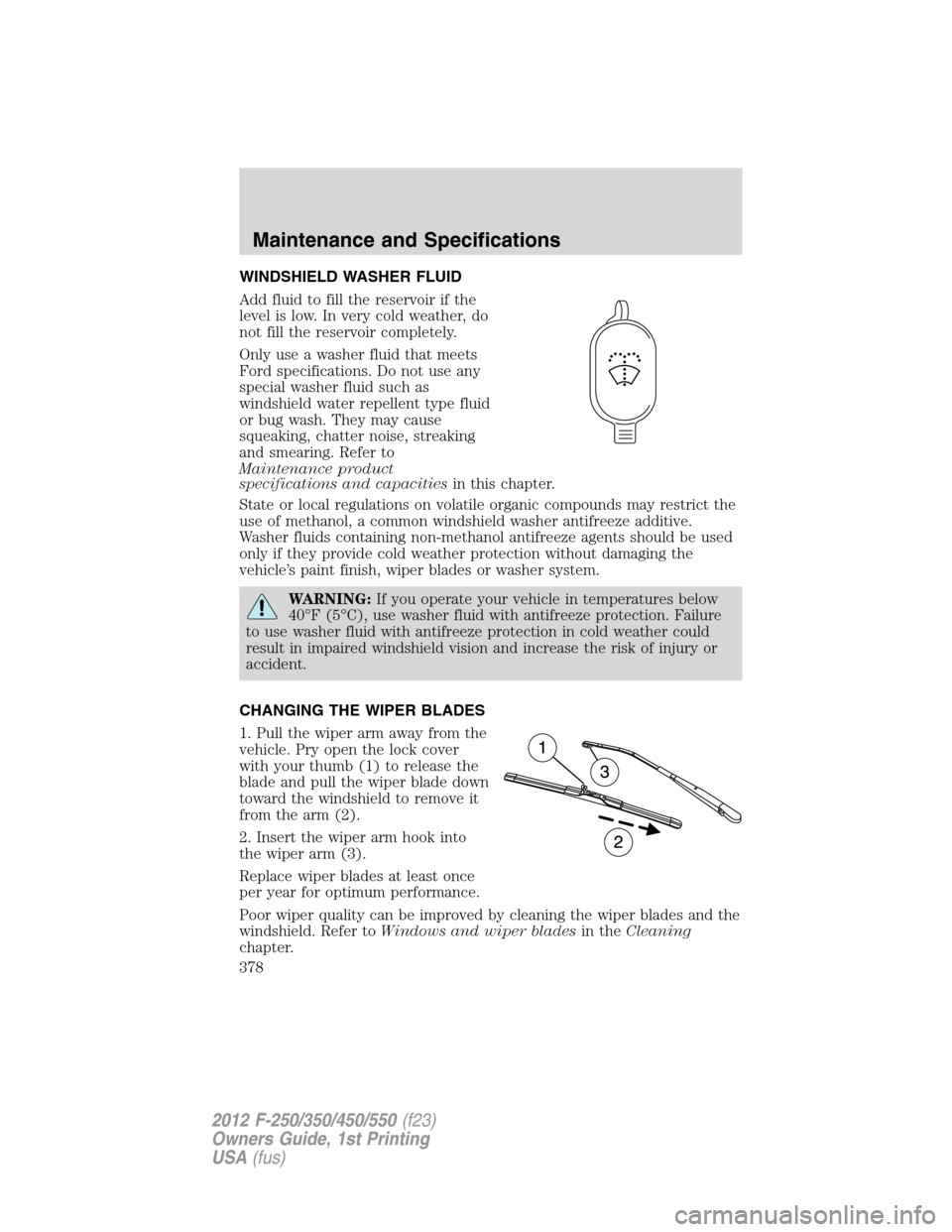

FORD SUPER DUTY 2012 3.G Owners Manual WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specifications. Do not

Page 379 of 454

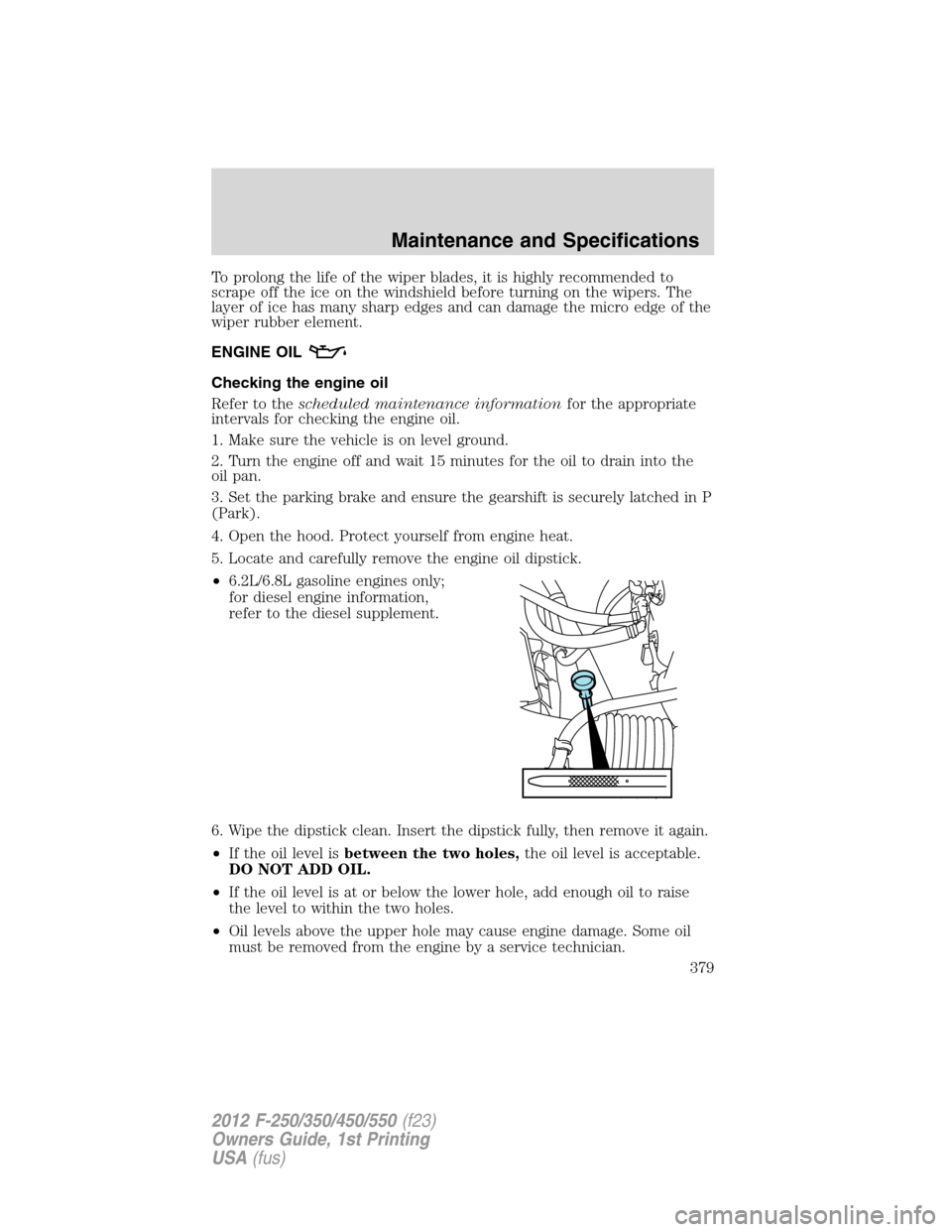

FORD SUPER DUTY 2012 3.G Owners Manual To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro e

Page 380 of 454

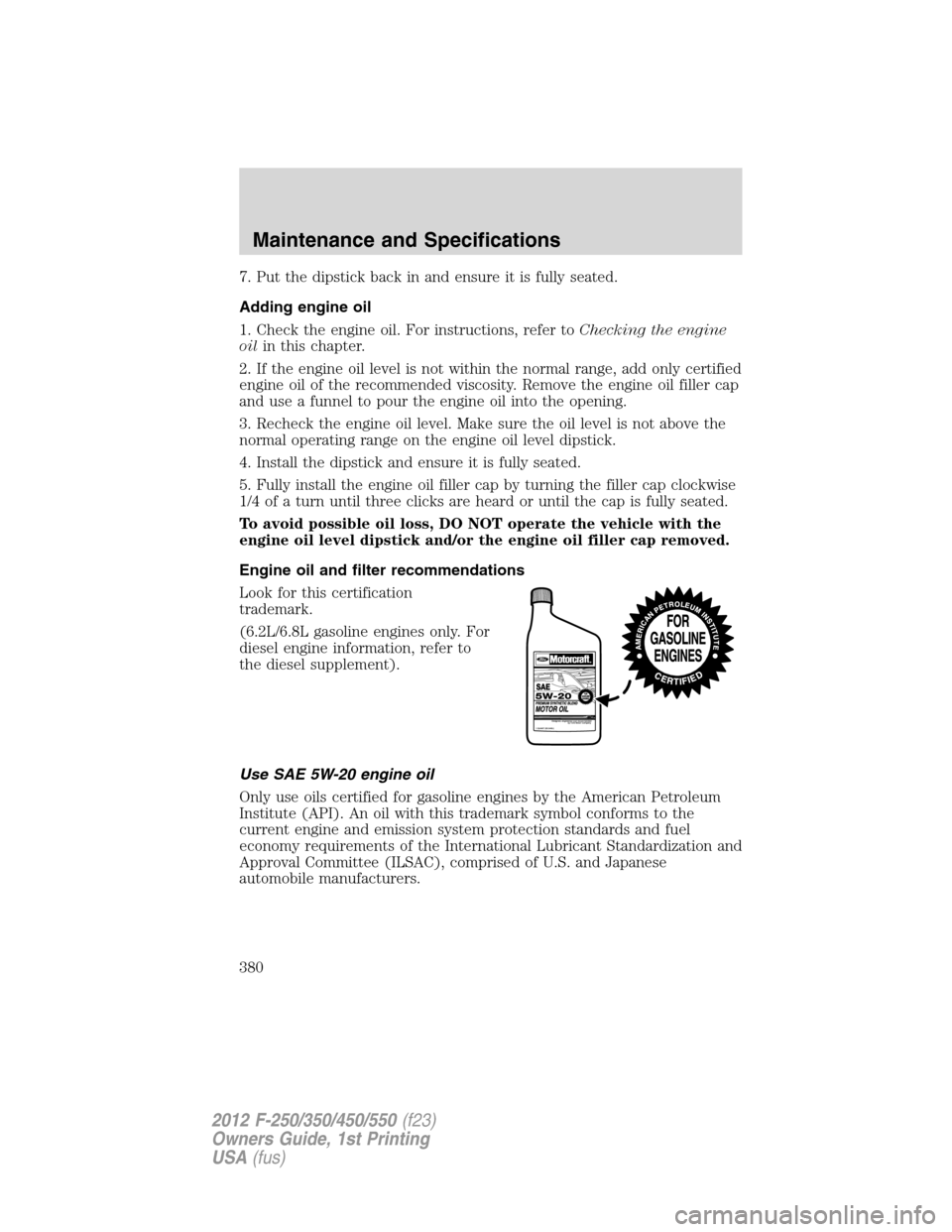

FORD SUPER DUTY 2012 3.G Owners Manual 7. Put the dipstick back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is no
