Page 401 of 454

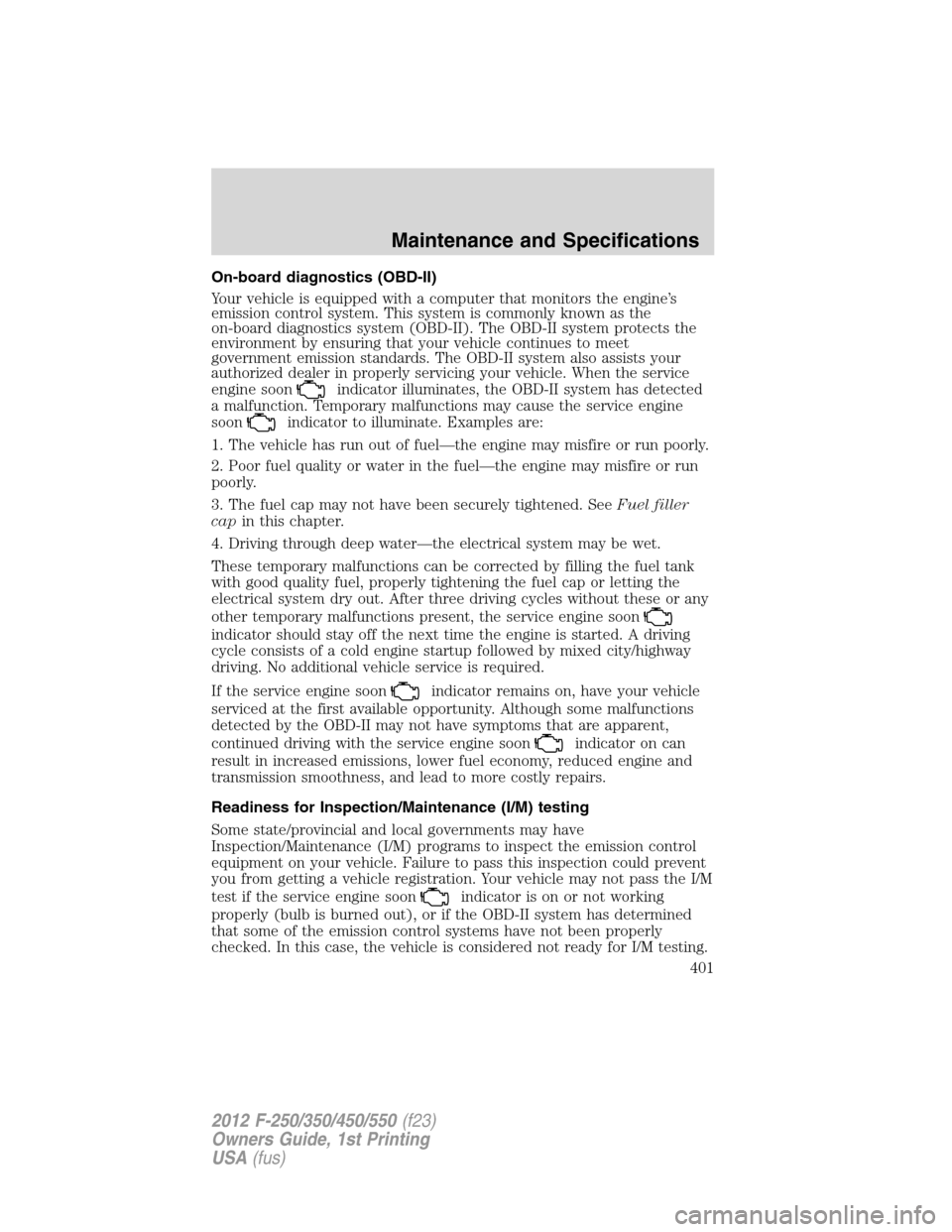

FORD SUPER DUTY 2012 3.G Owners Manual On-board diagnostics (OBD-II)
Your vehicle is equipped with a computer that monitors the engine’s
emission control system. This system is commonly known as the
on-board diagnostics system (OBD-II).

Page 402 of 454

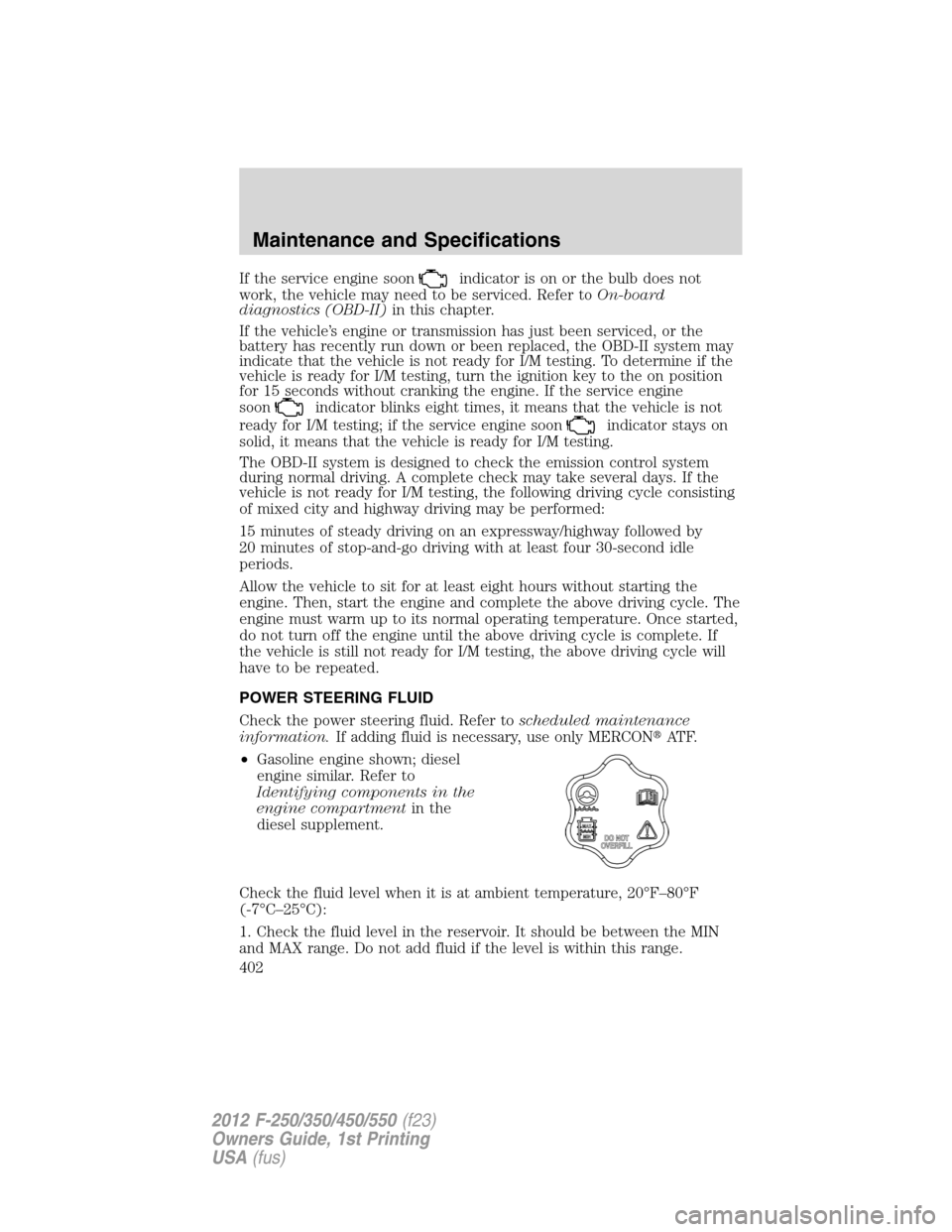

FORD SUPER DUTY 2012 3.G Owners Manual If the service engine soonindicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer toOn-board
diagnostics (OBD-II)in this chapter.
If the vehicle’s engine or transmissio

Page 403 of 454

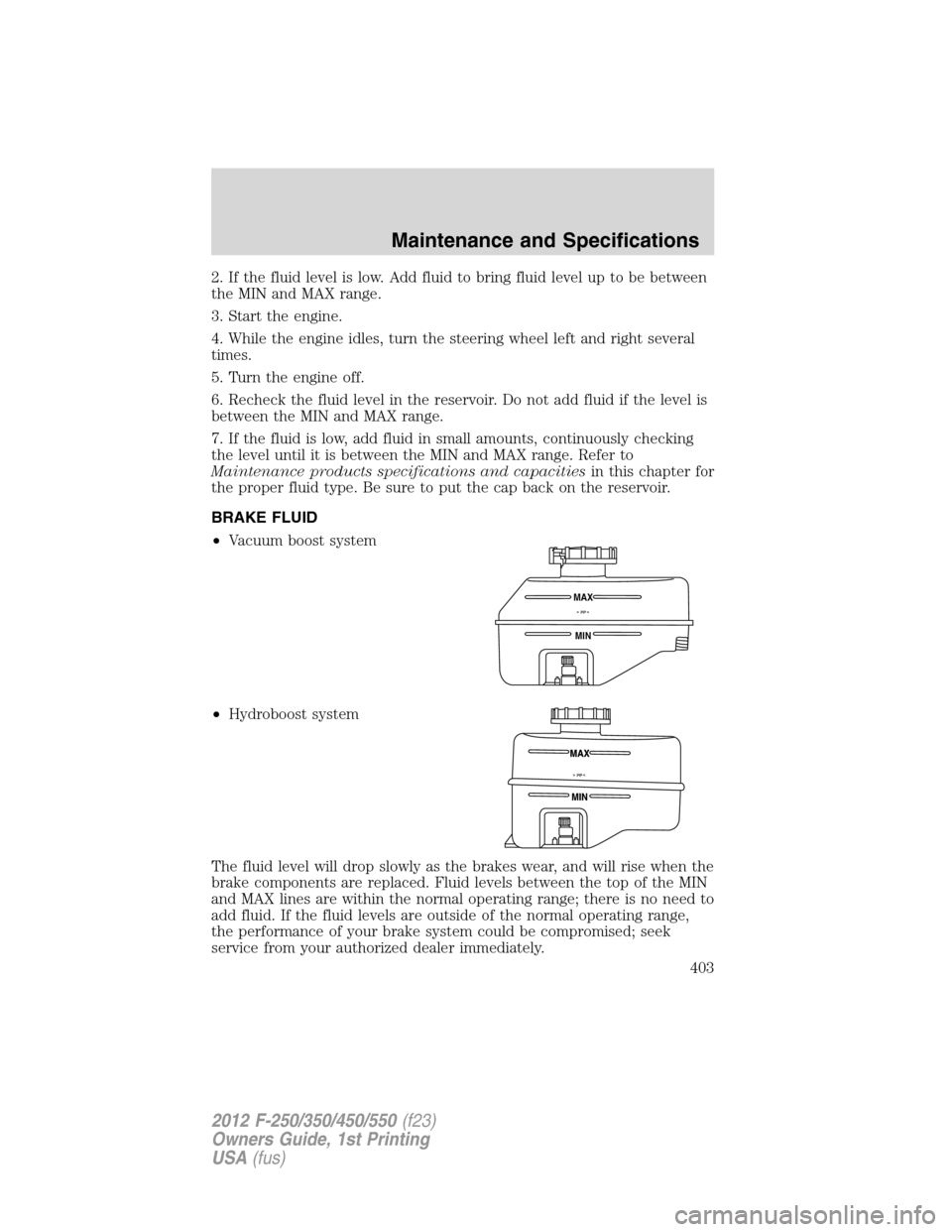

FORD SUPER DUTY 2012 3.G Owners Manual 2. If the fluid level is low. Add fluid to bring fluid level up to be between
the MIN and MAX range.
3. Start the engine.
4. While the engine idles, turn the steering wheel left and right several
time

Page 404 of 454

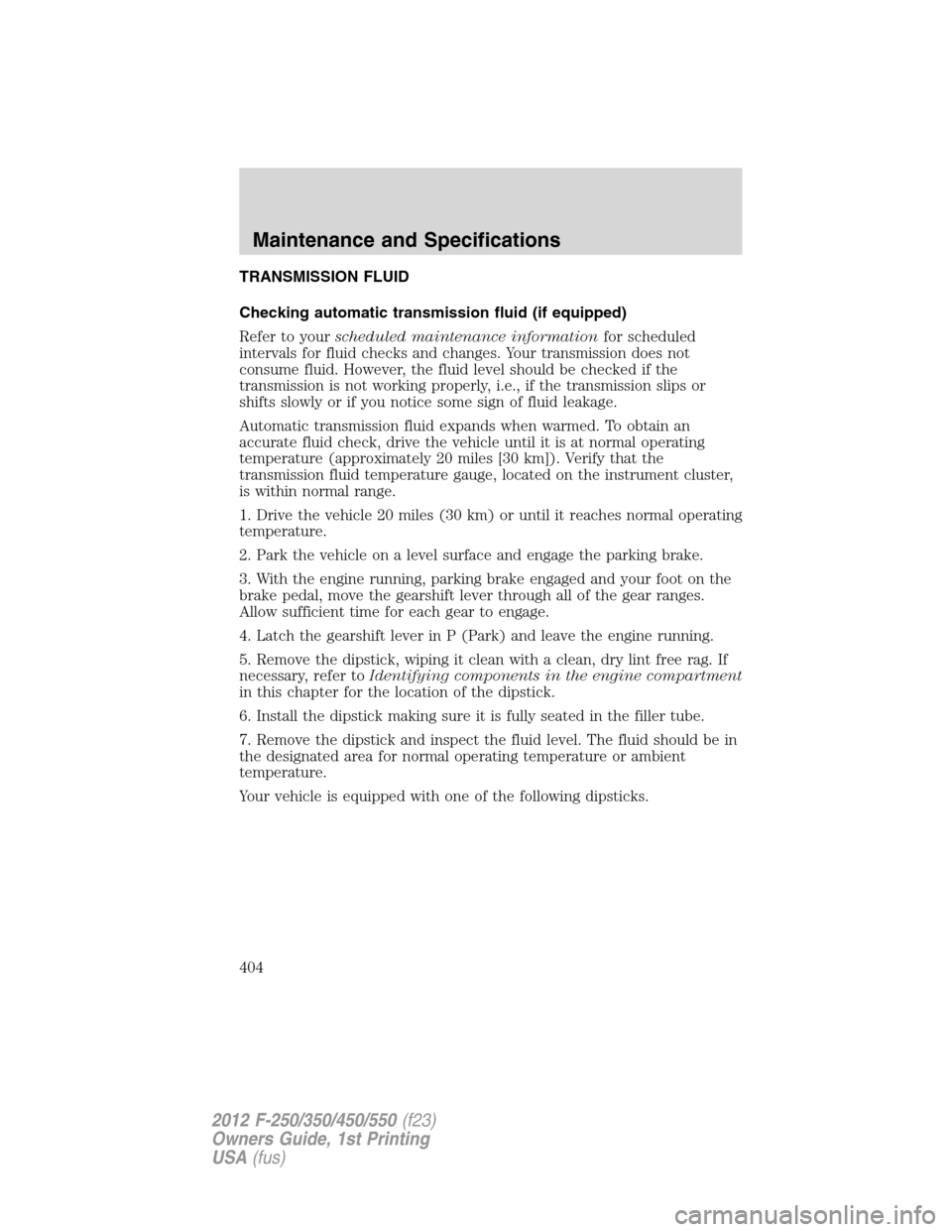

FORD SUPER DUTY 2012 3.G Owners Manual TRANSMISSION FLUID
Checking automatic transmission fluid (if equipped)
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
co

Page 405 of 454

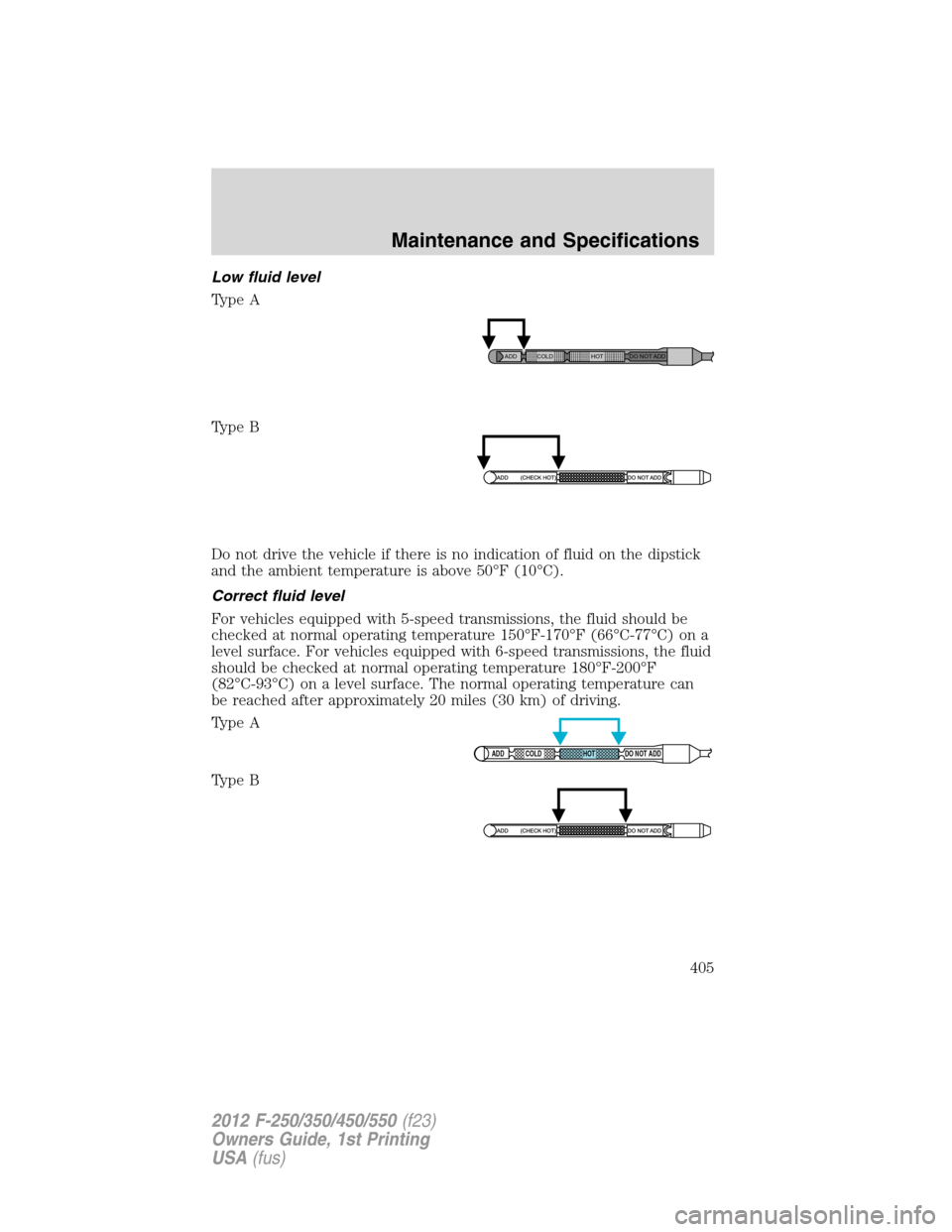

FORD SUPER DUTY 2012 3.G Owners Manual Low fluid level
Type A
Type B
Do not drive the vehicle if there is no indication of fluid on the dipstick
and the ambient temperature is above 50°F (10°C).
Correct fluid level
For vehicles equipped

Page 406 of 454

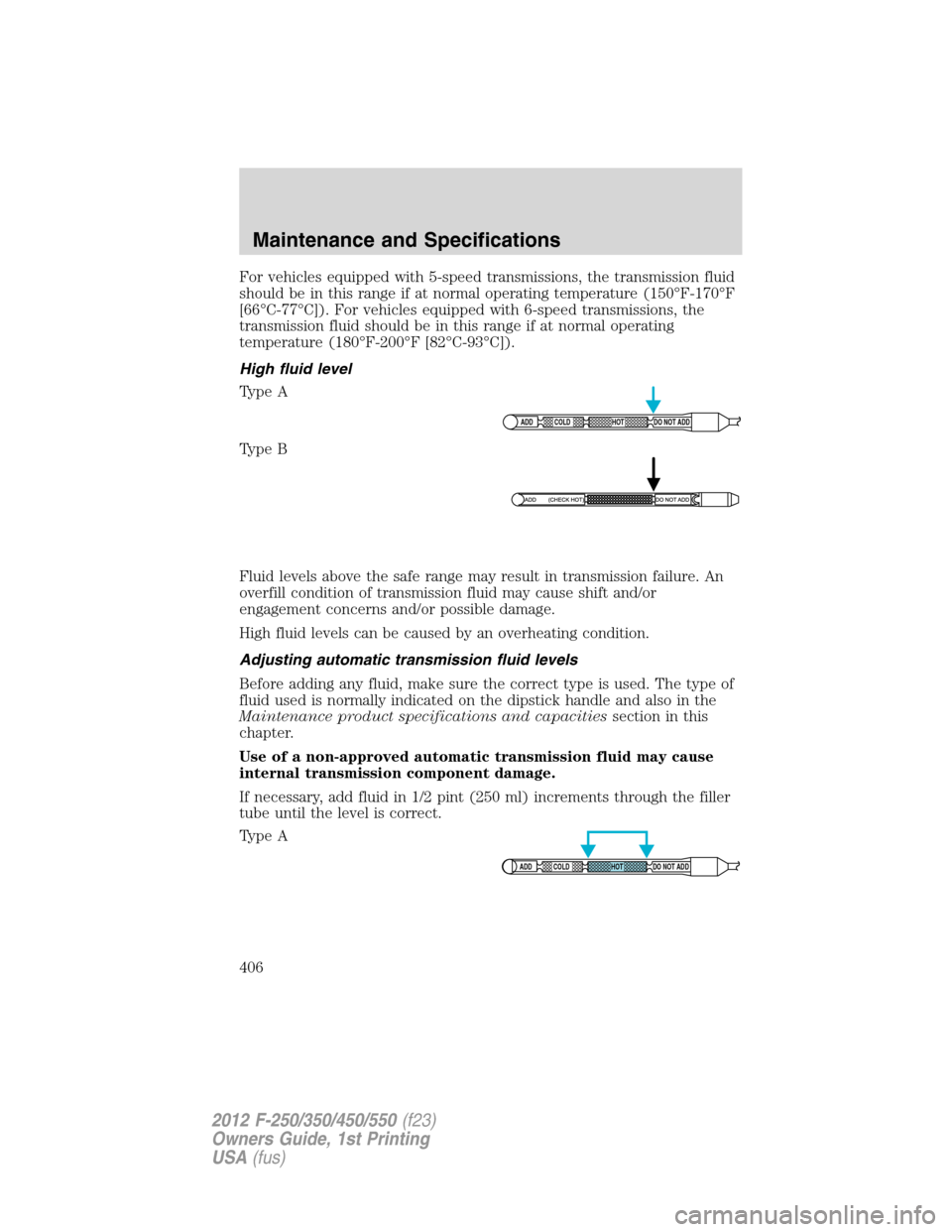

FORD SUPER DUTY 2012 3.G Owners Manual For vehicles equipped with 5-speed transmissions, the transmission fluid
should be in this range if at normal operating temperature (150°F-170°F
[66°C-77°C]). For vehicles equipped with 6-speed tr

Page 407 of 454

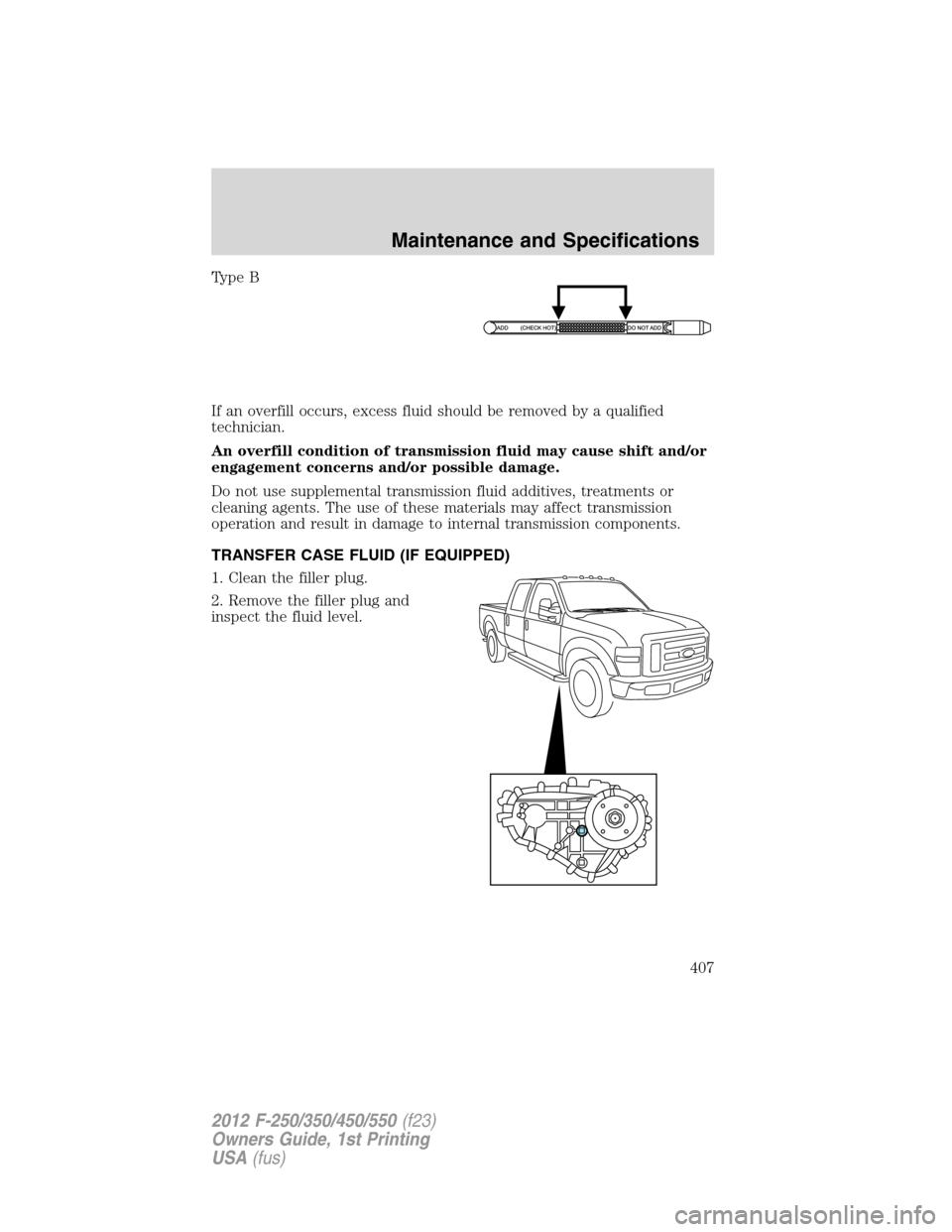

FORD SUPER DUTY 2012 3.G Owners Manual Type B
If an overfill occurs, excess fluid should be removed by a qualified
technician.
An overfill condition of transmission fluid may cause shift and/or
engagement concerns and/or possible damage.
D

Page 408 of 454

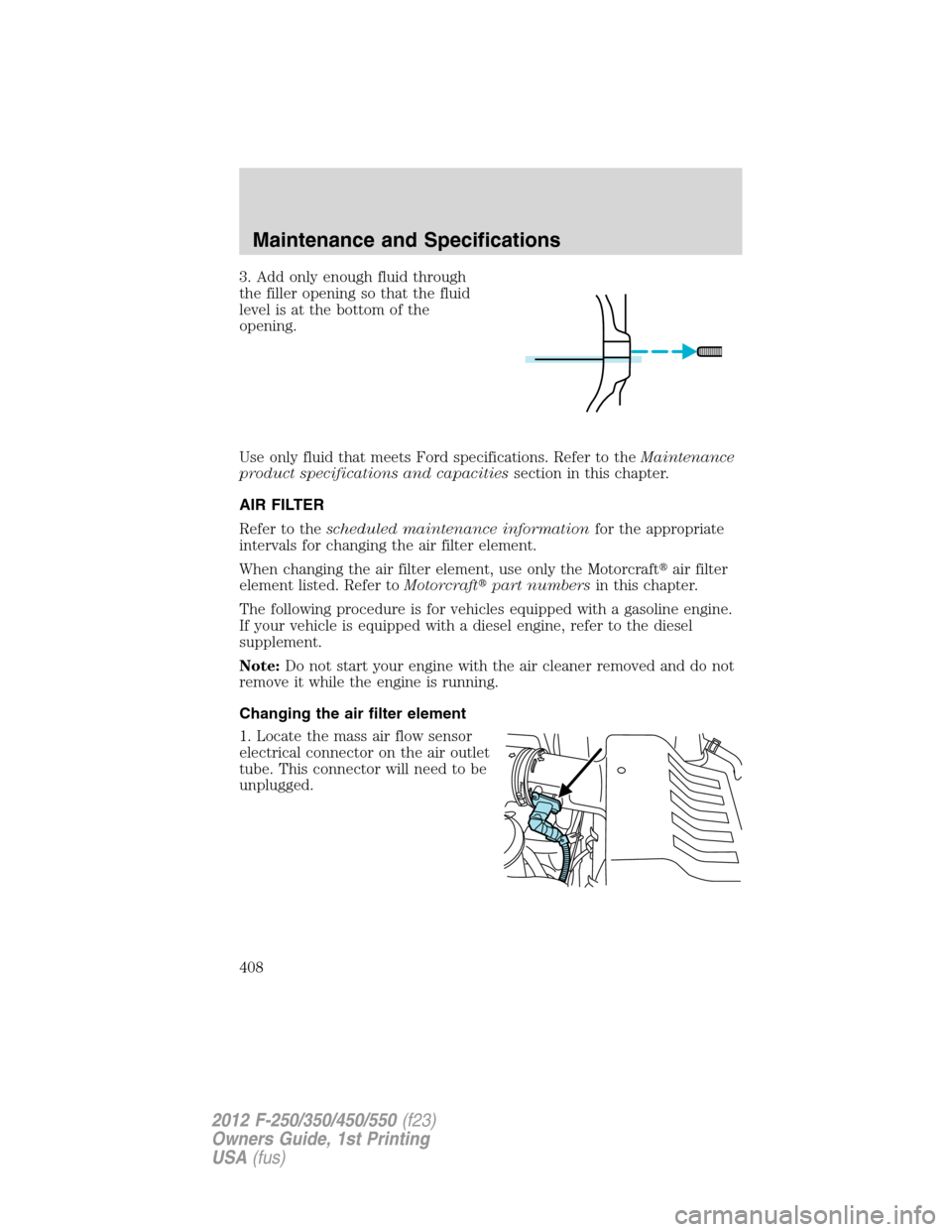

FORD SUPER DUTY 2012 3.G Owners Manual 3. Add only enough fluid through
the filler opening so that the fluid
level is at the bottom of the
opening.
Use only fluid that meets Ford specifications. Refer to theMaintenance
product specificatio

Page 409 of 454

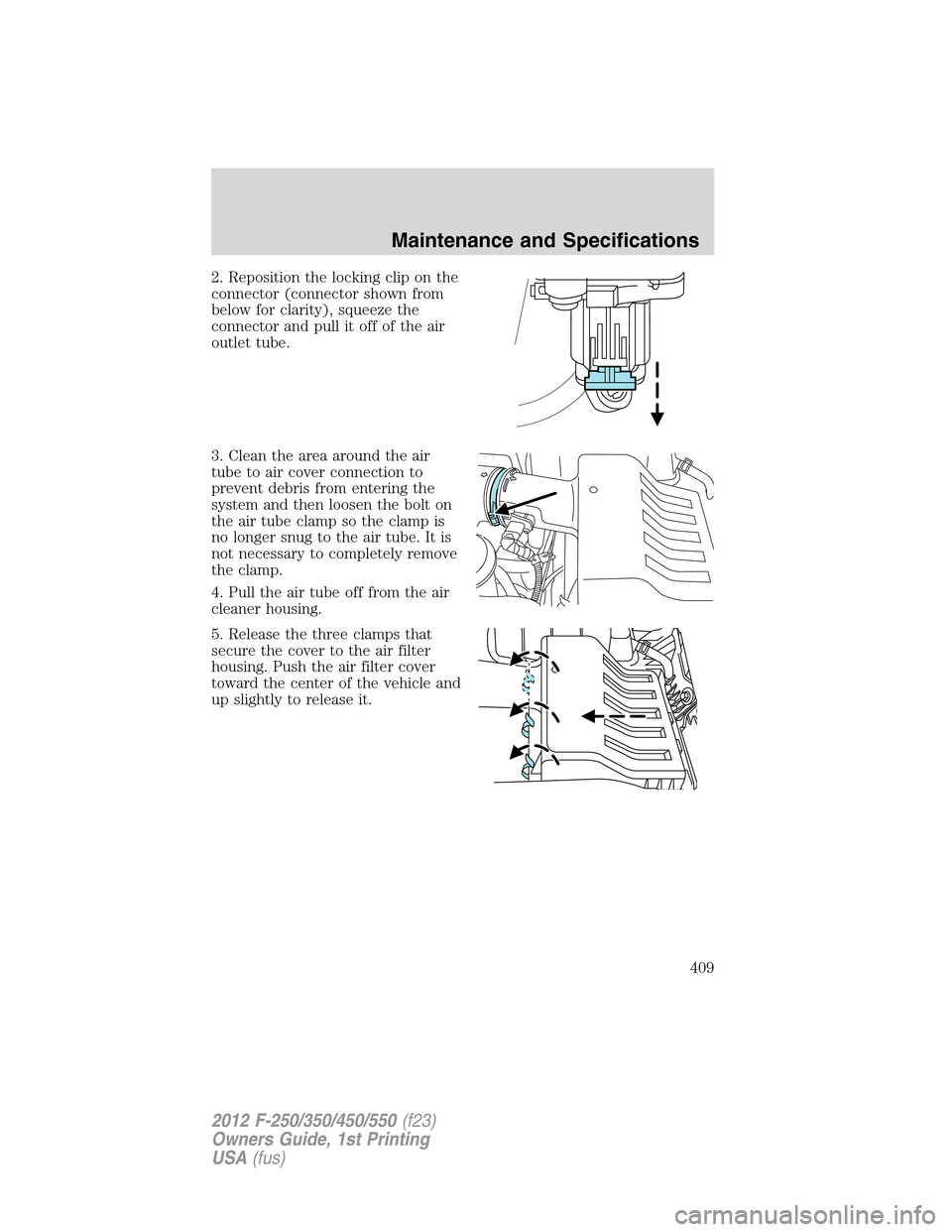

FORD SUPER DUTY 2012 3.G Owners Manual 2. Reposition the locking clip on the
connector (connector shown from
below for clarity), squeeze the
connector and pull it off of the air
outlet tube.
3. Clean the area around the air
tube to air cov

Page 410 of 454

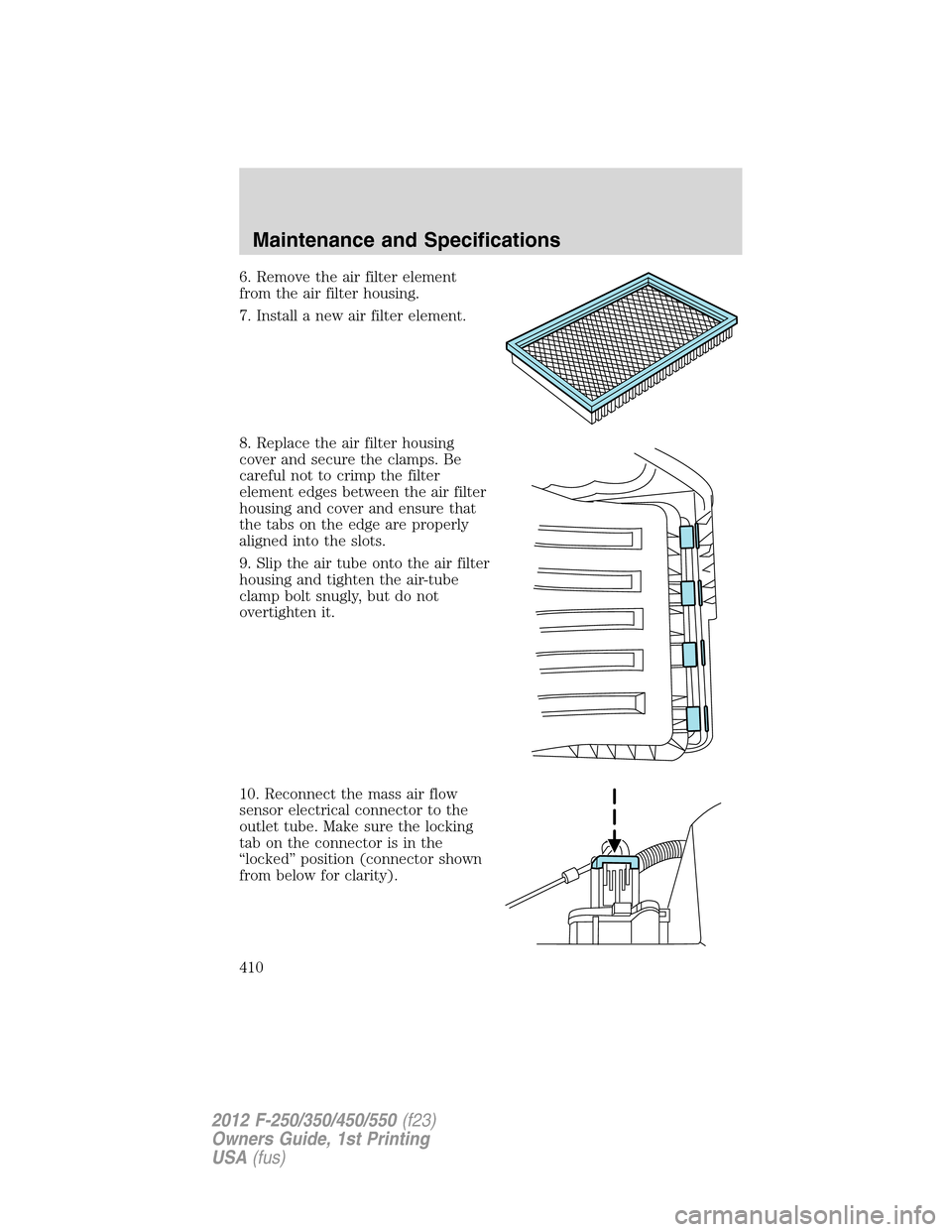

FORD SUPER DUTY 2012 3.G Owners Manual 6. Remove the air filter element
from the air filter housing.
7. Install a new air filter element.
8. Replace the air filter housing
cover and secure the clamps. Be
careful not to crimp the filter
ele
