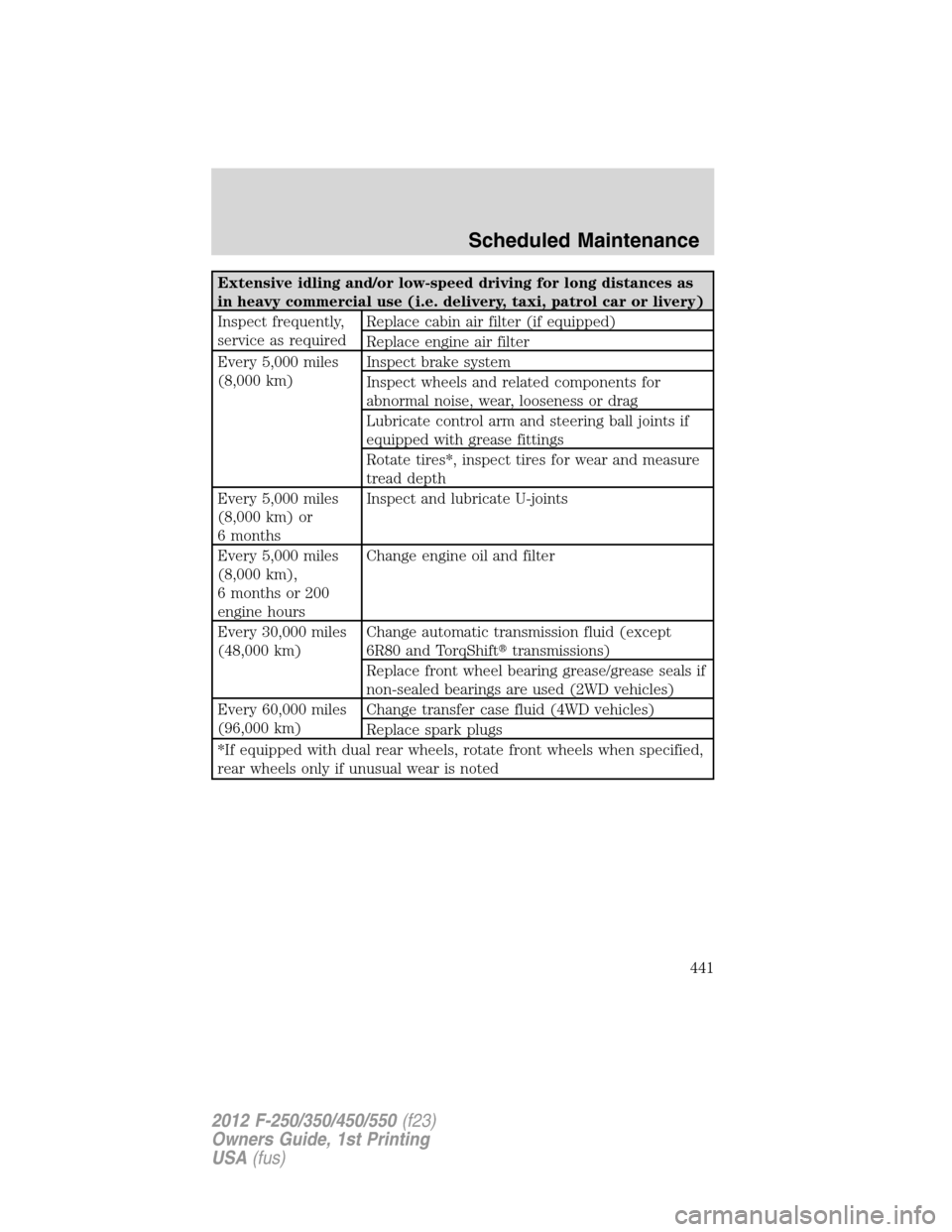

Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect brake system
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Lubricate control arm and steering ball joints if
equipped with grease fittings
Rotate tires*, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsInspect and lubricate U-joints
Every 5,000 miles
(8,000 km),
6 months or 200
engine hoursChange engine oil and filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
Replace spark plugs
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Scheduled Maintenance
441
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

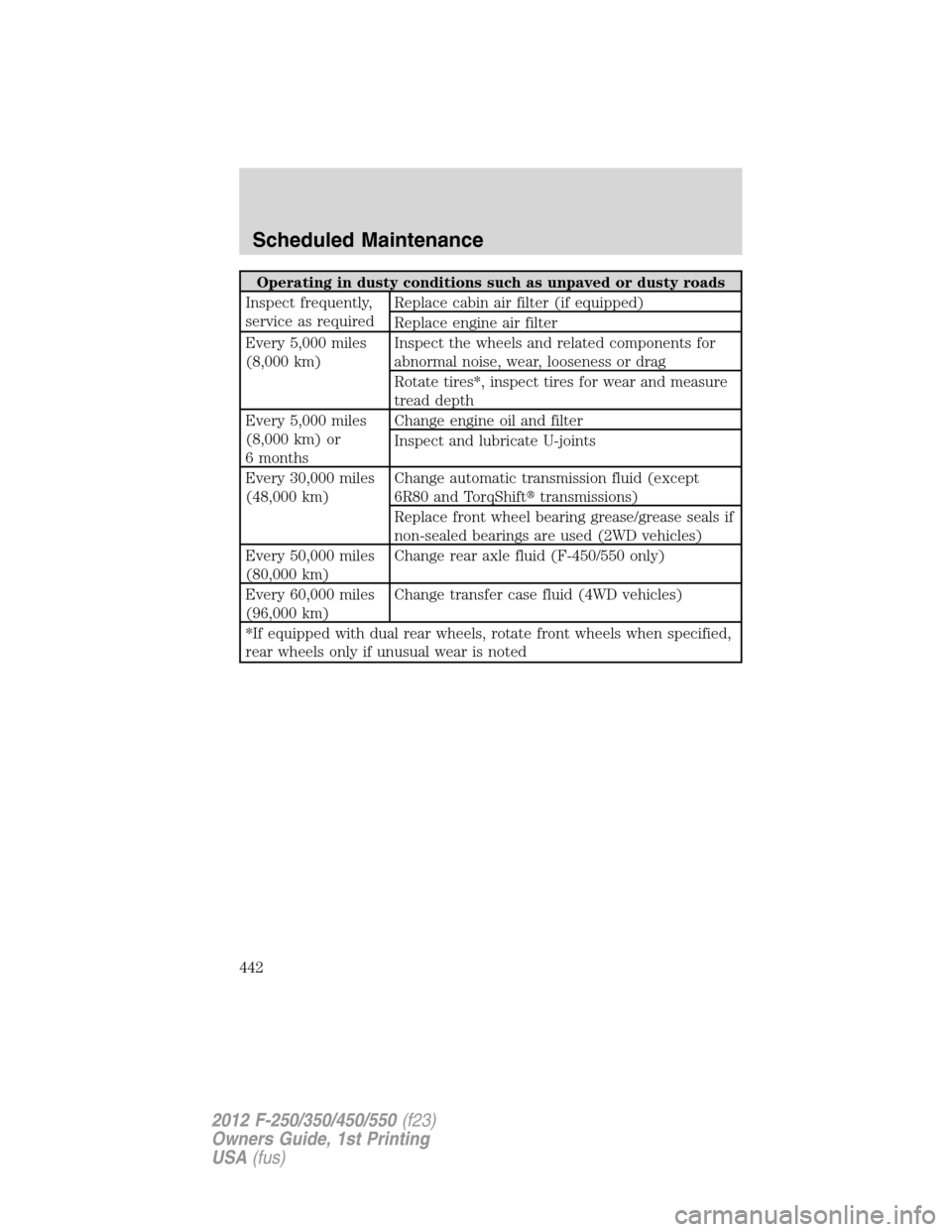

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires*, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Inspect and lubricate U-joints
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 50,000 miles
(80,000 km)Change rear axle fluid (F-450/550 only)
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Scheduled Maintenance
442
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

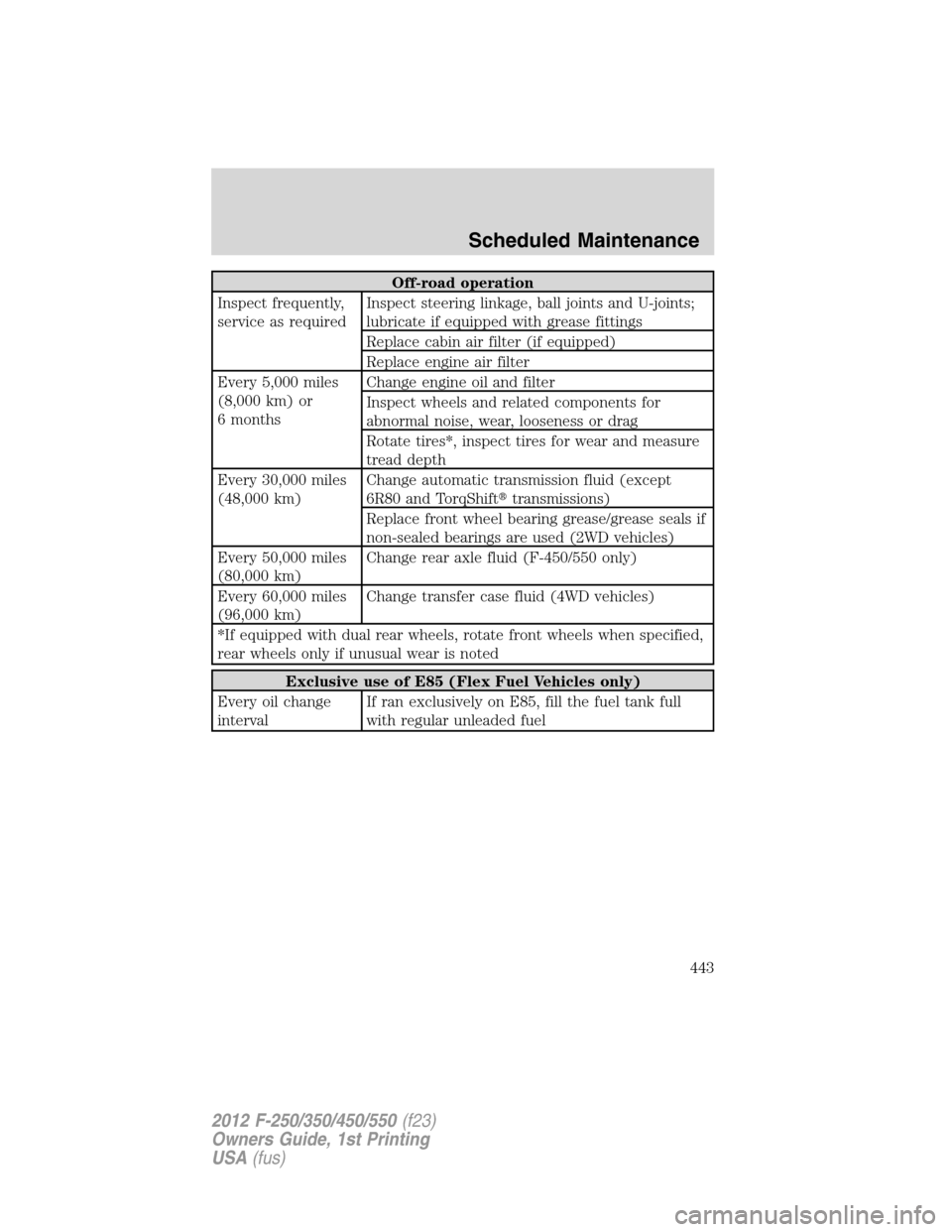

Off-road operation
Inspect frequently,
service as requiredInspect steering linkage, ball joints and U-joints;
lubricate if equipped with grease fittings
Replace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires*, inspect tires for wear and measure
tread depth
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 50,000 miles
(80,000 km)Change rear axle fluid (F-450/550 only)
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change
intervalIf ran exclusively on E85, fill the fuel tank full
with regular unleaded fuel
Scheduled Maintenance
443
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

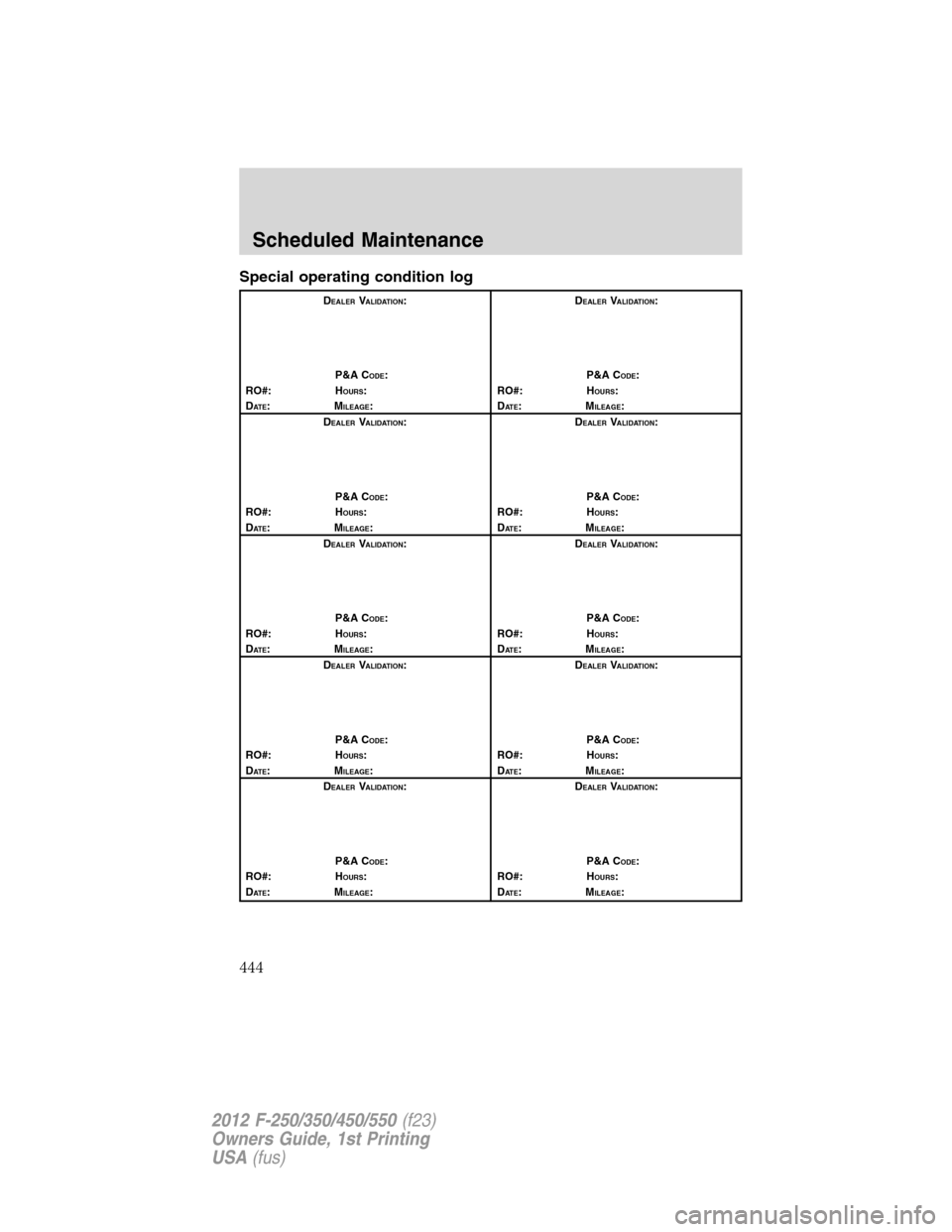

Special operating condition log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
444
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

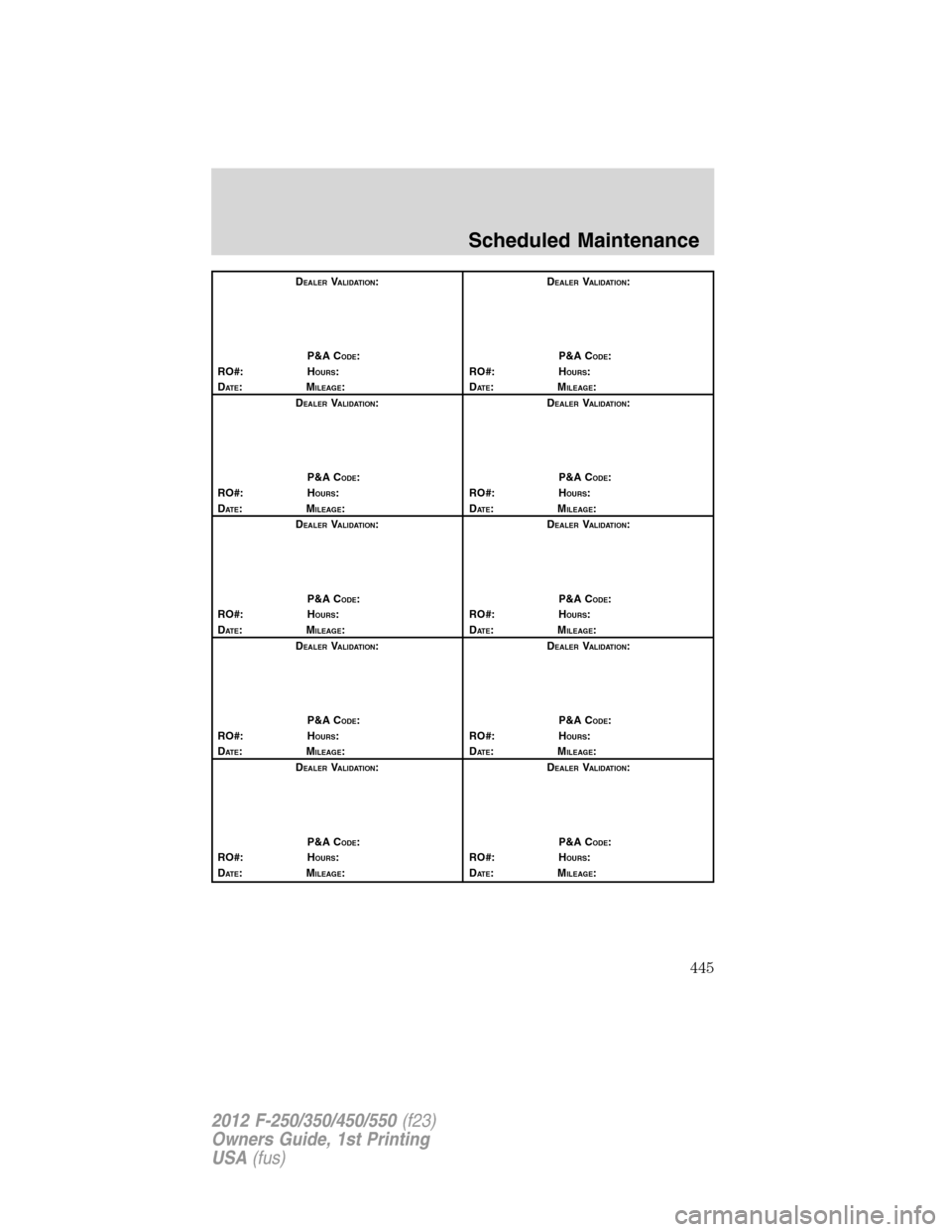

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
445
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

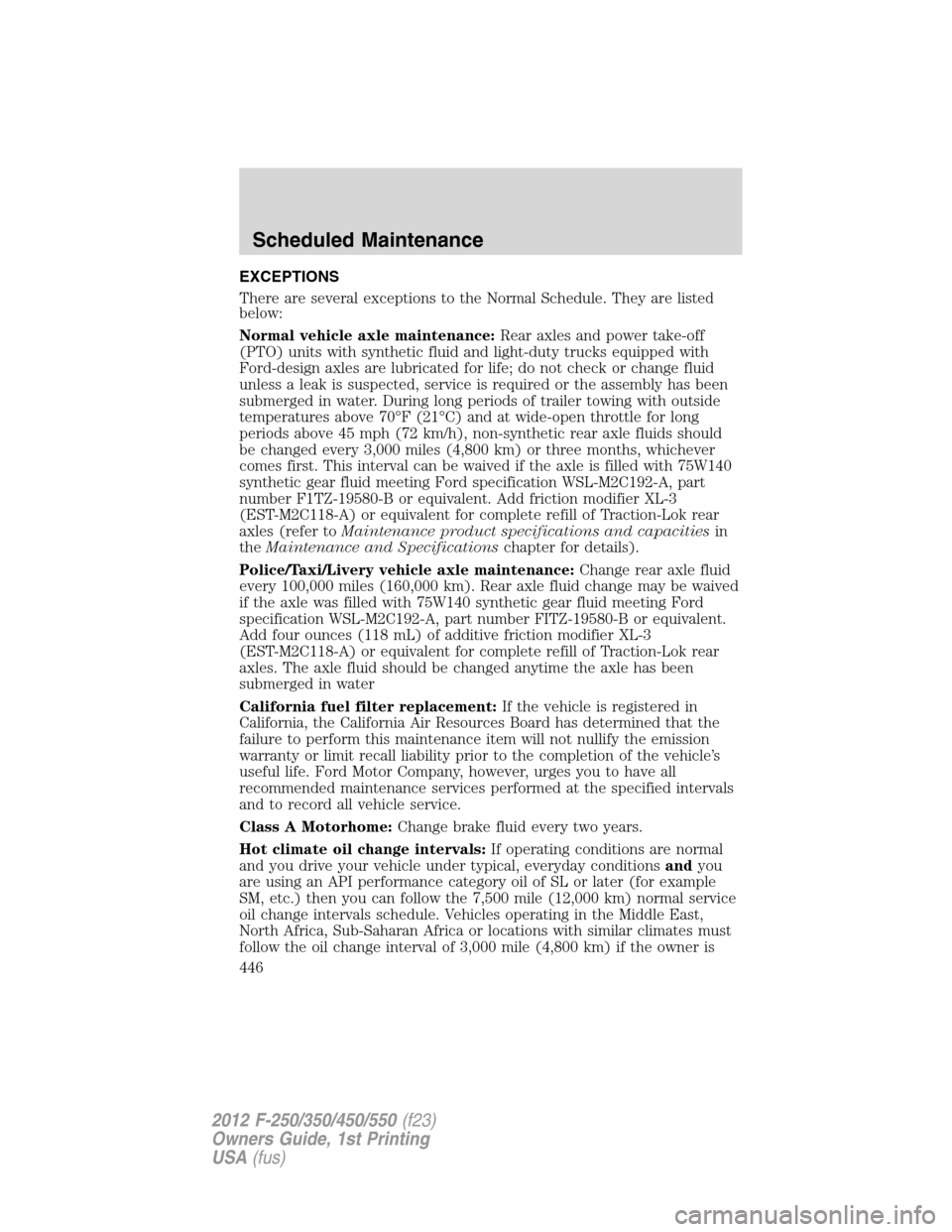

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toMaintenance product specifications and capacitiesin
theMaintenance and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:If operating conditions are normal
and you drive your vehicle under typical, everyday conditionsandyou
are using an API performance category oil of SL or later (for example
SM, etc.) then you can follow the 7,500 mile (12,000 km) normal service
oil change intervals schedule. Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or locations with similar climates must
follow the oil change interval of 3,000 mile (4,800 km) if the owner is
Scheduled Maintenance
446
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

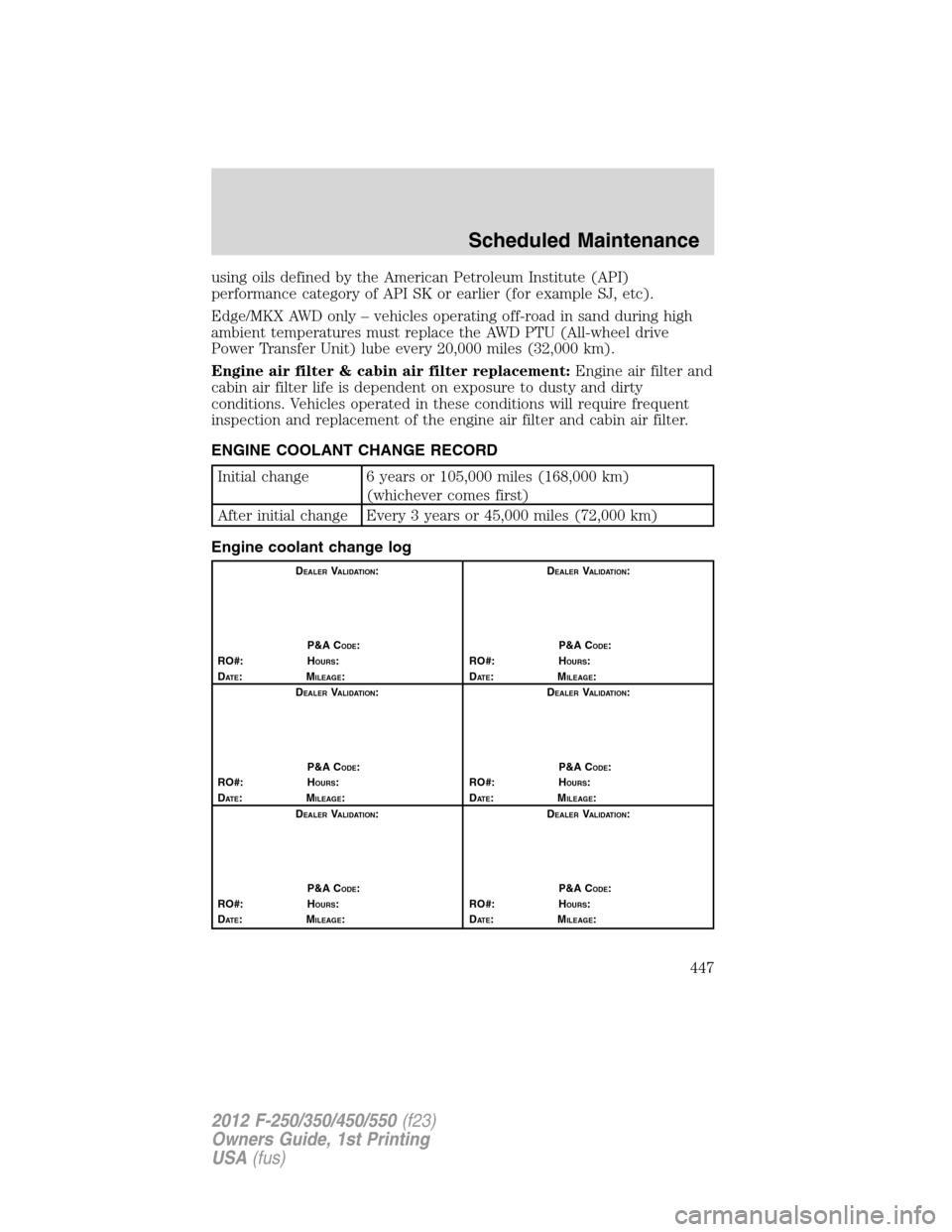

using oils defined by the American Petroleum Institute (API)
performance category of API SK or earlier (for example SJ, etc).
Edge/MKX AWD only – vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 105,000 miles (168,000 km)
(whichever comes first)
After initial change Every 3 years or 45,000 miles (72,000 km)
Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
447
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

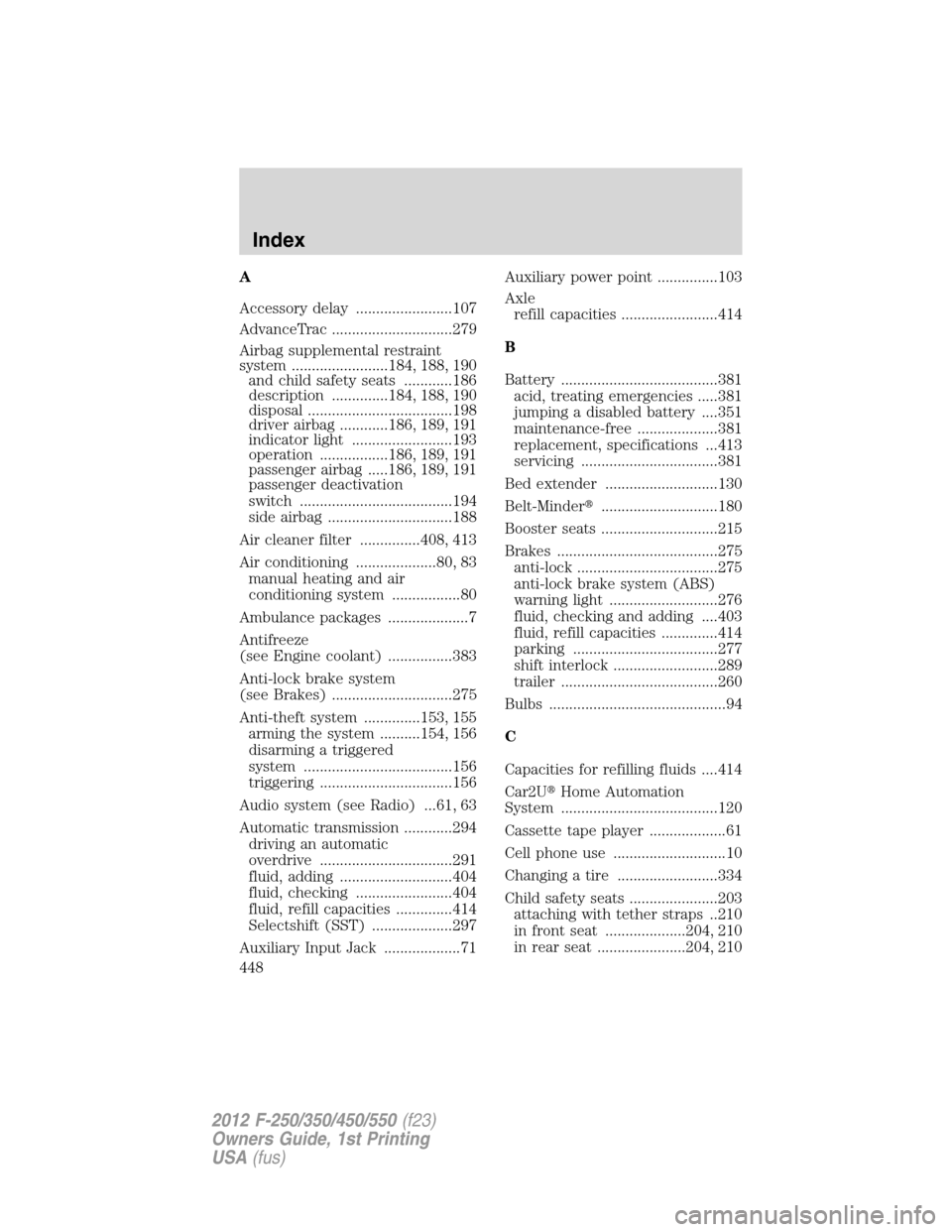

A
Accessory delay ........................107
AdvanceTrac ..............................279
Airbag supplemental restraint
system ........................184, 188, 190
and child safety seats ............186
description ..............184, 188, 190
disposal ....................................198
driver airbag ............186, 189, 191
indicator light .........................193
operation .................186, 189, 191
passenger airbag .....186, 189, 191
passenger deactivation
switch ......................................194
side airbag ...............................188
Air cleaner filter ...............408, 413
Air conditioning ....................80, 83
manual heating and air
conditioning system .................80
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................383
Anti-lock brake system
(see Brakes) ..............................275
Anti-theft system ..............153, 155
arming the system ..........154, 156
disarming a triggered
system .....................................156
triggering .................................156
Audio system (see Radio) ...61, 63
Automatic transmission ............294
driving an automatic
overdrive .................................291
fluid, adding ............................404
fluid, checking ........................404
fluid, refill capacities ..............414
Selectshift (SST) ....................297
Auxiliary Input Jack ...................71Auxiliary power point ...............103
Axle
refill capacities ........................414
B
Battery .......................................381
acid, treating emergencies .....381
jumping a disabled battery ....351
maintenance-free ....................381
replacement, specifications ...413
servicing ..................................381
Bed extender ............................130
Belt-Minder.............................180
Booster seats .............................215
Brakes ........................................275
anti-lock ...................................275
anti-lock brake system (ABS)
warning light ...........................276
fluid, checking and adding ....403
fluid, refill capacities ..............414
parking ....................................277
shift interlock ..........................289
trailer .......................................260
Bulbs ............................................94
C
Capacities for refilling fluids ....414
Car2UHome Automation
System .......................................120
Cassette tape player ...................61
Cell phone use ............................10
Changing a tire .........................334
Child safety seats ......................203
attaching with tether straps ..210
in front seat ....................204, 210
in rear seat ......................204, 210
Index
448
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

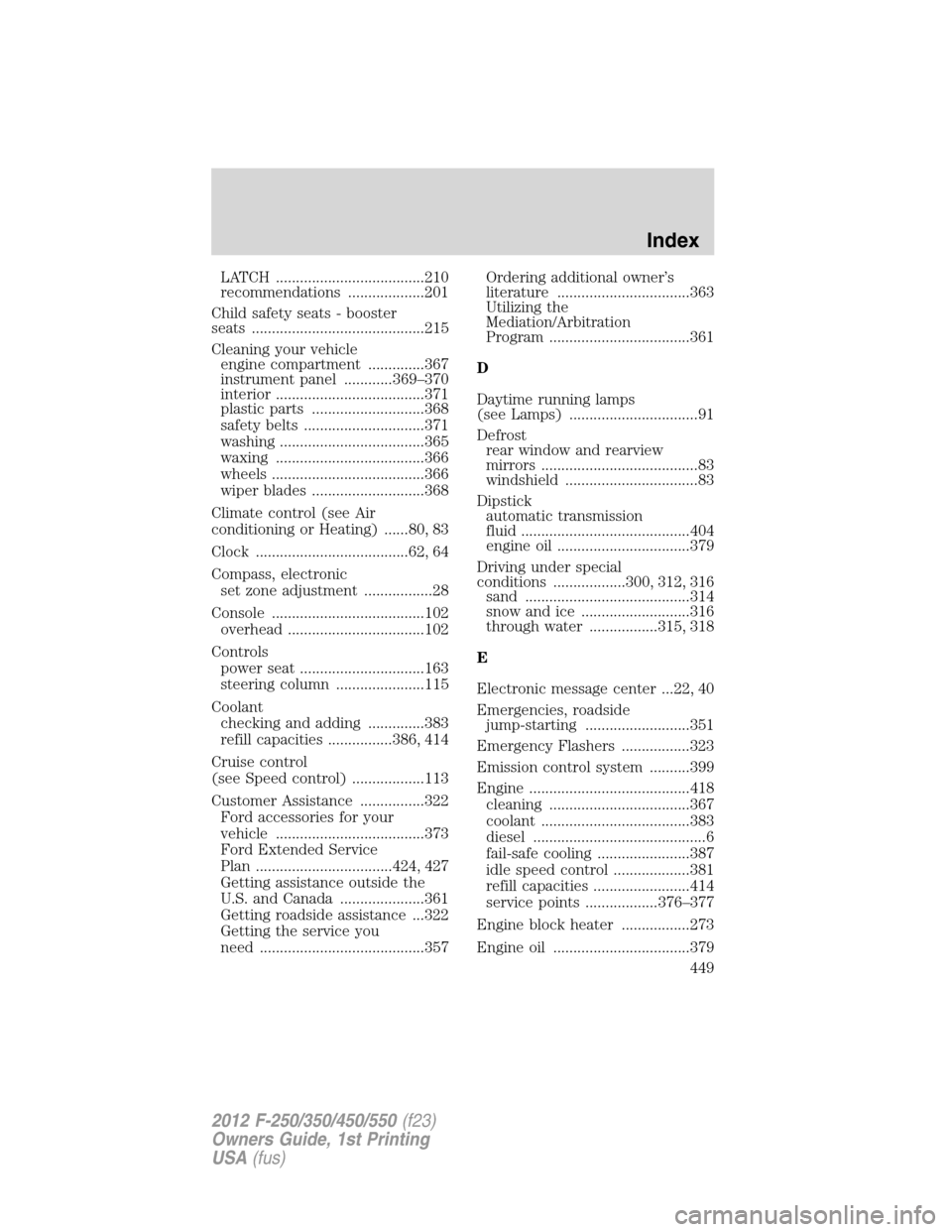

LATCH .....................................210
recommendations ...................201
Child safety seats - booster
seats ...........................................215
Cleaning your vehicle
engine compartment ..............367
instrument panel ............369–370
interior .....................................371
plastic parts ............................368
safety belts ..............................371
washing ....................................365
waxing .....................................366
wheels ......................................366
wiper blades ............................368
Climate control (see Air
conditioning or Heating) ......80, 83
Clock ......................................62, 64
Compass, electronic
set zone adjustment .................28
Console ......................................102
overhead ..................................102
Controls
power seat ...............................163
steering column ......................115
Coolant
checking and adding ..............383
refill capacities ................386, 414
Cruise control
(see Speed control) ..................113
Customer Assistance ................322
Ford accessories for your
vehicle .....................................373
Ford Extended Service
Plan ..................................424, 427
Getting assistance outside the
U.S. and Canada .....................361
Getting roadside assistance ...322
Getting the service you
need .........................................357Ordering additional owner’s
literature .................................363
Utilizing the
Mediation/Arbitration
Program ...................................361
D
Daytime running lamps
(see Lamps) ................................91
Defrost
rear window and rearview
mirrors .......................................83
windshield .................................83
Dipstick
automatic transmission
fluid ..........................................404
engine oil .................................379
Driving under special
conditions ..................300, 312, 316
sand .........................................314
snow and ice ...........................316
through water .................315, 318
E
Electronic message center ...22, 40
Emergencies, roadside
jump-starting ..........................351
Emergency Flashers .................323
Emission control system ..........399
Engine ........................................418
cleaning ...................................367
coolant .....................................383
diesel ...........................................6
fail-safe cooling .......................387
idle speed control ...................381
refill capacities ........................414
service points ..................376–377
Engine block heater .................273
Engine oil ..................................379
Index
449
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

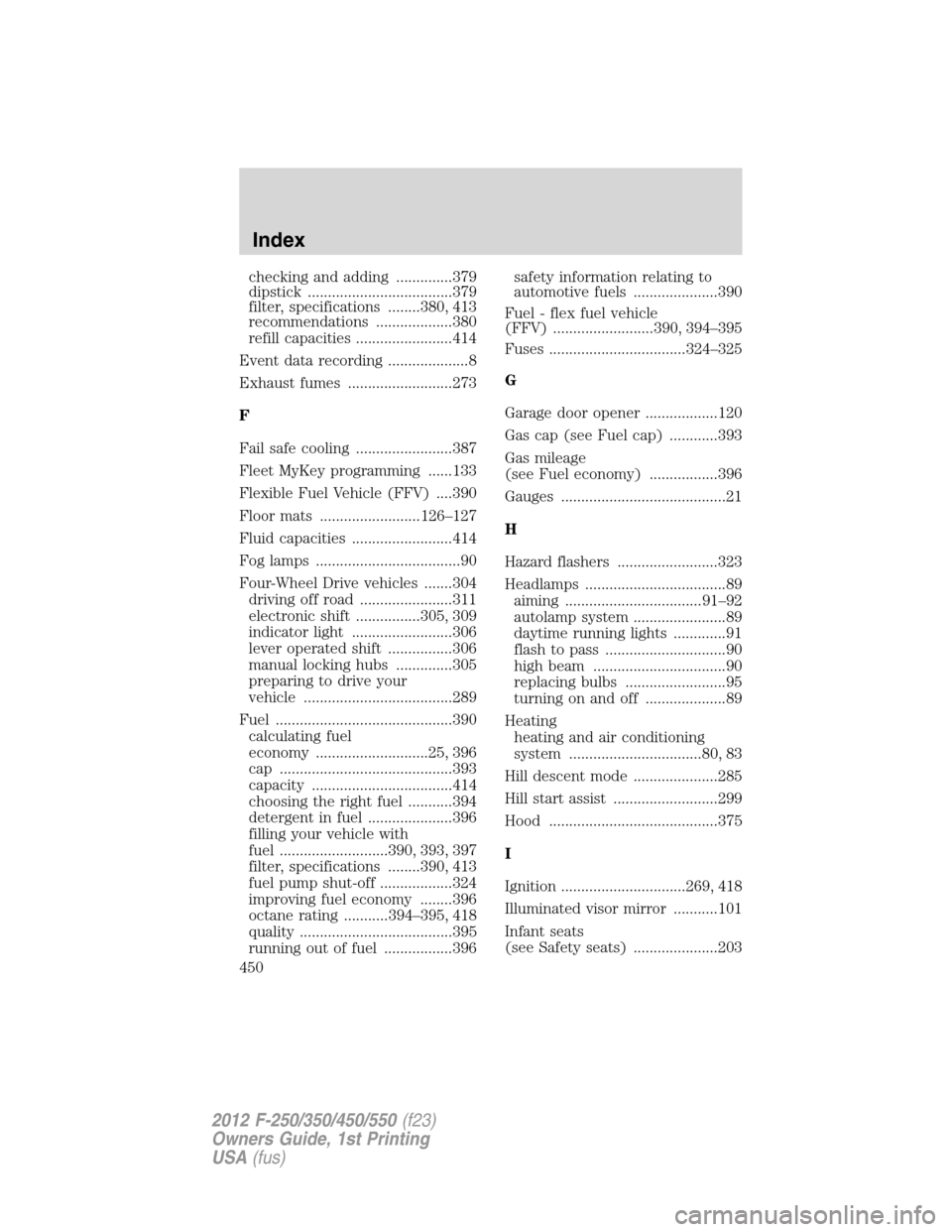

checking and adding ..............379
dipstick ....................................379
filter, specifications ........380, 413
recommendations ...................380
refill capacities ........................414
Event data recording ....................8
Exhaust fumes ..........................273
F
Fail safe cooling ........................387
Fleet MyKey programming ......133
Flexible Fuel Vehicle (FFV) ....390
Floor mats .........................126–127
Fluid capacities .........................414
Fog lamps ....................................90
Four-Wheel Drive vehicles .......304
driving off road .......................311
electronic shift ................305, 309
indicator light .........................306
lever operated shift ................306
manual locking hubs ..............305
preparing to drive your
vehicle .....................................289
Fuel ............................................390
calculating fuel
economy ............................25, 396
cap ...........................................393
capacity ...................................414
choosing the right fuel ...........394
detergent in fuel .....................396
filling your vehicle with
fuel ...........................390, 393, 397
filter, specifications ........390, 413
fuel pump shut-off ..................324
improving fuel economy ........396
octane rating ...........394–395, 418
quality ......................................395
running out of fuel .................396safety information relating to
automotive fuels .....................390
Fuel - flex fuel vehicle
(FFV) .........................390, 394–395
Fuses ..................................324–325
G
Garage door opener ..................120
Gas cap (see Fuel cap) ............393
Gas mileage
(see Fuel economy) .................396
Gauges .........................................21
H
Hazard flashers .........................323
Headlamps ...................................89
aiming ..................................91–92
autolamp system .......................89
daytime running lights .............91
flash to pass ..............................90
high beam .................................90
replacing bulbs .........................95
turning on and off ....................89
Heating
heating and air conditioning
system .................................80, 83
Hill descent mode .....................285
Hill start assist ..........................299
Hood ..........................................375
I
Ignition ...............................269, 418
Illuminated visor mirror ...........101
Infant seats
(see Safety seats) .....................203
Index
450
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
