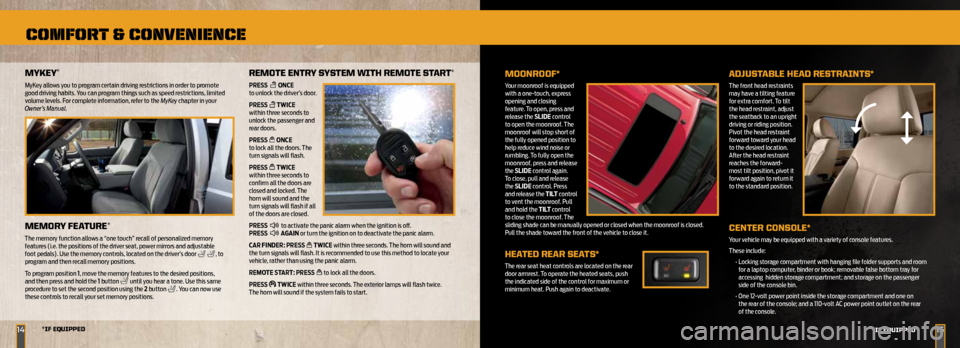

stop start FORD SUPER DUTY 2014 3.G Quick Reference Guide

1514*if eQuiPPed
*if eQuiPPed
MYkeY®
MyKey allows you to program certain driving restrictions in order to promote
good driving habits. You can program things such as speed restrictions, limited
volume levels. For complete information, refer to the MyKey chapter in your
Owner’s Manual.
MeMOr Y feATure*
The memory function allows a “one touch” recall of personalized memory
features (i.e. the positions of the driver seat, power mirrors and adjustable
foot pedals). Use the memory controls, located on the driver’s door
, to
program and then recall memory positions.
To program position 1, move the memory features to the desired positions,
and then press and hold the 1 button
until you hear a tone. Use this same
procedure to set the second position using the 2 button . You can now use
these controls to recall your set memory positions.
reMOTe enTrY SYSTeM WiTH reMOTe STAr T*
PRESS
ONCE
to unlock the driver’s door.
PRESS
twiCE
within three seconds to
unlock the passenger and
rear doors.
PRESS
ONCE
to lock all the doors. The
turn signals will flash.
PRESS
twiCE
within three seconds to
confirm all the doors are
closed and locked. The
horn will sound and the
turn signals will flash if all
of the doors are closed.
PRESS
to activate the panic alarm when the ignition is off.
PRESS AgA iN or turn the ignition on to deactivate the panic alarm.
C AR fiNdER: PRESS
twiCE within three seconds. The horn will sound and
the turn signals will flash. It is recommended to use this method to locate your
vehicle, rather than using the panic alarm.
REMO tE StARt: PRESS
to lock all the doors.
PRESS
twiCE within three seconds. The exterior lamps will flash twice.
The horn will sound if the system fails to start.
MOOnrOOf*
Your moonroof is equipped
with a one-touch, express
opening and closing
feature. To open, press and
release the SLidE control
to open the moonroof. The
moonroof will stop short of
the fully opened position to
help reduce wind noise or
rumbling. To fully open the
moonroof, press and release
the SLidE control again.
To close, pull and release
the SLidE control. Press
and release the tiL t control
to vent the moonroof. Pull
and hold the tiL t control
to close the moonroof. The
sliding shade can be manually opened or closed when the moonroof is closed.
Pull the shade toward the front of the vehicle to close it.
HeATed reAr SeATS*
The rear seat heat controls are located on the rear
door armrest. To operate the heated seats, push
the indicated side of the control for maximum or
minimum heat. Push again to deactivate.




Ad JuSTABLe HeAd reSTrAinTS*
The front head restraints
may have a tilting feature
for extra comfort. To tilt
the head restraint, adjust
the seatback to an upright
driving or riding position.
Pivot the head restraint
forward toward your head
to the desired location.
After the head restraint
reaches the forward-
most tilt position, pivot it
forward again to return it
to the standard position.



cenTer cOnSOLe*
Your vehicle may be equipped with a variety of console features.
These include:
• Locking storage compartment with hanging file folder supports and room
for a laptop computer, binder or book; removable false bottom tray for
accessing hidden storage compartment; and storage on the passenger
side of the console bin.
• One 12-volt power point inside the storage compartment and one on
the rear of the console; and a 110-volt AC power point outlet on the rear
of the console.
comfor T & convenience
