FORD SUPER DUTY 2014 3.G Quick Reference Guide

Ford Motor Company
Customer Relationship Center
U.S. • 1-800-392-3673 (FORD)
(TDD for the hearing impaired: 1-800-232-5952)
fordowner.com
Ford of Canada’s
Customer Relationship Centre
Canada • 1-800-565-3673 (FORD)
ford.ca
June 2013 • First Printing
Quick Reference Guide • SuPeR Duty
Litho in u.S.A. • eC3J 19G217 AAQuick reference guide
2014
this Quick Reference Guide is not intended to
replace your vehicle Owner’s Manual which
contains more detailed information concerning
the features of your vehicle, as well as important
safety warnings designed to help reduce the risk of
injury to you and your passengers. Please read your
entire Owner’s Manual carefully as you begin
learning about your new vehicle and refer to the
appropriate chapters when questions arise. All
information contained in this Quick Reference
Guide was accurate at the time of duplication.
We reserve the right to change features, operation
and/or functionality of any vehicle specification at
any time. y our Ford dealer is the best source for
the most current information. For detailed
operating and safety information, please consult
your Owner’s Manual.
WaRning: Driving while distracted can result in loss of vehicle control, crash and injury.
We strongly recommend that you use extreme caution when using any device that may take
your focus off the road. y our primary responsibility is the safe operation of your vehicle. We
recommend against the use of any hand-held device while driving and encourage the use of
voice-operated systems when possible. Make sure you are aware of all applicable local laws
that may affect the use of electronic devices while driving.
Learn more about your
SUPER DUTY
t o put QR tags to work for you, use your
mobile phone’s browser or app store link to
download a QR tag reader. t hen follow the
directions to scan the QR tag and see your
vehicle’s features come to life.
Learn how to SYNC your ride
S yNC is a voice-activated technology
personalized by you. It is a hands-free, voice
recognition system used for entertainment,
information and communication.
SyncMyRide.com (U.S.)
SyncMyRide.ca (Canada)
fordowner.com (U.S.)
ford.ca (Canada)

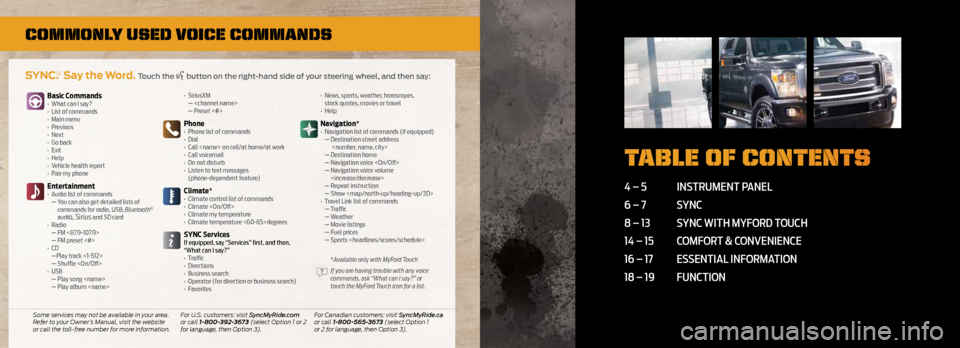

commonly used voice commands
4 – 5 Instrument panel
6 – 7 s YnC
8 – 13 s YnC wIth mYFord t ouCh
14 – 15 ComF ort & ConvenIenCe
16 – 17 e ssentIal InF ormatIon
18 – 19 FunCtIon
Table of conTenT s
SYNC.® Say the Word. Touch the button on the right-hand side of your steering wheel, and then say:
Basic Commands
• What can I say?
• List of commands
• Main menu
• Previous
• Next
• Go back
• Exit
• Help
• Vehicle health report
• Pair my phone
Entertainment• Audio list of commands
— You can also get detailed lists of
commands for radio, USB, Blue tooth
®
audio, Sirius and SD card
• Radio — FM <87.9-107.9>
— FM preset <#>
• CD —Play track <1-512>
— Shuffle
• USB
— Play song
— Play album • SiriusXM
—
— Preset <#>
Phone• Phone list of commands
• Dial
• Call on cell/at home/at work
• Call voicemail
• Do not disturb
• Listen to text messages
(phone-dependent feature)
Climate*• Climate control list of commands
• Climate
• Climate my temperature
• Climate temperature <60-85>degrees
SYNC ServicesIf equipped, say “Services” first, and then,
“What can I say?”
• Traffic
• Directions
• Business search
• Operator (for direction or business search)
• Favorites •
News, sports, weather, horoscopes,
stock quotes, movies or travel
• Help
Navigation*• Navigation list of commands (if equipped)
— Destination street address

— Destination home
— Navigation voice
— Navigation voice volume

— Repeat instruction
— Show

1
3
4
2
5
76
8

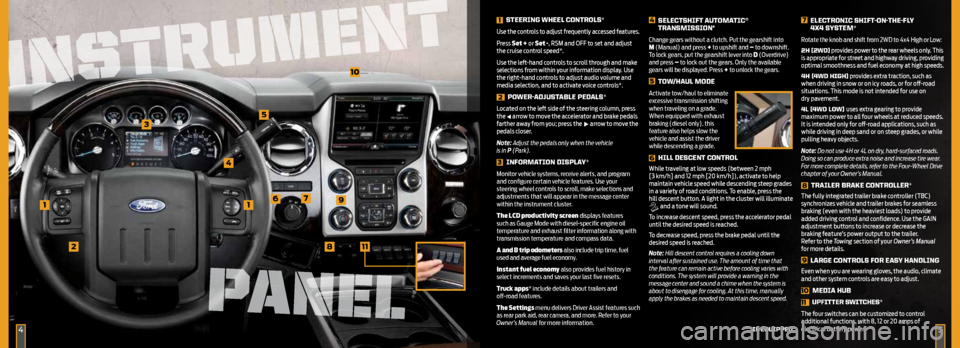

1 STeering WHeeL cOnTrOLS*
use the controls to adjust frequently accessed features.
p ress Set + or Set -, rsm and oFF to set and adjust
the cruise control speed*.
use the left-hand controls to scroll through and make
selections from within your information display. use
the right-hand controls to adjust audio volume and
media selection, and to activate voice controls*.
2
POWer -AdJuSTABLe Ped ALS*
l ocated on the left side of the steering column, press
the
arrow to move the accelerator and brake pedals
farther away from you; press the arrow to move the
pedals closer.
Note: Adjust the pedals only when the vehicle
is in P (Park).
3 infOrMATiOn diSPLAY*
Monitor vehicle systems, receive alerts, and program
and configure certain vehicle features. Use your
steering wheel controls to scroll, make selections and
adjustments that will appear in the message center
within the instrument cluster.
The LCD productivity screen displays features
such as Gauge Mode with diesel-specific engine oil
temperature and exhaust filter information along with
transmission temperature and compass data.
A and B trip odometers also include trip time, fuel
used and average fuel economy.
Instant fuel economy also provides fuel history in
select increments and saves your last five resets.
Truck apps* include details about trailers and
off-road features.
The Settings menu delivers Driver Assist features such
as rear park aid, rear camera, and more. Refer to your
Owner’s Manual for more information.
4 SeLecTSHifT A uTOMATic®
TrAnSMiSSiOn*
Change gears without a clutch. Put the gearshift into
M (Manual) and press + to upshift and – to downshift.
To lock gears, put the gearshift lever into D (Overdrive)
and press – to lock out the gears. Only the available
gears will be displayed. Press + to unlock the gears.
5 TOW/HA uL MOde
Activate tow/haul to eliminate
excessive transmission shifting
when traveling on a grade.
When equipped with exhaust
braking (diesel only), this
feature also helps slow the
vehicle and assist the driver
while descending a grade.
6 HiLL deScenT cOnTrOL
while traveling at low speeds (between 2 mph
[3 km/h] and 12 mph [20 km/h]), activate to help
maintain vehicle speed while descending steep grades
in a variety of road conditions. t
o enable, press the
hill descent button. a light in the cluster will illuminate
and a tone will sound.
t o increase descent speed, press the accelerator pedal
until the desired speed is reached.
t o decrease speed, press the brake pedal until the
desired speed is reached.
Note: Hill descent control requires a cooling down
interval after sustained use. The amount of time that
the feature can remain active before cooling varies with
conditions. The system will provide a warning in the
message center and sound a chime when the system is
about to disengage for cooling. At this time, manually
apply the brakes as needed to maintain descent speed.
7 eLecTrOnic SHifT-On-THe -fLY
4X4 SYSTeM*
Rotate the knob and shift from 2WD to 4x4 High or Low:
2H (2Wd ) provides power to the rear wheels only. t his
is appropriate for street and highway driving, providing
optimal smoothness and fuel economy at high speeds.
4H (4Wd HigH) provides extra traction, such as
when driving in snow or on icy roads, or for off-road
situations. t his mode is not intended for use on
dry pavement.
4L (4Wd LOW) uses extra gearing to provide
maximum power to all four wheels at reduced speeds.
It is intended only for off-road applications, such as
while driving in deep sand or on steep grades, or while
pulling heavy objects.
Note: Do not use 4H or 4L on dry, hard-surfaced roads.
Doing so can produce extra noise and increase tire wear.
For more complete details, refer to the Four-Wheel Drive
chapter of your Owner’s Manual.
8 TrAiLer BrAke cOnTrOLLer*
t he fully integrated trailer brake controller (tBC)
synchronizes vehicle and trailer brakes for seamless
braking (even with the heaviest loads) to provide
added driving control and confidence. use the G aIn
adjustment buttons to increase or decrease the
braking feature’s power output to the trailer.
r efer to the Towing section of your Owner’s Manual
for more details.
9 LArge cOnTrOLS fOr eASY HAndLing
even when you are wearing gloves, the audio, climate
and other system controls are easy to adjust.
10 MediA HuB
11 uPfiTTer SWiT
cHeS*
t he four switches can be customized to control
additional functions, with 8, 12 or 20 amps of
electrical battery power.
91
11
*if e QuiPPed45
10
INSTRUMENT
INSTRUMENT
PANEL

6
uSing SYnc TO AcceSS digiTAL MediA
Your vehicle includes a concealed SYNC media hub. The multiple inputs allow
you to plug in your USB media devices such as phones and MP3 players, and use
SYNC to play all of your favorite music.
Note: SYNC indexes all of your music. The more music that is stored on your
device, the longer it takes SYNC to index.
uSing VOice cOMMAndS TO PLAY MuSic
1. Plug your media player into your USB port.
2. Press the voice button
. When prompted, say “USB” and then follow
up by saying a voice command.
3. You will hear the command repeated back to you and the selected
item will play.
APPLink™*
SYNC AppLink allows you voice access
to select mobile applications that you
already have or can download to your
Android
™, BlackBerry® or iPhone®. Current
apps available include Pandora Internet
Radio
®, Stitcher Smart Radio™, Open Beak
(BlackBerry exclusive), iHeartRadio, Slacker,
NPR News, SYNC Destinations and more.
Note: AppLink is not available with
MyFord Touch systems.
uSing SYnc APPLink
1. Create your app account and personalize your app settings, if required.
2. Download the latest mobile app through your Smartphone’s marketplace.
3. Turn on your ignition.
4. Pair the phone to a SYNC AppLink vehicle. If your phone is already paired to
the vehicle, it connects automatically when you enter.
5. If you’re an iPhone owner, you must also connect the Apple
®-provided USB
cable and start the application you want to use on your iPhone to access the
apps through SYNC. Android and BlackBerry connect wirelessly using
SYNC AppLink.
6. Now you’re ready to voice-access the app by pressing the voice button and
saying “mobile apps” and then the name of the app you want.
For more information on SYNC, please visit the website or use the toll-free
number. See the inside front cover of this guide for details.
sync
®
geTTing S TArTed WiTH Y Our SYnc S YSTeM
SYNC is a hands-free, voice recognition system used for entertainment,
information and communication. SYNC. Say the Word.
BefOre YOu geT STAr Ted
1. Set up your owner account at SyncMyRide.com (U.S.) or SyncMyRide.ca
(Canada). Register by following the on-screen instructions, and then learn
about the services that are available to you.
2. SYNC uses a wireless connection called
Bluetooth® to communicate with
your phone. Turn Bluetooth mode on in your phone’s menu options. This lets
your phone find SYNC. For more details on setting up your phone with SYNC,
visit SyncMyRide.com (U.S.) or SyncMyRide.ca (Canada), or your phone
manufacturer’s website.
PAiring YOur PHOne WiTH SYnc
Pair your phone to use the many of the
features of SYNC:
1. Make sure that your vehicle is in
P (Park) and both your ignition and radio
are turned on.
2. Press the phone button
. When the
display indicates no phone is paired, press OK.
3. When Find SYNC appears in the display, press OK.
4. Put your phone into Bluetooth discovery mode. Refer to your phone’s user
guide, if necessary.
5. When prompted on your phone’s display, enter the six-digit PIN provided by
SYNC in the radio display.
6. The display indicates when the pairing is successful.
Note: The system may prompt you to:
• Set your phone as the primary/favorite (the primary phone will receive
messages and voicemail).
• Download your phone book (this is required to use the full set of
voice commands).
• Turn on 911 Assist
®.
WHY dO i need
A SYnc OWner AccOunT ?
A SYNC owner account is required for Vehicle Health Report activation and the
ability to view your reports online. You’ll also be able to take advantage of all
of SYNC’s Services and personalization features, such as saving your Favorites
and Points of Interest (POI). You’ll receive the latest software updates that
add new places, directions and information; and if you have questions, you’ll
get free customer support. Visit the website or call the toll-free number to set
up your account. See the inside front cover of this guide for more information.
cOMMOnLY uSed VOice cOMMAndS
SYnc. SAY THe WOrd.
Every time you want to give SYNC a voice command, you must first press the
voice button . When prompted, speak your voice command. For a list of voice
commands, say “What can I say?”.
uSing MY PHOne WiTH SYnc
Note: You can download your phone book to make phone calls with voice
commands by name.
Making a phone call: Use SYNC to make
a phone call to anyone in your phone book
by pressing the voice button
. When
prompted, give a voice command.
For example, you could say “Call Jake
Smith at home”. When the system
confirms the number, say “Dial” to initiate
the call automatically or say the
phone number.
Answering incoming calls: Whenever you have an incoming call, you will be
able to see the name and number of the person calling in your display. Press
the phone button to answer an incoming call. You can hang up at any time by
pressing and holding the phone button
.
7*if e QuiPPed

geTTing STArTed, underSTAnding
SYnc WiTH MYfOrd T OucH
Use the four-corner, four-color touchscreen to explore and interact with your vehicle. The
touchscreen works the same way as traditional controls, knobs and buttons do. Press the
various corners on your touchscreen to personalize the many features and settings of your
vehicle all in one place. The system provides easy interaction with your cellular phone,
multimedia entertainment, climate controls and navigation system*.
89
sync
®
wiTh myford Touch®*
*if eQuiPPed
geT in TOucH uSing YOur
fOur-cOrner TOucHScreen
generAL TiPS
• Press the home icon at any time to return to your
home screen.
• For additional support, refer to your Owner’s Manual,
visit the website or call the toll-free number. See the
inside front cover of this guide for more information.
A reVOL uTiOnAr Y WAY TO cOnnecT WiTH YOur Truck.
geTTing S TArTed WiTH Y Our SYnc S YSTeM
SYNC is a hands-free, voice recognition system used for entertainment,
information and communication. SYNC. Say the Word.
BefOre YOu geT STAr Ted
1. Set up your owner account at SyncMyRide.com (U.S.) or SyncMyRide.ca
(Canada). Register by following the on-screen instructions, and then learn
about the complimentary services that are available to you.
2. SYNC uses a wireless connection called
Bluetooth® to communicate with
your phone. Turn Bluetooth mode on in your phone’s menu options. This lets
your phone find SYNC. For more details on setting up your phone with SYNC,
visit SyncMyRide.com (U.S.) or SyncMyRide.ca (Canada), or your phone
manufacturer’s website.
P Airing YOur PHOne THrOugH THe TOucHScreen
Pair your phone to use
the many features
of SYNC:
1. Make sure that your
vehicle is in P (Park)
and both your ignition
and radio are
turned on.
2. Touch Add Phone in
the upper left corner
of the touchscreen. Find SYNC appears on the screen and instructs
you to begin the pairing process from your device.
3. Make sure that Bluetooth is set to On and that your cellular phone is
in the proper mode. See your phone’s manual, if necessary.
Note: Select SYNC and a six-digit PIN appears on your device.
4. If prompted to enter a PIN on your device, it does not support Secure
Simple Pairing. To pair, enter the PIN displayed on the touchscreen.
Skip the next step. 5.
When prompted on your phone’s display, confirm that the PIN provided by
SYNC matches the PIN displayed on your cellular phone.
6. The display indicates when the pairing is successful.
Note: The system may prompt you to:
• Set your phone as the primary/favorite
(the primary phone will receive messages and voicemail).
• Download your phone book (this is required to use the full set of
voice commands).
• Turn on 911 Assist
®. The system automatically connects with a 911 operator in
the event of an accident (feature must be turned on prior to the event).
TiPS
• Make sure you accept SYNC’s request to access your phone.
• To pair subsequent phones, please refer to Pairing Subsequent Phones
in the SYNC chapter of your Owner’s Manual.
• If you are experiencing pairing problems, refer to your Owner’s Manual.

1011
sync
®
wiTh myford Touch®*
*if eQuiPPed
nAVigATiOn*
Get started with your navigation system by pressing
the upper-right, green corner. The available,
voice-activated navigation system includes:
• SiriusXM Traffic
• SiriusXM Travel Link
• GPS (Global Positioning System) technology
• 3-D mapping
• Turn-by-turn navigation
Some features may require activation. Refer to the
MyFord Touch
® chapter of your Owner’s Manual for
complete details.
SeT A deSTinATiOn
Set a destination through your touchscreen by using
a street address, a city center, a place on the map or
a Point of Interest (POI). The easiest way, however,
is by voice.
1. Push the voice button
, then when prompted
say “Destination street address”.
2. The system will ask you to say the full address
and will display an example on-screen.
3. You can then speak the address naturally, such as:
“One two three Main Street, Anytown”.
You can also use the touchscreen to enter a
destination and narrow your choices by city or
street as you type.
You can choose from up to three different types
of routes:
• Fastest: Uses the fastest moving
roads possible.
• Shortest: Uses the shortest distance possible.
• Eco (EcoRoute): Uses the most
fuel-efficient route.
SeT uP YOur
in-c ASe-Of-eMergenc Y cOnTAcTS
You can add contacts from your phone book for simple
one-touch access on the touchscreen after a 911 Assist®
event. You can save up to two contacts on the 911 Assist
screen by scrolling through your menu choices and
selecting the following information:
• Touch Settings, then Phone and 911 Assist.
• Touch Edit to add contacts from your phone book.
SAVe A fAVOriTe
When you find a specific address or a point of
interest (POI) that you’d like to store within the
system, you can save it to your Favorites.
Using the touchscreen, press Save to Favorites. When
you want to view that destination again, you can
press Favorites to retrieve your stored locations.
Note: Some features, such as Point of Interest (POI)
ratings and the ability to type in a destination, are
not available while the vehicle is moving. For more
complete information, see the MyFord Touch chapter
in your Owner’s Manual.
TiPS
• Save your favorite locations by
touching “Save to Favorites”.
• Change your map views from
Heading Up, North Up or 3D.
PHOne
Voice-control your phone for hands-free
calling with your phone securely put away.
With SYNC, you won’t even need to know
the phone number. Just say the name of
the person you want from your contacts.
Your phone connects you with many other
features and SYNC Services: • Connect to SYNC Services for traffic,
directions, business searches and
information favorites. •
Connect to Operator Assist to help locate
a listing or destination.
• Call for a Vehicle Health Report.
• Automatically connect with a 911 Operator
in the event of an accident (system must be
turned on prior to event).
• Transfer calls seamlessly from SYNC to your
phone as you get in or out of your vehicle.
*if e QuiPPed

13
enTerTAinMenT
No matter how you store your music, SYNC makes it
yours to enjoy when you’re behind the wheel. Just press
the lower-left, red corner of the touchscreen. From here,
you can easily go between AM/FM, Sirius, and other
media sources.
SeT YOur rAdiO PreSeTS
• Touch the Entertainment corner on
the touchscreen.
• Touch FM.
• Touch Direct Tune.
• Enter the desired station and touch Enter.
• Touch Presets and then touch and hold one of the
memory preset buttons to save it. You will hear a
brief mute and the sound will return when the station
is saved.
Bring in YOur OWn MuSic
Plug in your USB media devices, such as phones and MP3 players, and use SYNC to play all of your
favorite music through a variety of devices, including:
• USB
• Bluetooth
® Streaming: Connect, disconnect, add or delete, even set a device as your favorite so that
the system automatically attempts to connect to that device at every ignition cycle.
• SD Card
• A/V In
Refer to your Owner’s Manual, visit the website or call the toll-free number. See the inside front cover of
this guide for more information.
uSing SYnc TO AcceSS digiTAL MediA
In vehicles equipped with MyFord Touch, the media hub is located in the center console (as shown
below).
Plug in your USB media devices such as phones and MP3 players and use SYNC to play all of
your favorite music.
uSing V Oice cOMMAndS TO PLAY MuSic
1. Plug your media player into your USB outlet.
2. Press the voice button
. When prompted, say “USB” , then follow-up by saying a voice command.
MediA HuB
12
sync
®
wiTh myford Touch®*
*if eQuiPPed
SeT YOur MYTeMP
• Touch the lower-right, blue Climate corner on
the touchscreen.
• Set your exact, desired temperature using
the red or blue arrows.
• Press and hold the MyTemp button until the
background goes solid.
SeT YOur P ASSenger’S TeMPerATure
• Touch Dual to
turn on the
passenger side
temperature control.
• Touch + or – to adjust the temperature.
AdJuST HeATed Or cOOLed frOnT SeATS*
• Touch the heated or cooled
seat icon to control the
seat temperature.
• More light bars indicate a higher setting.
To operate the heated feature, press
to cycle through
the various heat settings and off.
To operate the cooled feature, press
to cycle through
the various cooling settings and off.
cLiMATe
SYNC with MyFord Touch controls the temperature, airflow direction, fan speed, and activates other
climate features like heated front seats for you and your passenger. To use voice commands to operate
climate, say a voice command like “Climate temperature 72 degrees” and MyFord Touch will make
that adjustment.

1514*if eQuiPPed
*if eQuiPPed
MYkeY®
MyKey allows you to program certain driving restrictions in order to promote
good driving habits. You can program things such as speed restrictions, limited
volume levels. For complete information, refer to the MyKey chapter in your
Owner’s Manual.
MeMOr Y feATure*
The memory function allows a “one touch” recall of personalized memory
features (i.e. the positions of the driver seat, power mirrors and adjustable
foot pedals). Use the memory controls, located on the driver’s door
, to
program and then recall memory positions.
To program position 1, move the memory features to the desired positions,
and then press and hold the 1 button
until you hear a tone. Use this same
procedure to set the second position using the 2 button . You can now use
these controls to recall your set memory positions.
reMOTe enTrY SYSTeM WiTH reMOTe STAr T*
PRESS
ONCE
to unlock the driver’s door.
PRESS
twiCE
within three seconds to
unlock the passenger and
rear doors.
PRESS
ONCE
to lock all the doors. The
turn signals will flash.
PRESS
twiCE
within three seconds to
confirm all the doors are
closed and locked. The
horn will sound and the
turn signals will flash if all
of the doors are closed.
PRESS
to activate the panic alarm when the ignition is off.
PRESS AgA iN or turn the ignition on to deactivate the panic alarm.
C AR fiNdER: PRESS
twiCE within three seconds. The horn will sound and
the turn signals will flash. It is recommended to use this method to locate your
vehicle, rather than using the panic alarm.
REMO tE StARt: PRESS
to lock all the doors.
PRESS
twiCE within three seconds. The exterior lamps will flash twice.
The horn will sound if the system fails to start.
MOOnrOOf*
Your moonroof is equipped
with a one-touch, express
opening and closing
feature. To open, press and
release the SLidE control
to open the moonroof. The
moonroof will stop short of
the fully opened position to
help reduce wind noise or
rumbling. To fully open the
moonroof, press and release
the SLidE control again.
To close, pull and release
the SLidE control. Press
and release the tiL t control
to vent the moonroof. Pull
and hold the tiL t control
to close the moonroof. The
sliding shade can be manually opened or closed when the moonroof is closed.
Pull the shade toward the front of the vehicle to close it.
HeATed reAr SeATS*
The rear seat heat controls are located on the rear
door armrest. To operate the heated seats, push
the indicated side of the control for maximum or
minimum heat. Push again to deactivate.




Ad JuSTABLe HeAd reSTrAinTS*
The front head restraints
may have a tilting feature
for extra comfort. To tilt
the head restraint, adjust
the seatback to an upright
driving or riding position.
Pivot the head restraint
forward toward your head
to the desired location.
After the head restraint
reaches the forward-
most tilt position, pivot it
forward again to return it
to the standard position.



cenTer cOnSOLe*
Your vehicle may be equipped with a variety of console features.
These include:
• Locking storage compartment with hanging file folder supports and room
for a laptop computer, binder or book; removable false bottom tray for
accessing hidden storage compartment; and storage on the passenger
side of the console bin.
• One 12-volt power point inside the storage compartment and one on
the rear of the console; and a 110-volt AC power point outlet on the rear
of the console.
comfor T & convenience

dieSeL fueL recOMMend ATiOnS
Ford recommends that you use only the diesel fuels that meet either the ASTM
D975 diesel or the ASTM D7467 B6-B20 biodiesel industry specifications. Outside
of North America, use fuels meeting EN590 or equivalent local market standard.
Diesel fuel is adjusted seasonally for colder temperatures. For best results at
temperatures below 20°F (-7°C), it is recommended to use a diesel fuel that has
been seasonally adjusted for the weather.
dieSeL eXHAuST SYSTeM
The Diesel Particulate Filter (DPF) system helps reduce carbon emissions. This
system requires the completion of periodic drives to clean or an operator-
commanded regeneration procedure that is prompted through your information
display. Failure to comply with the required cleaning procedure maintenance can
result in damage to the DPF system that may not be covered under your warranty.
See your Diesel Supplement for more information.
essenTial informa Tion
1716*if eQuiPPed
*if eQuiPPed
dieSeL eXHAuST fLuid (def) LeVeL
To help reduce emission levels from the exhaust of the diesel engine, your vehicle
is equipped with a Selective Catalytic Reduction (SCR) system that relies upon
Diesel Exhaust Fluid (DEF) to operate properly. The SCR automatically injects
DEF into the exhaust system to enable proper SCR function. Make sure that you
check your vehicle’s DEF level during the oil change service interval, but certain
conditions or driving styles, such as trailer towing or fast rates of acceleration, will
require the refilling of the DEF tank more often. See the scheduled maintenance
information in your Diesel Supplement for more information.
fueL TYPe/T Ank cAPA ciTY/fLeX fueL*
Depending on your vehicle, your fuel tank size varies based on body style
and/or engine configuration. Refer to the Capacities and Specifications section
in your Owner’s Manual for more details.
Flex fuel vehicles have a yellow ring around the top of the fuel filler inlet (tube)
and can use either regular unleaded fuel or E85 ethanol fuel.
It is best not to alternate repeatedly between gasoline and E85. If you do switch
fuels, it is recommended that you add as much fuel as possible—at least half a
tank. Do not add less than 5 gallons (18.9 liters) when refueling. You should drive
the vehicle immediately after refueling for at least 5 miles (8 km) to allow the
vehicle to adapt to the change in ethanol concentration. If you exclusively use
E85 fuel, it is recommended to fill the fuel tank with regular unleaded gasoline
at each scheduled oil change.
If you do not have a flex fuel vehicle, then only use “Regular” unleaded gasoline
with an octane rating of 87. Do not use E85 fuels, because your vehicle was not
designed to run on fuels with more than 15% ethanol.
fueL-efficienT TrAnSMiSSiOn*
Your vehicle has been designed to improve fuel economy by reducing fuel usage
while coasting or decelerating. This may be perceived as a light to medium
braking sensation when removing your foot from the accelerator pedal.
SOS POST -crASH ALer T S YSTeM™
The SOS Post-Crash Alert System™ provides audible and visual alarms in the
event of a crash which causes the deployment of airbags or the activation of the
safety belt pretensioners. The turn signals will flash and the horn will sound. To
deactivate the system, press the hazard flasher control, or you can press on your
remote transmitter.
BrAke OVer A cceLerATOr (BOA) feATure
In the event that the accelerator pedal becomes stuck or entrapped, BOA will
reduce engine power when the brake pedal is applied. Drivers who rest a foot on
the brake pedal while pressing the accelerator pedal may activate BOA. See your
Owner’s Manual for complete details.
Tire PreSSure MOniTOring S YSTeM
Your vehicle has been equipped with a t ire Pressure Monitoring System
(tPMS) that illuminates a low tire pressure warning light when one or
more of your tires is significantly under-inflated. If this happens, stop and check
your tires as soon as possible. Inflate them to the proper pressure. Refer to the
Wheels and Tires chapter in your Owner’s Manual for more information.
L Oc ATiOn Of SPAre Tire And TOOLS*
If your vehicle is equipped with a spare tire, jack and associated tools, refer to the
following table for their locations:
t ool Location
Spare tire (pick-up trucks only) Under the vehicle, just forward of the
rear bumper.
Jack Regular cab and Crew Cab:
fastened to the floor pan behind
rear-most seat on passenger side.
SuperCab: under the rear bench seat
on the passenger side.
Jack handle, lug wrench, lug wrench
extension (only available on Dual Rear
Wheel [DRW] vehicles) and wheel
chock (only available on Single Rear
Wheel [SRW] vehicles equipped with
a diesel engine) Regular cab: fastened to the floor
behind the driver seat.
SuperCab: fastened to the floor under
the rear seat .
Crew Cab: fastened to the floor behind
the rear seat on the driver side.
Key and spare tire lock In the glove box.
For complete details on how to change your tire, refer to the Wheels and Tires
chapter in your Owner’s Manual.
rOAdSide A SSiSTAnce
Your new Ford Super Duty® comes with the assurance and support of 24-hour
emergency roadside assistance. To receive roadside assistance in the United States,
call 1-800-241-3673. In Canada, call 1-800-665-2006.

*if equipped*if eQuiPPed18
AdVAnceTrA c®
WiTH rOLL
STABiLiTY
cOnTrOL™ (rSc
®)*
The system helps you keep
control of your vehicle when
on a slippery surface. The
electronic stability control
portion of the system helps
your vehicle avoid skids and
lateral slides. Roll stability
control helps your vehicle
avoid a vehicle rollover. The
traction control system helps
your vehicle avoid drive wheel
spin and a loss of traction. Press the control to turn portions of the system off.
Refer to your Stability Control chapter in your Owner’s Manual for more details.
eLecTrOnic LOcking differenTiAL (eLd )*
With the ELD engaged, the rear axle temporarily locks, allowing both rear
wheels to turn at the same speed. The function helps to provide additional
traction on slippery or off-road surfaces.
T O A cTiVATe
• In 4x4 vehicles with an electronic shift 4WD system, pull the 4WD control
knob toward you.
• In 2WD vehicles and vehicles equipped with a manual shift 4WD system, turn
the ELD control knob from OFF to ON.
• The indicator light
appears in the information display when ELD is active.
Note: ELD should not be used on dry surfaces.
reAr VieW
cAMerA SYSTeM*
Located under the Ford oval badge
on the tailgate, this camera provides
a video image of the area behind
the vehicle. During operation, lines
appear in the display which represent
your vehicle’s path and proximity
to objects behind the vehicle. The
display will automatically appear in
the navigation system screen* or in
the auto dimming rearview mirror
whenever the vehicle is in R (Reverse)
and uses colors (green, yellow and
red) to alert you of your proximity
to objects.
Note: Visibility aids do not replace
the need to watch where the vehicle is moving. Refer to your Owner’s Manual for
safety information, more details and limitations.
One-T OucH uP Or dOWn (frOnT WindOWS)*
This feature automatically opens or closes the window. Press or lift the switch
fully and release it. The window will open or close. Press or lift the switch again
to stop the window.
Note: The window may be disabled for up to five minutes if it is cycled up and
down repeatedly. This helps prevent damage to the motor. Normal operation
will resume once the motor cools.
funcTion
reVerSe SenSing S YSTeM*
The sensing system, only active when the transmission is in
R (Reverse), warns the driver of obstacles within a certain range of
the rear bumper area. It sounds a warning tone if there is an object
behind the vehicle. The tone will sound continuously when the
object is less than 12 inches (30 centimeters) away. The system is
not effective when the vehicle is traveling above 3 mph (5 km/h)
and may not detect certain angular or moving objects.
Note: Visibility aids do not replace the need to watch where
the vehicle is moving. Refer to your Owner’s Manual for safety
information, more details and limitations.
19*if e QuiPPed
