FORD TAURUS 1996 Owners Manual

314 [SV39250(ALL)11/92]

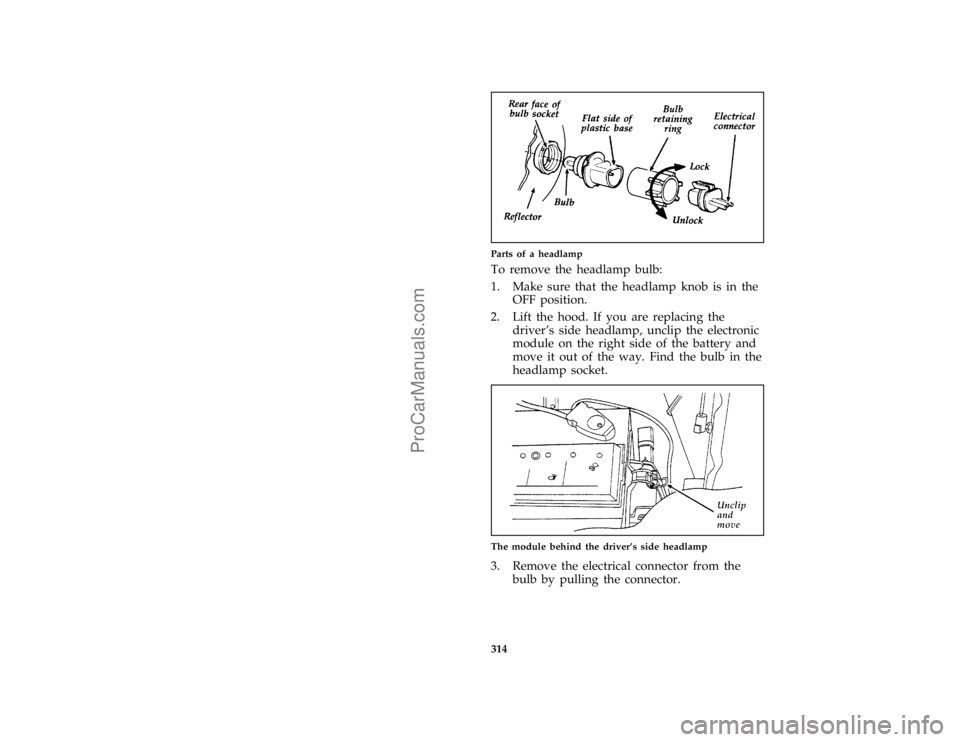

one third page art:0000345-AParts of a headlamp
*
[SV39300(ALL)03/95]
To remove the headlamp bulb:
*
[SV39350(ALL)05/95]
1. Make sure that the headlamp knob is in the
OFF position.
[SV39401(ALL)04/95]
2. Lift the hood. If you are replacing the
driver's side headlamp, unclip the electronic
module on the right side of the battery and
move it out of the way. Find the bulb in the
headlamp socket.
[SV39425(ALL)04/95]
one third page art:0001437-A
The module behind the driver's side headlamp
*
[SV39450(ALL)02/95]
3. Remove the electrical connector from the
bulb by pulling the connector.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

315
*
[SV39501(ALL)02/95]
4. Remove the bulb retaining ring by rotating it
counterclockwise (when viewed from the
rear) about an eighth of a turn to free it
from the bulb socket, and by sliding the ring
off the plastic base. Keep the ring. It is to be
used again to retain the new bulb.
[SV39550(ALL)02/95]
5. Carefully remove the bulb from its socket by
gently pulling it straight back out of the
socket. Do not turn the bulb while you
remove it.
*
[SV39601(ALL)03/95]
To install a bulb:
*
[SV39650(ALL)02/95]
1. With the flat side of the bulb's plastic base
facing upward, insert the glass end of the
bulb into the socket. You may need to turn
the bulb left or right to line up the grooves
in the plastic base with the tabs in the
socket. When the grooves are aligned, push
the bulb into the socket until the plastic base
contacts the rear of the socket.
*
[SV39701(ALL)08/95]
2. Slip the bulb retaining ring over the plastic
base until it contacts the rear of the socket.
Lock the ring into the socket by rotating it
clockwise until you feel a ªstop.º
*
[SV39750(ALL)02/95]
3. Push the electrical connector into the rear of
the plastic base until it snaps, locking it into
position.
*
[SV39800(ALL)02/95]
4. Turn the headlamps on and make sure that
they work properly. If the headlamp was
correctly aligned before you changed the
bulb, you should not need to align it again.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

316 %
*
[SV39850(ALL)02/95]
Aiming Headlamps
[SV39901(ALL)02/95]
Your vehicle is equipped with a Vehicle
Headlamp Aim Device (VHAD) on the
headlamp reflector extension and headlamp
housing. Each headlamp may be properly aimed
in the horizontal direction (left/right) and the
vertical direction (up/down) by performing the
steps outlined in the following paragraphs. The
horizontal aim must be adjusted first.
[SV39950(ALL)06/95]
Tools required: One 4mm box wrench or open
end wrench.
[SV40050(ALL)04/95]
Position the vehicle on a surface that is level on
the front-to-rear direction.
[SV40075(ALL)04/95]
If the vehicle cannot be placed on a true level
surface, the headlamps still can be adjusted
using the VHAD if the slope of the surface is
accurately known and does not differ by more
than1.2Êfrom true level. A difference of 2.27
inches in height of the surface between the front
and rear wheels corresponds to1.2Êslope.
[SV40100(ALL)04/95]
If the vertical adjuster is within +/s4
graduations about zero, the vertical headlamp
aim is within specification; and if the horizontal
adjuster is within +/s2 graduations about zero,
the horizontal headlamp aim is within
specification.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

317 [SV40125(ALL)04/95]

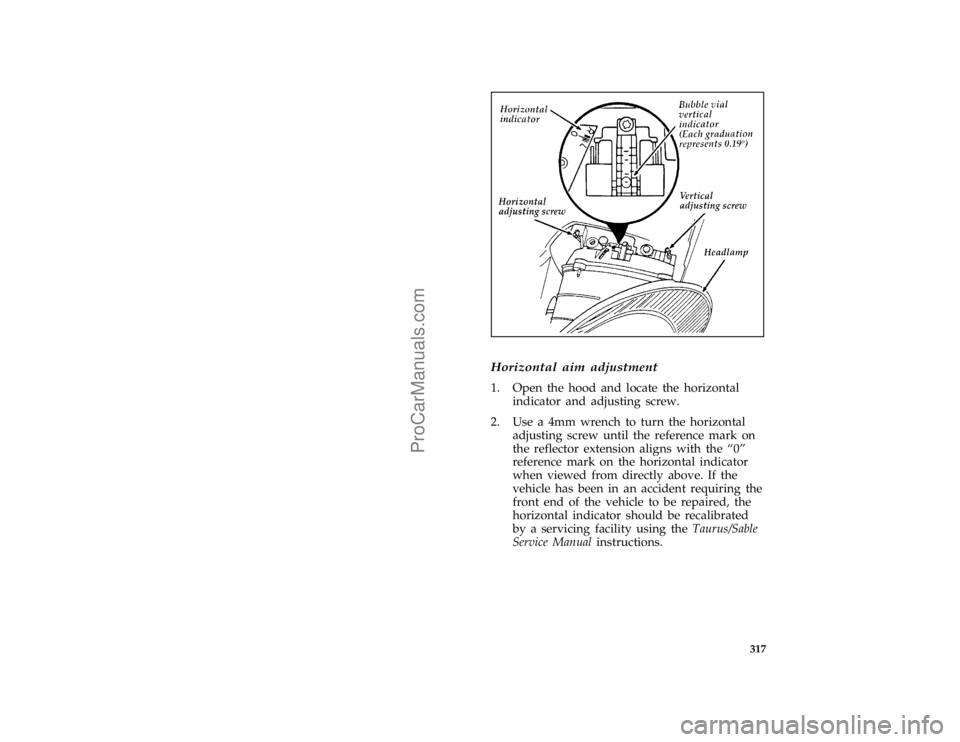

half page art:0001425-A
*
[SV40201(ALL)06/95]
Horizontal aim adjustment
[SV40250(ALL)04/95]
1. Open the hood and locate the horizontal
indicator and adjusting screw.
[SV40375(ALL)04/95]
2. Use a 4mm wrench to turn the horizontal
adjusting screw until the reference mark on
the reflector extension aligns with the ª0º
reference mark on the horizontal indicator
when viewed from directly above. If the
vehicle has been in an accident requiring the
front end of the vehicle to be repaired, the
horizontal indicator should be recalibrated
by a servicing facility using theTaurus/Sable
Service Manualinstructions.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

318
*
[SV40501(ALL)06/95]
Vertical aim adjustment
[SV40601(ALL)04/95]
1. With the hood open, locate the bubble level
vertical aim indicator. It is visible when
viewed from above and to the rear of the
headlamp.
[SV40650(ALL)04/95]
2. With the vehicle on a level surface, use a
4mm wrench to turn the vertical aim
adjustment screw (outboard screw) located
on the back of the lamp assembly clockwise
or counterclockwise until the bubble in the
spirit level is centered when viewed from
directly above the bubble.
[SV40725(ALL)04/95]
3. Close the hood.
[SV40750(ALL)06/95]
If the vehicle is on a downward or upward
slope of not more than1.2Ê, theVHAD's bubble
level can be used to correct for the effects of the
surface slope, provided that the slope is
accurately known.
[SV40775(ALL)06/95]
Each graduation of the bubble level represents
0.19Ê ofdownward or upward slope. To correct
for the effects of a surface slope, turn the
vertical aim adjustment screw until the bubble is
centered at a position corresponding to the slope
of the surface.
[SV40800(ALL)02/95]
Each 0.1 inch difference in surface height
between the front and the rear wheels
corresponds to0.053Ê ofsurface slope; each0.19Ê
of surface slope corresponds to 0.36 inches
difference in surface height between the front
and rear wheels.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

319 % [SV40820(ALL)02/95]
Replacing the High-Mount Brakelamp Bulb
[SV40830(ALL)04/95]
If you have the sedan, your vehicle has a
brakelamp mounted in the rear window, called a
high-mount brakelamp. The wagon has a
high-mount brakelamp on the outside. You may
need to remove this lamp to replace the
brakelamp bulb.
[SV40832(ALL)11/94]

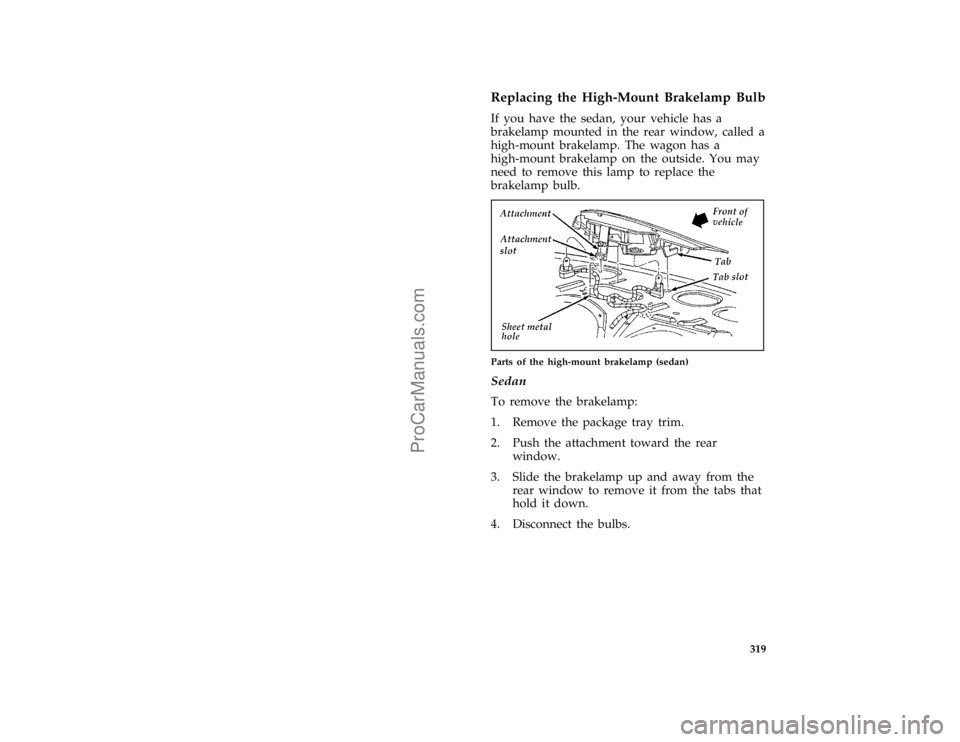

one third page art:0000623-D
Parts of the high-mount brakelamp (sedan)
[SV40835(ALL)11/94]
Sedan
*
[SV40840(ALL)03/95]
To remove the brakelamp:
[SV40842(ALL)11/94]
1. Remove the package tray trim.
[SV40844(ALL)11/94]
2. Push the attachment toward the rear
window.
[SV40846(ALL)11/94]
3. Slide the brakelamp up and away from the
rear window to remove it from the tabs that
hold it down.
[SV40849(ALL)11/94]
4. Disconnect the bulbs.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

320 [SV40850(ALL)11/94]To install the brakelamp:
[SV40855(ALL)11/94]
1. Install the bulbs.
[SV40860(ALL)11/94]
2. Position the brakelamp over the tab slots
and line up the tabs with the tab slots.
[SV40865(ALL)11/94]
3. Push down and toward the rear window to
engage the tabs.
[SV40870(ALL)11/94]
4. Push attachment toward the rear window
and line up the slot in the attachment with
the edge of the sheet metal hole.
[SV40875(ALL)11/94]
5. Release the attachment slot onto the sheet
metal hole.
[SV40878(ALL)02/95]
6. Replace the package tray trim.
[SV40880(ALL)11/94]
Wagon
[SV40885(ALL)02/95]

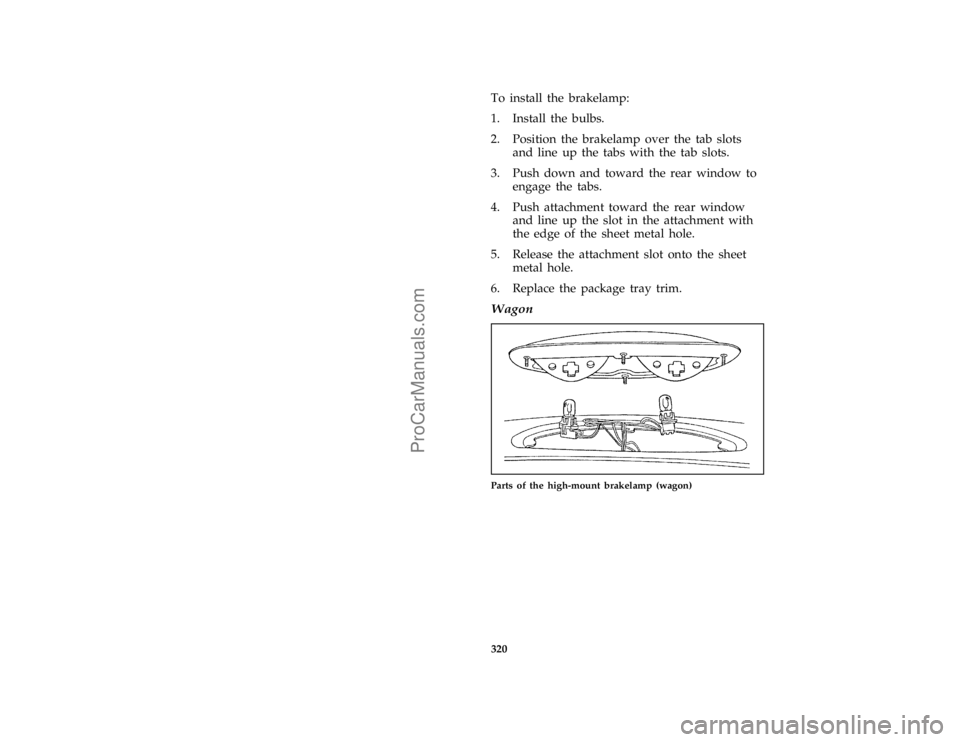

one third page art:0001396-A
Parts of the high-mount brakelamp (wagon)
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

321
*
[SV40890(ALL)03/95]
To remove the brakelamp:
[SV40895(ALL)11/94]
1. Remove the interior trim panel.
[SV40905(ALL)11/94]
2. Remove the four attachment nuts that hold
the brakelamp in place.
[SV40910(ALL)11/94]
3. Lift the whole assembly off of the vehicle
from the outside.
[SV40915(ALL)11/94]
4. Disconnect the bulbs.
[SV40920(ALL)11/94]
To install the brakelamp:
[SV40925(ALL)11/94]
1. Install the bulbs.
[SV40930(ALL)11/94]
2. Position the brakelamp into the tailgate
holes.
[SV40935(ALL)11/94]
3. From the inside of the vehicle, install and
tighten the four nuts that hold the
brakelamp in place.
[SV40940(ALL)11/94]
4. Install the interior trim panel.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

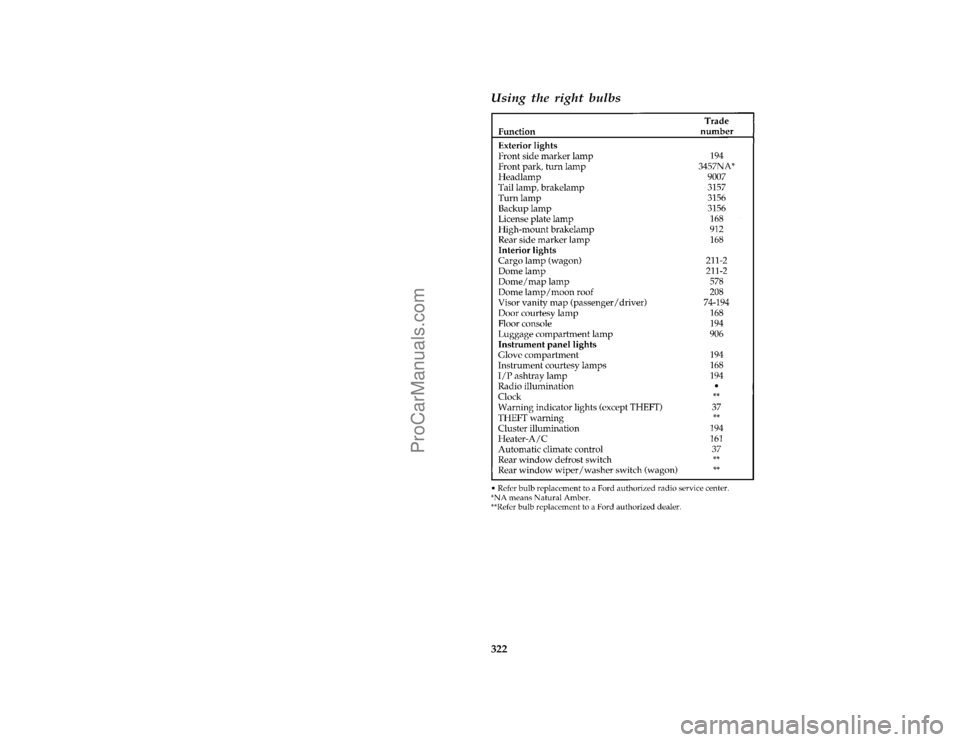

322 % [SV40950(ALL)11/94]Using the right bulbs
% [SV40960( T)04/95]
thirty pica chart:0000327-KFile:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

323
%*
[SV41000(ALL)03/95]
Emission Control System
[SV41100(ALL)12/95]
Your vehicle is equipped with catalytic
converters which enable your vehicle to comply
with applicable exhaust emission requirements.
*
[SV41200(ALL)06/95]
RWARNING
Exhaust leaks may result in the entry of
harmful and potentially lethal fumes into
the passenger compartment. Under
extreme conditions excessive exhaust
temperatures could damage the fuel
system, the interior floor covering, or
other vehicle components, possibly
causing a fire.
*
[SV41300(ALL)05/95]
To make sure that the catalytic converter and the
other emission control parts continue to work
properly:
*
[SV41400(ALL)01/95]
q
Use only unleaded fuel.
*
[SV41500(ALL)01/95]
q
Avoid running out of fuel.
*
[SV41600(ALL)01/95]
q
Do not turn off the ignition while your
vehicle is moving, especially at high speeds.
*
[SV41700(ALL)03/95]
q
Have the services listed in yourMaintenance
Schedule and Recordbooklet performed
according to the specified schedule.
*
[SV41710(ALL)03/95]
The Scheduled Maintenance Services listed in the
Maintenance Schedule and Recordbooklet are
required because they are considered essential to
the life and performance of your vehicle and to
its emissions system.
*
[SV41720(ALL)05/95]
Ford strongly recommends the use of genuine
Ford replacement parts. If other than Ford or
Motorcraft parts or Ford authorized
remanufactured parts are used for maintenance
replacements or for the service of components
affecting emission control, such non-Ford parts
