FORD TAURUS 1996 Owners Manual

274
*
[SV14300(ALL)01/95]
5. Wipe the dipstick clean and put it back into
position, making sure it is fully seated.
[SV14400(ALL)02/95]
one inch art:0001397-A

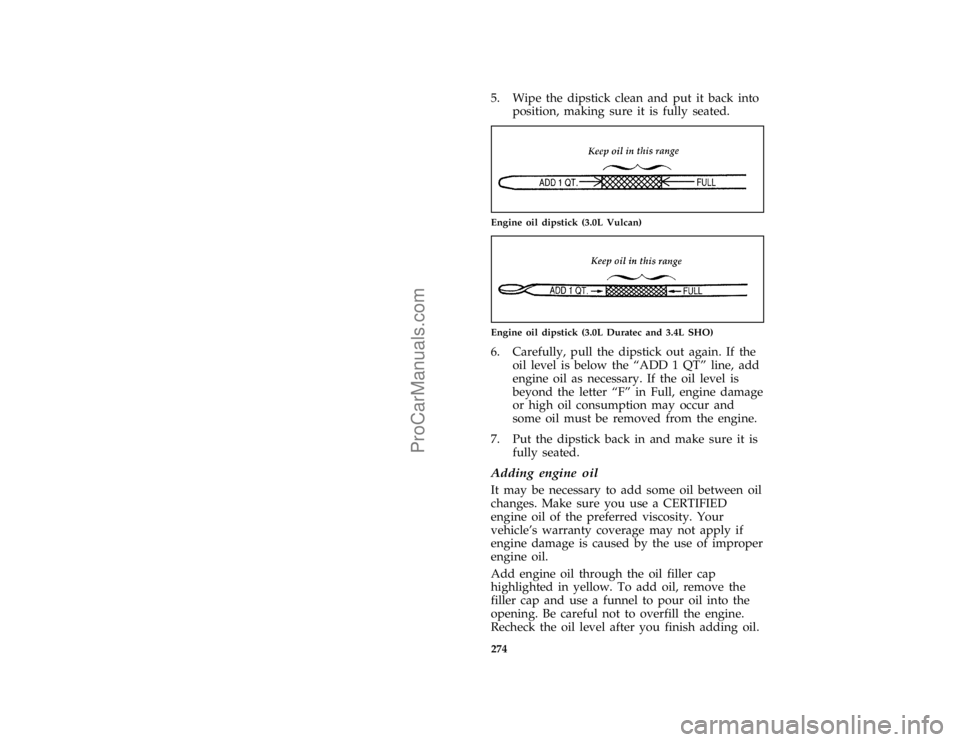

Engine oil dipstick (3.0L Vulcan)
[SV14450( T)02/95]
one inch art:0001398-A
Engine oil dipstick (3.0L Duratec and 3.4L SHO)
*
[SV14500(ALL)11/95]
6. Carefully, pull the dipstick out again. If the
oil level is below the ªADD 1 QTº line, add
engine oil as necessary. If the oil level is
beyond the letter ªFº in Full, engine damage
or high oil consumption may occur and
some oil must be removed from the engine.
*
[SV14600(ALL)01/95]
7. Put the dipstick back in and make sure it is
fully seated.
%*
[SV14700(ALL)03/95]
Adding engine oil
*
[SV14800(ALL)01/95]
It may be necessary to add some oil between oil
changes. Make sure you use a CERTIFIED
engine oil of the preferred viscosity. Your
vehicle's warranty coverage may not apply if
engine damage is caused by the use of improper
engine oil.
*
[SV15000(ALL)03/95]
Add engine oil through the oil filler cap
highlighted in yellow. To add oil, remove the
filler cap and use a funnel to pour oil into the
opening. Be careful not to overfill the engine.
Recheck the oil level after you finish adding oil.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

275 %
*
[SV16300(ALL)06/95]
Changing the Engine Oil and the Oil Filter
*
[SV16400(ALL)04/95]

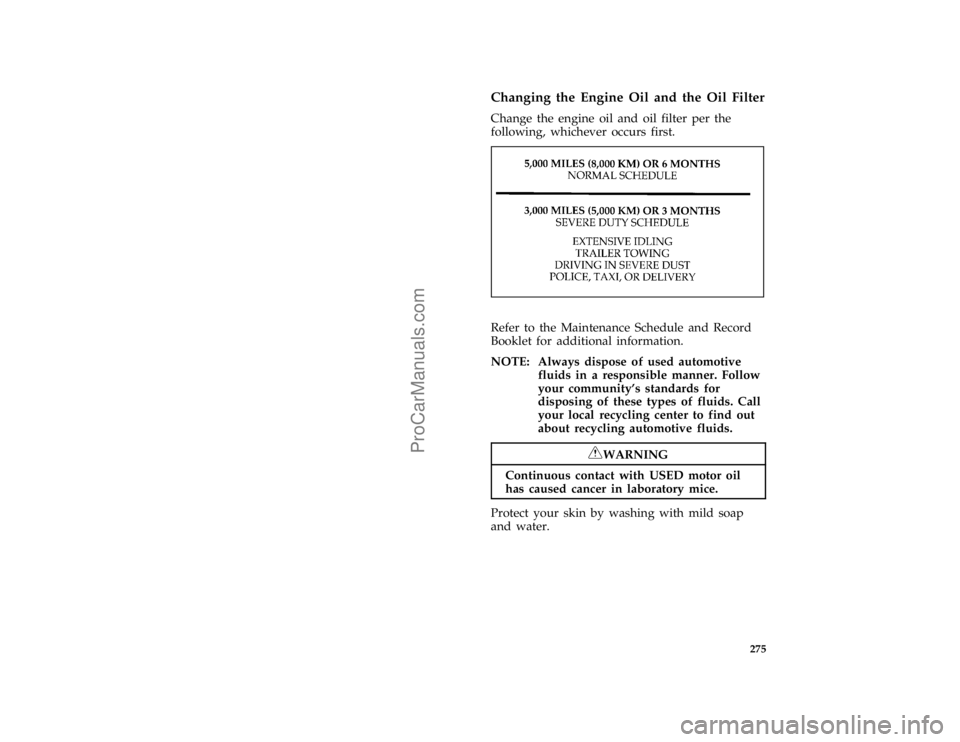

Change the engine oil and oil filter per the
following, whichever occurs first.
[SV16500(ALL)04/95]
one third page art:0060618-C*
[SV16550(ALL)03/95]
Refer to the Maintenance Schedule and Record
Booklet for additional information.
%*
[SV16600(ALL)09/95]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
*
[SV16700(ALL)07/95]
RWARNING
Continuous contact with USED motor oil
has caused cancer in laboratory mice.
[SV16800(ALL)07/95]
Protect your skin by washing with mild soap
and water.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

276
%*
[SV17300(ALL)03/95]
Engine Coolant
%*
[SV17320(ALL)09/95]
Checking the Engine Coolant
*
[SV17350(ALL)09/95]
NOTE: Be sure to read and understand
Precautions When Servicing Your
Vehicleat the beginning of this chapter.
[SV17400(ALL)10/95]
RWARNING
The cooling fans are automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
%*
[SV17600(ALL)05/94]
Your vehicle's coolant protects your engine from
overheating in the summer and from freezing in
the winter. Check the level of the coolant at least
once a month. Simply look at the engine coolant
reservoir located in the engine compartment. To
locate the reservoir, see the diagram of your
vehicle's engine underEngine Type, in this
chapter.
*
[SV17650(ALL)05/95]
The coolant additives also protect the entire
cooling system from internal passageway
corrosion and these additives lubricate the water
pump. The coolant should be serviced as noted
in theMaintenance Schedule and Recordbooklet.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

277 [SV17700(ALL)12/95]
one third page art:0000305-E

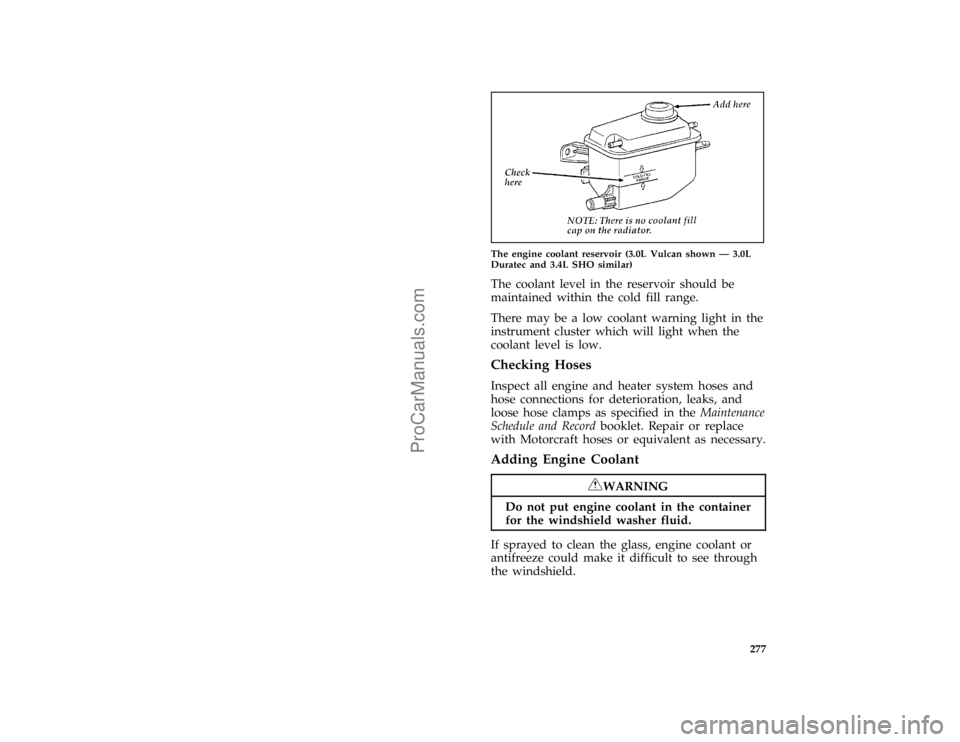

The engine coolant reservoir (3.0L Vulcan shown Ð 3.0L
Duratec and 3.4L SHO similar)
[SV17750(ALL)04/95]
The coolant level in the reservoir should be
maintained within the cold fill range.
[SV17900(ALL)02/95]
There may be a low coolant warning light in the
instrument cluster which will light when the
coolant level is low.
%*
[SV18000(ALL)08/95]
Checking Hoses
*
[SV18050(ALL)11/94]
Inspect all engine and heater system hoses and
hose connections for deterioration, leaks, and
loose hose clamps as specified in theMaintenance
Schedule and Recordbooklet. Repair or replace
with Motorcraft hoses or equivalent as necessary.
*
[SV18100(ALL)09/95]
Adding Engine Coolant
*
[SV18200(ALL)09/95]
RWARNING
Do not put engine coolant in the container
for the windshield washer fluid.
*
[SV18250(ALL)09/95]
If sprayed to clean the glass, engine coolant or
antifreeze could make it difficult to see through
the windshield.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

278 [SV18300(ALL)11/94]
RWARNING
Never remove the pressure cap while the
engine is running or hot to avoid personal
injury that can be caused by escaping
steam or engine coolant.
[SV18500(ALL)04/95]
1. Before you remove the cap, turn the engine
off and let it cool. Even when the engine is
cool, be careful when you remove the cap.
[SV18600(ALL)02/95]
2. When the engine is cold, wrap a thick cloth
around the cap and turn it slowly
counterclockwise to relieve pressure.
*
[SV18700(ALL)09/95]
3. Step back while the pressure releases.
*
[SV18800(ALL)09/95]
4. When you are sure that all the pressure has
been released, use the cloth to turn and
remove cap.
*
[SV18900(ALL)02/95]
5. Stand away from the reservoir opening. Hot
steam may blow out or hot engine coolant
may even splash out.
*
[SV19000(ALL)09/95]
RWARNING
Failure to follow these instructions could
result in serious personal injury from hot
engine coolant or steam blowout and/or
damage to the engine cooling system or
engine.
*
[SV19050(ALL)09/95]
To find out how much engine coolant mixture
your vehicle's coolant system can hold, seeRefill
capacities for fluidsin the Index.
[SV19100(ALL)04/95]
Add engine coolant only to the coolant
reservoir.If the coolant level is low, add to the
reservoir a 50/50 mixture of water and the type
of engine coolant that Ford specifies. You may
add water by itself only in an emergency, but
you should replace it with a 50/50 mixture as
soon as possible.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

279 [SV19104(ALL)04/95]
Ford Premium Cooling System Fluid is an
optimized formula that will protect all metal and
rubber elastomers used in Ford engines for four
years or 50,000 miles (80,000 km). It is not
necessary and not recommended to use
supplemental coolant additives in your vehicle.
These additives may harm your engine cooling
system. Follow the recommended service interval
for changing your engine coolant.
*
[SV19106(ALL)09/95]
NOTE: When you change or add engine
coolant, it is important to maintain
your engine coolant concentration
between 40%(-11ÊF [-24ÊC]) and 60%
(-62ÊF [-52ÊC]),depending on your local
climate conditions. Below 40% you will
lose freeze protection and above 60%
your engine may overheat on a warm
day.
*
[SV19107(ALL)09/95]
NOTE: Less than 40% of coolant concentration
may cause engine corrosion and
overheating. Plain water may be used
in an emergency only. Replace it with
the specified coolant as quickly as
possible.
*
[SV19108(ALL)09/95]
NOTE: The use of an improper coolant may
void your warranty for the engine
cooling system. Use only a premium,
nationally recognized brand name
engine coolant. Do not use alcohol,
methanol antifreeze or engine coolant
mixed with alcohol or methanol
antifreeze. If you do not use the proper
coolant, the aluminum engine on your
vehicle will corrode.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

280
*
[SV19110(ALL)09/95]
Ford Motor Company expressly authorizes the
Ford Rotunda engine coolant recycling process
and chemicals. Use only Ford Rotunda recycled
engine coolant or an equivalent recycled engine
coolant that is certified by the supplier to meet
Ford specification ESE-M97B44-A.
%*
[SV19112(ALL)09/95]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
*
[SV19115(ALL)09/95]
Use Ford Premium Cooling System Fluid
E2FZ-19549-AA (in Canada, Motorcraft CXC-8-B)
or an equivalent engine coolant that meets Ford
Specification ESE-M97B44-A.
[SV19150(ALL)11/94]
Have your dealer check the engine cooling
system for leaks if:
[SV19200(ALL)11/94]
q
you have to add engine coolant more than
once a month, or
[SV19250(ALL)11/94]
q
you have to add more than a quart (liter) at a
time
%*
[SV19300(ALL)08/95]
Engine Coolant Drain and Flush
*
[SV19350(ALL)11/94]
Proper procedures for a complete coolant drain
and flush of the cooling system can be found in
theCar Service Manual. Following these
recommended procedures will ensure that the
specified coolant level and a 50/50 or
appropriate mixture of coolant and water is
maintained.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

281
*
[SV19400(ALL)08/95]
Engine Coolant Refill Procedure
*
[SV19450(ALL)01/95]
When the entire cooling system is drained and
refilled, the following procedure should be used
to ensure a complete fill:
[SV19500(ALL)04/95]
q
With the engine OFF and cool, remove the
pressure cap, located on the coolant reservoir.
[SV19550(ALL)04/95]
q
Add a 50/50 mixture of specified coolant and
water to the coolant reservoir. Refer toRefill
Capacitieslater in this chapter for the correct
amount.
[SV19600(ALL)02/95]
q
Continue to fill the reservoir until the coolant
is at the top of the cold fill range.
[SV19650(ALL)04/95]
q
Reinstall the pressure cap until it clicks.
*
[SV19700(ALL)05/95]
q
Start and idle the engine until the radiator
upper hose is warm (this indicates the
thermostat is open and coolant is flowing
through the entire system).
[SV19750(ALL)04/95]
q
Immediately shut off the engine and let cool.
Cautiously remove the pressure cap and add
a 50/50 mixture of specified coolant and
water until the coolant is within the cold fill
range in the coolant reservoir.
[SV19800(ALL)02/95]
q
Reinstall the pressure cap until a click is
heard and felt.
*
[SV19850(ALL)03/95]
q
Check for leaks at the draincock.
*
[SV19900(ALL)03/95]
q
Recheck the engine coolant level, using the
recommended procedure, after one or two
occasions of vehicle use.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

282
% [SV19950(ALL)04/95]

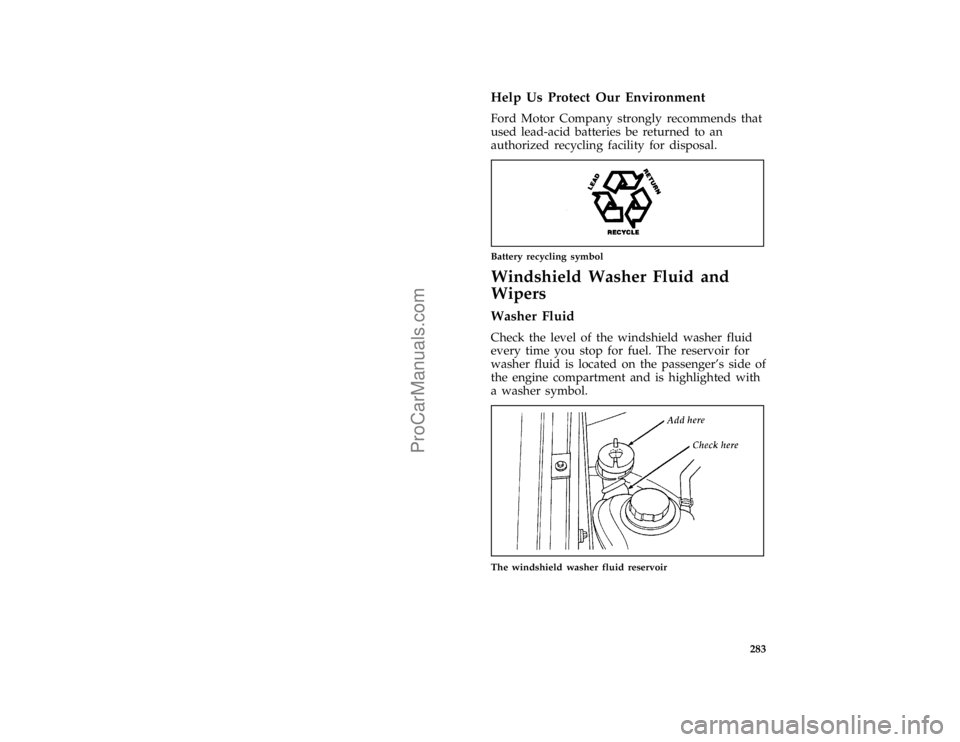

About Your Battery
*
[SV20001(ALL)02/95]
Your vehicle may have a Motorcraft
maintenance-free battery. When the original
equipment battery is replaced under warranty, it
may be replaced by a Motorcraft
Low-Maintenance Battery.
% [SV20850(ALL)04/95]
Because your vehicle's engine is electronically
controlled by a computer, some control
conditions are maintained by power from the
battery. If you ever disconnect the battery or
install a new battery, you must allow the
computer to ªrelearnº its idle conditions before
your vehicle will drive properly. To begin this
process, put the gearshift in P (Park), set the
parking brake, turn off all the accessories, and
start the vehicle. Bring the engine to normal
operating temperature. Allow the engine to idle
for one minute in N (Neutral) and one minute in
Drive or Overdrive. Perform the previous
procedure with the air conditioning on and off
(conditions permitting). The relearning process
will complete automatically as you drive the
vehicle.
[SV20875(ALL)10/95]
Driveability may be deteriorated slightly until all
drive modes are ªrelearned.º
*
[SV21000(ALL)03/95]
If you do not let the engine relearn its idle, the
idle quality of your vehicle may be adversely
affected until the idle is relearned. Your vehicle
will eventually relearn its idle while you drive
it, but it takes much longer than if you use the
previous procedure.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

283 %
*
[SV21100(ALL)03/95]
Help Us Protect Our Environment
*
[SV21200(ALL)04/95]
Ford Motor Company strongly recommends that
used lead-acid batteries be returned to an
authorized recycling facility for disposal.
*
[SV21300(ALL)03/95]
one inch art:0000983-A
Battery recycling symbol
%*
[SV21700(ALL)03/95]
Windshield Washer Fluid and
Wipers
%*
[SV21800(ALL)03/95]
Washer Fluid
[SV21900(ALL)11/94]
Check the level of the windshield washer fluid
every time you stop for fuel. The reservoir for
washer fluid is located on the passenger's side of
the engine compartment and is highlighted with
a washer symbol.
[SV22205(ALL)11/94]
one third page art:0000308-B
The windshield washer fluid reservoir
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com
