9Control Description of the Front Panel
1. DVD Compartment Slot
(models with DVD Player)
2. Infrared Transmitters
These are used to transmit audio to the
wireless headphones.
3. IR Sensor - Forward Sensor Eye
Allow the remote control to navigate the
OSD (On Screen Display) on the device.
4. Level Lock & Release Latch
Allows the user to adjust the viewing angle
of the LCD panel or lock the panel into the
secure position.
5. TFT LCD Panel
7-inch TFT LCD Panel
6. POWER Button
Press this button to turn the system on or off.
7. SOURCE Button
Press this button to select between Moni-
tor A, Monitor B, AUX/TV (if available), and
AUX 2 (if available).
8. USB Port (Optional)
You can play music and images stored on a
USB Device such as a USB memory stick or
memory card reader.
9. Video Input Jack (Yellow)
Connect using a cable (RCA connector).
10. Audio Input Jack (White)
Connect using a cable (RCA connector).
11. Audio Input Jack (Red)
Connect using a cable (RCA connector).
12. 1/8-inch Headphone Jack
Allow plug-in of wired headphones with
1/8-inch stereo connector plug for moni-
toring the audio from the program.
13. PLAY Button
(models with DVD Player)
Press this button to play the DVD/CD. 14.
STOP Button
(models with DVD Player)
Press this button to stop playing the DVD/
CD.
15. EJECT Button
(models with DVD Player)
Press this button to eject the disc from the
DVD compartment.

Warnings t
Do not use any solvents or cleaning mate-
rials when cleaning the video device.
t
Do not use any abrasive cleaners, that
may scratch the screen. Use only a lightly
dampened lint free cloth to wipe the
screen if it is dirty.
t
Lock the LCD screen in the fully closed
position when not in use.
t
Do not put pressure on the screen.
t
Caution children to avoid touching or
scratching the screen, as it may become
dirty or damaged.EN

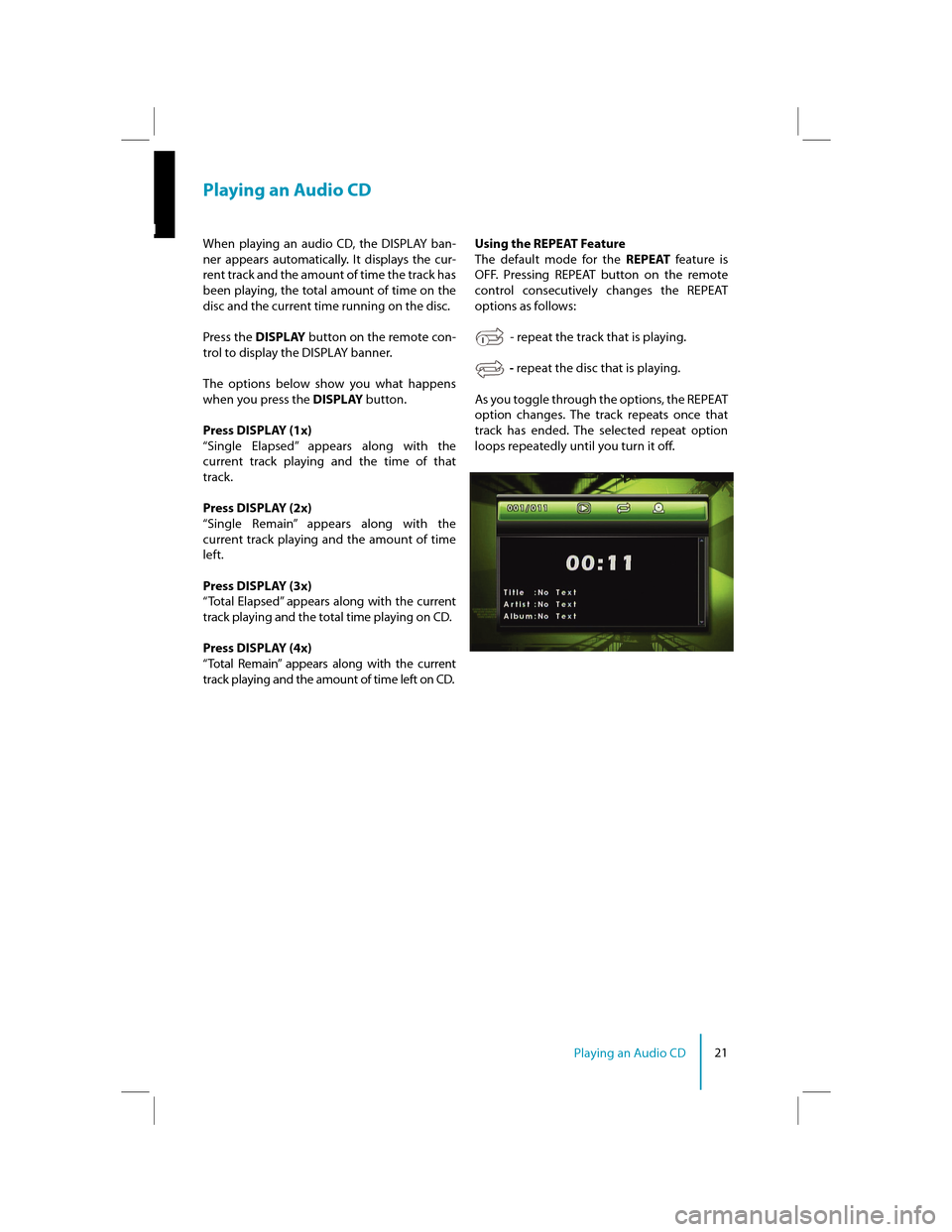

21Playing an Audio CD
EN
Playing an Audio CD
When playing an audio CD, the DISPLAY ban-
ner appears automatically. It displays the cur-
rent track and the amount of time the track has
been playing, the total amount of time on the
disc and the current time running on the disc.
Press the DISPLAY button on the remote con-
trol to display the DISPLAY banner.
The options below show you what happens
when you press the DISPLAY button.
Press DISPLAY (1x)
“Single Elapsed” appears along with the
current track playing and the time of that
track.
Press DISPLAY (2x)
“Single Remain” appears along with the
current track playing and the amount of time
left.
Press DISPLAY (3x)
“Total Elapsed” appears along with the current
track playing and the total time playing on CD.
Press DISPLAY (4x)
“Total Remain” appears along with the current
track playing and the amount of time left on CD. Using the REPEAT Feature
The default mode for the
REPEAT feature is
OFF. Pressing REPEAT button on the remote
control consecutively changes the REPEAT
options as follows:
- repeat the track that is playing.
- repeat the disc that is playing.
As you toggle through the options, the REPEAT
option changes. The track repeats once that
track has ended. The selected repeat option
loops repeatedly until you turn it of.

25Troubleshooting
EN
Troubleshooting
Symptom Remedy
Device does not power “ON”t

Is ignition turned “ON”?
t
Are batteries installed in remote control?
IR sensor inoperative t

Verify that the batteries in the remote control are good.
t
Verify that the remote sensor eye is not obstructed.
t
Verify that the infrared transmitter is afxed over the
sensor eye of the component to be controlled.
Disc won’t play t

Insert a disc with label side rear of the vehicle.
t
Check if the disc is defective by trying another disc.
t
Check the type of disc you put into DVD compartment
slot. This DVD player only plays DVDs, audio CDs, and
MP3s.
t
Both the device and the disc are coded by region.
If the regional codes don’t match, the disc can’t be
played. This DVD player us set to region number 1.
Disc plays, but then stops
immediately t

The disc is dirty and needs cleaning.
t
Condensation has formed. Allow player to dry out.
No picture t

Check that the signal source is connected.
t
The setting may be in the wrong status. Match your
monitor mode with the source correctly.
Distorted picture t

Check the disc for fngerprints and clean with a soft
cloth, wiping from center to edge.
t
Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
Cannot advance through a
movie t

You cannot advance through the opening credits and
warning information that appears at the beginning of
movies because the disc is programmed to prohibit
that action.
No sound or distorted sound t

Make sure that the DVD player is connected properly,
and all cables are securely inserted into the appropri-
ate jacks.
t
If you are using the IR headphones, make sure you
turn on the IR power.
t
Is volume turned “UP” on headphones?
t
Is anything blocking signal between monitor and
headphones?
Device feels warm t

When the device is in use for a long period of time, the
surface will be warm. This is normal.
Player does not respond to all
commands during playback t

Operations are not permitted by the disc.
t
Refer to the instructions in the disc inlay.
