FORD TAURUS 2015 6.G Owners Manual

ItemsCapacityFord part name or
equivalent Ford part number / Ford
specification
Engine coolant
8
3.5L V6 engine 11.1 quarts(10.5L)
Motorcraft Orange
Antifreeze/Coolant Prediluted VC-3DIL-B (U.S.);
CVC-3DIL-B (Canada) / WSS-M97B44-D2
3.5L V6 Super
High Output
(SHO) engine 11.4 quarts (10.8L)
2.0L EcoBoost engine
11.6 quarts (11.0L)
Fuel tank 19.0 gallons
(71.9 L) ——
Windshield washer fluid Fill as required Motorcraft Premium
Windshield Washer
Concentrate with Bitterant (U.S.);
Premium Quality
Windshield Washer Fluid (Canada) ZC-32-B2 (U.S);
CXC-37-(A, B, D, and F) (Canada) /
WSB-M8B16-A2
360 Capacities and Specifications
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

ItemsCapacityFord part name or
equivalent Ford part number / Ford
specification
A/C refrigerant
9
2.0LEcoBoost engine
1.62 lb (0.74kg) 3.5L V6 engine
1.43 lb (0.65kg) Motorcraft R–134a
Refrigerant YN-19 (U.S.);
CYN–16–R (Canada) / WSH-M17B19–A
A/C refrigerant
compressor oil
9
2.0L GTDI & 3.5LTiVCT 5.2 fl oz
(0.153 L) Motorcraft PAG Refrigerant
Compressor Oil YN-12–D /
WSH-M1C231–B
1Ford recommends using Motorcraft (Ford) DOT 4 Low Viscosity High Performance Brake Fluid or
equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause
degraded brake performance and not meet the Ford performance standards. Keep brake fluid clean
and dry. Contamination with dirt, water, petroleum products or other materials may result in brake
system damage and possible failure.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance information to determine the correct service interval. Use of any fluid other
than the recommended fluid may cause transmission damage.4See your authorized dealer for fluid level checking or filling.5Use of synthetic or synthetic blend motor oil is not mandatory. Only use fluid that meets Ford
specifications. Motor oils of the recommended viscosity grade that meet API SN requirements and
display the API Certification Mark for gasoline engines are also acceptable. Do not use oil labeled with
API SN service category unless the label also displays the API certification mark.
Capacities and Specifications 361
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

ItemsCapacityFord part name or
equivalent Ford part number / Ford
specification
6An oil that displays the API Certification Mark symbol conforms to current engine, emission system
and fuel economy performance standards of the International Lubricant Standardization and Approval
Committee (ILSAC).7Do not use supplemental engine oil additives. They are unnecessary and could lead to engine damage
that is not covered by Ford’s warranty.8Add the coolant type originally equipped in your vehicle.9See warning below:
WARNING: The air conditioning refrigerant system contains refrigerant R134a under high
pressure. Opening the air conditioning refrigerant system can cause personal injury. Only
qualified personnel should service the air conditioning refrigerant system.
362 Capacities and Specifications
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

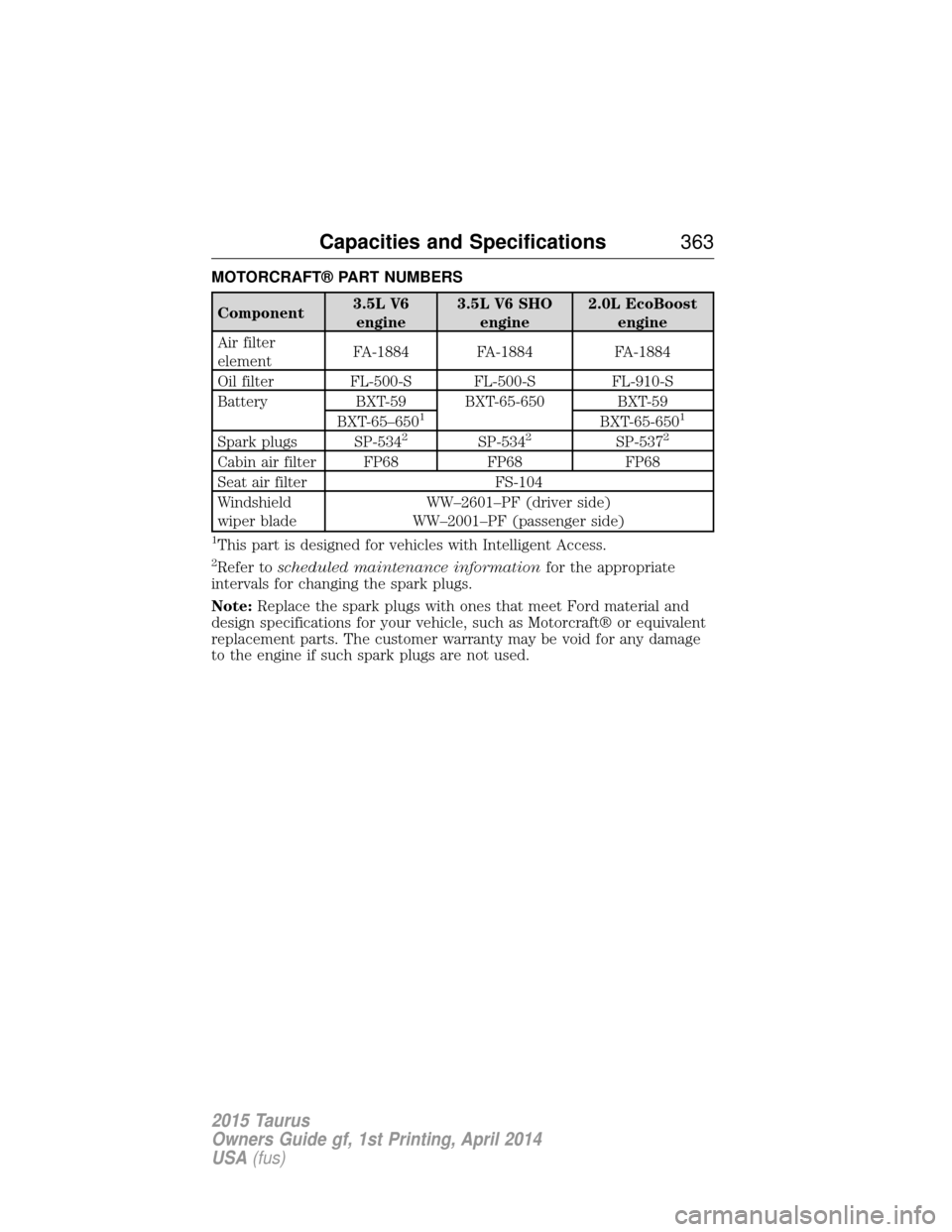

MOTORCRAFT® PART NUMBERS
Component3.5L V6
engine 3.5L V6 SHO
engine 2.0L EcoBoost
engine
Air filter
element FA-1884 FA-1884 FA-1884
Oil filter FL-500-S FL-500-S FL-910-S
Battery BXT-59 BXT-65-650 BXT-59 BXT-65–650
1BXT-65-6501
Spark plugs SP-5342SP-5342SP-5372
Cabin air filter FP68 FP68FP68
Seat air filter FS-104
Windshield
wiper blade WW–2601–PF (driver side)
WW–2001–PF (passenger side)
1This part is designed for vehicles with Intelligent Access.
2Refer to scheduled maintenance information for the appropriate
intervals for changing the spark plugs.
Note: Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft® or equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
Capacities and Specifications 363
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

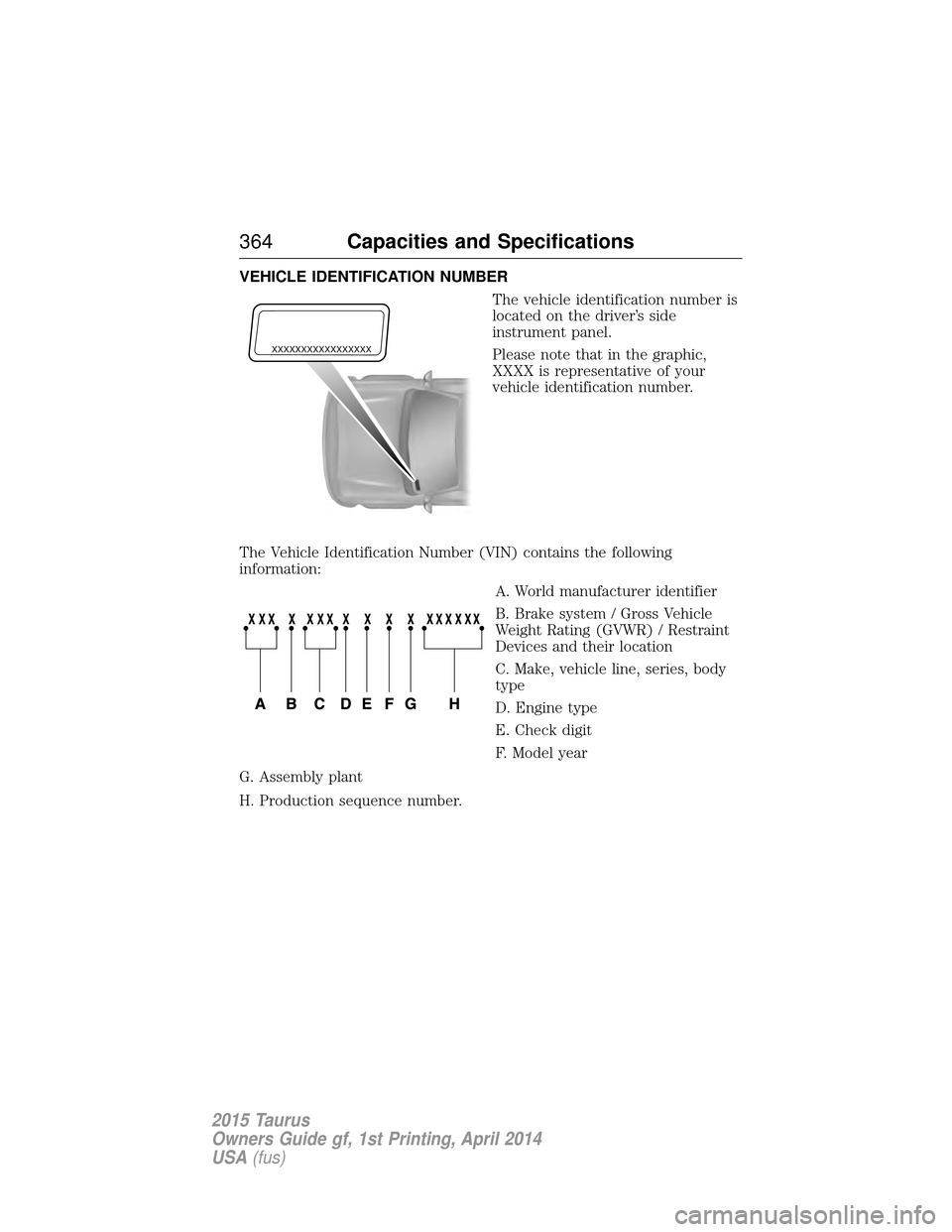

VEHICLE IDENTIFICATION NUMBERThe vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information: A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
364 Capacities and Specifications
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

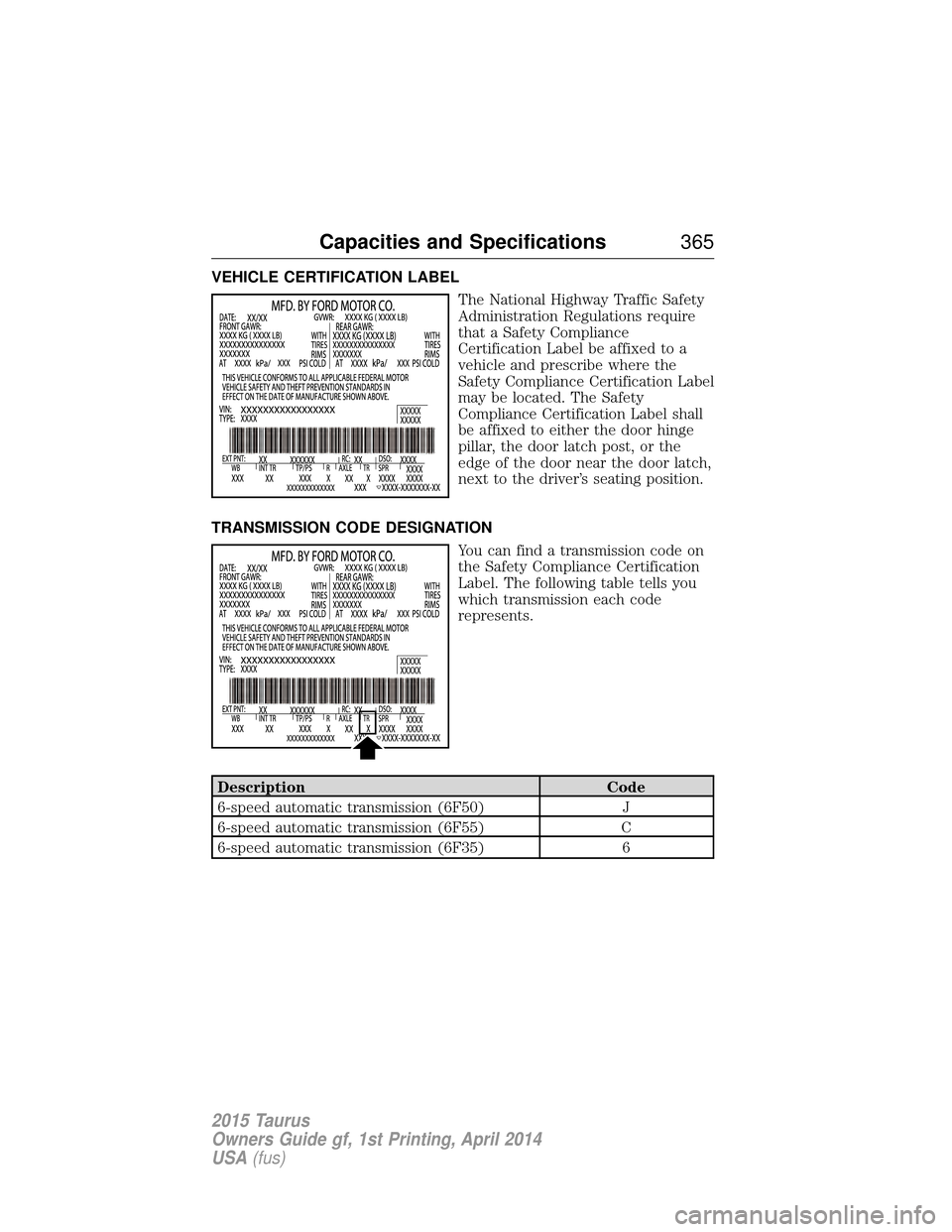

VEHICLE CERTIFICATION LABELThe National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification Label
may be located. The Safety
Compliance Certification Label shall
be affixed to either the door hinge
pillar, the door latch post, or the
edge of the door near the door latch,
next to the driver’s seating position.
TRANSMISSION CODE DESIGNATION You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F50) J
6-speed automatic transmission (6F55) C
6-speed automatic transmission (6F35) 6
Capacities and Specifications365
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

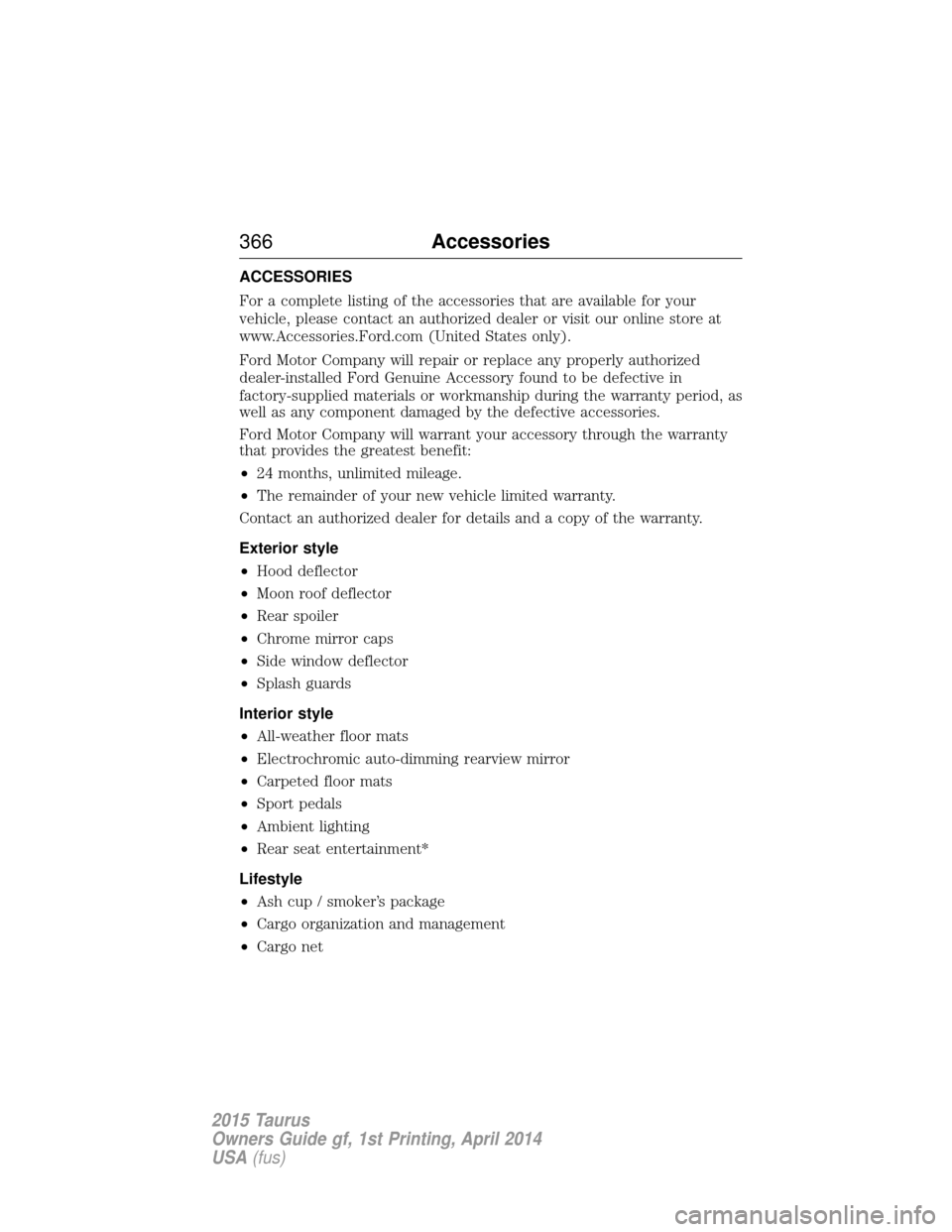

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact an authorized dealer or visit our online store at
www.Accessories.Ford.com (United States only).
Ford Motor Company will repair or replace any properly authorized
dealer-installed Ford Genuine Accessory found to be defective in
factory-supplied materials or workmanship during the warranty period, as
well as any component damaged by the defective accessories.
Ford Motor Company will warrant your accessory through the warranty
that provides the greatest benefit:
•24 months, unlimited mileage.
• The remainder of your new vehicle limited warranty.
Contact an authorized dealer for details and a copy of the warranty.
Exterior style
• Hood deflector
• Moon roof deflector
• Rear spoiler
• Chrome mirror caps
• Side window deflector
• Splash guards
Interior style
• All-weather floor mats
• Electrochromic auto-dimming rearview mirror
• Carpeted floor mats
• Sport pedals
• Ambient lighting
• Rear seat entertainment*
Lifestyle
• Ash cup / smoker’s package
• Cargo organization and management
• Cargo net
366 Accessories
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

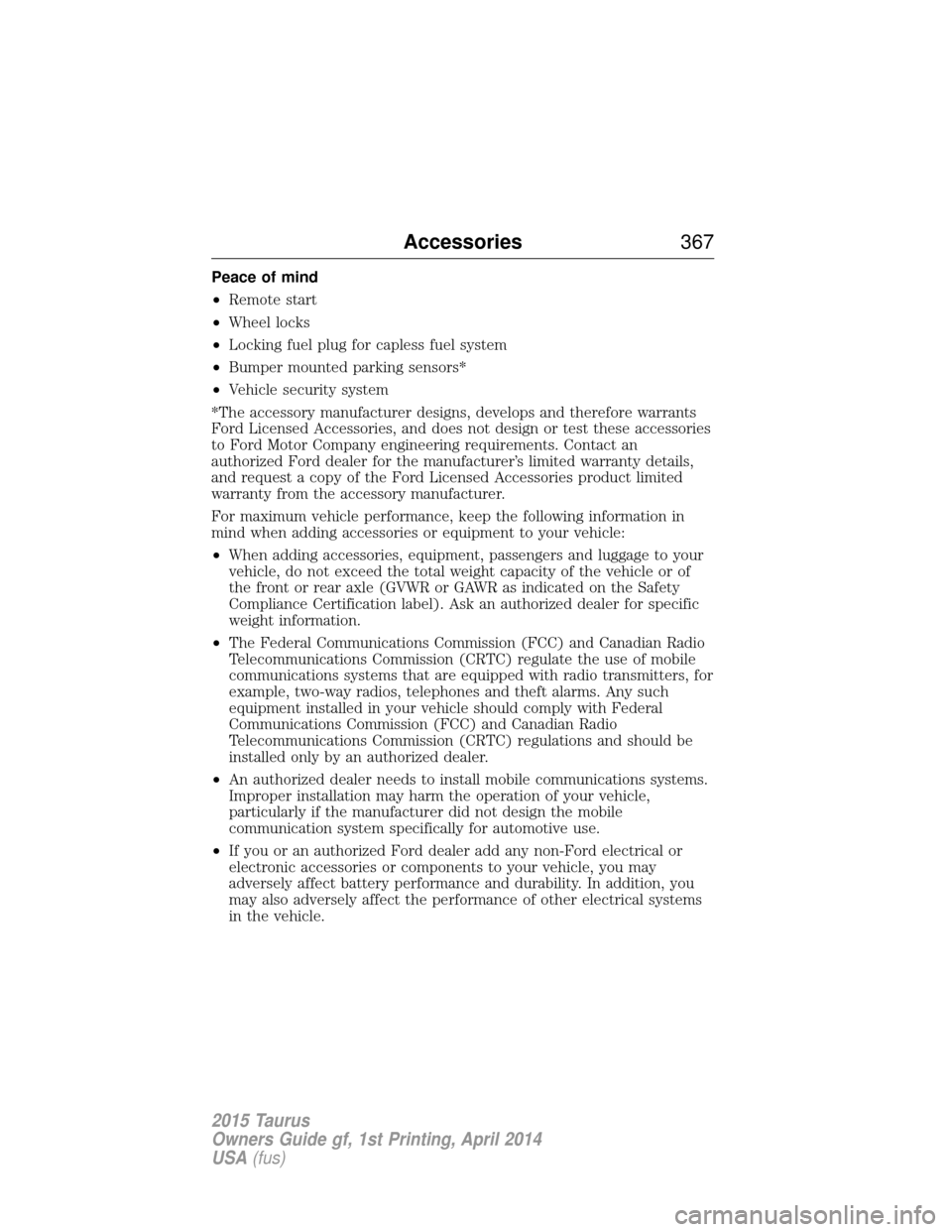

Peace of mind
•Remote start
• Wheel locks
• Locking fuel plug for capless fuel system
• Bumper mounted parking sensors*
• Vehicle security system
*The accessory manufacturer designs, develops and therefore warrants
Ford Licensed Accessories, and does not design or test these accessories
to Ford Motor Company engineering requirements. Contact an
authorized Ford dealer for the manufacturer’s limited warranty details,
and request a copy of the Ford Licensed Accessories product limited
warranty from the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Ask an authorized dealer for specific
weight information.
• The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems that are equipped with radio transmitters, for
example, two-way radios, telephones and theft alarms. Any such
equipment installed in your vehicle should comply with Federal
Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulations and should be
installed only by an authorized dealer.
• An authorized dealer needs to install mobile communications systems.
Improper installation may harm the operation of your vehicle,
particularly if the manufacturer did not design the mobile
communication system specifically for automotive use.
• If you or an authorized Ford dealer add any non-Ford electrical or
electronic accessories or components to your vehicle, you may
adversely affect battery performance and durability. In addition, you
may also adversely affect the performance of other electrical systems
in the vehicle.
Accessories 367
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

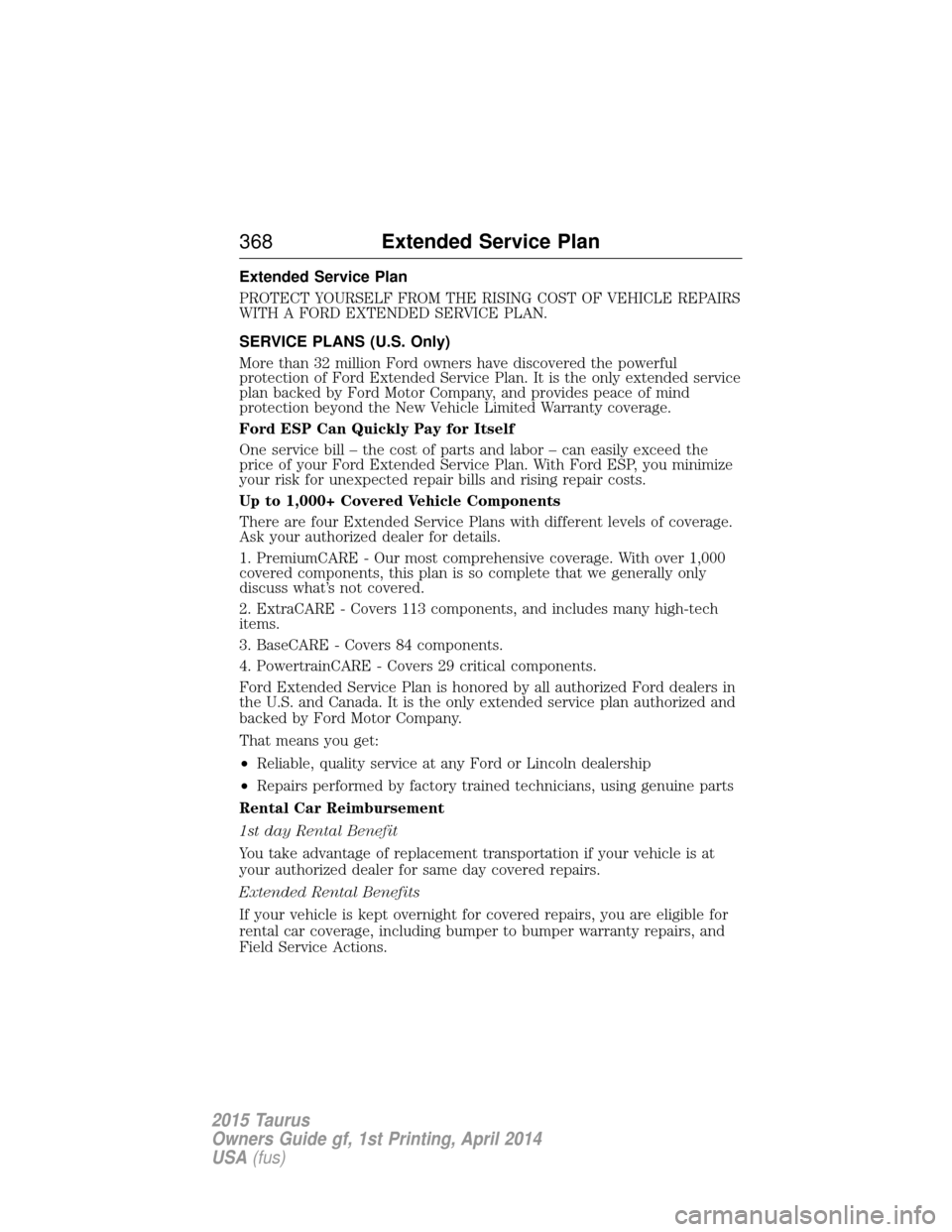

Extended Service Plan
PROTECT YOURSELF FROM THE RISING COST OF VEHICLE REPAIRS
WITH A FORD EXTENDED SERVICE PLAN.
SERVICE PLANS (U.S. Only)
More than 32 million Ford owners have discovered the powerful
protection of Ford Extended Service Plan. It is the only extended service
plan backed by Ford Motor Company, and provides peace of mind
protection beyond the New Vehicle Limited Warranty coverage.
Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford Extended Service Plan. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Up to 1,000+ Covered Vehicle Components
There are four Extended Service Plans with different levels of coverage.
Ask your authorized dealer for details.
1. PremiumCARE - Our most comprehensive coverage. With over 1,000
covered components, this plan is so complete that we generally only
discuss what’s not covered.
2. ExtraCARE - Covers 113 components, and includes many high-tech
items.
3. BaseCARE - Covers 84 components.
4. PowertrainCARE - Covers 29 critical components.
Ford Extended Service Plan is honored by all authorized Ford dealers in
the U.S. and Canada. It is the only extended service plan authorized and
backed by Ford Motor Company.
That means you get:
•Reliable, quality service at any Ford or Lincoln dealership
• Repairs performed by factory trained technicians, using genuine parts
Rental Car Reimbursement
1st day Rental Benefit
You take advantage of replacement transportation if your vehicle is at
your authorized dealer for same day covered repairs.
Extended Rental Benefits
If your vehicle is kept overnight for covered repairs, you are eligible for
rental car coverage, including bumper to bumper warranty repairs, and
Field Service Actions.
368 Extended Service Plan
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

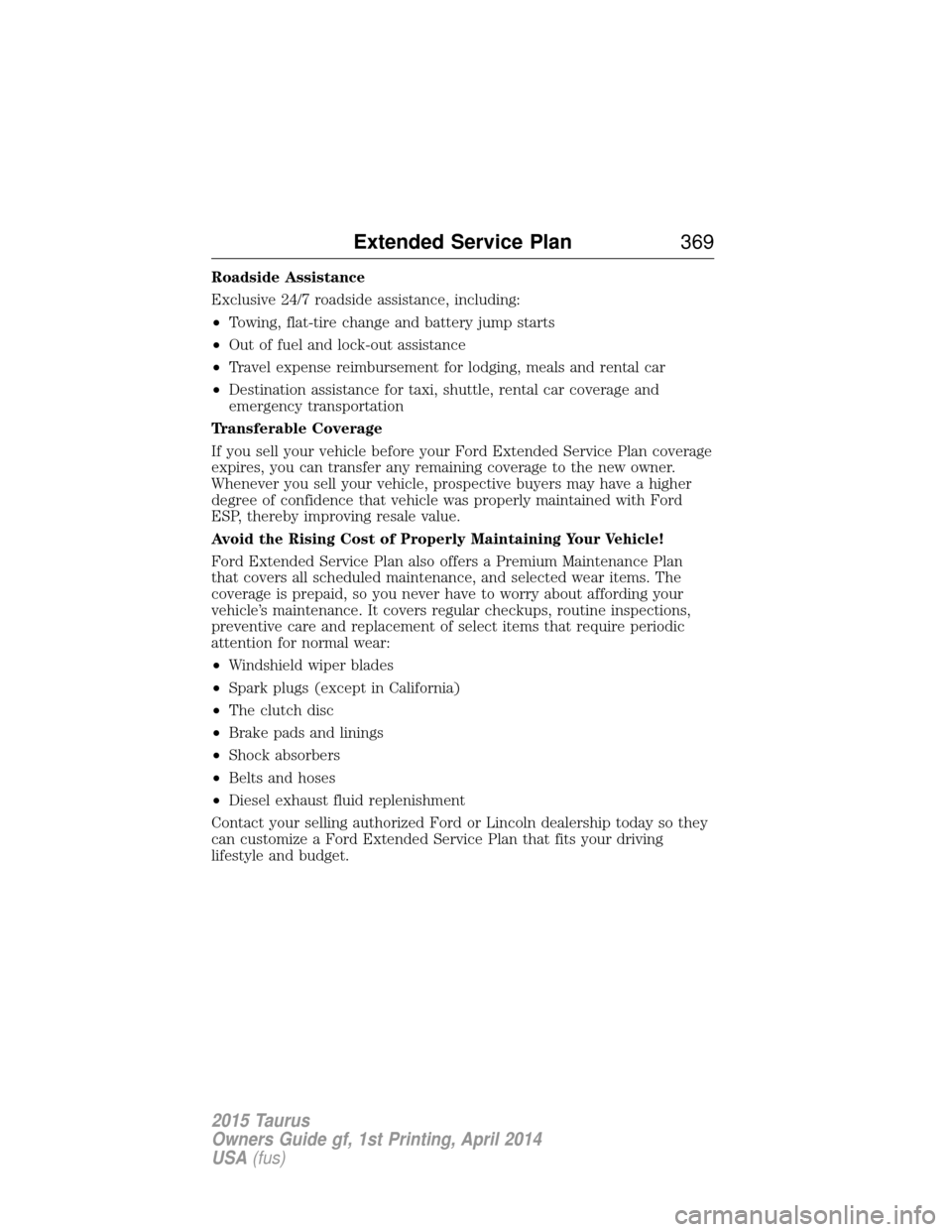

Roadside Assistance
Exclusive 24/7 roadside assistance, including:
•Towing, flat-tire change and battery jump starts
• Out of fuel and lock-out assistance
• Travel expense reimbursement for lodging, meals and rental car
• Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation
Transferable Coverage
If you sell your vehicle before your Ford Extended Service Plan coverage
expires, you can transfer any remaining coverage to the new owner.
Whenever you sell your vehicle, prospective buyers may have a higher
degree of confidence that vehicle was properly maintained with Ford
ESP, thereby improving resale value.
Avoid the Rising Cost of Properly Maintaining Your Vehicle!
Ford Extended Service Plan also offers a Premium Maintenance Plan
that covers all scheduled maintenance, and selected wear items. The
coverage is prepaid, so you never have to worry about affording your
vehicle’s maintenance. It covers regular checkups, routine inspections,
preventive care and replacement of select items that require periodic
attention for normal wear:
• Windshield wiper blades
• Spark plugs (except in California)
• The clutch disc
• Brake pads and linings
• Shock absorbers
• Belts and hoses
• Diesel exhaust fluid replenishment
Contact your selling authorized Ford or Lincoln dealership today so they
can customize a Ford Extended Service Plan that fits your driving
lifestyle and budget.
Extended Service Plan 369
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)
