FORD TAURUS 2015 6.G Repair Manual

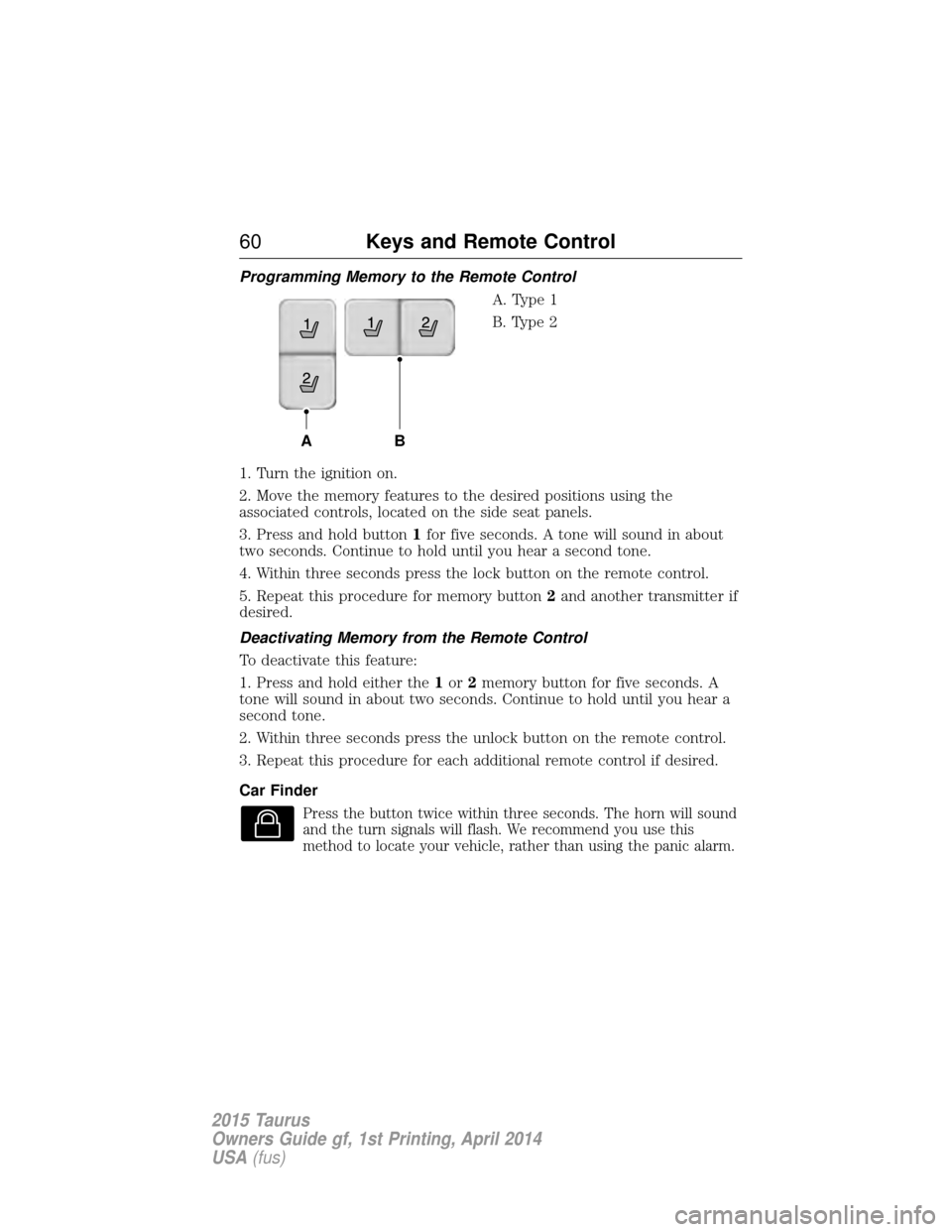

Programming Memory to the Remote ControlA. Type 1
B. Type 2
1. Turn the ignition on.
2. Move the memory features to the desired positions using the
associated controls, located on the side seat panels.
3. Press and hold button 1for five seconds. A tone will sound in about
two seconds. Continue to hold until you hear a second tone.
4. Within three seconds press the lock button on the remote control.
5. Repeat this procedure for memory button 2and another transmitter if
desired.
Deactivating Memory from the Remote Control
To deactivate this feature:
1. Press and hold either the 1or 2memory button for five seconds. A
tone will sound in about two seconds. Continue to hold until you hear a
second tone.
2. Within three seconds press the unlock button on the remote control.
3. Repeat this procedure for each additional remote control if desired.
Car Finder
Press the button twice within three seconds. The horn will sound
and the turn signals will flash. We recommend you use this
method to locate your vehicle, rather than using the panic alarm.
AB
60 Keys and Remote Control
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

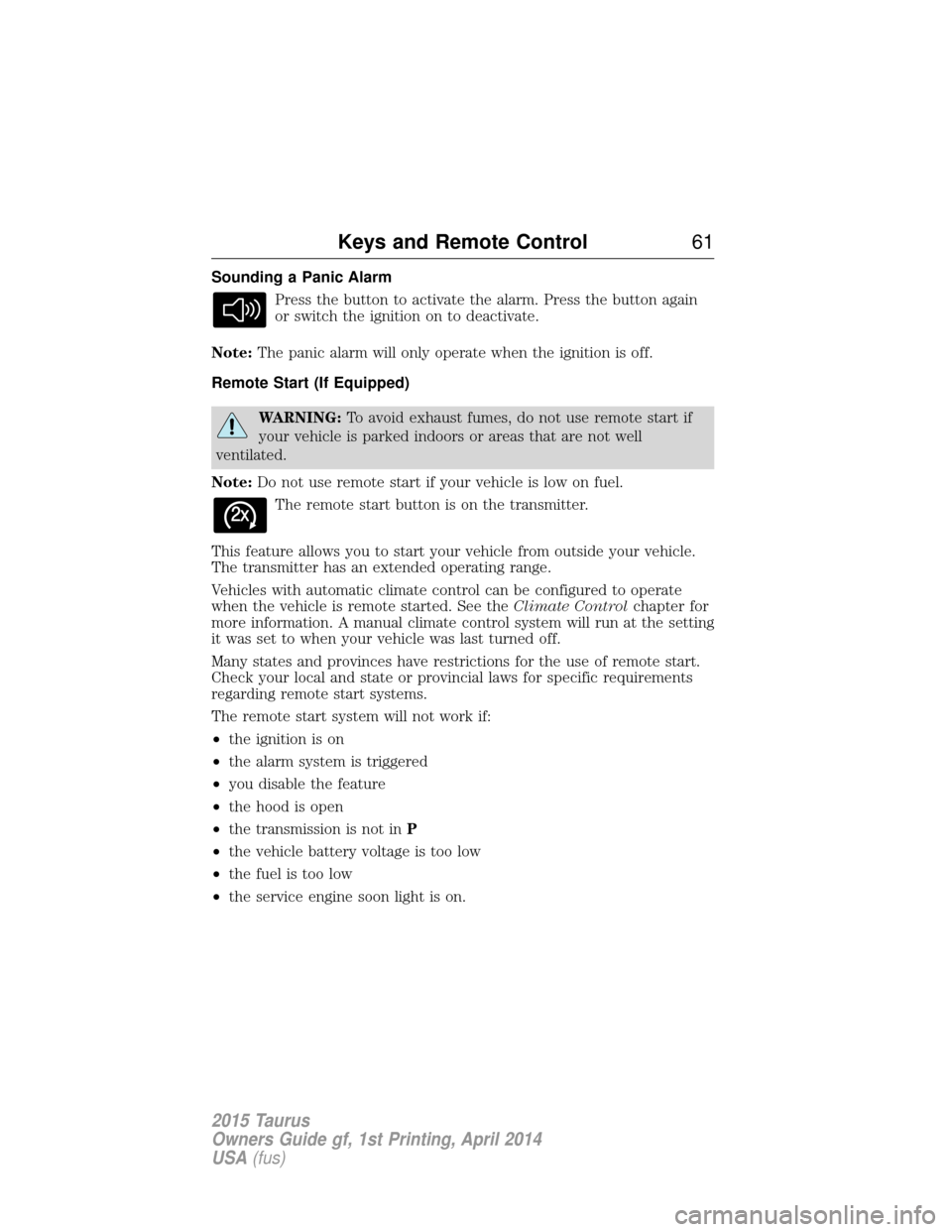

Sounding a Panic AlarmPress the button to activate the alarm. Press the button again
or switch the ignition on to deactivate.
Note: The panic alarm will only operate when the ignition is off.
Remote Start (If Equipped)
WARNING: To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well
ventilated.
Note: Do not use remote start if your vehicle is low on fuel.
The remote start button is on the transmitter.
This feature allows you to start your vehicle from outside your vehicle.
The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. See the Climate Controlchapter for
more information. A manual climate control system will run at the setting
it was set to when your vehicle was last turned off.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
The remote start system will not work if:
• the ignition is on
• the alarm system is triggered
• you disable the feature
• the hood is open
• the transmission is not in P
• the vehicle battery voltage is too low
• the fuel is too low
• the service engine soon light is on.
Keys and Remote Control 61
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

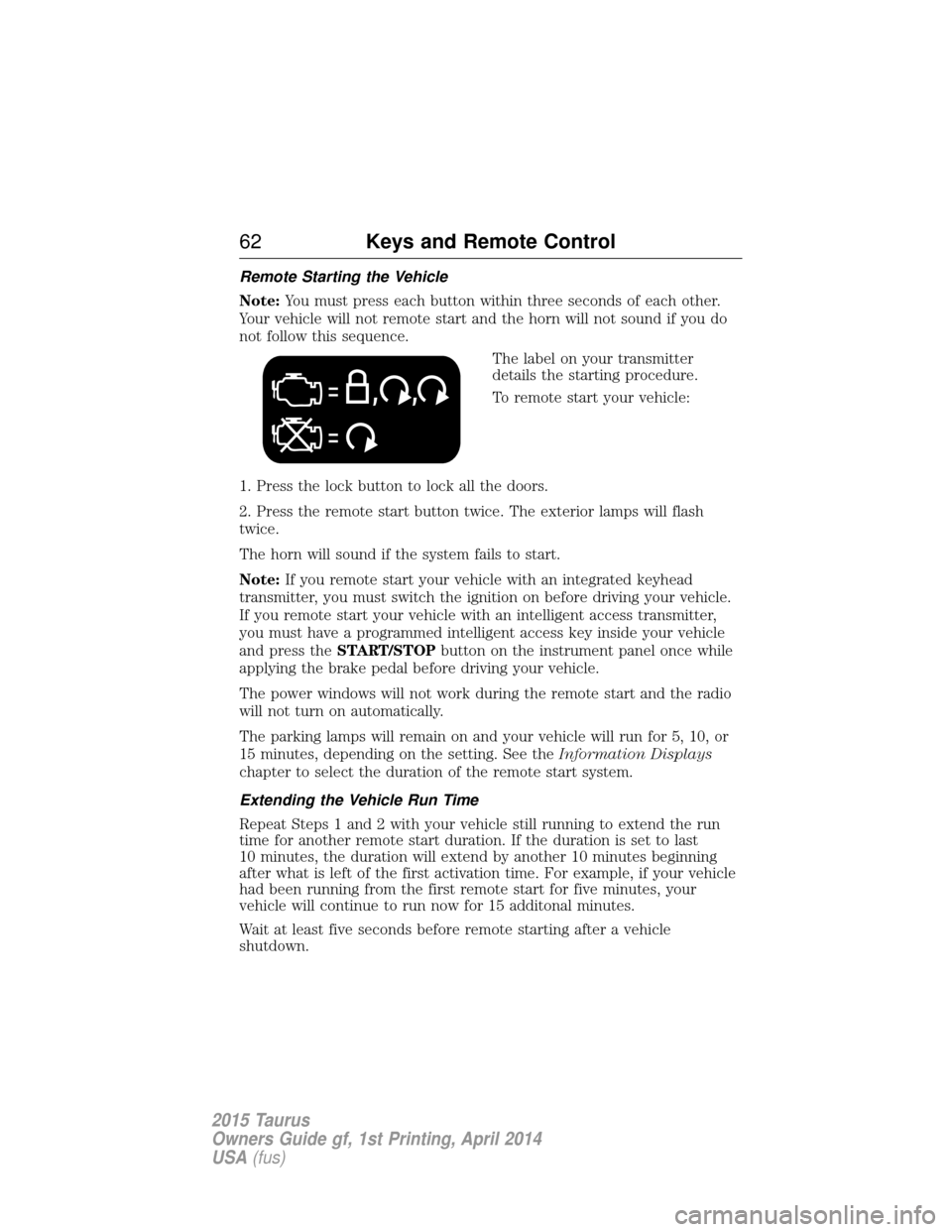

Remote Starting the Vehicle
Note:You must press each button within three seconds of each other.
Your vehicle will not remote start and the horn will not sound if you do
not follow this sequence.
The label on your transmitter
details the starting procedure.
To remote start your vehicle:
1. Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash
twice.
The horn will sound if the system fails to start.
Note: If you remote start your vehicle with an integrated keyhead
transmitter, you must switch the ignition on before driving your vehicle.
If you remote start your vehicle with an intelligent access transmitter,
you must have a programmed intelligent access key inside your vehicle
and press the START/STOP button on the instrument panel once while
applying the brake pedal before driving your vehicle.
The power windows will not work during the remote start and the radio
will not turn on automatically.
The parking lamps will remain on and your vehicle will run for 5, 10, or
15 minutes, depending on the setting. See the Information Displays
chapter to select the duration of the remote start system.
Extending the Vehicle Run Time
Repeat Steps 1 and 2 with your vehicle still running to extend the run
time for another remote start duration. If the duration is set to last
10 minutes, the duration will extend by another 10 minutes beginning
after what is left of the first activation time. For example, if your vehicle
had been running from the first remote start for five minutes, your
vehicle will continue to run now for 15 additonal minutes.
Wait at least five seconds before remote starting after a vehicle
shutdown.
62 Keys and Remote Control
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

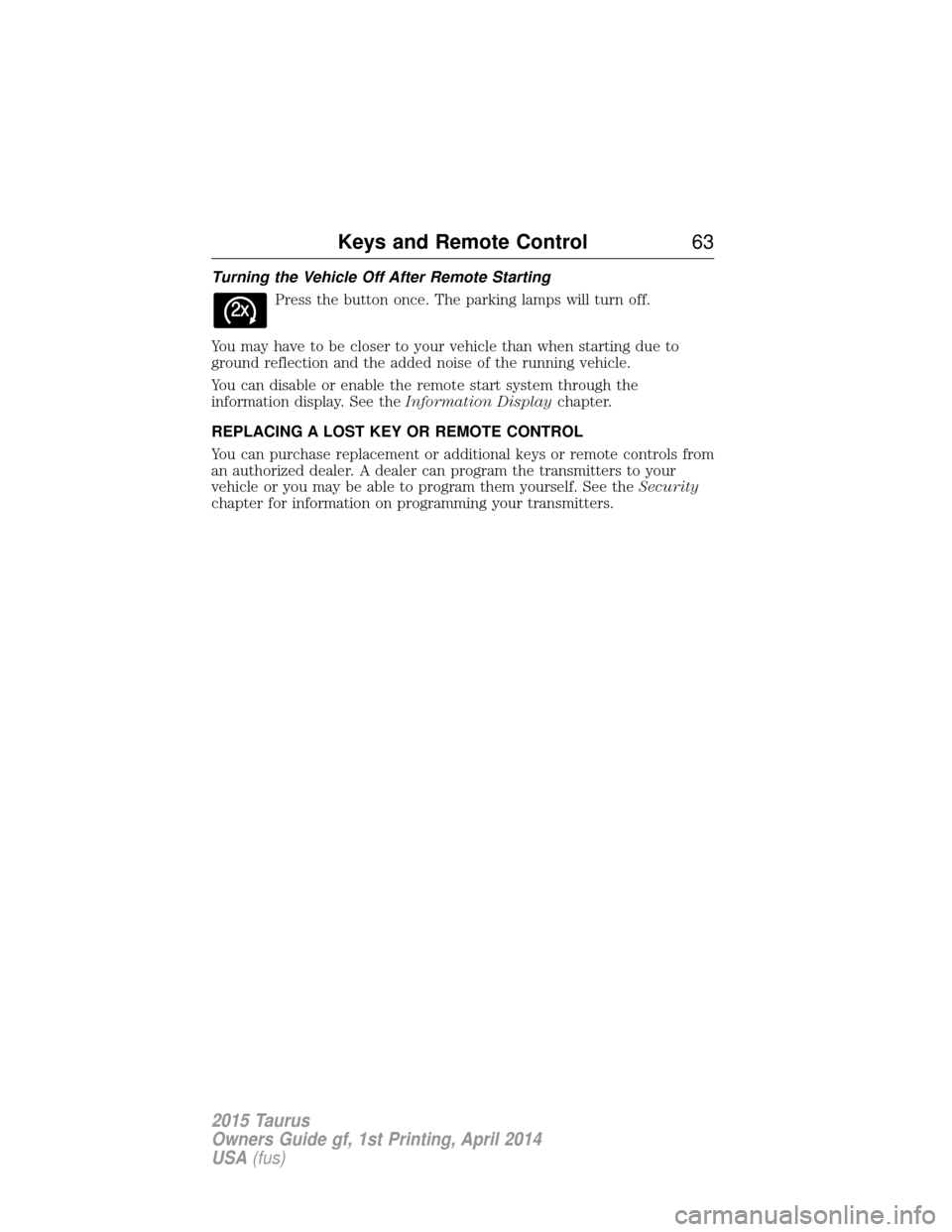

Turning the Vehicle Off After Remote StartingPress the button once. The parking lamps will turn off.
You may have to be closer to your vehicle than when starting due to
ground reflection and the added noise of the running vehicle.
You can disable or enable the remote start system through the
information display. See the Information Displaychapter.
REPLACING A LOST KEY OR REMOTE CONTROL
You can purchase replacement or additional keys or remote controls from
an authorized dealer. A dealer can program the transmitters to your
vehicle or you may be able to program them yourself. See the Security
chapter for information on programming your transmitters.
Keys and Remote Control 63
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

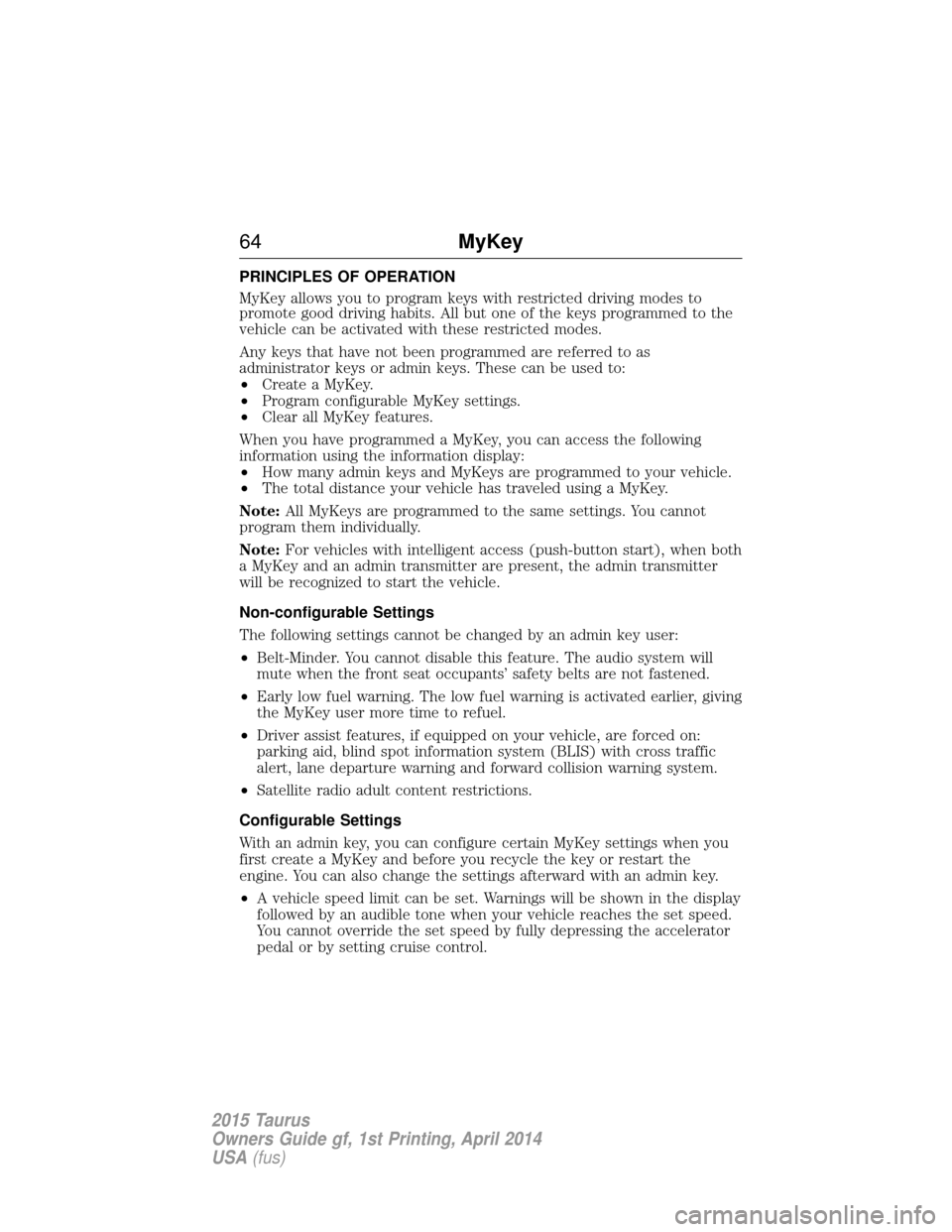

PRINCIPLES OF OPERATION
MyKey allows you to program keys with restricted driving modes to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated with these restricted modes.
Any keys that have not been programmed are referred to as
administrator keys or admin keys. These can be used to:
•Create a MyKey.
• Program configurable MyKey settings.
• Clear all MyKey features.
When you have programmed a MyKey, you can access the following
information using the information display:
• How many admin keys and MyKeys are programmed to your vehicle.
• The total distance your vehicle has traveled using a MyKey.
Note: All MyKeys are programmed to the same settings. You cannot
program them individually.
Note: For vehicles with intelligent access (push-button start), when both
a MyKey and an admin transmitter are present, the admin transmitter
will be recognized to start the vehicle.
Non-configurable Settings
The following settings cannot be changed by an admin key user:
• Belt-Minder. You cannot disable this feature. The audio system will
mute when the front seat occupants’ safety belts are not fastened.
• Early low fuel warning. The low fuel warning is activated earlier, giving
the MyKey user more time to refuel.
• Driver assist features, if equipped on your vehicle, are forced on:
parking aid, blind spot information system (BLIS) with cross traffic
alert, lane departure warning and forward collision warning system.
• Satellite radio adult content restrictions.
Configurable Settings
With an admin key, you can configure certain MyKey settings when you
first create a MyKey and before you recycle the key or restart the
engine. You can also change the settings afterward with an admin key.
• A vehicle speed limit can be set. Warnings will be shown in the display
followed by an audible tone when your vehicle reaches the set speed.
You cannot override the set speed by fully depressing the accelerator
pedal or by setting cruise control.
64 MyKey
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

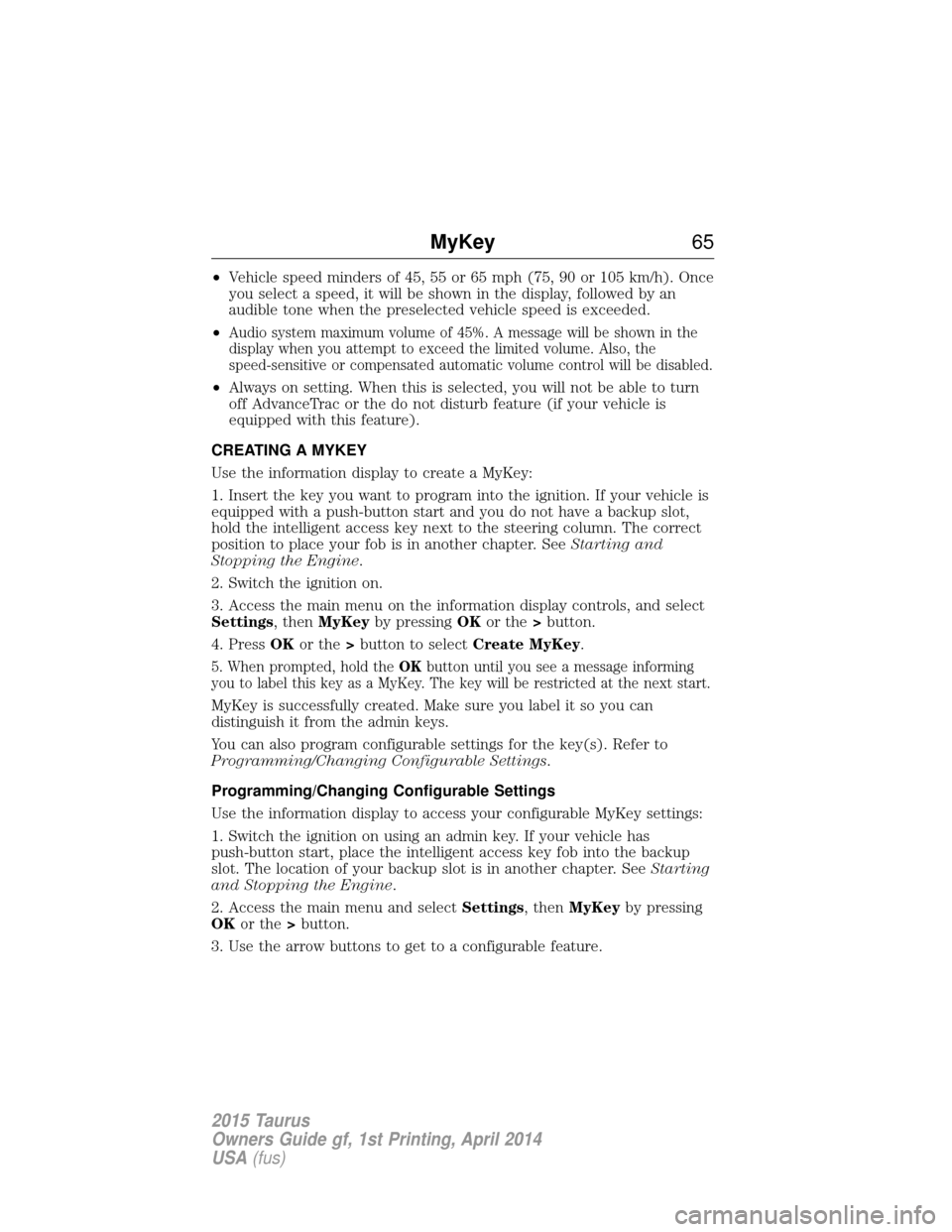

•Vehicle speed minders of 45, 55 or 65 mph (75, 90 or 105 km/h). Once
you select a speed, it will be shown in the display, followed by an
audible tone when the preselected vehicle speed is exceeded.
•
Audio system maximum volume of 45%. A message will be shown in the
display when you attempt to exceed the limited volume. Also, the
speed-sensitive or compensated automatic volume control will be disabled.
• Always on setting. When this is selected, you will not be able to turn
off AdvanceTrac or the do not disturb feature (if your vehicle is
equipped with this feature).
CREATING A MYKEY
Use the information display to create a MyKey:
1. Insert the key you want to program into the ignition. If your vehicle is
equipped with a push-button start and you do not have a backup slot,
hold the intelligent access key next to the steering column. The correct
position to place your fob is in another chapter. See Starting and
Stopping the Engine .
2. Switch the ignition on.
3. Access the main menu on the information display controls, and select
Settings, then MyKeyby pressing OKor the >button.
4. Press OKor the >button to select Create MyKey.
5. When prompted, hold the OKbutton until you see a message informing
you to label this key as a MyKey. The key will be restricted at the next start.
MyKey is successfully created. Make sure you label it so you can
distinguish it from the admin keys.
You can also program configurable settings for the key(s). Refer to
Programming/Changing Configurable Settings .
Programming/Changing Configurable Settings
Use the information display to access your configurable MyKey settings:
1. Switch the ignition on using an admin key. If your vehicle has
push-button start, place the intelligent access key fob into the backup
slot. The location of your backup slot is in another chapter. See Starting
and Stopping the Engine .
2. Access the main menu and select Settings, thenMyKeyby pressing
OK or the >button.
3. Use the arrow buttons to get to a configurable feature.
MyKey 65
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

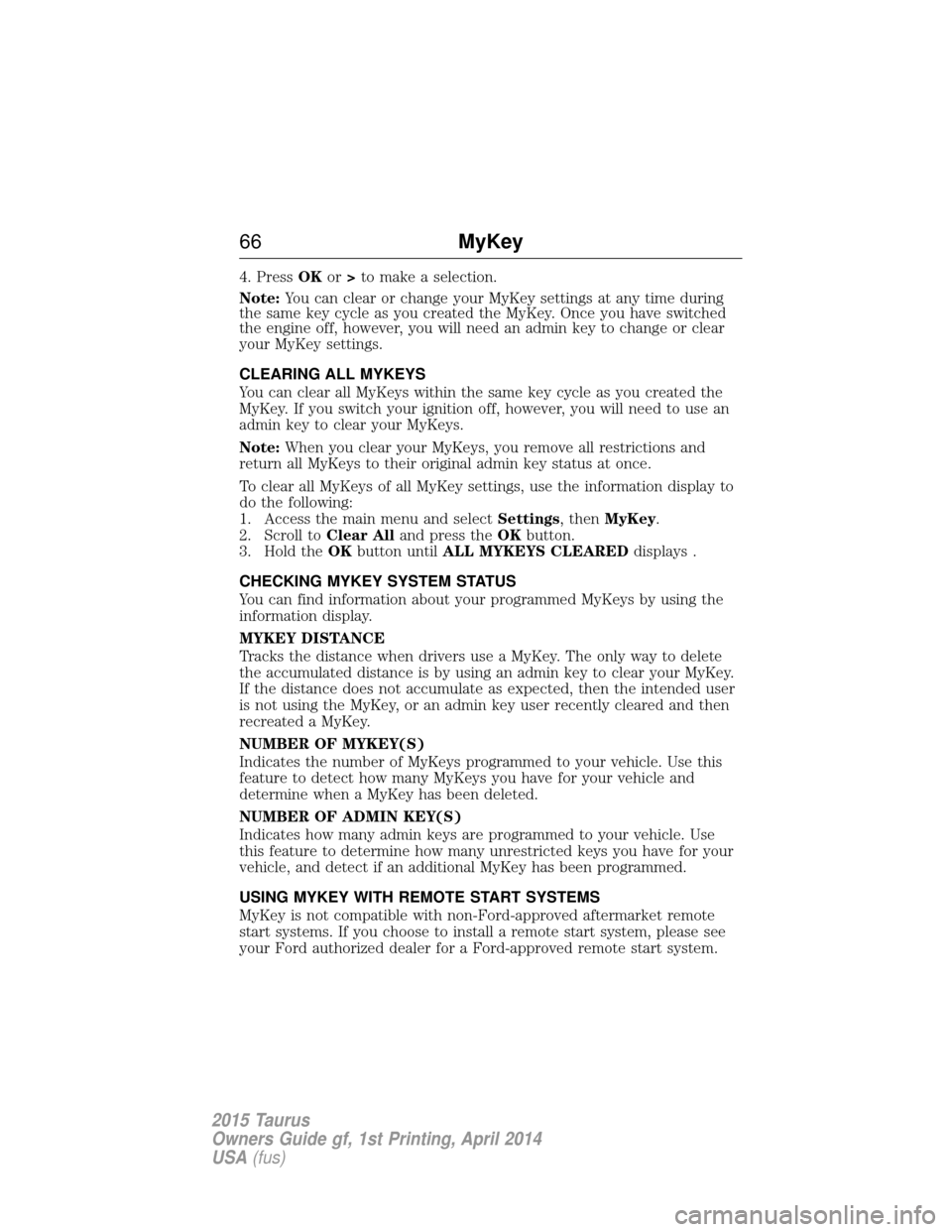

4. PressOKor>to make a selection.
Note: You can clear or change your MyKey settings at any time during
the same key cycle as you created the MyKey. Once you have switched
the engine off, however, you will need an admin key to change or clear
your MyKey settings.
CLEARING ALL MYKEYS
You can clear all MyKeys within the same key cycle as you created the
MyKey. If you switch your ignition off, however, you will need to use an
admin key to clear your MyKeys.
Note: When you clear your MyKeys, you remove all restrictions and
return all MyKeys to their original admin key status at once.
To clear all MyKeys of all MyKey settings, use the information display to
do the following:
1. Access the main menu and select Settings, thenMyKey.
2. Scroll to Clear Alland press the OKbutton.
3. Hold the OKbutton until ALL MYKEYS CLEARED displays .
CHECKING MYKEY SYSTEM STATUS
You can find information about your programmed MyKeys by using the
information display.
MYKEY DISTANCE
Tracks the distance when drivers use a MyKey. The only way to delete
the accumulated distance is by using an admin key to clear your MyKey.
If the distance does not accumulate as expected, then the intended user
is not using the MyKey, or an admin key user recently cleared and then
recreated a MyKey.
NUMBER OF MYKEY(S)
Indicates the number of MyKeys programmed to your vehicle. Use this
feature to detect how many MyKeys you have for your vehicle and
determine when a MyKey has been deleted.
NUMBER OF ADMIN KEY(S)
Indicates how many admin keys are programmed to your vehicle. Use
this feature to determine how many unrestricted keys you have for your
vehicle, and detect if an additional MyKey has been programmed.
USING MYKEY WITH REMOTE START SYSTEMS
MyKey is not compatible with non-Ford-approved aftermarket remote
start systems. If you choose to install a remote start system, please see
your Ford authorized dealer for a Ford-approved remote start system.
66 MyKey
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

MYKEY TROUBLESHOOTING
ConditionPotential causes
I cannot create a
MyKey. •
The key or fob used to start the vehicle
does not have admin privileges.
• The key or fob used to start the vehicle is
the only admin key (there always has to be at
least one admin key).
• Vehicles with push-button start: The
intelligent access key is not in the backup slot.
The backup slot location information is in
another chapter. See Starting and Stopping
the Vehicle .
• SecuriLock passive anti-theft system is
disabled or in unlimited mode.
I cannot program the
configurable settings. •
The key or fob used to start the vehicle
does not have admin privileges.
• No MyKeys are created. See Creating a
MyKey.
I cannot clear the
MyKeys. •
The key or fob used to start the vehicle
does not have admin privileges.
• No MyKeys are created. Refer to Creating a
MyKey.
I lost the only admin
key. •
Purchase a new key from your authorized
dealer.
I lost a key. •Program a spare key. See SecuriLockin the
Security.
No MyKey functions
with intelligent access
key (push- button
start). •
An admin fob is present at engine start.
• No MyKey has been created. See Creating a
MyKey.
MyKey distances do
not accumulate. •
The MyKey user is not using the MyKey.
• An admin key holder cleared the MyKeys
and created new MyKeys.
• The key system has been reset.
MyKey 67
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

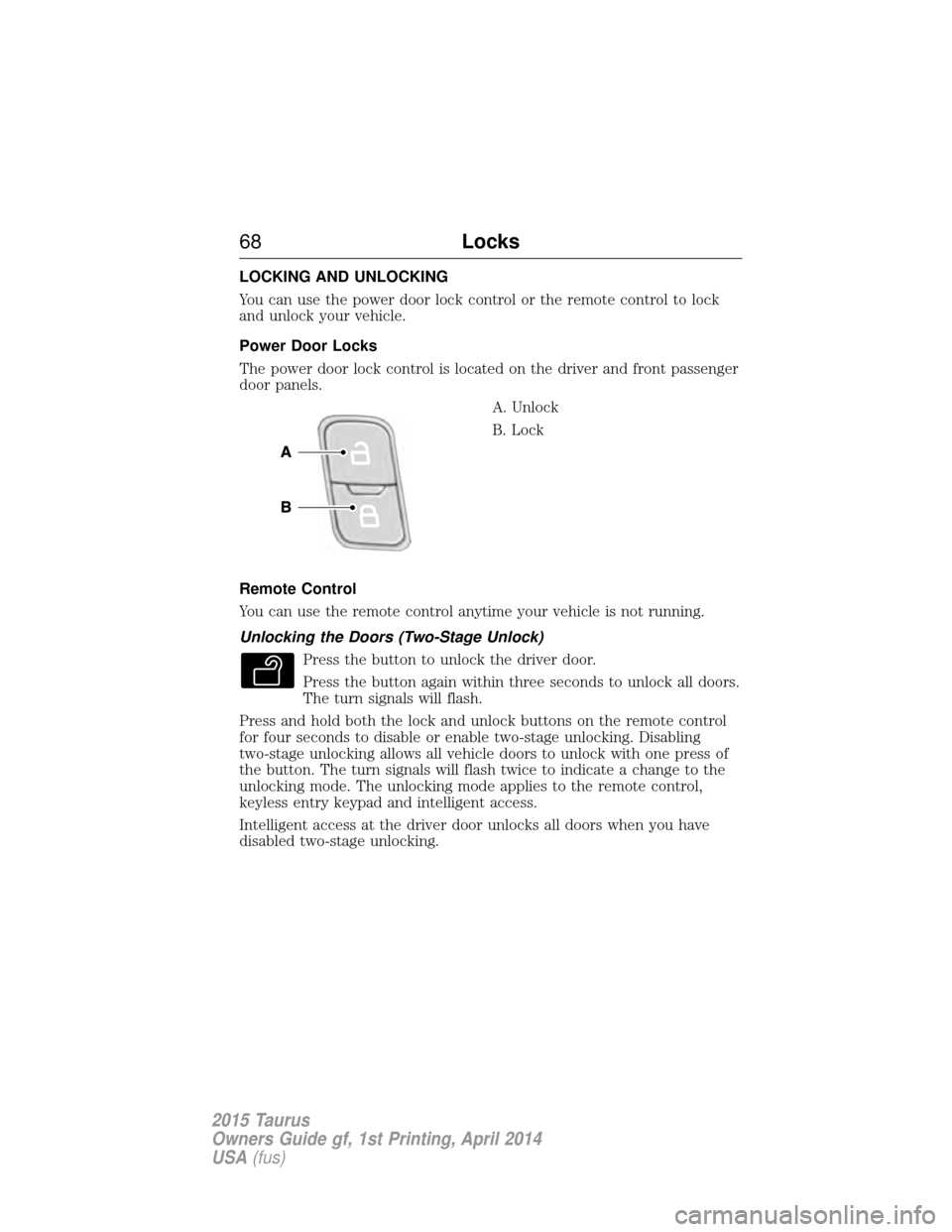

LOCKING AND UNLOCKING
You can use the power door lock control or the remote control to lock
and unlock your vehicle.
Power Door Locks
The power door lock control is located on the driver and front passenger
door panels.A. Unlock
B. Lock
Remote Control
You can use the remote control anytime your vehicle is not running.
Unlocking the Doors (Two-Stage Unlock) Press the button to unlock the driver door.
Press the button again within three seconds to unlock all doors.
The turn signals will flash.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signals will flash twice to indicate a change to the
unlocking mode. The unlocking mode applies to the remote control,
keyless entry keypad and intelligent access.
Intelligent access at the driver door unlocks all doors when you have
disabled two-stage unlocking.
68 Locks
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

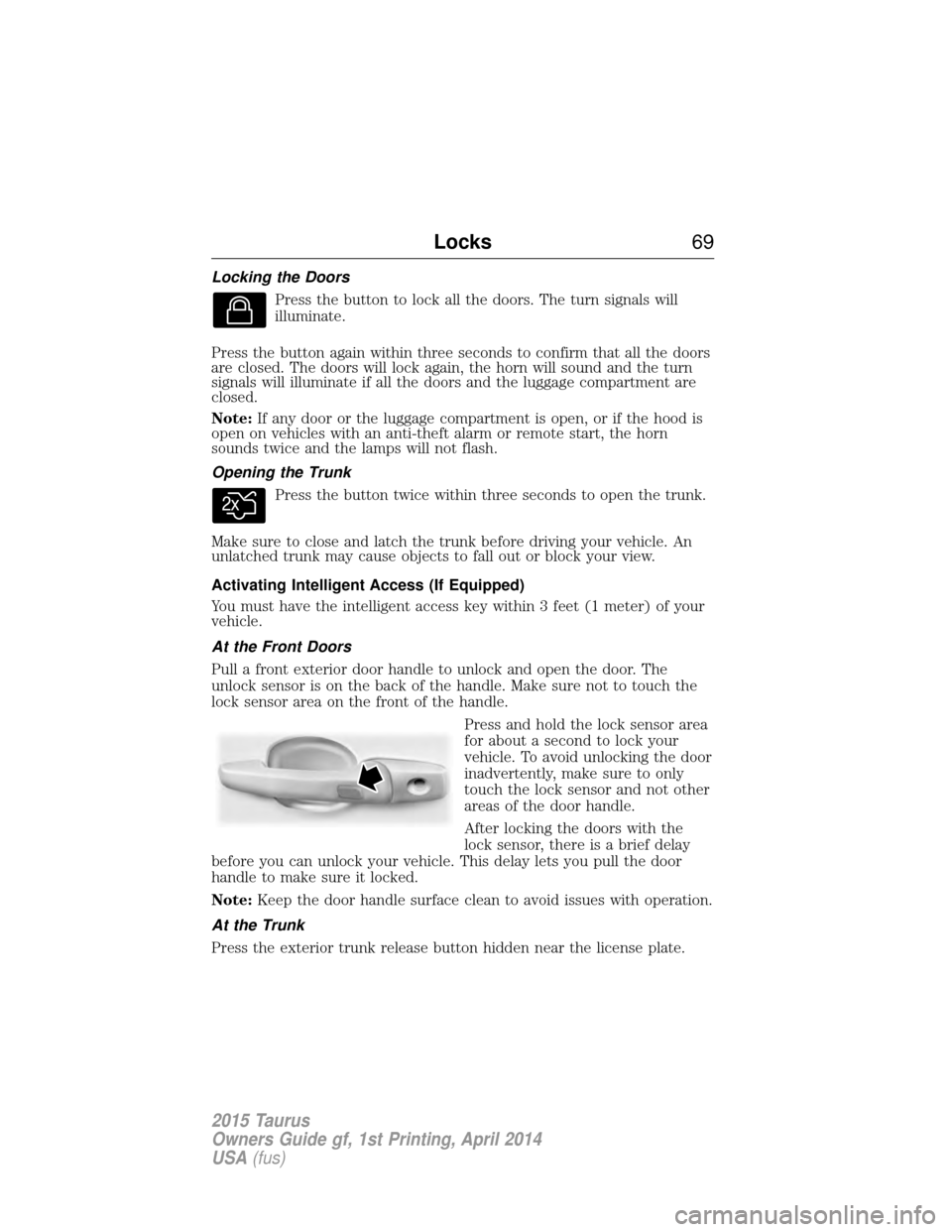

Locking the DoorsPress the button to lock all the doors. The turn signals will
illuminate.
Press the button again within three seconds to confirm that all the doors
are closed. The doors will lock again, the horn will sound and the turn
signals will illuminate if all the doors and the luggage compartment are
closed.
Note: If any door or the luggage compartment is open, or if the hood is
open on vehicles with an anti-theft alarm or remote start, the horn
sounds twice and the lamps will not flash.
Opening the Trunk
Press the button twice within three seconds to open the trunk.
Make sure to close and latch the trunk before driving your vehicle. An
unlatched trunk may cause objects to fall out or block your view.
Activating Intelligent Access (If Equipped)
You must have the intelligent access key within 3 feet (1 meter) of your
vehicle.
At the Front Doors
Pull a front exterior door handle to unlock and open the door. The
unlock sensor is on the back of the handle. Make sure not to touch the
lock sensor area on the front of the handle. Press and hold the lock sensor area
for about a second to lock your
vehicle. To avoid unlocking the door
inadvertently, make sure to only
touch the lock sensor and not other
areas of the door handle.
After locking the doors with the
lock sensor, there is a brief delay
before you can unlock your vehicle. This delay lets you pull the door
handle to make sure it locked.
Note: Keep the door handle surface clean to avoid issues with operation.
At the Trunk
Press the exterior trunk release button hidden near the license plate.
Locks 69
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)
