175 [DR13500( BC )03/95]
one third page art:0010315-A
The parking brake
*
[DR13800( BCGV)05/95]
RWARNING
Always set the parking brake fully and
make sure that the gearshift is securely
latched in P (Park).
[DR14050( BC )03/95]
To release the parking brake, press down on the
pedal until you hear a click. Lift your foot off
the pedal. The brake is now released and will
reset to lock the next time you press the pedal,
located below the lower left corner of the
instrument panel. The Brake System Warning
Light will glow if the parking brake is not fully
released when the engine is running.
*
[DR14200( ALL)03/95]
Always check the Brake Warning Light each
time you start your engine. Driving with the
parking brake on will cause the brakes to wear
out quickly and will reduce the fuel economy.
*
[DR14300( ALL)01/93]
RWARNING
If the parking brake is fully released, but
the Brake System light remains on, have
the brakes checked immediately. They
may not be working properly.
File:rcdrb.ex
Update:Mon Feb 19 10:48:37 1996

186
*
[RE00900( ALL)05/95]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
*
[RE01000( ALL)03/95]
To avoid damaging your vehicle or your battery,
and to avoid injury to yourself, follow these
directions for preparing your vehicle to jump-start
and connecting the jumper cables in the order they
are given. If in doubt, call for road service.
*
[RE01100( ALL)03/95]
Preparing Your Vehicle
[RE01150( ALL)11/90]
NOTE: also see label on battery.
*
[RE01200( ALL)03/95]
1. Your vehicle has a 12-volt starting system, so
you need to use a 12-volt jumper system.
You will damage your starting motor,
ignition system, and other electrical parts if
you connect them to a 24-volt power supply
(either two 12-volt batteries in series or a
24-volt generator set).
*
[RE01300( ALL)03/95]
2. Do not disconnect the battery of the disabled
vehicle. You could damage the vehicle's
electrical system.
*
[RE01400( ALL)04/95]
3. Park the booster vehicle close to the hood of
the disabled vehicle.Make sure the vehicles
do not touch each other.Set the parking
brake on both vehicles and stay clear of the
engine cooling fan and other moving parts.
*
[RE01500( ALL)03/95]
4. Check all battery terminals and remove any
excessive corrosion before you attach the
jumper cables.
*
[RE01600( ALL)02/95]
5. Turn on the heater fan in both vehicles.
Turning on the fan helps protect the
electrical system from voltage surges. Turn
off all other switches and lights in both
vehicles to prevent possible damage to either
vehicle's electrical systems.
File:rcreb.ex
Update:Mon Feb 19 10:48:15 1996

223
Servicing Your Thunderbird
%*
[SV00300( ALL)03/95]
Service Made Easy
*
[SV00400( ALL)01/95]
Ford has two goals for servicing your vehicle.
*
[SV00550( ALL)01/95]
1. When we can, we design parts that do not
need to be serviced.
*
[SV00600( ALL)01/95]
2. We want to make servicing your vehicle as
easy as possible. To help you:
*
[SV00700( ALL)01/95]
q
We highlight do-it-yourself items in yellow in
the engine compartment so that you can find
them easily.
*
[SV00800( ALL)01/95]
q
When possible, we design parts Ð such as
the headlamp bulbs Ð that can be replaced
without tools.
*
[SV00900( ALL)05/94]
q
We give you a Maintenance Schedule that
makes tracking routine service for your
vehicle easy. The maintenance schedule is
located in theMaintenance Schedule and Record
booklet.
*
[SV01000( ALL)01/95]
This chapter tells you about the basic parts that
you need to check and service regularly.
*
[SV01100( ALL)02/95]
If your vehicle needs professional servicing, your
dealership can provide the parts and service
required. Check yourWarranty Information Booklet
to find out which parts and services are covered.
Also see theCustomer Assistancechapter of this
Owner Guide.
*
[SV01250( ALL)03/95]
Ford Motor Company recommends that the
Owner Maintenance Checks listed in the
Maintenance Schedule and Recordbooklet be
performed for the proper operation of your
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

236
*
[SV12300( ALL)05/95]
Comparisons With EPA Estimates
*
[SV12400( ALL)05/95]
EPA fuel economy figures are obtained from
laboratory tests under simulated road conditions
and may not reflect the actual conditions you
experience or your style of driving. The EPA
fuel economy estimate is not a guarantee that
you will achieve the fuel economy shown.
*
[SV12650( ALL)05/95]
The following decrease fuel economy:
*
[SV12700( ALL)05/95]
q
Lack of regular, scheduled maintenance
*
[SV12800( ALL)05/95]
q
Rapid acceleration and excessive speed
*
[SV12850( ALL)05/95]
q
Driving with your foot on the brake
*
[SV12900( ALL)05/95]
q
Sudden stops
*
[SV12950( ALL)05/95]
q
Extended engine idling
*
[SV13000( ALL)05/95]
q
Using speed control in hilly terrain
*
[SV13100( ALL)05/95]
q
Extended use of the A/C, defroster, rear
window defroster and other accessories
*
[SV13200( ALL)05/95]
q
Underinflated tires
*
[SV13300( ALL)05/95]
q
Heavy loads
*
[SV13400( ALL)05/95]
q
Aftermarket add-ons such as bike, ski or
luggage racks, bug deflectors, etc.
*
[SV13510( ALL)02/95]
Self-Service Pointers
*
[SV13520( ALL)01/95]
If you choose to do your own fueling, you
should also perform a few simple maintenance
routines. This extra effort will save you
additional money and contribute to the driving
efficiency of your vehicle.
*
[SV13530( ALL)01/95]
The following procedures require only a tire
gauge, a rag, an oil can spout and windshield
washer fluid.
*
[SV13540( ALL)01/95]
q
Check the engine oil at every refueling stop
*
[SV13550( ALL)01/95]
q
Clean the windshield, outside mirrors and
headlights
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

238 %
*
[SV13775( ALL)01/95]
Checking and Adding Engine Oil
*
[SV13800( ALL)03/95]
Since the proper amount of engine oil is
important for safe engine operation, check the oil
using the dipstick each time you put fuel in
your vehicle. Remember the engine must be off,
the oil must be warm and the vehicle must be
parked on level ground.
%*
[SV13900( ALL)04/95]
Checking the engine oil level:
*
[SV14000( ALL)02/95]
1. Turn the engine off after it has warmed up
and allow a few minutes for the engine oil
to drain back into the oil pan.
*
[SV14025( BCGV)03/95]
2. Set the parking brake, making sure the
gearshift is securely latched in P (Park).
*
[SV14100( ALL)02/95]
3. Open the hood. Protect yourself from engine
heat.
*
[SV14200( ALL)03/95]
4. Locate the engine oil dipstick (highlighted in
yellow) and carefully pull it out of the
engine.
*
[SV14300( ALL)01/95]
5. Wipe the dipstick clean and put it back into
position, making sure it is fully seated.
[SV14350( BC )10/95]

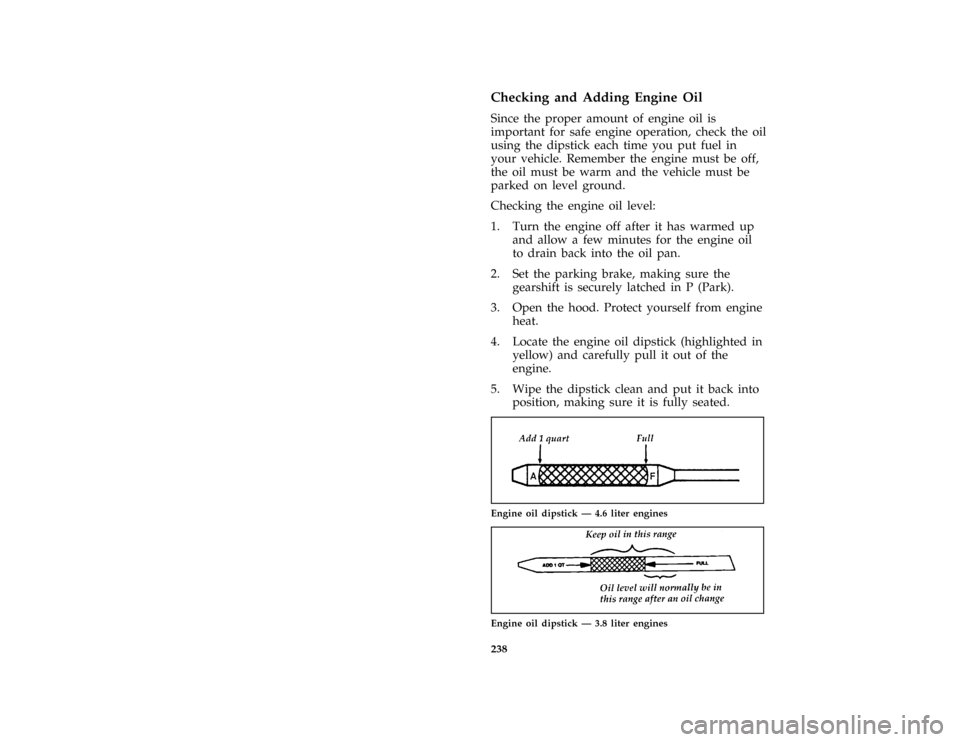

one inch art:0011218-A
Engine oil dipstick Ð 4.6 liter engines
[SV14450(MBC )03/95]
one inch art:0000970-A
Engine oil dipstick Ð 3.8 liter engines
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

239
*
[SV14500( BCGV)11/95]
6. Carefully, pull the dipstick out again. If the
oil level is below the ªADD 1 QTº line, add
engine oil as necessary. If the oil level is
beyond the letter ªFº in Full, engine damage
or high oil consumption may occur and
some oil must be removed from the engine.
*
[SV14600( ALL)01/95]
7. Put the dipstick back in and make sure it is
fully seated.
*
[SV14800( ALL)01/95]
It may be necessary to add some oil between oil
changes. Make sure you use a CERTIFIED
engine oil of the preferred viscosity. Your
vehicle's warranty coverage may not apply if
engine damage is caused by the use of improper
engine oil.
*
[SV15000( ALL)03/95]
Add engine oil through the oil filler cap
highlighted in yellow. To add oil, remove the
filler cap and use a funnel to pour oil into the
opening. Be careful not to overfill the engine.
Recheck the oil level after you finish adding oil.
%*
[SV16300( ALL)06/95]

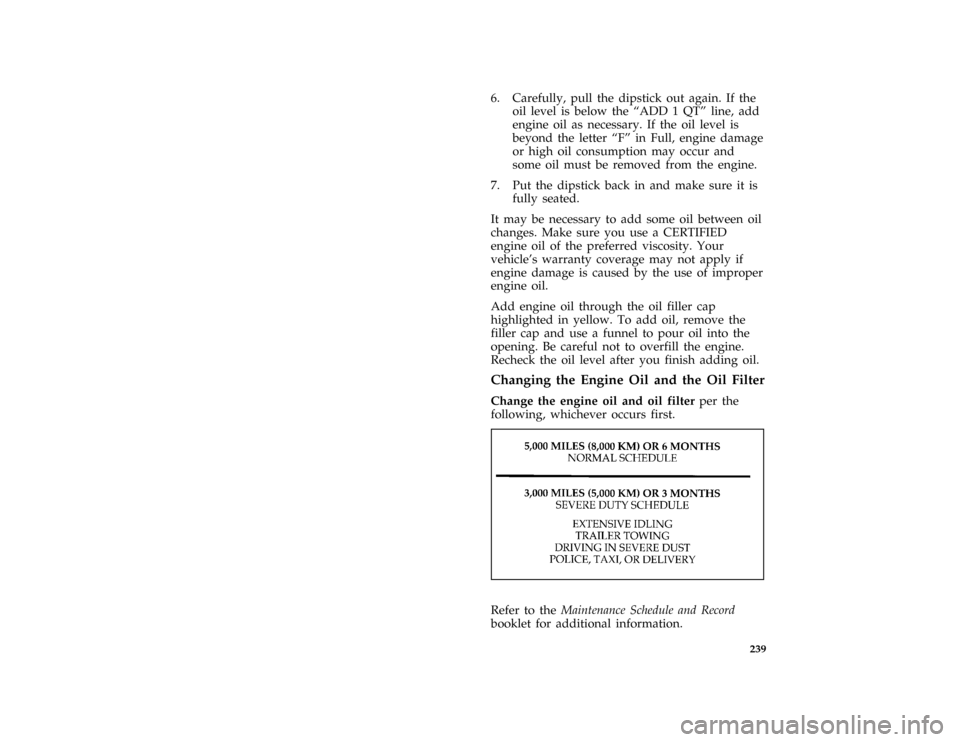

Changing the Engine Oil and the Oil Filter
*
[SV16400( ALL)04/95]
Change the engine oil and oil filterper the
following, whichever occurs first.
*
[SV16500( ALL)04/95]
one third page art:0060618-C
*
[SV16800( ALL)06/95]
Refer to theMaintenance Schedule and Record
booklet for additional information.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

261
%*
[SV34800( ALL)03/95]
Power Steering Fluid
*
[SV34900( ALL)01/95]
Check the level of the power steering fluid at
least twice a year (i.e., every Spring and Fall).
%*
[SV35000( ALL)03/95]
Checking and Adding Power Steering
Fluid
[SV35050( BC )10/95]
3.8L SFI engine
*
[SV35100( ALL)02/95]
1. Start the engine and let it run until the
power steering fluid reaches normal
operating temperature. The power steering
fluid will be at the right temperature when
the engine coolant temperature gauge in the
instrument cluster is near the center of the
NORMAL operating temperature range.
*
[SV35200( ALL)01/95]
2. While the engine idles, turn the steering
wheel back and forth several times. Make
sure that the cap assembly is installed at this
time.
*
[SV35300( ALL)05/95]
3. Turn the engine off.
%*
[SV35400(MBC )03/94]
4. Check the fluid level on the dipstick (which
is highlighted in yellow in your vehicle). The
fluid level should be between the arrows in
the FULL HOT range, which is marked on
the side of the dipstick, opposite the side
marked FULL COLD. Do not add fluid if the
level is within the FULL HOT range.
*
[SV35500(MBC )07/94]
5. If the power steering fluid is low, add fluid
in small amounts, continuously checking the
level, until you reach the FULL HOT range.
Do not overfill.
*
[SV35600(MBC )03/95]
6. When you are finished, put the dipstick back
in and make sure that it fits snugly.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

281
those which your vehicle or engine was
originally equipped.
*
[SV53150( ALL)05/95]
Ford strongly recommends the use of genuine
Ford replacement parts. If other than Ford or
Motorcraft parts or Ford authorized
remanufactured parts are used for maintenance
replacements or for the service of components
affecting emission control, such non-Ford parts
should be equivalent to genuine Ford Motor
Company parts in performance and durability. It
is the owner's responsibility to determine the
equivalency of such parts. Please consult your
warranty booklet for complete warranty
information.
*
[SV53175( ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
*
[SV53200( ALL)05/95]
Watch for fluid leaks, strange odors, smoke, loss
of oil pressure, the charge warning light, the
check engine light, or the temperature warning
light. These sometimes indicate that the emission
system is not working properly.
*
[SV53300( ALL)01/95]
Do not make any unauthorized changes to your
vehicle or engine. Changes that cause more
unburned fuel to reach the exhaust system can
increase the temperature of the engine or
exhaust system.
*
[SV53400( ALL)01/95]
By law, anyone who manufactures, repairs,
services, sells, leases, trades vehicles, or
supervises a fleet of vehicles is not permitted to
intentionally remove an emission control device
or prevent it from working. In some of the
United States and in Canada, vehicle owners
may be liable if their emission control device is
removed or is prevented from working.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

312 Index
Emergency brake (parking brake)..... 174
Emission control system,
catalytic converter........... 280
Engine
check engine warning light....... 63
does not start.............. 49
fuel injected engine, starting....... 47
fuel pump shut-off switch........ 53
preparing to start............ 47
service points............. 227
starting................. 48
starting after a collision......... 53
storing your vehicle.......... 289
Engine block heater............ 50
Engine coolant
checking and adding......... 240
checking hoses............ 241
disposal............... 243
low coolant warning light........ 72
preparing for storage......... 290
proper solution............ 242
recovery reservoir........... 240
refill capacities............ 285
specifications............. 287
Engine coolant temperature gauge
description............... 66
mechanical............... 66
Engine fan............... 224
Engine oil
changing oil and oil filter....... 239
checking and adding......... 238
dipstick............... 238
disposal............... 240
engine oil pressure gauge........ 69
filter, specifications.......... 286
refill capacities............ 285
specifications............. 287
synthetic oil............. 237
ªbreak-inº oils............. 5
viscosity............... 237
File:rcixb.ex
Update:Thu Feb 15 12:06:08 1996

314 Index
Fuses
charts................ 266
checking and replacing........ 272
circuit breakers............ 273
G
Gas cap (see Fuel cap).......... 230
Gasoline (see Fuel)............ 231
Gauges, Mechanical
engine coolant temperature gauge.... 66
engine oil pressure gauge........ 69
fuel gauge............... 65
multi-gauge.............. 62
odometer................ 67
speedometer.............. 67
tachometer............... 68
trip odometer.............. 68
GAWR (Gross Axle Weight Rating)
calculating.............. 179
definition............... 178
location............... 178
Gearshift
automatic operation.......... 165
console-mounted........... 167
positions............... 165
shift-lock............... 166
GVWR (Gross Vehicle Weight Rating)
calculating.............. 179
definition............... 178
location............... 178
H
Hazard flashers.............. 94
Headlamps
autolamp system............ 84
bulb specification........... 279
checking alignment.......... 274
cleaning................ 84
daytime running lights......... 82
File:rcixb.ex
Update:Thu Feb 15 12:06:08 1996
