112
*
[FV08114( ALL)02/95]
Activating the remote personal alarm
*
[FV08120( ALL)02/95]
If you wish to activate the remote personal
alarm, press the PANIC button. This will honk
the horn and flash the low beam headlamps and
tail lamps for approximately two minutes and
forty-five seconds. You can turn it OFF by
pressing the PANIC button again or by turning
the ignition key to the RUN position.
[FV08125( ALL)05/94]
When you use the remote entry UNLOCK,
TRUNK or PANIC buttons, the illuminated entry
system turns on the interior lights for 25
seconds. You can turn these lights off with the
LOCK button or by turning the ignition to the
RUN position. The interior lights will not turn
off if you have turned them on manually or if a
door is open.
%*
[FV08725( ALL)02/95]
Replacing the batteries
*
[FV08750(MBC )02/95]
The remote entry transmitter is powered by two
coin type three-volt lithium 2016
batteries (included) that should last for several
years of normal use. If you notice a significant
decrease in operating range, the batteries should
be replaced. Replacement batteries can be
purchased at most pharmacies, watch stores or
at your Ford or Lincoln-Mercury dealer.
File:rcfvb.ex
Update:Mon Feb 19 10:50:02 1996

223
Servicing Your Thunderbird
%*
[SV00300( ALL)03/95]
Service Made Easy
*
[SV00400( ALL)01/95]
Ford has two goals for servicing your vehicle.
*
[SV00550( ALL)01/95]
1. When we can, we design parts that do not
need to be serviced.
*
[SV00600( ALL)01/95]
2. We want to make servicing your vehicle as
easy as possible. To help you:
*
[SV00700( ALL)01/95]
q
We highlight do-it-yourself items in yellow in
the engine compartment so that you can find
them easily.
*
[SV00800( ALL)01/95]
q
When possible, we design parts Ð such as
the headlamp bulbs Ð that can be replaced
without tools.
*
[SV00900( ALL)05/94]
q
We give you a Maintenance Schedule that
makes tracking routine service for your
vehicle easy. The maintenance schedule is
located in theMaintenance Schedule and Record
booklet.
*
[SV01000( ALL)01/95]
This chapter tells you about the basic parts that
you need to check and service regularly.
*
[SV01100( ALL)02/95]
If your vehicle needs professional servicing, your
dealership can provide the parts and service
required. Check yourWarranty Information Booklet
to find out which parts and services are covered.
Also see theCustomer Assistancechapter of this
Owner Guide.
*
[SV01250( ALL)03/95]
Ford Motor Company recommends that the
Owner Maintenance Checks listed in the
Maintenance Schedule and Recordbooklet be
performed for the proper operation of your
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

274
*
[SV43300( ALL)08/95]
If you replace a circuit breaker, use one with the
same amperage rating. To remove a circuit
breaker mounted in the fuse panel, grip it with
your finger and thumb and pull it straight out
of its socket.
%
*
[SV44400( ALL)03/95]
Lights and Bulb Replacement
*
[SV44500( ALL)01/95]
It is a good idea to check the operation of the
following lights frequently:
*
[SV44600( ALL)01/95]
q
headlamps
*
[SV44700( ALL)01/95]
q
tail lamps
*
[SV44800( ALL)01/95]
q
brakelamps
*
[SV44900( ALL)01/95]
q
hazard flasher
*
[SV44950( ALL)02/95]
q
high-mount brakelamp
*
[SV45000( ALL)01/95]
q
turn signals
*
[SV45200( ALL)01/95]
q
license plate lamp
%*
[SV45600( ALL)01/95]
The alignment of your headlamps should be
checked if:
*
[SV45700( ALL)01/95]
q
oncoming motorists frequently signal you to
turn off your vehicle's high beams when you
do not have the high beams on
*
[SV45800( ALL)01/95]
q
the headlamps do not seem to give you
enough light to see clearly at night
*
[SV45900( ALL)01/95]
q
the headlamp beams are pointed substantially
away from a position slightly down and to
the right
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

275 %
*
[SV46000( ALL)03/95]
Headlamp Bulb
*
[SV46100( ALL)01/95]
The headlamps on your vehicle use replaceable
bulbs. When the lamp burns out, simply replace
the bulb, rather than the whole lamp.
*
[SV46200( ALL)05/95]
RWARNING
Handle a halogen headlamp bulb carefully
and keep out of children's reach. Grasp
the bulb only by its plastic base and do
not touch the glass. The oil from your
hand could cause the bulb to break the
next time the headlamps are operated.
*
[SV46300( ALL)01/95]
Do not remove the burned-out bulb unless you
can immediately replace it with a new one. If a
bulb is removed for an extended period of time,
contaminants may enter the headlamp housing
and affect its performance.
[SV46400( BC )07/93]

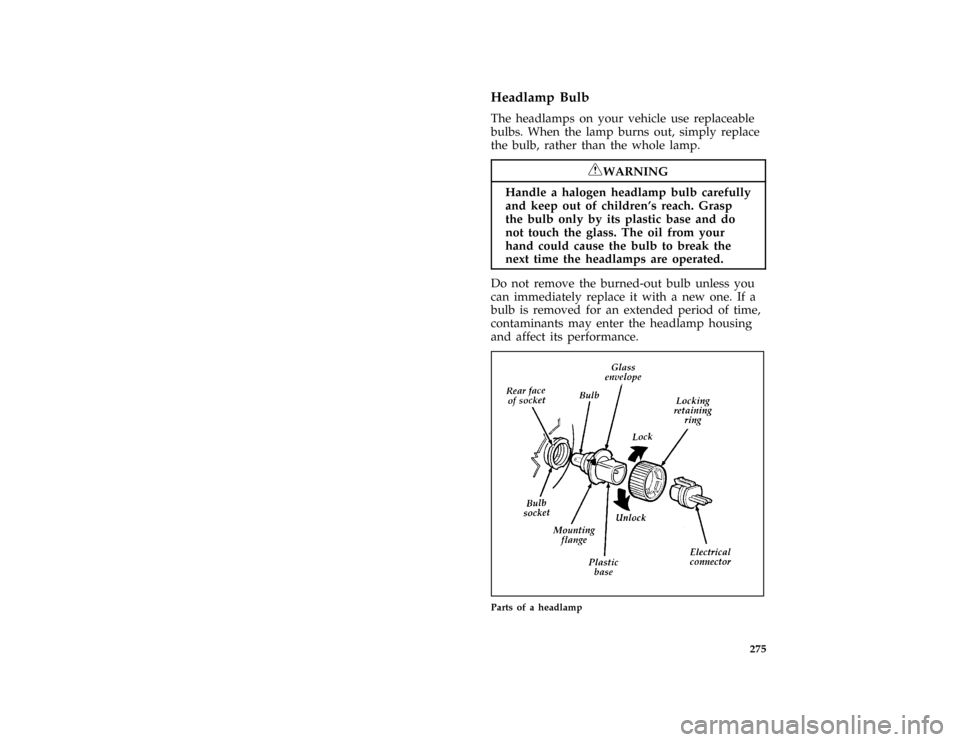

half page art:0010431-A
Parts of a headlamp
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

276
*
[SV46600( ALL)03/95]
Removing the headlamp bulb
*
[SV46700( ALL)01/95]
1. Make sure that the headlamp switch is in
the OFF position.
*
[SV46800( BC )02/95]
2. Lift the hood and find the bulb in the
headlamp socket.
*
[SV46900( BC )01/95]
3. Remove the electrical connector from the
bulb by grasping the wire with a quick pull
rearward.
*
[SV47100( BC )01/95]
4. Remove the retaining ring by turning it 1/8
of a turn to free it from the socket. Then
slide the ring off the plastic base.Keep the
ring.You must use it again to hold the new
bulb in place.
*
[SV47400( ALL)03/95]
Installing the headlamp bulb
*
[SV47600(MBC )02/95]
1. With the flat side of the bulb's plastic base
facing upward, insert the glass end of the
bulb into the socket. You may need to turn
the bulb left or right to line up the grooves
in the plastic base with the tabs in the
socket. When the grooves are aligned, push
the bulb into the socket until the plastic base
contacts the rear of the socket.
*
[SV47800(MBC )08/95]
2. Slip the bulb retaining ring over the plastic
base until it contacts the rear of the socket.
Lock the ring into the socket by rotating it
clockwise until you feel a ªstop.º
*
[SV47900( ALL)02/95]
3. Push the electrical connector into the rear of
the plastic base until it snaps, locking it into
position.
*
[SV48000(MBC )02/95]
4. Turn the headlamps on and make sure that
they work properly. If the headlamp was
correctly aligned before you changed the
bulb, you should not need to align it again.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

308 Index
Autolamp system (see Headlamps)..... 84
Automatic transmission
driving an automatic overdrive..... 165
fluid, checking............ 256
fluid, refill capacities......... 285
fluid, specification........... 287
Axle, traction lok............ 170
B
Backing up............... 167
Basic vehicle warranty........... 3
Battery
acid, treating emergencies....... 185
charging system warning light...... 60
disconnecting............. 248
how to service............ 247
jumping a disabled battery....... 185
maintenance-free........... 247
proper disposal, recycling....... 247
replacement, specifications....... 286
voltage gauge.............. 69
when storing your vehicle....... 290
Brake fluid
brake warning light........... 57
specifications............. 287
Brakelamp
bulb replacement........... 279
high-mount brakelamp........ 277
Brakes
adjustment.............. 173
anti-lock............... 173
anti-lock brake system (ABS)
warning light............. 58
applying the brakes.......... 173
brake warning light........... 57
fluid, checking and adding....... 258
fluid, refill capacities......... 259
fluid, specifications.......... 287
File:rcixb.ex
Update:Thu Feb 15 12:06:08 1996

Index 309
Brakes (continued)
front disc.............. 173
new brake linings............ 4
noise................ 174
parking............... 174
trailer................ 183
when storing your vehicle....... 290
Brake-shift interlock........... 166
Break-in period.............. 4
Bulbs, replacing
headlamps.............. 275
specifications............. 279
C
Canada, customer assistance....... 212
Canadian Motor Vehicle Arbitration Plan
(CAMVAP).............. 212
Capacities for refilling fluids....... 285
Carbon monoxide in exhaust........ 51
Car seats for children
(see Child safety seats)......... 27
Cassette tape player
(see Electronic sound system) . . . 141, 150
Catalytic converter........... 280
CD player
(see Electronic sound system)..... 131
Chains, tires.............. 255
Changing a tire............. 191
Charging system gauge.......... 69
Charging system warning light....... 60
Child safety restraints........... 25
child safety belts............ 43
child safety seats............ 27
Child safety seats
and air bags............ 20,27
automatic locking mode (retractor).... 29
in front seat.............. 29
in rear outboard seat.......... 35
in rear seat............... 42
Chime
key in ignition............. 46
File:rcixb.ex
Update:Thu Feb 15 12:06:08 1996

310 Index
Chime (continued)
safety belt............... 59
Circuit breakers
checking and replacing........ 273
see also fuses............. 264
Cleaning your vehicle
chrome and aluminum parts....... 6
engine compartment.......... 230
exterior................ 5
exterior lamps............. 84
fabric................ 123
headlamps............... 84
instrument panel............ 74
instrument panel lens.......... 90
interior lamps.............. 89
mirrors................ 124
plastic parts.............. 6
polishing................ 6
rustproofing.............. 6
safety belts............... 18
tail lamps............... 84
upholstery and interior trim...... 123
washing................ 5
wheels................ 256
Climate control system
air conditioning........... 74,77
heating............... 74,77
Clock................... 89
Cold engine starting............ 48
Compact disc radio (see Electronic sound
system)................ 132
Console, description........... 127
Coolant (see Engine coolant)
checking and adding......... 240
drain and flush............ 244
preparing for storage......... 290
proper solution............ 242
refill capacities............ 285
refill procedure............ 244
specifications............. 287
temperature gauge........... 66
File:rcixb.ex
Update:Thu Feb 15 12:06:08 1996

314 Index
Fuses
charts................ 266
checking and replacing........ 272
circuit breakers............ 273
G
Gas cap (see Fuel cap).......... 230
Gasoline (see Fuel)............ 231
Gauges, Mechanical
engine coolant temperature gauge.... 66
engine oil pressure gauge........ 69
fuel gauge............... 65
multi-gauge.............. 62
odometer................ 67
speedometer.............. 67
tachometer............... 68
trip odometer.............. 68
GAWR (Gross Axle Weight Rating)
calculating.............. 179
definition............... 178
location............... 178
Gearshift
automatic operation.......... 165
console-mounted........... 167
positions............... 165
shift-lock............... 166
GVWR (Gross Vehicle Weight Rating)
calculating.............. 179
definition............... 178
location............... 178
H
Hazard flashers.............. 94
Headlamps
autolamp system............ 84
bulb specification........... 279
checking alignment.......... 274
cleaning................ 84
daytime running lights......... 82
File:rcixb.ex
Update:Thu Feb 15 12:06:08 1996

Index 315
Headlamps (continued)
flashing................ 92
high beam............... 92
replacing bulbs............ 275
turning on and off........... 83
Head restraints............. 118
Heating
manual heating and air conditioning
system............... 74
semi-automatic system......... 77
High beams, indicator light........ 62
High-mount brakelamp
description.............. 277
replacing the bulb.......... 278
Hitch................. 182
Hood
latch location............. 226
lubrication specifications........ 287
release lever............. 226
Horn................... 95
Hoses, checking............. 241
I
Identification Number, Vehicle (VIN) . . . 206
Idle
relearning.............. 248
speed................. 49
Ignition
chime................. 46
positions of the ignition......... 45
removing the key............ 46
Indicator lamp module.......... 71
Infant seats (see Safety seats)........ 27
Instrument cluster, mechanical....... 56
Instrument panel
cleaning................ 90
lighting up panel and interior...... 86
location of components......... 73
Interval wipers.............. 93
File:rcixb.ex
Update:Thu Feb 15 12:06:08 1996
