Fuel-Injected Engines
*
[ST07100( ALL)03/95]
When starting a fuel-injected engine,the most
important thing to remember is to avoid
pressing down on the accelerator before or
during starting. Only use the accelerator when
you have problems getting your vehicle started.
SeeStarting Your Enginein this chapter for
details about when to use the accelerator while
you start your vehicle.
*
[ST07300( ALL)03/95]
Starting Your Vehicle
%*
[ST07400( ALL)05/94]
Preparing to Start Your Vehicle
*
[ST07500( ALL)05/95]
RWARNING
Do not start your vehicle in a closed
garage or other enclosed area. Never sit in
a stopped vehicle for more than a short
period of time with the engine running.
Exhaust fumes are toxic. SeeGuarding
Against Exhaust Fumesin this chapter for
more instructions.
*
[ST07600( ALL)01/95]
Before you start your vehicle, do the following:
*
[ST07700( ALL)01/95]
1. Make sure you and all your passengers
buckle your safety belts. SeeSafety Restraints
in the Index for more details.
*
[ST07800( ALL)03/95]
2. Make sure the headlamps and other
accessories are turned off when starting.
*
[ST08100( BCGV)03/95]
3. Make sure that the gearshift is in P (Park)
and the parking brake is set before you turn
the key.
*
[ST08400( ALL)03/95]
Before you start your vehicle, you should test
the warning lights on the instrument panel to
make sure that they work. Refer to theWarning
Lights and Gaugeschapter.
File:rcstb.ex
Update:Mon Feb 19 10:52:09 1996

62 %
*
[LG07200( ALL)01/95]
High Beam Light
*
[LG07300( ALL)03/95]
This light comes on when the headlamps are
turned to high beam or when you flash the
lights.
[LG07400( ALL)05/92]
one inch art:0010125-A% [LG08300( BC )07/93]
Check Gauges Warning Light (if equipped)
[LG08310( BC )03/93]
one inch art:0010128-D*
[LG08400( BC )06/94]
This light will come on when the key is in the
ON position and the:
[LG08500( BC )04/89]
q
engine coolant temperature gauge is high, or
[LG08600( BC )04/89]
q
engine oil pressure gauge is low, or
[LG08700( BC )05/95]
q
when the fuel tank has reached empty
reserve.
[LG08825( BC )03/90]
This light serves as a reminder for you to check
the engine coolant temperature gauge, the
engine oil pressure gauge or the fuel gauge. It
will come on if there is a condition that needs
your attention.
[LG08850( BC )07/93]
SeeEngine Coolant Temperature Gauge, Engine Oil
Pressure Gauge,orFuel Gaugein this chapter for
more information.
File:rclgb.ex
Update:Mon Feb 19 10:51:57 1996

82
%*
[IP34200( ALL)01/95]
The Interior and Exterior Lights
%*
[IP34310( ALL)01/95]
Daytime Running Light System
*
[IP34312( ALL)03/95]
(Canadian vehicles only)
*
[IP34320( ALL)03/95]
The Daytime Running Light (DRL) system turns
the high beam headlamps on, with a reduced
light output, when:
*
[IP34325( ALL)03/95]
q
The headlamp system is in the OFF position,
and
*
[IP34330( ALL)03/95]
q
The vehicle is running, and
*
[IP34340( ALL)01/95]
q
The vehicle has a fully released parking
brake.
*
[IP34360( BCGV)01/95]
NOTE: If you have a vehicle with an
automatic lighting system, the DRL
system is active until the automatic
system turns on the headlamps.
*
[IP34363( ALL)10/94]
NOTE: The high beam indicator will not turn
on in the flash-to-pass mode during
nighttime driving.
*
[IP34365( ALL)01/95]
NOTE: You may notice that the lights flicker
when the vehicle is turned on or off.
This is a normal condition.
*
[IP34367( ALL)05/95]
RWARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

83 %
*
[IP34370( ALL)01/95]
Turning On the Exterior Lights
*
[IP34550( BCGV)05/95]
To turn on the headlamps, parking lamps, side
markers, and tail lamps, use the rotary knob that
is to the left of the steering wheel.
[IP35000( BC )05/95]

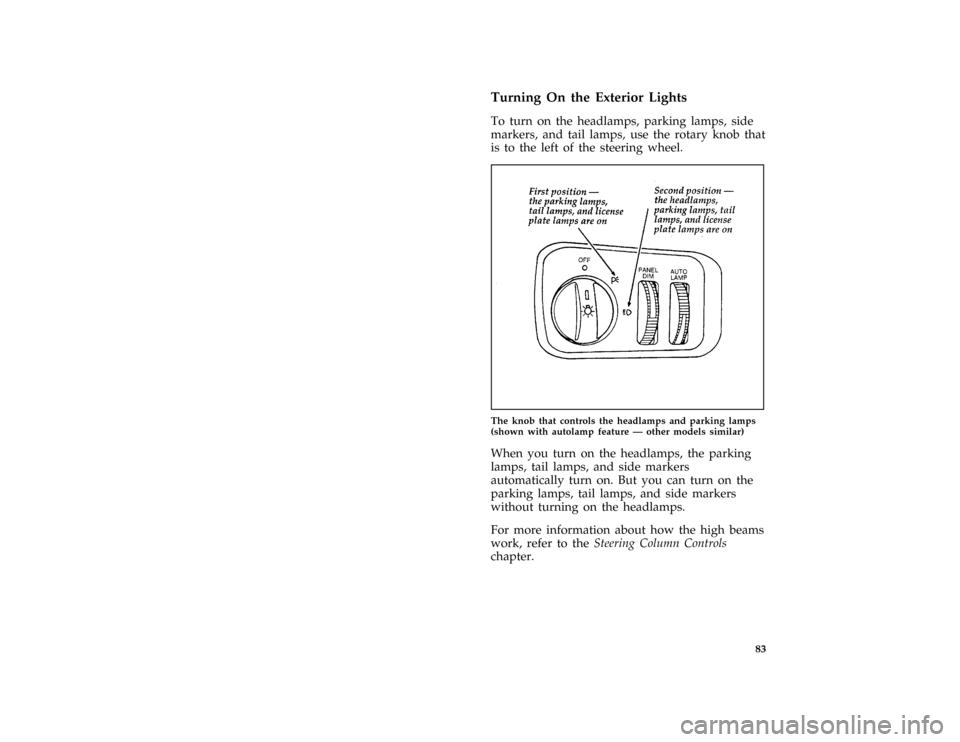

half page art:0010195-D
The knob that controls the headlamps and parking lamps
(shown with autolamp feature Ð other models similar)
[IP35200( ALL)12/91]
When you turn on the headlamps, the parking
lamps, tail lamps, and side markers
automatically turn on. But you can turn on the
parking lamps, tail lamps, and side markers
without turning on the headlamps.
*
[IP36100( ALL)01/95]
For more information about how the high beams
work, refer to theSteering Column Controls
chapter.
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

84 [IP36130( BCGV)05/95]Chime for headlamps on
*
[IP36160( BCGV)05/95]
This chime sounds if the driver or any passenger
door is open when the parking lamps or
headlamps are on. The chime sounds until you
close the door, turn off the lamps or turn the
ignition to the ON position.
%*
[IP36200( ALL)05/95]
Cleaning the Exterior Lamps
*
[IP36300( ALL)05/95]
Do not use dry paper towel, chemical solvents
or abrasive cleaners to clean the lamps, as these
may cause scratches or crack the lamps.
%*
[IP36900( BC )02/95]
Setting the Autolamp Delay System
(If equipped)
*
[IP37100( BCGV)02/95]
The autolamp sets the headlamps to turn on and
off automatically. You can use the autolamp to:
*
[IP37300( BCGV)01/95]
q
turn on the lamps automatically at night
*
[IP37400( BCGV)01/95]
q
turn off the lamps automatically during
daylight
*
[IP37500( BCGV)01/95]
q
keep the lamps on for up to three minutes
after you turn the key to OFF.
[IP37900( BC )05/95]
one third page art:0010199-D
The controls for the autolamp
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

85
*
[IP38200( BC )01/95]
To set the autolamp:
*
[IP38300( BC )05/95]
1. Make sure the headlamp knob is in the OFF
position. If the knob for the headlamps is
ON, you cancel the autolamp.
*
[IP38400( BC )01/95]
2. Turn the ignition key to ON or start your
vehicle.
[IP38500( BC )06/93]
3. Find the autolamp thumbwheel to the right
of the panel dim thumbwheel.
[IP38900( BC )11/92]
4. Turn the thumbwheel up to the beginning of
the MAX position (within the DELAY range).
*
[IP39200( BC )01/95]
5. The autolamp automatically turns the lamps
on and off for you.
*
[IP39275( BCGV)01/95]
Do not put any articles on top of the photocell
that is located in the top left corner of the
instrument panel. This photocell controls the
autolamp. If you cover it, the photocell reacts as
if it is nighttime, and the lamps turn on.
*
[IP39300( BC )01/95]
To turn the autolamp off, move the thumbwheel
back to OFF.
*
[IP39500( BCGV)12/92]
You can set the autolamp so the lamps stay on
for up to three minutes after you turn your
vehicle off.
[IP39600( BC )12/94]
To keep the lamps on after you leave your
vehicle, turn the thumbwheel as far into the
MAX range as you want.
[IP40000( BC )12/94]
If you move the thumbwheel only slightly into
the DELAY area, your lamps will stay on for
only a moment after you turn your vehicle off.
The further you move the thumbwheel into the
DELAY area (toward the MAX position), the
longer the lamps will stay on after you turn
your vehicle off.
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

86 %
*
[IP44500( ALL)01/95]
Lighting Up the Interior and Instrument
Panel
[IP44700( BC )01/89]
Manual operation
*
[IP44810( BC )05/95]
With the light knob in the parking lamps or the
headlamps position, you can brighten or dim the
lights in the instrument panel. To do this, use
the thumbwheel to the left of the steering wheel.
This wheel also turns on the interior lights with
the light knob on or off.
[IP45100( BC )06/93]

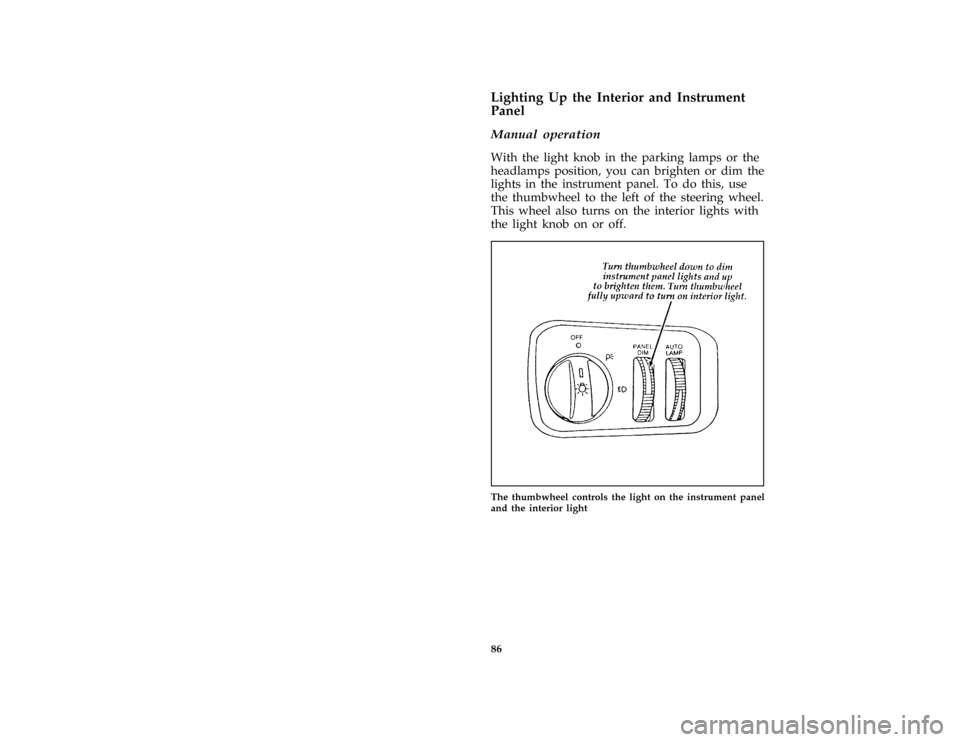

half page art:0010206-C
The thumbwheel controls the light on the instrument panel
and the interior light
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

92
*
[SC02301( ALL)03/95]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
*
[SC02401( ALL)03/95]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the off position when you release it.
%*
[SC02700( ALL)03/95]
High Beams
*
[SC02800( ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[SC02900( ALL)03/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
*
[SC02950( B )01/95]
NOTE: When the headlamps are on low beam,
the outer two headlamps are on. When
the headlamps are on high beam, the
two outer headlamps will turn off and
the inner headlamps turn on.
%*
[SC03200( ALL)05/95]
Flashing the Lights
*
[SC03300( ALL)05/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
%
*
[SC03500( ALL)03/95]
Windshield Wipers and Washer
*
[SC03600( ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
[SC03750( ALL)01/95]
Rotate the end of the lever away from you to
activate the wipers. The first seven detents are
interval wipe positions, the eighth detent is the
LO position and the ninth detent is the HI
position.
*
[SC03800( ALL)01/95]
To turn the wipers off, turn the knob toward
you to the OFF position.
File:rcscb.ex
Update:Mon Feb 19 10:50:25 1996

104 [FV03210( MBC )05/95]Anti-Theft Alarm System
(If equipped)
[FV03220(MBC )05/95]
When armed, this system helps protect your
vehicle against break-ins or theft.
%*
[FV03230(MBC )05/95]
When an unauthorized entry occurs, the system
triggers and will:
*
[FV03240(MBC )05/95]
q
flash the headlamps, parking lamps, and
alarm indicator lamp
*
[FV03250(MBC )02/95]
q
honk the horn
*
[FV03260(MBC )05/95]
q
disable the starting circuit to prevent the
vehicle from being started
*
[FV03270(MBC )02/95]
NOTE: The factory installed Remote Entry
System has a PANIC feature that also
chirps the vehicle horn and flashes the
interior/exterior lamps when the
PANIC button on the remote entry
transmitter is pushed. The PANIC
alarm and the Anti-Theft alarm are two
separate features. Both the anti-theft
alarm and the PANIC feature can be
active at the same time.
File:rcfvb.ex
Update:Mon Feb 19 10:50:02 1996

111 %
*
[FV08055( ALL)02/95]
Unlocking the doors and opening the trunk
*
[FV08060( ALL)02/95]
To unlock the driver's door, press the UNLOCK
button.
*
[FV08065( ALL)02/95]
To unlock the other doors, press the UNLOCK
button a second time within five seconds of
unlocking the driver's door.
[FV08070(MBC )05/95]
To open the trunk, press the TRUNK button.
*
[FV08080( ALL)02/95]
Locking the doors
*
[FV08085( ALL)02/95]
To lock all the doors, press the LOCK button.
*
[FV08090(MBC )01/95]
If you would like a signal that the doors are
being locked, press the LOCK button again
within five seconds. The doors will lock again,
the horn will beep and the low beam headlamps
and tail lamps will flash.
File:rcfvb.ex
Update:Mon Feb 19 10:50:02 1996
