Trip Odometer
*
[LG15300( ALL)03/93]
If you want to track your mileage up to 999.9
miles (kilometers), use the trip odometer. Simply
set the trip odometer to zero by pressing the
reset button firmly when beginning the distance
you wish to measure.
*
[LG15350( ALL)01/95]
Since the trip odometer displays distance
independent of the odometer it will not always
advance to the next mile (kilometer) at the same
time as the odometer.
%*
[LG15450(MBC )02/95]
Tachometer
[LG15470( BC )05/95]
one third page art:0011342-A
The tachometer
*
[LG15600(MBC )01/95]
The tachometer displays the approximate engine
revolutions per minute (rpm), or how fast the
engine is running.
*
[LG15900( BC )01/95]
You can drive your vehicle at most rpm points
on the tachometer but you must stay out of the
red zone.
[LG16000( BC )03/90]
Regardless of the type of transmission in your
vehicle, if you drive with the tachometer pointer
in the red zone, you may damage the engine.
File:rclgb.ex
Update:Mon Feb 19 10:51:57 1996

69 % [LG16220( ALL)05/94]
Battery Voltage Gauge (If Equipped)
*
[LG16225( ALL)05/94]
This gauge shows you the battery voltage when
the ignition key is in the ON position.
*
[LG16230( ALL)05/94]
If the battery is operating under cold weather
conditions, the pointer may indicate in the upper
range of the NORMAL band while the battery is
charging. If you are running electrical accessories
(when the engine is off, or idling at a low
speed), the pointer may move toward the lower
end of the NORMAL band.
*
[LG16260( ALL)05/94]
If it stays outside the NORMAL band, have your
vehicle's electrical system checked as soon as it
is safely possible.
[LG16285( BC )05/95]
one third page art:0010655-D
Battery voltage gauge
%*
[LG16300( ALL)05/94]
Engine Oil Pressure Gauge
[LG16500( ALL)05/94]
This gauge indicates the engine oil pressure, not
the oil level. However, if your engine's oil level
is low, it could affect the oil pressure. With the
engine running, the pointer should move into
the NORMAL band. If the pointer drops below
the NORMAL band while the engine is running,
you have lost oil pressure and continued
operation will cause severe engine damage.
File:rclgb.ex
Update:Mon Feb 19 10:51:57 1996

70 [LG16550( BC )05/95]
one third page art:0011146-BEngine oil pressure gauge
*
[LG16600( ALL)03/95]
If you lose engine oil pressure:
*
[LG16700( ALL)01/95]
1. Pull off the road as soon as safely possible.
*
[LG16800( ALL)04/95]
2. Shut off the engine immediately or severe
engine damage could result.
[LG16900( ALL)05/94]
3. Check the engine's oil level, following the
instructions on checking and adding engine
oil, see theEngine Oilin the Index. If you do
not follow these instructions, you or others
could be injured. To assure an accurate
reading, your car should be on level ground.
[LG17000( ALL)05/94]
4. If the level is low, add oil as necessary
before you start the engine again. Do not
overfill. Do not operate the engine if the
pointer is below the NORMAL band,
regardless of the oil level. Contact your
nearest dealer for further service actions.
[LG17200( ALL)05/94]
For more information about adding oil, see
Engine Oil Recommendationsin the Index.
File:rclgb.ex
Update:Mon Feb 19 10:51:57 1996

71
% [LG17205( BC )03/95]
Indicator Lamp Module
(If equipped)
[LG17208( BC )05/94]
The following warning lights are on the
indicator lamp module. All of the warning lights
alert you to possible problems. Some of the
lights listed are optional. The following section
details what each of these indicators mean.
[LG17210( BC )03/95]

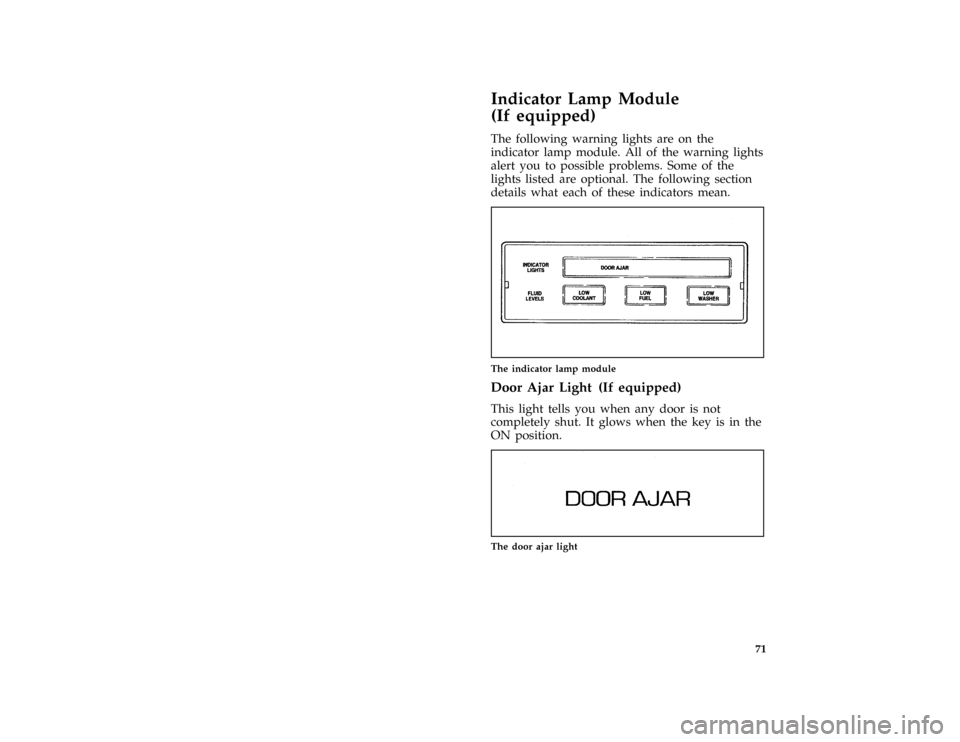

one third page art:0011215-A
The indicator lamp module
% [LG17215( BC )04/95]
Door Ajar Light (If equipped)
[LG17220( BC )06/92]
This light tells you when any door is not
completely shut. It glows when the key is in the
ON position.
[LG17225( BC )03/94]
one inch art:0010126-B
The door ajar light
File:rclgb.ex
Update:Mon Feb 19 10:51:57 1996

72 % [LG17230( BC )07/93]Low Coolant Light
[LG17235( BC )07/93]
This light indicates that the level of the engine
coolant is low inside the coolant recovery bottle
and that you should add more coolant. See
Engine Coolantin the Index.
[LG17240( BC )07/93]
one inch art:0011209-A
The low coolant light
%*
[LG17250( BC )07/93]
Low Fuel Light
[LG17255( BC )05/95]
This light comes on when your fuel gauge
indicates approximately 1/16 of a tank. Your car
must be turned to ON for this light to come on.
This light will either flicker or glow steadily.
[LG17260( BC )07/93]
one inch art:0011210-A
The low fuel light
% [LG17265( BC )07/93]
Washer Fluid Low Light
*
[LG17270( BC )02/95]
This light comes on if the reservoir is less than a
quarter full when you turn on the windshield
washers.
[LG17275( BC )07/93]
one inch art:0011211-A
The low washer fluid light
File:rclgb.ex
Update:Mon Feb 19 10:51:57 1996

73
Instrument Panel Controls
[IP00270( BC )05/94]

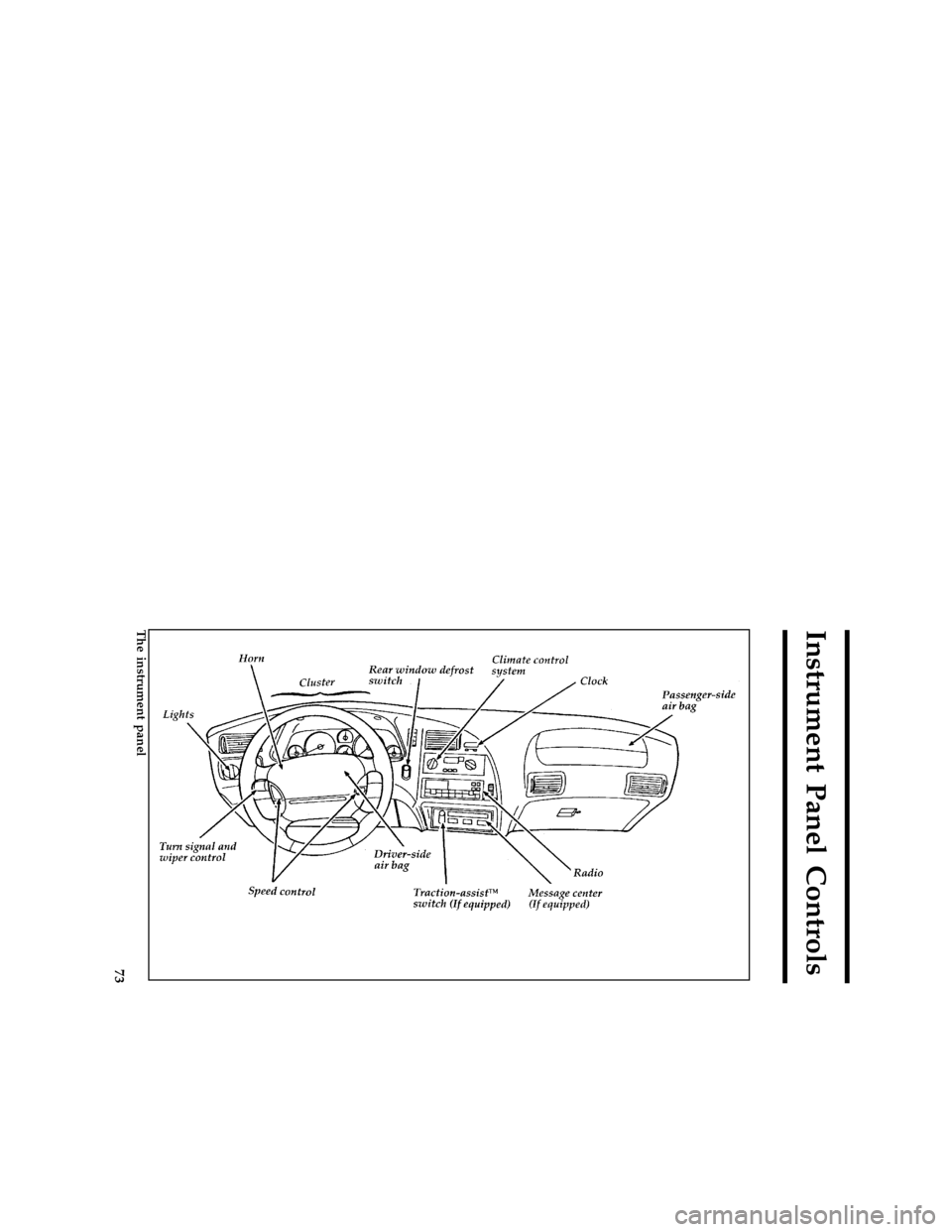

full page art:0010101-K
The instrument panel
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

74 [IP00400( ALL)05/95]The main controls for the climate control system,
clock, and radio are on the instrument panel.
%*
[IP00500( ALL)05/95]
NOTE: Any cleaner or polish that increases the
gloss (shine) of the upper part of the
instrument panel should be avoided.
The dull finish in this area is to help
protect the driver from undesirable
windshield reflection.
%
*
[IP00600( ALL)01/95]
The Climate Control Systems
[IP00700( ALL)03/91]
Your vehicle has one of two different climate
control systems. The two systems are:
[IP01200( BCGV)06/93]
q
a manual heating and air conditioning system
[IP01250( BC )03/95]
q
a semi-automatic temperature control
system (if equipped)
*
[IP01400( ALL)09/89]
If you are not sure which system your vehicle
has, see the diagrams on the following pages.
% [IP10700( BCGV)08/93]
The Manual Heating and Air Conditioning
System
[IP10800( BCGV)08/93]
You can heat the inside of your vehicle, defrost
the windshield, and turn on the air conditioning
with the three knobs in the center of the
instrument panel:
[IP10900( BCGV)08/93]
q
FAN
[IP11000( BCGV)08/93]
q
TEMP
[IP11100( BCGV)08/93]
q
SELECT
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

75 [IP11300( BC )05/95]

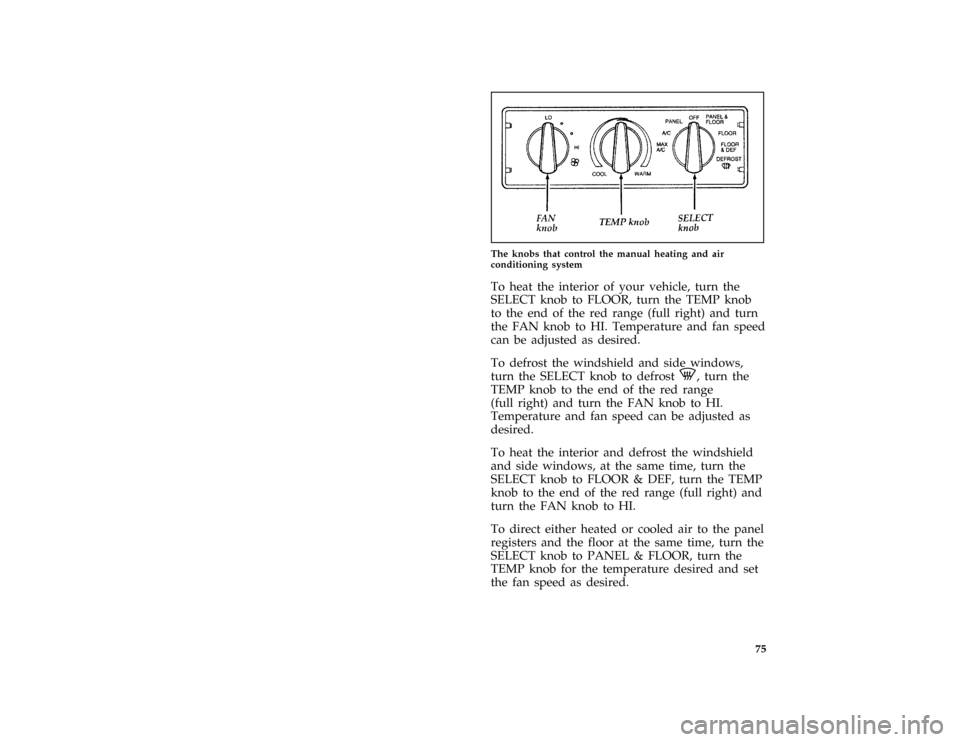

one third page art:0011216-B
The knobs that control the manual heating and air
conditioning system
[IP11501( BC )05/95]
To heat the interior of your vehicle, turn the
SELECT knob to FLOOR, turn the TEMP knob
to the end of the red range (full right) and turn
the FAN knob to HI. Temperature and fan speed
can be adjusted as desired.
% [IP11700( BC )05/95]
To defrost the windshield and side windows,
turn the SELECT knob to defrostV, turn the
TEMP knob to the end of the red range
(full right) and turn the FAN knob to HI.
Temperature and fan speed can be adjusted as
desired.
[IP11901( BC )05/95]
To heat the interior and defrost the windshield
and side windows, at the same time, turn the
SELECT knob to FLOOR & DEF, turn the TEMP
knob to the end of the red range (full right) and
turn the FAN knob to HI.
[IP12100( BC )03/94]
To direct either heated or cooled air to the panel
registers and the floor at the same time, turn the
SELECT knob to PANEL & FLOOR, turn the
TEMP knob for the temperature desired and set
the fan speed as desired.
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

76 [IP12300( BC )05/95]To cool your vehicle using outside air, turn the
SELECT knob to A/C, turn the TEMP knob all
the way to the end of the blue range (full left)
and turn the FAN knob to the desired speed
between LO and HI. A/C provides quieter
system operation than MAX A/C, but it is not
as efficient as MAX A/C which uses recirculated
air.
% [IP12500( BC )05/95]
To ventilate your car with outside air, during
mild weather, turn the SELECT knob to PANEL,
turn the TEMP knob for the temperature desired
and set the FAN knob to the speed desired.
[IP12700( BC )08/93]
Under normal conditions, the SELECT knob
should be left in any position other than MAX
A/C or OFF when the vehicle is parked. This
allows the vehicle to ªbreatheº through the
outside air inlet duct.
[IP12900( BC )05/95]
To cool your vehicle quickly in warm weather,
turn the SELECT knob to MAX A/C, turn the
TEMP knob all the way to the end of the blue
range (full left) and turn the FAN knob to HI.
MAX A/C uses recirculated air and is the most
fuel efficient way to cool your vehicle and can
also be used in heavy traffic to prevent exhaust
fumes from entering the vehicle. MAX A/C can
also be used in high humidity areas for more
efficient operation.
[IP13100( BC )08/93]
If the interior of your vehicle is very warm,
drive for the first few minutes with the windows
open. This forces most of the hot, stale air out of
the vehicle and allows the air conditioning to
work faster.
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

77 % [IP13300( BCGV)01/89]
Adjusting the panel register airflow
[IP13400( BCGV)03/92]
The instrument panel registers may be adjusted
to your comfort needs. The thumbwheel controls
the volume of air and the knob in the center of
the register controls direction up or down or
side to side.
[IP13500( BC )05/95]

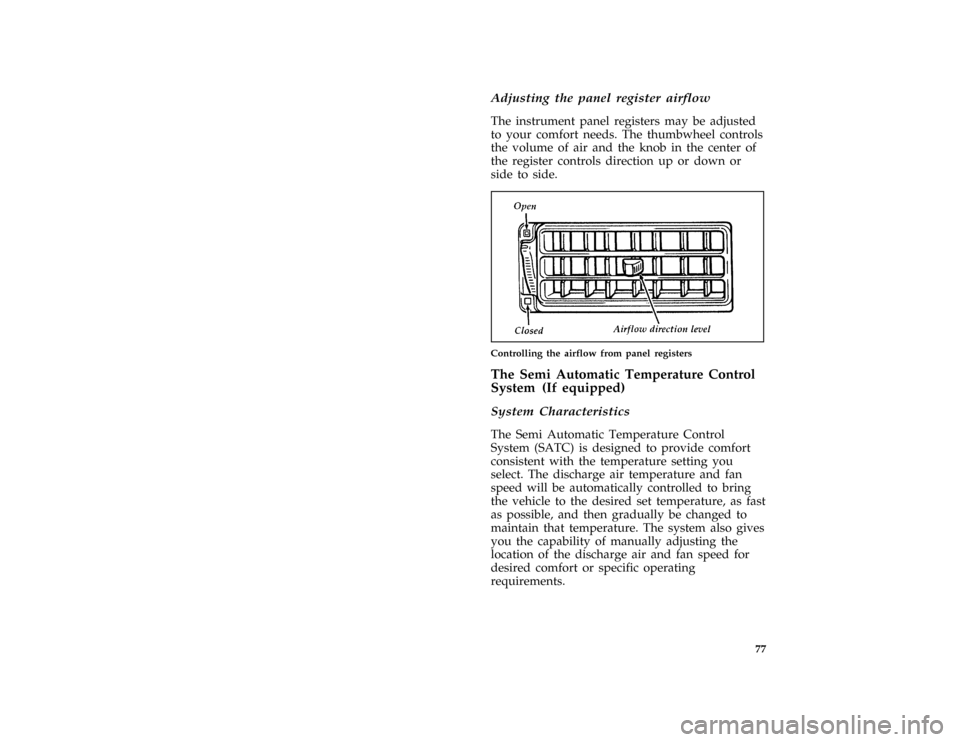

one third page art:0010183-D
Controlling the airflow from panel registers
% [IP13600( BC )03/95]
The Semi Automatic Temperature Control
System (If equipped)
[IP13700( BC )03/95]
System Characteristics
[IP13800( BC )03/95]
The Semi Automatic Temperature Control
System (SATC) is designed to provide comfort
consistent with the temperature setting you
select. The discharge air temperature and fan
speed will be automatically controlled to bring
the vehicle to the desired set temperature, as fast
as possible, and then gradually be changed to
maintain that temperature. The system also gives
you the capability of manually adjusting the
location of the discharge air and fan speed for
desired comfort or specific operating
requirements.
