9
[SR03700( ALL)05/95]
Combination Lap and Shoulder
Belts
*
[SR03800( ALL)01/95]
While your vehicle is in motion, the combination
lap and shoulder belt adjusts to your movement.
However, if you brake hard, corner hard or if
your vehicle receives an impact of 5 mph
(8 km/h) or more, the lap and shoulder belt
locks and helps reduce your forward movement.
*
[SR04100( ALL)05/95]
After you get into your vehicle, close the door
and lock it. Then adjust the seat to the position
that suits you best.
[SR04400( ALL)06/93]
To fasten the belt,pull the lap/shoulder belt
from the retractor so that the shoulder portion of
the belt crosses your shoulder and chest. Be sure
the belt is not twisted. If it is, remove the twist.
Insert the belt tongue into the proper buckle
until you hear a snap and feel it latch. Make
sure the tongue is securely fastened in the
buckle.
*
[SR04550( BCGV)01/95]
quarter page art:0010018-B
Fastening the front seat combination lap and shoulder belt
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

13 [SR05330( BC )05/95]
half page art:0011373-A

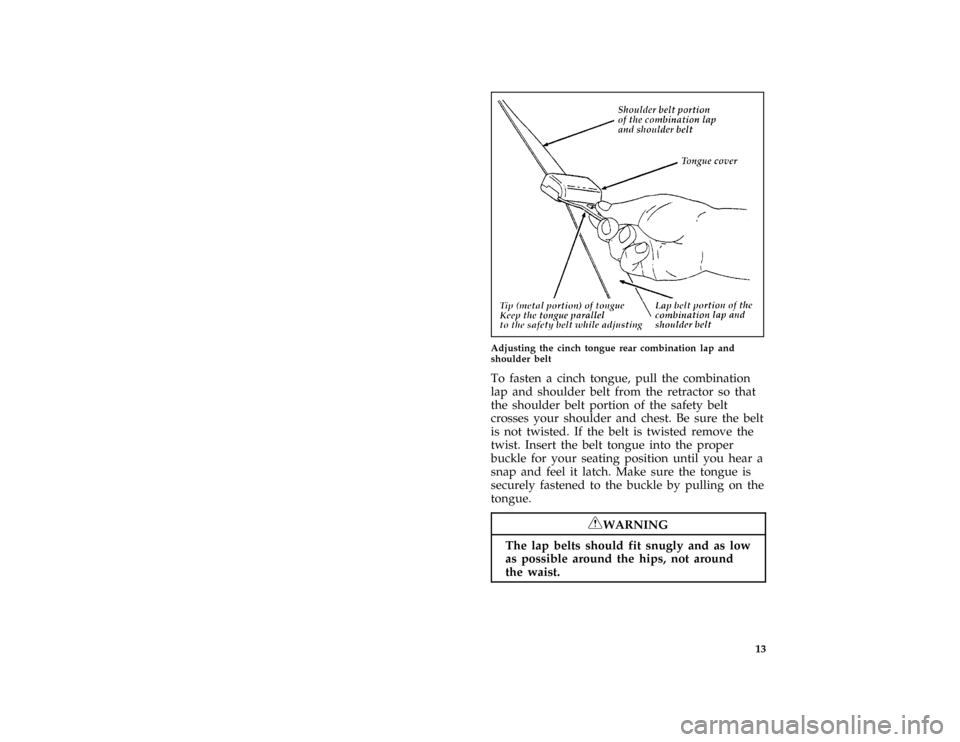

Adjusting the cinch tongue rear combination lap and
shoulder belt
*
[SR05335( BC )05/95]
To fasten a cinch tongue, pull the combination
lap and shoulder belt from the retractor so that
the shoulder belt portion of the safety belt
crosses your shoulder and chest. Be sure the belt
is not twisted. If the belt is twisted remove the
twist. Insert the belt tongue into the proper
buckle for your seating position until you hear a
snap and feel it latch. Make sure the tongue is
securely fastened to the buckle by pulling on the
tongue.
*
[SR05400( ALL)05/95]
RWARNING
The lap belts should fit snugly and as low
as possible around the hips, not around
the waist.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

16
% [SR09300( BC )05/95]
Lap Belts Ð Rear Center Seating
Positions
*
[SR09600( BC )05/95]
The lap belt in the center of the rear seat does
not adjust automatically. You must adjust it to
fit snugly and as low as possible around your
hips. Do not wear it around your waist.
*
[SR09701( BCGV)05/95]
Pull the belt across your hips andinsert the
tongue into the correct buckleon your seat
until you hear a snap and feel it lock. Make sure
the buckle is securely fastened.
%*
[SR09801( BCGV)05/95]
If you need to lengthen the belt, unfasten it and
tip the belt tongue at a right angle to the belt.
Pull the belt tongue over your lap until it
reaches the buckle.
*
[SR09901( BCGV)05/95]
If you need to shorten the belt, pull on the loose
end of the webbing until the belt fits snugly.
*
[SR10300( BCGV)05/95]
To unfasten the belt,push the release button on
the buckle. This allows the tongue to unlatch
from the buckle.
[SR10400( BC )11/92]
Because the center lap belt does not have a
retractor, it should be shortened and fastened
when not in use.
[SR10620( BC )05/94]
one third page art:0000029-E
Unfastening center rear seat lap belt
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

20 [SR19240( ALL)06/09]In rear-facing infant seats, the infant's head is
closer to the air bag. The force of the rapidly
inflating air bag could push the top of the
rear-facing seat against the vehicle seatback,
center console (if so equipped), or center
armrests (if so equipped). REAR-FACING
INFANT SEATS MUST ALWAYS BE SECURED
IN THE REAR SEAT, and other child safety
seats and infant seats should be secured in the
rear seat whenever possible.
*
[SR19260( ALL)05/95]
Your vehicle is equipped with a right front
passenger air bag. Air bags deploy with great
force, faster than the blink of an eye. Front
passengers, especially children and small adults,
must never sit on the front edge of the seat,
stand near the glove compartment of the
instrument panel, or lean over near the air bag
cover when the vehicle is moving. All occupants
should sit with their backs against the seatback,
move the seat to the most rearward position if
possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should
use child or infant seats.
%*
[SR19300( ALL)05/95]
RWARNING
When using forward-facing child seats
move the passenger seat as far back from
the instrument panel as possible. NEVER
SECURE REAR-FACING INFANT SEATS
IN THE FRONT SEAT.
[SR19350(MBC )05/95]
THE FORCE OF THE RAPIDLY INFLATING
PASSENGER AIR BAG COULD PUSH THE TOP
OF THE REAR-FACING SEAT AGAINST THE
VEHICLE SEATBACK OR CENTER
CONSOLE/ARMRESTS. REAR-FACING
INFANT SEATS MUST ALWAYS BE PLACED
IN THE REAR SEAT.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

26
*
[SR23700( ALL)05/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SR23800( ALL)05/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SR23900( ALL)05/95]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SR24000( ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR24100( ALL)05/95]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

27
*
[SR24200( ALL)05/95]
RWARNING
Never leave a child unattended in your
vehicle.
%*
[SR24250( ALL)05/95]
RWARNING
When using forward-facing child seats
move the passenger seat as far back from
the instrument panel as possible. NEVER
SECURE REAR-FACING INFANT SEATS
IN THE FRONT SEAT.
%*
[SR25100( ALL)01/95]
Safety Seats for Children
*
[SR25200( ALL)05/95]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
% [SR25225( ALL)04/95]
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety
seat in a seating position which is capable of
providing a tether anchorage. For more
information on top tether straps see your Ford
or Lincoln-Mercury dealer.
*
[SR25250( ALL)02/95]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position, and make sure the tongue is securely
fastened in the buckle.
*
[SR25275( ALL)05/95]
Children weighing less than 40 lbs. (18 kg)
should use child or infant seats. Forward facing
child seats must have the passenger seat moved
as far back from the instrument panel as
possible.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

28 %
*
[SR25300( ALL)05/95]
RWARNING
REAR-FACING INFANT SEATS SHOULD
NEVER BE USED IN THE FRONT SEAT.
REAR-FACING INFANT SEATS MUST
ALWAYS BE PLACED IN THE REAR
SEAT. Failure to follow these instructions
could result in serious injury.
*
[SR25350( ALL)05/95]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
*
[SR25400( ALL)05/95]
RWARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
*
[SR25500( ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR25520(MBC )05/95]
RWARNING
Always keep the buckle release button
pointing upward and away from the child
seat, with the tongue between the child
seat and the release button as shown in
the following illustration.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

31
*
[SR31893( ALL)04/95]
4. Insert the belt tongue into the buckle for that
seating position until you hear and feel the
latch engage. Figure 3. Make sure tongue is
latched securely to buckle by pulling on
tongue.
*
[SR31895( ALL)04/95]
half page art:0011240-B

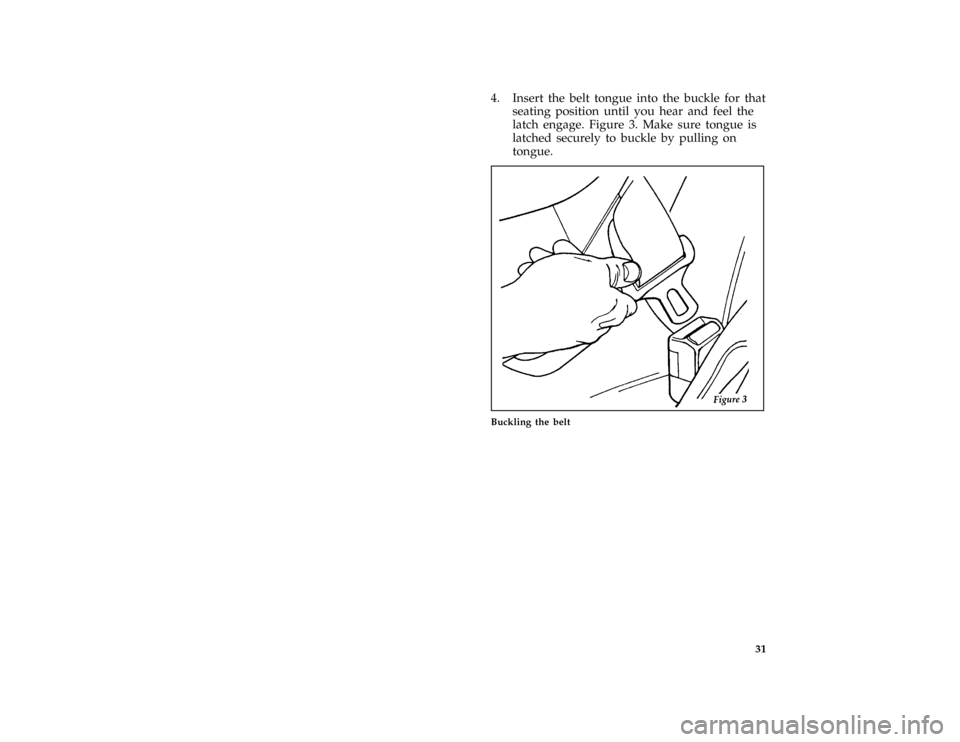

Buckling the belt
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

34
*
[SR31925( ALL)04/95]
7. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place, Figure 7.
*
[SR31930( ALL)04/95]
half page art:0011244-A

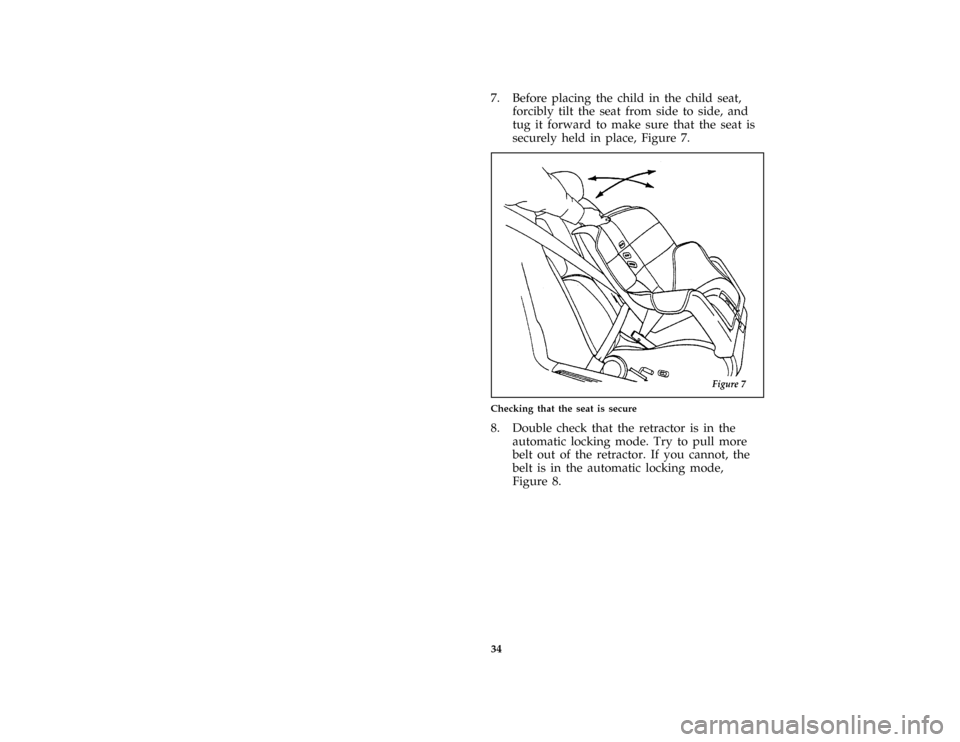

Checking that the seat is secure
*
[SR31935( ALL)04/95]
8. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode,
Figure 8.
File:rcsrb.ex
Update:Mon Feb 19 10:53:31 1996

35
*
[SR31940( ALL)04/95]
half page art:0011245-B

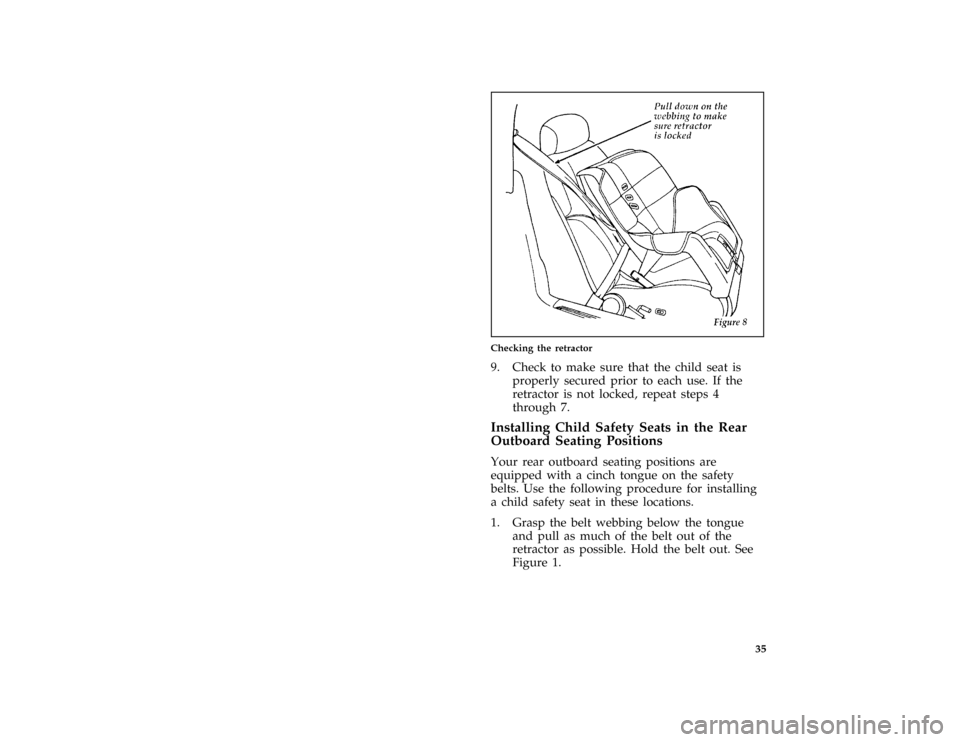

Checking the retractor
*
[SR31945( ALL)04/95]
9. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
% [SR31960( BC )03/95]
Installing Child Safety Seats in the Rear
Outboard Seating Positions
[SR31970( BC )03/95]
Your rear outboard seating positions are
equipped with a cinch tongue on the safety
belts. Use the following procedure for installing
a child safety seat in these locations.
*
[SR31980( BC )04/95]
1. Grasp the belt webbing below the tongue
and pull as much of the belt out of the
retractor as possible. Hold the belt out. See
Figure 1.
File:rcsrb.ex
