FORD THUNDERBIRD 2002 11.G Owners Manual

Item Ford part
nameFord part
numberFord
specification
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
1Use only brake fluids certified to meet Ford specifications. DOT 3 fluid
is recommended. However, if DOT 3 is not available, DOT 4 fluid can be
used.
2Ford design rear axles contain a synthetic lubricant that does not
require changing unless the axle has been submerged in water.
3Ensure the correct automatic transmission fluid is used. MERCONtand
MERCONtV are not interchangeable. DO NOT MIX MERCONtand
MERCONtV. Refer to the scheduled maintenance guide to determine
the correct service interval.
ENGINE DATA
Engine 3.9L-4V V8 engine
Displacement 3 949 cc (241 cid)
Required fuel 91 octane
Firing order 1-5-4-2-6-3-7-8
Spark plug gap 0.99-1.09 mm (0.039-0.043 inch)
Ignition system Coil on plug
Compression ratio 10.55:1

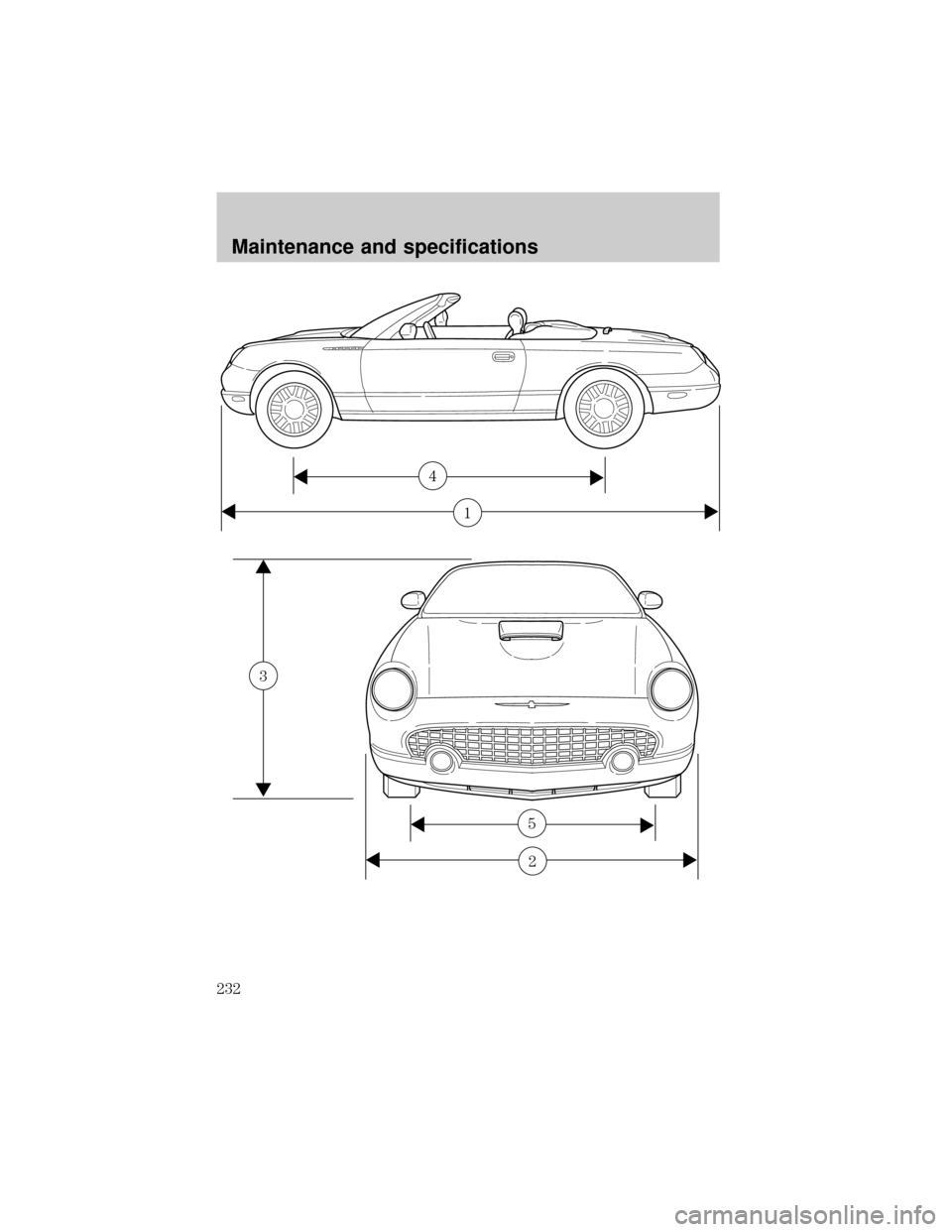

VEHICLE DIMENSIONS
Vehicle dimensions mm (in)
(1) Overall length 4 732mm (186.3 in)
(2) Overall width 1 829mm (72.0 in)
(3) Overall height 1 323 mm (52.1 in)
(4) Wheelbase 2 722 mm (107.2 in)
(5) Track - Front 1 537 mm (60.5 in)
(5) Track - Rear 1 529 mm (60.2 in)
Maintenance and specifications
231

4
1
3
5
2
Maintenance and specifications
232

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver's side.
Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT: XXXXXX XXXXXX RC: XX DSO: XXXX
BAR INT TR TP/PS R AXLE TR SPR
X XX XXX X XX X XXXX
XXXXX
XXXXX
UPC ÑF85B-1520472-AB
DATE: XXXXX GVWR:XXXXXXXXXXXX
VIN: XXXXXXXXXXXXXXXXXX
TYPE: XXXXXXXXXXXXXXX FRONT GAWR: XXXXXX/XXXXXXX
REAR GAWR: XXXXXXX/XXXXXXX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL
MOTOR VEHICLE SAFETY, BUMPER, AND THEFT PRE-
VENTION STANDARDS IN EFFECT ON THE DATE OF
MANUFACTURE SHOWN ABOVE.
XXXXXXXXXXXXXXXXX
Maintenance and specifications
233

1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
Maintenance and specifications
234

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford, Lincoln Mercury or Ford of
Canada dealer. These quality accessories have been specifically
engineered to fulfill your automotive needs; they are custom designed to
complement the style and aerodynamic appearance of your vehicle. In
addition, each accessory is made from high quality materials and meets
or exceeds Ford's rigorous engineering and safety specifications. Ford
Motor Company will repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
²12 months or 20 000 km (12 000 miles) (whichever occurs first), or
²The remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with
your new vehicle and installed by the dealer are covered for the full
length of your New Vehicle's Limited Warranty Ð 3 years or 60 000 km
(36 000 miles) (whichever occurs first). Contact your dealer for details
and a copy of the warranty.
Not all accessories are available for all models.
Vehicle Security
First Aid Kit
Highway Safety Kit
Non decorative wheel locks
Vehicle security systems
Comfort and convenience
Cargo nets
Engine block heaters
Accessories
235

Protection and appearance equipment
Air bag anti-theft locks
Car/truck covers
Cargo liners, interior
Carpet floor mats
Door edge guards
Front end cover
Locking gas cap
Molded vinyl floor mats
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
²When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
compliance certification label). Consult your dealer for specific weight
information.
²The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems - such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
²Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use or are not properly installed. When operated, such systems may
cause the engine to stumble or stall. In addition, such systems may be
damaged or their performance may be affected by operating your
vehicle. If you intend on fitting a mobile radio such as a citizens band
radio (CB), please refer to your local dealer for Ford recommended
installation guidelines. Ask you dealer to reference the ªFord Mobile
Radio Installation Guidelines.º (Citizens band [CB] transceivers, garage
door openers and other transmitters with outputs of five watts or less
will not ordinarily affect your vehicle's operation.)
²Ford cannot assume responsibility for any adverse effects or damage
that may result from the use of such equipment.
Accessories
236

A
Accessory delay ..........................64
Air bag supplemental restraint
system ................................109, 119
and child safety seats ............110
description ......................109, 119
disposal ....................................122
driver air bag ..................111, 120
indicator light ...........12, 113, 121
operation .........................111, 120
passenger air bag ...........111, 120
passenger deactivation
switch ......................................114
side air bag ..............................119
Air cleaner filter .......221±222, 227
Air conditioning ..........................35
Air filter, cabin ............................48
Antifreeze
(see Engine coolant) ................202
Anti-lock brake system
(see Brakes) ......................136±137
Anti-theft system ........................94
arming the system ....................94
disarming a triggered system ..94
Automatic transmission
driving an automatic
overdrive .................................141
fluid, adding ............................221
fluid, checking ........................221
fluid, refill capacities ..............228
fluid, specification ..................231
Auxiliary power point .................63
Axle
lubricant specifications ..229, 231
refill capacities ........................228B
Battery .......................................200
acid, treating emergencies .....200
charging system warning
light ............................................13
jumping a disabled battery ....169
maintenance-free ....................200
replacement, specifications ...227
servicing ..................................200
Belt minder ...............................104
Brakes ........................................136
anti-lock ...........................136±137
anti-lock brake system
(ABS) warning light .........12, 137
brake warning light ..................12
fluid, checking and adding ....220
fluid, refill capacities ..............228
fluid, specifications .........229, 231
lubricant specifications ..229, 231
parking ....................................138
shift interlock ..........................140
Break-in period .............................6
C
Capacities for refilling fluids ....228
Cassette tape player ...................19
Certification Label ....................233
Child safety restraints ..............122
child safety belts ....................122
Child safety seats ......................123
attaching with tether straps ..127
in front seat ............................125
in rear seat ..............................125
LATCH .....................................130
Cleaning your vehicle
engine compartment ..............188
exterior ....................................192
Index
237

instrument cluster lens ..........191
instrument panel ....................191
interior .....................................191
plastic parts ....................189±190
safety belts ..............................192
washing ....................................187
waxing .....................................187
wheels ......................................188
windows ..................................192
wiper blades ............................190
Clock ............................................33
Console ........................................83
Controls
power seat .................................97
steering column ........................70
Convertible ..................................72
cleaning .....................................76
installation of the boot .............73
lowering the convertible top ...72
raising the convertible top ......74
Coolant
checking and adding ..............202
coolant temperature light ........13
refill capacities ................206, 228
specifications ..................229, 231
Cruise control (see Speed
control) ........................................66
Customer Assistance ................153
Ford accessories for your
vehicle .....................................193
Ford Extended Service
Plan ..........................................179
Getting assistance outside
the U.S. and Canada ..............183
Getting roadside assistance ...153
Getting the service
you need .................................177
Ordering additional owner's
literature .................................184The Dispute Settlement
Board .......................................180
Utilizing the
Mediation/Arbitration
Program ...................................183
D
Daytime running lamps
(see Lamps) ................................49
Defrost
rear window ..............................48
Dipstick
automatic
transmission fluid ...................221
engine oil .................................197
Doors
door ajar warning .....................15
lubricant specifications ..........229
Driving under special
conditions
through water .........................146
Dual automatic temperature
control (DATC) ...........................35
E
Emergencies, roadside
jump-starting ..........................169
Emission control system ..........217
Engine ........................................231
check engine/service engine
soon light ..................................10
cleaning ...................................188
coolant .....................................202
fail-safe coolant ......................207
idle speed control ...................200
lubrication
specifications ..................229, 231
Index
238

refill capacities ........................228
service points ..........................196
starting after a collision .........154
Engine block heater .................135
Engine fan .................................208
Engine oil ..................................197
checking and adding ..............197
dipstick ....................................197
filter, specifications ........199, 227
recommendations ...................199
refill capacities ........................228
specifications ..................229, 231
Exhaust fumes ..........................135
F
Fail safe cooling ........................207
Floor mats ...................................83
Fluid capacities .........................228
Fuel ............................................209
calculating fuel economy .......214
cap .....................................11, 211
capacity ...................................228
choosing the right fuel ...........212
comparisons with EPA fuel
economy estimates .................217
detergent in fuel .....................213
filling your vehicle
with fuel ..................209, 211, 214
filter, specifications ........214, 227
fuel pump shut-off switch .....154
gauge .........................................17
improving fuel economy ........214
low fuel warning light ..............14
octane rating ...................212, 231
quality ......................................213
running out of fuel .................213
safety information relating to
automotive fuels .....................209Fuses ..................................156±157
G
Gas cap (see Fuel cap) ......11, 211
Gas mileage (see Fuel
economy) ...................................214
Gauges .........................................16
engine coolant temperature
gauge .........................................16
fuel gauge ..................................17
odometer ...................................17
speedometer .............................17
tachometer ................................18
trip odometer ............................18
GAWR (Gross Axle Weight
Rating) .......................................146
definition .................................146
driving with a heavy load ......146
location ....................................146
GVWR (Gross Vehicle Weight
Rating) .......................................146
calculating ...............................146
definition .................................146
driving with a heavy load ......146
location ....................................146
H
Hazard flashers .........................154
Head restraints ...........................95
Headlamps ...................................49
aiming ........................................51
autolamp system .......................49
bulb specifications ....................53
daytime running lights .............49
flash to pass ..............................50
high beam .................................15
replacing bulbs .........................54
Index
239

turning on and off ....................49
warning chime ..........................15
Heating ........................................35
Hood ..........................................196
I
Ignition ...............................132, 231
Infant seats
(see Safety seats) .....................123
Inspection/maintenance (I/M)
testing ........................................218
Instrument panel
cleaning ...................................191
cluster ................................10, 191
lighting up panel and
interior .......................................50
J
Jack ............................................164
positioning ...............................164
storage .....................................164
Jump-starting your vehicle ......169
K
Keyless entry system
autolock .....................................90
Keys .......................................91, 93
key in ignition chime ...............15
positions of the ignition .........132
L
Lamps
autolamp system .......................49
bulb replacement
specifications chart ..................53cargo lamps ...............................50
daytime running light ...............49
headlamps .................................49
headlamps, flash to pass ..........50
instrument panel, dimming .....50
interior lamps .....................52, 54
replacing bulbs ....... 53±54, 56±59
Lane change indicator
(see Turn signal) ........................52
Lights, warning and indicator ....10
air bag ........................................12
anti-lock brakes (ABS) ....12, 137
brake ..........................................12
bulb warning .............................15
charging system ........................13
check engine .............................10
cruise indicator .........................14
door ajar ....................................15
fuel cap light .............................11
high beam .................................15
low coolant ................................13
low fuel ......................................14
low washer fluid .......................14
oil pressure ...............................13
safety belt .................................13
speed control ............................70
traction control active ..............14
transmission PRNDL
indicator ....................................12
turn signal indicator .................14
Load limits .................................146
GAWR ......................................146
GVWR ......................................146
trailer towing ..........................146
Locks
autolock .....................................90
doors ..........................................84
Lubricant specifications ...229, 231
Lug nuts, anti-theft ...................169
Index
240
