Front power distribution box

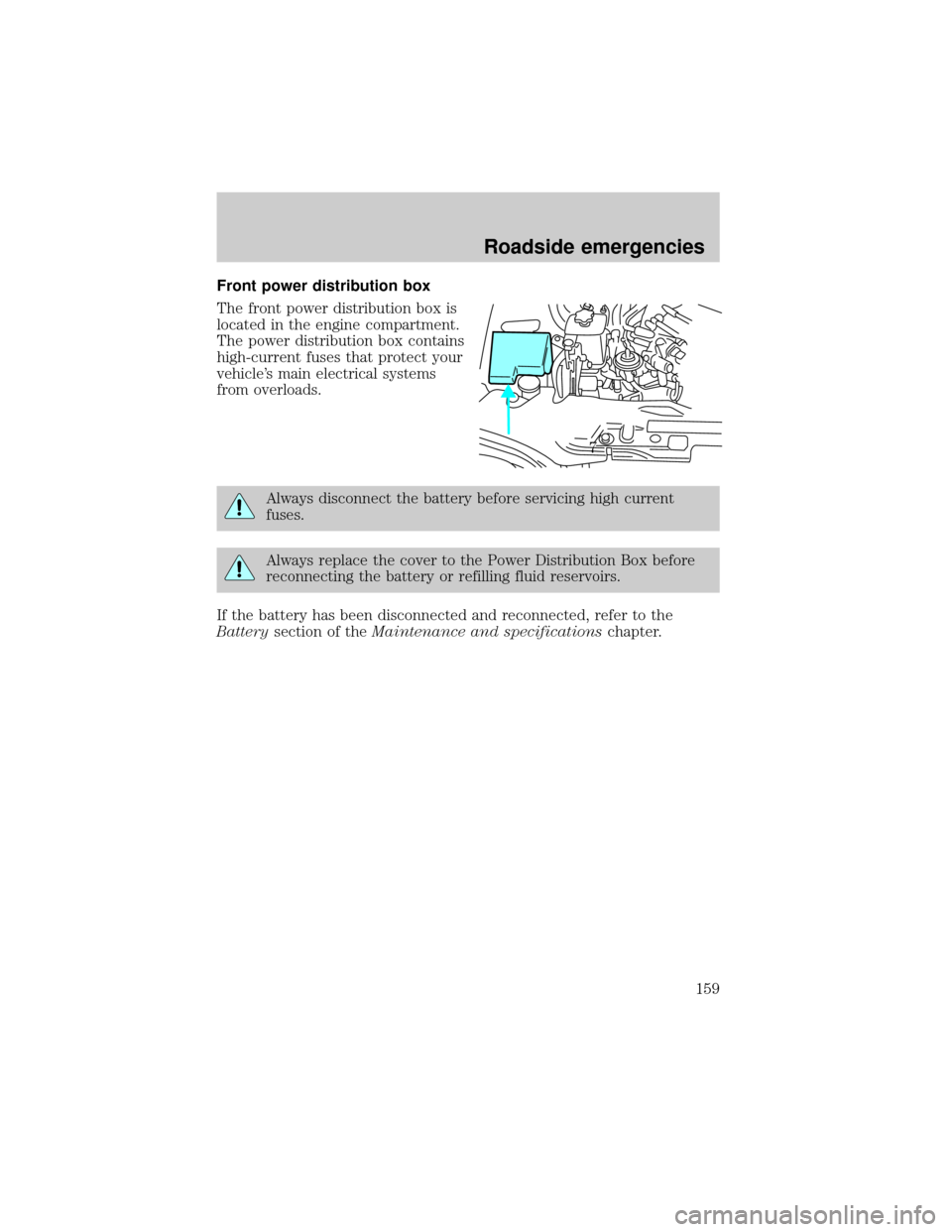

The front power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle's main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
Always replace the cover to the Power Distribution Box before
reconnecting the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and specificationschapter.
7
Roadside emergencies
159

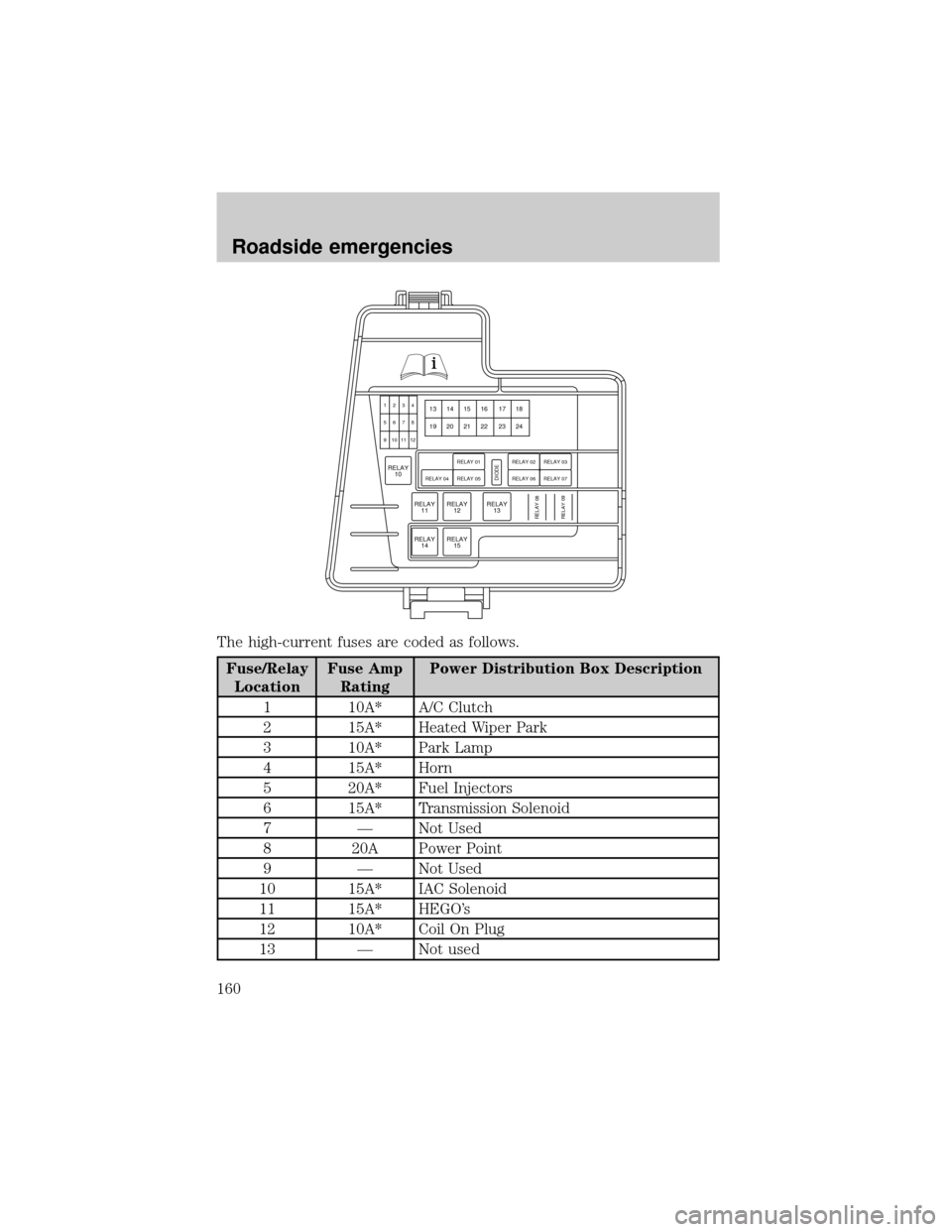

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1 10A* A/C Clutch
2 15A* Heated Wiper Park
3 10A* Park Lamp
4 15A* Horn
5 20A* Fuel Injectors
6 15A* Transmission Solenoid
7 Ð Not Used
8 20A Power Point
9 Ð Not Used
10 15A* IAC Solenoid
11 15A* HEGO's
12 10A* Coil On Plug
13 Ð Not used
RELAY
14RELAY
15
RELAY
11RELAY
12
RELAY
1013
1234
5678
9 10111214 15 16 17 18
19 20 21 22 23 24
RELAY
13RELAY 08DIODE
RELAY 04 RELAY 05RELAY 01
RELAY 09
RELAY 06
RELAY 02RELAY 07
RELAY 03
Roadside emergencies
160

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
14 30A** ABS Module Power
15 Ð Not Used
16 30A** Blower Motor
17 Ð Not used
18 40A** PCM
19 Ð Not Used
20 Ð Not used
21 30A** Starter Solenoid
22 30A** ABS Motor
23 Ð Not Used (Fuse Plug)
24 30A** Wiper Relay
Relay 01 Mini Relay Wiper Hi/Lo
Relay 02 Mini Relay Wiper Park
Relay 03 Mini Relay Coil on Plug and HEGOs
Relay 04 Mini Relay Heated wiper park relay
Relay 05 Mini Relay Auxiliary Coolant Pump (V8)
Relay 06 Mini Relay Horn
Relay 07 Ð Not Used
Relay 08 Mini Relay A/C Clutch
Relay 09 Ð Not Used
Relay 10 Standard
RelayBlower Motor
Relay 11 Standard
RelayWipers
Relay 12 Ð Not Used
Relay 13 Ð Not Used
Relay 14 Standard
RelayPCM
Relay 15 Standard
RelayStarter Motor
Diode Ð Not Used
*Mini fuses **Cartridge fuses
Roadside emergencies
161

Rear power distribution box

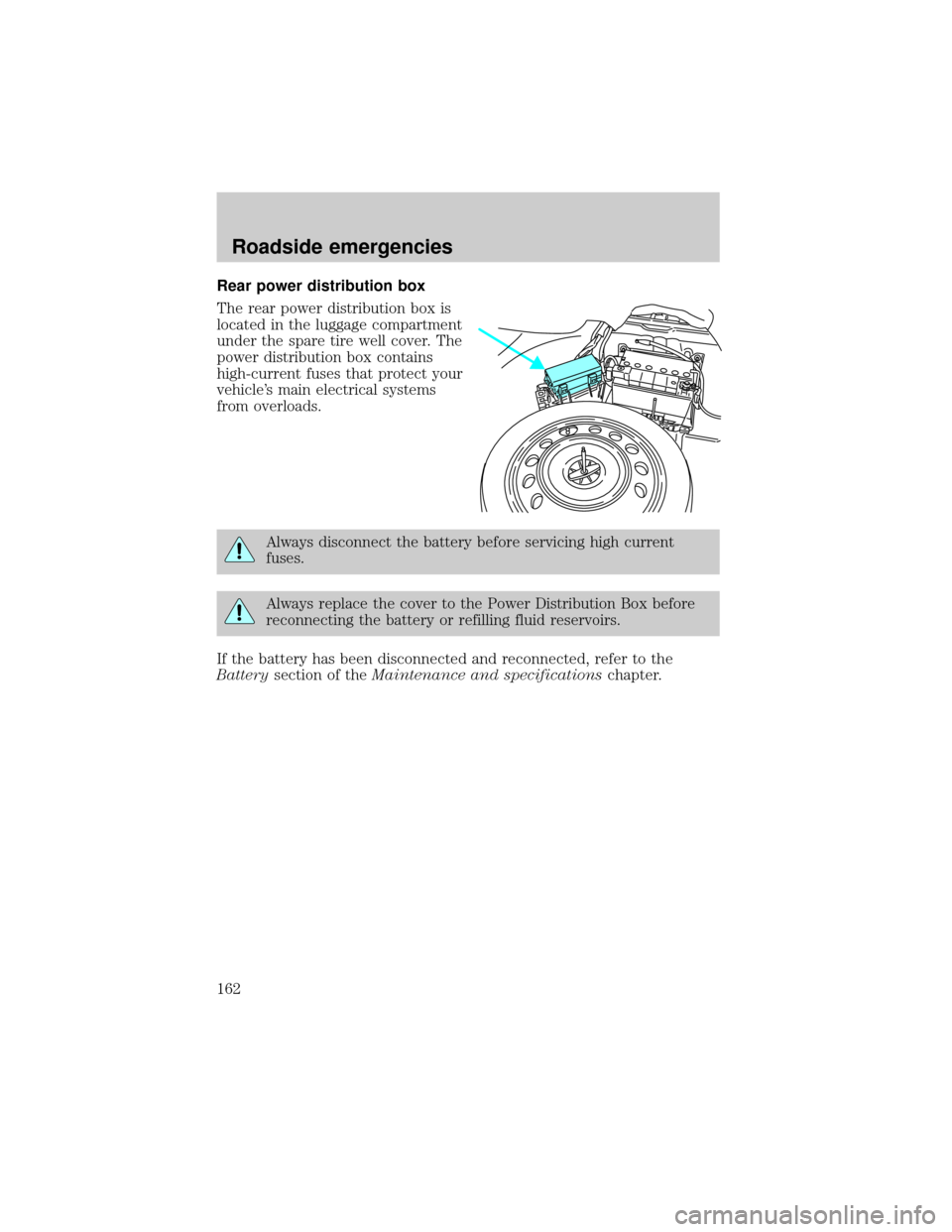

The rear power distribution box is
located in the luggage compartment
under the spare tire well cover. The
power distribution box contains
high-current fuses that protect your
vehicle's main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
Always replace the cover to the Power Distribution Box before
reconnecting the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and specificationschapter.
Roadside emergencies
162

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1 15A* Decklid Solenoid
2 5A* License plate lamp
3 10A* Left Rear Turn and Stop Lamp
4 10A* Luggage Compartment Lamp
5 Ð Not used
6 10A* Back-up Lamps
7 10A* Right Rear Turn and Stop Lamp
8 5A* Center High Mounted Stop Lamp
9 Ð Not used
10 Ð Not used
11 Ð Not used
12 5A* REM logic (if equipped)
13 Ð Not Used
14 5A* Convertible top relay coil
15 5A* Alternator Sense
16 Ð Not used
17 15A* Fuel Pump
18 20A* Subwoofer Amplifier
19 30A** Driver power seat
20 30A** FEM - Left front window
123456789 19 20 21 22 23 24 25> PBT <
MINI-FUSE
SEE OWNER'S MANUAL CONSULTER LA GUIDECARTRIDGE FUSE
26 27 28 29 30 31 32 10 11
RELAY
001
12 13 14 15 16 17 18
RELAY
002RELAY
003RELAY
004RELAY
005RELAY
006RELAY
007
DIODE 01
DIODE 02
Roadside emergencies
163

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
21 Ð Not used
22 20A** Ignition Switch
23 30A** SSP4
24 30A** SSP3
25 40A** P-J/B
26 30A** Passenger power seat
27 30A** SSP1
28 30A** REM -Right front window
29 30A** Rear Defroster
30 Ð Not used
31 Ð Not used
32 30A** SSP2
Relay 001 Full ISO SSP1
Relay 002 Full ISO SSP4
Relay 003 Full ISO Rear Defroster
Relay 004 Full ISO SSP3
Relay 005 Full ISO SSP2
Relay 006 Ð Not Used
Relay 007 1/2 ISO Fuel Pump
Diode 01 Ð Not Used
Diode 02 1A Fuel Pump Motor
*Mini fuses **Maxi fuses
