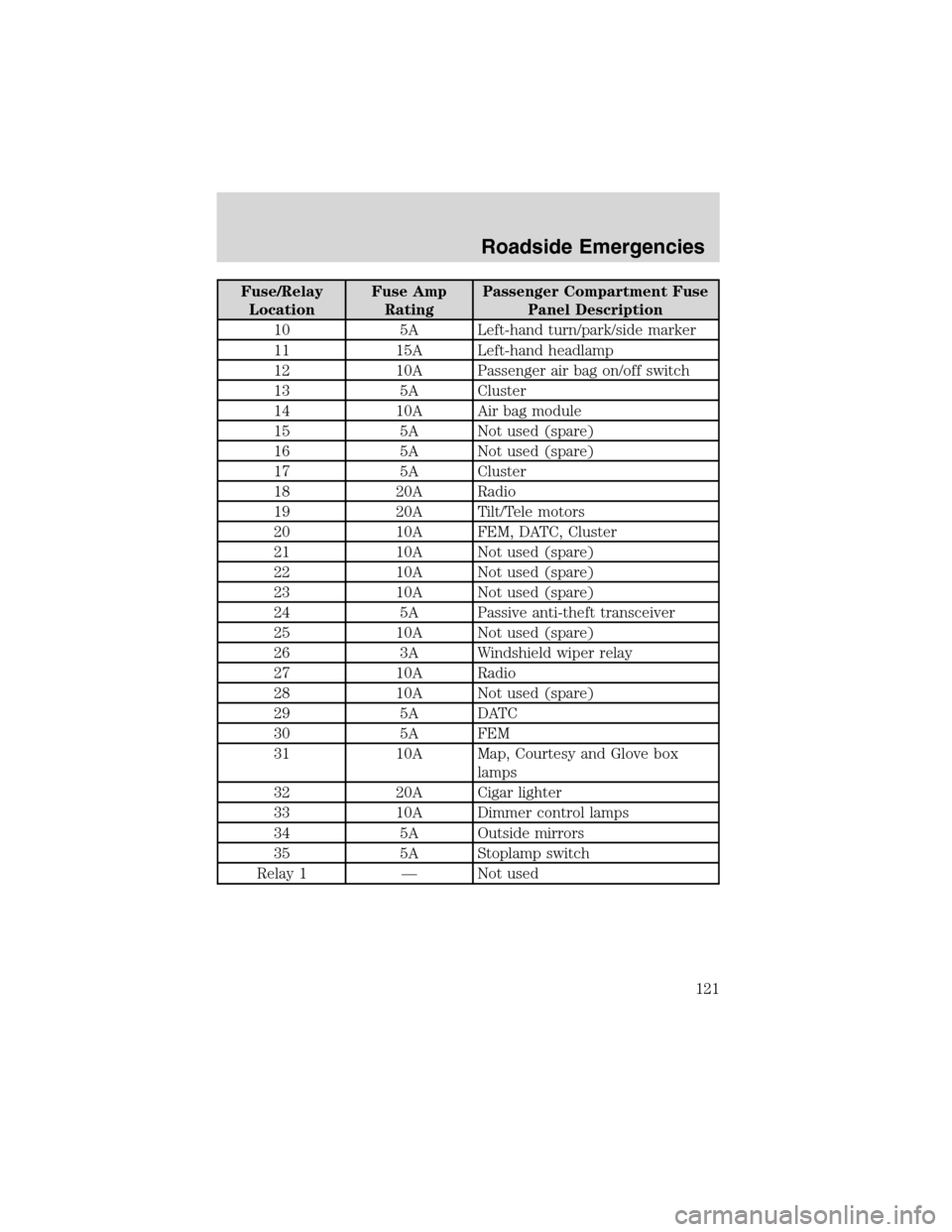

Page 121 of 200

FORD THUNDERBIRD 2003 11.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
10 5A Left-hand turn/park/side marker
11 15A Left-hand headlamp
12 10A Passenger air bag on/off switch
13 5A Cluster
14 1

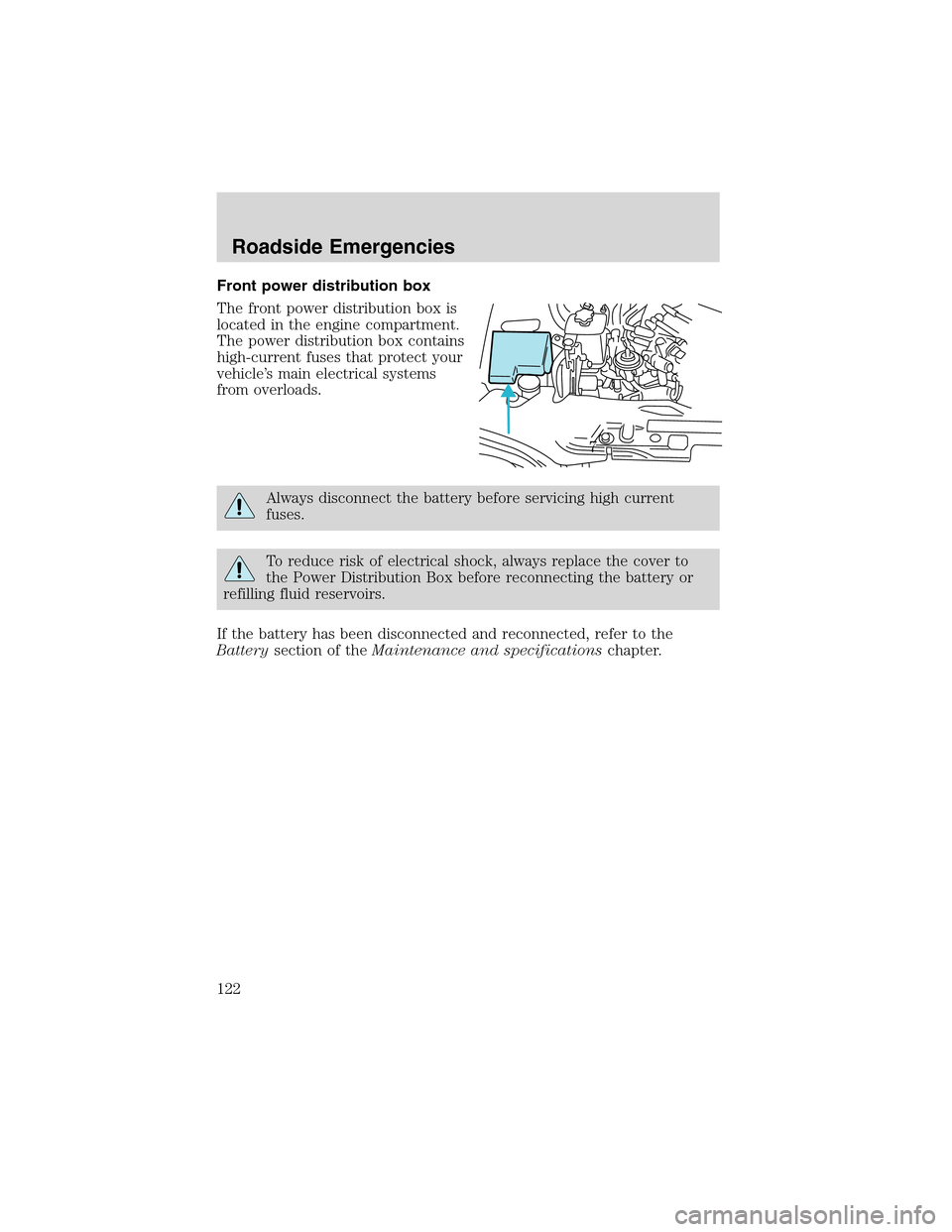

Page 122 of 200

FORD THUNDERBIRD 2003 11.G Owners Manual Front power distribution box
The front power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical

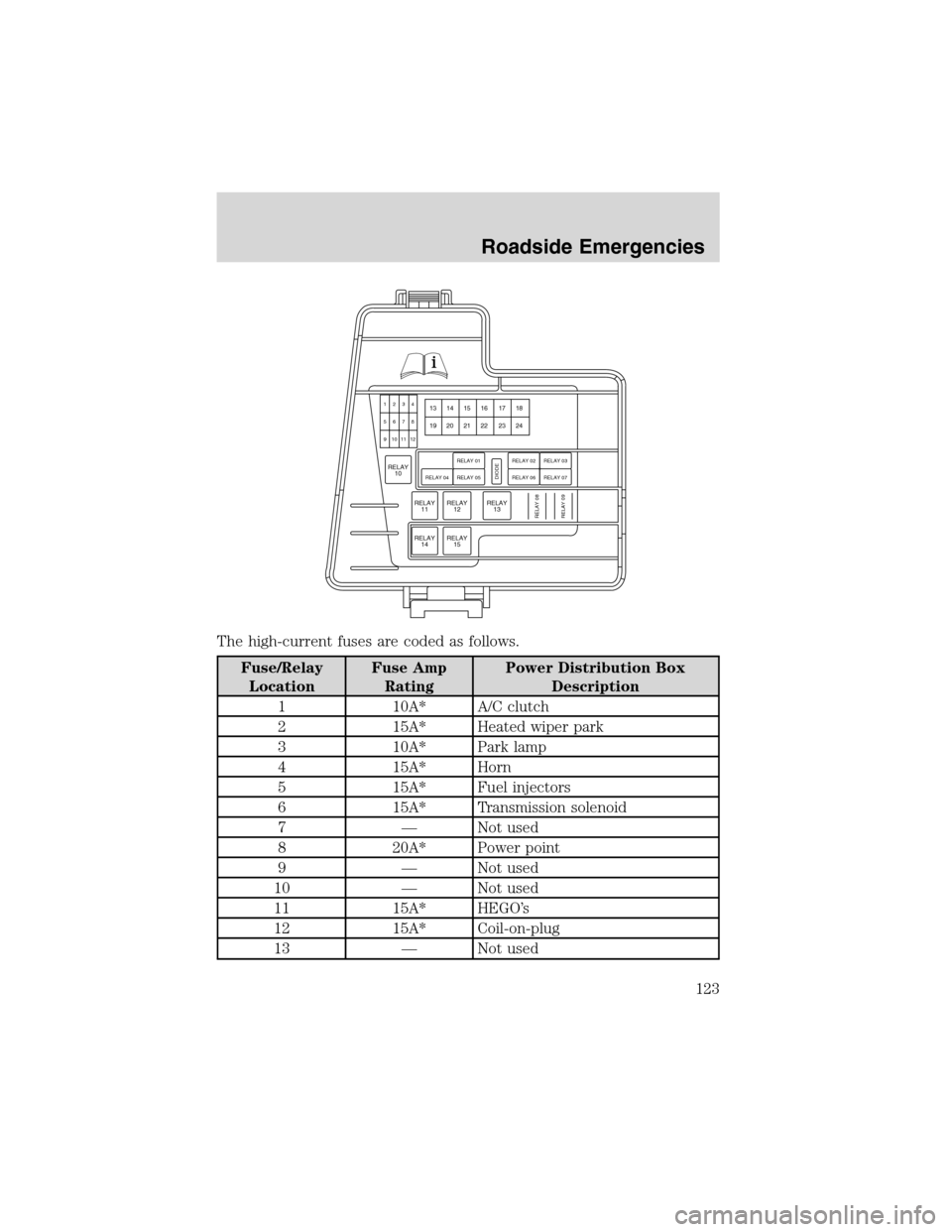

Page 123 of 200

FORD THUNDERBIRD 2003 11.G Owners Manual The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 10A* A/C clutch
2 15A* Heated wiper park
3 10A* Park lamp
4 15A* Horn
5 15A* Fuel in

Page 124 of 200

FORD THUNDERBIRD 2003 11.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
14 30A** ABS module power
15—Not used
16 30A** Blower motor
17—Not used
18 40A** PCM
19—Not used
20—Not used
21 30A** Start

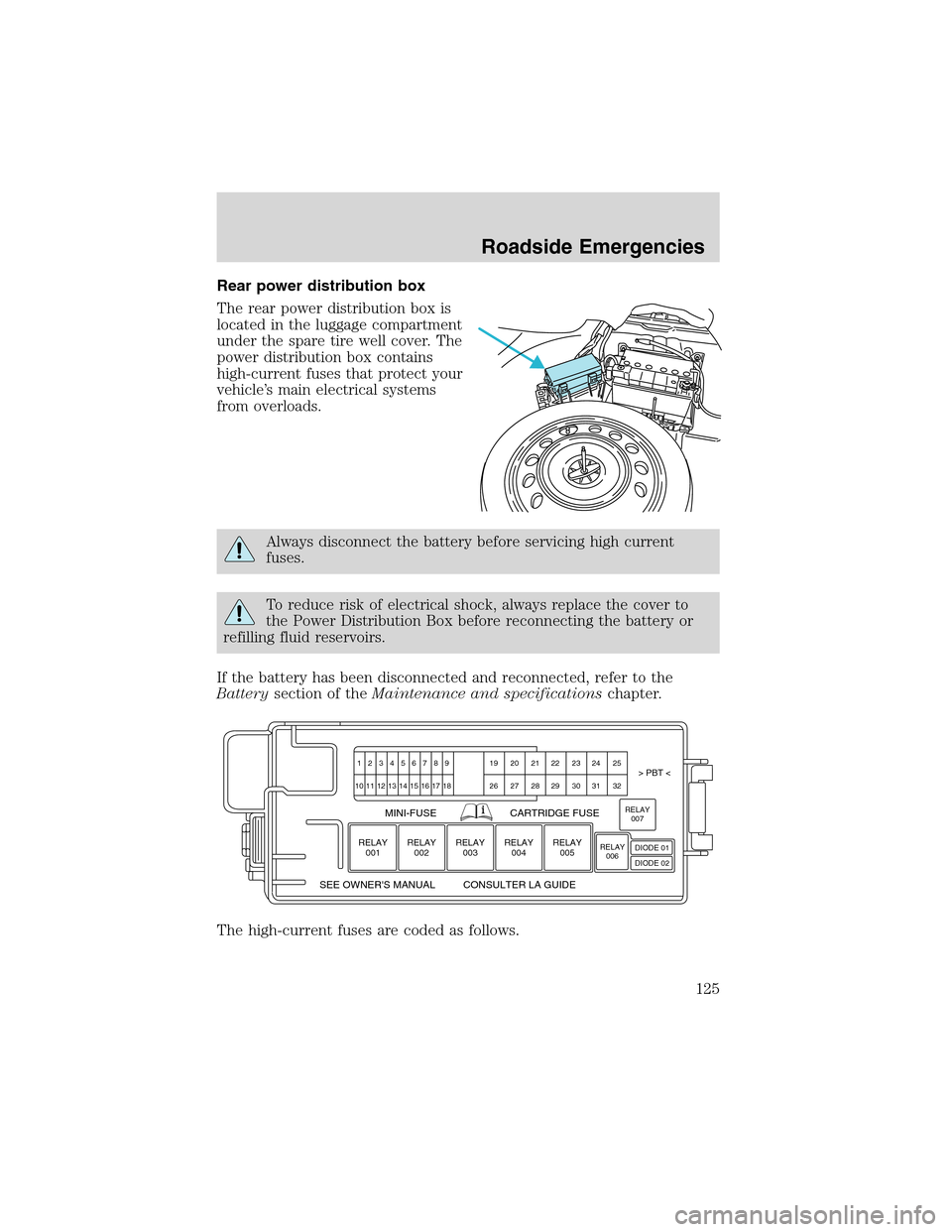

Page 125 of 200

FORD THUNDERBIRD 2003 11.G Owners Manual Rear power distribution box
The rear power distribution box is
located in the luggage compartment
under the spare tire well cover. The
power distribution box contains
high-current fuses that protect y

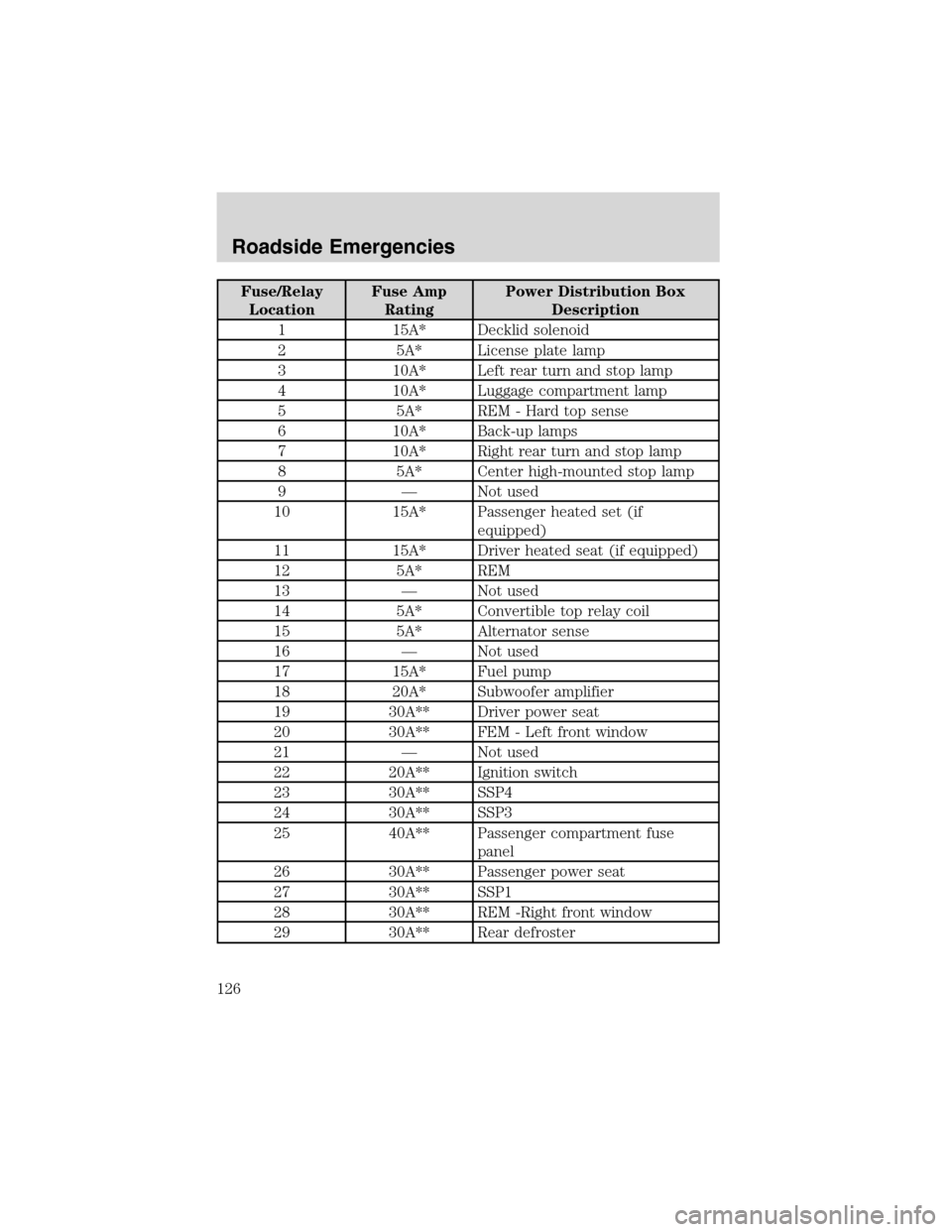

Page 126 of 200

FORD THUNDERBIRD 2003 11.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 15A* Decklid solenoid
2 5A* License plate lamp
3 10A* Left rear turn and stop lamp
4 10A* Luggage compartment lamp
5 5A* REM - Ha

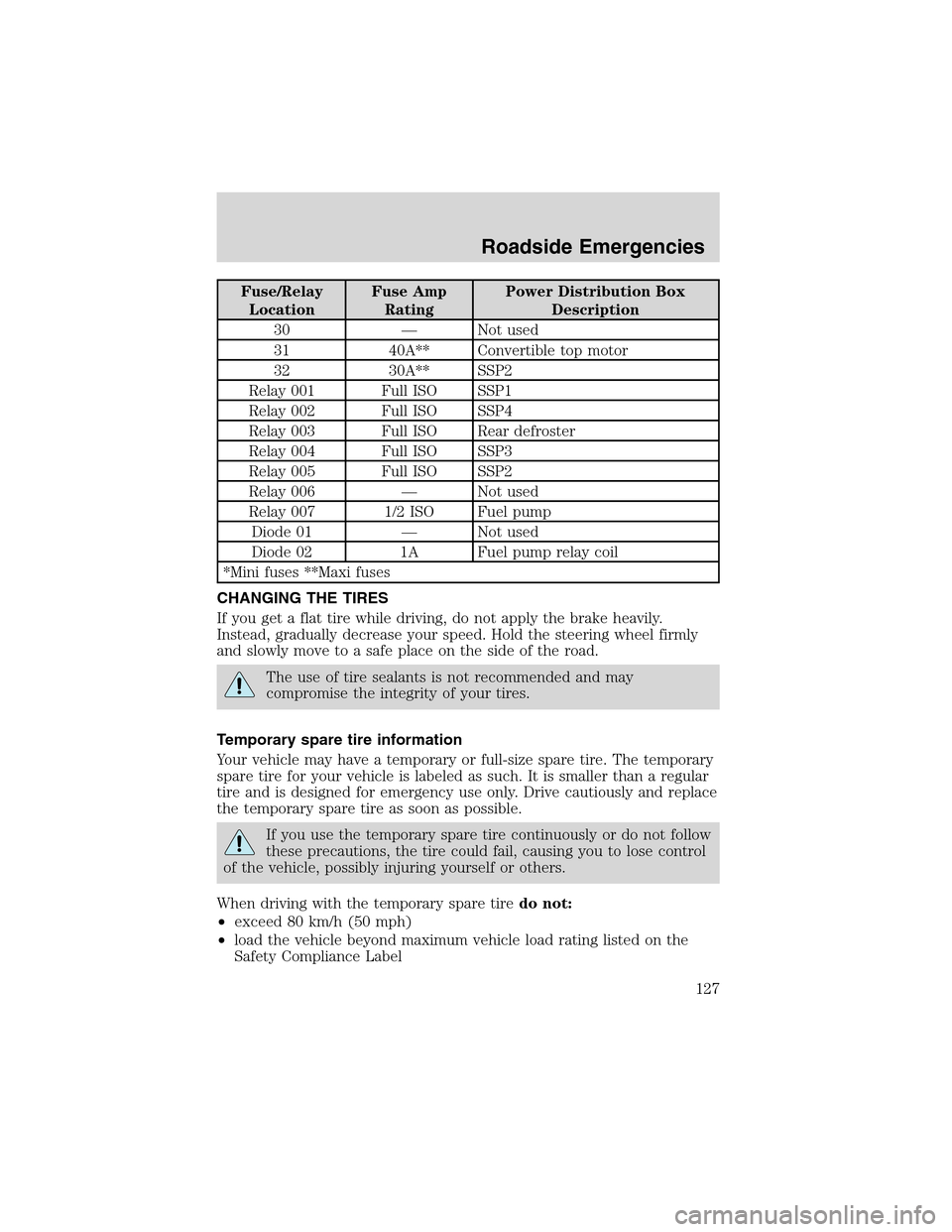

Page 127 of 200

FORD THUNDERBIRD 2003 11.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
30—Not used
31 40A** Convertible top motor
32 30A** SSP2
Relay 001 Full ISO SSP1
Relay 002 Full ISO SSP4
Relay 003 Full ISO Rear
