FORD THUNDERBIRD 2004 11.G Owners Manual

The use of snow cables is not recommended for this vehicle, as damage
to your vehicle may occur under extreme handling or rough road
conditions. However, if you choose to operate the vehicle with snow
cables, avoid these conditions and follow the manufacturer’s
recommendations.
Do not use any type of tire chains, as this will likely cause damage to
your vehicle.

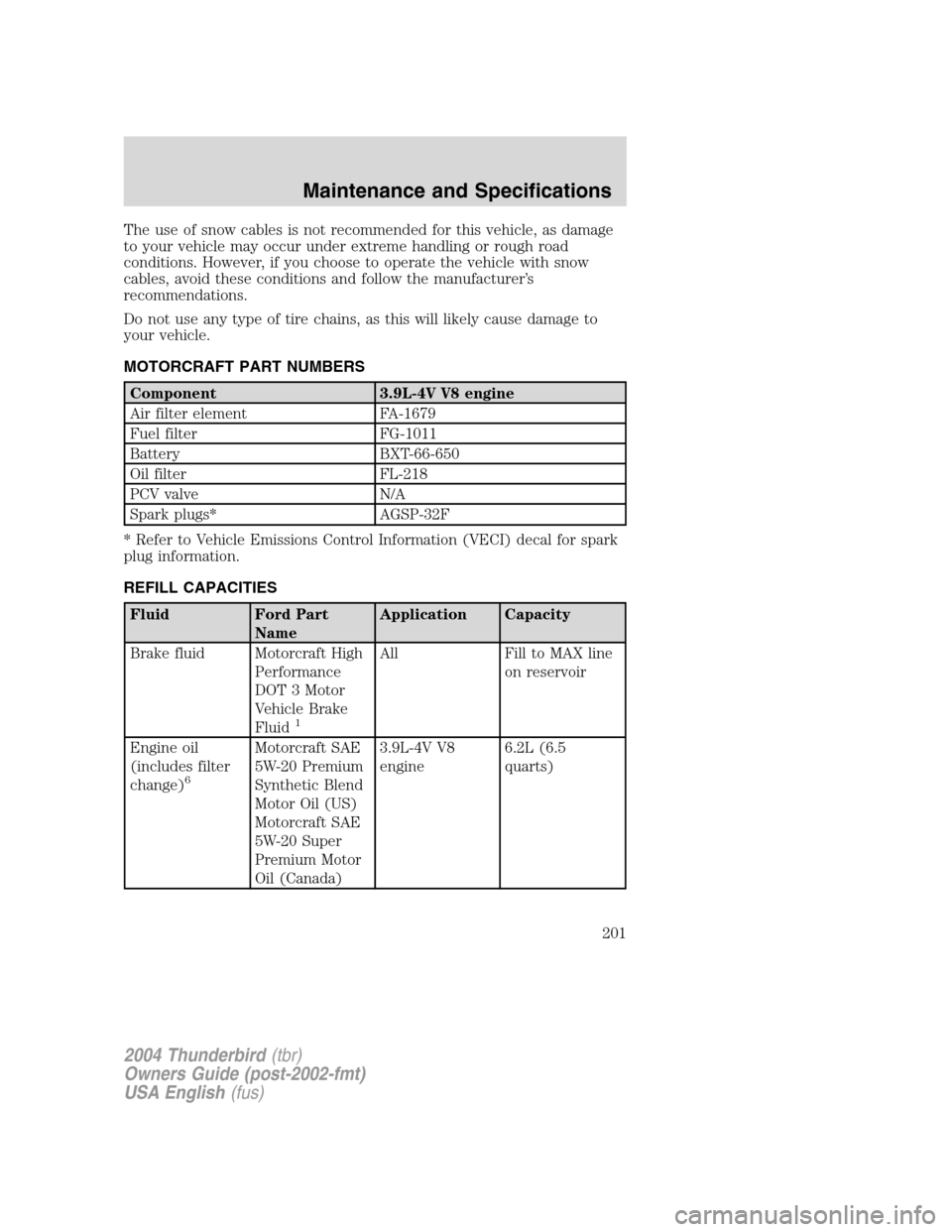

MOTORCRAFT PART NUMBERS
Component 3.9L-4V V8 engine
Air filter element FA-1679
Fuel filter FG-1011
Battery BXT-66-650
Oil filter FL-218
PCV valve N/A
Spark plugs* AGSP-32F
* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug information.
REFILL CAPACITIES
Fluid Ford Part NameApplication Capacity
Brake fluid Motorcraft High Performance
DOT 3 Motor
Vehicle Brake
Fluid
1
All Fill to MAX lineon reservoir
Engine oil
(includes filter
change)
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada) 3.9L-4V V8
engine
6.2L (6.5
quarts)
2004 Thunderbird
(tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
201

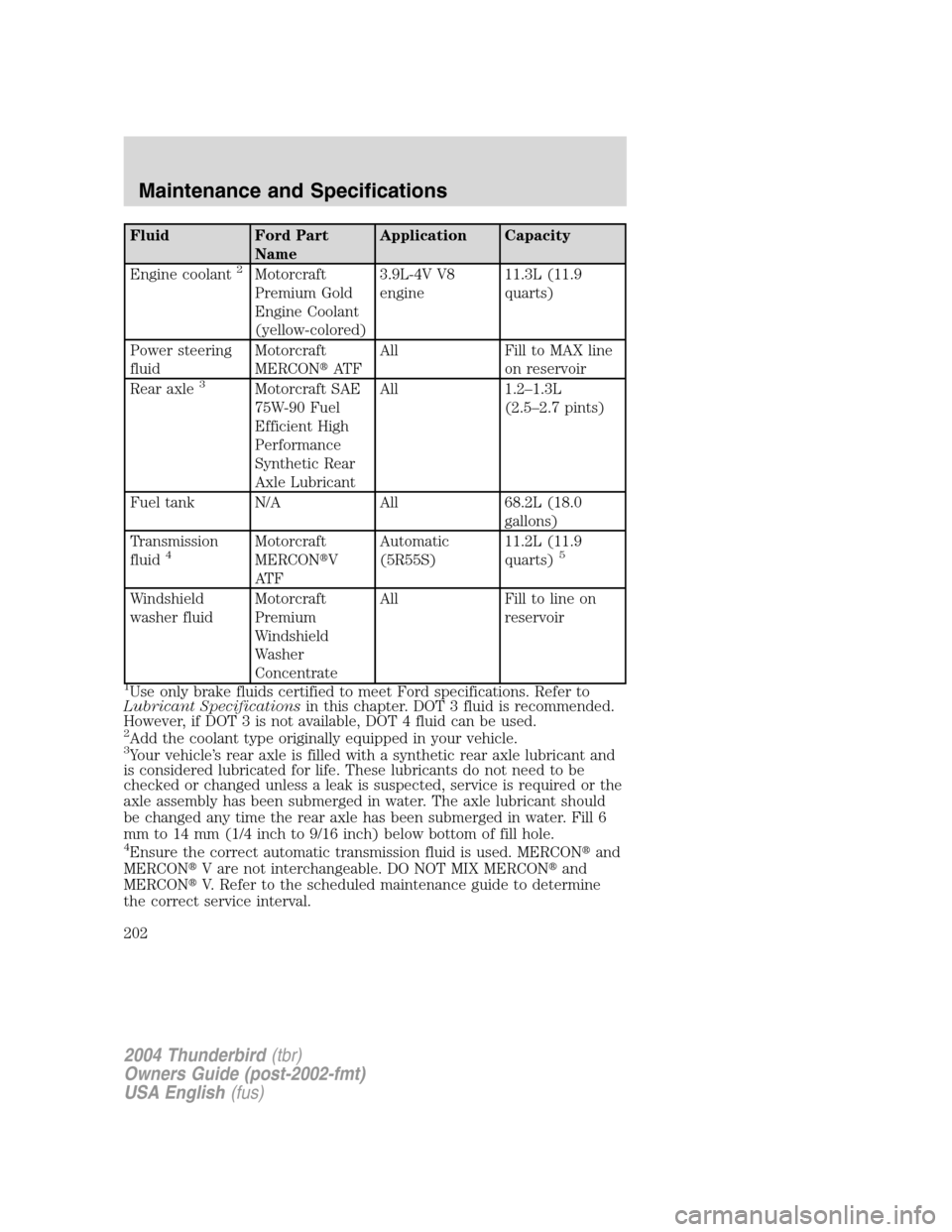

Fluid Ford PartNameApplication Capacity
Engine coolant
2Motorcraft
Premium Gold
Engine Coolant
(yellow-colored) 3.9L-4V V8
engine
11.3L (11.9
quarts)
Power steering
fluid Motorcraft
MERCON
AT F All Fill to MAX line
on reservoir
Rear axle
3Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle Lubricant All 1.2
–1.3L
(2.5 –2.7 pints)
Fuel tank N/A All 68.2L (18.0 gallons)
Transmission
fluid
4Motorcraft
MERCON V
AT F Automatic
(5R55S)
11.2L (11.9
quarts)5
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll Fill to line on
reservoir
1Use only brake fluids certified to meet Ford specifications. Refer to
Lubricant Specifications in this chapter. DOT 3 fluid is recommended.
However, if DOT 3 is not available, DOT 4 fluid can be used.
2Add the coolant type originally equipped in your vehicle.3Your vehicle ’s rear axle is filled with a synthetic rear axle lubricant and
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water. Fill 6
mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
4Ensure the correct automatic transmission fluid is used. MERCON and
MERCON V are not interchangeable. DO NOT MIX MERCON and
MERCON V. Refer to the scheduled maintenance guide to determine
the correct service interval.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
202

5Approximate dry capacity, includes cooler and tubes. Fluid level should
be checked by a qualified service technician.
6Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153 –H and the API Certification mark.

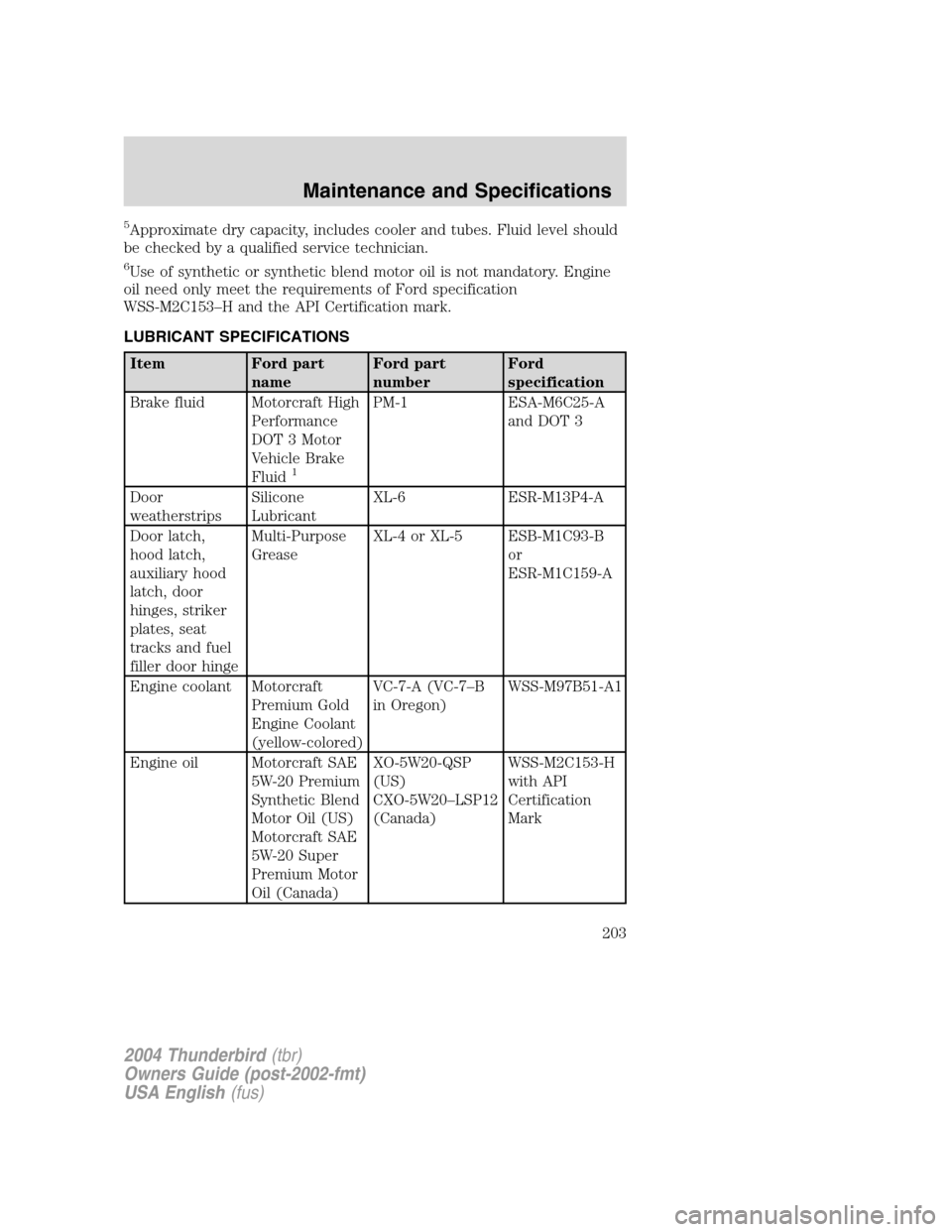

LUBRICANT SPECIFICATIONS
Item Ford part nameFord part
number Ford
specification
Brake fluid Motorcraft High Performance
DOT 3 Motor
Vehicle Brake
Fluid
1
PM-1 ESA-M6C25-A and DOT 3
Door
weatherstrips Silicone
LubricantXL-6 ESR-M13P4-A
Door latch,
hood latch,
auxiliary hood
latch, door
hinges, striker
plates, seat
tracks and fuel
filler door hinge Multi-Purpose
Grease
XL-4 or XL-5 ESB-M1C93-B
or
ESR-M1C159-A
Engine coolant Motorcraft Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (VC-7
–B
in Oregon) WSS-M97B51-A1
Engine oil Motorcraft SAE 5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20
–LSP12
(Canada) WSS-M2C153-H
with API
Certification
Mark
2004 Thunderbird
(tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
203

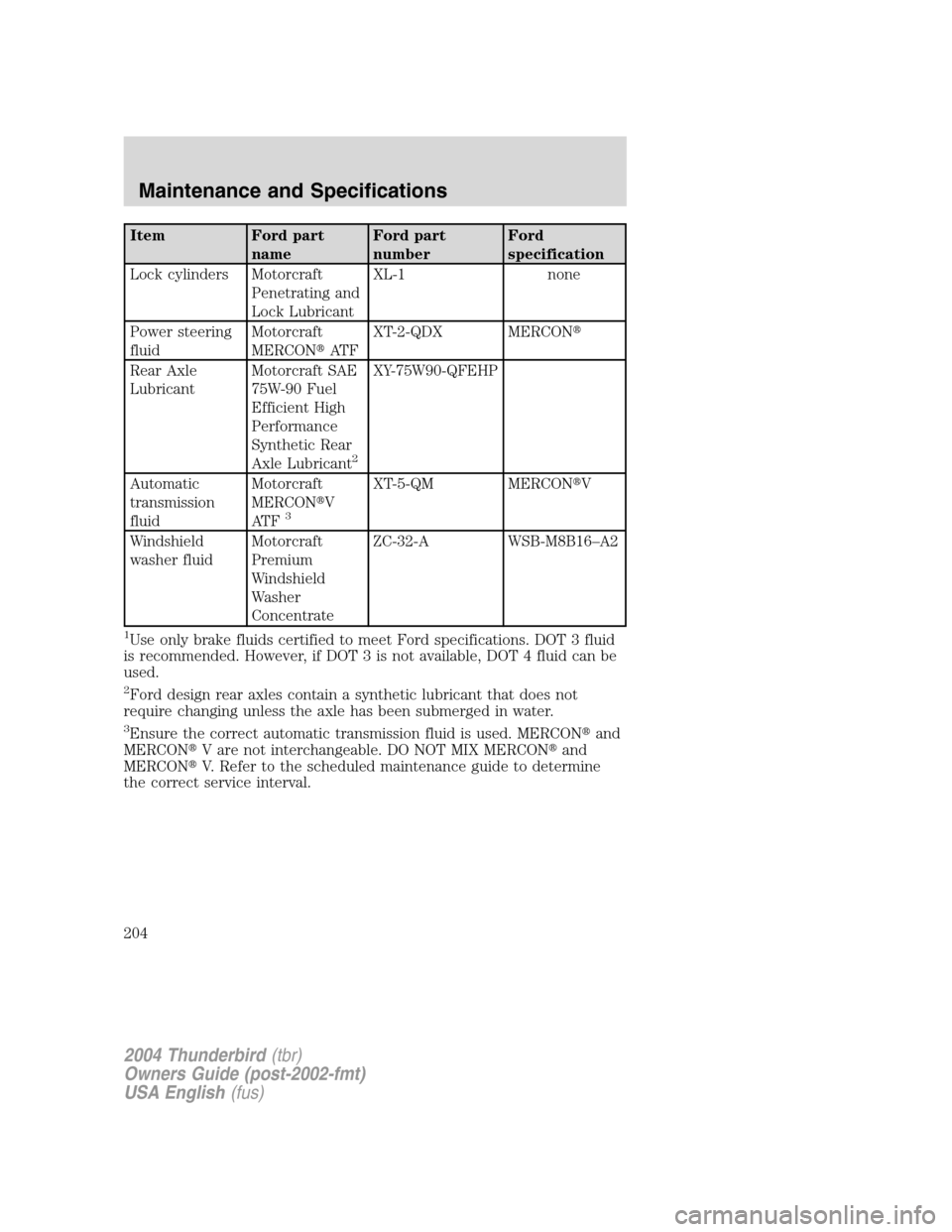

Item Ford partnameFord part
number Ford
specification
Lock cylinders Motorcraft Penetrating and
Lock LubricantXL-1 none
Power steering
fluid Motorcraft
MERCON
AT F XT-2-QDX MERCON

Rear Axle
Lubricant Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle Lubricant
2
XY-75W90-QFEHP
Automatic
transmission
fluid Motorcraft
MERCON
V
AT F
3
XT-5-QM MERCON V
Windshield
washer fluid Motorcraft
Premium
Windshield
Washer
ConcentrateZC-32-A WSB-M8B16
–A2
1Use only brake fluids certified to meet Ford specifications. DOT 3 fluid
is recommended. However, if DOT 3 is not available, DOT 4 fluid can be
used.
2Ford design rear axles contain a synthetic lubricant that does not
require changing unless the axle has been submerged in water.
3Ensure the correct automatic transmission fluid is used. MERCON and
MERCON V are not interchangeable. DO NOT MIX MERCON and
MERCON V. Refer to the scheduled maintenance guide to determine
the correct service interval.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
204

ENGINE DATA
Engine 3.9L-4V V8 engine
Displacement 3 949 cc (241 cid)
Required fuel 91 octane
Firing order 1-5-4-2-6-3-7-8
Spark plug gap 0.99-1.09 mm (0.039-0.043 inch)
Ignition system Coil on plug
Compression ratio 10.75:1
VEHICLE DIMENSIONS
Vehicle dimensions mm (in)
(1) Overall length 4732mm (186.3 in)
(2) Overall width 1829mm (72.0 in)
(3) Overall height 1323 mm (52.1 in)
(4) Wheelbase 2722 mm (107.2 in)
(5) Track - Front 1537 mm (60.5 in)
(5) Track - Rear 1529 mm (60.2 in)
4
1
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
205

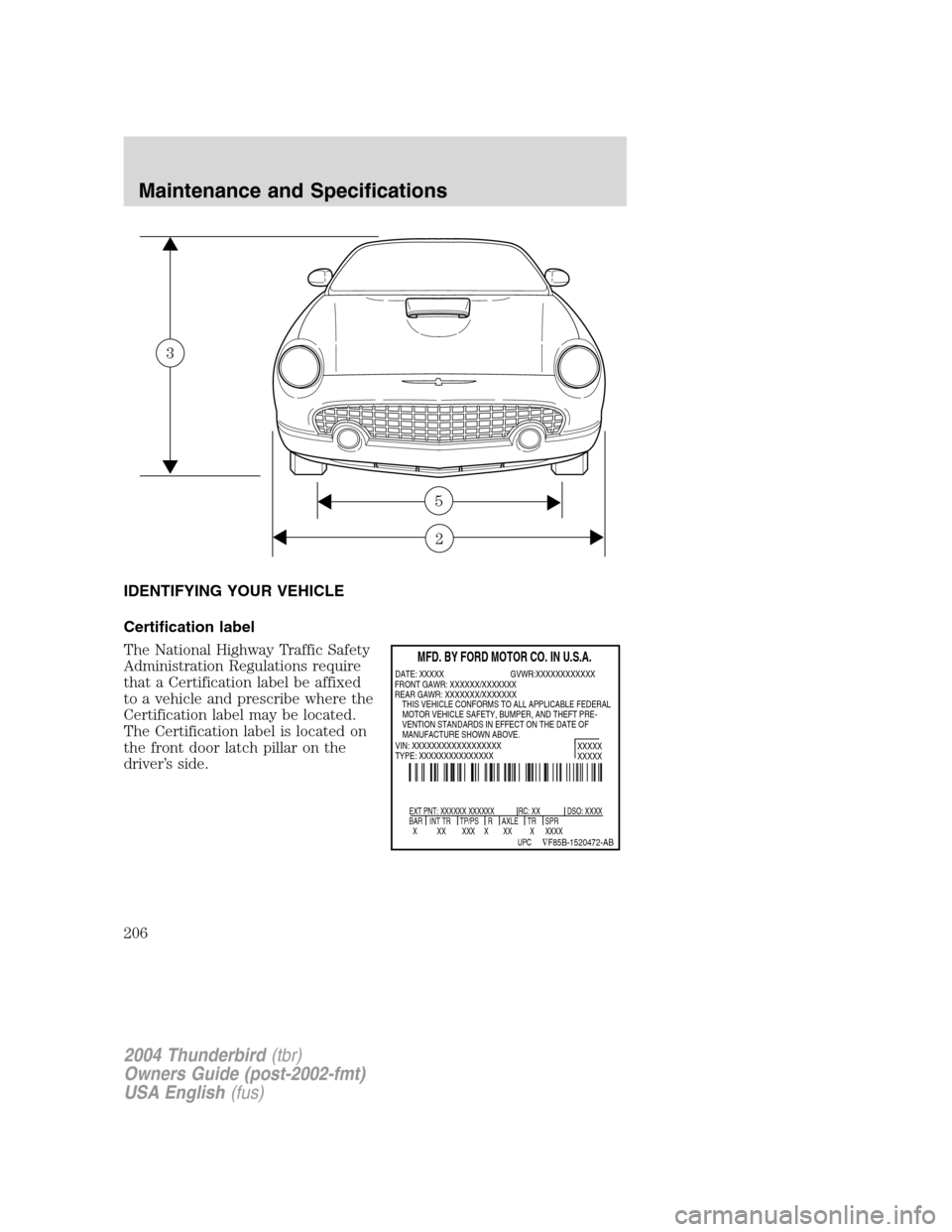

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
3
5
2
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT: XXXXXX XXXXXX RC: XX DSO: XXXX
BAR INT TR TP/PS R AXLE TR SPR
X XX XXX X XX X XXXX
XXXXX
XXXXX
UPC ∇ F85B-1520472-AB
DATE: XXXXX GVWR:XXXXXXXXXXXX
VIN: XXXXXXXXXXXXXXXXXX
TYPE: XXXXXXXXXXXXXXX
FRONT GAWR: XXXXXX/XXXXXXX
REAR GAWR: XXXXXXX/XXXXXXX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL
MOTOR VEHICLE SAFETY, BUMPER, AND THEFT PRE-
VENTION STANDARDS IN EFFECT ON THE DATE OF
MANUFACTURE SHOWN ABOVE.
2004 Thunderbird
(tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
206

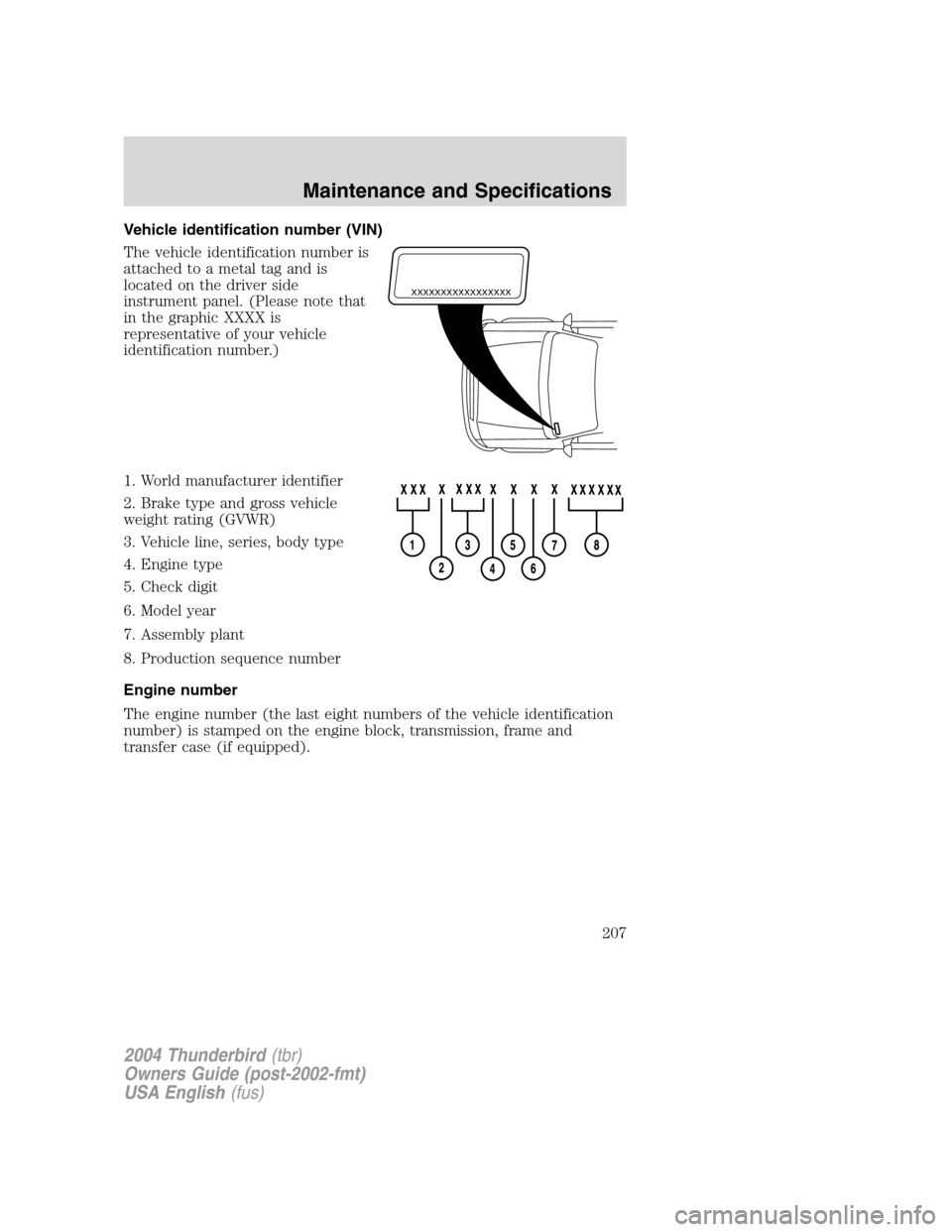

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
2004 Thunderbird(tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
207

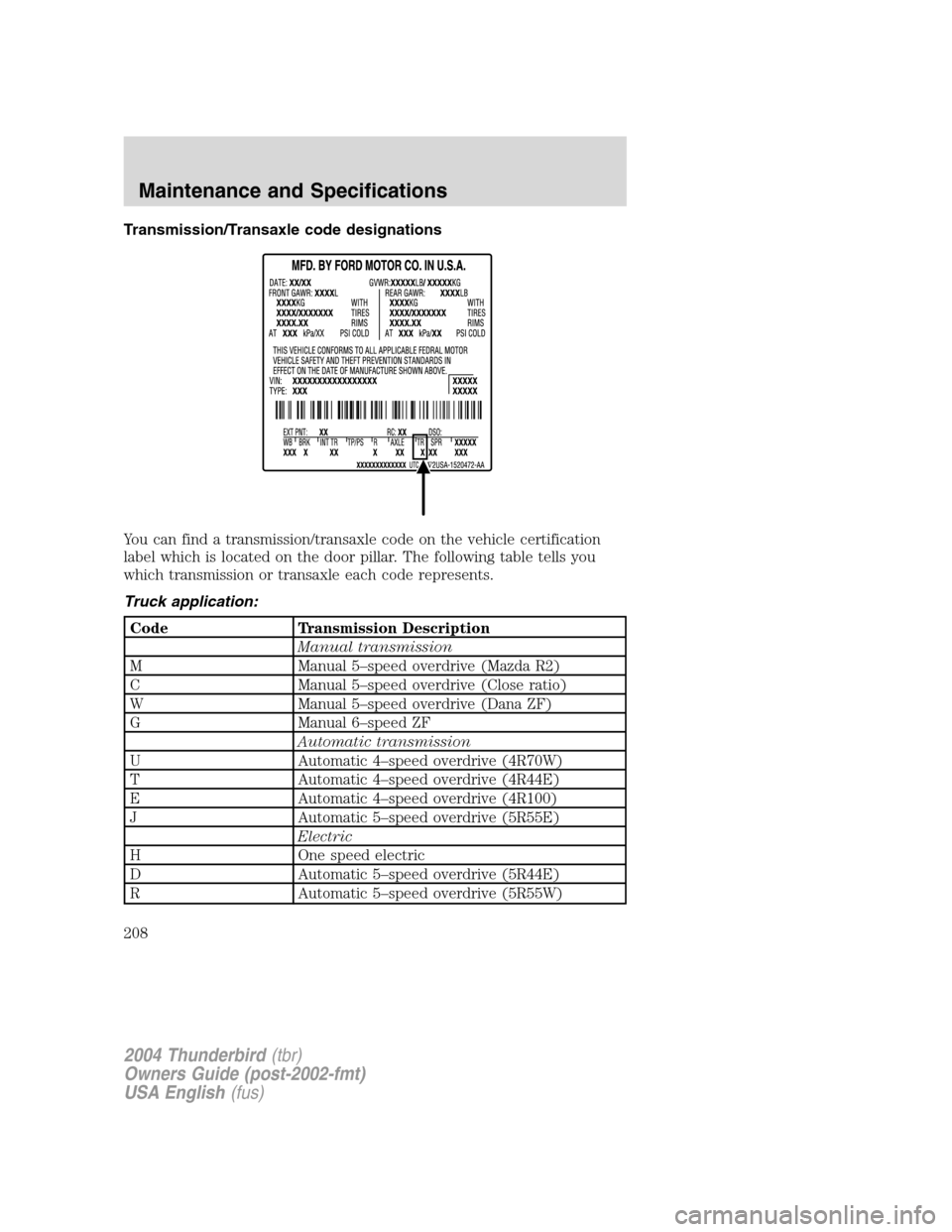

Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
Truck application:
Code Transmission DescriptionManual transmission
M Manual 5 –speed overdrive (Mazda R2)
C Manual 5 –speed overdrive (Close ratio)
W Manual 5 –speed overdrive (Dana ZF)
G Manual 6 –speed ZF
Automatic transmission
U Automatic 4 –speed overdrive (4R70W)
T Automatic 4 –speed overdrive (4R44E)
E Automatic 4 –speed overdrive (4R100)
J Automatic 5 –speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5 –speed overdrive (5R44E)
R Automatic 5 –speed overdrive (5R55W)
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
208

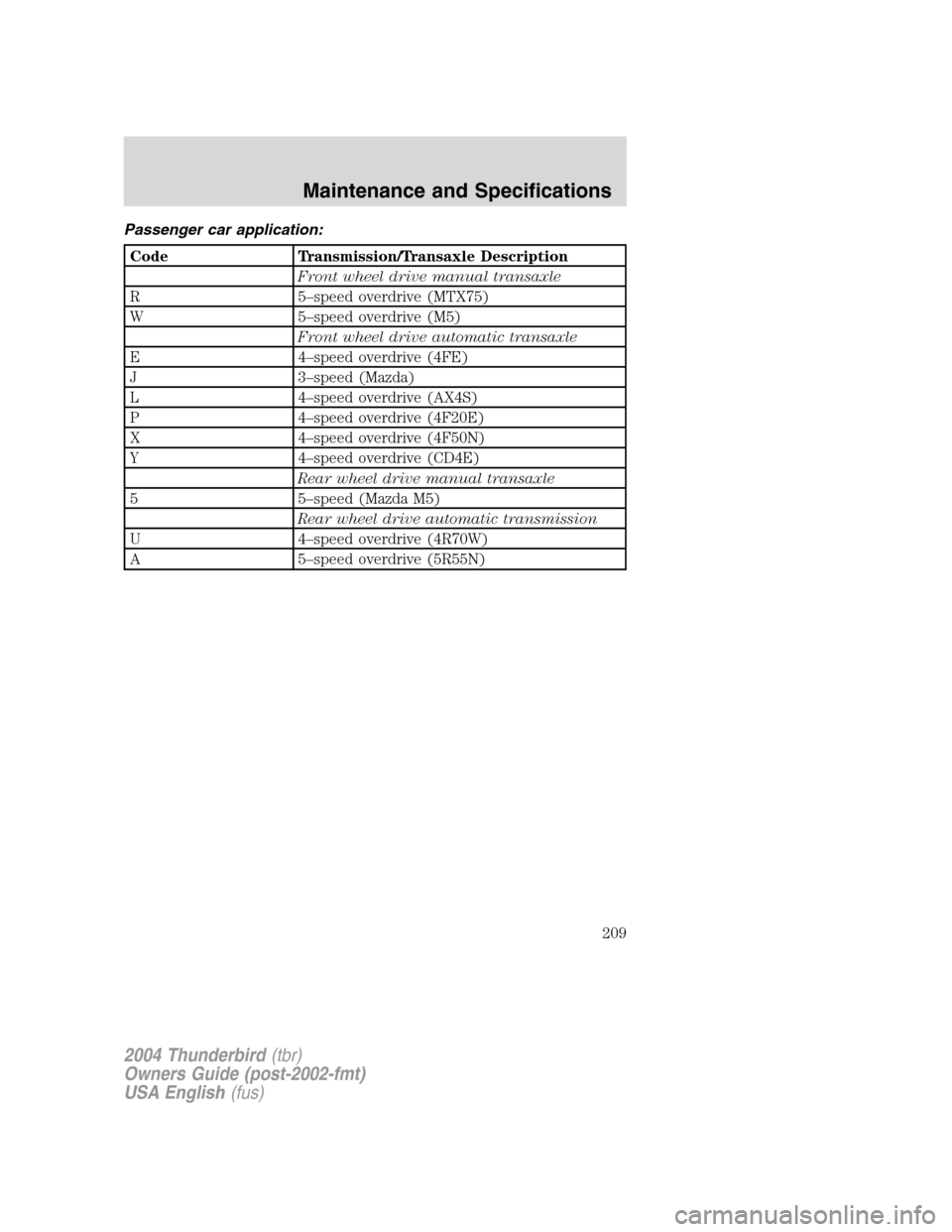

Passenger car application:
Code Transmission/Transaxle DescriptionFront wheel drive manual transaxle
R5 –speed overdrive (MTX75)
W5 –speed overdrive (M5)
Front wheel drive automatic transaxle
E4 –speed overdrive (4FE)
J3 –speed (Mazda)
L4 –speed overdrive (AX4S)
P4 –speed overdrive (4F20E)
X4 –speed overdrive (4F50N)
Y4 –speed overdrive (CD4E)
Rear wheel drive manual transaxle
55 –speed (Mazda M5)
Rear wheel drive automatic transmission
U4 –speed overdrive (4R70W)
A5 –speed overdrive (5R55N)
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
209

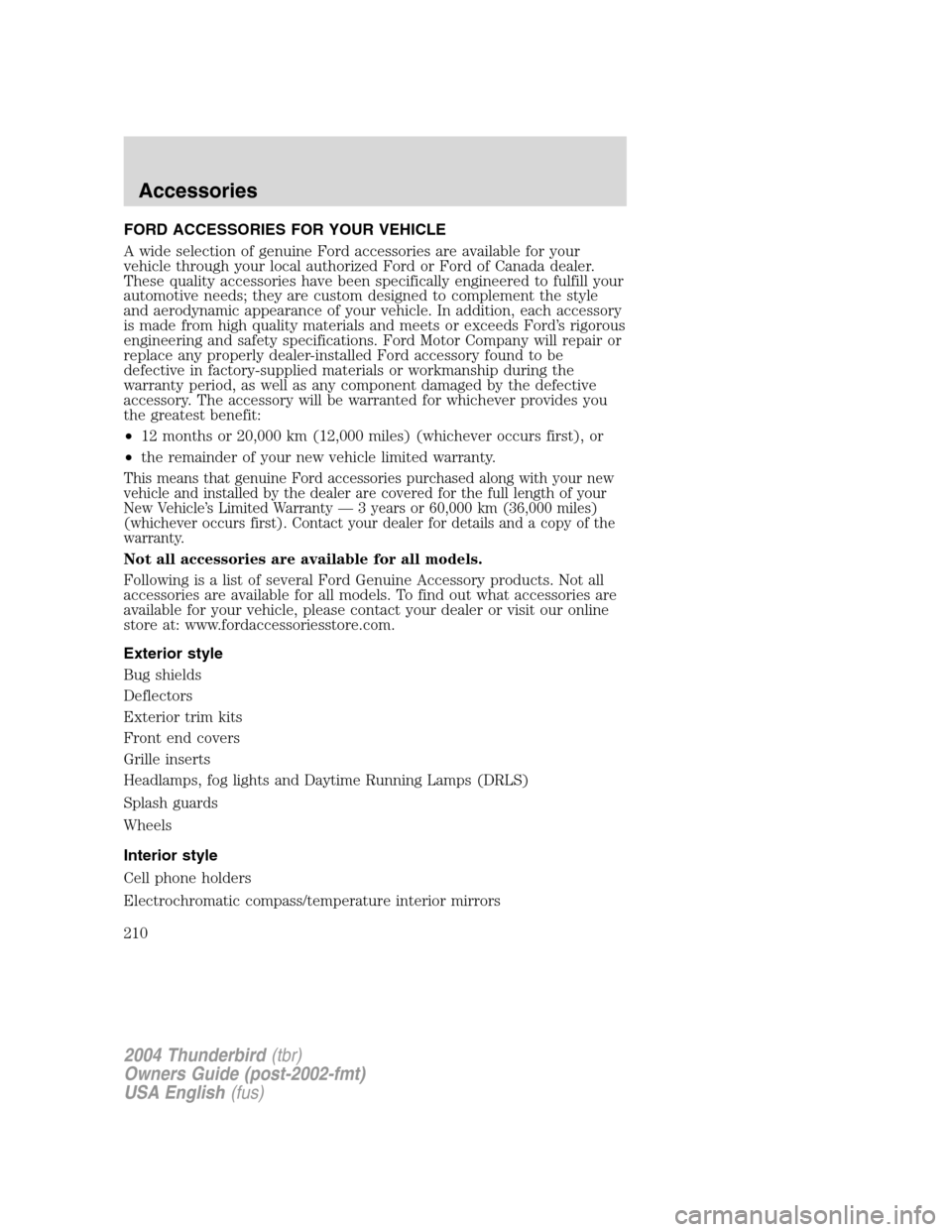

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford accessory found to be
defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
• 12 months or 20,000 km (12,000 miles) (whichever occurs first), or
• the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your new
vehicle and installed by the dealer are covered for the full length of your
New Vehicle ’s Limited Warranty —3 years or 60,000 km (36,000 miles)
(whichever occurs first). Contact your dealer for details and a copy of the
warranty.
Not all accessories are available for all models.
Following is a list of several Ford Genuine Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLS)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior mirrors
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Accessories
Accessories
