engine coolant FORD THUNDERBIRD 2004 11.G Owners Manual

FORD THUNDERBIRD 2004 11.G Owners Manual THUNDERBIRD 2004 11.G FORD FORD https://www.carmanualsonline.info/img/11/5386/w960_5386-0.png FORD THUNDERBIRD 2004 11.G Owners Manual

Page 9 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temper

Page 12 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual Engine oil pressure:Illuminates
when the oil pressure falls below the
normal range, refer to Engine oilin
the Maintenance and
specifications chapter.
Engine coolant temperature:
Illuminates when the e

Page 14 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual GAUGES
Speedometer:Indicates the
current vehicle speed.
Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range

Page 112 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual Using the engine block heater (if equipped)
An engine block heater warms the engine coolant which aids in starting
and heater/defroster performance. Use of an engine block heater is
strongly recommend

Page 164 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located at the bottom
left of the instrument panel.
2.
Go to the front of the vehicle and
release the auxiliary latch that is
locat

Page 165 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16

Page 170 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual •Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
aut

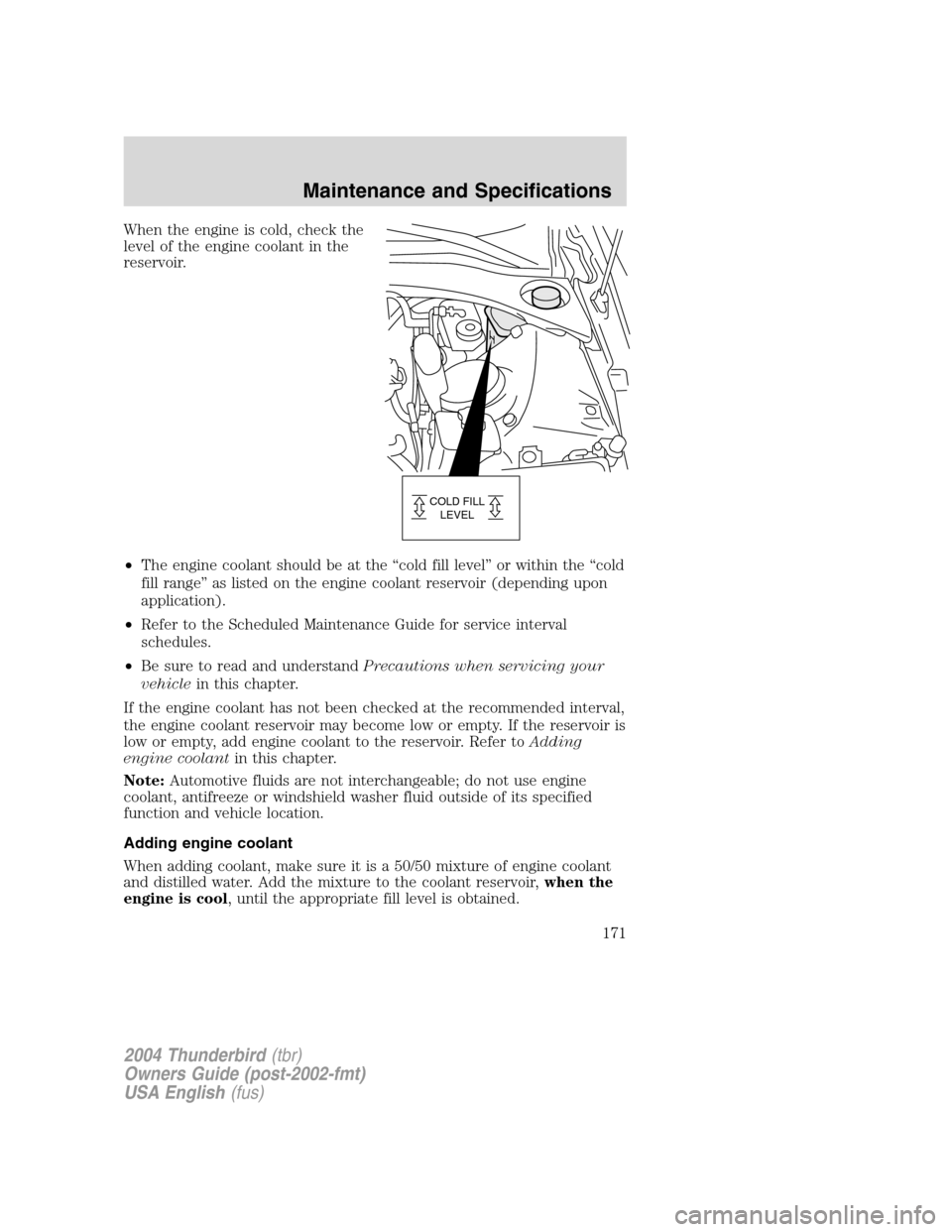

Page 171 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual When the engine is cold, check the
level of the engine coolant in the
reservoir.
•The engine coolant should be at the “cold fill level ”or within the “cold
fill range ”as listed on the engin

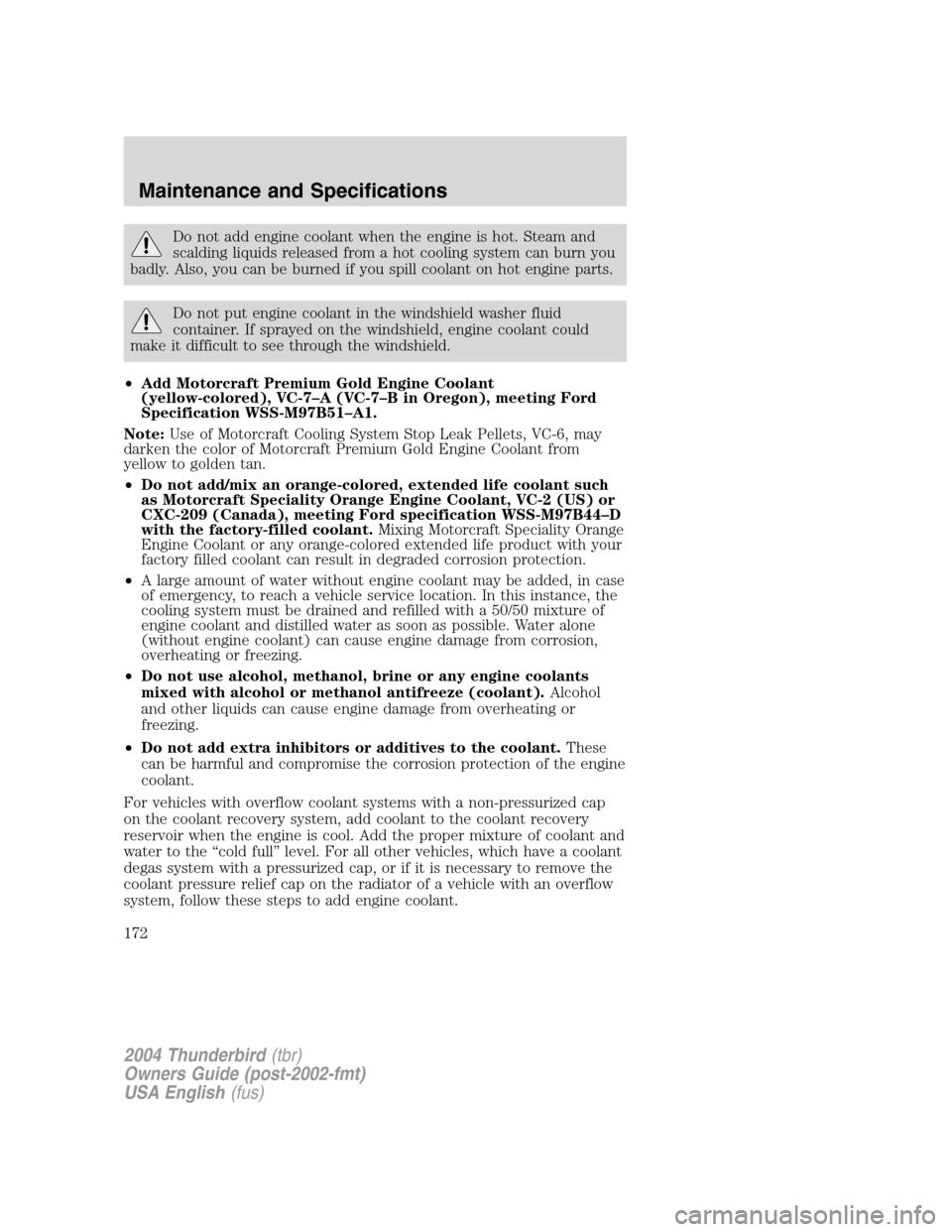

Page 172 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual Do not add engine coolant when the engine is hot. Steam and
scalding liquids released from a hot cooling system can burn you
badly. Also, you can be burned if you spill coolant on hot engine parts.
Do

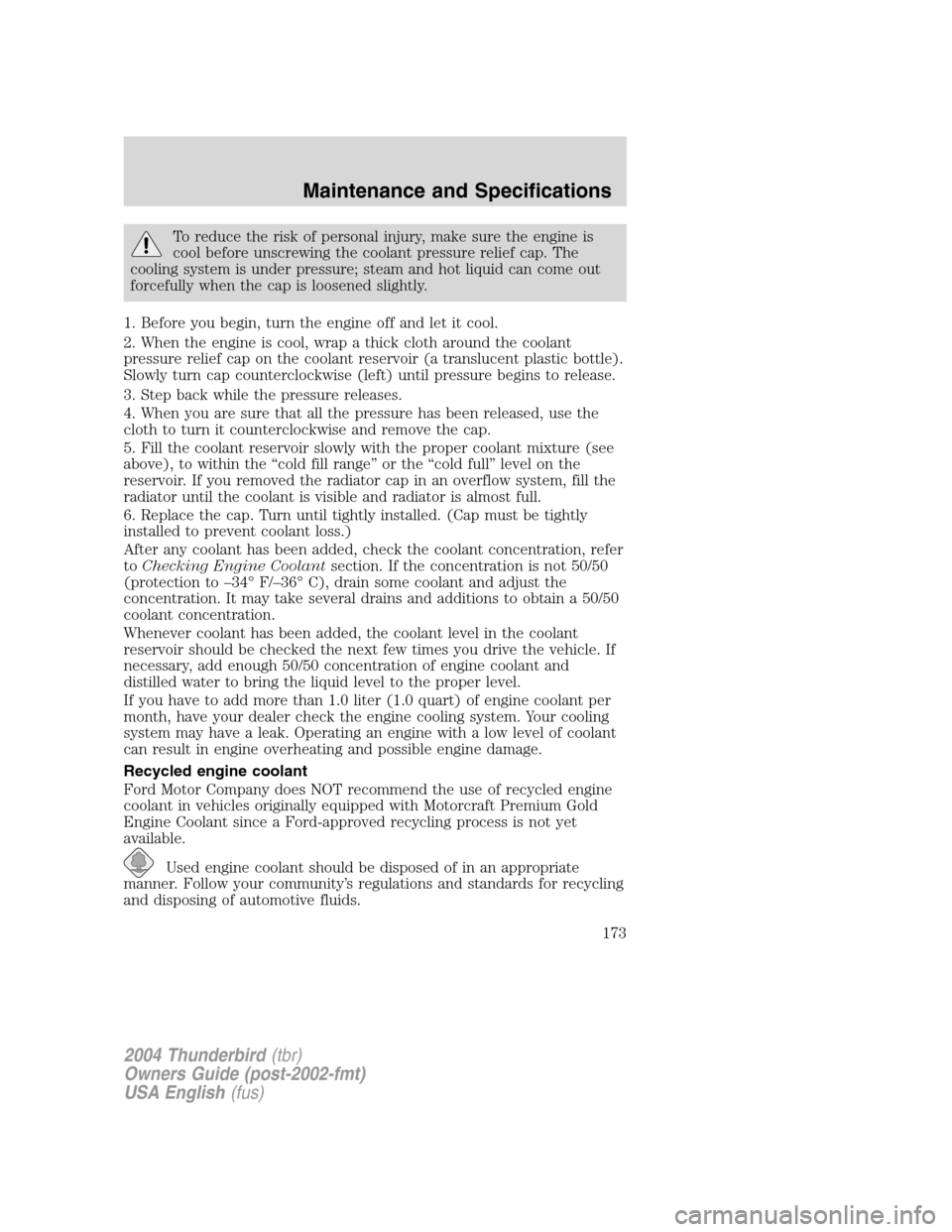

Page 173 of 216

FORD THUNDERBIRD 2004 11.G Owners Manual To reduce the risk of personal injury, make sure the engine is
cool before unscrewing the coolant pressure relief cap. The
cooling system is under pressure; steam and hot liquid can come out
forcefull
