This switch is located in the driver’s
footwell, behind the kick panel.
To reset the switch:
1. Turn the ignition OFF.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition ON.
5. Wait a few seconds and return
the key to OFF.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
REVIEW COPY
2005 Thunderbird(tbr), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
151

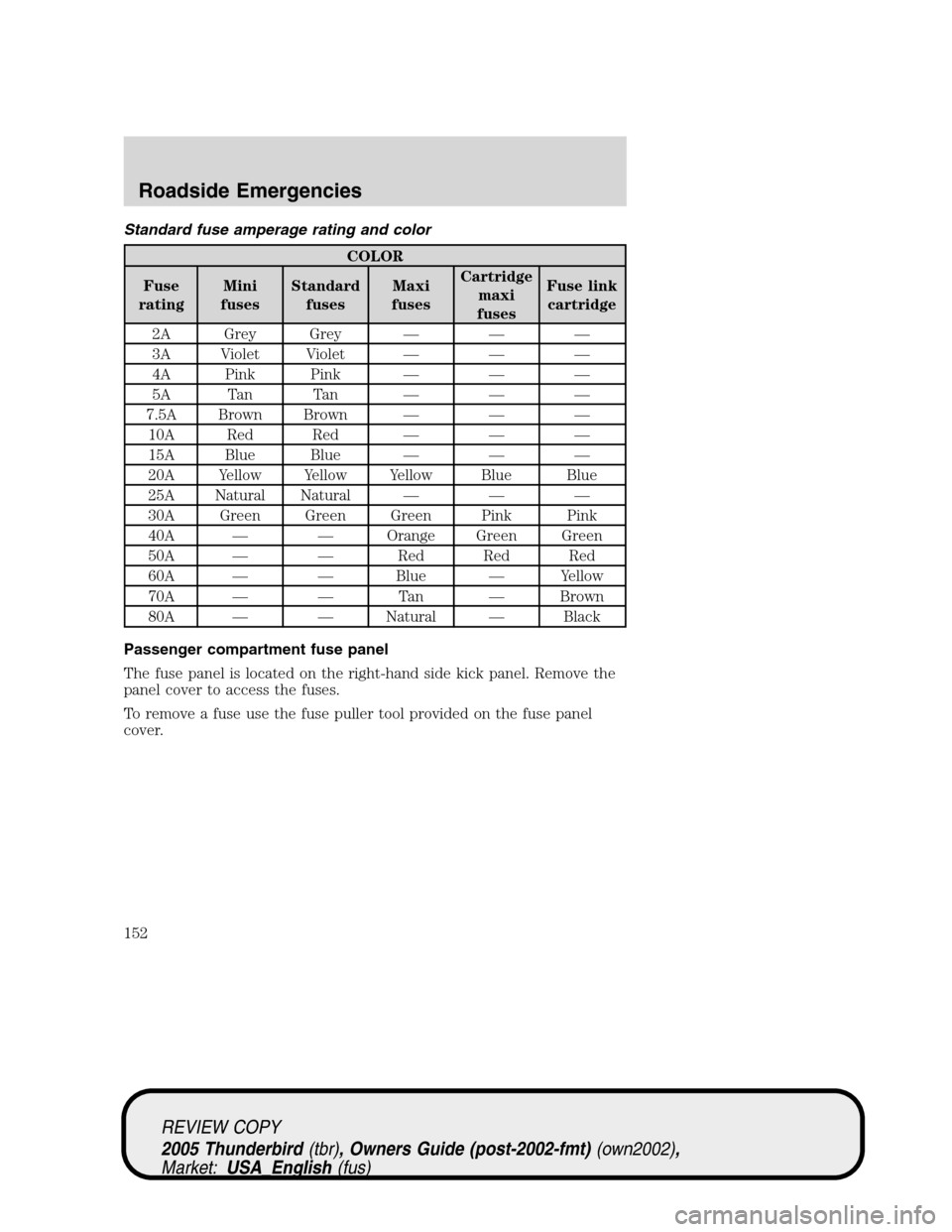

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey———
3A Violet Violet———
4A Pink Pink———
5A Tan Tan———
7.5A Brown Brown———
10A Red Red———
15A Blue Blue———
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural———
30A Green Green Green Pink Pink
40A——Orange Green Green
50A——Red Red Red
60A——Blue—Yellow
70A——Ta n—Brown
80A——Natural—Black
Passenger compartment fuse panel
The fuse panel is located on the right-hand side kick panel. Remove the
panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
REVIEW COPY
2005 Thunderbird(tbr), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
152

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 5A Starter relay coil
2 5A Radio start signal
3 5A Anti-lock Brake System (ABS)
module
4 5A Cluster, Powertrain Control
Module (PCM) relay coil, Inertia
switch, Transmission park switch
5 5A Traction control switch, Cruise
deactivation brake switch and
transmission mode switch
6 10A OBD II connector
7 5A PCM, Remote Keyless Entry
(RKE), Anti-theft indicator
SEE
OWNER'S MANUAL
RELAY 1
REPLACEMENT
FUSES
FUSE 8FUSE 9FUSE 10FUSE 11FUSE 12FUSE 13FUSE 14FUSE 15FUSE 16FUSE 17FUSE 18FUSE 19FUSE 20FUSE 21
FUSE 1FUSE 2FUSE 3FUSE 4FUSE 5FUSE 6FUSE 7
FUSE 22FUSE 23FUSE 24FUSE 25FUSE 26FUSE 27FUSE 28FUSE 29FUSE 30FUSE 31FUSE 32FUSE 33FUSE 34FUSE 35
REVIEW COPY
2005 Thunderbird(tbr), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
153

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
8 5A Right-hand turn/park lamp and
side marker
9 15A Right-hand headlamp
10 5A Left-hand turn/park lamp and side
marker
11 15A Left-hand headlamp
12 10A Passenger air bag on/off switch
indicator
13 5A Cluster
14 10A Air bag module
15 5A Not used (spare)
16 5A Driver and passenger heated seat
modules
17 5A Cluster
18 20A Radio, Central imaging amplifier
19 15A Tilt/Tele motors
20 10A Front Electronics Module (FEM),
Dual Automatic Temperature
Control (DATC), Cluster
21 10A Not used (spare)
22 10A Not used (spare)
23 10A Not used (spare)
24 5A Passive anti-theft transceiver
25 10A Not used (spare)
26 3A Windshield wiper module
27 10A Radio
28 10A Not used (spare)
29 5A DATC
30 5A FEM
31 10A Glove box and foot well lamps
32 20A Cigar lighter
33 10A FEM (Dimmer control lamps)
REVIEW COPY
2005 Thunderbird(tbr), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
154

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
34 5A Outside mirrors
35 5A Brake pedal switch
Relay 1—Not used
Front power distribution box
The front power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and specificationschapter.
7
REVIEW COPY
2005 Thunderbird(tbr), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
155

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 10A* A/C clutch
2—Not used
3 10A* Park lamp
4 20A* Horn
5 15A* Fuel injectors
6 15A* Transmission solenoids
7—Not used
8 20A* Power point
9—Not used
10—Not used
11 15A* Heated Exhaust Gas Oxygen
(HEGO) sensors
12 15A* Coil-on-plug
RELAY
14RELAY
15
RELAY
11RELAY
12
RELAY
1013
1234
5678
9 10111214 15 16 17 18
19 20 21 22 23 24
RELAY
13RELAY 08DIODE
RELAY 04 RELAY 05RELAY 01
RELAY 09
RELAY 06
RELAY 02RELAY 07
RELAY 03
REVIEW COPY
2005 Thunderbird(tbr), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
156

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
13—Not used
14 30A** ABS module power
15—Not used
16 30A** Blower motor
17—Not used
18 40A** PCM
19—Not used
20—Not used
21 30A** Starter solenoid
22 40A** ABS pump
23—Not used (fuse plug)
24 30A** Wiper module
Relay 01—Not used
Relay 02—Not used
Relay 03 1/2 ISO Relay Coil-on-plug and HEGOs
Relay 04—Not used
Relay 05 1/2 ISO Relay Auxiliary coolant pump
Relay 06 1/2 ISO Relay Horn
Relay 07—Not used
Relay 08 1/2 ISO Relay A/C clutch
09 60A** Cooling fan motor
Relay 10 Full ISO Relay Blower motor
Relay 11—Not used
Relay 12—Not used
Relay 13—Not used
Relay 14 Full ISO Relay PCM
Relay 15 Full ISO Relay Starter motor
Diode—PCM relay coil
*Mini fuses **Cartridge fuses
REVIEW COPY
2005 Thunderbird(tbr), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
157

Rear power distribution box
The rear power distribution box is
located in the luggage compartment
under the spare tire well cover. The
power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and specificationschapter.
The high-current fuses are coded as follows.
123456789 19 20 21 22 23 24 25> PBT <
MINI-FUSE
SEE OWNER'S MANUAL CONSULTER LA GUIDECARTRIDGE FUSE
26 27 28 29 30 31 32 10 11
RELAY
001
12 13 14 15 16 17 18
RELAY
002RELAY
003RELAY
004RELAY
005RELAY
006RELAY
007
DIODE 01
DIODE 02
REVIEW COPY
2005 Thunderbird(tbr), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
158

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 15A* Rear Electronics Module (REM)
2 5A* License plate lamp and rear side
markers
3 10A* Left rear stop/turn/tail lamp
4 10A* Luggage compartment lamp,
Map/courtesy overhead lamp,
Homelink transmitter
5 5A* REM - Hard top sense
6 10A* Back-up lamps
7 10A* Right rear stop/turn/tail lamp
8 5A* Center high-mounted stop lamp
9—Not used
10 15A* Passenger heated seat
11 15A* Driver heated seat
12 5A* REM
13—Not used
14 5A* Convertible top relay coil
15 5A* Alternator sense
16—Not used
17 15A* Fuel pump
18 20A* Subwoofer amplifier
19 30A** Driver power seat
20 30A** FEM - Left front window
21—Not used
22 20A** Ignition switch
23 30A** SSP4
24 30A** SSP3
25 40A** Passenger compartment fuse
panel
26 30A** Passenger power seat
27 30A** SSP1
28 30A** REM -Right front window
REVIEW COPY
2005 Thunderbird(tbr), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
159

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
29 30A** Rear defroster
30—Not used
31 40A** Convertible top motor
32 30A** SSP2
Relay 001 Full ISO SSP1
Relay 002 Full ISO SSP4
Relay 003 Full ISO Rear defroster
Relay 004 Full ISO SSP3
Relay 005 Full ISO SSP2
Relay 006—Not used
Relay 007 1/2 ISO Fuel pump
Diode 01—Not used
Diode 02 1A Fuel pump relay coil
*Mini fuses **Cartridge fuses
