display FORD TRANSIT 2011 Owners Manual

Engine coolant temperature
gauge:Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range.If it enters the
red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch
off the engine and let the engine cool.If it enters the red section
and the service engine soon indicator light illuminates, refer toHow fail
safe cooling worksin theMaintenance and Specificationschapter.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Fuel gauge:Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the on position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.
The symbol of the fuel pump with
the arrow points to the side of the
vehicle that the fuel filler inlet is located.
Refer toFilling the tankin theMaintenance and Specifications
chapter for more information.
Information display type 1
54
1
3
2
Instrument Cluster
20
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

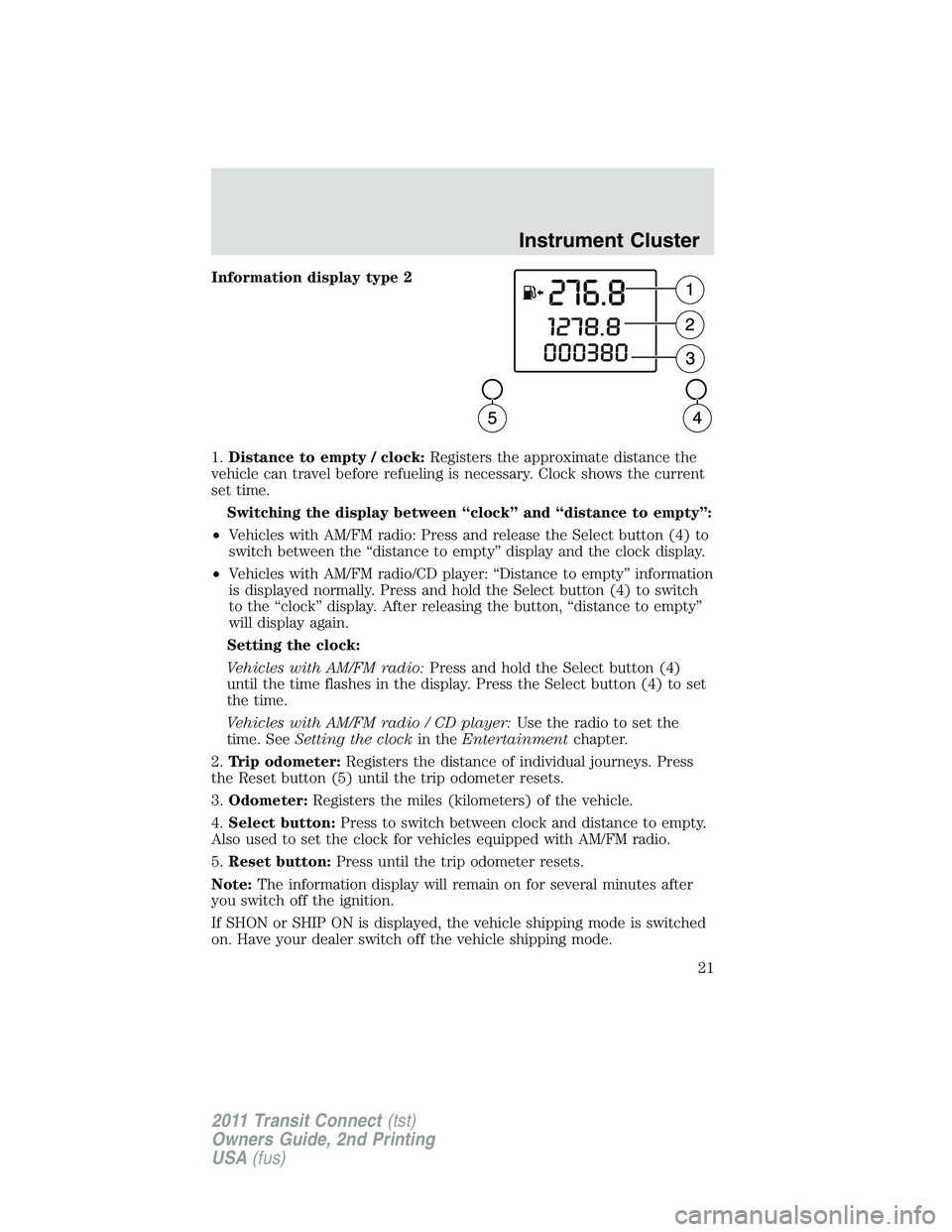

Information display type 2
1.Distance to empty / clock:Registers the approximate distance the
vehicle can travel before refueling is necessary. Clock shows the current
set time.
Switching the display between “clock” and “distance to empty”:
•Vehicles with AM/FM radio: Press and release the Select button (4) to
switch between the “distance to empty” display and the clock display.
•Vehicles with AM/FM radio/CD player: “Distance to empty” information
is displayed normally. Press and hold the Select button (4) to switch
to the “clock” display. After releasing the button, “distance to empty”
will display again.
Setting the clock:
Vehicles with AM/FM radio:Press and hold the Select button (4)
until the time flashes in the display. Press the Select button (4) to set
the time.
Vehicles with AM/FM radio / CD player:Use the radio to set the
time. SeeSetting the clockin theEntertainmentchapter.
2.Trip odometer:Registers the distance of individual journeys. Press
the Reset button (5) until the trip odometer resets.
3.Odometer:Registers the miles (kilometers) of the vehicle.
4.Select button:Press to switch between clock and distance to empty.
Also used to set the clock for vehicles equipped with AM/FM radio.
5.Reset button:Press until the trip odometer resets.
Note:The information display will remain on for several minutes after
you switch off the ignition.
If SHON or SHIP ON is displayed, the vehicle shipping mode is switched
on. Have your dealer switch off the vehicle shipping mode.
Instrument Cluster
21
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

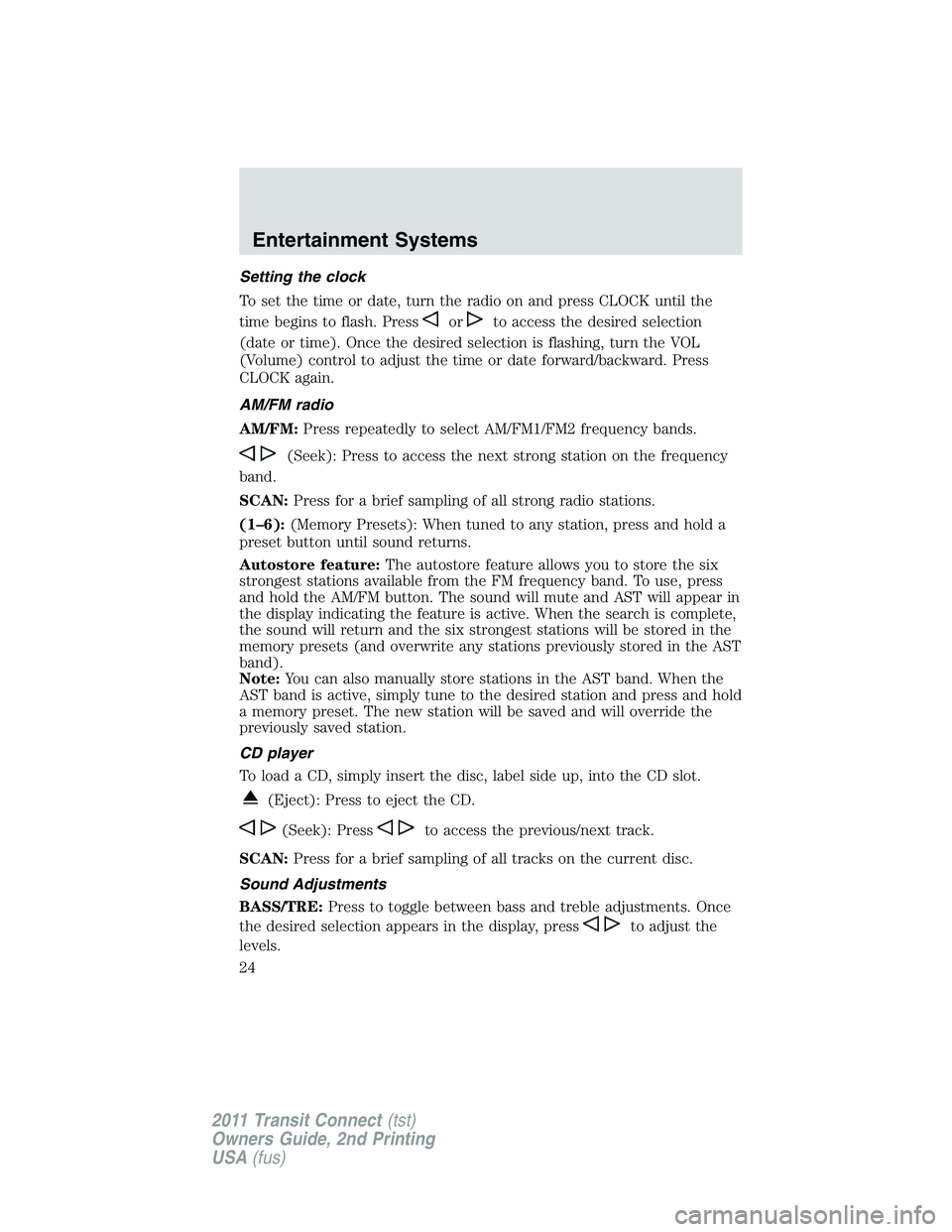

Setting the clock
To set the time or date, turn the radio on and press CLOCK until the
time begins to flash. Press
orto access the desired selection
(date or time). Once the desired selection is flashing, turn the VOL
(Volume) control to adjust the time or date forward/backward. Press
CLOCK again.
AM/FM radio
AM/FM:Press repeatedly to select AM/FM1/FM2 frequency bands.
(Seek): Press to access the next strong station on the frequency
band.
SCAN:Press for a brief sampling of all strong radio stations.
(1–6):(Memory Presets): When tuned to any station, press and hold a
preset button until sound returns.
Autostore feature:The autostore feature allows you to store the six
strongest stations available from the FM frequency band. To use, press
and hold the AM/FM button. The sound will mute and AST will appear in
the display indicating the feature is active. When the search is complete,
the sound will return and the six strongest stations will be stored in the
memory presets (and overwrite any stations previously stored in the AST
band).
Note:You can also manually store stations in the AST band. When the
AST band is active, simply tune to the desired station and press and hold
a memory preset. The new station will be saved and will override the
previously saved station.
CD player
To load a CD, simply insert the disc, label side up, into the CD slot.
(Eject): Press to eject the CD.
(Seek): Pressto access the previous/next track.
SCAN:Press for a brief sampling of all tracks on the current disc.
Sound Adjustments
BASS/TRE:Press to toggle between bass and treble adjustments. Once
the desired selection appears in the display, press
to adjust the
levels.
Entertainment Systems
24
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

FADE/BAL:Press to toggle between fade and balance adjustments.
Once the desired selection appears in the display, press
to adjust
the audio between front (F) and back (B) and left (L) and right (R)
speakers.
Extra Features
AUX:Press to access auxiliary input jack mode and play music from a
portable player over the vehicle speakers.
(Phone): If your vehicle is equipped with theBluetoothsystem,
refer toBluetooth hands free systemlater in this chapter for more
information. If your vehicle is not equipped withBluetooth, this control
will not be operational.
MENU:Press repeatedly to access the following features:
SCAN:Press
orfor a brief sampling of radio stations or CD
tracks.
SHUFFLE CD:Select to shuffle the tracks on the current CD.
REPEAT CD/TRK:Select to repeat the current CD or track.
COMP(Compression): Select to bring soft and loud CD passages
together for a more consistent listening level.
CLOCK 24H:Press to toggle between a 12 and 24 hour clock display.
AVC:Press
orto decrease/increase the level of automatic volume
control.
ADV MENU:When ADV MENU (Advanced menu) appears in the
display, press and hold MENU to access the following features:
•CLIP ON/OFF:Press to turn nominal volume levels on/off.
•VEHICLE ID:Press to view the vehicle’s VIN number.
•BT ON/OFF:Press to turn Bluetooth ON/OFF (if equipped). Refer to
Bluetooth hands free systemlater in this chapter for more
information
Auxiliary input jack (Line in)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Entertainment Systems
25
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

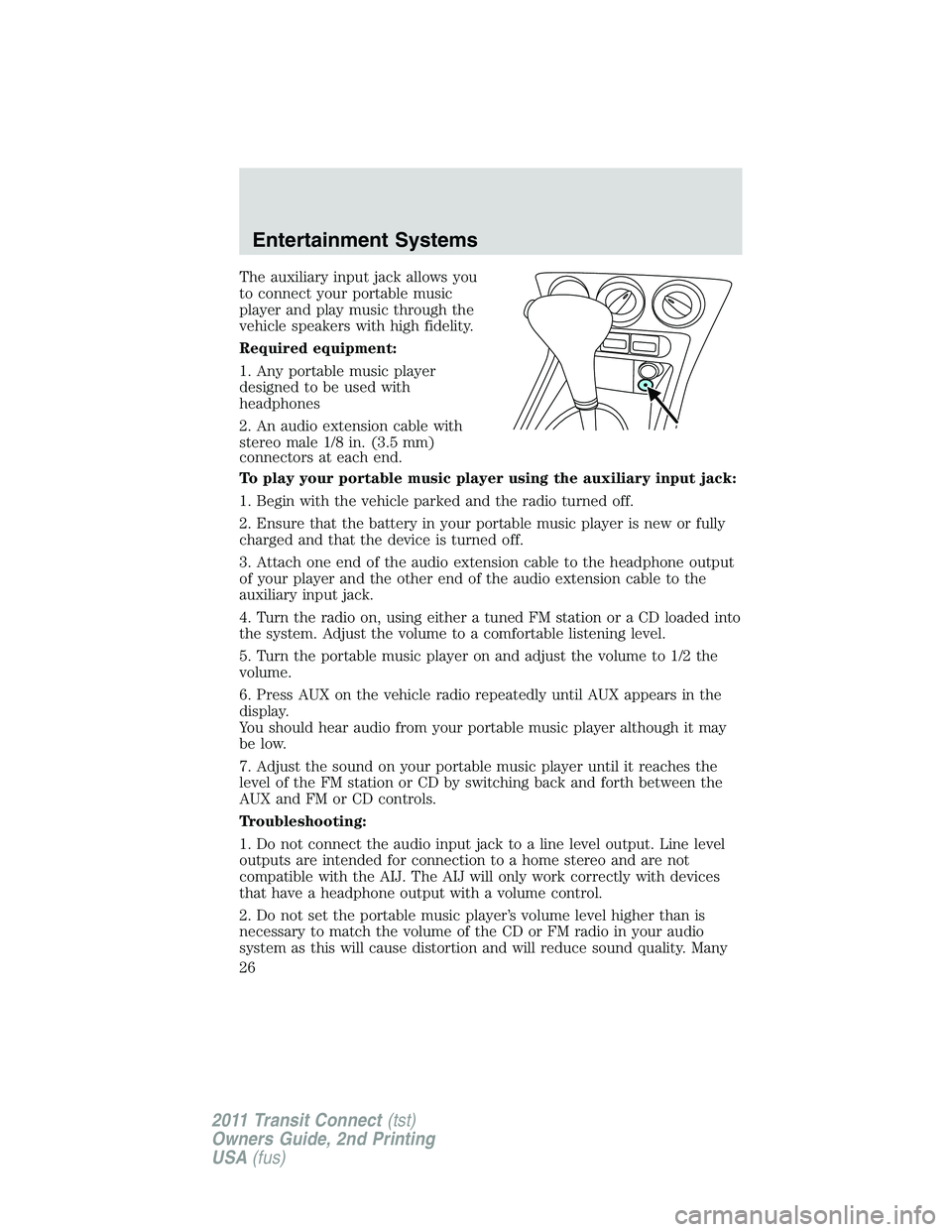

The auxiliary input jack allows you
to connect your portable music
player and play music through the
vehicle speakers with high fidelity.
Required equipment:
1. Any portable music player
designed to be used with
headphones
2. An audio extension cable with
stereo male 1/8 in. (3.5 mm)
connectors at each end.
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output
of your player and the other end of the audio extension cable to the
auxiliary input jack.
4. Turn the radio on, using either a tuned FM station or a CD loaded into
the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the
volume.
6. Press AUX on the vehicle radio repeatedly until AUX appears in the
display.
You should hear audio from your portable music player although it may
be low.
7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.
Troubleshooting:
1. Do not connect the audio input jack to a line level output. Line level
outputs are intended for connection to a home stereo and are not
compatible with the AIJ. The AIJ will only work correctly with devices
that have a headphone output with a volume control.
2. Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio in your audio
system as this will cause distortion and will reduce sound quality. Many
Entertainment Systems
26
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

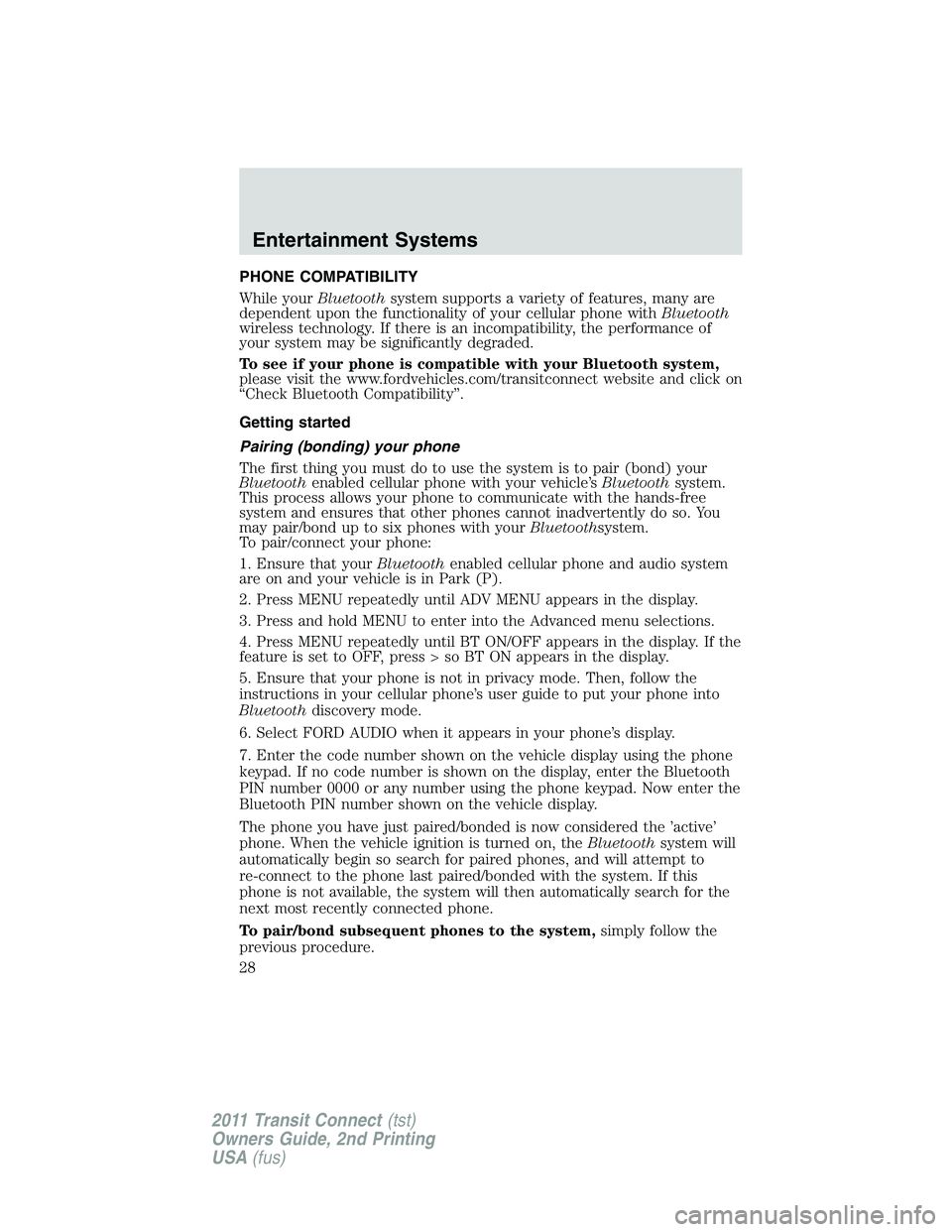

PHONE COMPATIBILITY
While yourBluetoothsystem supports a variety of features, many are
dependent upon the functionality of your cellular phone withBluetooth
wireless technology. If there is an incompatibility, the performance of
your system may be significantly degraded.
To see if your phone is compatible with your Bluetooth system,
please visit the www.fordvehicles.com/transitconnect website and click on
“Check Bluetooth Compatibility”.
Getting started
Pairing (bonding) your phone
The first thing you must do to use the system is to pair (bond) your
Bluetoothenabled cellular phone with your vehicle’sBluetoothsystem.
This process allows your phone to communicate with the hands-free
system and ensures that other phones cannot inadvertently do so. You
may pair/bond up to six phones with yourBluetoothsystem.
To pair/connect your phone:
1. Ensure that yourBluetoothenabled cellular phone and audio system
are on and your vehicle is in Park (P).
2. Press MENU repeatedly until ADV MENU appears in the display.
3. Press and hold MENU to enter into the Advanced menu selections.
4. Press MENU repeatedly until BT ON/OFF appears in the display. If the
feature is set to OFF, press > so BT ON appears in the display.
5. Ensure that your phone is not in privacy mode. Then, follow the
instructions in your cellular phone’s user guide to put your phone into
Bluetoothdiscovery mode.
6. Select FORD AUDIO when it appears in your phone’s display.
7. Enter the code number shown on the vehicle display using the phone
keypad. If no code number is shown on the display, enter the Bluetooth
PIN number 0000 or any number using the phone keypad. Now enter the
Bluetooth PIN number shown on the vehicle display.
The phone you have just paired/bonded is now considered the ’active’
phone. When the vehicle ignition is turned on, theBluetoothsystem will
automatically begin so search for paired phones, and will attempt to
re-connect to the phone last paired/bonded with the system. If this
phone is not available, the system will then automatically search for the
next most recently connected phone.
To pair/bond subsequent phones to the system,simply follow the
previous procedure.
Entertainment Systems
28
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

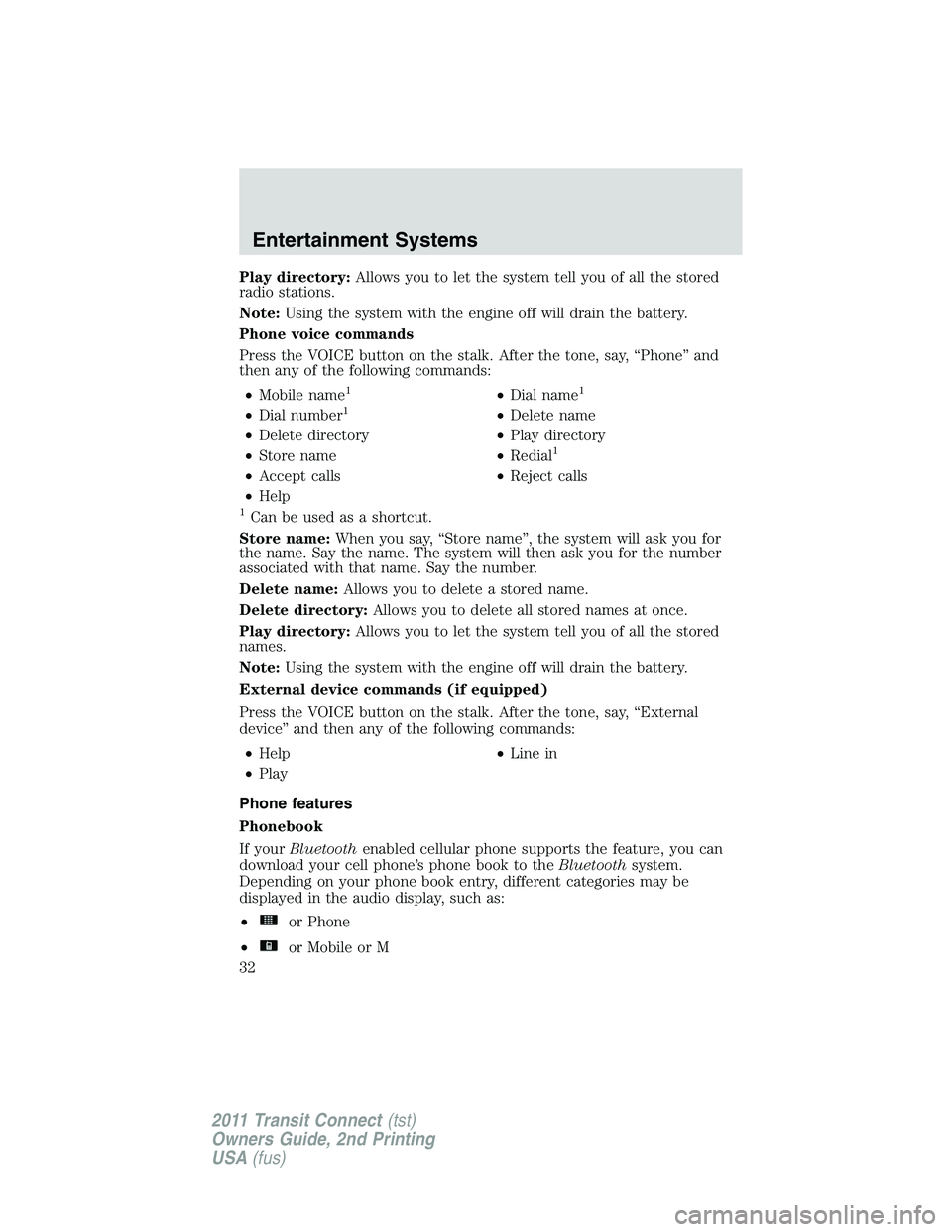

Play directory:Allows you to let the system tell you of all the stored
radio stations.
Note:Using the system with the engine off will drain the battery.
Phone voice commands
Press the VOICE button on the stalk. After the tone, say, “Phone” and
then any of the following commands:
•Mobile name
1•Dial name1
•Dial number1•Delete name
•Delete directory•Play directory
•Store name•Redial
1
•Accept calls•Reject calls
•Help
1Can be used as a shortcut.
Store name:When you say, “Store name”, the system will ask you for
the name. Say the name. The system will then ask you for the number
associated with that name. Say the number.
Delete name:Allows you to delete a stored name.
Delete directory:Allows you to delete all stored names at once.
Play directory:Allows you to let the system tell you of all the stored
names.
Note:Using the system with the engine off will drain the battery.
External device commands (if equipped)
Press the VOICE button on the stalk. After the tone, say, “External
device” and then any of the following commands:
•Help•Line in
•Play
Phone features
Phonebook
If yourBluetoothenabled cellular phone supports the feature, you can
download your cell phone’s phone book to theBluetoothsystem.
Depending on your phone book entry, different categories may be
displayed in the audio display, such as:
•
or Phone
•
or Mobile or M
Entertainment Systems
32
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

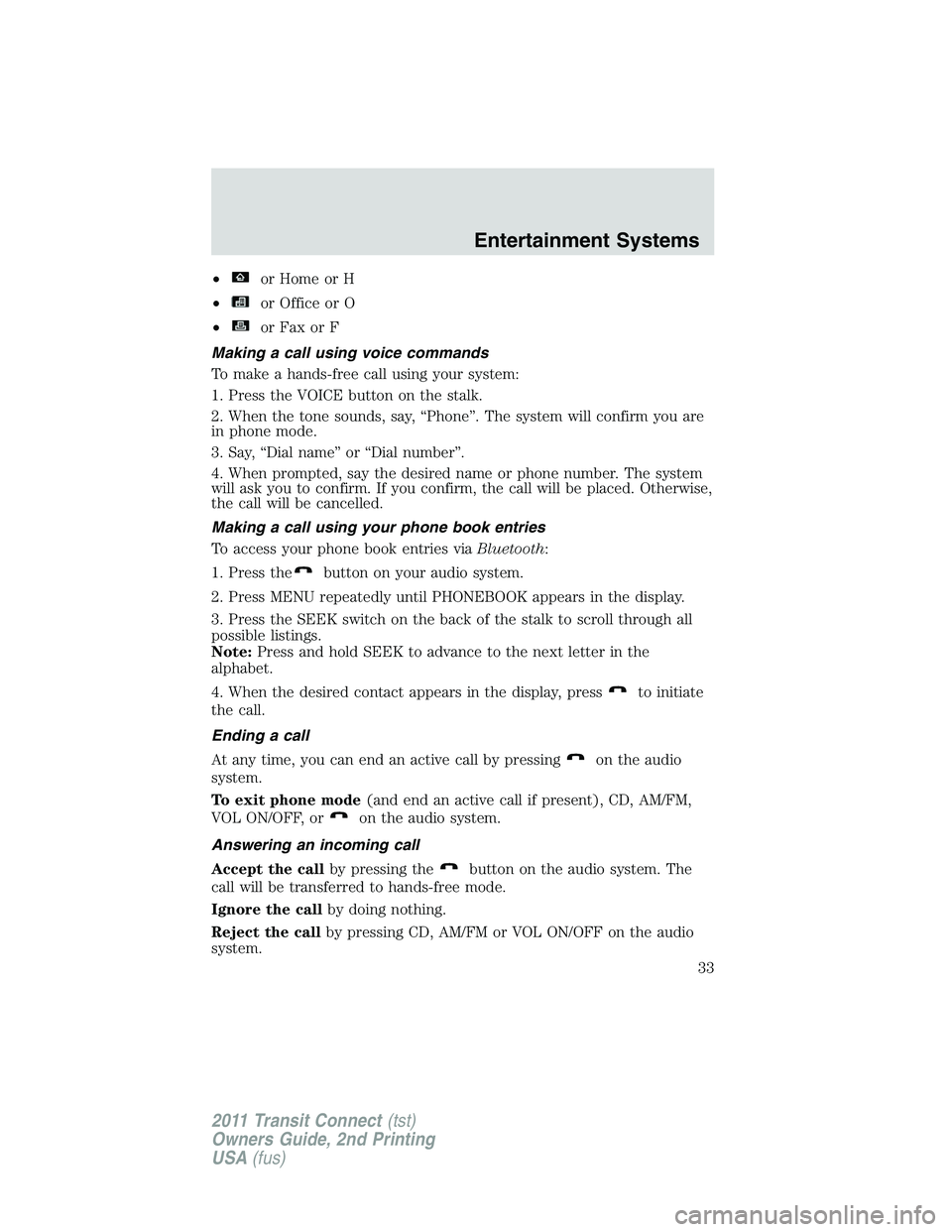

•or Home or H
•
or Office or O
•
or Fax or F
Making a call using voice commands
To make a hands-free call using your system:
1. Press the VOICE button on the stalk.
2. When the tone sounds, say, “Phone”. The system will confirm you are
in phone mode.
3. Say, “Dial name” or “Dial number”.
4. When prompted, say the desired name or phone number. The system
will ask you to confirm. If you confirm, the call will be placed. Otherwise,
the call will be cancelled.
Making a call using your phone book entries
To access your phone book entries viaBluetooth:
1. Press the
button on your audio system.
2. Press MENU repeatedly until PHONEBOOK appears in the display.
3. Press the SEEK switch on the back of the stalk to scroll through all
possible listings.
Note:Press and hold SEEK to advance to the next letter in the
alphabet.
4. When the desired contact appears in the display, press
to initiate
the call.
Ending a call
At any time, you can end an active call by pressing
on the audio
system.
To exit phone mode(and end an active call if present), CD, AM/FM,
VOL ON/OFF, or
on the audio system.
Answering an incoming call
Accept the callby pressing the
button on the audio system. The
call will be transferred to hands-free mode.
Ignore the callby doing nothing.
Reject the callby pressing CD, AM/FM or VOL ON/OFF on the audio
system.
Entertainment Systems
33
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

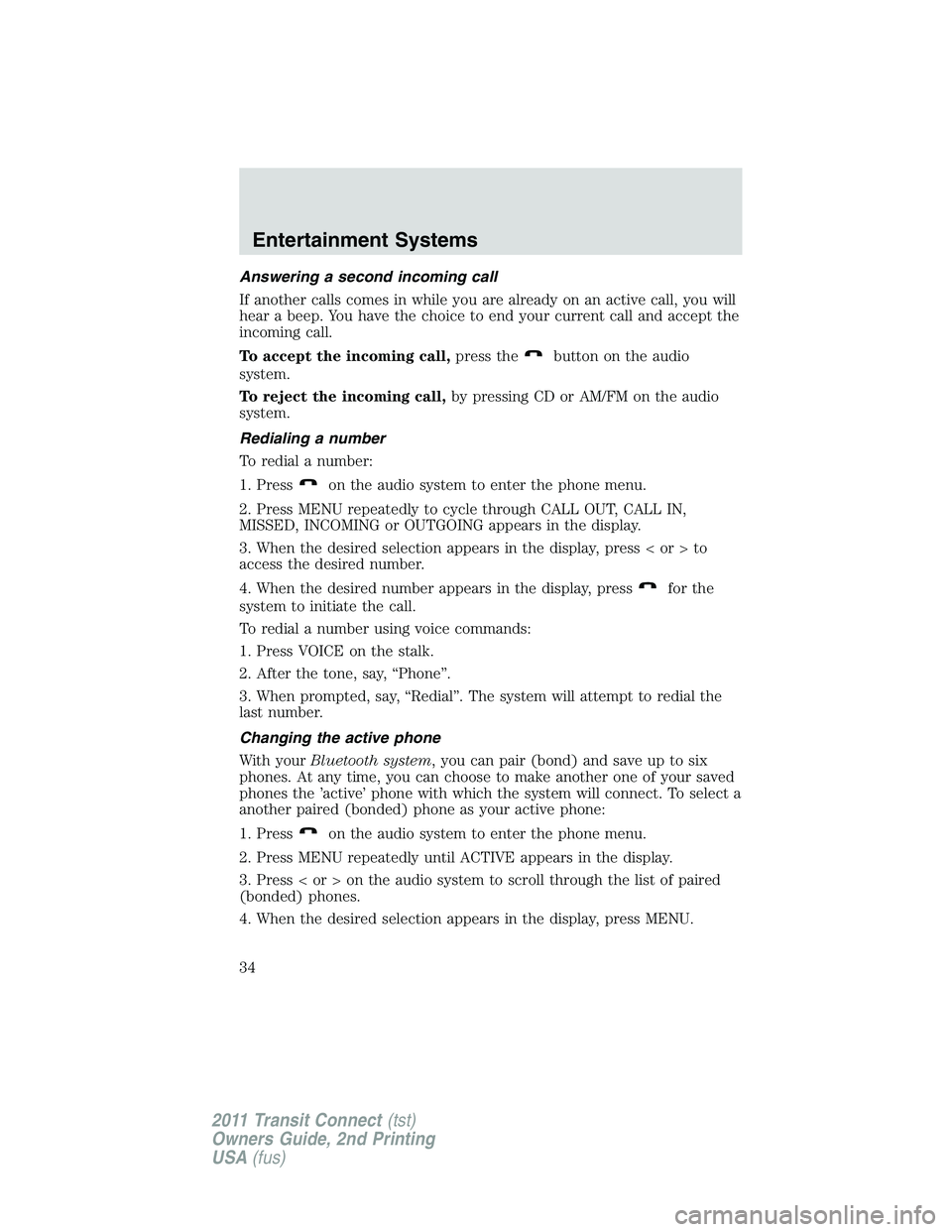

Answering a second incoming call
If another calls comes in while you are already on an active call, you will
hear a beep. You have the choice to end your current call and accept the
incoming call.
To accept the incoming call,press the
button on the audio
system.
To reject the incoming call,by pressing CD or AM/FM on the audio
system.
Redialing a number
To redial a number:
1. Press
on the audio system to enter the phone menu.
2. Press MENU repeatedly to cycle through CALL OUT, CALL IN,
MISSED, INCOMING or OUTGOING appears in the display.
3. When the desired selection appears in the display, press < or > to
access the desired number.
4. When the desired number appears in the display, press
for the
system to initiate the call.
To redial a number using voice commands:
1. Press VOICE on the stalk.
2. After the tone, say, “Phone”.
3. When prompted, say, “Redial”. The system will attempt to redial the
last number.
Changing the active phone
With yourBluetooth system, you can pair (bond) and save up to six
phones. At any time, you can choose to make another one of your saved
phones the ’active’ phone with which the system will connect. To select a
another paired (bonded) phone as your active phone:
1. Press
on the audio system to enter the phone menu.
2. Press MENU repeatedly until ACTIVE appears in the display.
3. Press < or > on the audio system to scroll through the list of paired
(bonded) phones.
4. When the desired selection appears in the display, press MENU.
Entertainment Systems
34
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

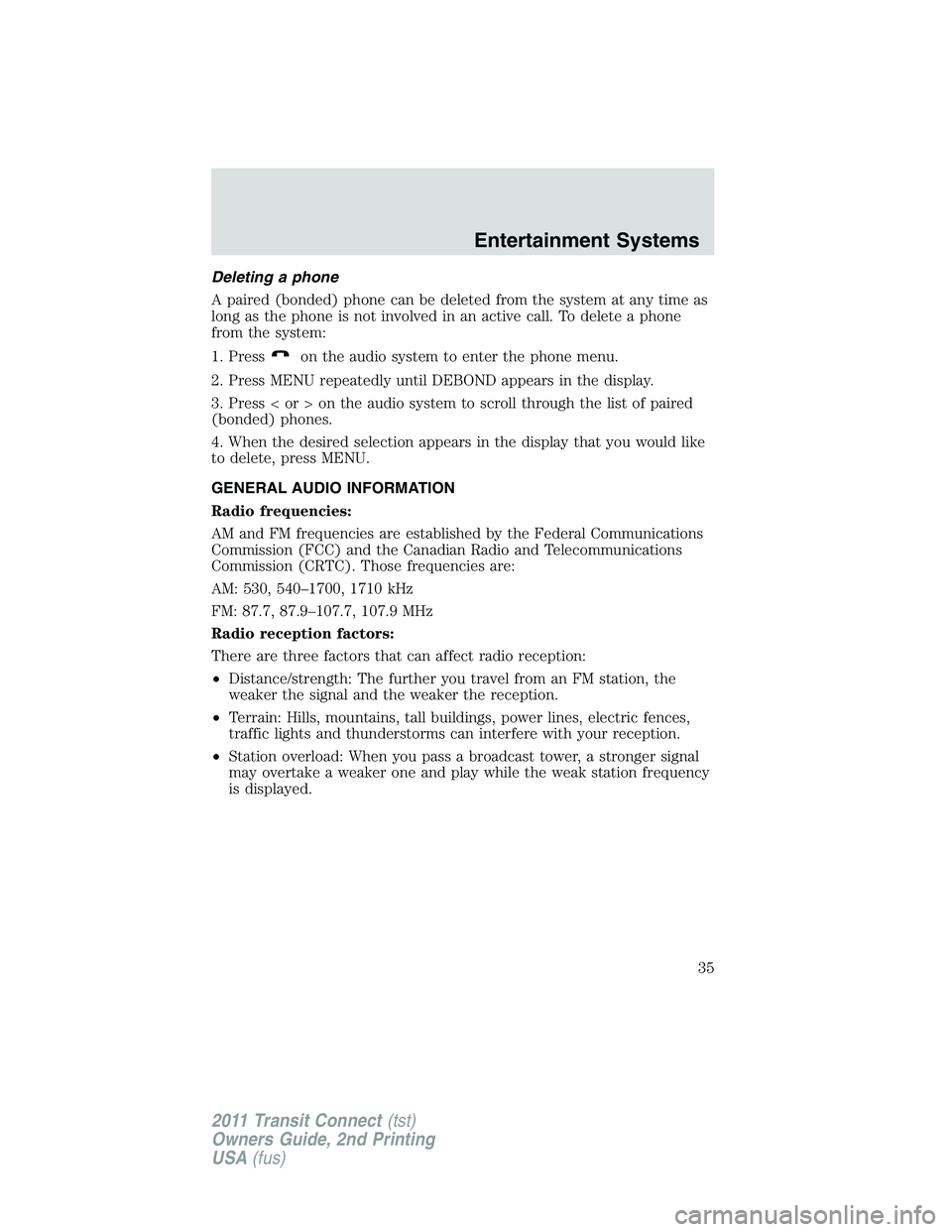

Deleting a phone
A paired (bonded) phone can be deleted from the system at any time as
long as the phone is not involved in an active call. To delete a phone
from the system:
1. Press
on the audio system to enter the phone menu.
2. Press MENU repeatedly until DEBOND appears in the display.
3. Press < or > on the audio system to scroll through the list of paired
(bonded) phones.
4. When the desired selection appears in the display that you would like
to delete, press MENU.
GENERAL AUDIO INFORMATION
Radio frequencies:
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
Entertainment Systems
35
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)
