GAUGES
Information display. See Information Displays (page 82).
A
Speedometer.
B
Engine coolant temperature gauge.
C
Tripmeter reset and distance to empty toggle button.
D
Fuel gauge.
E
Tachometer.
F
Information Display
Odometer
Registers the distance your vehicle has
traveled.
Outside Air Temperature
Shows the outside air temperature.
Trip Computer
See
Trip Computer (page 86). Vehicle Settings and Personalization
See
(page 82).
Engine Coolant Temperature
Gauge WARNING
Never remove the coolant reservoir
cap while the engine is running or hot.
76
Transit (TTH) Canada/United States of America, enUSA, First Printing Instrument ClusterE184961

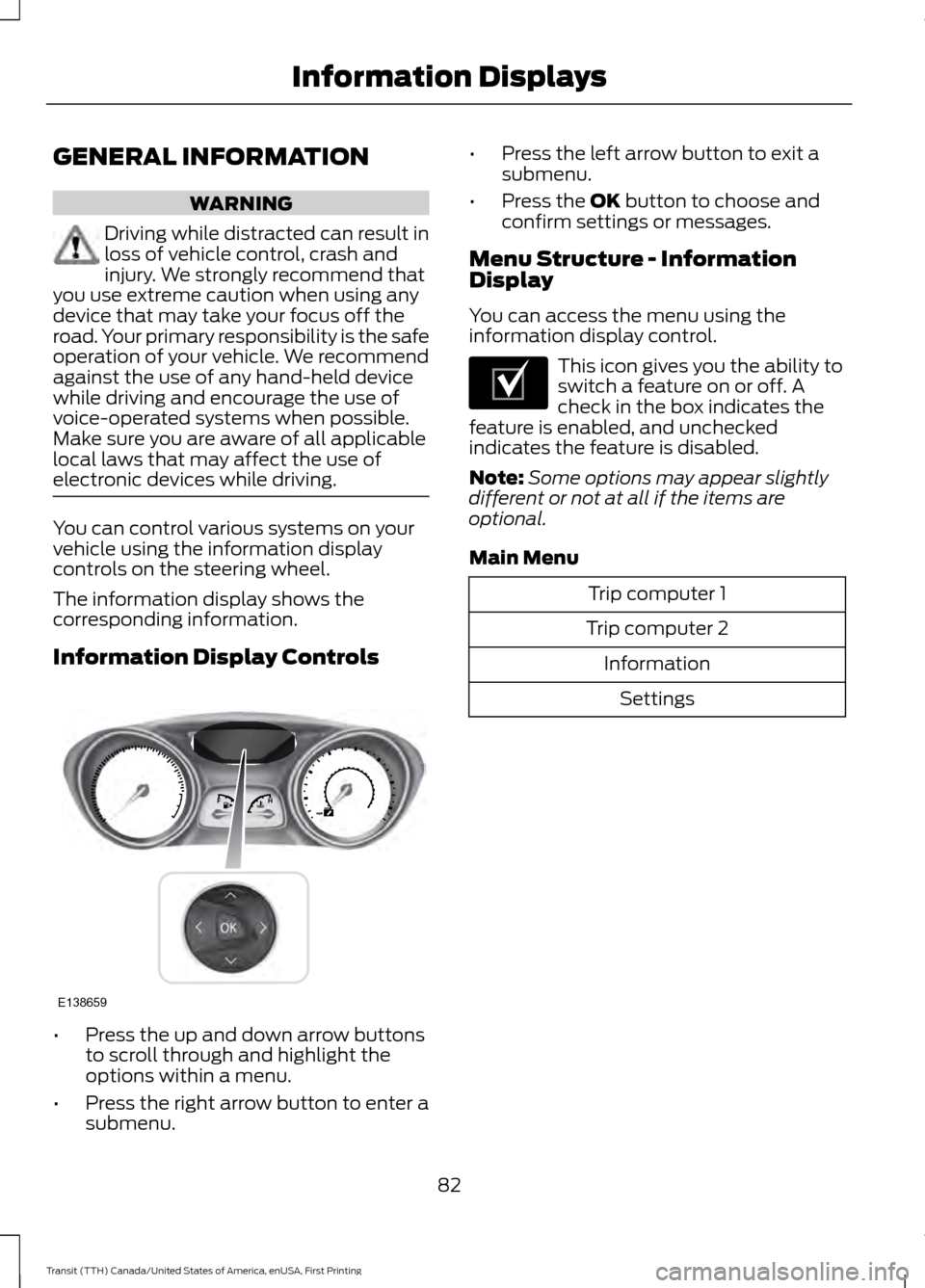

GENERAL INFORMATION
WARNING
Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving. You can control various systems on your
vehicle using the information display
controls on the steering wheel.
The information display shows the
corresponding information.
Information Display Controls
•
Press the up and down arrow buttons
to scroll through and highlight the
options within a menu.
• Press the right arrow button to enter a
submenu. •
Press the left arrow button to exit a
submenu.
• Press the OK button to choose and
confirm settings or messages.
Menu Structure - Information
Display
You can access the menu using the
information display control. This icon gives you the ability to
switch a feature on or off. A
check in the box indicates the
feature is enabled, and unchecked
indicates the feature is disabled.
Note: Some options may appear slightly
different or not at all if the items are
optional.
Main Menu Trip computer 1
Trip computer 2 InformationSettings
82
Transit (TTH) Canada/United States of America, enUSA, First Printing Information DisplaysE138659 E204495

Trip computer 1
Dist to empty
Trip Odometer
Trip Timer Gear Shifting
Ford EcoMode
Average Fuel
Anticipation
Speed
Information
Outside Temp.
Digital Speedo
All Values 1
1 This feature is seen on high level clusters.
Note: Trip 2 information is the same as Trip
1 information. Information
Driver Alert
AdBlue® level
Engine Hours
Engine Hours
Trailer Brake
MyKey
MyKey Info
System Check
83
Transit (TTH) Canada/United States of America, enUSA, First Printing Information Displays

System Check
All active warnings will display first if
applicable. The system check menu may
appear different based upon equipment
options and current vehicle status. Use the
up and down arrow buttons to scroll
through the list. See Information
Messages (page 87).

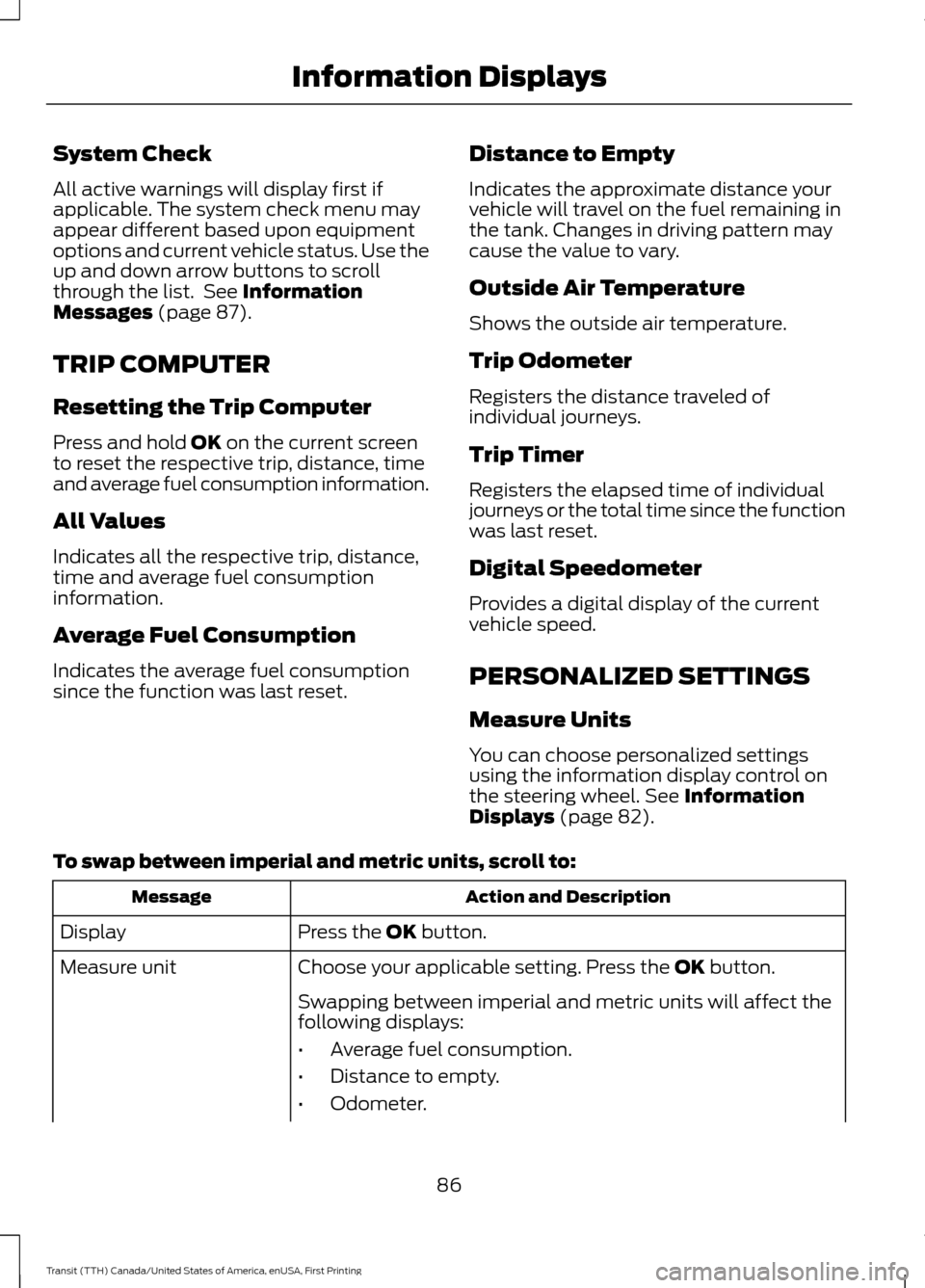

TRIP COMPUTER
Resetting the Trip Computer
Press and hold
OK on the current screen
to reset the respective trip, distance, time
and average fuel consumption information.
All Values
Indicates all the respective trip, distance,
time and average fuel consumption
information.
Average Fuel Consumption
Indicates the average fuel consumption
since the function was last reset. Distance to Empty
Indicates the approximate distance your
vehicle will travel on the fuel remaining in
the tank. Changes in driving pattern may
cause the value to vary.
Outside Air Temperature
Shows the outside air temperature.
Trip Odometer
Registers the distance traveled of
individual journeys.
Trip Timer
Registers the elapsed time of individual
journeys or the total time since the function
was last reset.
Digital Speedometer
Provides a digital display of the current
vehicle speed.
PERSONALIZED SETTINGS
Measure Units
You can choose personalized settings
using the information display control on
the steering wheel.
See Information
Displays (page 82).
To swap between imperial and metric units, scroll to: Action and Description
Message
Press the
OK button.
Display
Choose your applicable setting. Press the
OK button.
Measure unit
Swapping between imperial and metric units will affect the
following displays:
•Average fuel consumption.
• Distance to empty.
• Odometer.
86
Transit (TTH) Canada/United States of America, enUSA, First Printing Information Displays

Tires
See: Wheels and Tires...................................... 241
Towing a Trailer.............................................166
Load Placement................................................. 166
Towing the Vehicle on Four Wheels...........................................................176
Emergency Towing............................................. 176
Recreational Vehicle Towing ......................... 176
Towing
..............................................................166
Traction Control............................................143 Principle of Operation....................................... 143
Trailer Sway Control
.....................................167
Transmission Code Designation............280
Transmission..................................................136
Transmission See: Transmission.............................................. 136
Transporting the Vehicle............................175
Trip Computer
.................................................86
All Values................................................................ 86
Average Fuel Consumption............................. 86
Digital Speedometer.......................................... 86
Distance to Empty............................................... 86
Outside Air Temperature.................................. 86
Resetting the Trip Computer........................... 86
Trip Odometer....................................................... 86
Trip Timer................................................................ 86
U
Under Hood Overview - 3.2L Power Stroke Diesel.................................................211
Under Hood Overview - 3.5L..................209
Under Hood Overview - 3.7L....................210
USB Port.........................................................309
Using Cruise Control.....................................151 Switching Cruise Control Off.......................... 152
Switching Cruise Control On........................... 151
Using MyKey With Remote Start Systems..........................................................54
Using Snow Chains.....................................259
Using Stability Control................................145 Using SYNC™ With Your Media
Player............................................................339
Accessing Your Play Menu............................. 344
Connecting Your Digital Media Player to the USB Port.......................................................... 339
Media Menu Features....................................... 342
Media Voice Commands.................................. 341
System Settings................................................. 346
What's Playing?................................................ 340
Using SYNC™ With Your Phone.............316 Accessing Features Through the Phone
Menu.................................................................. 320
Accessing Your Phone Settings.................... 325
Making a Call........................................................ 319
Pairing a Cell Phone for the First Time.................................................................... 316
Pairing Subsequent Cell Phones................... 317
Phone Options during an Active Call..........319
Phone Voice Commands................................. 317
Receiving Calls..................................................... 319
System Settings................................................. 326
Text Messaging................................................... 323
Using Traction Control
................................143
Switching the System Off............................... 143
System Indicator Lights and Messages.......................................................... 143
Using a Switch..................................................... 143
Using the Information Display Controls............................................................. 143
Using Voice Recognition............................313 Initiating a Voice Session................................. 313
System Interaction and Feedback...............314
Using Winter Tires.......................................259
Utilizing the Mediation/Arbitration Program (Canada Only).........................189
V
Vehicle Care
...................................................234
Vehicle Certification Label.......................280
Vehicle Identification Number................279
407
Transit (TTH) Canada/United States of America, enUSA, First Printing Index
