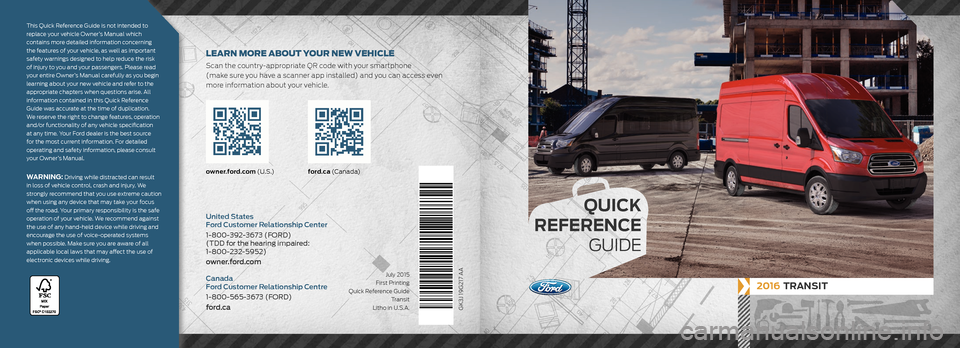

FORD TRANSIT 2016 5.G Quick Reference Guide

2016 TRANSIT
GK3J 19G217 AA
owner.ford.com (U . S .) ford.ca (C a n a d a)
United States
Ford Customer Relationship Center
1-800-392-3673 (FORD)
(TDD for the hearing impaired:
1-800-232-5952)
owner.ford.com
Canada
Ford Customer Relationship Centre
1-800-565-3673 (FORD)
ford.ca
This Quick Reference Guide is not intended to
replace your vehicle Owner’s Manual which
contains more detailed information concerning
the features of your vehicle, as well as important
safety warnings designed to help reduce the risk
of injury to you and your passengers. Please read
your entire Owner’s Manual carefully as you begin
learning about your new vehicle and refer to the
appropriate chapters when questions arise. All
information contained in this Quick Reference
Guide was accurate at the time of duplication.
We reserve the right to change features, operation
and/or functionality of any vehicle specification
at any time. Your Ford dealer is the best source
for the most current information. For detailed
operating and safety information, please consult
your Owner’s Manual.
WARNING: Driving while distracted can result
in loss of vehicle control, crash and injury. We
strongly recommend that you use extreme caution
when using any device that may take your focus
off the road. Your primary responsibility is the safe
operation of your vehicle. We recommend against
the use of any hand-held device while driving and
encourage the use of voice-operated systems
when possible. Make sure you are aware of all
applicable local laws that may affect the use of
electronic devices while driving.
LEARN MORE ABOUT YOUR NEW VEHICLE
Scan the country-appropriate QR code with your smartphone
(make sure you have a scanner app installed) and you can access even
more information about your vehicle.
July 2015
First Printing
Quick Reference Guide Transit
Litho in U.S.A.
QUICK
REFERENCE
GUIDE

APPS*• List mobile apps
• Find new apps
*if equipped

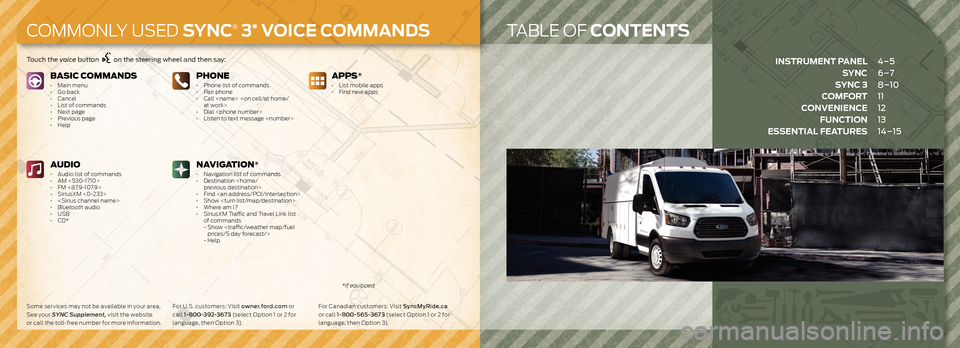

TABLE OF CONTENTS
BASIC COMMANDS• Main menu
• Go back
• Cancel
• List of commands
• Next page
• Previous page
• HelpPHONE• Phone list of commands
• Pair phone
• Call at work>
• Dial
• Listen to text message
AUDIO• Audio list of commands
• AM <530-1710>
• FM <87.9-107.9>
• SiriusXM <0-233>
•
• Bluetooth audio
• USB
• CD*NAVIGATION*• Navigation list of commands
• Destination previous destination>
• Find
• Show
• Where am I?
• SiriusXM Traffic and Travel Link list
of commands
- Show prices/5 day forecast/>
- Help
Touch the voice button on the steering wheel and then say:
Some ser vices may not be available in your area.
See your SYNC Supplement, visit the website
or call the toll-free number for more information. For U.S. customers: Visit owner.ford.com
or
call 1-800-392-367 3 (select Option 1 or 2 for
language, then Option 3). For Canadian customers: Visit SyncMyRide.ca

or call 1-800-565 -367 3 (select Option 1 or 2 for
language, then Option 3).
COMMONLY USED SYNC® 3* VOICE COMMANDS
INSTRUMENT PANEL 4�5
SYNC 67
SYNC 3 8�10
COMFORT 11
CONVENIENCE 12
FUNCTION 13
ESSENTIAL FEATURES 14�15

54
1 HOOD RELEASE LEVER
Pull the lever, located under the bottle holder, to
release the hood.
2 CRUISE CONTROL
To Set a Cruise Control Speed
A. Press the ON control and release.
B. Drive to the desired speed.
C. Press and release SET+ . Take your foot off the
accelerator pedal.
After you set your speed, you can press and hold
SET+ or SET– to adjust cruise speed. Release the
control when you reach the desired speed. To
cancel the set speed, pull CAN toward you and
release or tap the brake pedal. To switch cruise
control off, press OFF or switch the ignition off.
3 AUTOLAMPS*
Allows your headlamps to turn on and off
automatically in low-light situations or during
inclement weather. Your headlamps remain on
for a period of time after you switch off the
ignition. You can adjust the time delay using
the information display controls.
NOTE It may be necessary to switch
your headlamps on manually in severe
weather conditions.
4 INFORMATION DISPLAY*
Provides information about various systems on your vehicle. Use the left, 5-way controls
located on the steering wheel to choose and confirm settings and messages. Refer to the
Information Displays chapter of your Owner’s Manual for more information.
5 SERVICE ENGINE SOON LIGHT
Lights briefly when you switch on the ignition. If it remains on or is blinking after you
start the engine, the On-Board Diagnostics (OBD-II) system has detected a malfunction.
Drive in a moderate fashion and contact your authorized dealer as soon as possible.
6 AUTOWIPERS*
The wipers will function when the rain sensor detects moisture on the
windshield. Use the rotary control to adjust the sensitivity.
With low sensitivity, the wipers will operate when the sensor detects a large amount of
moisture on the windshield.
With high sensitivity, the wipers will operate when the sensor detects a small amount of
moisture on the windshield.
7 MEDIA STEERING WHEEL CONTROLS*
(Volume): Press (+ ) to increase or (–) decrease volume levels.
Press
to access voice recognition.
Press
to access phone mode or to answer a call.
Press
to exit phone mode or end a call.
Press
to access the next/previous radio station, CD track* or preset satellite
radio channel*.
*if equipped
*if equipped
2
7
5
6
4
4
3
INSTRUMENT PANEL
1

76

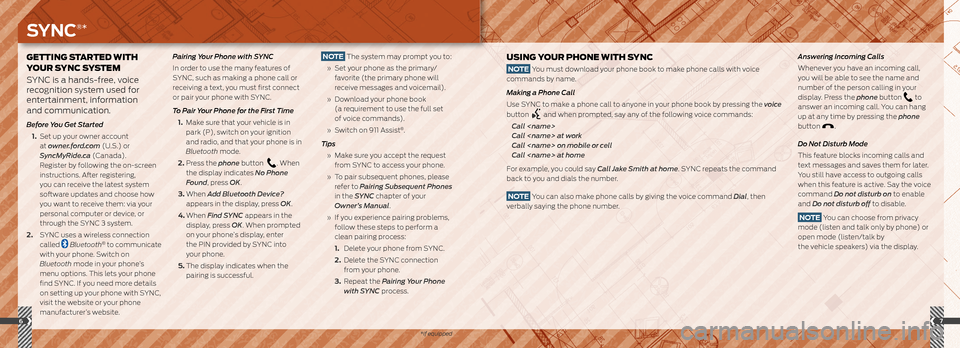

GETTING STARTED WITH
YOUR SYNC SYSTEM
SYNC is a hands-free, voice
recognition system used for
entertainment, information
and communication.

Before You Get Started
1. Set up your owner account
at owner.ford.com (U.S.) or
SyncMyRide.ca (Canada).
Register by following the on-screen
instructions. After registering,
you can receive the latest system
software updates and choose how
you want to receive them: via your
personal computer or device, or
through the SYNC 3 system.
2. SYNC uses a wireless connection
called
Bluetooth® to communicate
with your phone. Switch on
Bluetooth mode in your phone’s
menu options. This lets your phone
find SYNC. If you need more details
on setting up your phone with SYNC,
visit the website or your phone
manufacturer’s website. Pairing Your Phone with SYNC
In order to use the many features of
SYNC, such as making a phone call or
receiving a text, you must first connect

or pair your phone with SYNC.
To Pair Your Phone for the First Time
1. Make sure that your vehicle is in
park (P), switch on your ignition
and radio, and that your phone is in
Bluetooth mode.
2. Press the phone button
. When
the display indicates No Phone
Found, press OK.
3. When Add Bluetooth Device?
appears in the display, press OK.
4. When Find SYNC appears in the
display, press OK. When prompted
on your phone’s display, enter
the PIN provided by SYNC into
your phone.
5. The display indicates when the
pairing is successful.
USING YOUR PHONE WITH SYNC
NOTE You must download your phone book to make phone calls with voice
commands by name.
Making a Phone Call
Use SYNC to make a phone call to anyone in your phone book by pressing the voice
button
and when prompted, say any of the following voice commands:
Call
Call at work
Call on mobile or cell
Call at home
For example, you could say Call Jake Smith at home. SYNC repeats the command
back to you and dials the number.
NOTE You can also make phone calls by giving the voice command Dial, then
verbally saying the phone number.
Answering Incoming Calls
Whenever you have an incoming call,
you will be able to see the name and
number of the person calling in your
display. Press the phone button
to
answer an incoming call. You can hang
up at any time by pressing the phone
button
.
Do Not Disturb Mode
This feature blocks incoming calls and
text messages and saves them for later.
You still have access to outgoing calls
when this feature is active. Say the voice
command Do not disturb on to enable
and Do not disturb off to disable.
NOTE You can choose from privacy
mode (listen and talk only by phone) or
open mode (listen/talk by
the vehicle speakers) via the display.
NOTE The system may prompt you to:
» Set your phone as the primary/
favorite (the primary phone will
receive messages and voicemail).
» Download your phone book
(a requirement to use the full set
of voice commands).
» Switch on 911 Assist
®.
Tips
» Make sure you accept the request
from SYNC to access your phone.
» To pair subsequent phones, please
refer to Pairing Subsequent Phones
in the SYNC chapter of your
Owner’s Manual.
» If you experience pairing problems,
follow these steps to perform a
clean pairing process:
1. Delete your phone from SYNC.
2. Delete the SYNC connection
from your phone.
3. Repeat the Pairing Your Phone
with SYNC process.
SYNC®*
*if equipped

89
*if equipped

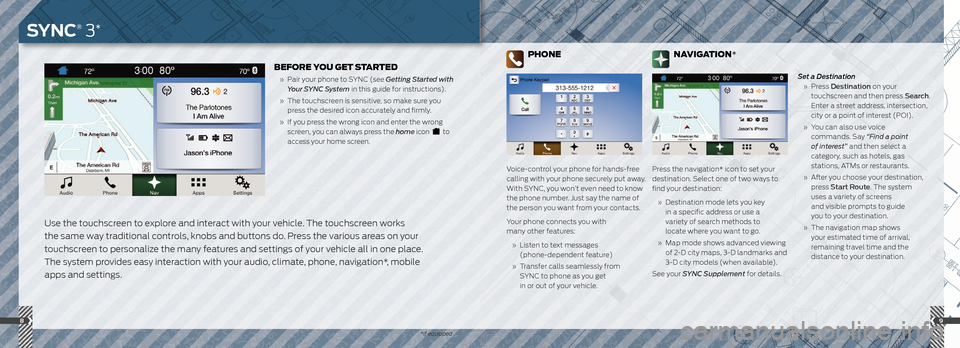

Use the touchscreen to explore and interact with your vehicle. The touchscreen works
the same way traditional controls, knobs and buttons do. Press the various areas on your
touchscreen to personalize the many features and settings of your vehicle all in one place.
The system provides easy interaction with your audio, climate, phone, navigation*, mobile
apps and settings.
BEFORE YOU GET STARTED
» Pair your phone to SYNC (see Getting Started with
Your SYNC System in this guide for instructions).
» The touchscreen is sensitive, so make sure you
press the desired icon accurately and firmly.
» If you press the wrong icon and enter the wrong
screen, you can always press the home icon
to
access your home screen.
PHONE
Voice-control your phone for hands-free
calling with your phone securely put away.
With SYNC, you won’t even need to know
the phone number. Just say the name of
the person you want from your contacts.
Your phone connects you with
many other features:
» Listen to text messages
(phone-dependent feature)
» Transfer calls seamlessly from
SYNC to phone as you get
in or out of your vehicle. Set a Destination

» Press Destination on your
touchscreen and then press Search .
Enter a street address, intersection,
city or a point of interest (POI).
» You can also use voice
commands. Say “Find a point
of interest” and then select a
category, such as hotels, gas
stations, ATMs or restaurants.
» After you choose your destination,
press Start Route. The system
uses a variety of screens
and visible prompts to guide
you to your destination.
» The navigation map shows
your estimated time of arrival,
remaining travel time and the
distance to your destination.
NAVIGATION*
Press the navigation* icon to set your
destination. Select one of two ways to
find your destination:
» Destination mode lets you key
in a specific address or use a
variety of search methods to
locate where you want to go.
» Map mode shows advanced viewing
of 2-D city maps, 3-D landmarks and
3-D city models (when available).
See your SYNC Supplement for details.
SYNC® 3*

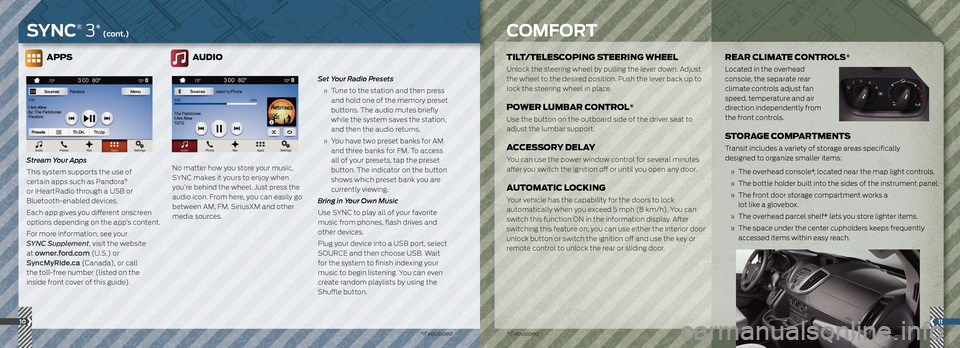

APPS
Stream Your Apps
This system supports the use of
certain apps such as Pandora
®
or iHeartRadio through a USB or
Bluetooth-enabled devices.
Each app gives you different onscreen
options depending on the app’s content.
For more information, see your
SYNC Supplement, visit the website
at owner.ford.com (U.S.) or
SyncMyRide.ca (Canada), or call
the toll-free number (listed on the
inside front cover of this guide).
AUDIO
No matter how you store your music,
SYNC makes it yours to enjoy when
you’re behind the wheel. Just press the
audio icon. From here, you can easily go
between AM, FM, SiriusXM and other
media sources. Set Your Radio Presets

» Tune to the station and then press
and hold one of the memory preset
buttons. The audio mutes briefly
while the system saves the station,
and then the audio returns.
» You have two preset banks for AM
and three banks for FM. To access
all of your presets, tap the preset
button. The indicator on the button
shows which preset bank you are
currently viewing.
Bring in Your Own Music
Use SYNC to play all of your favorite
music from phones, flash drives and
other devices.
Plug your device into a USB port, select
SOURCE and then choose USB. Wait
for the system to finish indexing your
music to begin listening. You can even
create random playlists by using the
Shuffle button.
11
TILT/TELESCOPING STEERING WHEEL
Unlock the steering wheel by pulling the lever down. Adjust
the wheel to the desired position. Push the lever back up to
lock the steering wheel in place.
POWER LUMBAR CONTROL*
Use the button on the outboard side of the driver seat to
adjust the lumbar support.
ACCESSORY DELAY
You can use the power window control for several minutes
after you switch the ignition off or until you open any door.
AUTOMATIC LOCKING
Your vehicle has the capability for the doors to lock
automatically when you exceed 5 mph (8 km/h). You can
switch this function ON in the information display. After
switching this feature on, you can use either the interior door
unlock button or switch the ignition off and use the key or
remote control to unlock the rear or sliding door.
REAR CLIMATE CONTROLS*
Located in the overhead
console, the separate rear
climate controls adjust fan
speed, temperature and air
direction independently from
the front controls.
STORAGE COMPARTMENTS
Transit includes a variety of storage areas specifically
designed to organize smaller items:
» The overhead console*, located near the map light controls.
» The bottle holder built into the sides of the instrument panel.
» The front door storage compartment works a
lot like a glovebox.
» The overhead parcel shelf* lets you store lighter items.
» The space under the center cupholders keeps frequently
accessed items within easy reach.
10
SYNC® 3* (cont.)COMFORT
*if equipped
*if equipped

1213

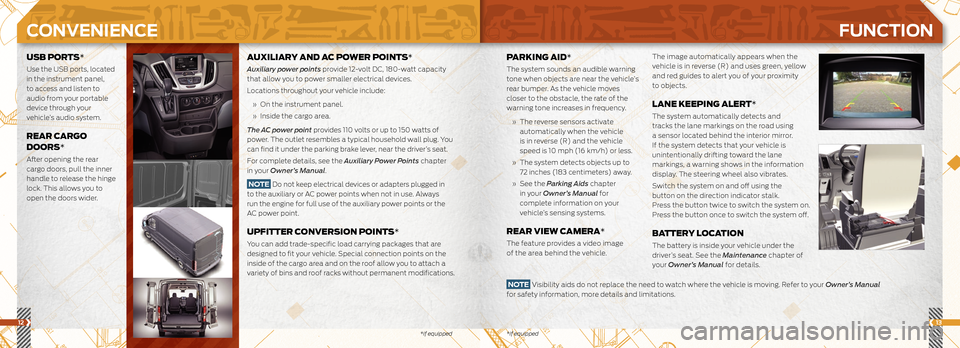

PARKING AID*
The system sounds an audible warning
tone when objects are near the vehicle’s
rear bumper. As the vehicle moves
closer to the obstacle, the rate of the
warning tone increases in frequency.
» The reverse sensors activate
automatically when the vehicle
is in reverse (R) and the vehicle
speed is 10 mph (16 km/h) or less.
» The system detects objects up to
72 inches (183 centimeters) away.
» See the Parking Aids chapter
in your Owner’s Manual for
complete information on your
vehicle’s sensing systems.
REAR VIEW CAMERA*
The feature provides a video image
of the area behind the vehicle. The image automatically appears when the
vehicle is in reverse (R) and uses green, yellow
and red guides to alert you of your proximity
to objects.
LANE KEEPING ALERT*
The system automatically detects and
tracks the lane markings on the road using
a sensor located behind the interior mirror.
If the system detects that your vehicle is
unintentionally drifting toward the lane
markings, a warning shows in the information
display. The steering wheel also vibrates.
Switch the system on and off using the
button on the direction indicator stalk.
Press the button twice to switch the system on.
Press the button once to switch the system off.
BATTERY LOCATION
The battery is inside your vehicle under the
driver’s seat. See the Maintenance chapter of
your Owner’s Manual for details.
AUXILIARY AND AC POWER POINTS*
Auxiliary power points
provide 12-volt DC, 180-watt capacity
that allow you to power smaller electrical devices.
Locations throughout your vehicle include:
» On the instrument panel.
» Inside the cargo area.
The AC power point provides 110 volts or up to 150 watts of
power. The outlet resembles a typical household wall plug. You
can find it under the parking brake lever, near the driver’s seat.
For complete details, see the Auxiliary Power Points chapter
in your Owner’s Manual.
NOTE Do not keep electrical devices or adapters plugged in
to the auxiliary or AC power points when not in use. Always
run the engine for full use of the auxiliary power points or the
AC power point.
UPFITTER CONVERSION POINTS*
You can add trade-specific load carrying packages that are
designed to fit your vehicle. Special connection points on the
inside of the cargo area and on the roof allow you to attach a
variety of bins and roof racks without permanent modifications.
USB PORTS*
Use the USB ports, located
in the instrument panel,
to access and listen to
audio from your portable
device through your
vehicle’s audio system.
REAR CARGO
DOORS*
After opening the rear
cargo doors, pull the inner
handle to release the hinge
lock. This allows you to
open the doors wider.
NOTE Visibility aids do not replace the need to watch where the vehicle is moving. Refer to your Owner’s Manual
for safety information, more details and limitations.
CONVENIENCE FUNCTION
*if equipped*if equipped

1415

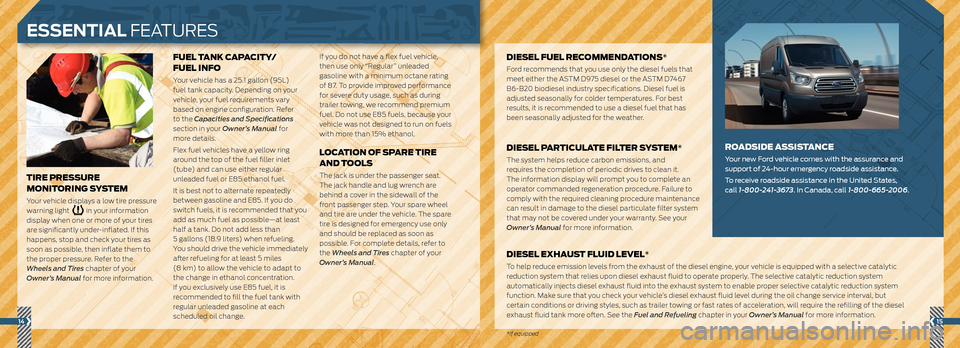

FUEL TANK CAPACITY/
FUEL INFO
Your vehicle has a 25.1 gallon (95L)
fuel tank capacity. Depending on your
vehicle, your fuel requirements vary
based on engine configuration. Refer
to the Capacities and Specifications
section in your Owner’s Manual for
more details.
Flex fuel vehicles have a yellow ring
around the top of the fuel filler inlet
(tube) and can use either regular
unleaded fuel or E85 ethanol fuel.
It is best not to alternate repeatedly
between gasoline and E85. If you do
switch fuels, it is recommended that you
add as much fuel as possible—at least
half a tank. Do not add less than
5 gallons (18.9 liters) when refueling.
You should drive the vehicle immediately
after refueling for at least 5 miles
(8 km) to allow the vehicle to adapt to
the change in ethanol concentration.
If you exclusively use E85 fuel, it is
recommended to fill the fuel tank with
regular unleaded gasoline at each
scheduled oil change. If you do not have a flex fuel vehicle,
then use only “Regular” unleaded
gasoline with a minimum octane rating
of 87. To provide improved performance
for severe duty usage, such as during
trailer towing, we recommend premium
fuel. Do not use E85 fuels, because your
vehicle was not designed to run on fuels
with more than 15% ethanol.
LOCATION OF SPARE TIRE

AND TOOLS
The jack is under the passenger seat.
The jack handle and lug wrench are
behind a cover in the sidewall of the
front passenger step. Your spare wheel
and tire are under the vehicle. The spare
tire is designed for emergency use only
and should be replaced as soon as
possible. For complete details, refer to
the Wheels and Tires chapter of your
Owner’s Manual.TIRE PRESSURE
MONITORING SYSTEM
Your vehicle displays a low tire pressure
warning light
in your information
display when one or more of your tires
are significantly under-inflated. If this
happens, stop and check your tires as
soon as possible, then inflate them to
the proper pressure. Refer to the
Wheels and Tires chapter of your
Owner’s Manual for more information.
DIESEL FUEL RECOMMENDATIONS*
Ford recommends that you use only the diesel fuels that
meet either the ASTM D975 diesel or the ASTM D7467
B6-B20 biodiesel industry specifications. Diesel fuel is
adjusted seasonally for colder temperatures. For best
results, it is recommended to use a diesel fuel that has
been seasonally adjusted for the weather.
DIESEL PARTICULATE FILTER SYSTEM*
The system helps reduce carbon emissions, and
requires the completion of periodic drives to clean it.
The information display will prompt you to complete an
operator commanded regeneration procedure. Failure to
comply with the required cleaning procedure maintenance
can result in damage to the diesel particulate filter system
that may not be covered under your warranty. See your
Owner’s Manual for more information.
ROADSIDE ASSISTANCE
Your new Ford vehicle comes with the assurance and
support of 24-hour emergency roadside assistance.
To receive roadside assistance in the United States,
call 1-800-241-3673. In Canada, call 1-800-665-2006.
ESSENTIAL FEATURES
DIESEL EXHAUST FLUID LEVEL*
To help reduce emission levels from the exhaust of the diesel engine, your vehicle is equipped with a selective catalytic
reduction system that relies upon diesel exhaust fluid to operate properly. The selective catalytic reduction system
automatically injects diesel exhaust fluid into the exhaust system to enable proper selective catalytic reduction system
function. Make sure that you check your vehicle’s diesel exhaust fluid level during the oil change service interval, but
certain conditions or driving styles, such as trailer towing or fast rates of acceleration, will require the refilling of the diesel
exhaust fluid tank more often. See the Fuel and Refueling chapter in your Owner’s Manual for more information.
*if equipped
