Less Cost to Properly Maintain Your
Vehicle
Ford Protect extended service plan also
offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle
’s maintenance.
Covered maintenance includes:
• Windshield wiper blades.
• Spark plugs.
• The clutch disc (if equipped).
• Brake pads and linings.
• Shock absorbers.
• Struts.
• Engine Belts.
• Engine coolant hoses, clamps and
o-rings.
• Diesel exhaust fluid replenishment (if
equipped).
• Cabin air filter replacement every
20,000 mi (32,000 km) (electric
vehicles only).
Interest Free Finance Options
Just a 10% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Ford Protect
extended service plan has to offer while
paying over time. You are pre-approved
with no credit check or hassles. To learn
more, call our Ford Protect extended
service plan specialists at 800-367-3377.
Ford Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232 Ford Protect Extended Service
Plan (CANADA ONLY)
You can get more protection for your
vehicle by purchasing a Ford Protect
extended service plan. Ford Protect
extended service plan is the only service
contract backed by Ford Motor Company
of Canada, Limited. Depending on the plan
you purchase, Ford Protect extended
service plan provides benefits such as:
•
Rental reimbursement.
• Coverage for certain maintenance and
wear items.
• Protection against repair costs after
your New Vehicle Limited Warranty
Coverage expires.
• Roadside Assistance benefits.
There are several Ford Protect extended
service plans available in various time,
distance and deductible combinations.
Each plan is tailored to fit your own driving
needs, including reimbursement for towing
and rental. When you purchase Ford
Protect extended service plan, you receive
added peace-of-mind protection
throughout Canada, the United States and
Mexico, provided by a network of
participating authorized Ford Motor
Company dealers.
Note: Repairs performed outside of
Canada, the United States and Mexico are
not eligible for Ford Protect extended
service plan coverage.
This information is subject to change. For
more information; visit your local Ford of
Canada dealer or www.ford.ca to find the
Ford Protect extended service plan that is
right for you.
458
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Ford Protect

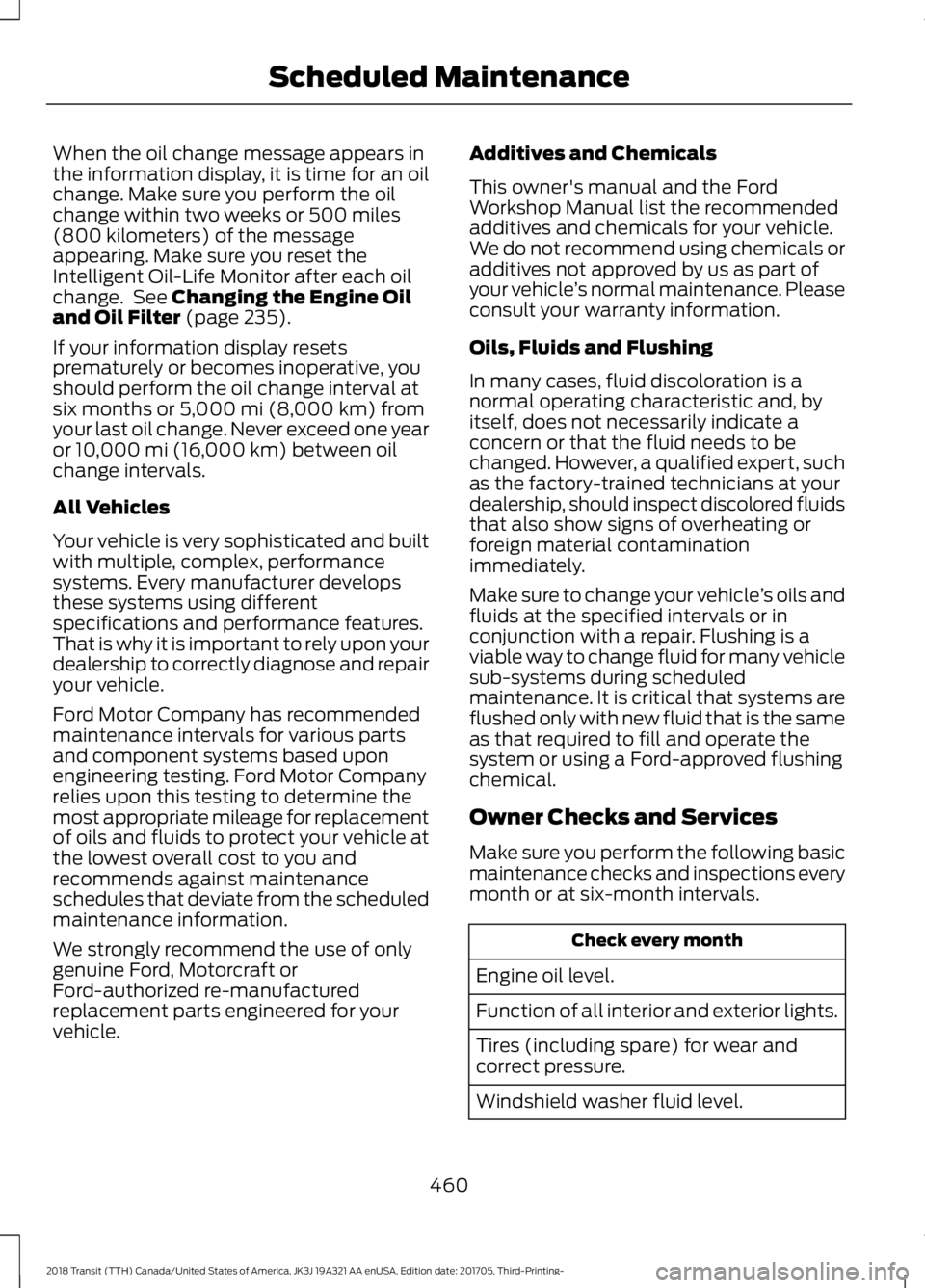

When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or 500 miles
(800 kilometers) of the message
appearing. Make sure you reset the
Intelligent Oil-Life Monitor after each oil
change. See Changing the Engine Oil
and Oil Filter (page 235).
If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or
5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or
10,000 mi (16,000 km) between oil
change intervals.
All Vehicles
Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to correctly diagnose and repair
your vehicle.
Ford Motor Company has recommended
maintenance intervals for various parts
and component systems based upon
engineering testing. Ford Motor Company
relies upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.
We strongly recommend the use of only
genuine Ford, Motorcraft or
Ford-authorized re-manufactured
replacement parts engineered for your
vehicle. Additives and Chemicals
This owner's manual and the Ford
Workshop Manual list the recommended
additives and chemicals for your vehicle.
We do not recommend using chemicals or
additives not approved by us as part of
your vehicle
’s normal maintenance. Please
consult your warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle ’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using a Ford-approved flushing
chemical.
Owner Checks and Services
Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals. Check every month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and
correct pressure.
Windshield washer fluid level.
460
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Scheduled Maintenance

Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstruc-
tions. Clean if necessary.
Cooling system fluid level and coolant
strength.
Door weatherstrips for wear. Lubricate if
necessary.
Hinges, latches and outside locks for
correct operation. Lubricate if necessary.
Parking brake for correct operation.
Seatbelts and seat latches for wear and
function.
Safety warning lamps (brake, ABS, airbag
and seatbelt) for operation.
Washer spray and wiper operation. Clean
or replace blades as necessary.
Multi-point Inspection
In order to keep your vehicle running
correctly, it is important to have the
systems on your vehicle checked regularly.
This can help identify potential issues and
prevent major problems. We recommend
having the following multi-point inspection
performed at every scheduled
maintenance interval to help make sure
your vehicle keeps running correctly. Multi-point inspection
Accessory drive belt(s).
Battery performance.
Engine air filter.
Exhaust system. Multi-point inspection
Exterior lamps and hazard warning
system operation.
Fluid levels *
; fill if necessary.
For oil and fluid leaks.
Horn operation.
Radiator, cooler, heater and A/C hoses.
Suspension component for leaks or
damage.
Steering and linkage.
Tires (including spare) for wear and
correct pressure **
.
Windshield for cracks, chips or pits.
Washer spray and wiper operation.
* Brake, coolant recovery reservoir,
automatic transmission, power steering (if
equipped with hydraulic power assist
steering) and window washer.
** If your vehicle is equipped with a
temporary mobility kit, check the tire
sealant expiration Use By date on the
canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle.
461
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Scheduled Maintenance

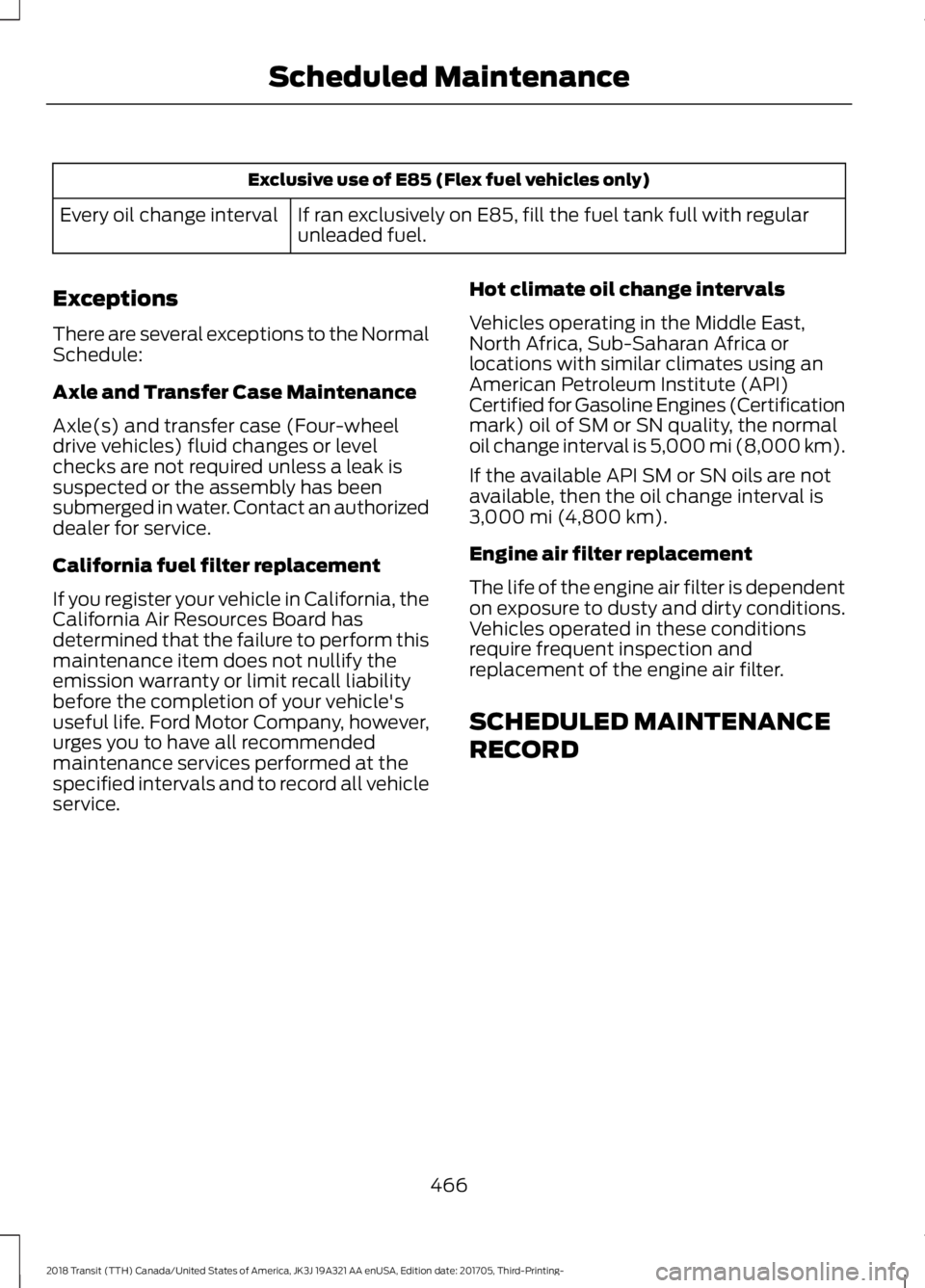

Exclusive use of E85 (Flex fuel vehicles only)
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change interval
Exceptions
There are several exceptions to the Normal
Schedule:
Axle and Transfer Case Maintenance
Axle(s) and transfer case (Four-wheel
drive vehicles) fluid changes or level
checks are not required unless a leak is
suspected or the assembly has been
submerged in water. Contact an authorized
dealer for service.
California fuel filter replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service. Hot climate oil change intervals
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 5,000 mi (8,000 km).
If the available API SM or SN oils are not
available, then the oil change interval is
3,000 mi (4,800 km)
.
Engine air filter replacement
The life of the engine air filter is dependent
on exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and
replacement of the engine air filter.
SCHEDULED MAINTENANCE
RECORD
466
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Scheduled Maintenance

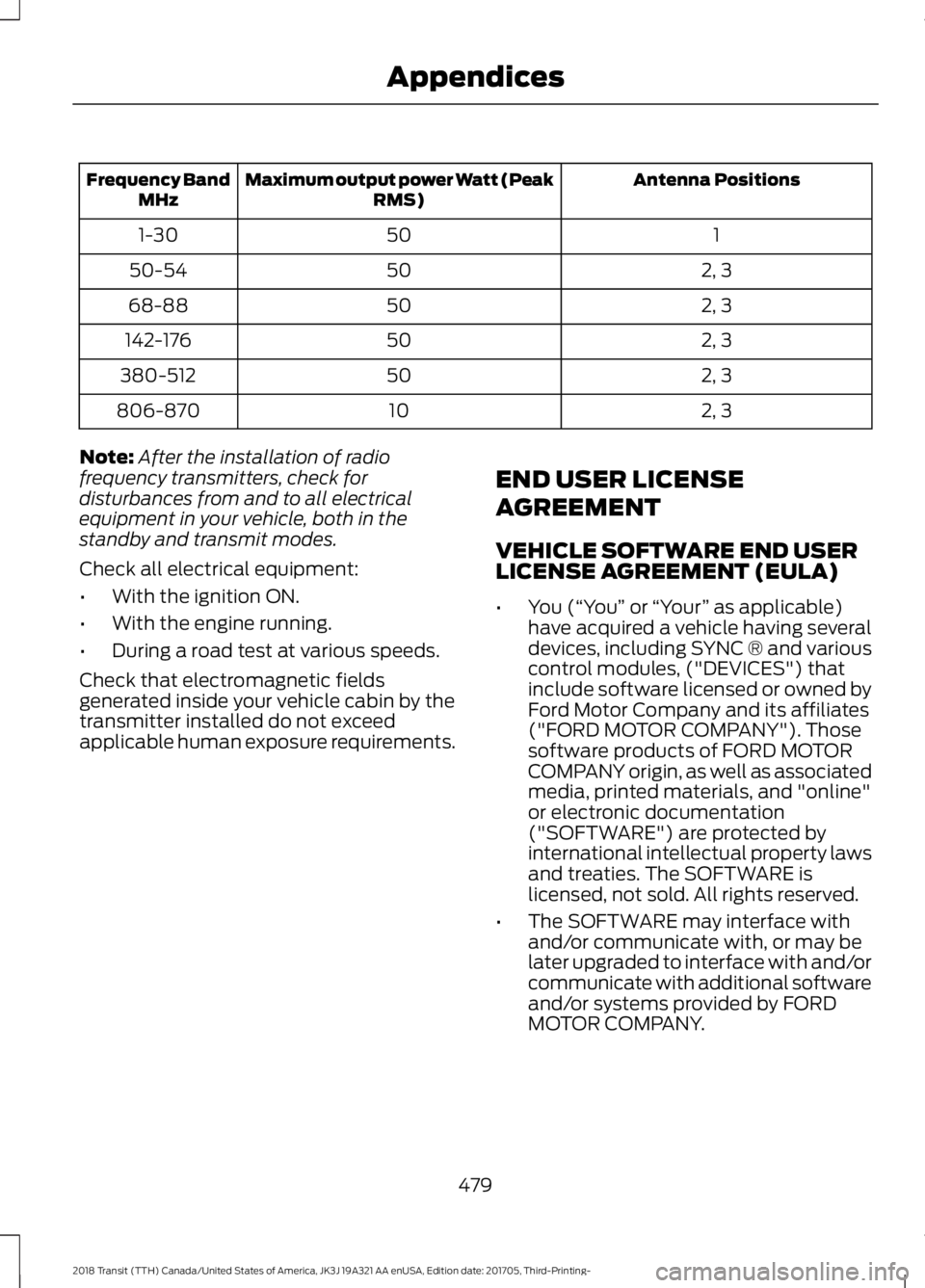

Antenna Positions
Maximum output power Watt (Peak
RMS)
Frequency Band
MHz
1
50
1-30
2, 3
50
50-54
2, 3
50
68-88
2, 3
50
142-176
2, 3
50
380-512
2, 3
10
806-870
Note: After the installation of radio
frequency transmitters, check for
disturbances from and to all electrical
equipment in your vehicle, both in the
standby and transmit modes.
Check all electrical equipment:
• With the ignition ON.
• With the engine running.
• During a road test at various speeds.
Check that electromagnetic fields
generated inside your vehicle cabin by the
transmitter installed do not exceed
applicable human exposure requirements. END USER LICENSE
AGREEMENT
VEHICLE SOFTWARE END USER
LICENSE AGREEMENT (EULA)
•
You (“You” or “Your ” as applicable)
have acquired a vehicle having several
devices, including SYNC ® and various
control modules, ("DEVICES") that
include software licensed or owned by
Ford Motor Company and its affiliates
("FORD MOTOR COMPANY"). Those
software products of FORD MOTOR
COMPANY origin, as well as associated
media, printed materials, and "online"
or electronic documentation
("SOFTWARE") are protected by
international intellectual property laws
and treaties. The SOFTWARE is
licensed, not sold. All rights reserved.
• The SOFTWARE may interface with
and/or communicate with, or may be
later upgraded to interface with and/or
communicate with additional software
and/or systems provided by FORD
MOTOR COMPANY.
479
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Appendices

Automatic Transmission.............................151
Automatic Transmission Adaptive
Learning............................................................. 154
Brake-Shift Interlock......................................... 153
If Your Vehicle Gets Stuck in Mud or Snow.................................................................. 154
SelectShift Automatic ™
Transmission................................................... 152
Understanding the Positions of Your Automatic Transmission.............................. 151
Automatic Transmission Fluid Check............................................................240
Autowipers.......................................................83
Auxiliary Power Points................................122
12 Volt DC Power Point...................................... 122
AC Power Point.................................................... 122
Locations................................................................ 122
Auxiliary Switches
.......................................455
B
Battery See: Changing the 12V Battery..................... 244
Bonnet Lock See: Opening and Closing the Hood..........229
Booster Seats..................................................33 Types of Booster Seats...................................... 34
Bottle Holder
..................................................125
Brake Fluid Check.........................................241
Brakes
...............................................................156
General Information.......................................... 156
Breaking-In.......................................................191
Bulb Specification Chart...........................253
C
Capacities and Specifications - 3.2L Power Stroke Diesel..................................313
Capacities.............................................................. 313
Specifications...................................................... 314
Capacities and Specifications - 3.5L Ecoboost™..................................................316
Alternative Engine Oil for Extremely Cold Climates........................................................... 320
Capacities.............................................................. 317
Specifications...................................................... 318Capacities and Specifications -
3.7L
..................................................................321
Alternative Engine Oil for Extremely Cold
Climates........................................................... 324
Capacities.............................................................. 321
Specifications...................................................... 322
Capacities and Specifications
...............305
Cargo Lamps...................................................88
Switching the Cargo Lamps Off..................... 88
Switching the Cargo Lamps On..................... 88
Car Wash See: Cleaning the Exterior............................... 261
Catalytic Converter - 3.5L/3.7L................142 On-Board Diagnostics System...................... 142
Changing a Bulb...........................................249 Central High Mounted Brake Lamp............252
Front Clearance Lamp...................................... 251
Headlamp............................................................. 249
Interior Lamp....................................................... 252
License Plate Lamp........................................... 252
Reading Lamps................................................... 253
Rear Lamps........................................................... 251
Side Direction Indicator.................................... 251
Sun Visor Mirror Lamp..................................... 253
Changing a Fuse...........................................227 Fuses....................................................................... 227
Changing a Road Wheel...........................292 Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 293
Front Jacking Points......................................... 298
Installing a Road Wheel.................................. 302
Locking Lug Nuts............................................... 294
Rear Jacking Points........................................... 299
Removing a Road Wheel................................. 301
Removing a Wheel Trim.................................. 299
Stowing the Wheel and Vehicle Jack.........303
Vehicle Jack......................................................... 296
Vehicles With a Spare Wheel....................... 294
Changing the 12V Battery.........................244 Removing the Battery...................................... 244
Replacing the Battery...................................... 246
Changing the Engine Air Filter - 3.2L Power Stroke Diesel.................................255
Changing the Engine Air Filter - 3.5L Ecoboost™.................................................256
Changing the Engine Air Filter - 3.7L..................................................................257
506
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

Changing the Engine Oil and Oil
Filter...............................................................235
Engine Lubrication for Severe Service
Operation
......................................................... 235
Changing the Front Wiper Blades.........246
Checking MyKey System Status..............66
Checking the Wiper Blades.....................246
Child Restraint and Seatbelt Maintenance.................................................44
Child Restraint Positioning.........................35
Child Safety
........................................................17
General Information............................................. 17
Child Safety Locks..........................................37 Left-Hand Side..................................................... 38
Right-Hand Side................................................... 38
Cigar Lighter
....................................................123
Cleaning Products......................................260
Cleaning the Engine....................................262
Cleaning the Exterior...................................261 Body Paintwork Preservation........................ 262
Cleaning the Chrome Trim.............................. 261
Cleaning the Headlamps................................. 261
Cleaning the Rear Window............................. 261
Sliding Door Tracks........................................... 262
Cleaning the Instrument Panel and Instrument Cluster Lens........................265
Cleaning the Interior...................................263 Fabric, Carpets, Cloth Seats, Headliners
and Floor Mats............................................... 263
Instrument Cluster Screens, LCD Screens and Radio Screens....................................... 264
Leather Interior................................................... 264
Rear Windows..................................................... 264
Seatbelts.............................................................. 264
Storage Compartments, Cup Holders and Ashtrays........................................................... 264
Suede Micro Fiber Fabric................................ 264
Cleaning the Wheels
..................................266
Cleaning the Windows and Wiper Blades...........................................................263
Clearing All MyKeys.......................................66
Climate Control
............................................109
Cold Weather Precautions.........................191
Coolant Check See: Engine Coolant Check............................ 236
Crash Sensors and Airbag Indicator........55 Creating a MyKey
...........................................65
Programming/Changing Configurable
Settings.............................................................. 66
Cruise Control
...................................................81
Principle of Operation...................................... 168
Cruise control See: Using Cruise Control................................ 168
Cup Holders
....................................................125
Customer Assistance..................................201
D
Data Recording
..................................................9
Event Data Recording.......................................... 10
Service Data Recording........................................ 9
Daytime Running Lamps
.............................87
Diesel Particulate Filter - 3.2L Diesel..............................................................145
Diesel Particulate Filter Automatic Regeneration................................................... 146
Diesel Particulate Filter Manual Regeneration................................................... 148
On-Board Diagnostics System...................... 146
Digital Radio..................................................342 HD Radio Reception and Station
Troubleshooting............................................ 343
Direction Indicators
........................................87
Doors and Locks.............................................70
Draining the Fuel Filter Water Trap - 3.2L Power Stroke Diesel.................................242
Changing the Fuel Filter.................................. 242
Purging Air From the Fuel System...............243
Drive Belt Routing - 3.2L Power Stroke Diesel.............................................................258
Drive Belt Routing - 3.5L Ecoboost™/ 3.7L
.................................................................258
Driver Alert......................................................169
Principle of Operation...................................... 169
Using Driver Alert................................................ 169
Driver and Passenger Airbags....................47 Children and Airbags........................................... 52
Passenger Airbag On and Off Switch ..........47
Proper Driver and Front Passenger Seating Adjustment........................................................ 52
Driving Aids
.....................................................169
Driving Hints....................................................191
Driving Through Water................................192
507
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

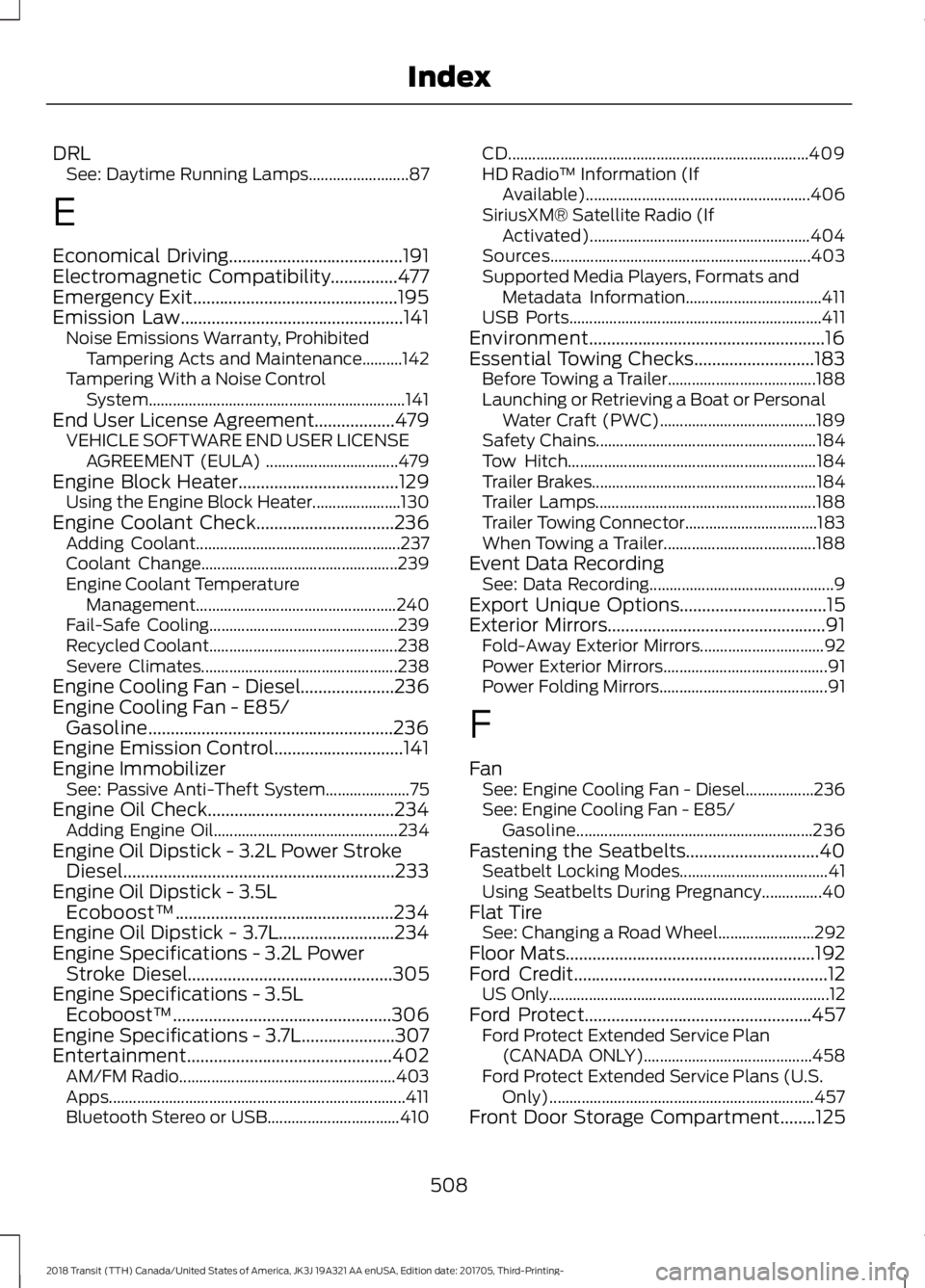

DRL
See: Daytime Running Lamps......................... 87
E
Economical Driving.......................................191
Electromagnetic Compatibility...............477
Emergency Exit..............................................195
Emission Law..................................................141 Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance..........142
Tampering With a Noise Control System................................................................ 141
End User License Agreement..................479 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................. 479
Engine Block Heater....................................129 Using the Engine Block Heater...................... 130
Engine Coolant Check
...............................236
Adding Coolant................................................... 237
Coolant Change................................................. 239
Engine Coolant Temperature Management.................................................. 240
Fail-Safe Cooling............................................... 239
Recycled Coolant............................................... 238
Severe Climates................................................. 238
Engine Cooling Fan - Diesel.....................236
Engine Cooling Fan - E85/ Gasoline.......................................................236
Engine Emission Control
.............................141
Engine Immobilizer See: Passive Anti-Theft System..................... 75
Engine Oil Check..........................................234 Adding Engine Oil.............................................. 234
Engine Oil Dipstick - 3.2L Power Stroke Diesel.............................................................233
Engine Oil Dipstick - 3.5L Ecoboost™.................................................234
Engine Oil Dipstick - 3.7L
..........................234
Engine Specifications - 3.2L Power Stroke Diesel
..............................................305
Engine Specifications - 3.5L Ecoboost™.................................................306
Engine Specifications - 3.7L.....................307
Entertainment..............................................402 AM/FM Radio...................................................... 403
Apps........................................................................\
.. 411
Bluetooth Stereo or USB................................. 410CD........................................................................\
...
409
HD Radio ™ Information (If
Available)........................................................ 406
SiriusXM® Satellite Radio (If Activated)....................................................... 404
Sources................................................................. 403
Supported Media Players, Formats and Metadata Information.................................. 411
USB Ports............................................................... 411
Environment.....................................................16
Essential Towing Checks
...........................183
Before Towing a Trailer..................................... 188
Launching or Retrieving a Boat or Personal Water Craft (PWC)....................................... 189
Safety Chains....................................................... 184
Tow Hitch.............................................................. 184
Trailer Brakes........................................................ 184
Trailer Lamps....................................................... 188
Trailer Towing Connector................................. 183
When Towing a Trailer...................................... 188
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options.................................15
Exterior Mirrors.................................................91 Fold-Away Exterior Mirrors............................... 92
Power Exterior Mirrors......................................... 91
Power Folding Mirrors.......................................... 91
F
Fan See: Engine Cooling Fan - Diesel.................236
See: Engine Cooling Fan - E85/
Gasoline........................................................... 236
Fastening the Seatbelts..............................40 Seatbelt Locking Modes..................................... 41
Using Seatbelts During Pregnancy...............40
Flat Tire See: Changing a Road Wheel........................ 292
Floor Mats
........................................................192
Ford Credit.........................................................12
US Only...................................................................... 12
Ford Protect...................................................457 Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 458
Ford Protect Extended Service Plans (U.S. Only).................................................................. 457
Front Door Storage Compartment........125
508
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

Front Wiper Blades
See: Changing the Front Wiper Blades......246
Fuel and Refueling........................................131
Fuel Consumption........................................139
Advertised Capacity.......................................... 139
Calculating Fuel Economy.............................. 140
Filling the Fuel Tank.......................................... 140
Fuel Filler Funnel Location........................136
Fuel Filter - Gasoline..................................244
Fuel Quality - Diesel.....................................132 Biodiesel................................................................. 133
Diesel Fuel Additives ........................................ 134
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where
Ultra-Low Sulfur Diesel Fuel Is Not
Required ........................................................... 132
Fuel Requirements - Choosing the Right Fuel: Vehicles Operated Where
Ultra-Low Sulfur Diesel Fuel is Required
(United States/Canada/Puerto Rico/U.S.
Virgin Islands and Other Locales)...........132
Fuel Quality - E85
.........................................135
Choosing the Right Fuel - Flex Fuel
Vehicles............................................................. 135
Switching Between E85 and Gasoline............................................................ 136
Fuel Quality - Gasoline...............................134 Choosing the Right Fuel................................... 134
Fuel Shutoff
....................................................195
Ignition Switch..................................................... 195
Fuse Box Locations....................................208 Body Control Module....................................... 208
Engine Compartment Fuse Box.................. 208
Passenger Compartment Fuse Box...........208
Pre-fuse Box....................................................... 208
Fuses................................................................208
Fuse Specification Chart - 3.2L Power Stroke Diesel..............................................208
Body Control Module........................................ 216
Engine Compartment Fuse Box.................. 209
Passenger Compartment Fuse Box.............212
Fuse Specification Chart - 3.5L Ecoboost™/3.7L.........................................217
Body Control Module........................................ 225
Engine Compartment Fuse Box.................... 218
Passenger Compartment Fuse Box.............221 G
Gauges...............................................................93
Engine Coolant Temperature Gauge............93
Fuel Gauge............................................................. 94
Information Display............................................. 93
Tripmeter Reset and Distance to Empty.................................................................. 94
Gearbox See: Transmission............................................... 151
General Information on Radio Frequencies...................................................59
General Maintenance Information.......459 Multi-point Inspection...................................... 461
Owner Checks and Services......................... 460
Protecting Your Investment.......................... 459
Why Maintain Your Vehicle?......................... 459
Why Maintain Your Vehicle at Your Dealership?..................................................... 459
Getting Assistance Outside the U.S. and Canada.........................................................204
Getting the Services You Need...............201 Away From Home............................................... 201
H
Handbrake See: Parking Brake - Vehicles With:
Mechanical Parking Brake.......................... 157
See: Parking Brake - Vehicles With: Push Down Parking Brake...................................... 157
Hazard Flashers............................................195
Headlamp Adjusting See: Adjusting the Headlamps..................... 247
Headlamp Removal See: Removing a Headlamp.......................... 248
Headrest See: Head Restraints.......................................... 113
Head Restraints..............................................113 Adjusting the Head Restraint.......................... 114
Installing the Head Restraint ......................... 114
Removing the Head Restraint......................... 114
Heated Seats
.................................................120
Heated Windows and Mirrors....................111 Heated Exterior Mirrors....................................... 111
Heated Rear Window.......................................... 111
Heating See: Climate Control......................................... 109
509
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

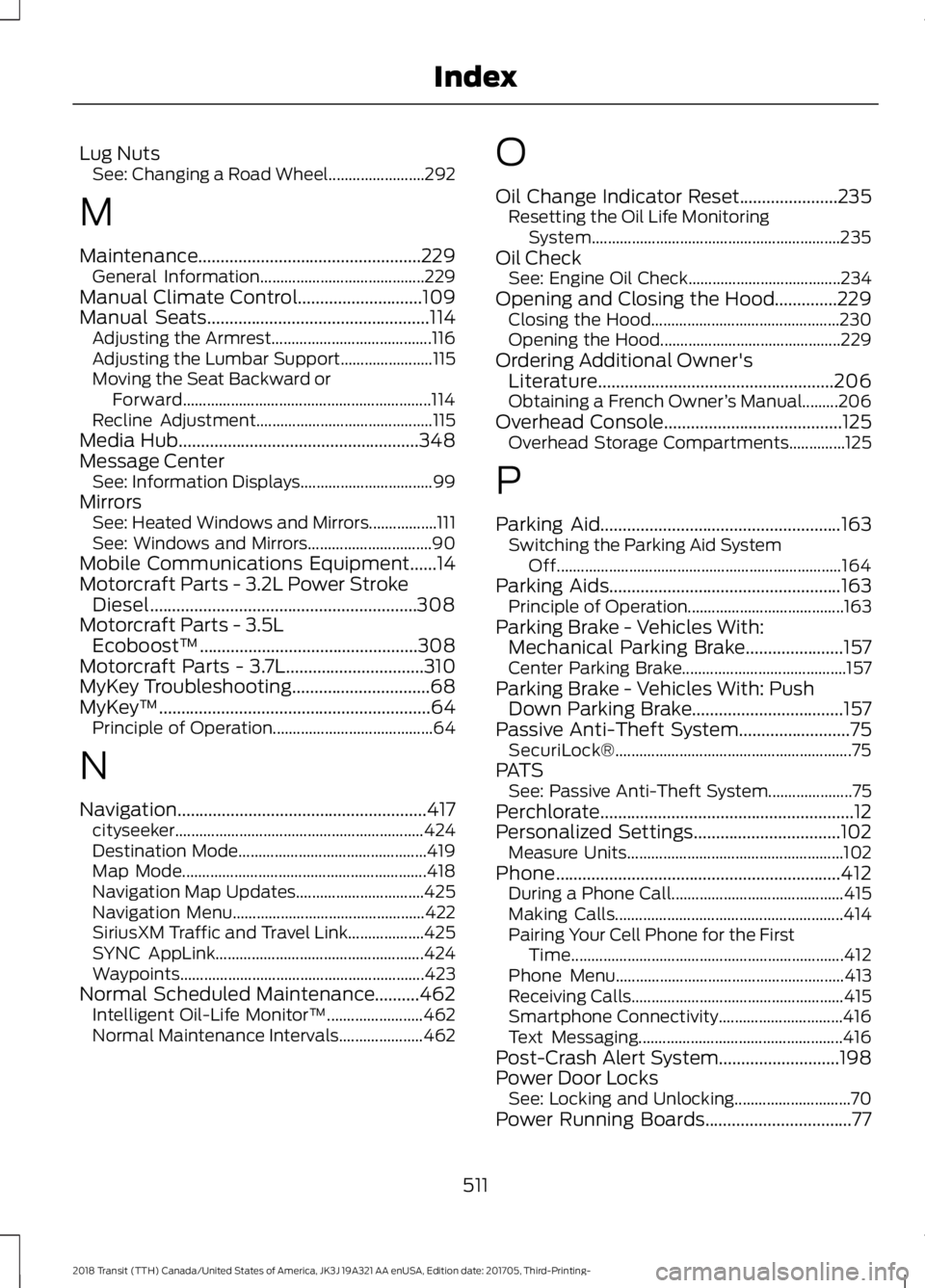

Lug Nuts
See: Changing a Road Wheel........................ 292
M
Maintenance ..................................................229
General Information......................................... 229
Manual Climate Control............................109
Manual Seats
..................................................114
Adjusting the Armrest........................................ 116
Adjusting the Lumbar Support....................... 115
Moving the Seat Backward or Forward.............................................................. 114
Recline Adjustment............................................ 115
Media Hub......................................................348
Message Center See: Information Displays................................. 99
Mirrors See: Heated Windows and Mirrors.................111
See: Windows and Mirrors............................... 90
Mobile Communications Equipment......14
Motorcraft Parts - 3.2L Power Stroke Diesel............................................................308
Motorcraft Parts - 3.5L Ecoboost™.................................................308
Motorcraft Parts - 3.7L...............................310
MyKey Troubleshooting...............................68
MyKey ™.............................................................64
Principle of Operation........................................ 64
N
Navigation........................................................417 cityseeker.............................................................. 424
Destination Mode............................................... 419
Map Mode............................................................. 418
Navigation Map Updates................................ 425
Navigation Menu................................................ 422
SiriusXM Traffic and Travel Link................... 425
SYNC AppLink.................................................... 424
Waypoints............................................................. 423
Normal Scheduled Maintenance..........462 Intelligent Oil-Life Monitor™........................ 462
Normal Maintenance Intervals..................... 462O
Oil Change Indicator Reset......................235
Resetting the Oil Life Monitoring
System.............................................................. 235
Oil Check See: Engine Oil Check...................................... 234
Opening and Closing the Hood..............229 Closing the Hood............................................... 230
Opening the Hood............................................. 229
Ordering Additional Owner's Literature.....................................................206
Obtaining a French Owner ’s Manual.........206
Overhead Console
........................................125
Overhead Storage Compartments..............125
P
Parking Aid
......................................................163
Switching the Parking Aid System
Off....................................................................... 164
Parking Aids
....................................................163
Principle of Operation....................................... 163
Parking Brake - Vehicles With: Mechanical Parking Brake
......................157
Center Parking Brake......................................... 157
Parking Brake - Vehicles With: Push Down Parking Brake..................................157
Passive Anti-Theft System.........................75 SecuriLock®........................................................... 75
PATS See: Passive Anti-Theft System..................... 75
Perchlorate.........................................................12
Personalized Settings
.................................102
Measure Units...................................................... 102
Phone................................................................412 During a Phone Call........................................... 415
Making Calls......................................................... 414
Pairing Your Cell Phone for the First Time.................................................................... 412
Phone Menu......................................................... 413
Receiving Calls..................................................... 415
Smartphone Connectivity............................... 416
Text Messaging................................................... 416
Post-Crash Alert System
...........................198
Power Door Locks See: Locking and Unlocking............................. 70
Power Running Boards
.................................77
511
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index
