headlamp FORD TRANSIT CONNECT 2010 1.G User Guide

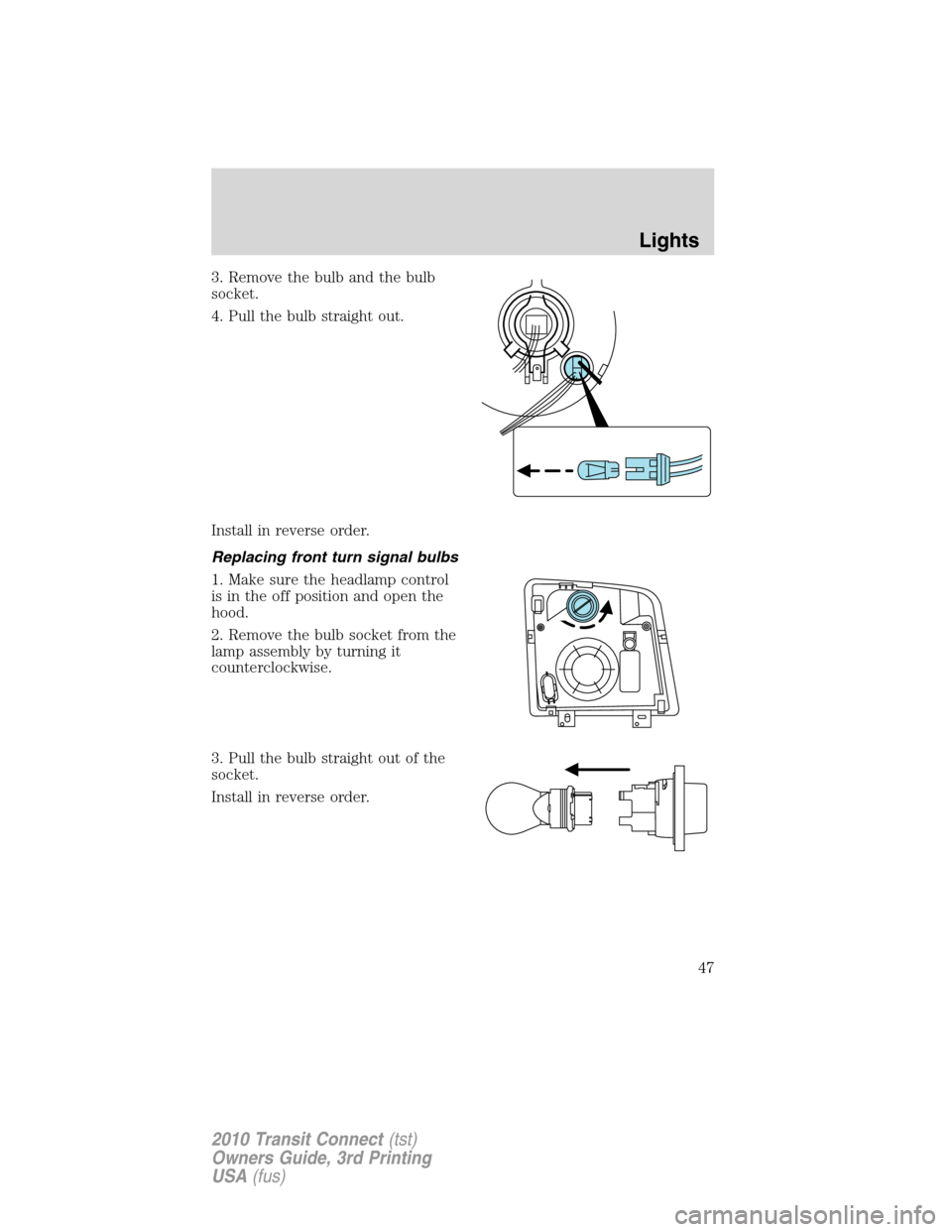

3. Remove the bulb and the bulb
socket.
4. Pull the bulb straight out.
Install in reverse order.
Replacing front turn signal bulbs
1. Make sure the headlamp control
is in the off position and open the
hood.
2. Remove the bulb socket from the
lamp assembly by turning it
counterclockwise.
3. Pull the bulb straight out of the
socket.
Install in reverse order.
Lights
47
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

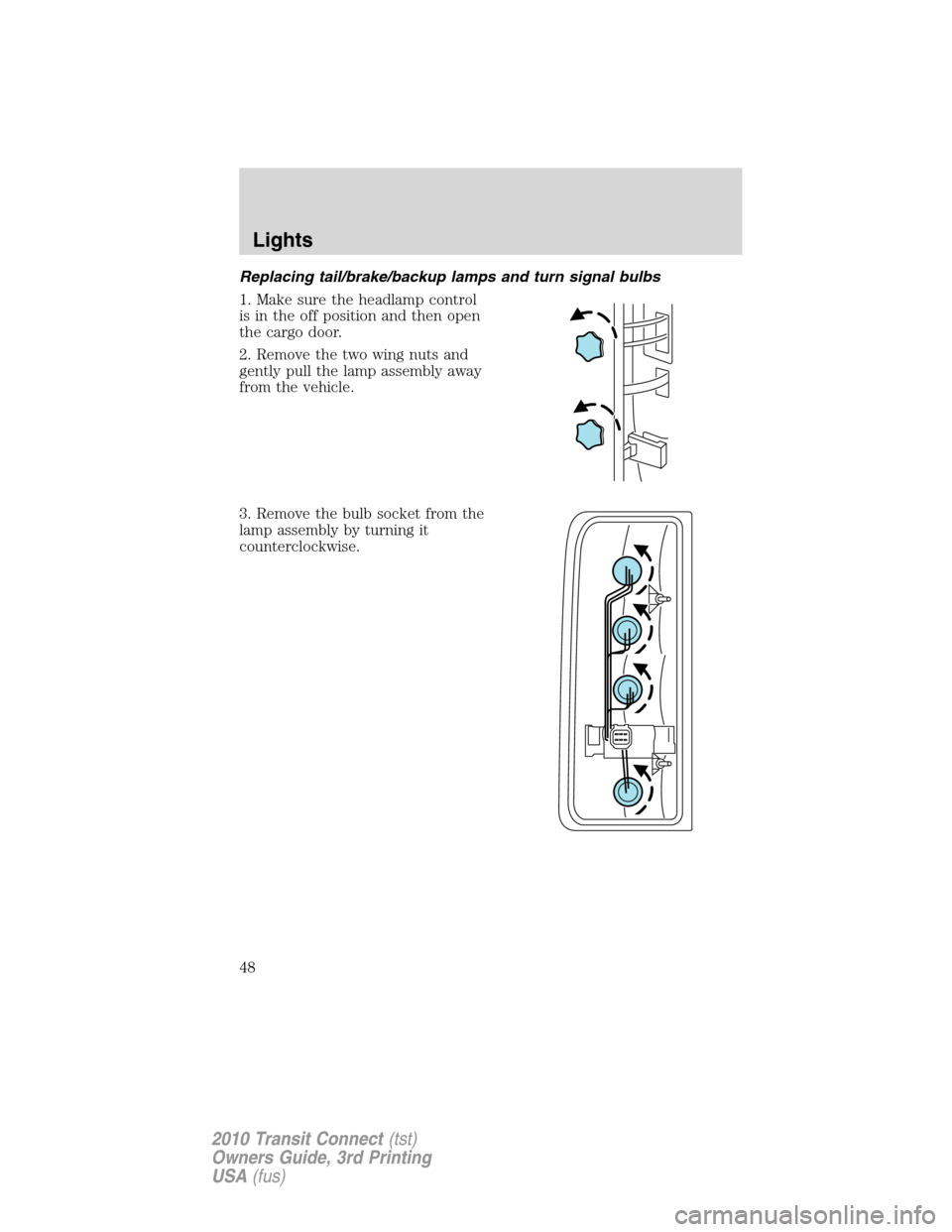

Replacing tail/brake/backup lamps and turn signal bulbs
1. Make sure the headlamp control
is in the off position and then open
the cargo door.
2. Remove the two wing nuts and
gently pull the lamp assembly away
from the vehicle.
3. Remove the bulb socket from the
lamp assembly by turning it
counterclockwise.
Lights
48
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

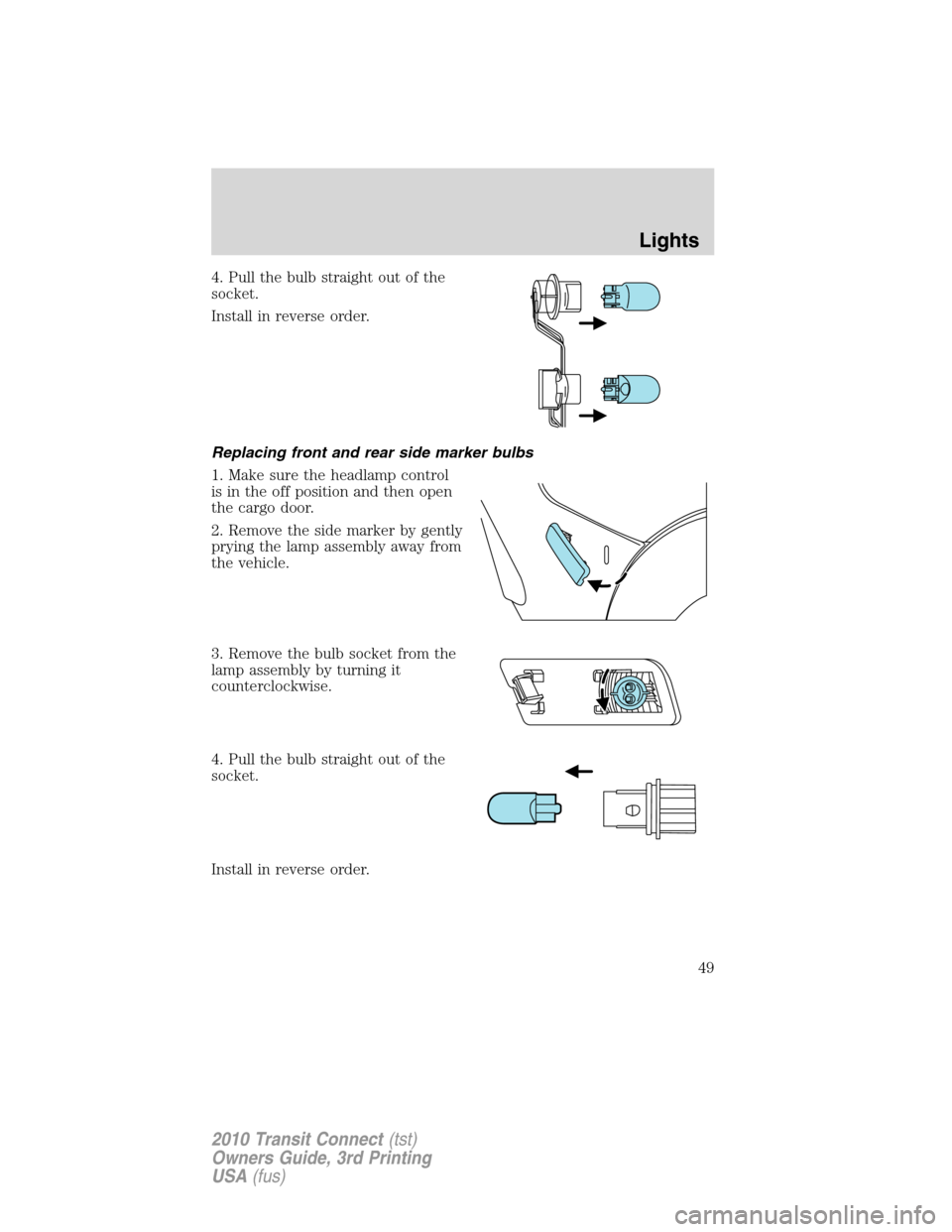

4. Pull the bulb straight out of the
socket.
Install in reverse order.
Replacing front and rear side marker bulbs
1. Make sure the headlamp control
is in the off position and then open
the cargo door.
2. Remove the side marker by gently
prying the lamp assembly away from
the vehicle.
3. Remove the bulb socket from the
lamp assembly by turning it
counterclockwise.
4. Pull the bulb straight out of the
socket.
Install in reverse order.
Lights
49
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

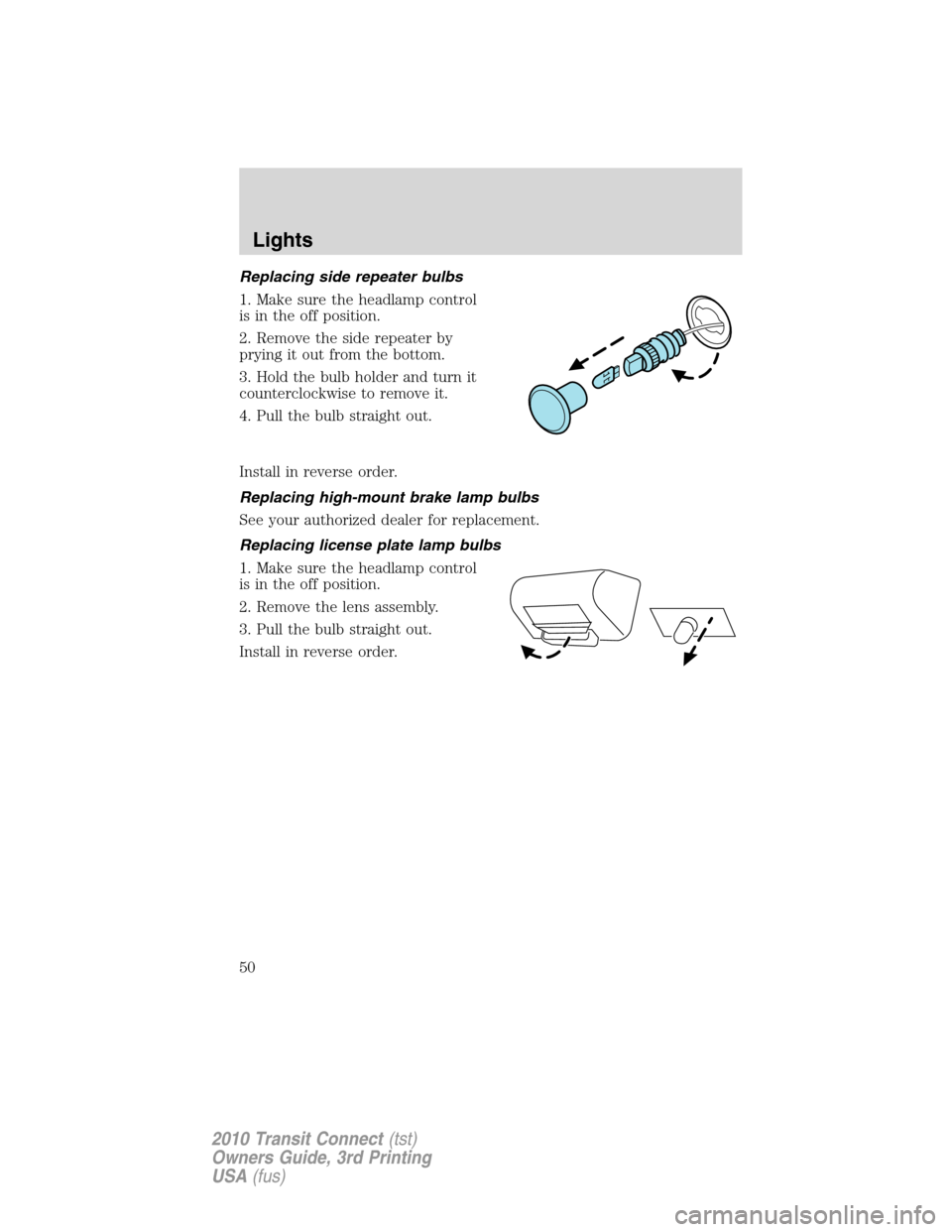

Replacing side repeater bulbs
1. Make sure the headlamp control
is in the off position.
2. Remove the side repeater by
prying it out from the bottom.
3. Hold the bulb holder and turn it
counterclockwise to remove it.
4. Pull the bulb straight out.
Install in reverse order.
Replacing high-mount brake lamp bulbs
See your authorized dealer for replacement.
Replacing license plate lamp bulbs
1. Make sure the headlamp control
is in the off position.
2. Remove the lens assembly.
3. Pull the bulb straight out.
Install in reverse order.
Lights
50
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
•Make sure the gearshift is in P
(Park).
Driving
156
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
120 — Headlamps, Low beam interrupt
relay
121 — Not used
122 — Rear window defroster relay
123 — Heater blower relay
124 — Interior lamps relay
125 — Windshield wipers relay
126 — Rear unlock relay
130 15A Hazard flashers
131 5A Power mirrors
132 10A Light switch, Exterior lighting
133 — Not used
Roadside Emergencies
178
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
8 15A* Headlamps
9 40A** Passenger compartment fuse
panel II
10 30A** Passenger compartment fuse
panel III
11 30A** Start lock
12 30A** Anti-lock brake system (ABS)
pump motor
13 30A* Heater blower motor
14 10A* PCM relay
15 20A** ABS/Traction control valves
16 30A** Cooling fan – low
17 50A** Cooling fan – high
18 20A** Daytime running lamps (DRL),
Low beam interrupt relay
19 20A** Tire pressure monitoring system
20 — A/C clutch relay
21A — Ignition overload relay
21B — Not used
21C — High beam headlamp relay
21D — PCM relay
22 10A* PCM, Auxiliary connector, Fuel
injectors
23 10A* Right low beam headlamp
24 10A* A/C clutch solenoid
25 10A* Left low beam headlamp
26 10A* Mass air flow sensor, Brake
switch, Backup lamps relay, EGR
stepper motor, EVAP canister
purge valve, Heated oxygen
sensors, Floor shifter,
Transmission range sensor
Roadside Emergencies
182
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

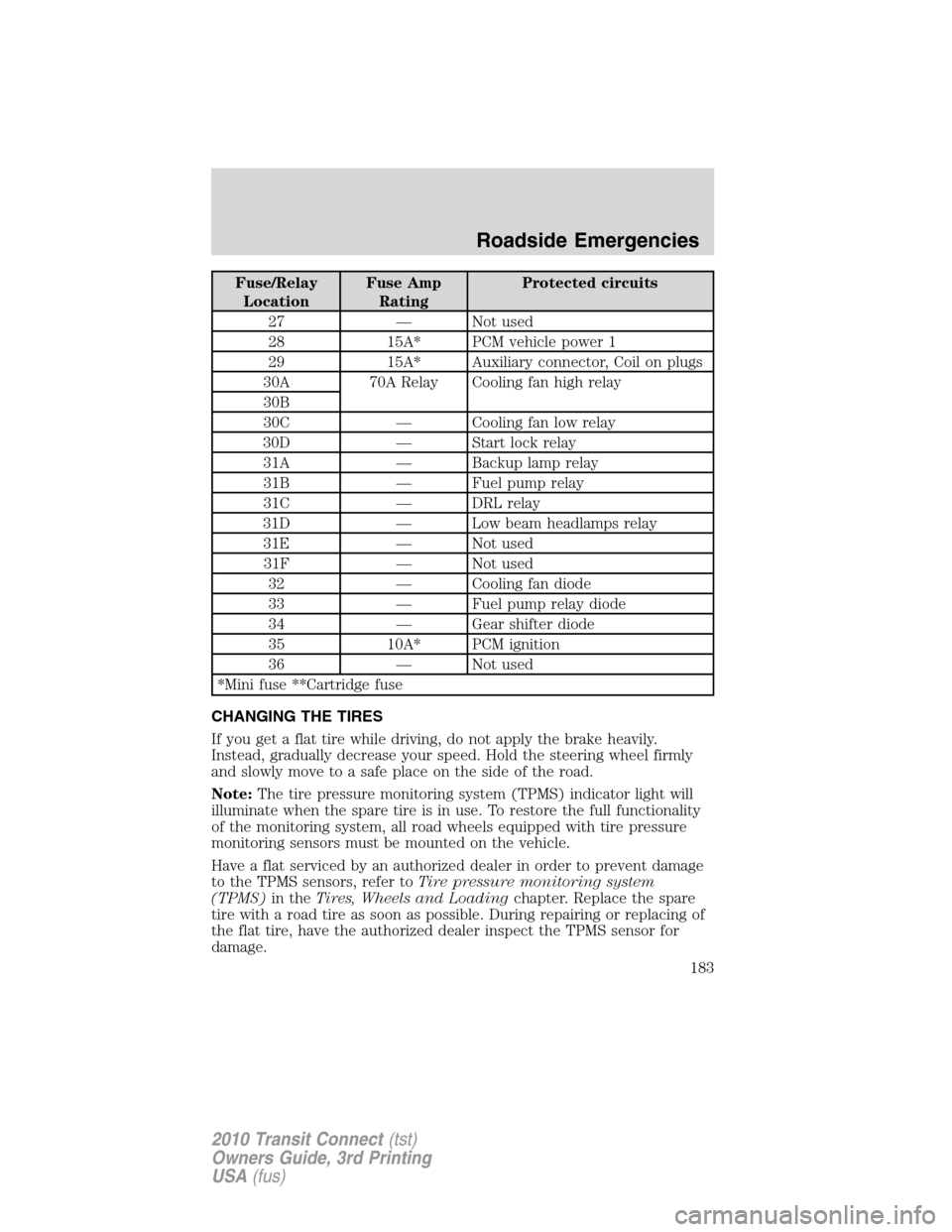

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
27 — Not used
28 15A* PCM vehicle power 1
29 15A* Auxiliary connector, Coil on plugs
30A 70A Relay Cooling fan high relay
30B
30C — Cooling fan low relay
30D — Start lock relay
31A — Backup lamp relay
31B — Fuel pump relay
31C — DRL relay
31D — Low beam headlamps relay
31E — Not used
31F — Not used
32 — Cooling fan diode
33 — Fuel pump relay diode
34 — Gear shifter diode
35 10A* PCM ignition
36 — Not used
*Mini fuse **Cartridge fuse
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
Roadside Emergencies
183
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)
