headlamp FORD TRANSIT CONNECT 2010 1.G Owners Manual

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Entertainment Systems 20
AM/FM stereo 20
AM/FM stereo with CD 21
Auxiliary input jack (Line in) 24
Bluetooth system 25
Climate Controls 36
Manual heating and air conditioning 36
Rear window defroster 38
Lights 39
Headlamps 39
Turn signal control 42
Bulb replacement 43
Driver Controls 51
Windshield wiper/washer control 51
Steering wheel adjustment 52
Power windows 54
Mirrors 55
Speed control 56
Locks and Security 62
Keys 62
Anti-theft system 67
Table of Contents
1
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

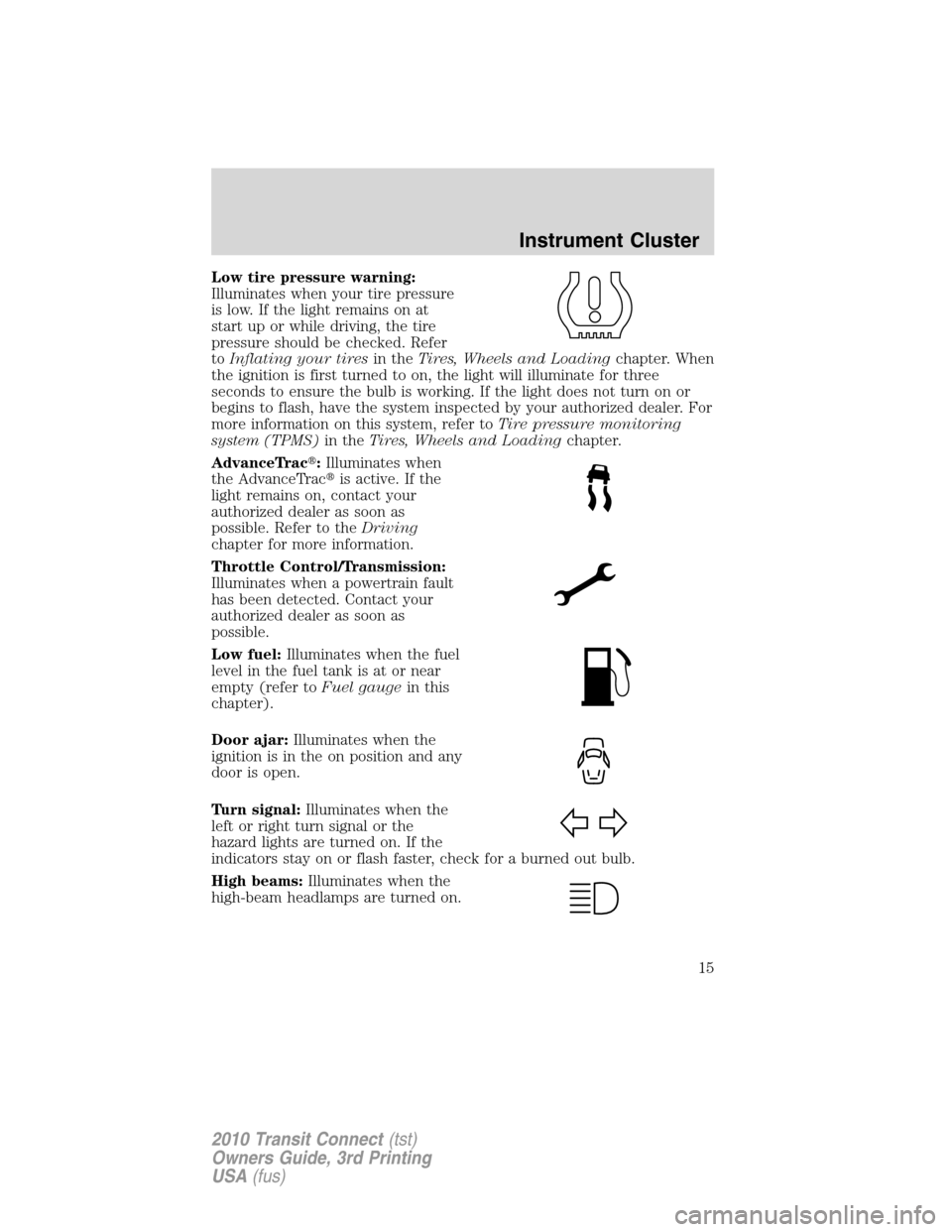

Low tire pressure warning:
Illuminates when your tire pressure
is low. If the light remains on at
start up or while driving, the tire
pressure should be checked. Refer
toInflating your tiresin theTires, Wheels and Loadingchapter. When
the ignition is first turned to on, the light will illuminate for three
seconds to ensure the bulb is working. If the light does not turn on or
begins to flash, have the system inspected by your authorized dealer. For
more information on this system, refer toTire pressure monitoring
system (TPMS)in theTires, Wheels and Loadingchapter.
AdvanceTrac:Illuminates when
the AdvanceTracis active. If the
light remains on, contact your
authorized dealer as soon as
possible. Refer to theDriving
chapter for more information.
Throttle Control/Transmission:
Illuminates when a powertrain fault
has been detected. Contact your
authorized dealer as soon as
possible.
Low fuel:Illuminates when the fuel
level in the fuel tank is at or near
empty (refer toFuel gaugein this
chapter).
Door ajar:Illuminates when the
ignition is in the on position and any
door is open.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams:Illuminates when the
high-beam headlamps are turned on.
Instrument Cluster
15
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

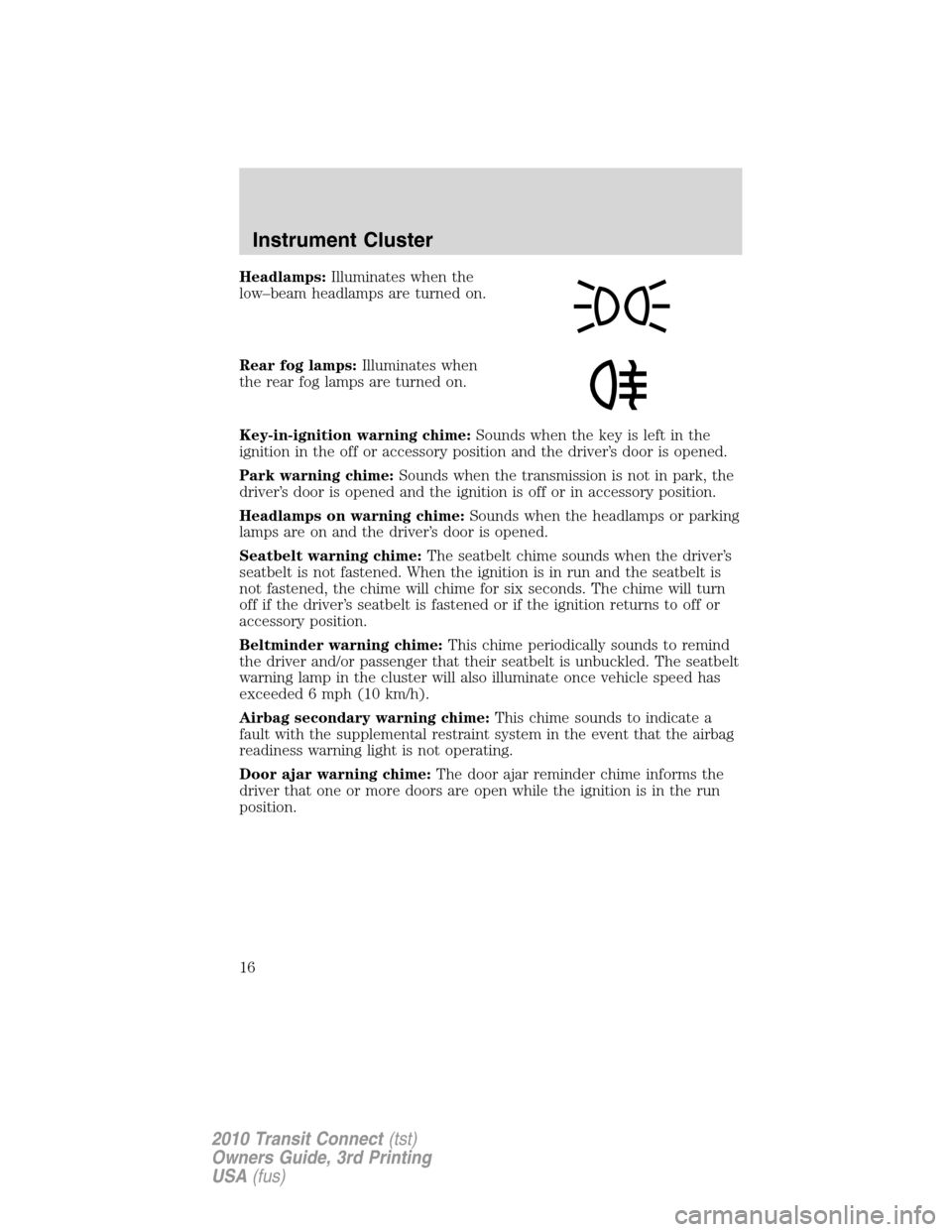

Headlamps:Illuminates when the
low–beam headlamps are turned on.
Rear fog lamps:Illuminates when
the rear fog lamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off or accessory position and the driver’s door is opened.
Park warning chime:Sounds when the transmission is not in park, the
driver’s door is opened and the ignition is off or in accessory position.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on and the driver’s door is opened.
Seatbelt warning chime:The seatbelt chime sounds when the driver’s
seatbelt is not fastened. When the ignition is in run and the seatbelt is
not fastened, the chime will chime for six seconds. The chime will turn
off if the driver’s seatbelt is fastened or if the ignition returns to off or
accessory position.
Beltminder warning chime:This chime periodically sounds to remind
the driver and/or passenger that their seatbelt is unbuckled. The seatbelt
warning lamp in the cluster will also illuminate once vehicle speed has
exceeded 6 mph (10 km/h).
Airbag secondary warning chime:This chime sounds to indicate a
fault with the supplemental restraint system in the event that the airbag
readiness warning light is not operating.
Door ajar warning chime:The door ajar reminder chime informs the
driver that one or more doors are open while the ignition is in the run
position.
Instrument Cluster
16
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

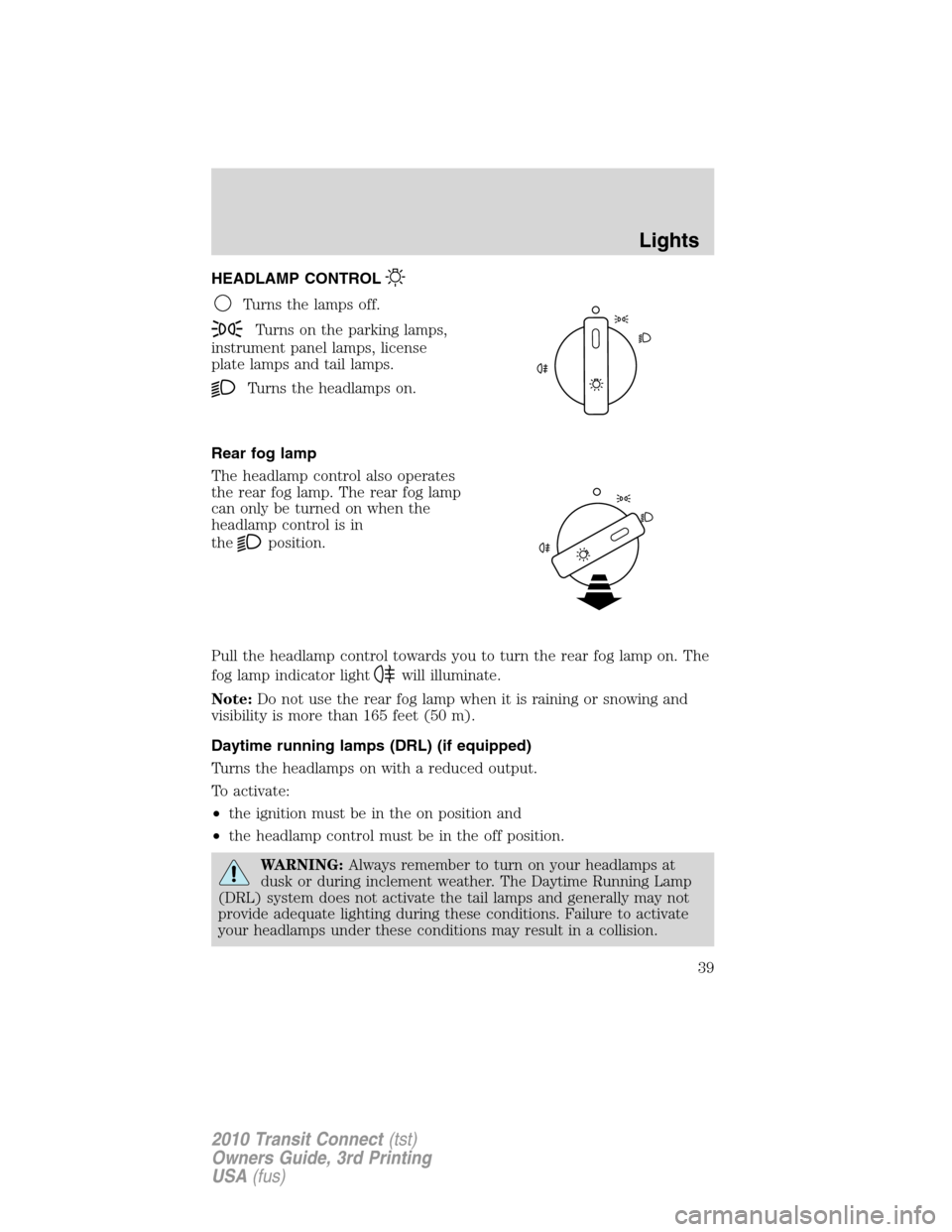

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Rear fog lamp
The headlamp control also operates
the rear fog lamp. The rear fog lamp
can only be turned on when the
headlamp control is in
the
position.
Pull the headlamp control towards you to turn the rear fog lamp on. The
fog lamp indicator light
will illuminate.
Note:Do not use the rear fog lamp when it is raining or snowing and
visibility is more than 165 feet (50 m).
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the on position and
•the headlamp control must be in the off position.
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
Lights
39
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

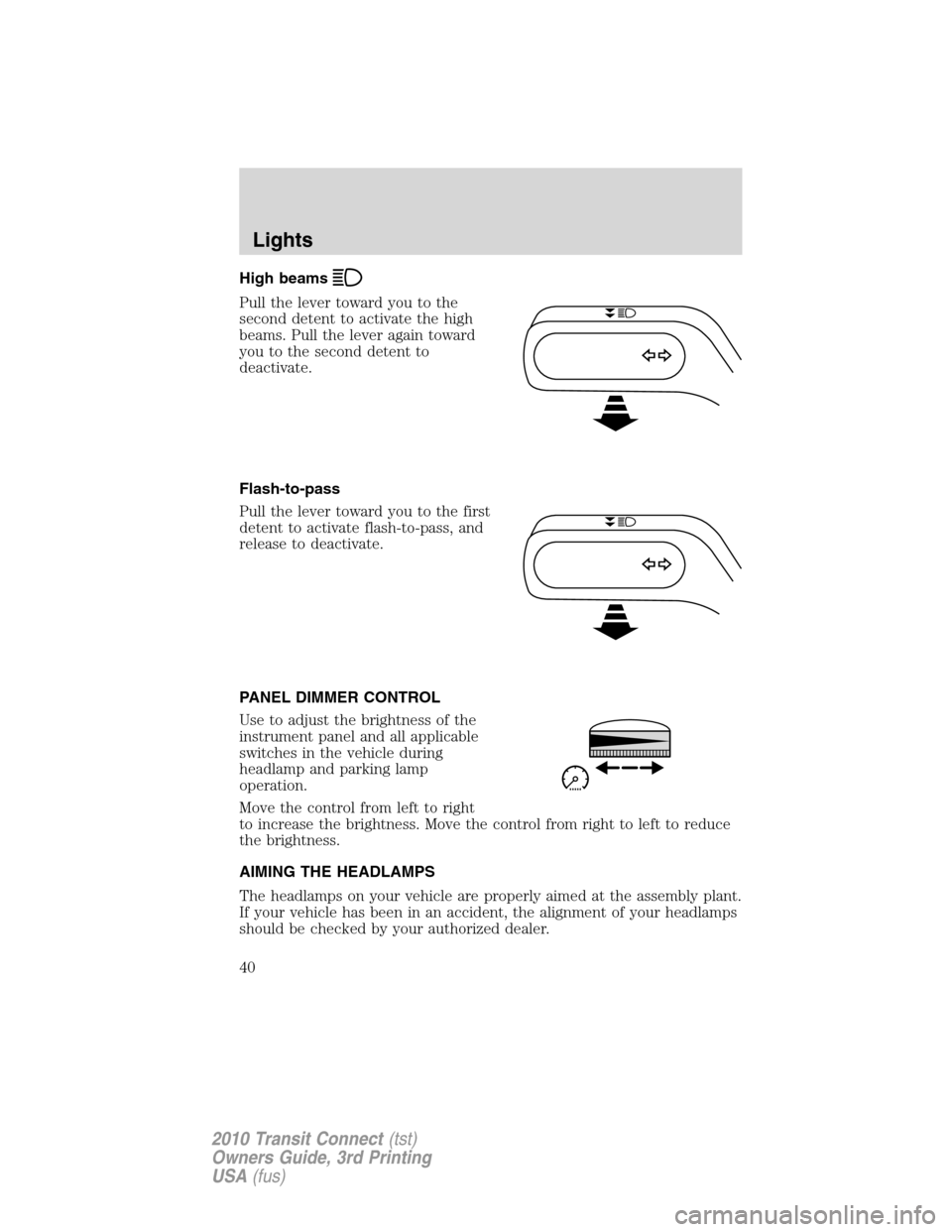

High beams
Pull the lever toward you to the
second detent to activate the high
beams. Pull the lever again toward
you to the second detent to
deactivate.
Flash-to-pass
Pull the lever toward you to the first
detent to activate flash-to-pass, and
release to deactivate.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle during
headlamp and parking lamp
operation.
Move the control from left to right
to increase the brightness. Move the control from right to left to reduce
the brightness.
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Lights
40
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

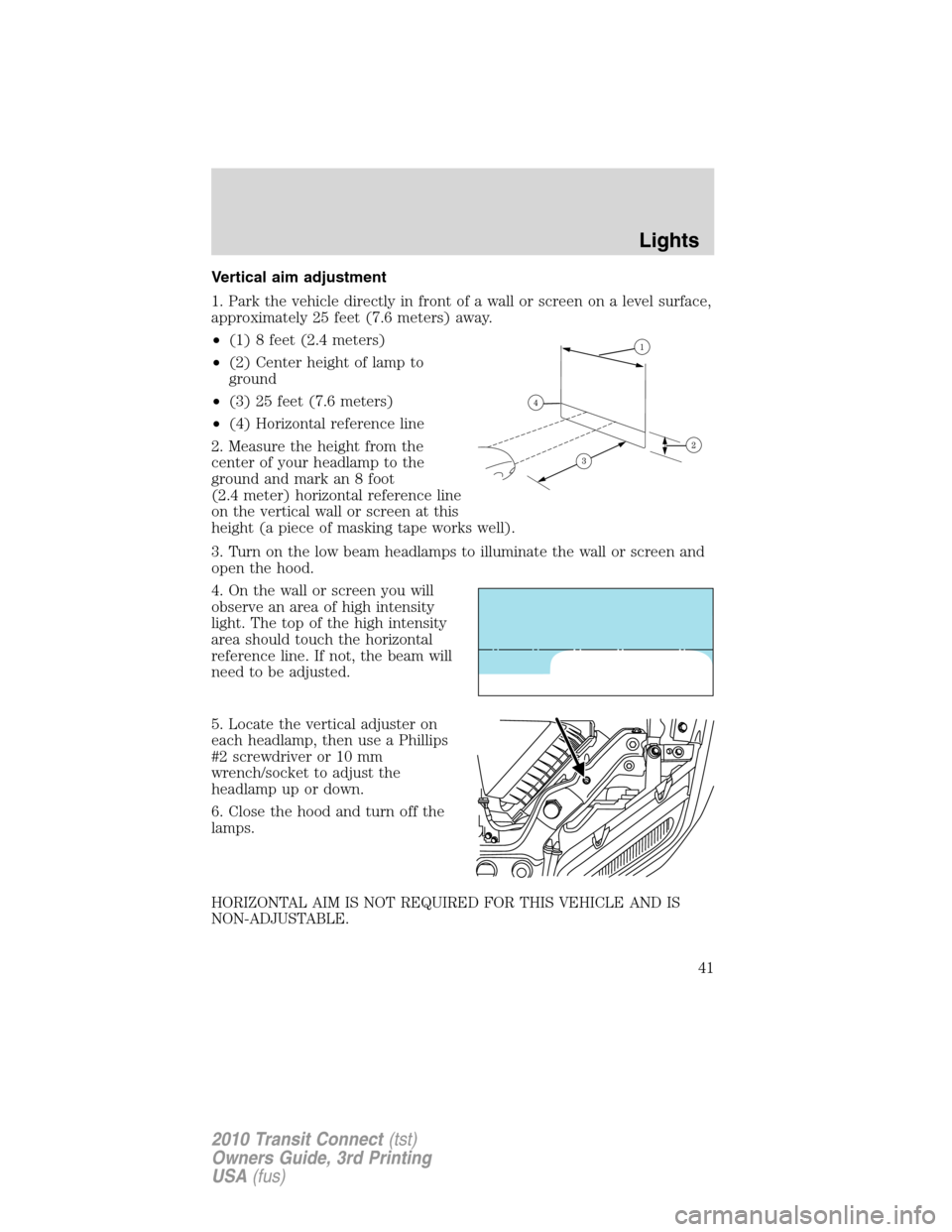

Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height from the
center of your headlamp to the
ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height (a piece of masking tape works well).
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
4. On the wall or screen you will
observe an area of high intensity
light. The top of the high intensity
area should touch the horizontal
reference line. If not, the beam will
need to be adjusted.
5. Locate the vertical adjuster on
each headlamp, then use a Phillips
#2 screwdriver or 10 mm
wrench/socket to adjust the
headlamp up or down.
6. Close the hood and turn off the
lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
Lights
41
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

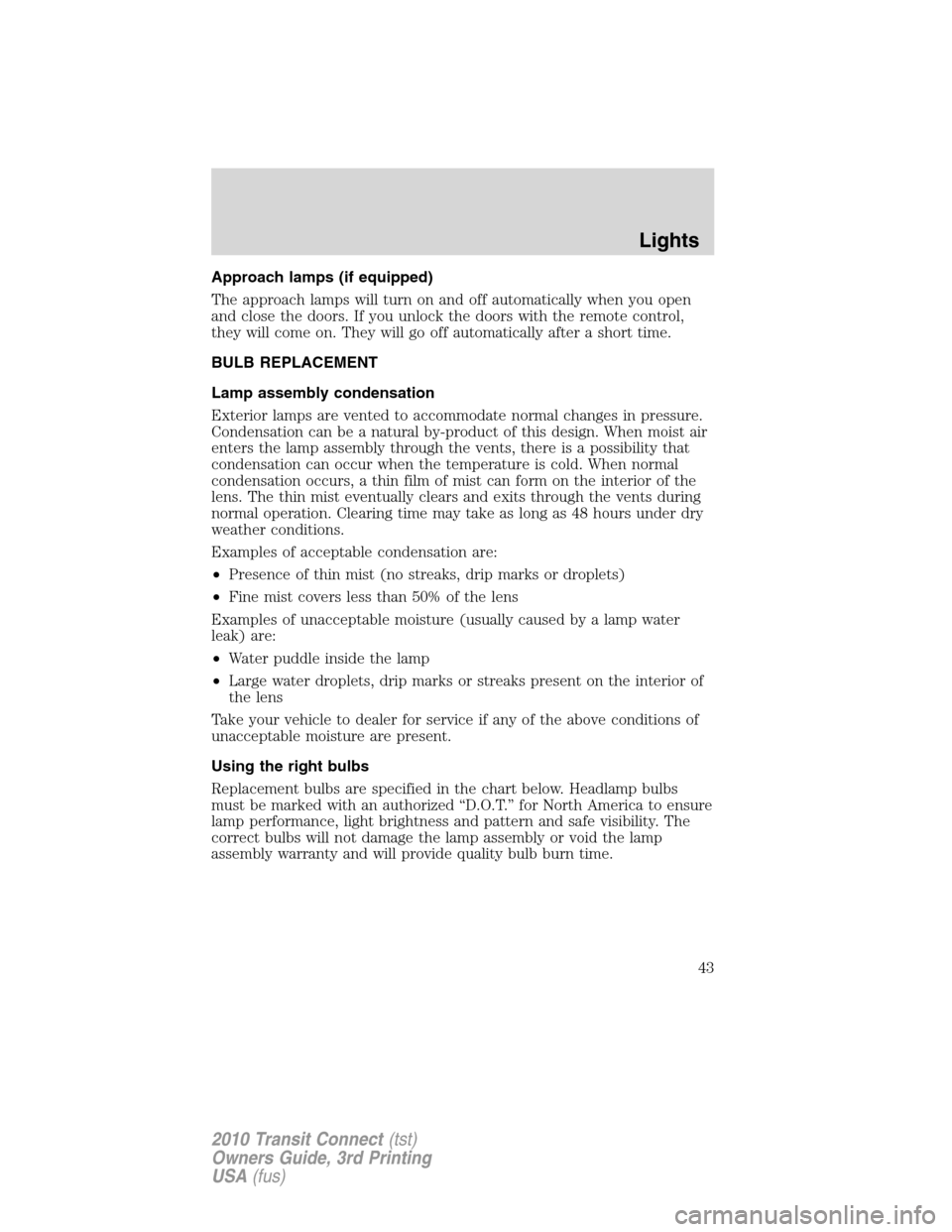

Approach lamps (if equipped)
The approach lamps will turn on and off automatically when you open
and close the doors. If you unlock the doors with the remote control,
they will come on. They will go off automatically after a short time.
BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets)
•Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
•Water puddle inside the lamp
•Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to ensure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Lights
43
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

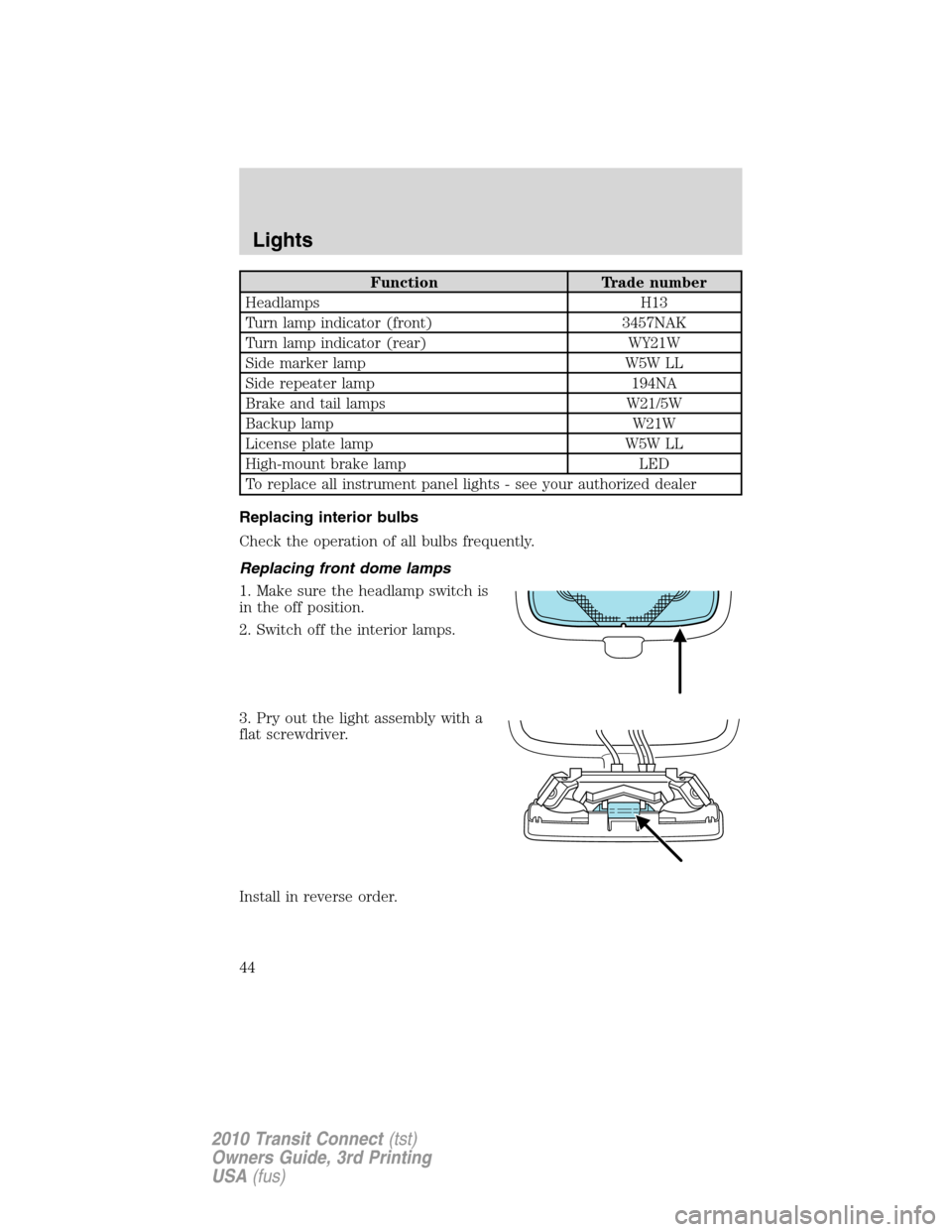

Function Trade number
Headlamps H13
Turn lamp indicator (front) 3457NAK
Turn lamp indicator (rear) WY21W
Side marker lamp W5W LL
Side repeater lamp 194NA
Brake and tail lamps W21/5W
Backup lamp W21W
License plate lamp W5W LL
High-mount brake lamp LED
To replace all instrument panel lights - see your authorized dealer
Replacing interior bulbs
Check the operation of all bulbs frequently.
Replacing front dome lamps
1. Make sure the headlamp switch is
in the off position.
2. Switch off the interior lamps.
3. Pry out the light assembly with a
flat screwdriver.
Install in reverse order.
Lights
44
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

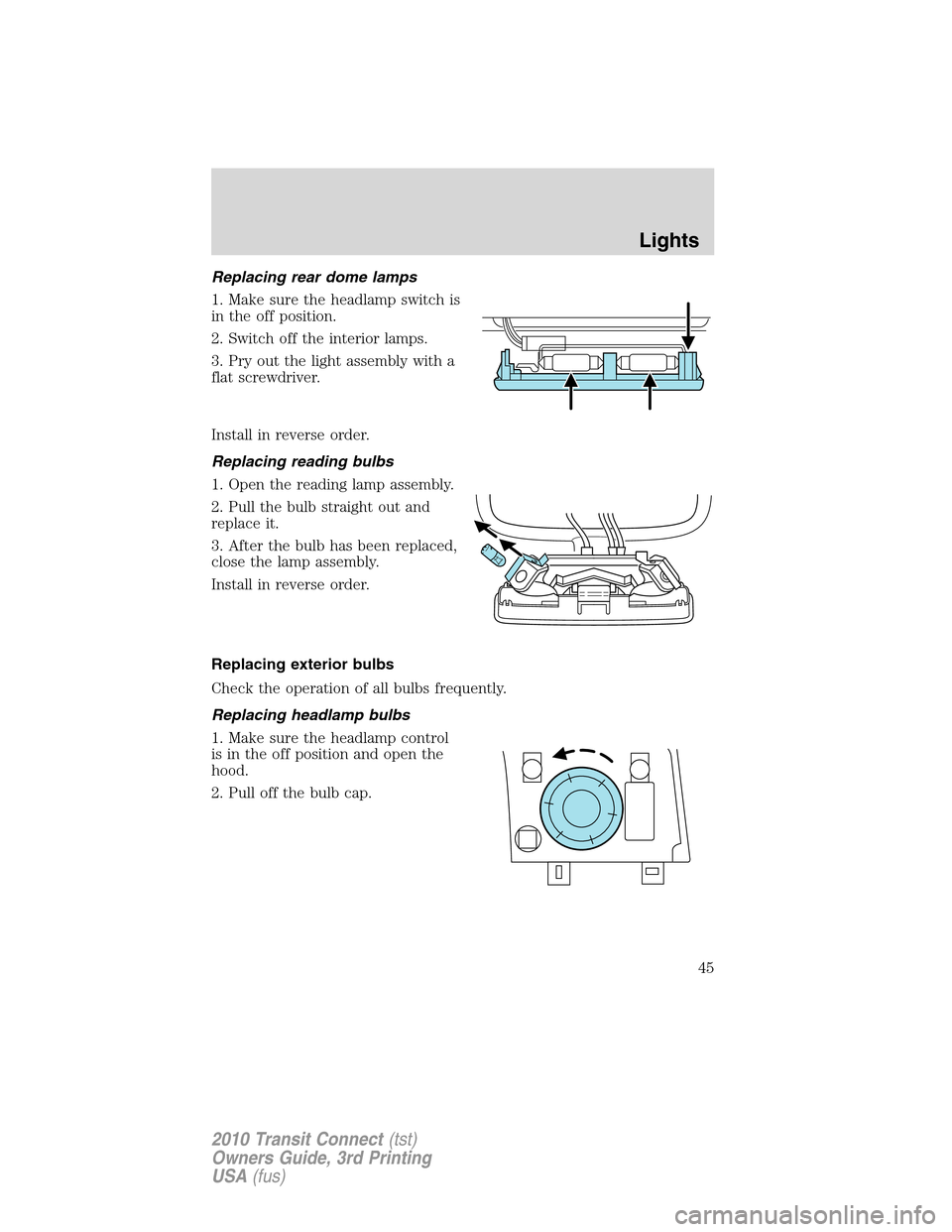

Replacing rear dome lamps
1. Make sure the headlamp switch is
in the off position.
2. Switch off the interior lamps.
3. Pry out the light assembly with a
flat screwdriver.
Install in reverse order.
Replacing reading bulbs
1. Open the reading lamp assembly.
2. Pull the bulb straight out and
replace it.
3. After the bulb has been replaced,
close the lamp assembly.
Install in reverse order.
Replacing exterior bulbs
Check the operation of all bulbs frequently.
Replacing headlamp bulbs
1. Make sure the headlamp control
is in the off position and open the
hood.
2. Pull off the bulb cap.
Lights
45
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

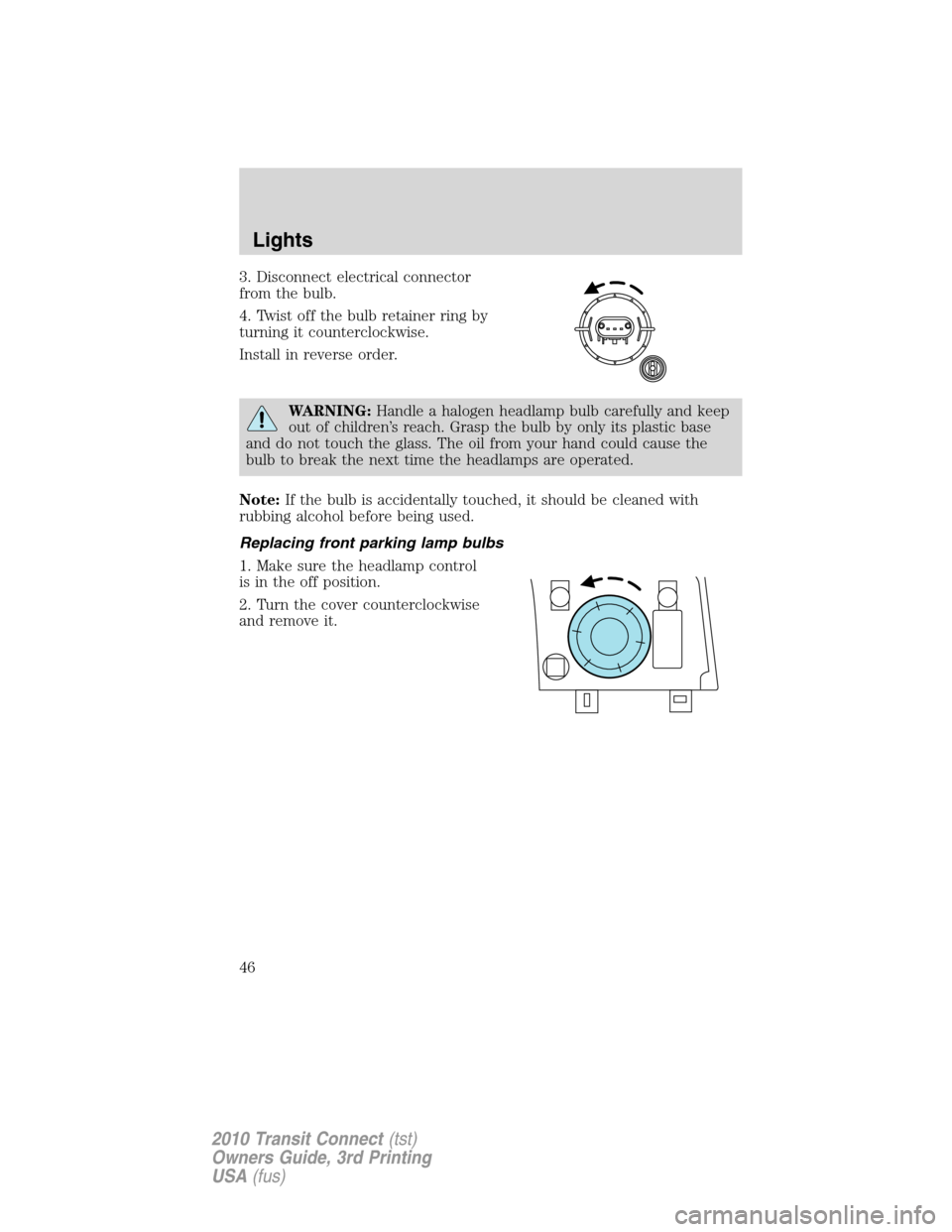

3. Disconnect electrical connector
from the bulb.
4. Twist off the bulb retainer ring by
turning it counterclockwise.
Install in reverse order.
WARNING:Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb by only its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
Note:If the bulb is accidentally touched, it should be cleaned with
rubbing alcohol before being used.
Replacing front parking lamp bulbs
1. Make sure the headlamp control
is in the off position.
2. Turn the cover counterclockwise
and remove it.
