engine FORD TRANSIT CONNECT 2010 1.G Manual PDF

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Engine coolant 6.1 quarts (5.7L)MotorcraftSpecialty
Orange Engine Coolant
with bittering agent
(US) /
MotorcraftSpecialty
Orange Engine Coolant
(Canada)
4
VC-3-B (US)
CVC-3-B (Canada) /
WSS-M97B44-D
Cooling system stop
leak pellets—MotorcraftCooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Windshield washer
fluidTop-off as
neededMotorcraftPremium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Maintenance and Specifications
243
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

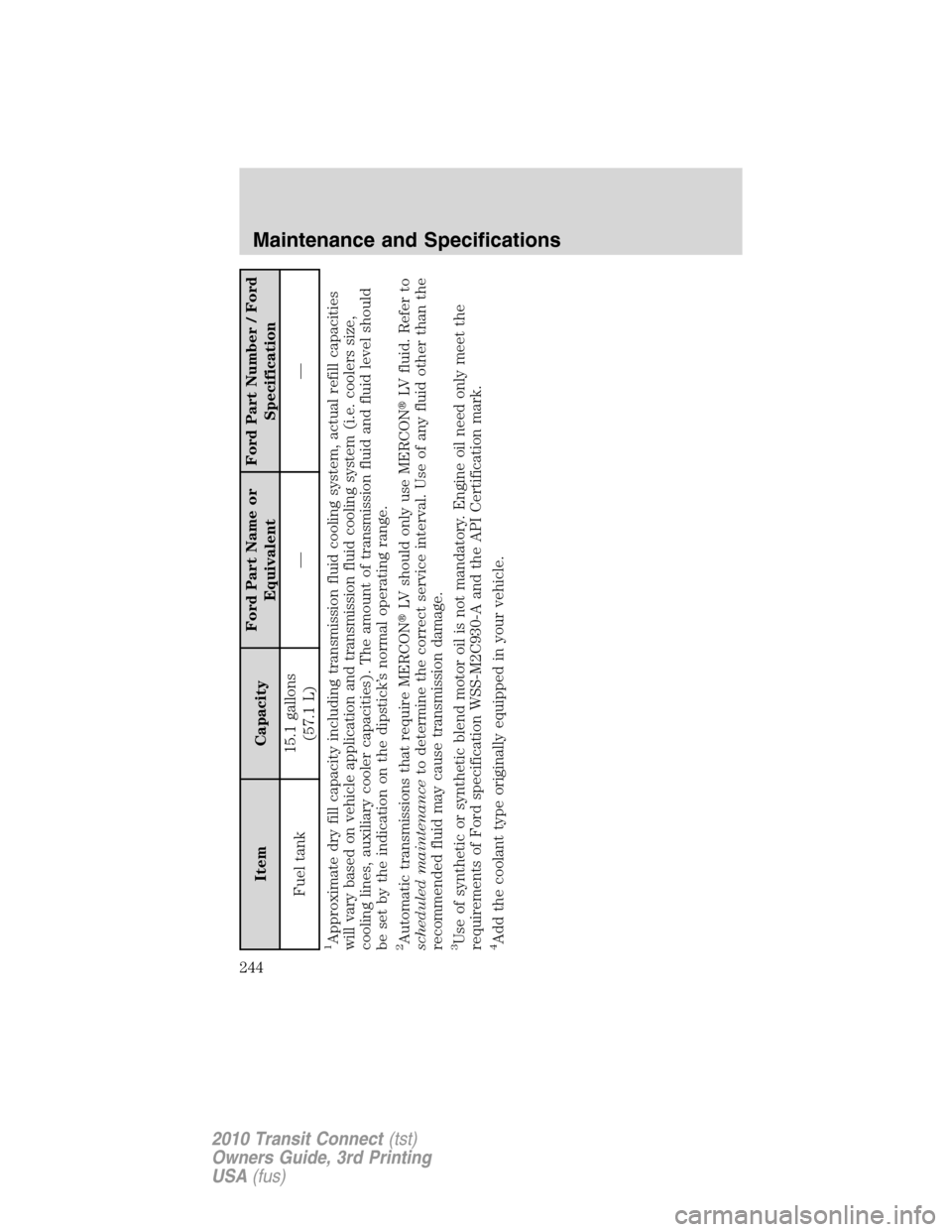

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Fuel tank15.1 gallons
(57.1 L)——
1Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.2Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenanceto determine the correct service interval. Use of any fluid other than the
recommended fluid may cause transmission damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.4Add the coolant type originally equipped in your vehicle.
Maintenance and Specifications
244
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

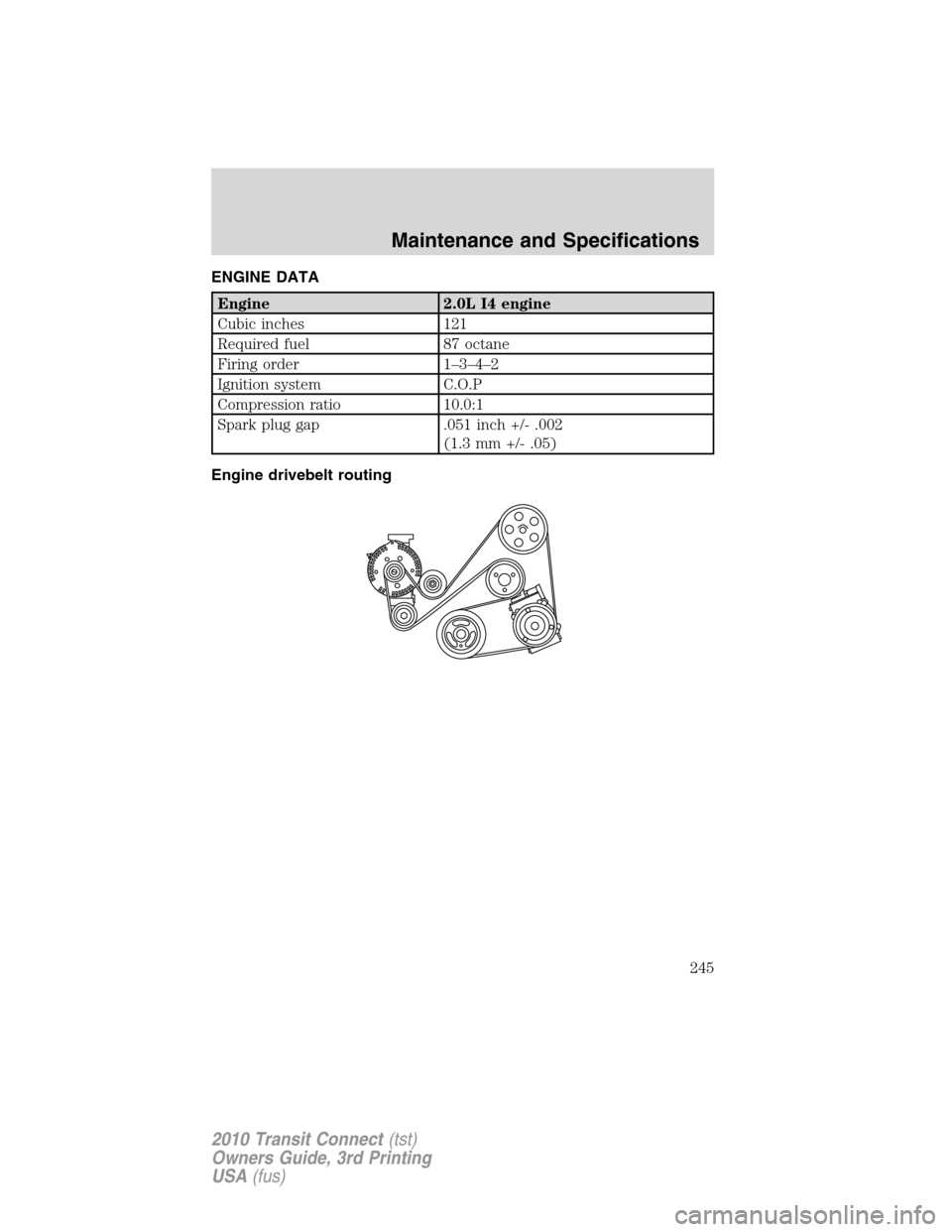

ENGINE DATA
Engine 2.0L I4 engine
Cubic inches 121
Required fuel 87 octane
Firing order 1–3–4–2
Ignition system C.O.P
Compression ratio 10.0:1
Spark plug gap .051 inch +/- .002
(1.3 mm +/- .05)
Engine drivebelt routing
Maintenance and Specifications
245
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

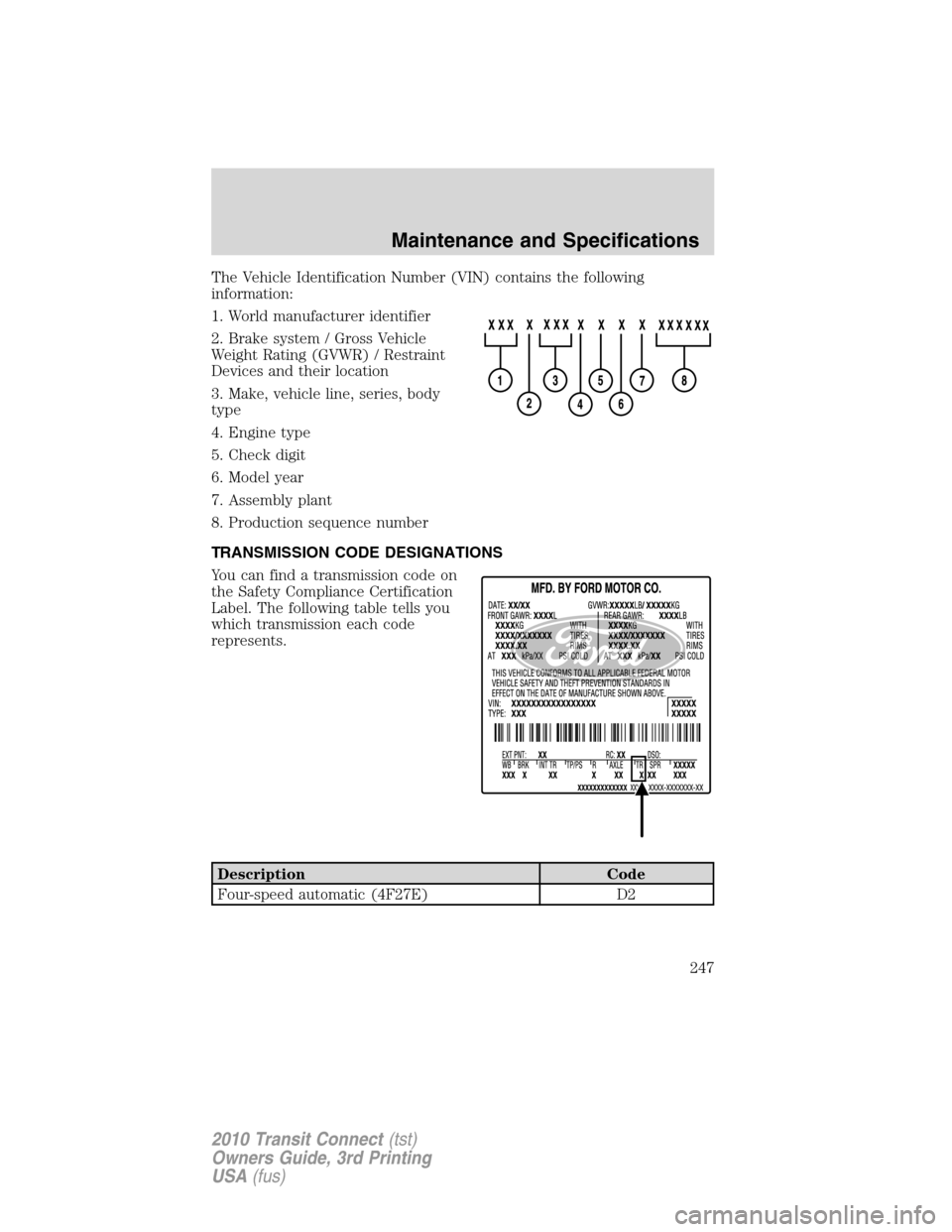

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic (4F27E) D2
Maintenance and Specifications
247
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

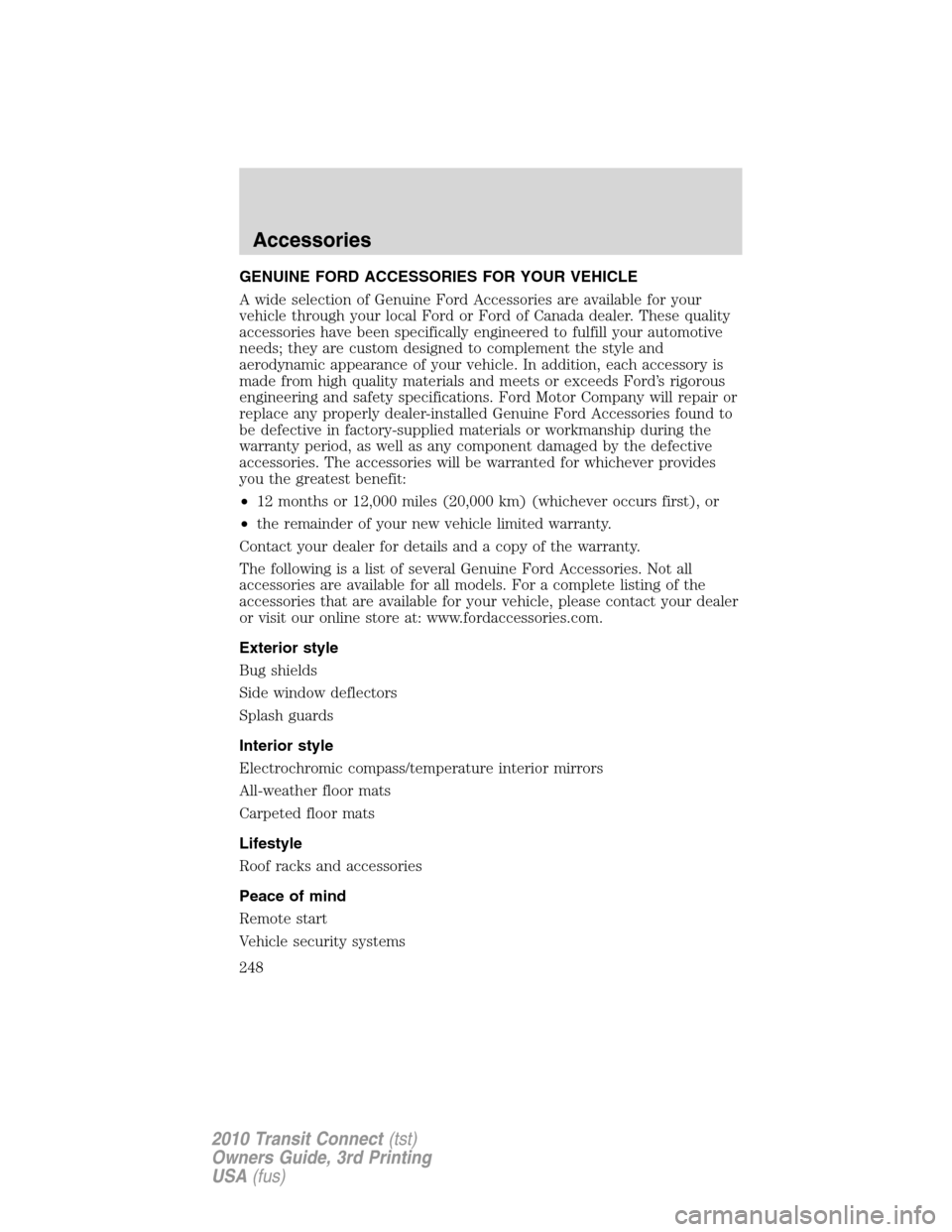

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Side window deflectors
Splash guards
Interior style
Electrochromic compass/temperature interior mirrors
All-weather floor mats
Carpeted floor mats
Lifestyle
Roof racks and accessories
Peace of mind
Remote start
Vehicle security systems
Accessories
248
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

A
AdvanceTrac ..............................162
Air cleaner filter ...............240–241
Airbag supplemental restraint
system ..................................94, 103
and child safety seats ..............96
description ........................94, 103
disposal ....................................105
driver airbag ......................96, 104
indicator light .................103, 105
operation ...........................96, 104
passenger airbag ...............96, 104
side airbag ...............................103
Ambulance packages ....................6
Antifreeze (see Engine
coolant) .....................................220
Anti-lock brake system (see
Brakes) ......................................160
Anti-theft system ........................67
arming the system ....................68
Armrests ......................................75
Audio system (see Radio) ...20–21
Automatic transaxle
fluid, adding ............................238
fluid, checking ........................238
fluid, specification ..................242
Automatic transmission
driving an automatic
overdrive .................................169
fluid, refill capacities ..............242
Auxiliary input jack (Line in) ....24
Auxiliary power point .................53
Axle
refill capacities ........................242
B
Battery .......................................218acid, treating emergencies .....218
jumping a disabled battery ....192
maintenance-free ....................218
replacement, specifications ...241
servicing ..................................218
Belt-Minder...............................90
Bluetooth system ........................25
Booster seats .............................120
Brakes ........................................160
anti-lock ...................................160
anti-lock brake system (ABS)
warning light ...........................160
fluid, checking and adding ....237
fluid, refill capacities ..............242
fluid, specifications .................242
lubricant specifications ..........242
parking ....................................161
shift interlock ..........................168
Bulbs ............................................43
C
Capacities for refilling fluids ....242
CD player ....................................20
Cell phone use ..............................9
Changing a tire .........................183
Child safety seats ......................110
attaching with tether straps ..116
in front seat ............................111
in rear seat ..............................111
LATCH .....................................114
recommendations ...................108
Child safety seats - booster
seats ...........................................120
Cleaning your vehicle
engine compartment ..............208
instrument panel ....................209
interior .....................................210
Index
253
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

plastic parts ............................208
safety belts ..............................210
washing ....................................206
waxing .....................................207
wheels ......................................207
wiper blades ............................209
Clock ......................................20–21
Console ........................................52
overhead ....................................53
Controls
steering column ........................58
Coolant
checking and adding ..............220
refill capacities ................223, 242
specifications ..........................242
Cruise control (see Speed
control) ........................................56
Customer Assistance ................174
Ford Extended Service
Plan ..........................................250
Getting assistance outside the
U.S. and Canada .....................203
Getting roadside assistance ...174
Getting the service you
need .........................................199
Ordering additional owner’s
literature .................................204
Utilizing the
Mediation/Arbitration
Program ...................................203
D
Daytime running lamps (see
Lamps) .........................................39
Dipstick
automatic transmission
fluid ..........................................238
engine oil .................................216Doors
central unlocking ......................62
Driving under special
conditions
through water .........................173
E
Emergencies, roadside
jump-starting ..........................192
Emission control system ..........234
Engine ........................................245
cleaning ...................................208
coolant .....................................220
fail-safe cooling .......................224
idle speed control ...................218
lubrication specifications .......242
refill capacities ........................242
service points ..................214–215
Engine block heater .................158
Engine oil ..................................216
checking and adding ..............216
dipstick ....................................216
filter, specifications ........217, 241
recommendations ...................217
refill capacities ........................242
specifications ..........................242
Event data recording ....................7
Exhaust fumes ..........................158
F
Fail safe cooling ........................224
Fluid capacities .........................242
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................166
Fuel ............................................226
calculating fuel economy .......231
Index
254
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........160
Load limits .................................148
Loading instructions .................153
Locks
childproof ..................................62
Lubricant specifications ...........242
Lug nuts ....................................191
Lumbar support, seats ...............75
M
Manual transaxle
lubricant specifications ..........242
Mirrors .........................................55
fold away ...................................55
heated ........................................55
side view mirrors (power) .......55
Motorcraftparts ..............211, 241
O
Octane rating ............................229
Oil (see Engine oil) ..................216
P
Parking brake ............................161
Parts (see Motorcraft
parts) .........................................241
Passenger Occupant
Classification Sensor ...................83
Power distribution box
(see Fuses) ...............................180
Power mirrors .............................55
Power point .................................53
Power steering ..........................165fluid, checking and adding ....237
fluid, refill capacity ................242
fluid, specifications .................242
Power Windows ...........................54
Preparing to drive your
vehicle ........................................166
R
Radio ......................................20–21
Recommendations for
attaching safety restraints for
children ......................................108
Relays ........................................176
Remote entry system .................63
illuminated entry ......................67
locking/unlocking doors .....62, 64
opening the trunk .....................64
replacement/additional
transmitters ...............................66
replacing the batteries .............64
Reverse sensing system ...........171
Roadside assistance ..................174
S
Safety belts (see Safety
restraints) ........................81, 85–89
Safety Canopy ...........................103
Safety defects, reporting ..........205
Safety restraints ..............81, 85–89
Belt-Minder.............................90
for adults .............................86–88
for children .............................105
Occupant Classification
Sensor ........................................83
warning light and chime ....89–90
Index
256
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)
