POWER STEERING FLUID
Check the fluid. Your power steering
fluid reservoir may look like one of
these two graphics. Refer to
scheduled maintenance
information.
1. Start the engine and let it run
until it reaches normal operating
temperature.
2. Turn the steering wheel left and
right several times.
3. Turn the engine off.
4. Check the fluid level.
5. If the fluid is below the MIN line,
add fluid in small amounts until it
reaches the correct level (between
the MIN and MAX lines). Refer to
Maintenance product
specifications and capacitiesin
this chapter for the proper fluid
type.
Electric vehicles
For specific information on the Transit Connect Electric, refer to the
Azure Dynamics TC-E Owner’s GuideSupplement.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of the
system could be compromised; seek
service from your authorized dealer
immediately. If the brake fluid level falls below the MIN line, a brake
warning lamp will come on.
Maintenance and Specifications
250
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Brake fluid should not be allowed to contact the eyes and skin. If this
happens, promptly wash the area thoroughly with soap and water.
Consult a physician immediately if you experience an adverse reaction.
TRANSMISSION FLUID
Electric vehicles
For specific information on the Transit Connect Electric, refer to the
Azure Dynamics TC-E Owner’s GuideSupplement.
Checking automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic, or
during hot weather, the vehicle should be turned off for about
30 minutes to allow fluid to cool before checking. Under these
conditions, the vehicle must be restarted prior to checking the
fluid level.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Place the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated areas for normal operating temperature.
Maintenance and Specifications
251
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

•Check under the hood for any foreign material that may have collected
during storage (mice/squirrel nests).
•Check the exhaust for any foreign material that may have collected
during storage.
•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build-up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
Electric vehicles
For specific information on the Transit Connect Electric, refer to the
Azure Dynamics TC-E Owner’s GuideSupplement.
MOTORCRAFT PART NUMBERS
Component 2.0L I4 engine
Engine air filter element FA-1900
Oil filter FL-910S
1
Battery BXT-96R-590
Spark plugs2
Cabin air filter FP38
1Only use the specified replacement oil filter. The use of a non-specified
oil filter can result in engine damage.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
256
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

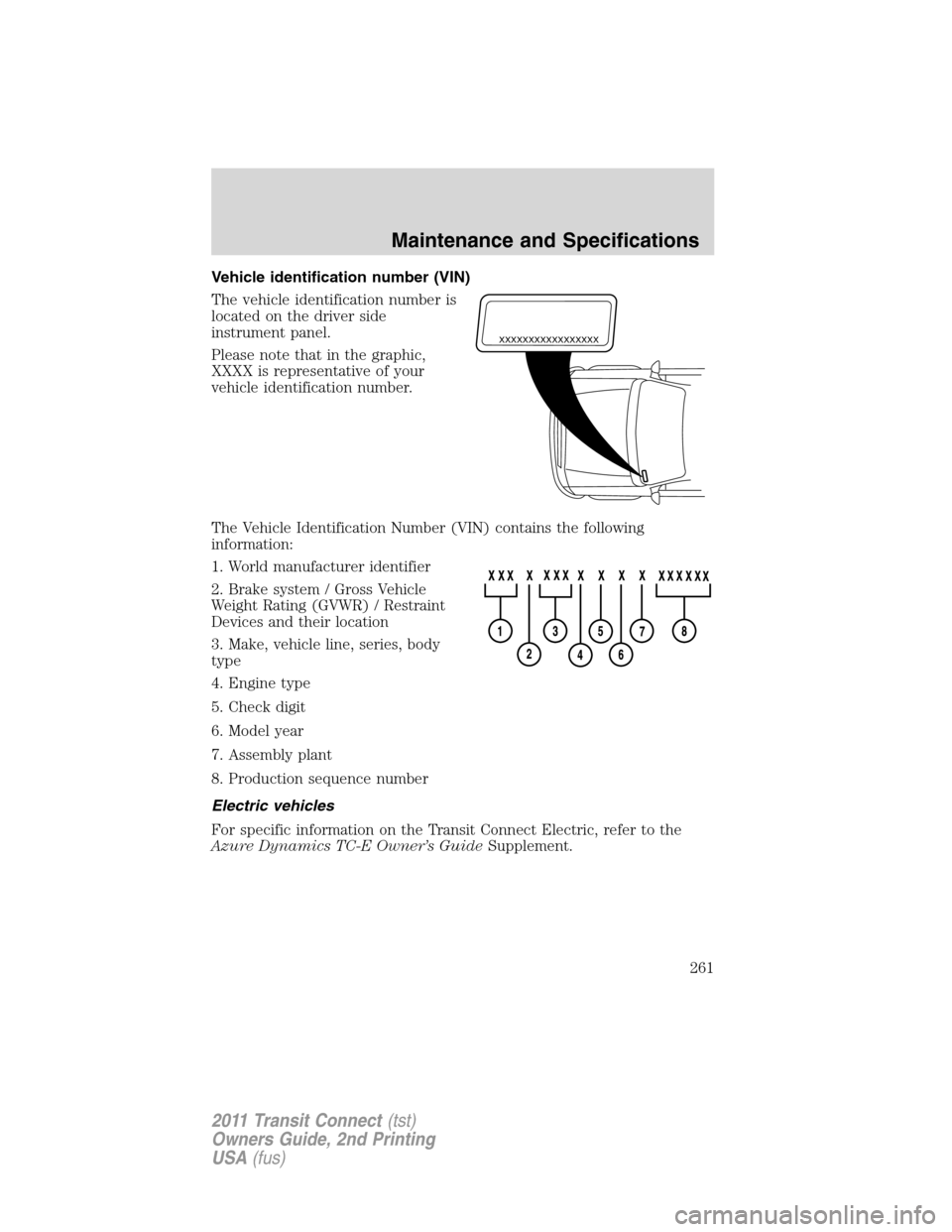

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Electric vehicles
For specific information on the Transit Connect Electric, refer to the
Azure Dynamics TC-E Owner’s GuideSupplement.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
261
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Genuine Ford and Motorcraftreplacement parts
Dealerships stock Ford and Motorcraftbranded replacement parts.
These parts meet or exceed Ford Motor Company’s specifications, and
we stand behind them. Parts installed at your dealership carry a
nationwide, 12 month/12,000 mile (20,000 km) parts and labor limited
warranty. Your dealer can give you details.
Value shopping for your vehicle’s maintenance needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your dealers
can offer.
Owner checks and services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this owner’s
guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Engine oil/coolant change intervals
Engine oil6 months or 7,500 miles (12,000 km)
(whichever comes first)
Engine coolant, initial
change6 years or 105,000 miles (168,000 km)
(whichever comes first)
Engine coolant, after
initial changeEvery 3 years or 45,000 miles (72,000 km)
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Scheduled Maintenance
271
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Multi-point inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help ensure your vehicle keeps
running great.
Multi-point inspection – Recommended each visit
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension components for leaks and
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires for wear and proper pressure,
including spare
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and
window washer
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
Scheduled Maintenance
272
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

A
AdvanceTrac ..............................170
Airbag supplemental restraint
system ................................100, 109
and child safety seats ............102
description ......................100, 109
disposal ....................................111
driver airbag ....................102, 110
indicator light .................109, 111
operation .........................102, 110
passenger airbag .............102, 110
side airbag ...............................109
Air cleaner filter ...............253, 256
Ambulance packages ....................7
Antifreeze (see Engine
coolant) .....................................233
Anti-lock brake system (see
Brakes) ......................................168
Anti-theft system ........................74
arming the system ....................75
Armrests ......................................81
Audio system (see Radio) ...22–23
Automatic transaxle
fluid, adding ............................251
fluid, checking ........................251
fluid, specification ..................257
Automatic transmission
driving an automatic
overdrive .................................177
fluid, refill capacities ..............257
Auxiliary input jack (Line in) ....25
Auxiliary power point .................58
Axle
refill capacities ........................257
B
Battery .......................................231acid, treating emergencies .....231
jumping a disabled battery ....203
maintenance-free ....................231
replacement, specifications ...256
servicing ..................................231
Belt-Minder...............................96
Blind spot mirror ......................182
Bluetooth system ........................27
Booster seats .............................127
Brakes ........................................168
anti-lock ...................................168
anti-lock brake system (ABS)
warning light ...........................169
fluid, checking and adding ....250
fluid, refill capacities ..............257
fluid, specifications .................257
lubricant specifications ..........257
parking ....................................169
shift interlock ..........................176
Bulbs ............................................47
C
Capacities for refilling fluids ....257
CD player ....................................22
Cell phone use ............................10
Changing a tire .........................195
Child safety seats ......................116
attaching with tether
straps .......................................123
in front seat ............................117
in rear seat ..............................117
LATCH .....................................120
recommendations ...................114
Child safety seats - booster
seats ...........................................127
Cleaning your vehicle
engine compartment ..............219
Index
290
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

instrument panel ....................220
interior .....................................221
plastic parts ............................219
safety belts ..............................221
washing ....................................217
waxing .....................................218
wheels ......................................218
wiper blades ............................220
Clock ......................................22–23
Console ........................................57
overhead ....................................58
Controls
steering column ........................63
Coolant
checking and adding ..............233
refill capacities ................236, 257
specifications ..........................257
Cruise control (see Speed
control) ........................................61
Customer Assistance ................185
Ford Extended Service
Plan ..................................265, 268
Getting assistance outside the
U.S. and Canada .....................213
Getting roadside assistance ...185
Getting the service you
need .........................................209
Ordering additional owner’s
literature .................................215
Utilizing the
Mediation/Arbitration
Program ...................................213
D
Daytime running lamps (see
Lamps) .........................................44
Dipstick
automatic transmission
fluid ..........................................251engine oil .................................229
Doors ...........................................69
central unlocking ......................68
Driving under special
conditions
through water .........................183
E
Emergencies, roadside
jump-starting ..........................203
Emission control system ..........246
Engine ................................259–260
cleaning ...................................219
coolant .....................................233
fail-safe cooling .......................237
idle speed control ...................231
lubrication specifications .......257
refill capacities ........................257
service points ..................227–228
Engine block heater .................166
Engine oil ..................................229
checking and adding ..............229
dipstick ....................................229
filter, specifications ........230, 256
recommendations ...................230
refill capacities ........................257
specifications ..........................257
Event data recording ....................8
Exhaust fumes ..........................166
F
Fail safe cooling ........................237
Floor mats .............................64–65
Fluid capacities .........................257
Index
291
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

LATCH anchors .........................120
Liftgate ........................................65
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........169
Loading instructions .................161
Load limits .................................156
Locks
childproof ..................................68
Lubricant specifications ...........257
Lug nuts ....................................202
Lumbar support, seats ...............81
M
Manual transaxle
lubricant specifications ..........257
Mirrors ...................................59–60
automatic dimming rearview
mirror ........................................60
fold away ...................................61
heated ........................................61
side view mirrors (power) .......60
Motorcraftparts ..............224, 256
O
Octane rating ............................242
Oil (see Engine oil) ..................229
P
Parking brake ............................169
Parts (see Motorcraft
parts) .........................................256
Passenger Occupant
Classification Sensor ...................88Power distribution box (see
Fuses) ........................................192
Power mirrors .............................60
Power point .................................58
Power steering ..........................173
fluid, checking and adding ....250
fluid, refill capacity ................257
fluid, specifications .................257
Power Windows ...........................59
Preparing to drive your
vehicle ........................................174
R
Radio ......................................22–23
Rear-view camera system .........181
Recommendations for
attaching safety restraints for
children ......................................114
Relays ........................................187
Remote entry system .................69
illuminated entry ......................73
locking/unlocking
doors ..............................68, 70–71
opening the trunk .....................71
replacement/additional
transmitters ...............................72
replacing the batteries .............71
Reverse sensing system ...........179
Roadside assistance ..................185
S
Safety belts (see Safety
restraints) ..................87, 92–93, 95
Safety Canopy ...........................109
Safety defects,
reporting ............................215–216
Index
293
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)
