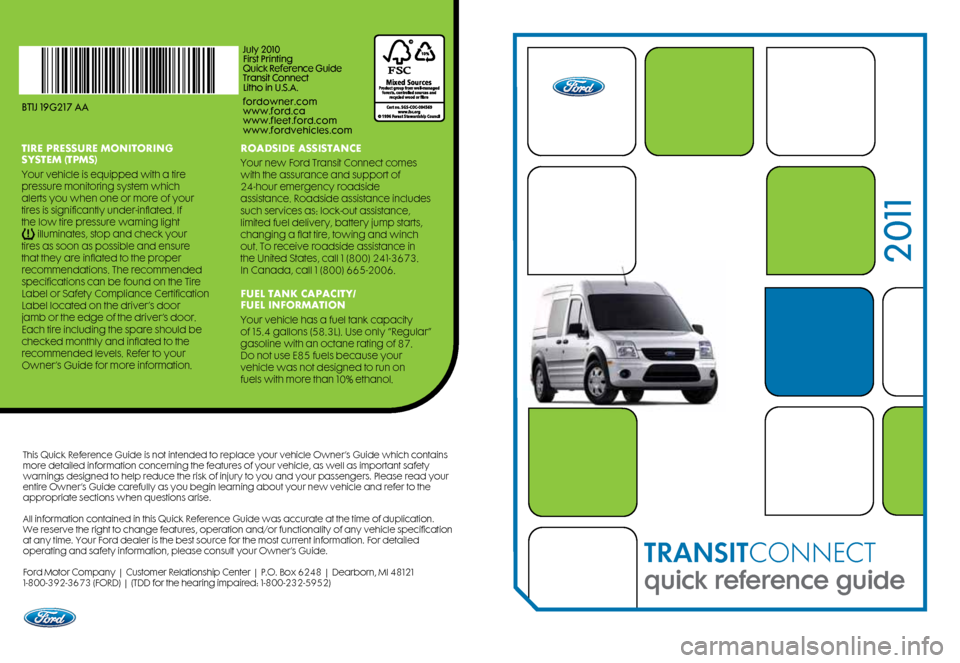

FORD TRANSIT CONNECT 2011 1.G Quick Reference Guide

This Quick Reference Guide is not intended to replace your vehicle Owner’s Guide which contains
more detailed information concerning the features of your vehicle, as well as important safety
warnings designed to help reduce the risk of injury to you and your passengers. Please read your
entire Owner’s Guide carefully as you begin learning about your new vehicle and refer to the
appropriate sections when questions arise.
All information contained in this Quick Reference Guide was accurate at the time of duplication.
We reserve the right to change features, operation and/or functionality of any vehicle specification
at any time. Your Ford dealer is the best source for the most current information. For detailed
operating and safety information, please consult your Owner’s Guide.
Ford Motor Company | Customer Relationship Center | P.O. Box 6248 | Dearborn, MI 48121
1-800-392-3673 (FORD) | (TDD for the hearing impaired: 1-800-232-5952)
BT1J 19G217 AA
July 2010
First Printing
Quick Reference Guide
Transit Connect
Litho in U.S.A.
fordowner.com
www.ford.ca
www.fleet.ford.com
www.fordvehicles.com

Tire Pressure MoniToring
sysTeM (TPMs)
Your vehicle is equipped with a tire
pressure monitoring system which
alerts you when one or more of your
tires is significantly under-inflated. If
the low tire pressure warning light
illuminates, stop and check your
tires as soon as possible and ensure
that they are inflated to the proper
recommendations. The recommended
specifications can be found on the Tire
Label or Safety Compliance Certification
Label located on the driver’s door
jamb or the edge of the driver’s door.
Each tire including the spare should be
checked monthly and inflated to the
recommended levels. Refer to your
Owner’s Guide for more information. roadside assisTance
Your new Ford Transit Connect comes
with the assurance and support of

24-hour emergency roadside
assistance. Roadside assistance includes
such services as: lock-out assistance,
limited fuel delivery, battery jump starts,
changing a flat tire, towing and winch
out. To receive roadside assistance in
the United States, call 1 (800) 241-3673.
In Canada, call 1 (800) 665-2006.
fuel Tank caPaciTy/
fuel inforMaTion
Your vehicle has a fuel tank capacity
of 15.4 gallons (58.3L). Use only “Regular”
gasoline with an octane rating of 87.
Do not use E85 fuels because your
vehicle was not designed to run on
fuels with more than 10% ethanol.
TransiT COnnECT
quick reference guide
2011

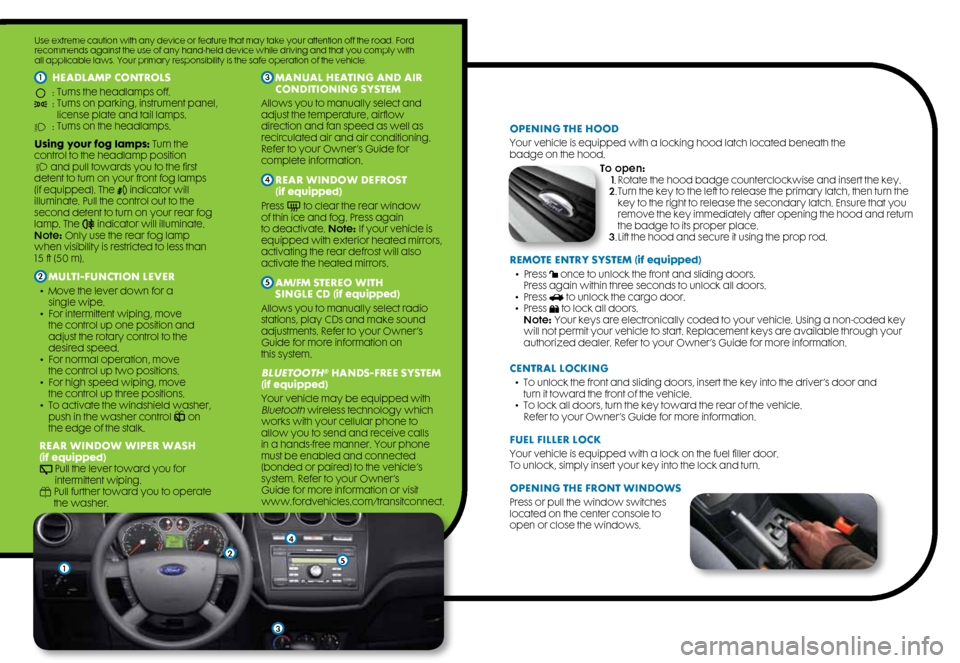

1 HeadlaMP conTrols
: Turns the headlamps off. : Turns on parking, instrument panel,
license plate and tail lamps.
: Turns on the headlamps.
using your fog lamps: Turn the
control to the headlamp position
and pull towards you to the first
detent to turn on your front fog lamps
(if equipped). The
indicator will
illuminate. Pull the control out to the
second detent to turn on your rear fog
lamp. The
indicator will illuminate.
note: Only use the rear fog lamp
when visibility is restricted to less than
15 ft (50 m).
2 MulTi-funcT ion lever
• Move the lever down for a
single wipe.
• For intermittent wiping, move
the control up one position and
adjust the rotary control to the
desired speed.
• For normal operation, move
the control up two positions.
• For high speed wiping, move
the control up three positions.
• To activate the windshield washer,
push in the washer control
on
the edge of the stalk.
rear window wiPer wasH
(if equipped)
Pull the lever toward you for
intermittent wiping.
Pull further toward you to operate
the washer.
3 Manual Hea Ting and air
condiTioning sysTeM
Allows you to manually select and
adjust the temperature, airflow
direction and fan speed as well as
recirculated air and air conditioning.
Refer to your Owner’s Guide for
complete information.
4 rear window defrosT (if equipped)
Press
to clear the rear window
of thin ice and fog. Press again
to deactivate. note: If your vehicle is
equipped with exterior heated mirrors,
activating the rear defrost will also
activate the heated mirrors.
5 aM/fM sTereo wiTH single cd (if equipped )
Allows you to manually select radio
stations, play CDs and make sound
adjustments. Refer to your Owner’s
Guide for more information on
this system.
BlueTooTH® Hands-free sysTeM
(if equipped)
Your vehicle may be equipped with
Bluetooth wireless technology which
works with your cellular phone to
allow you to send and receive calls
in a hands-free manner. Your phone
must be enabled and connected
(bonded or paired) to the vehicle’s
system. Refer to your Owner’s
Guide for more information or visit
www.fordvehicles.com/transitconnect. oPening THe Hood
Your vehicle is equipped with a locking hood latch located beneath the

badge on the hood.
To open:
1. Rotate the hood badge counterclockwise and insert the key.
2. Turn the key to the left to release the primary latch, then turn the
key to the right to release the secondary latch. Ensure that you
remove the key immediately after opening the hood and return
the badge to its proper place.
3. Lift the hood and secure it using the prop rod.
reMoTe enTry sysTeM (if equipped)
• Press
once to unlock the front and sliding doors.
Press again within three seconds to unlock all doors.
• Press
to unlock the cargo door.
• Press to lock all doors.
note: Your keys are electronically coded to your vehicle. Using a non-coded key
will not permit your vehicle to start. Replacement keys are available through your
authorized dealer. Refer to your Owner’s Guide for more information.
cenTral locking
• To unlock the front and sliding doors, insert the key into the driver’s door and
turn it toward the front of the vehicle.
• To lock all doors, turn the key toward the rear of the vehicle.
Refer to your Owner’s Guide for more information.
fuel filler lock
Your vehicle is equipped with a lock on the fuel filler door.
To unlock, simply insert your key into the lock and turn.
oPening THe fronT windows
Press or pull the window switches
located on the center console to
open or close the windows.
1
2
3
4
5
